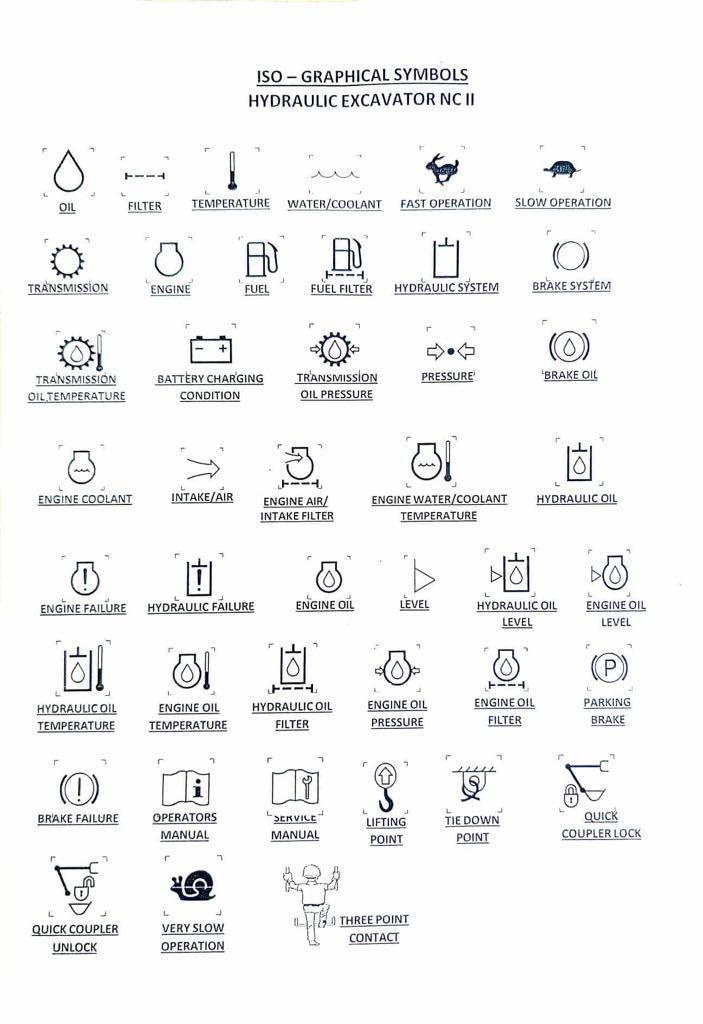

ISO Graphical Symbols - Hydraulic Excavator NC II

Vocabulary flashcards related to ISO graphical symbols for a hydraulic excavator.

A filter designed to remove contaminants from engine oil, transmission oil, lubricating oil, or hydraulic oil.

Oil Filter

Fuel Filter

A filter in the fuel line that screens out dirt and rust particles from the fuel.

Hydraulic System

A system that uses pressurized hydraulic fluid to power machines.

Brake System

A system that slows or stops the movement of a vehicle or machine.

Transmission Pressure

The pressure of the fluid within the transmission system.

Brake Oil Condition

The state or quality of brake fluid, indicating its suitability for use.

Oil Temperature Condition

The condition of the oil based on its temperature, usually indicating optimum operating temperature.

Oil Pressure

The force exerted by oil, typically in an engine or hydraulic system.

Engine Coolant Intake/Air

Air entering the engine cooling system.

Engine Air/Intake Filter

A filter that removes contaminants from the air entering the engine.

Hydraulic Oil

A fluid used to transmit power in hydraulic systems.

Engine Failure

A condition where the engine ceases to function correctly.

Hydraulic Failure

A condition where the hydraulic system ceases to function correctly.

Engine Oil Level

The height or quantity of engine oil in the engine.

Hydraulic Oil Level

The height or quantity of hydraulic oil in the hydraulic system.

Hydraulic Oil Temperature

The degree of hotness or coldness of hydraulic oil.

Engine Oil Temperature

The degree of hotness or coldness of engine oil.

Hydraulic Oil Filter

A filter designed to remove contaminants from hydraulic oil.

Engine Oil Pressure

The force exerted by engine oil within the engine.

Engine Oil Filter

A filter designed to remove contaminants from engine oil.

Parking Brake

A brake used to keep a vehicle or machine stationary.

Brake Failure

A condition where the brake system ceases to function correctly.

Lifting Point

A specific location on a machine designated for lifting.

Tie Down Point

A specific location on a machine designated for securing it during transport.

Quick Coupler Lock/Unlock

A mechanism for quickly attaching and detaching implements or attachments.
