VSEPR Theory and Molecular Geometry

Put the Name and bond angle for example "Tetrahedral, 109.5" also 1 unshared is the same as 1 lone pair

4 σ Bonds

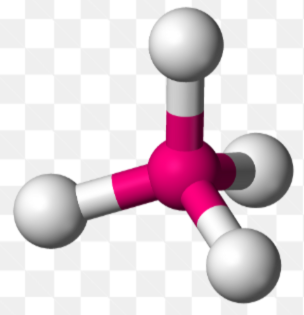

Tetrahedral, 109.5

Tetrahedral, 109.5

3 σ Bonds & 1 lone pair

Trigonal Pyramidal, 107

Trigonal Pyramidal, 107

2 σ Bonds & 2 lone pairs

Bent, 104.5

*2 Lone Pairs*

Bent, 104.5

3 σ Bonds

Trigonal Planar, 120

Trigonal Planar, 120

2 σ Bonds & 1 Lone Pair

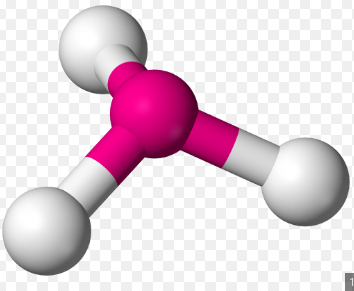

Angular, 117

2 σ Bonds

Linear, 180

Linear, 180

5 σ Bonds

Trigonal bipyramidal, 120 and 90

Trigonal bipyramidal, 120 and 90

6 σ Bonds

Octahedral, 90

Octahedral, 90

5 σ Bonds & 1 Lone Pair

Square pyramidal, 90

Square Pyramidal

4 σ Bonds & 2 Lone Pairs

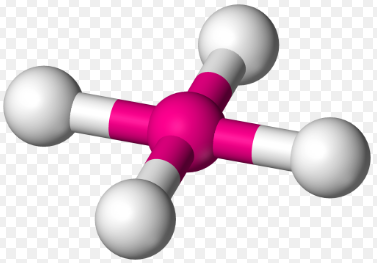

Square planar, 90

Square Planar, 90

4 σ Bonds & 1 Lone Pair

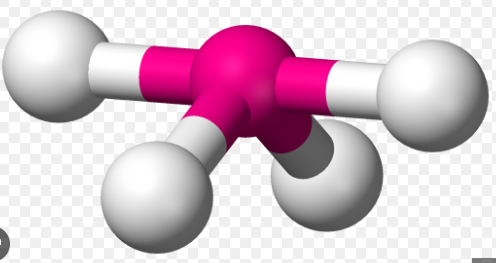

See-saw, 87 and 172

See-saw, 87 and 172

3 σ Bonds & 2 Lone Pairs

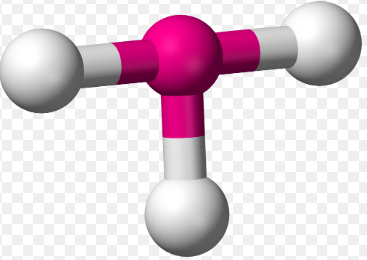

T-shaped, 87 and 172

T-shaped, 87 and 172
