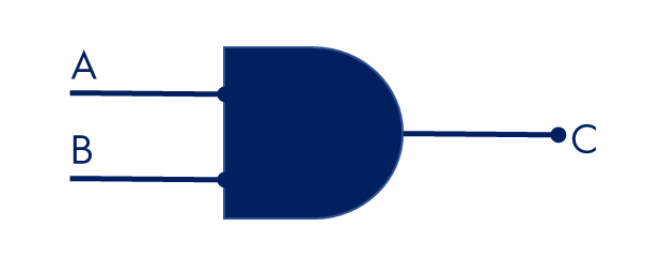

The AND Gate

Both inputs need to be active for output to be active

<p>Both inputs need to be active for output to be active</p>
2
New cards

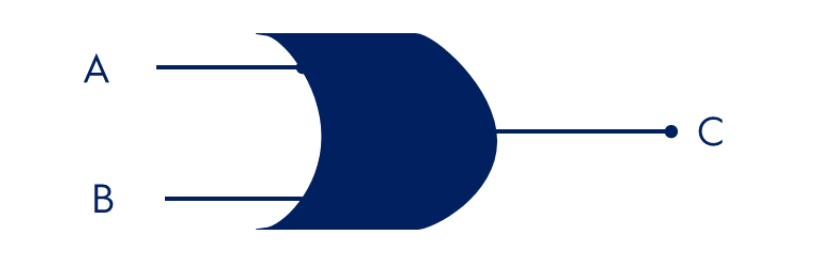

The OR Gate

Needs at least one input (or both) active to have an output

<p>Needs at least one input (or both) active to have an output</p>
3
New cards

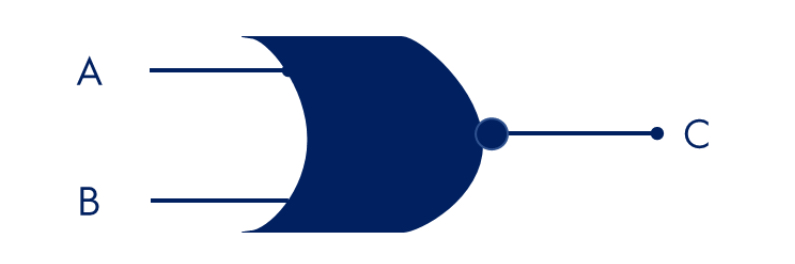

The NOR Gate

Needs no input to have an active output

<p>Needs no input to have an active output</p>
4
New cards

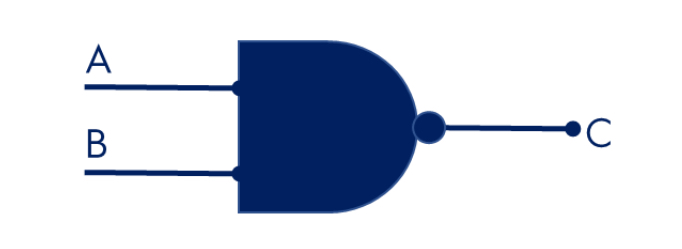

The NAND Gate

Needs at least one (or both) input inactive to have an active output

<p>Needs at least one (or both) input inactive to have an active output </p>
5
New cards

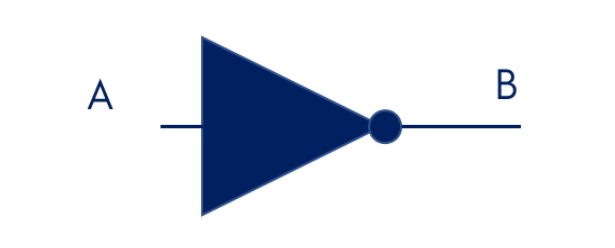

The NOT Gate

The opposite of the input

<p>The opposite of the input </p>
