Functional Anatomy Lab Exam Unit 1

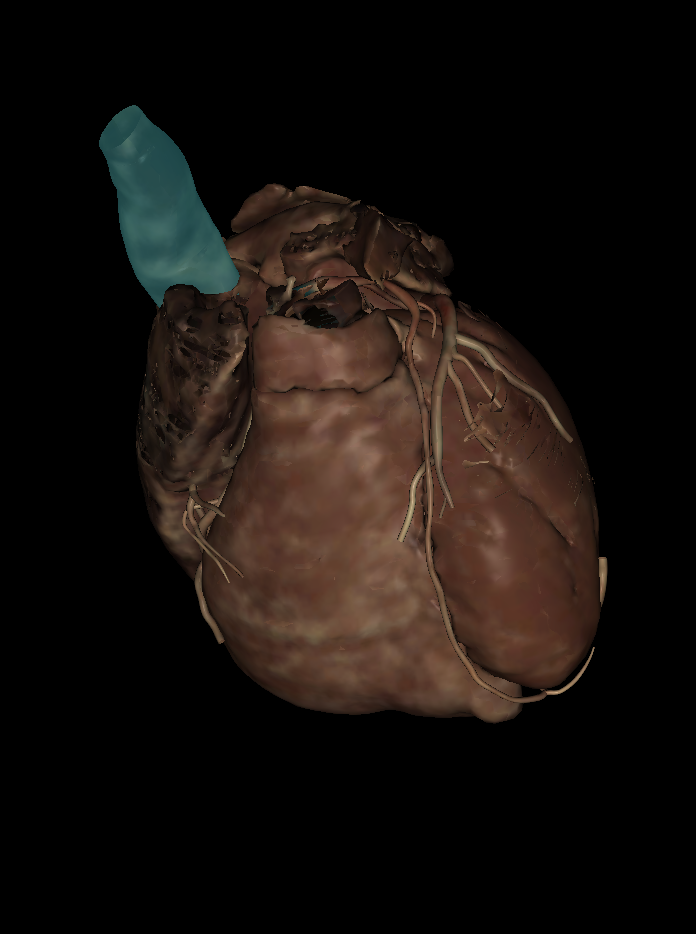

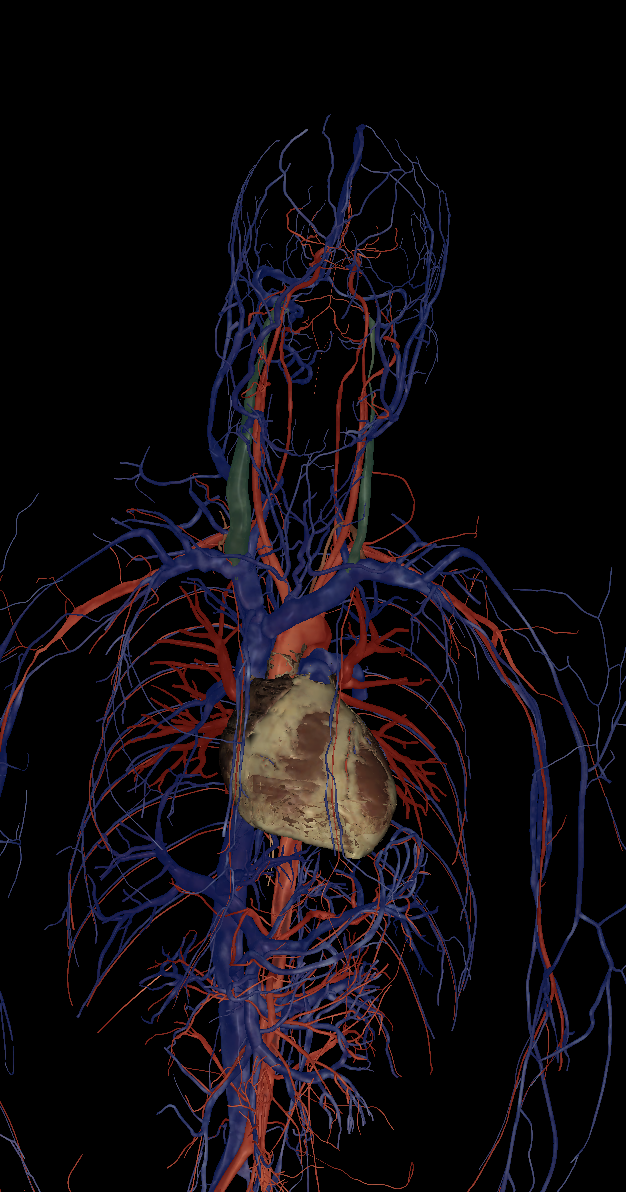

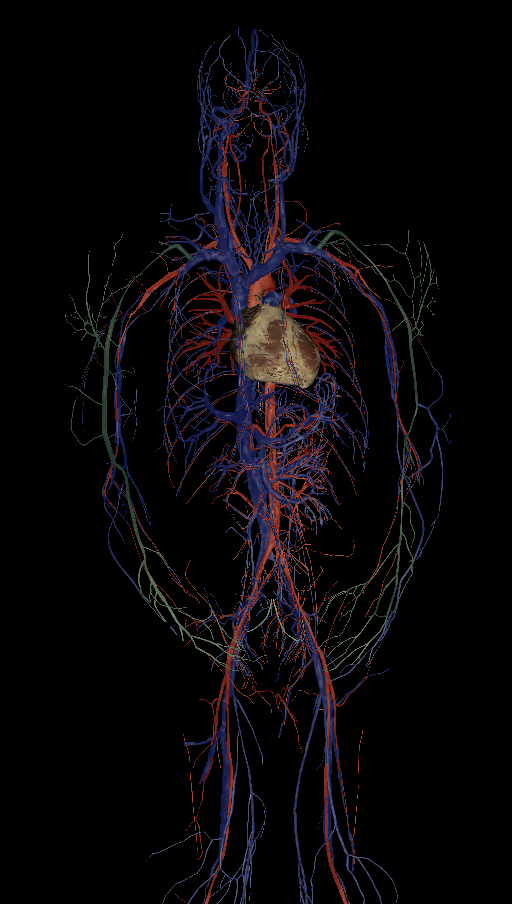

Name the structure highlighted

Superior Vena Cava

Name the structure highlighted

Inferior Vena Cava

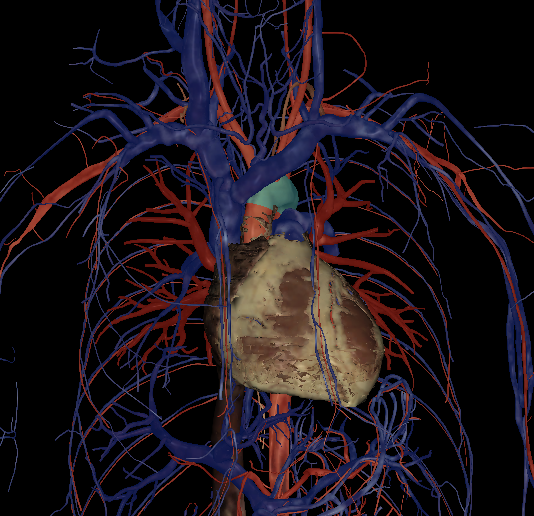

Name the structure highlighted

aortic arch

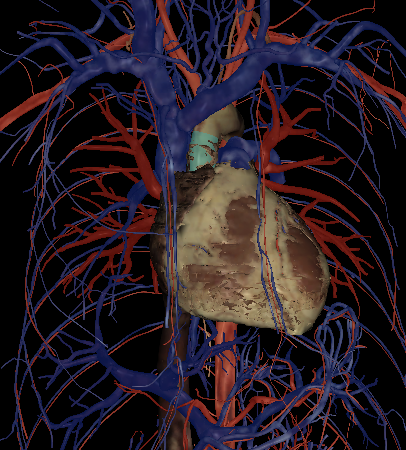

Name the structure highlighted

Ascending aorta

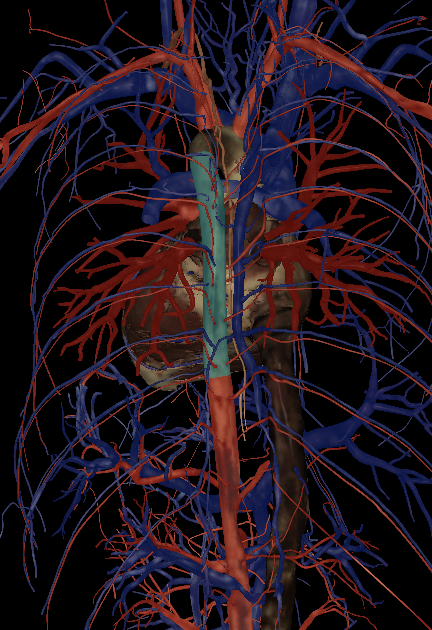

Name the structure highlighted (posterior view)

thoracic aorta

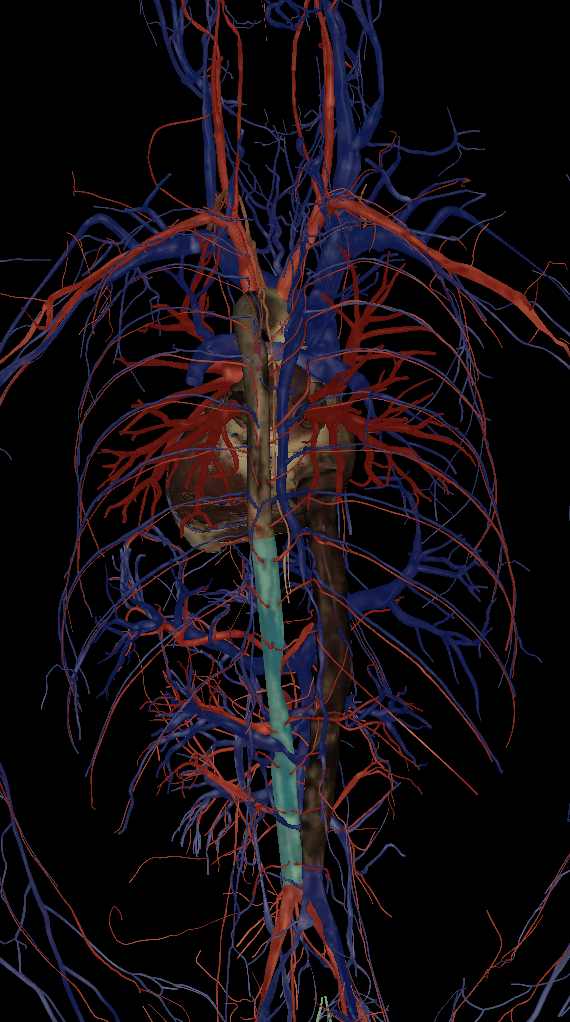

Name the structure highlighted (posterior view)

Abdominal aorta

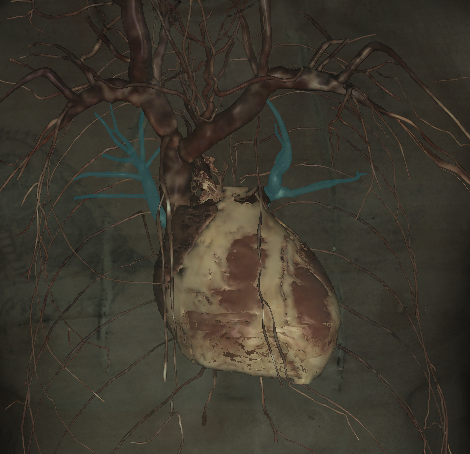

Name the structures highlighted

Superior pulmonary veins

Name the structure highlighted

Inferior pulmonary veins

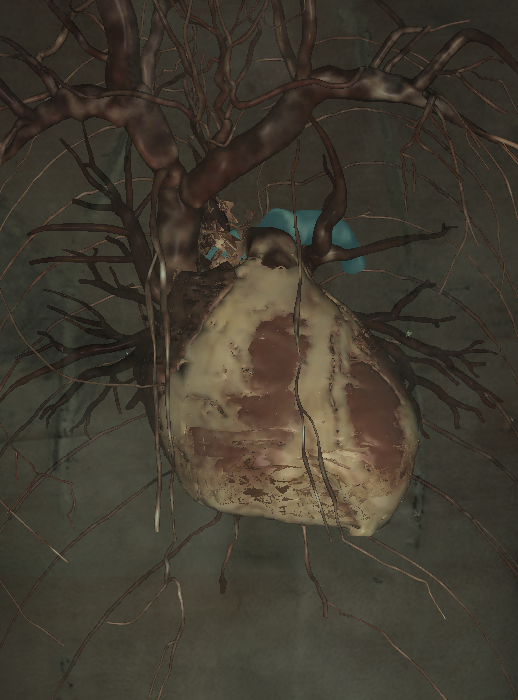

Name the structure highlighted

Pulmonary Trunk

Name the structure highlighted

Pulmonary arteries

Name the structure highlighted

Right coronary artery

Name the structure highlighted

Left coronary artery (pulmonary trunk, semilunar cusps and right atrium are dissected away)

Name the structure highlighted in blue

Right atrium

Name the structure highlighted in purple

Right ventricle

Name the structure highlighted in pink

Left ventricle

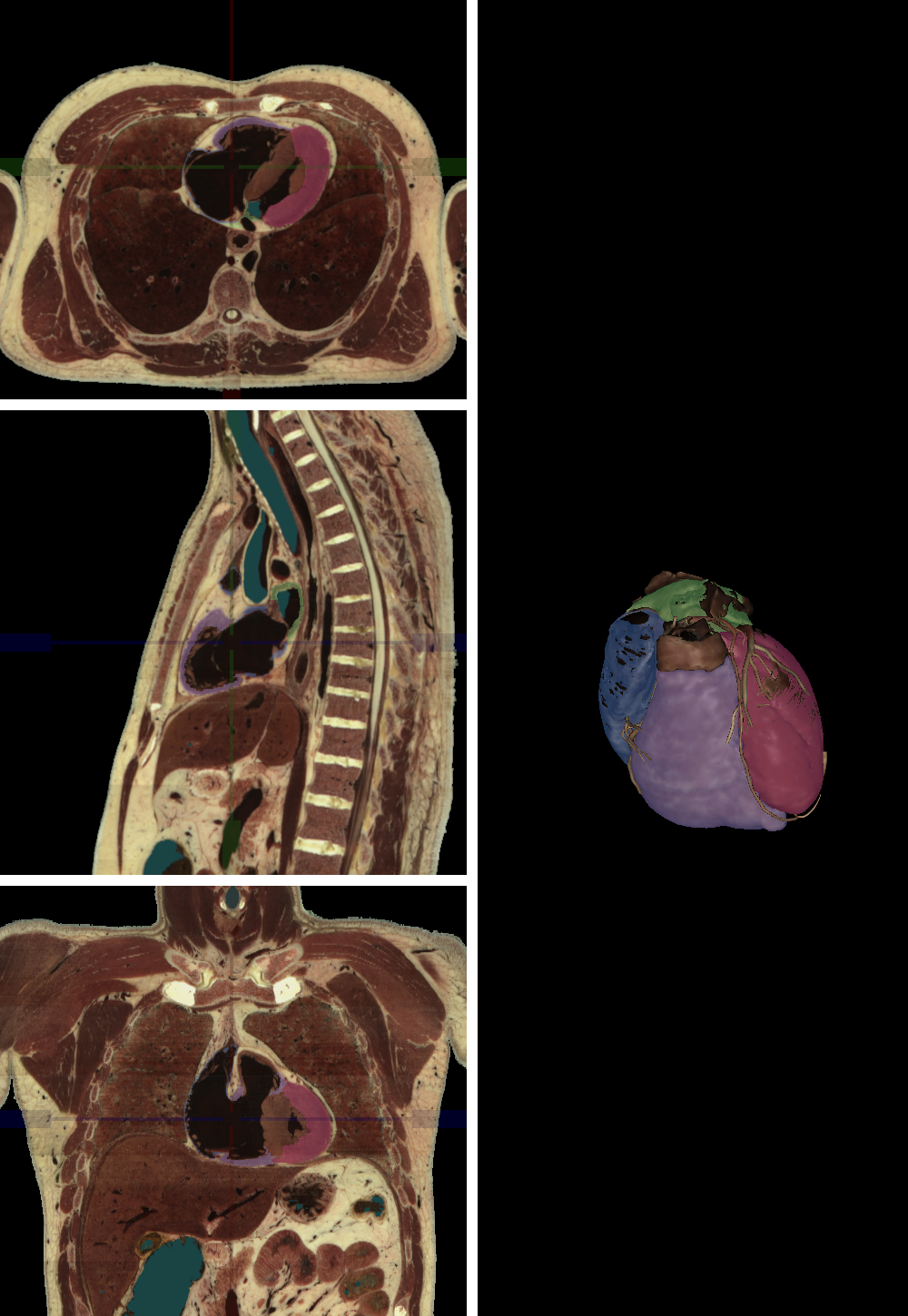

Name structure highlighted in green

Left atrium

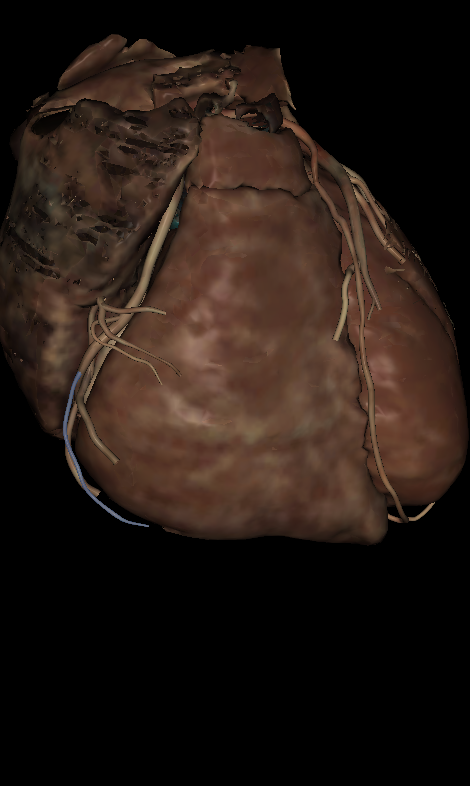

Name the structure highlighted

right marginal branch of the right coronary

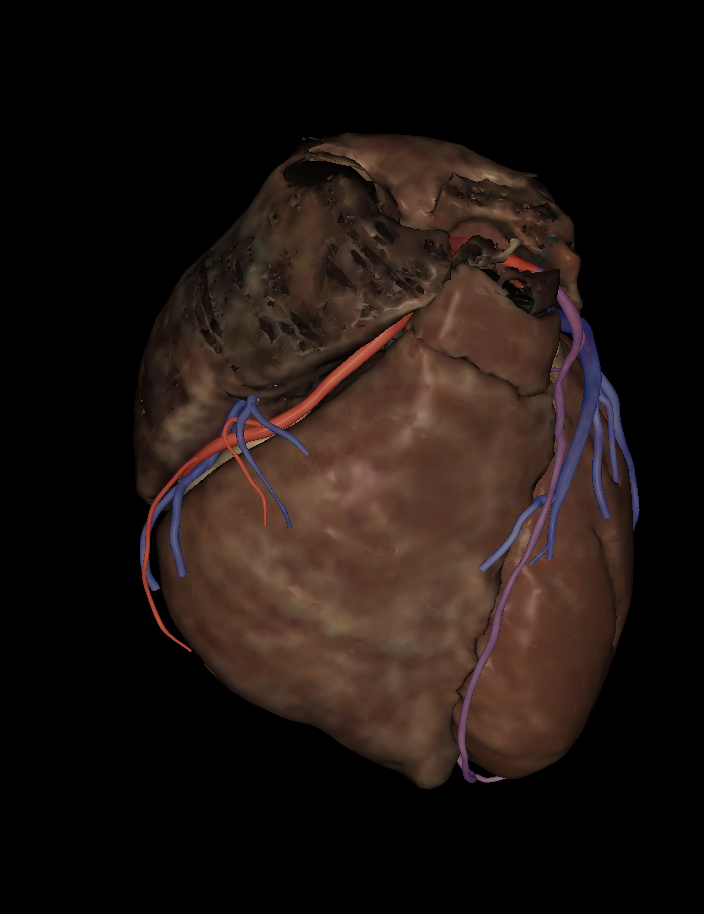

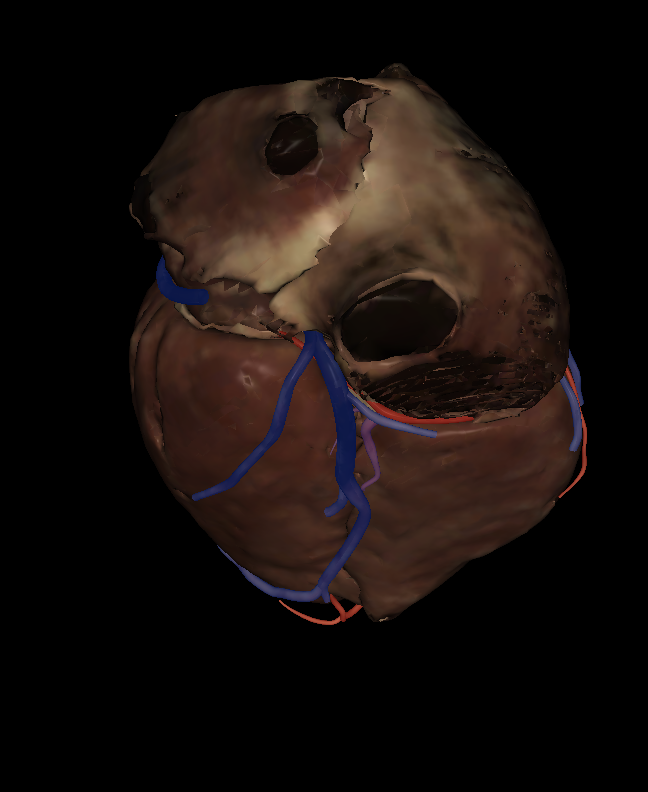

Name the structure highlighted (purple)

Posterior interventricular artery

Name the structure highlighted (purple)

anterior interventricular artery

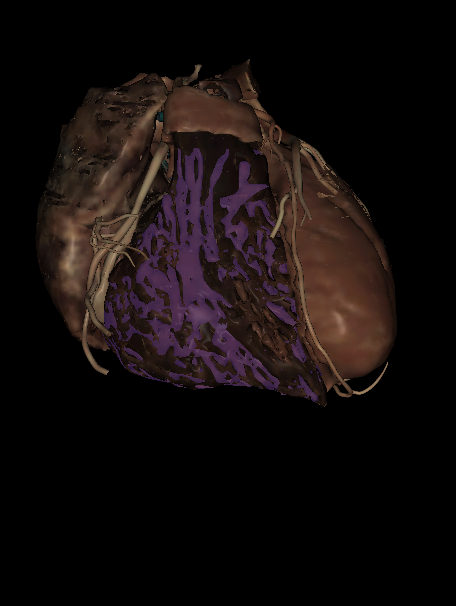

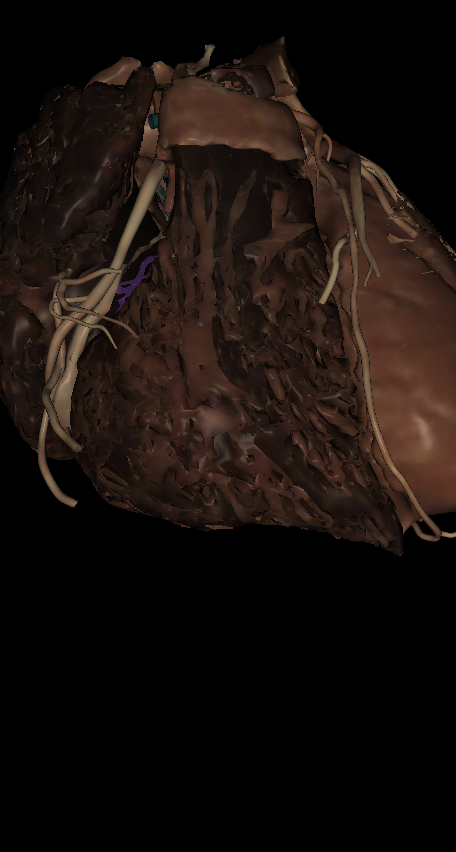

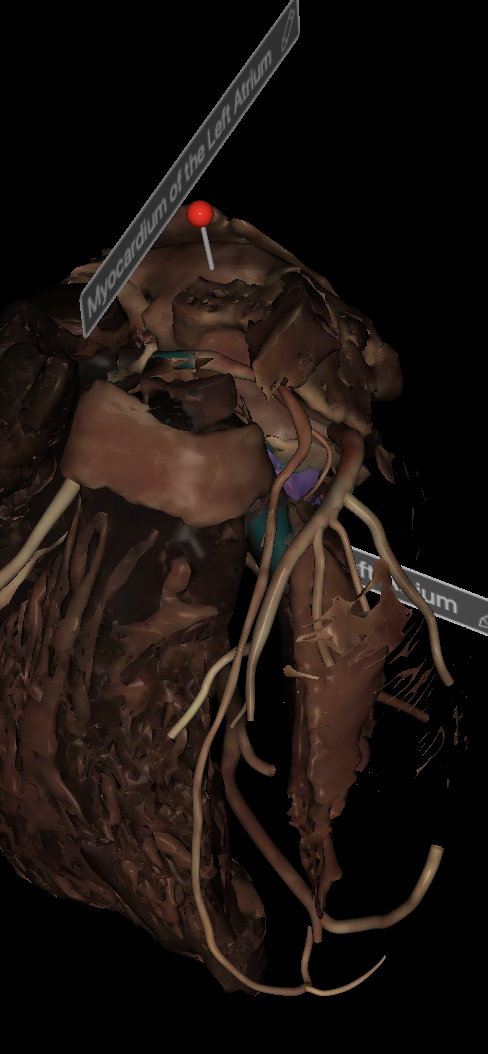

Name the structure highlighted

trabeculae carnae

Name the structure highlighted

Tricuspid valve

Name the structure highlighted

bicuspid/mitral valve

Name the structure highlighted

Papillary muscles

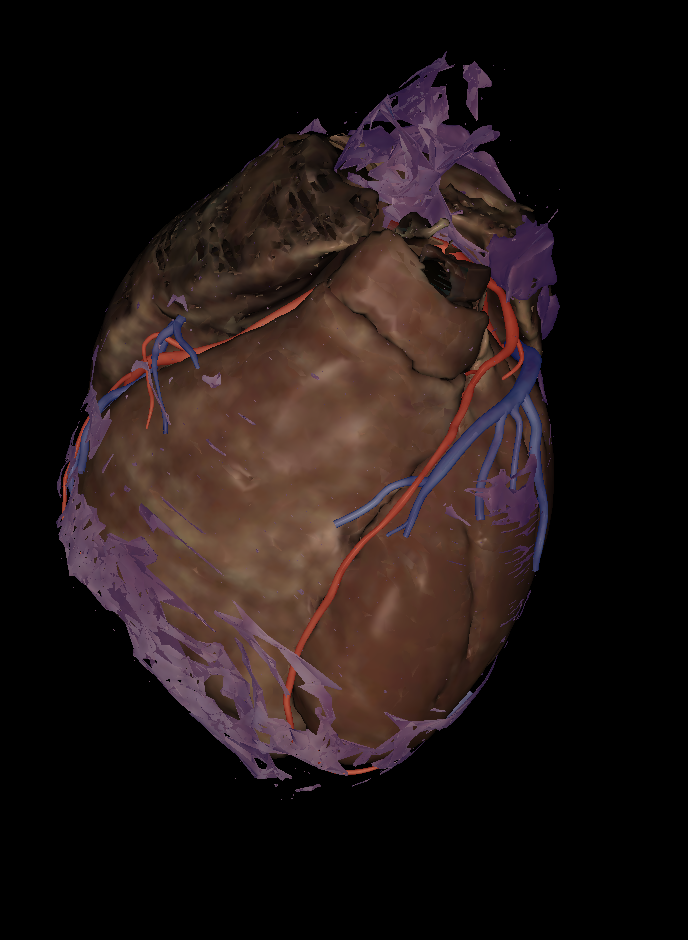

Name the structure highlighted

Pericardium or pericardial sac

Name the structure highlighted (blue)

Brachiocephalic trunk

Name the structure highlighted (purple)

common carotid artery

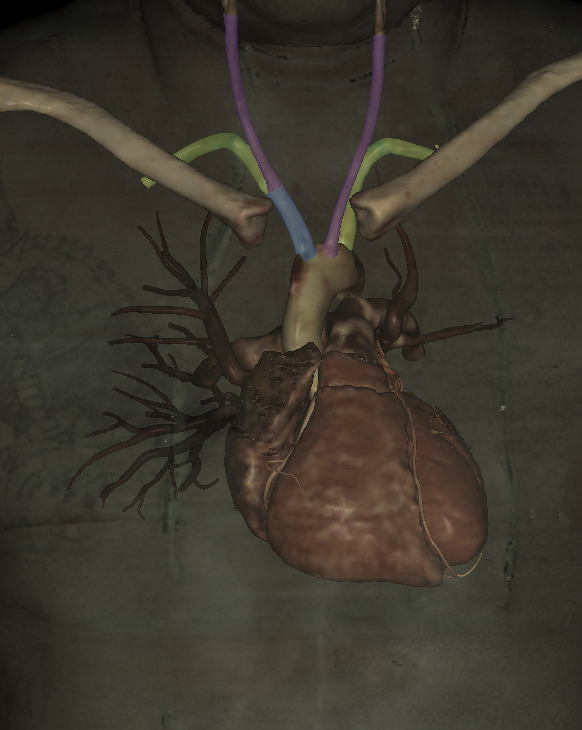

Name the structure highlighted (green)

subclavian artery

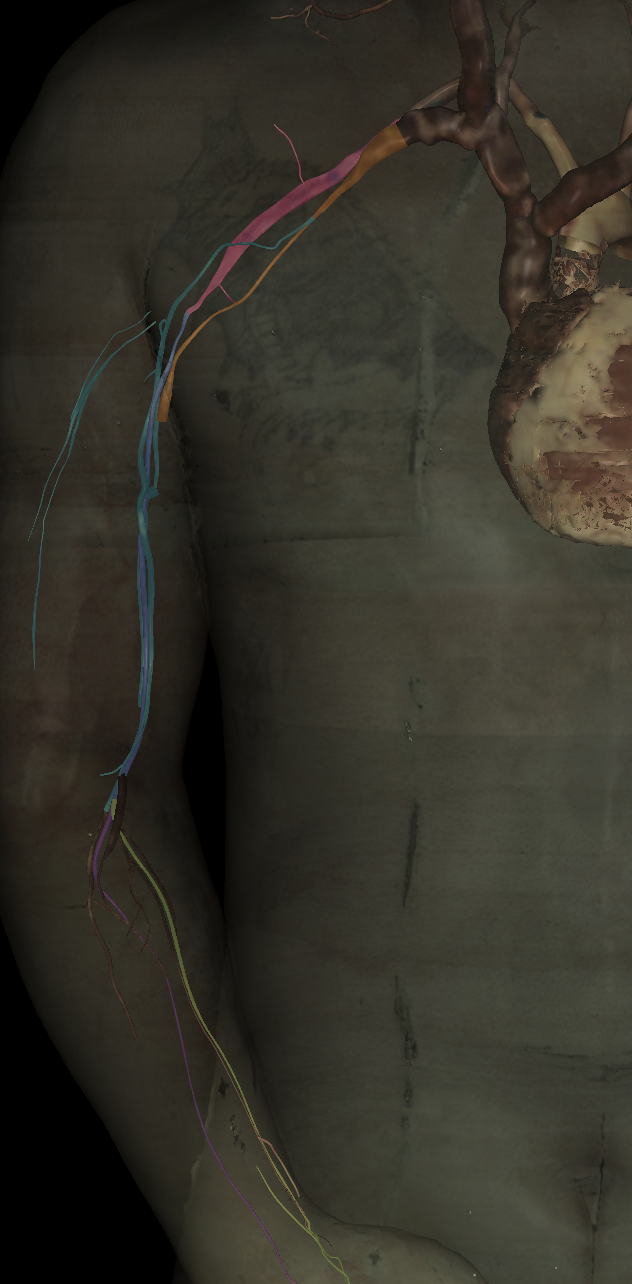

Name the structure highlighted (pink)

axillary artery

Name the structure highlighted (dark blue)

brachial artery

Name the structure highlighted (green)

radial artery

Name the structure highlighted (dark purple)

ulnar artery

Name the structure highlighted (orange)

axillary vein

Name the structure highlighted (teal)

brachial vein

Name the structure highlighted (lavender)

subclavian vein

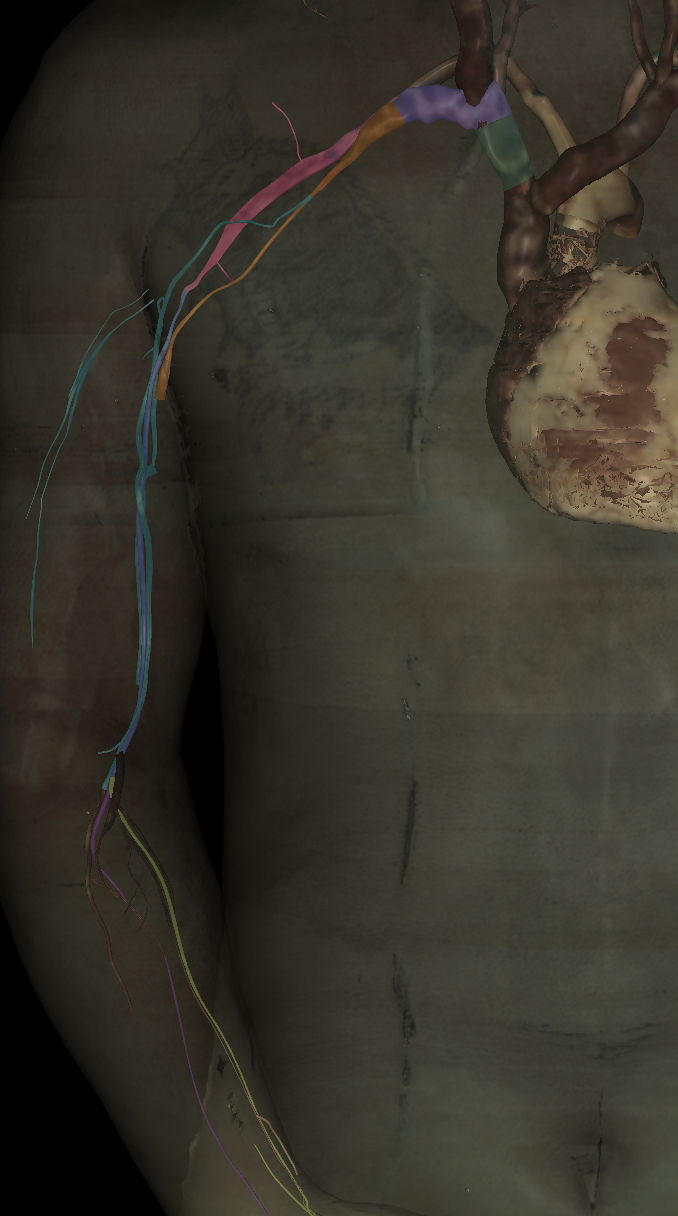

Name the structure highlighted (dark green)

brachiocephalic vein

Name the structure highlighted

cephalic vein

Name the structure highlighted

basilic vein

Name the structure highlighted

Internal jugular vein

Label the structures highlighted

Pink- celiac trunk

Orange- Left gastric artery

Purple- splenic artery

Blue- common hepatic artery

Name the structure highlighted (pink)

renal artery

Name the structure highlighted (purple)

renal veins

Name the structure highlighted (blue)

superior mesenteric artery

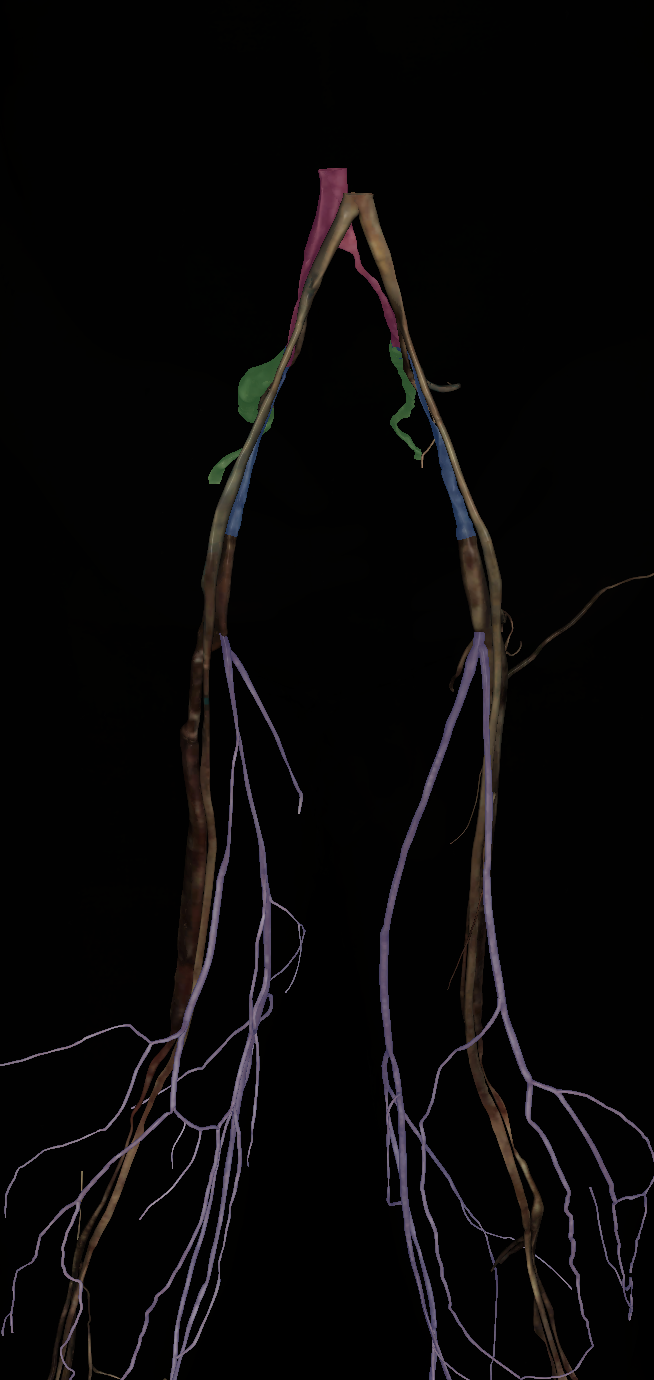

Name the structure highlighted (green)

Inferior mesenteric artery

Name the structure highlighted (purple)

common iliac artery

Name the structure highlighted (pink)

external iliac artery

Name the structure highlighted (blue)

internal iliac artery

Name the structure highlighted (orange)

femoral artery

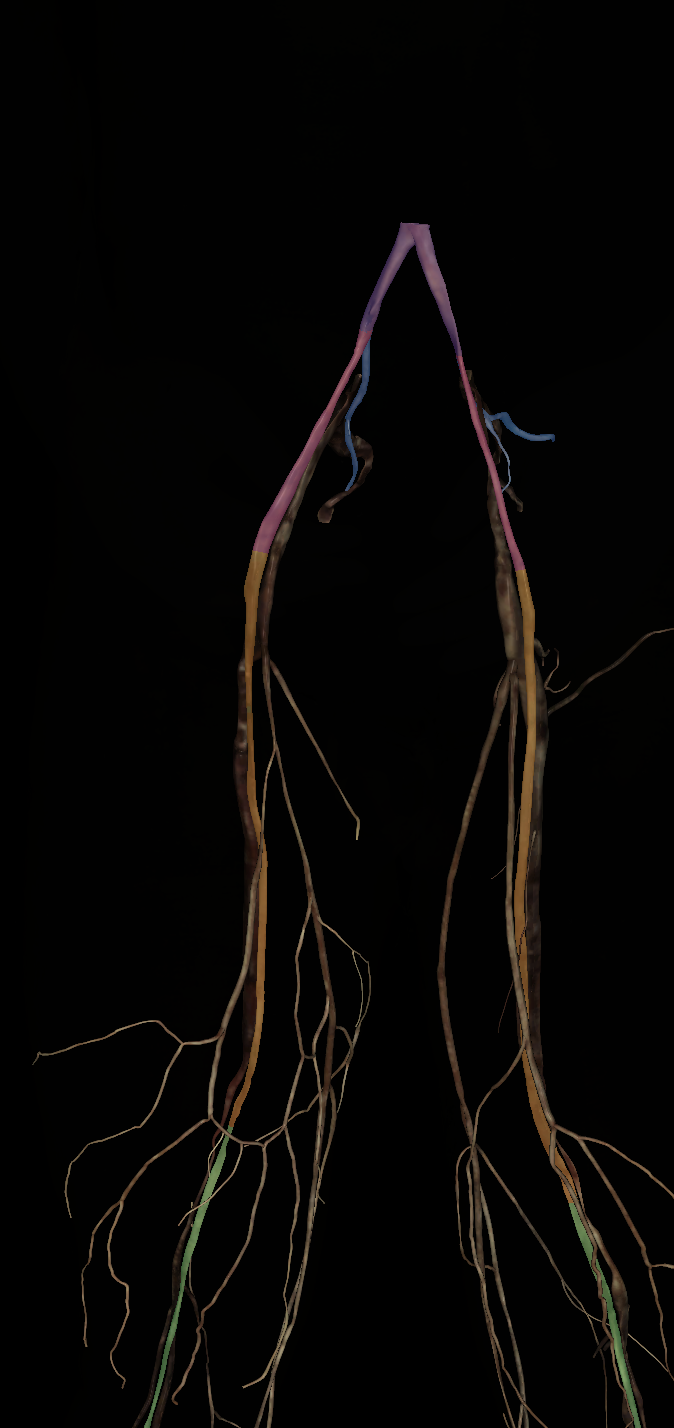

Name the structure highlighted (green)

popliteal artery

Name the structure highlighted (pink)

common iliac vein

Name the structure highlighted (blue)

external iliac vein

Name the structure highlighted (green)

internal iliac vein

Name the structure highlighted (purple)

great sapheonous vein

How many lobes does the right lung have?

3

-Superior, Middle, inferior

How many lobes does the left lung have?

2

-Superior, inferior

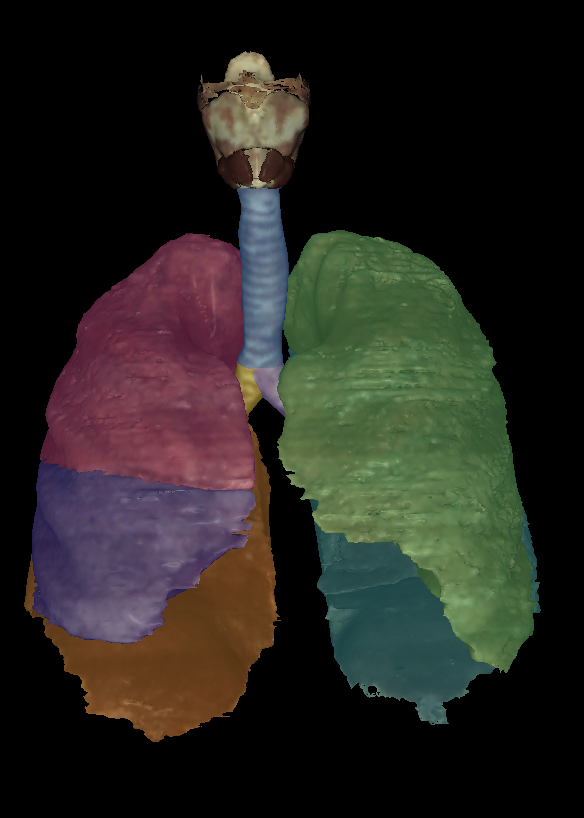

Name the structure highlighted (blue)

trachea

Name the structure highlighted (light purple)

left primary/main bronchi

Name the structure highlighted (yellow)

right primary/main bronchi

Label the different lobes of the lungs

Right lung

• Superior- pink

• Middle- purple

• Inferior - orange

Left lung

• Superior- green

• Inferior- teal

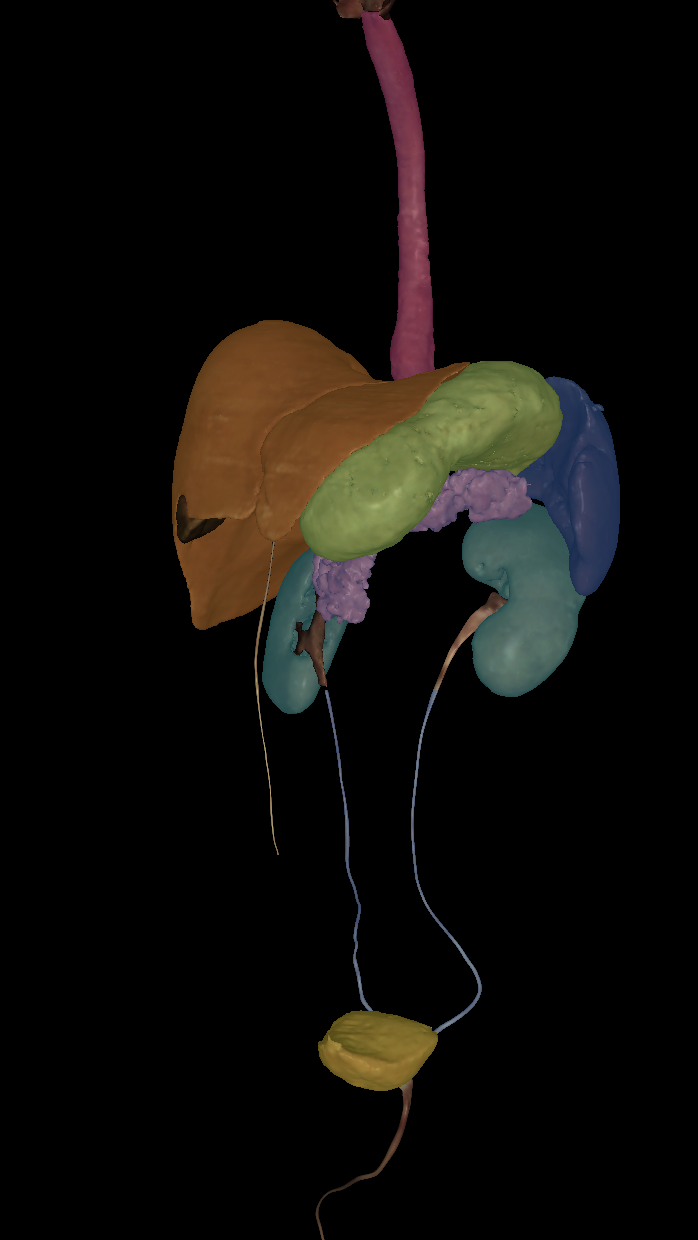

Name the structure highlighted (pink)

esophagus

Name the structure highlighted (orange)

liver

Name the structure highlighted (green)

stomach

Name the structure highlighted (dark blue)

spleen

Name the structure highlighted (light purple)

pancreas

Name the structure highlighted (teal)

Kidney

Name the structure highlighted (dark blue)

ureter

Name the structure highlighted (yellow)

urinary bladder

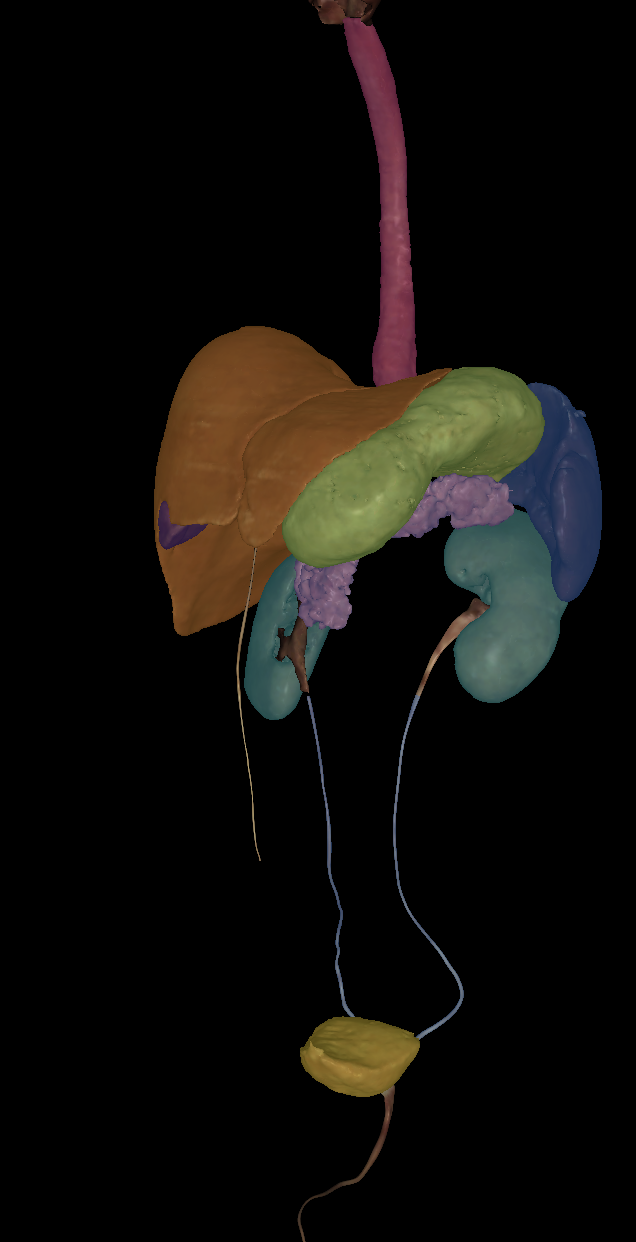

Name the structure highlighted (dark purple)

gallbladder

Name the structure highlighted (dark blue)

duodenum

Name the structure highlighted (yellow)

jejunum

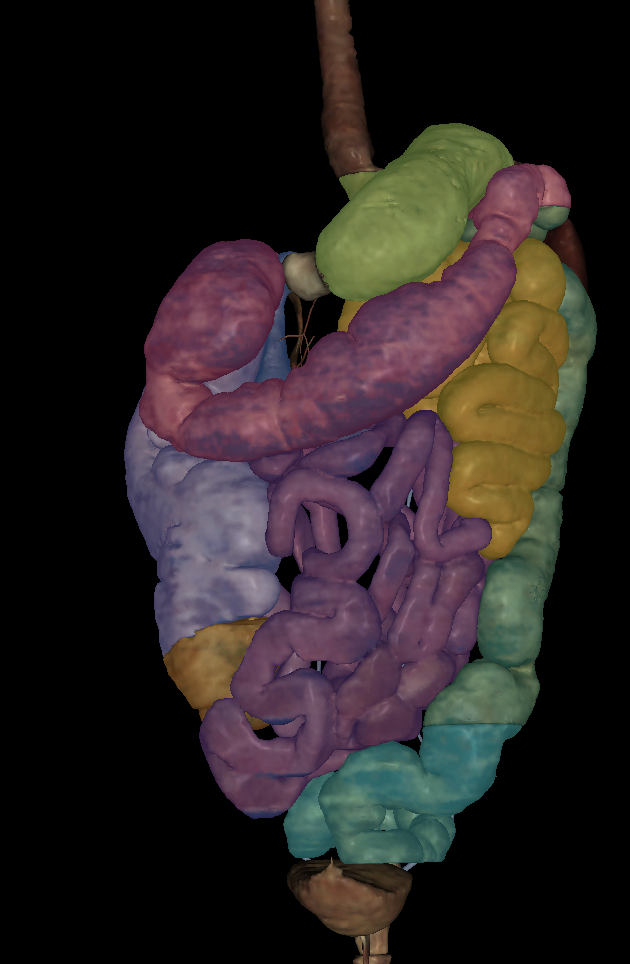

Name the structure highlighted (purple)

ileum

Name the structure highlighted (orange)

cecum

Name the structure highlighted (light purple)

ascending colon

Name the structure highlighted (pink)

transverse colon

Name the structure highlighted (dark green)

descending colon

Name the structure highlighted (teal)

sigmoid colon

What structure is the dark blue,yellow, and purple apart of?

Small intestine

What structure is dark green, teal, light purple and pink apart of?

large intestine

Name the structure highlighted (pink)

parotid gland

Name the structure highlighted (purple)

thyroid gland

Name the structure highlighted (teal)

submandibular gland

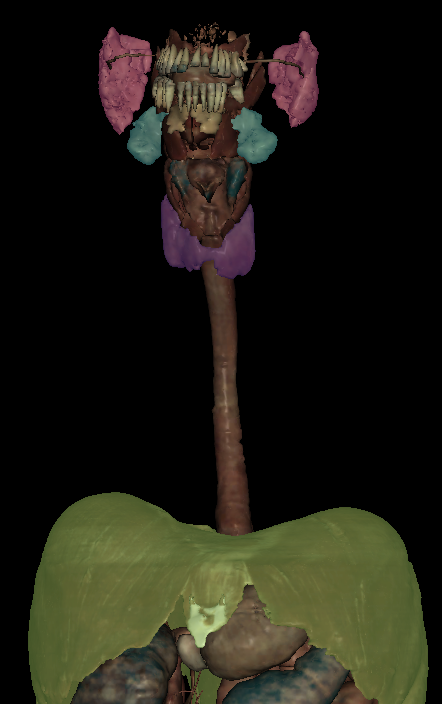

Name the structure highlighted (light green)

diaphragm

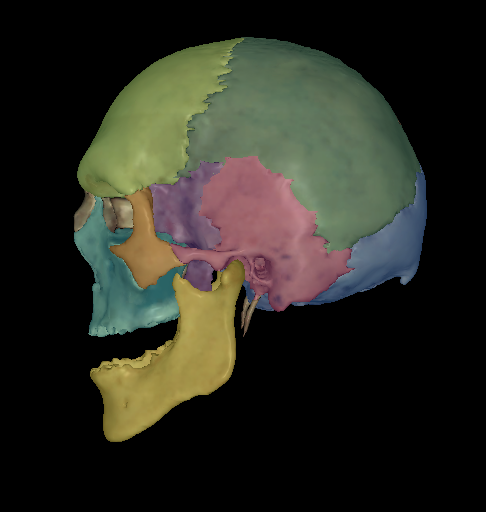

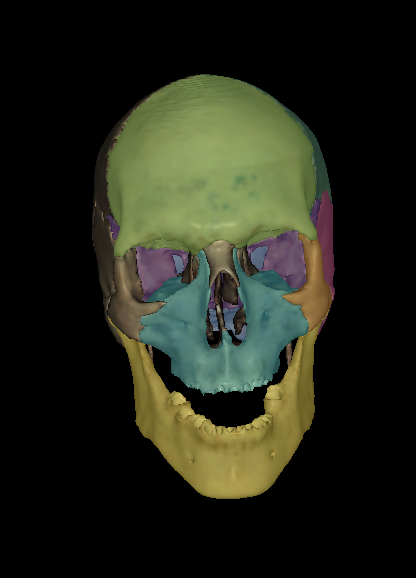

Name the bone highlighted (purple)

sphenoid

Name the bone highlighted (orange)

zygomatic

Name the bone highlighted (teal)

maxilla

Name the bone highlighted (yellow)

mandible

Name the bone highlighted (pink)

temporal bone

Name the bone highlighted (dark green)

parietal

Name the bone highlighted (dark blue)

occupital

Name the bone highlighted (light green)

frontal bone
