Lab 6-Bones of the lower limb and Joints

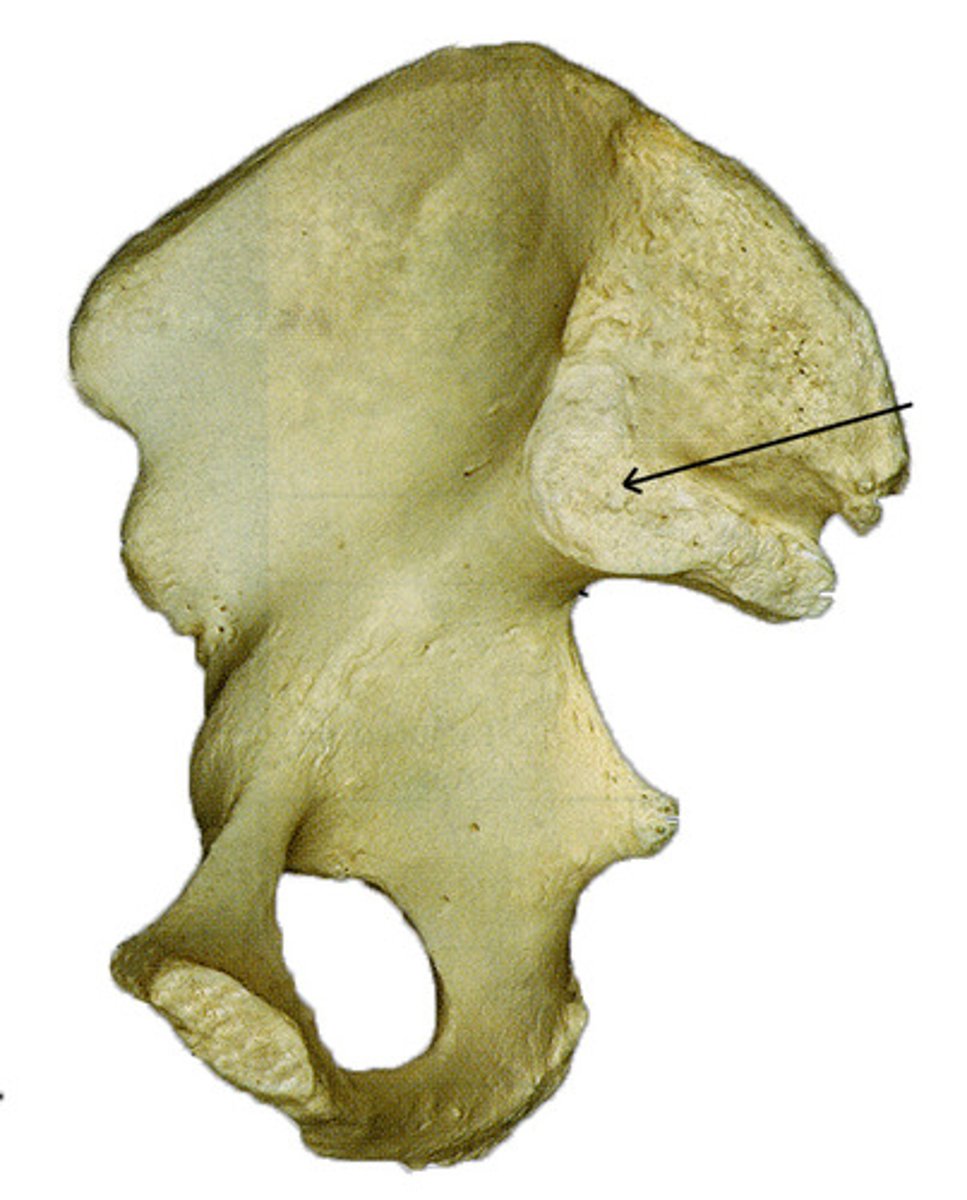

Articular Surface with Sacrum

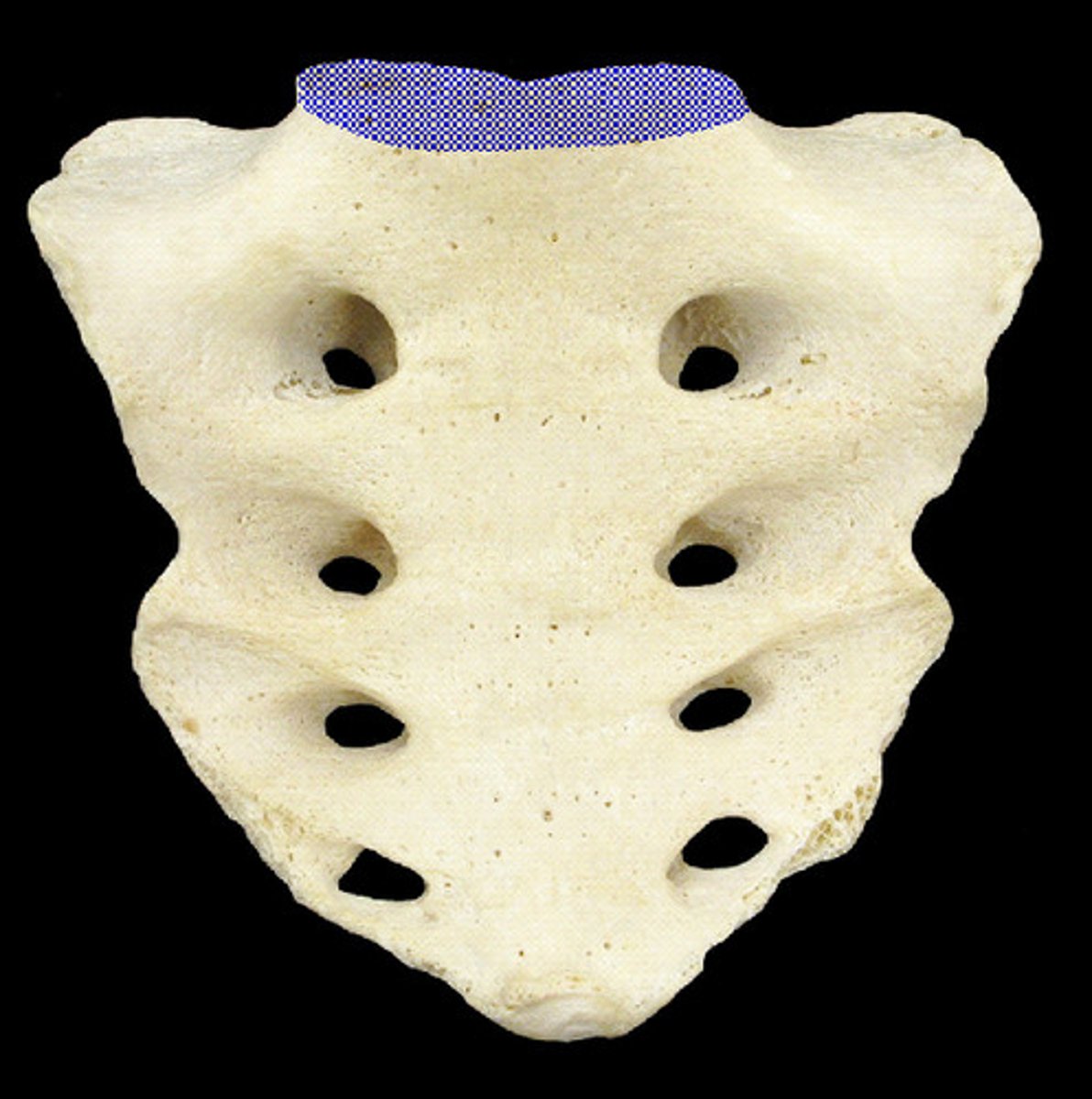

Base of sacrum

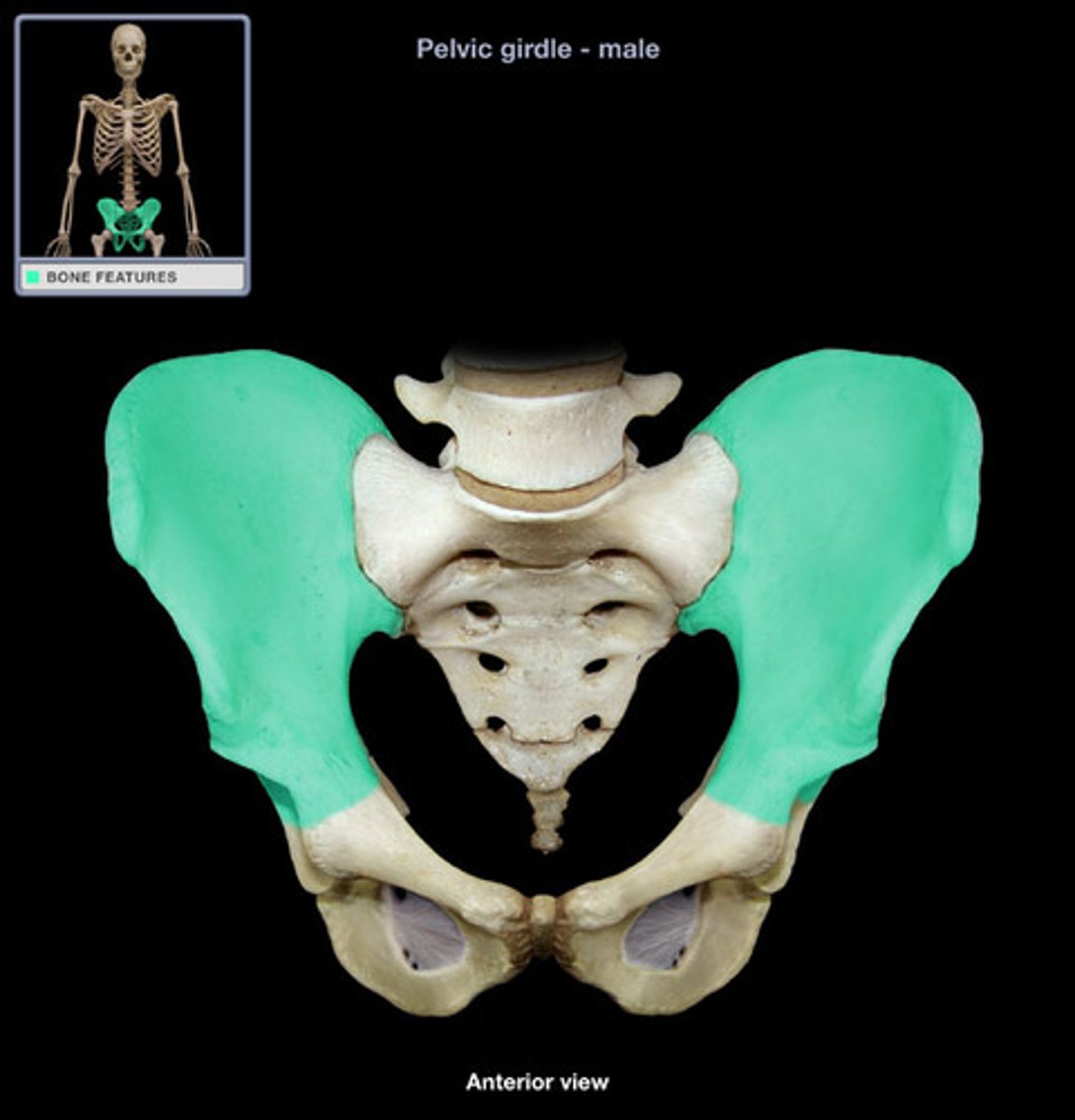

ilium

Pubis

Ischium

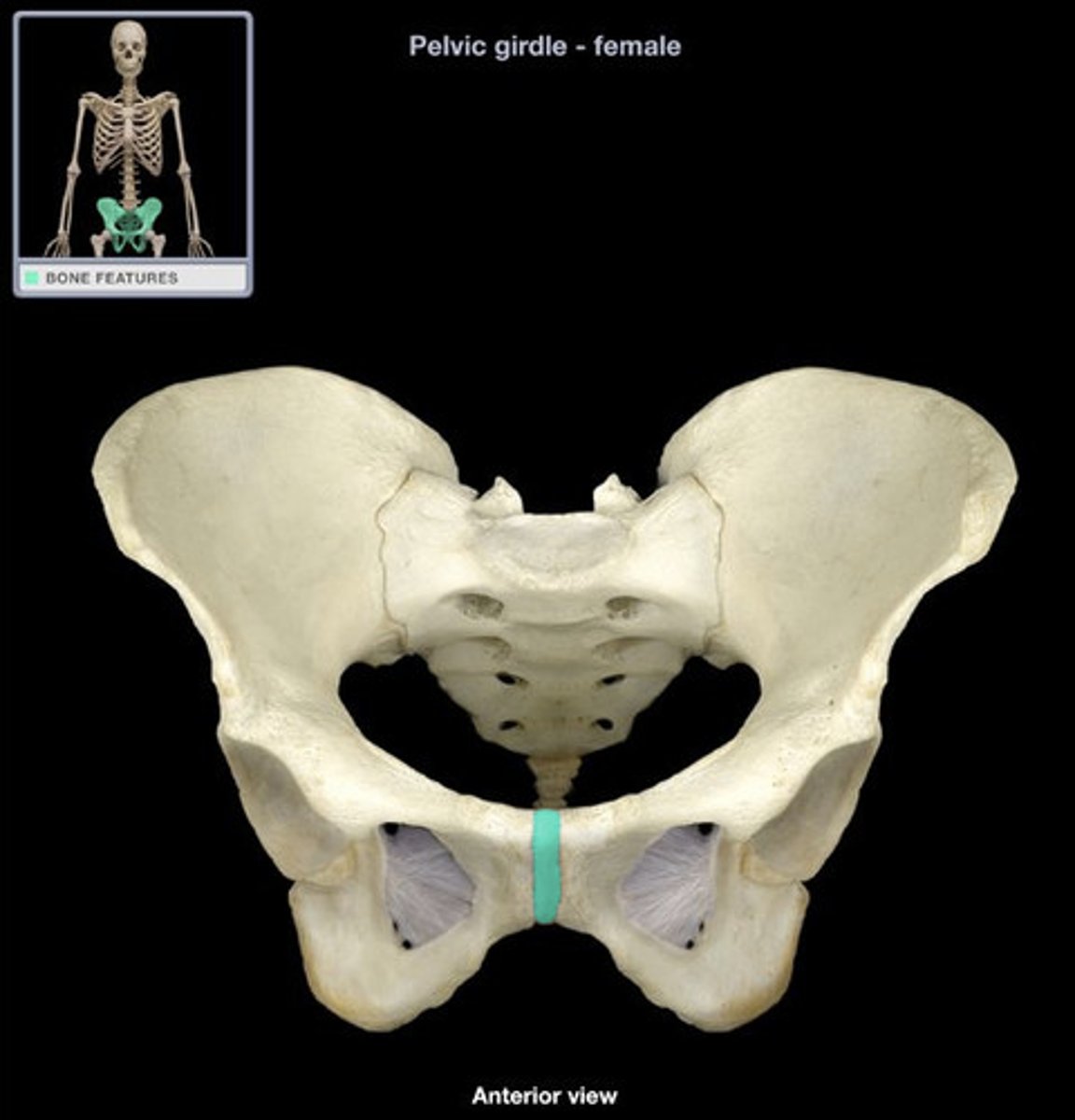

pubic symphysis

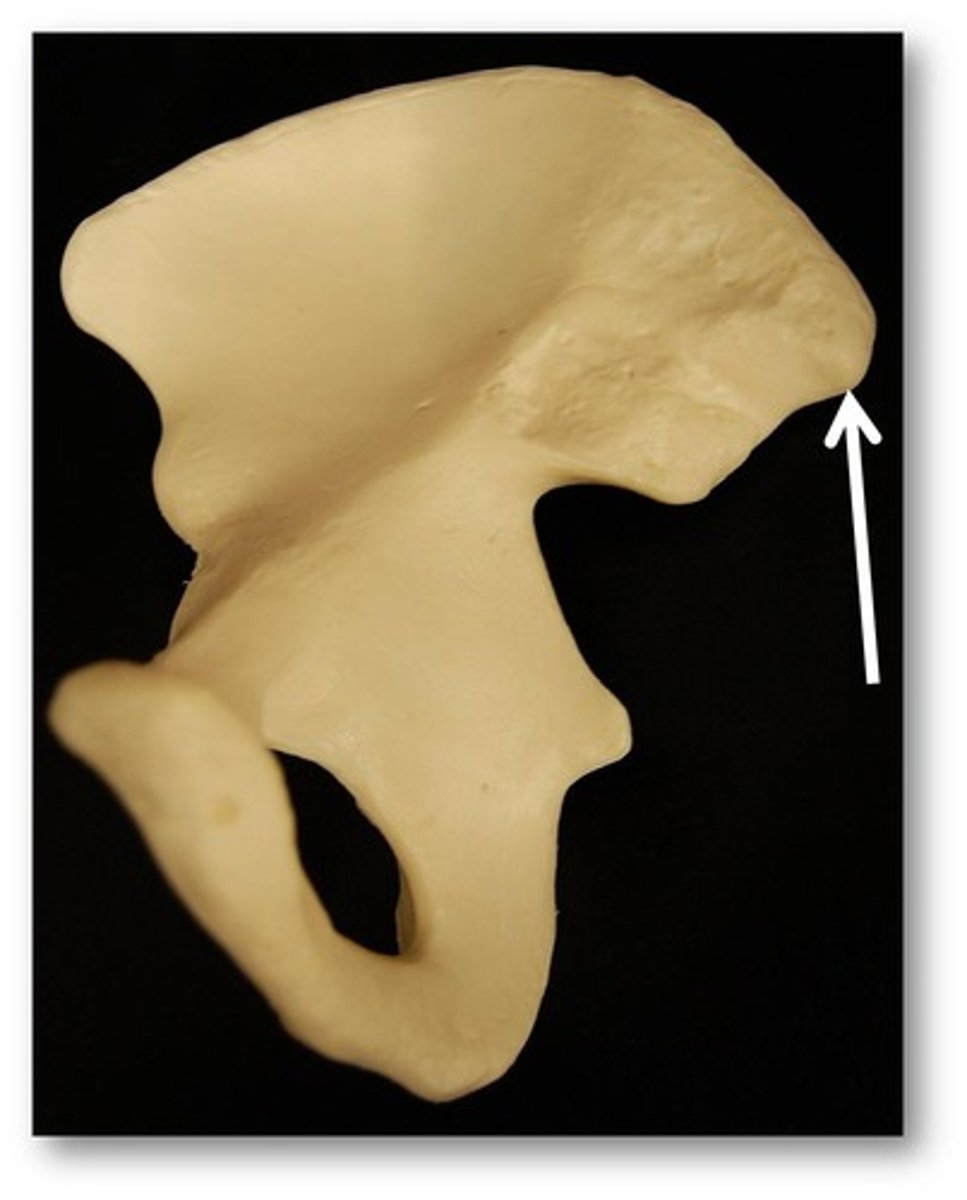

posterior superior iliac spine

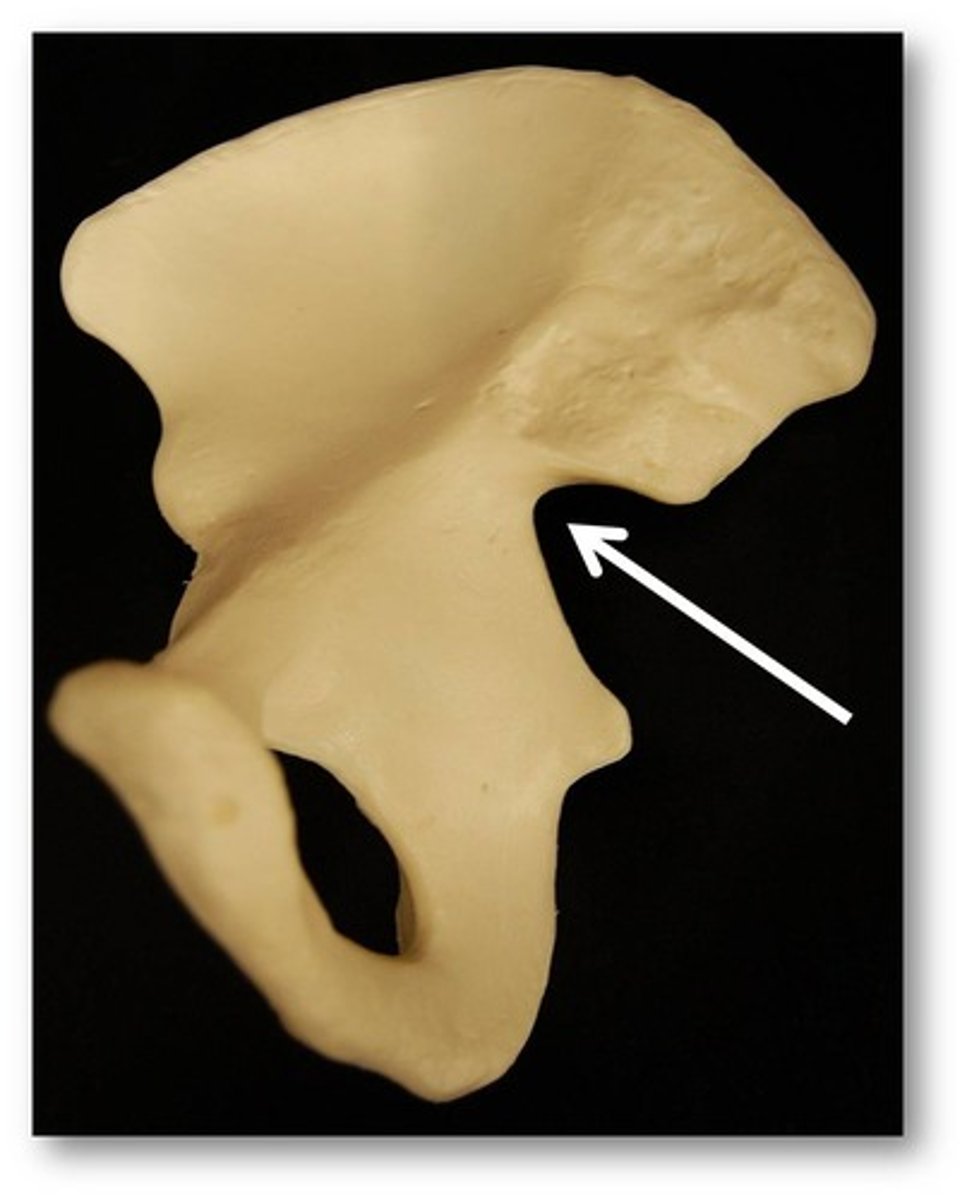

greater sciatic notch

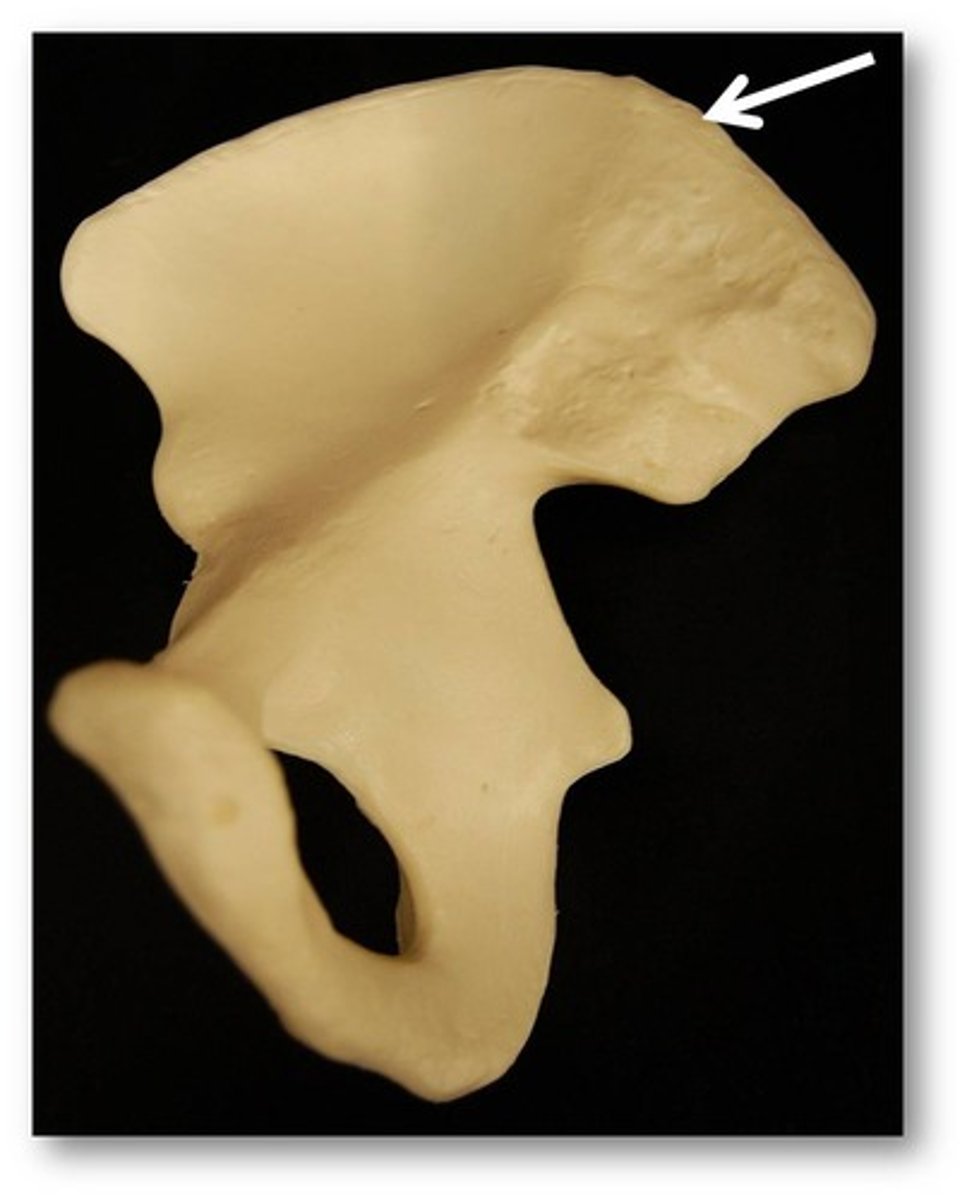

iliac crest

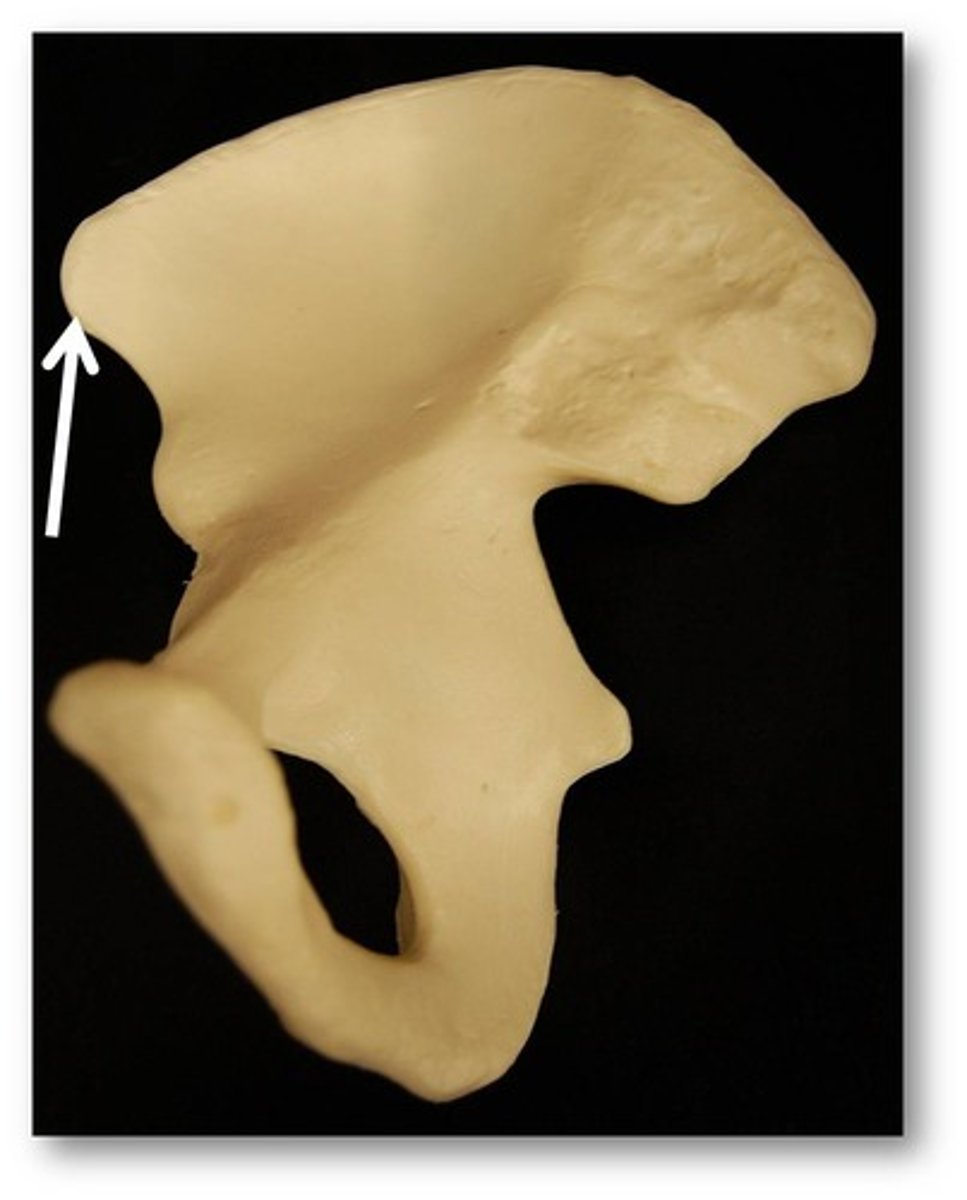

anterior superior iliac spine

ischium

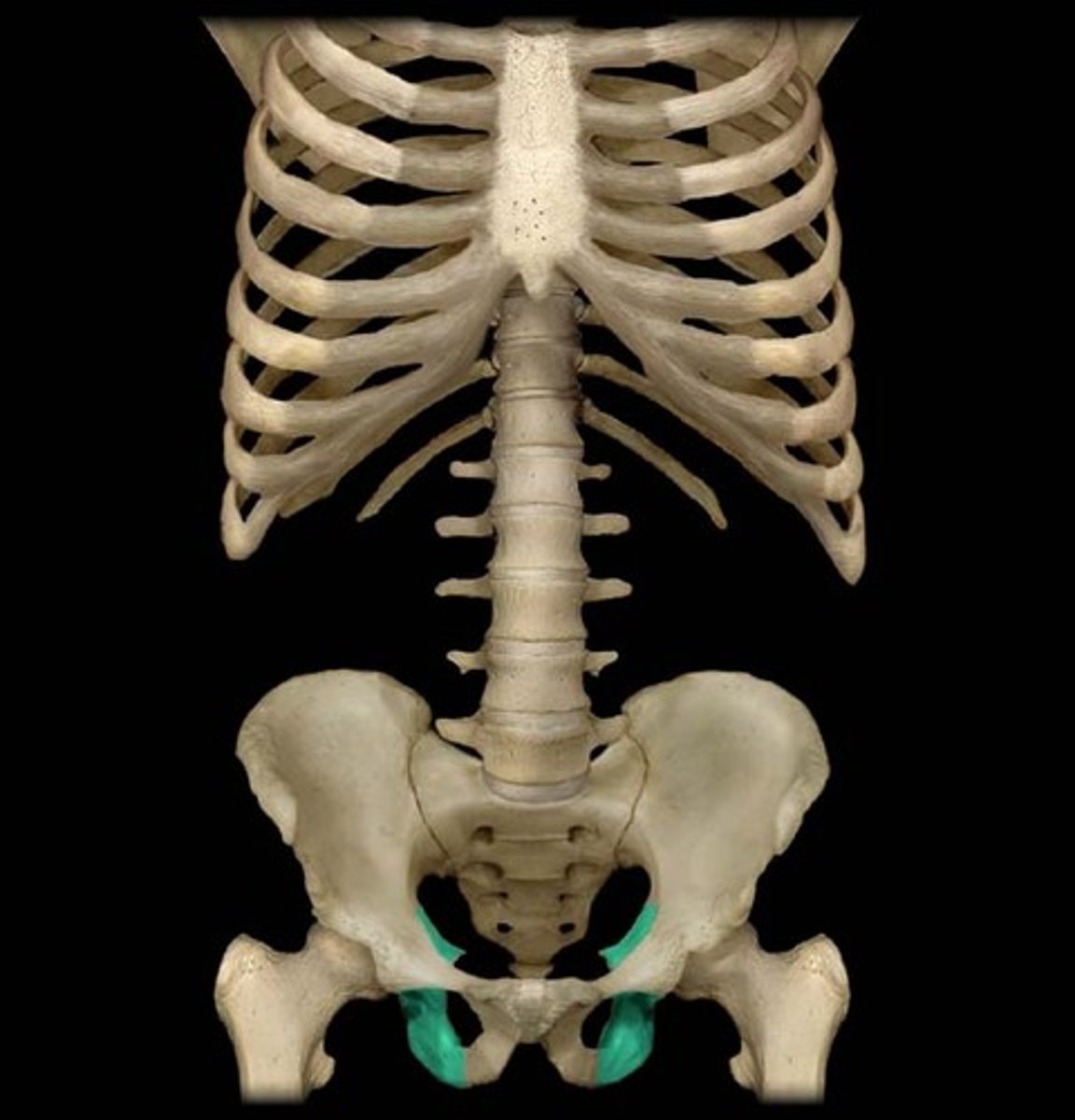

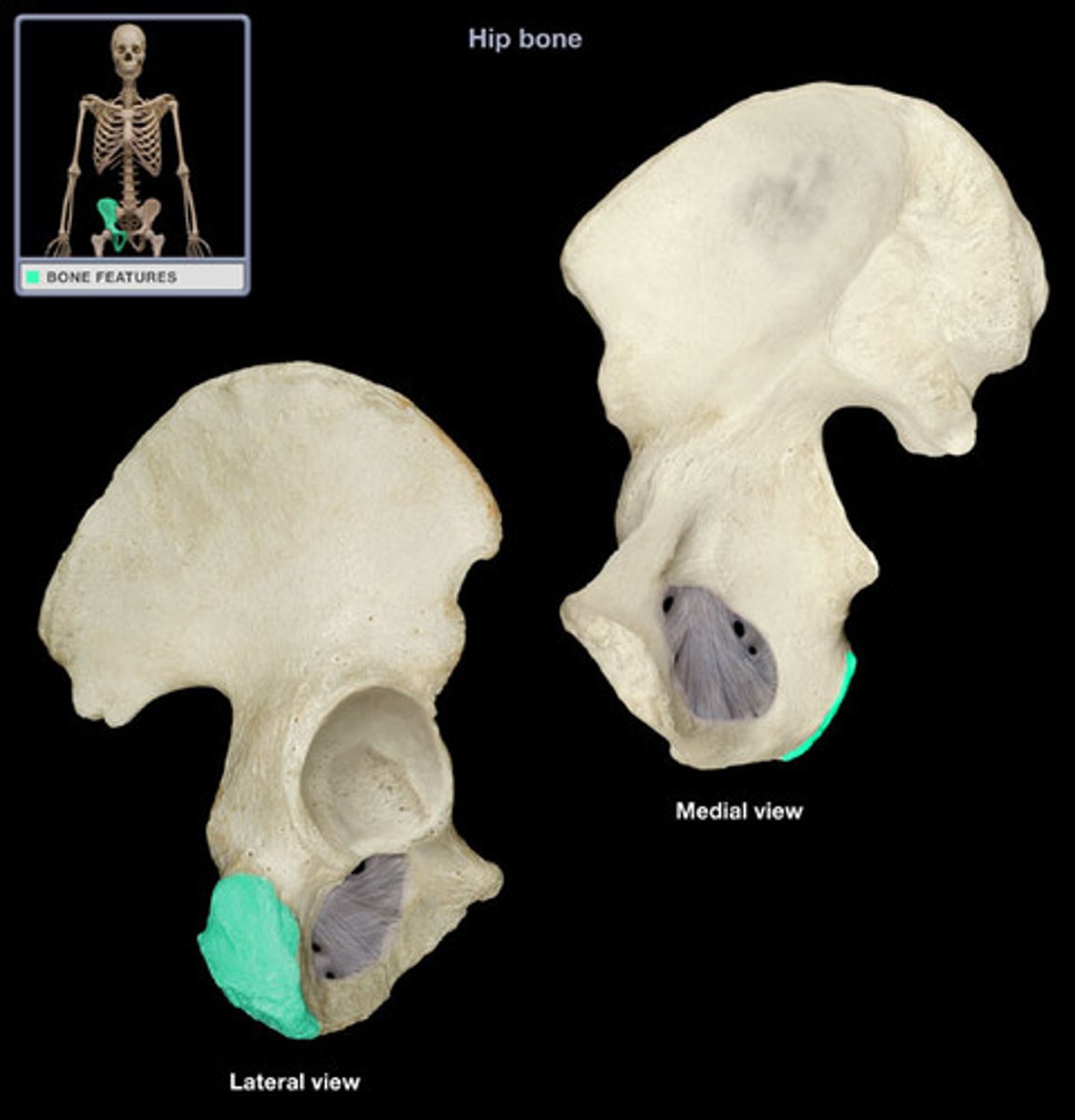

ischial tuberosity

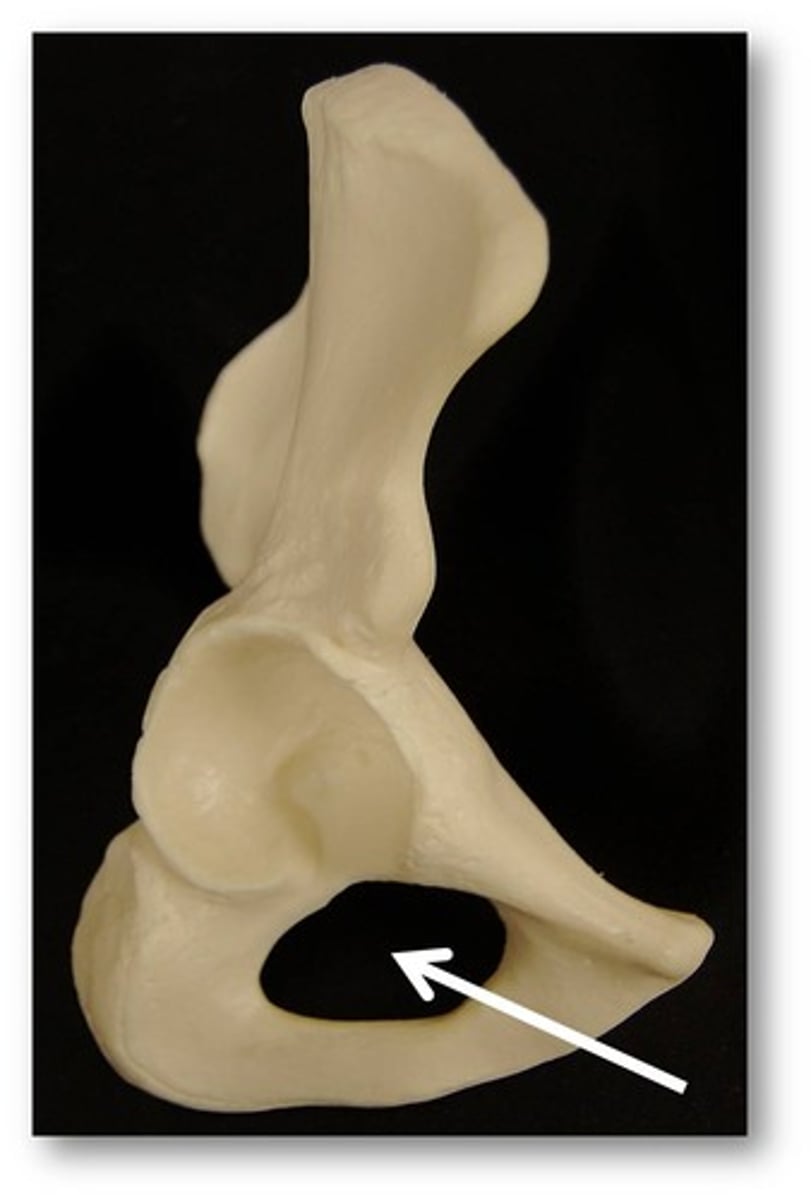

Obturator foramen

acetabulum

Determining sex based on pelvis (male)

Heart shaped, 60 degrees, V shaped

determining sex based on pelvis (female)

Oval shaped, 90 degrees, U shaped

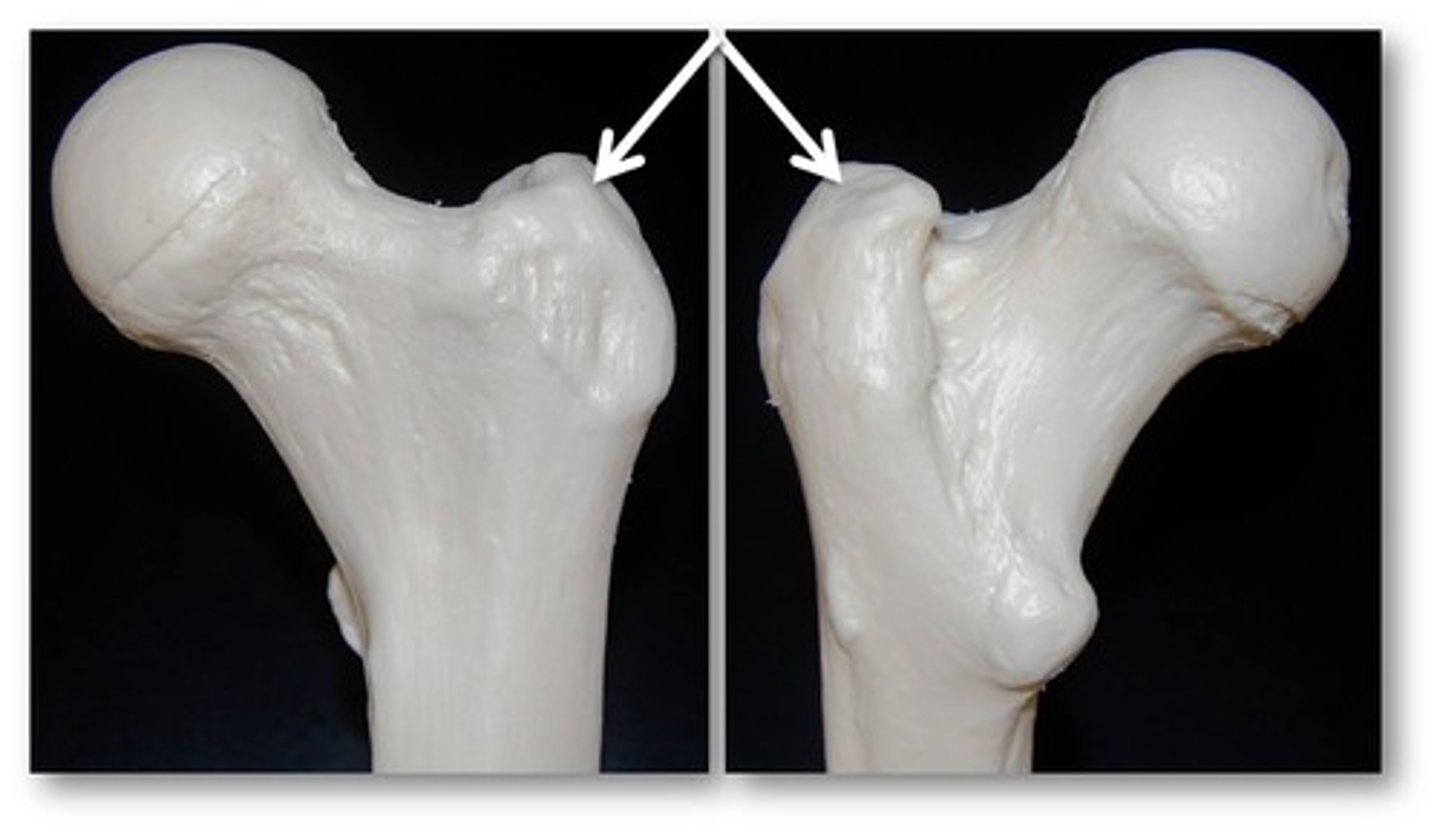

greater trochanter

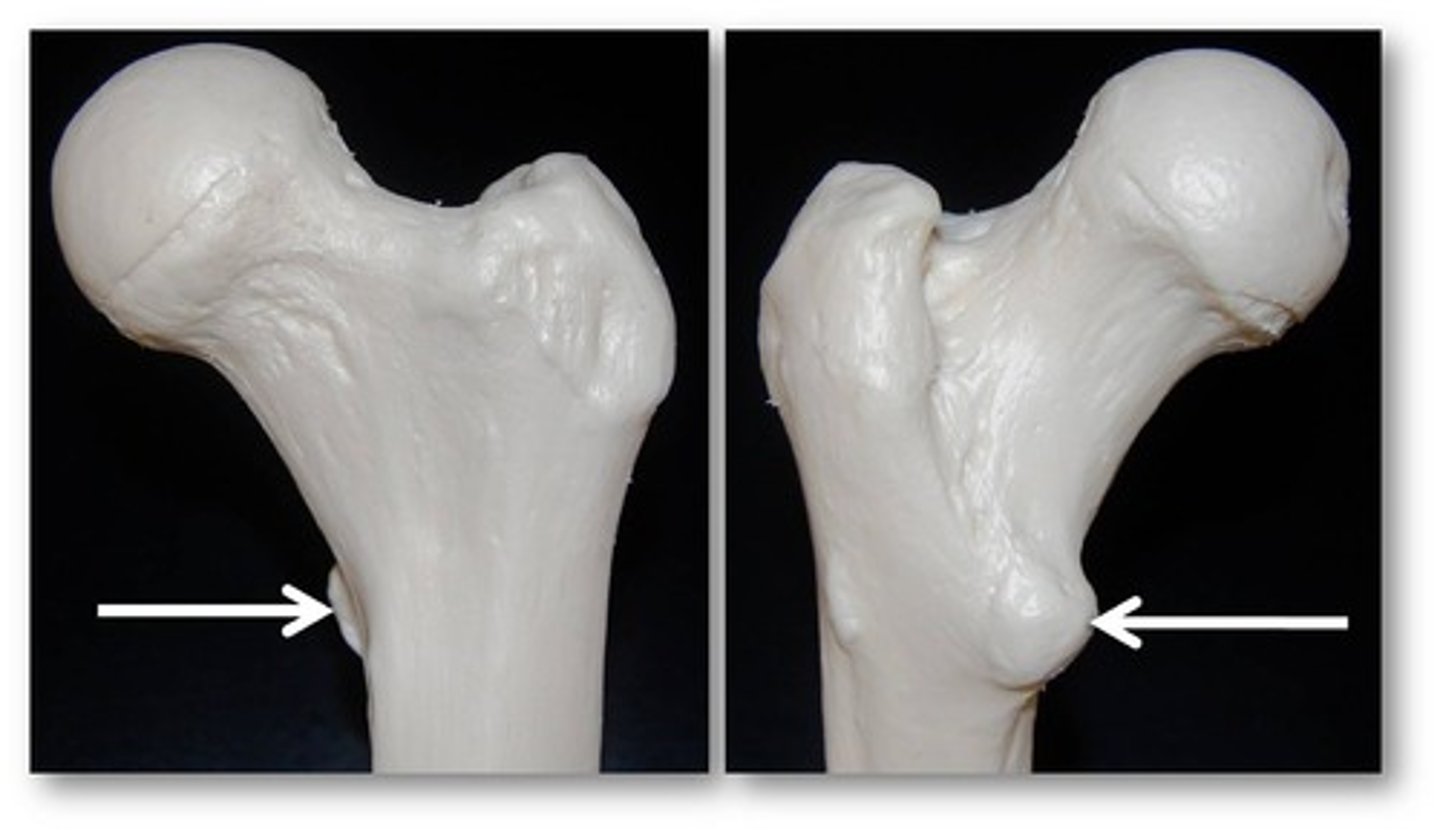

Lesser trochanter

gluteal tuberosity

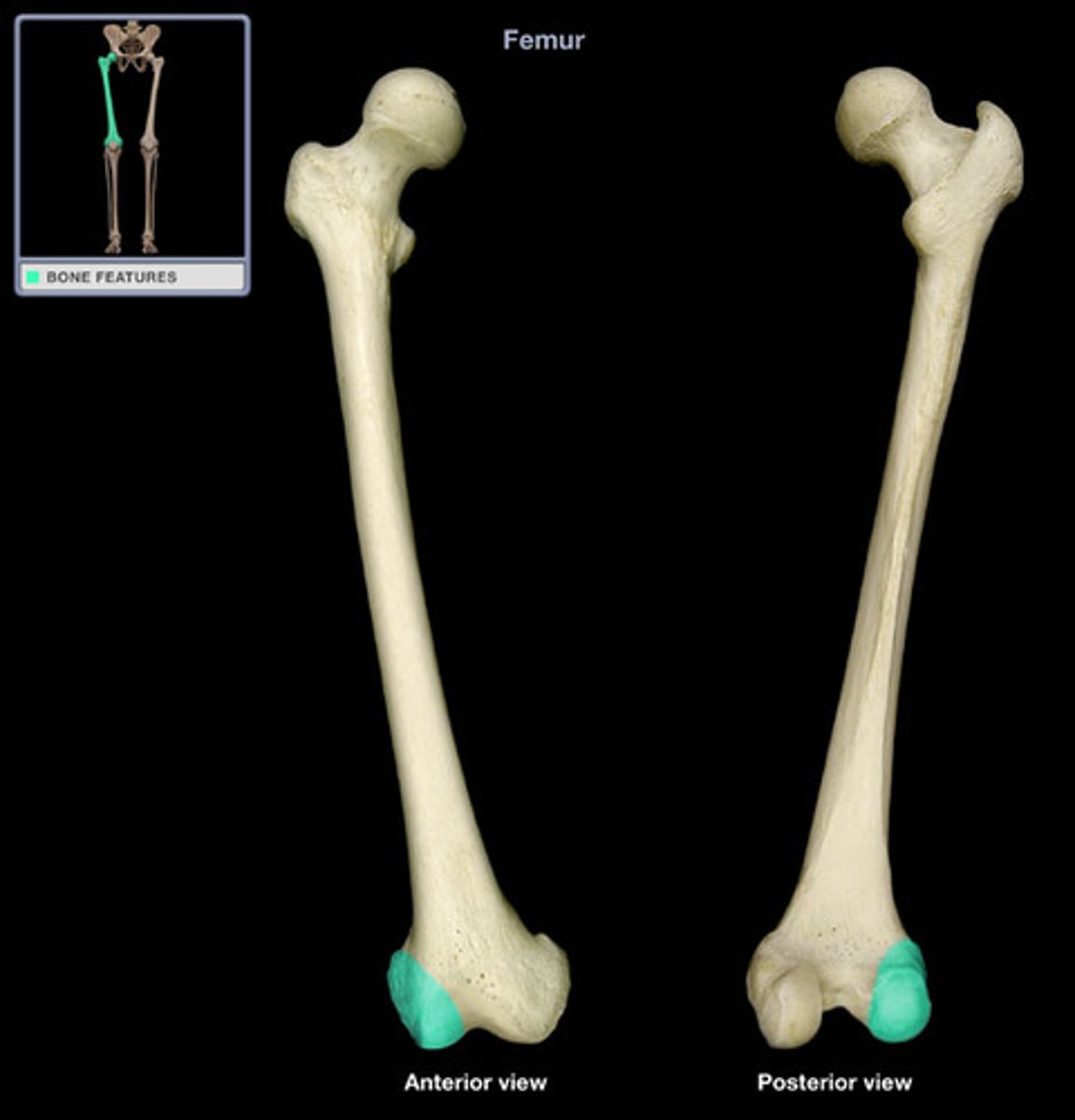

Lateral condyle

inferior to the epicondyle

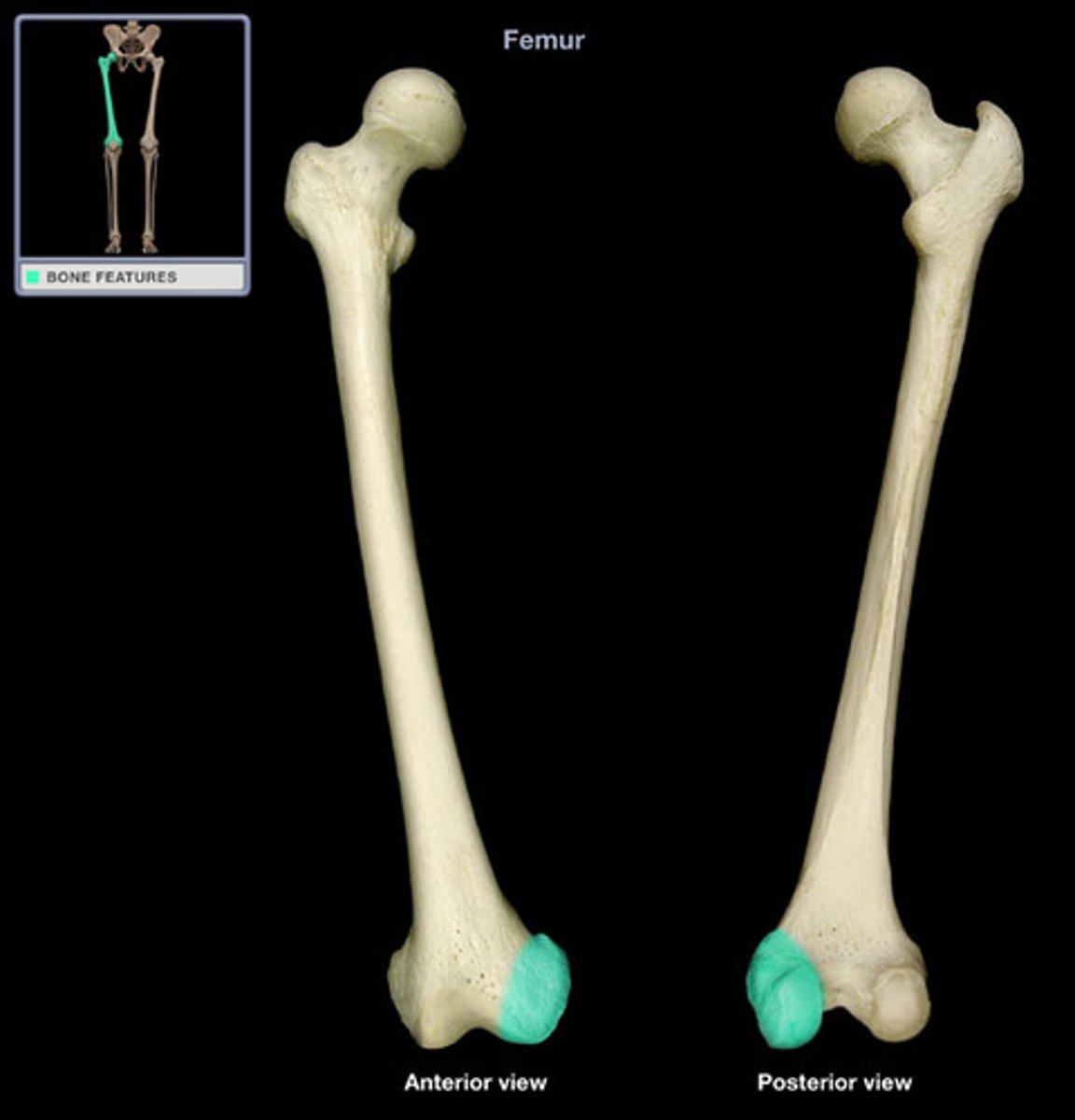

Medial condyle

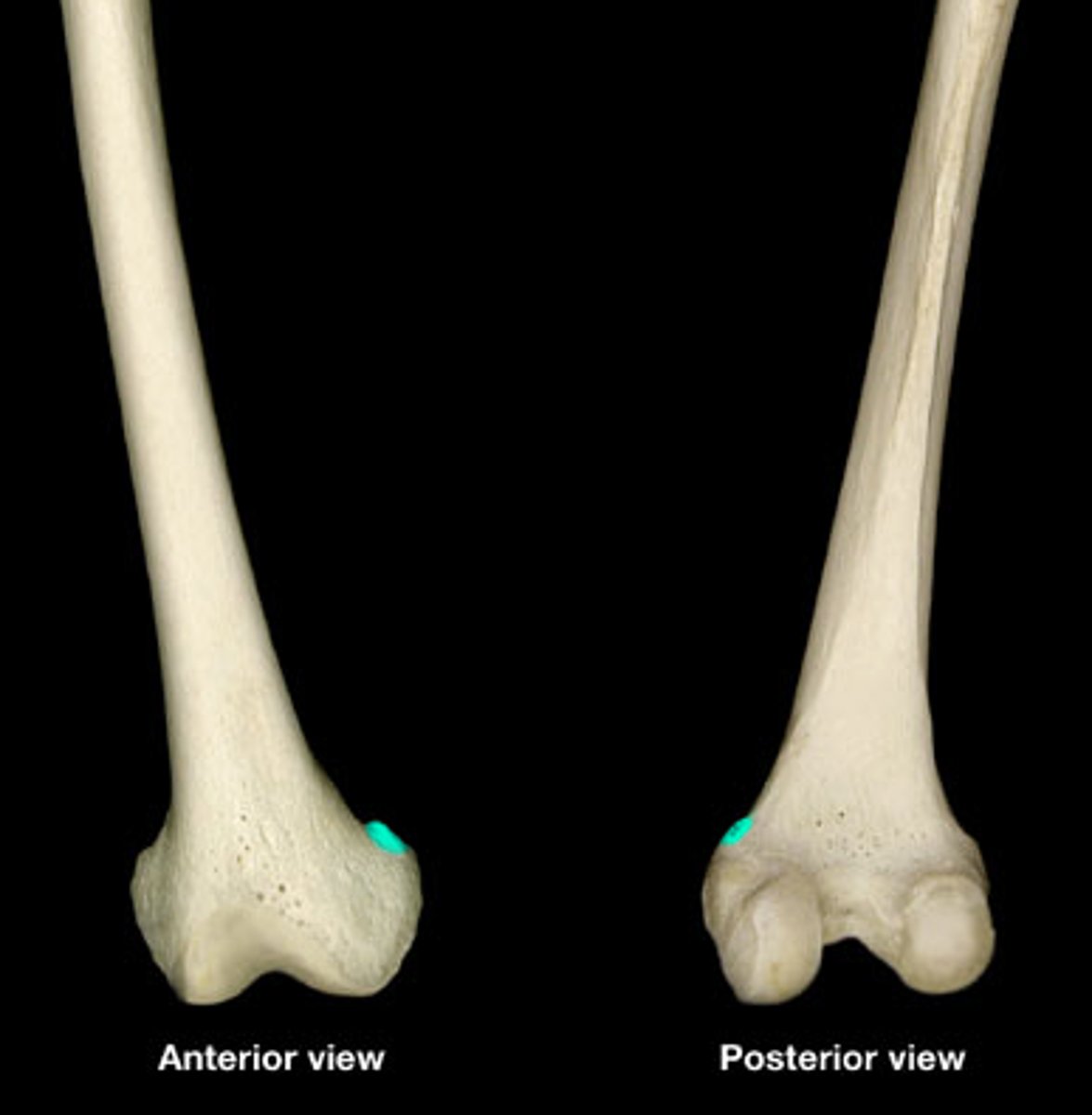

adductor tubercle

tibial tuberosity

anterior tibial crest

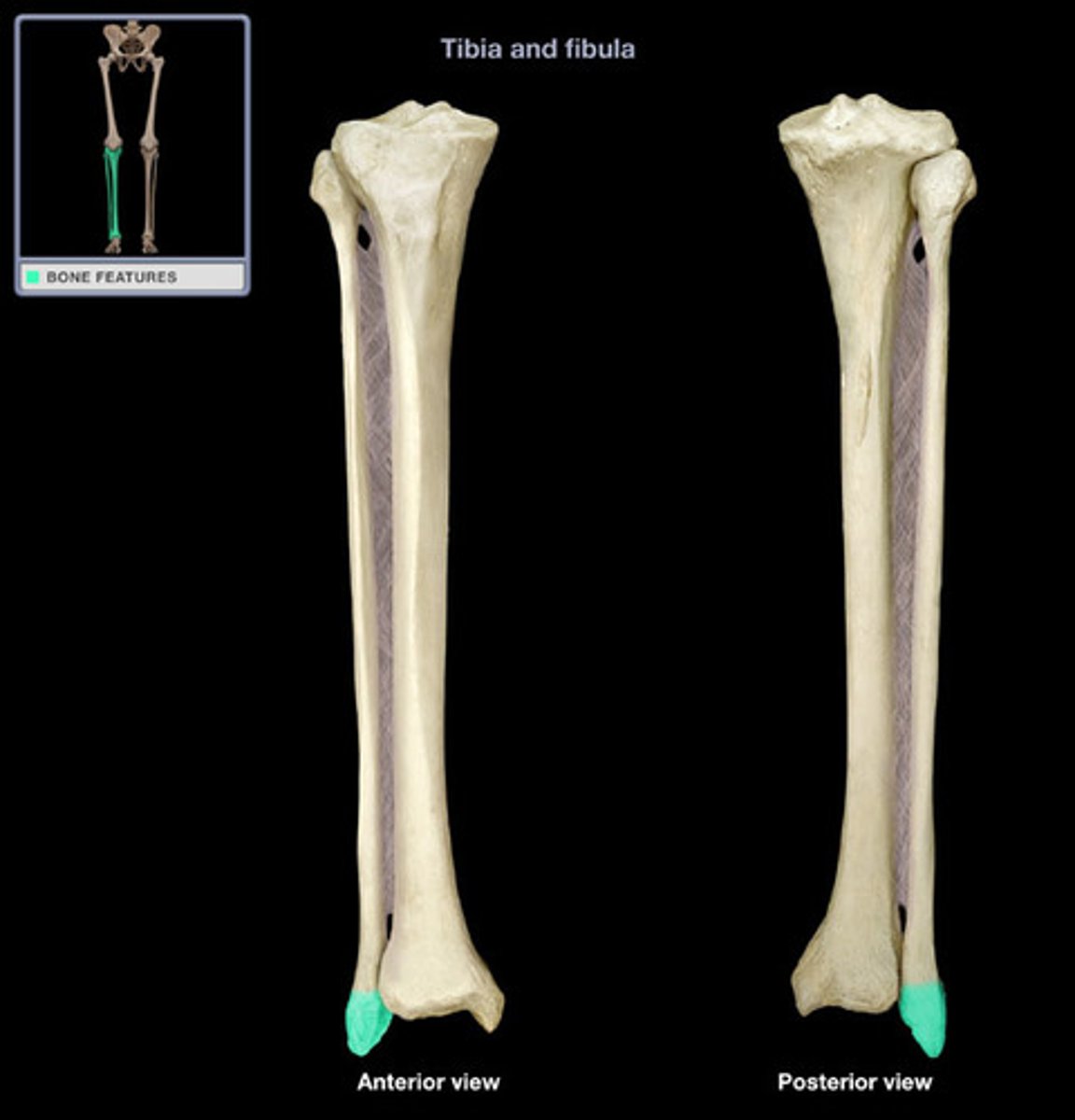

lateral malleolus

distal end of fibula

medial malleolus

distal process on medial tibial surface

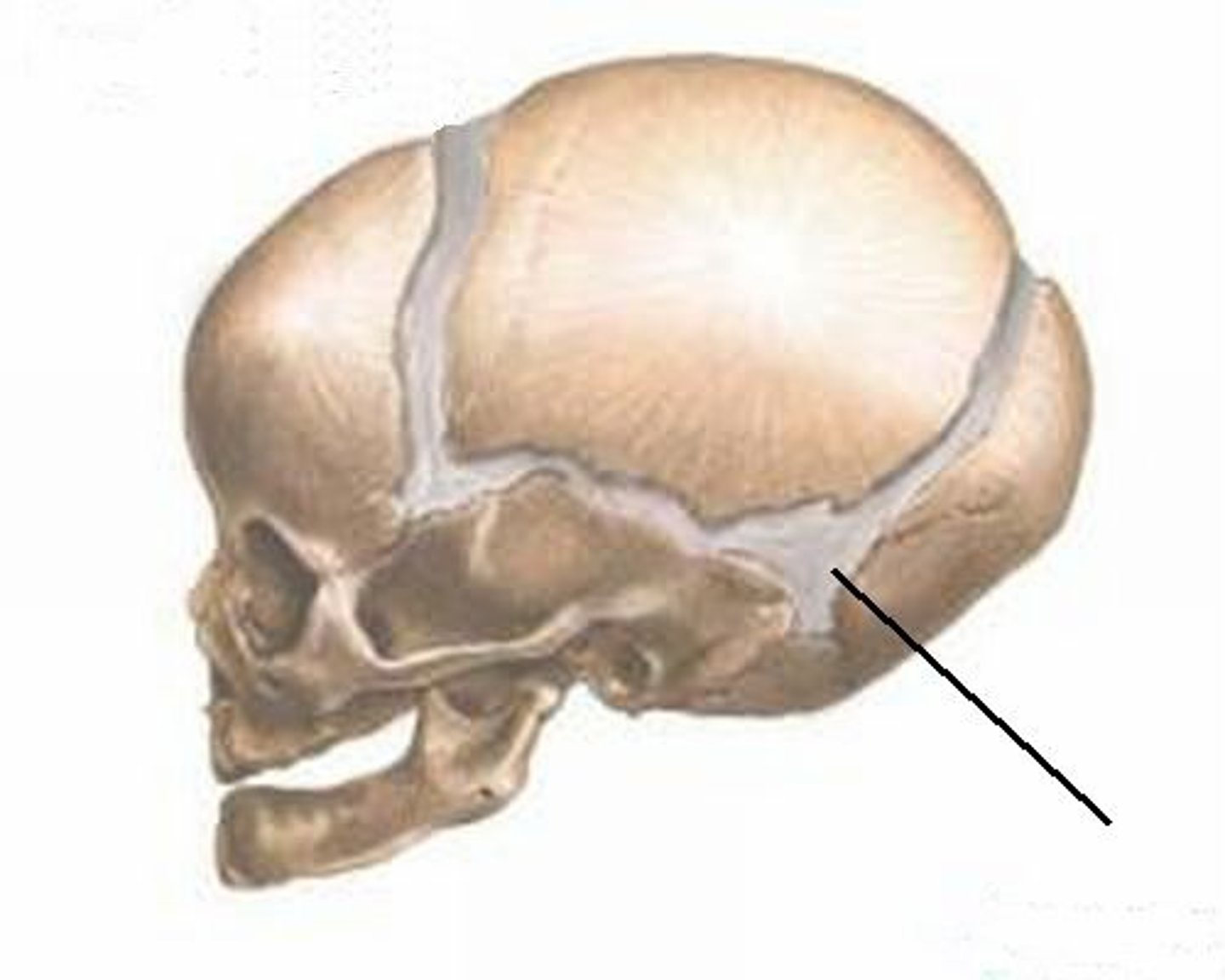

posterior fontanel (joint)

Joint

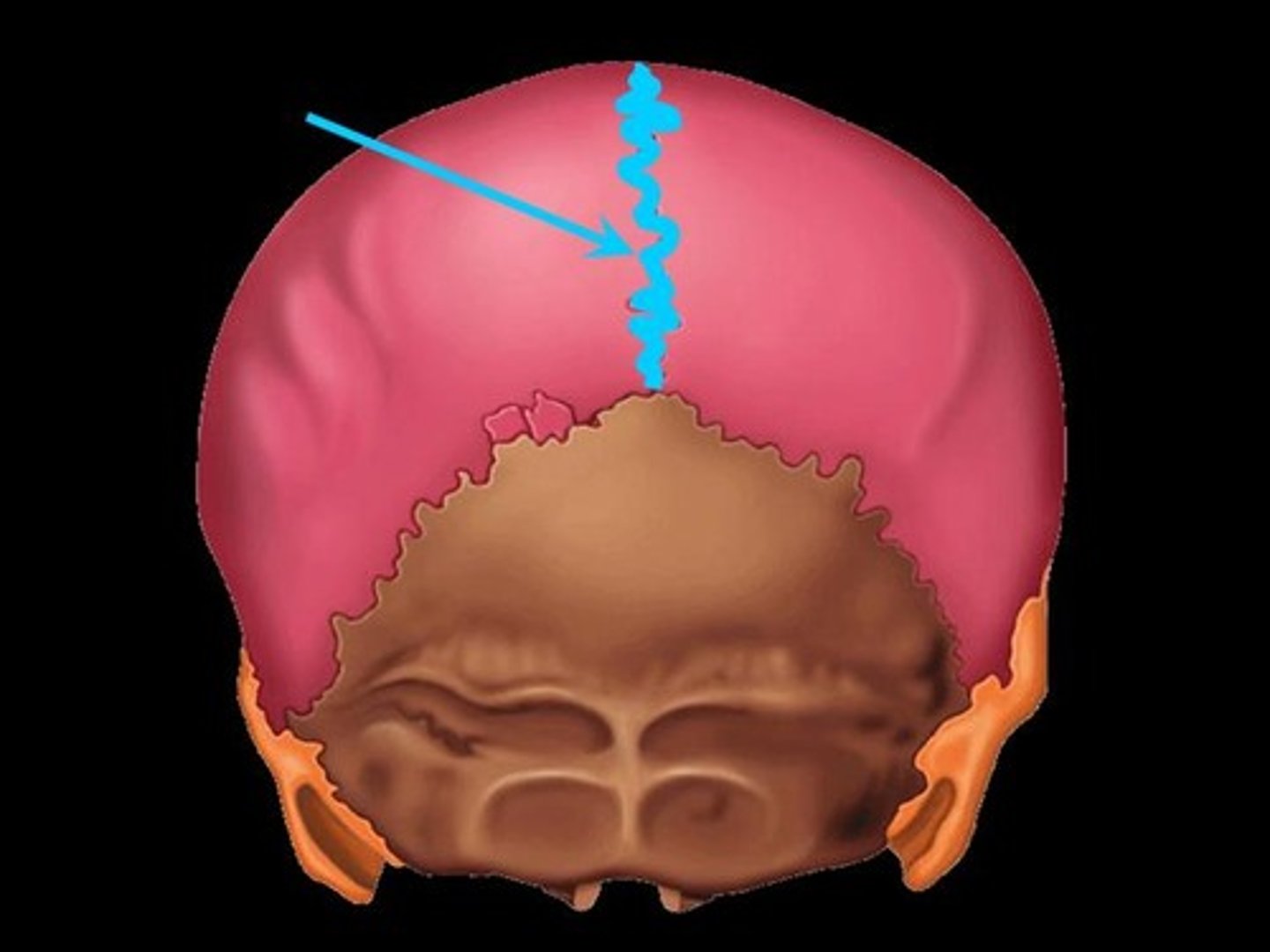

sagittal suture

joint

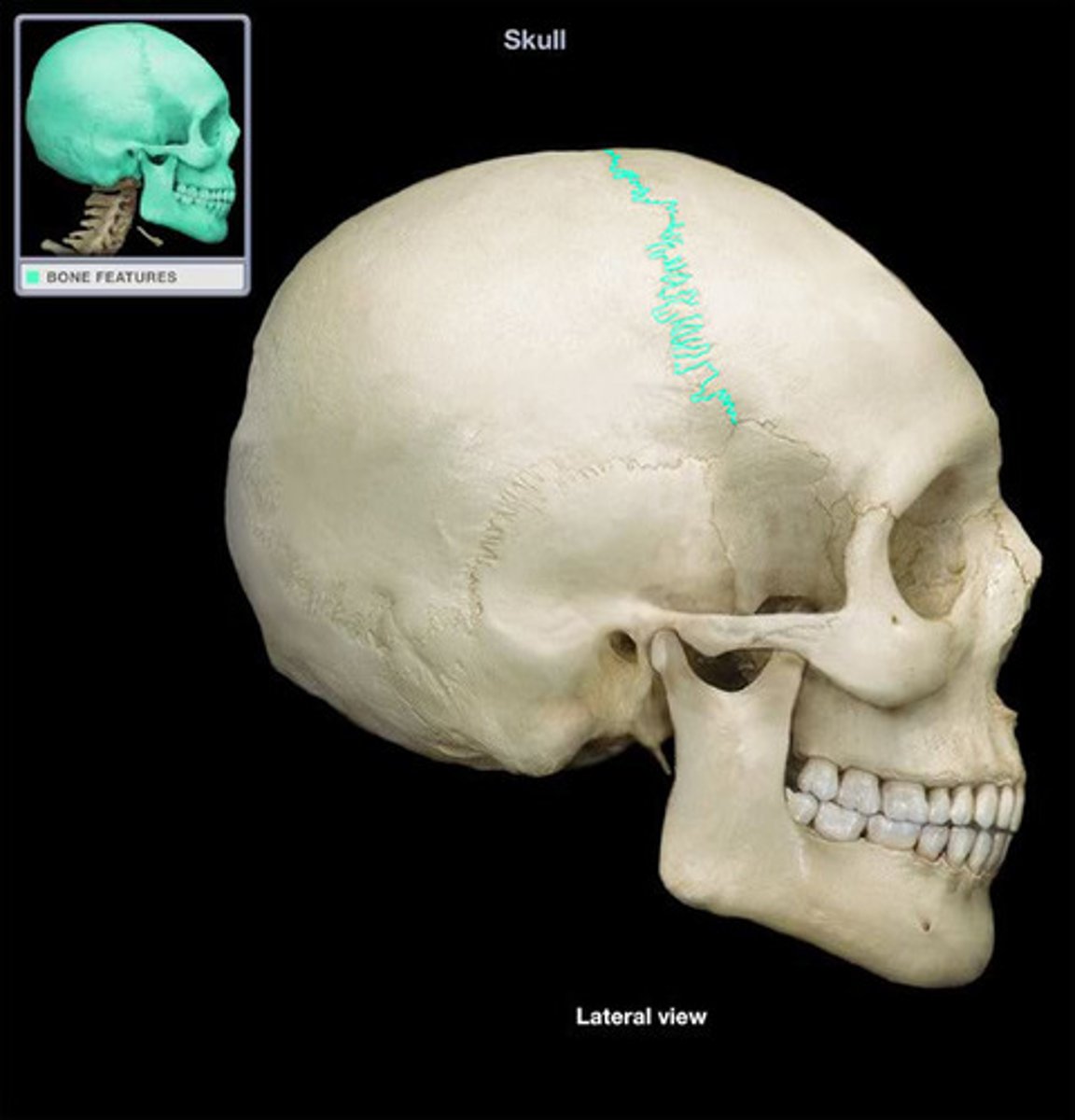

coronal suture

joint

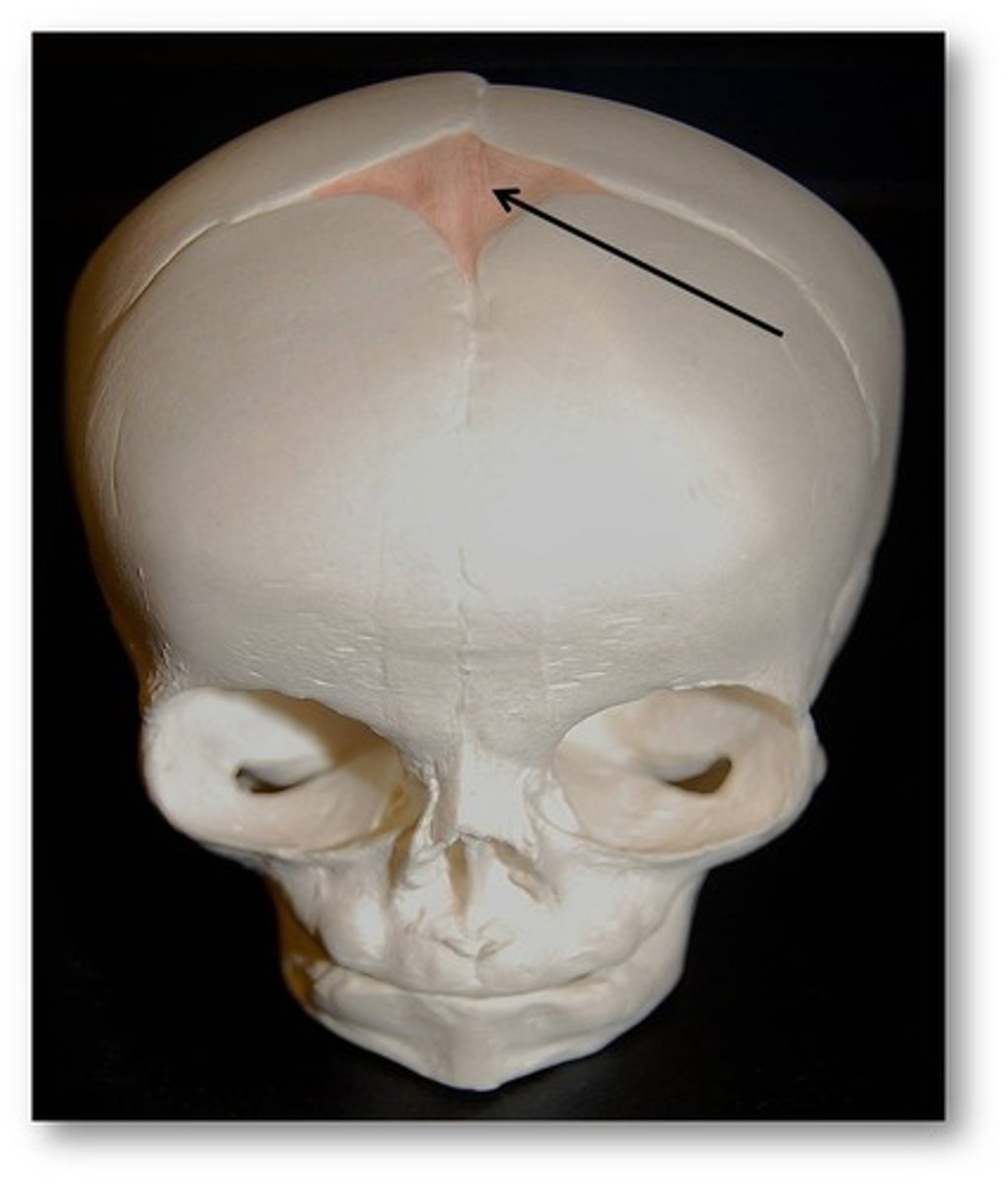

Anterior fontanel

Synarthroses

joints held together by fibroue connective tissue

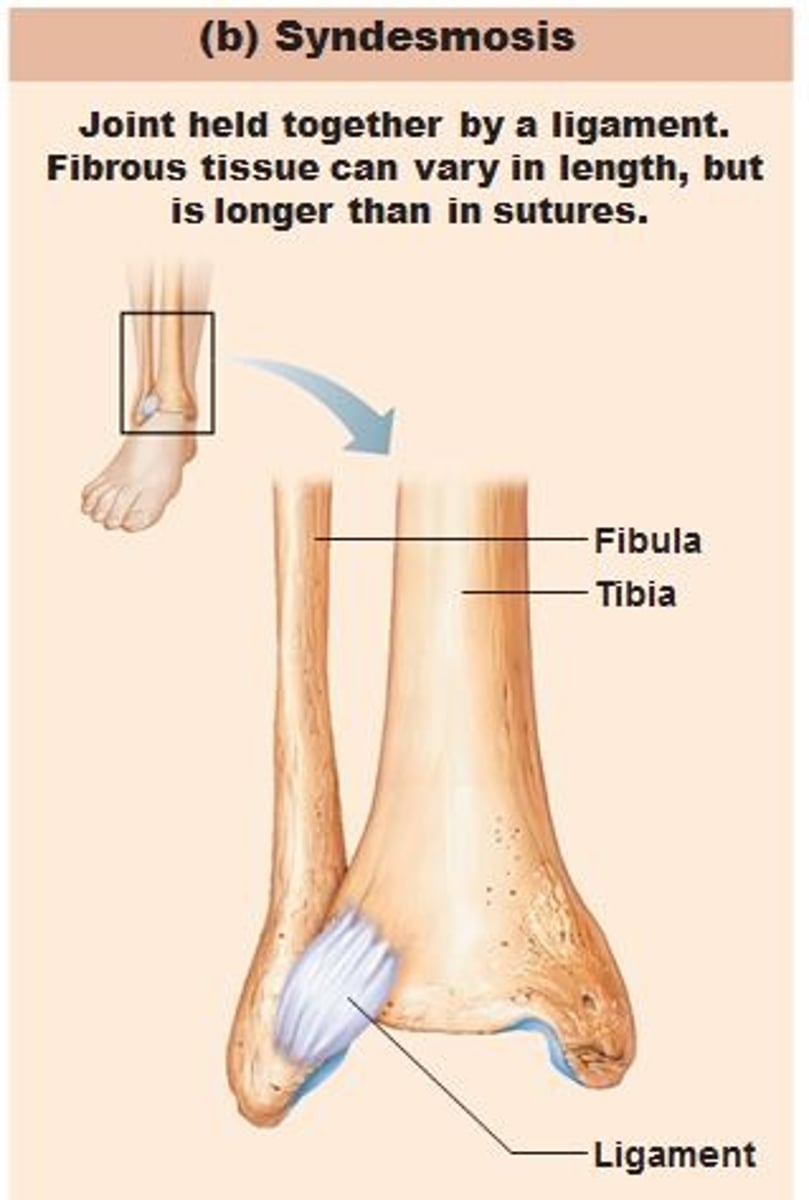

Syndesmoses

bones are united by connective tissue bands
*allow very slight movement
*ex: distal tibia and fibula, interosseous membrane between radius and ulna

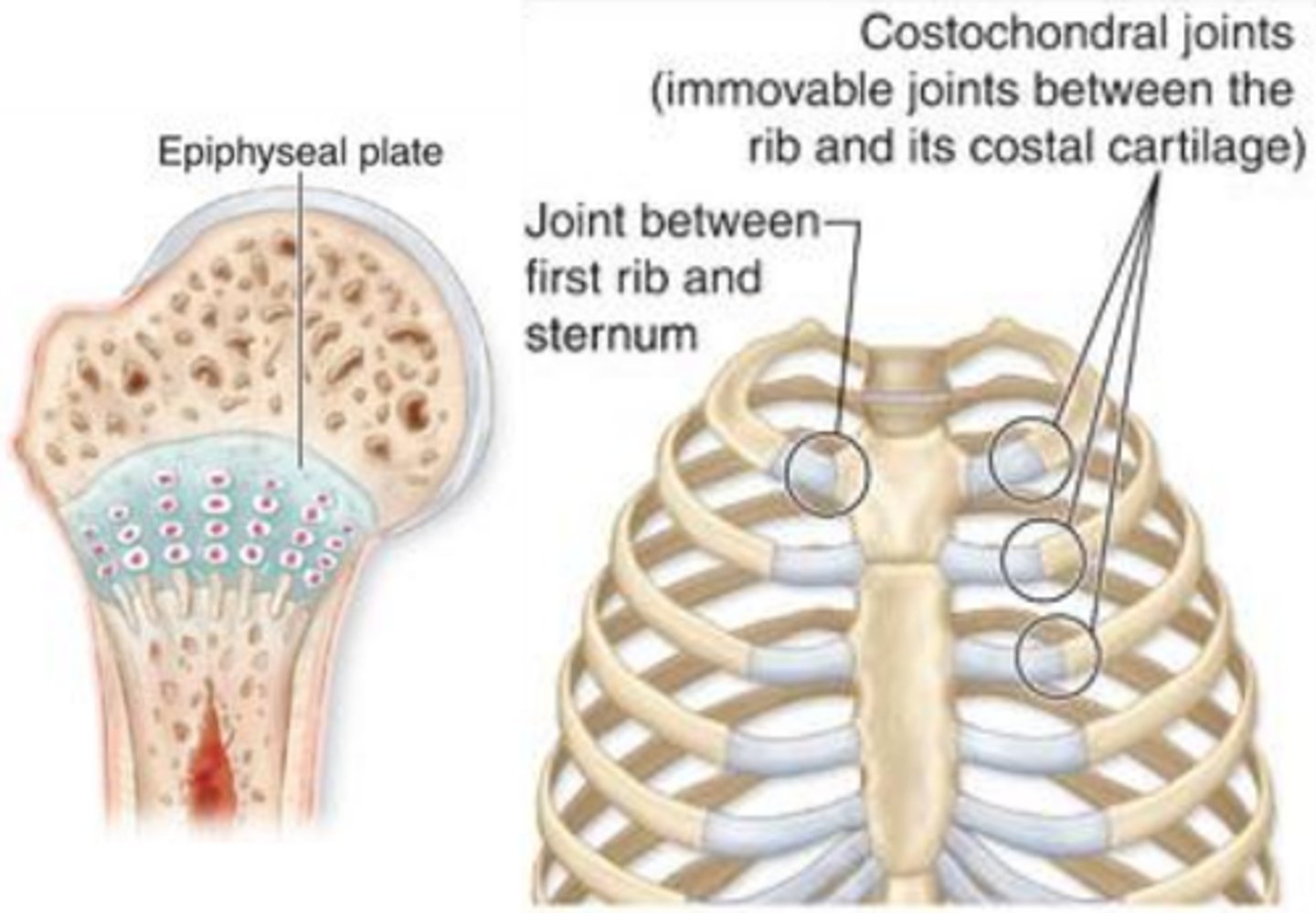

Synchondrosis

bones separated by hyaline cartilage
Permits slight bending in early life
ossify as time passes
Ex: epiphyseal plates and costal cartilages

what are bones separated by?

Cartilage in cartilaginous joints

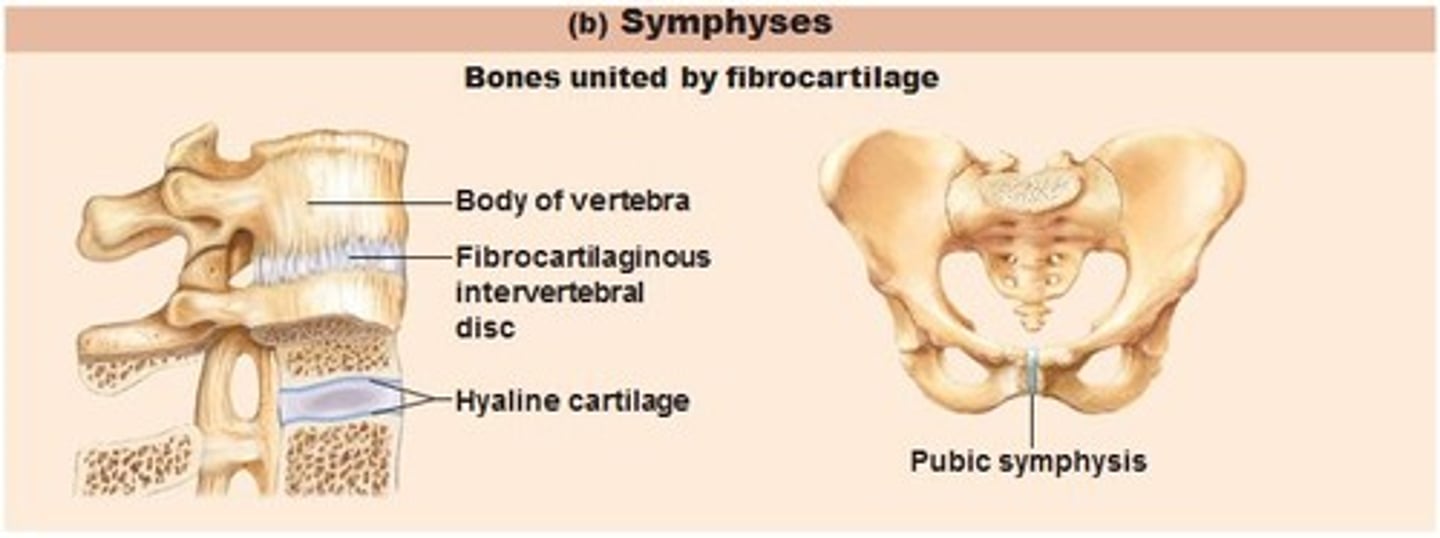

Symphyses (Cartilaginous Joint)

bones are articulates by a disk of fibrocartilage and allow slight movement
Ex: pubic symphysis, intervertebral disks

What are synovial joints surrounded by?

Synovial membranes

Synovial joints

contain synovial membranes which secrete hyaluronic acid (slippery)
Reduces direct bone to bone contact, many have disks of fibrocartilage that help reduce stress on joint
Articular cartilage
Fibrous joint capsule

3 functional classes of synovial joints

•Monaxial : movement of a joint in only one direction
•Biaxial : movement of a joint in two directions
•Multiaxial : movement of joint in more than two direction

ligament

tendon

flexion

bringing two ventral surfaces closer together (except the knee)

Extension

opposite of flexion

dorsiflexion

bringing the toes toward the shin

plantar flexion

flexion of the toes

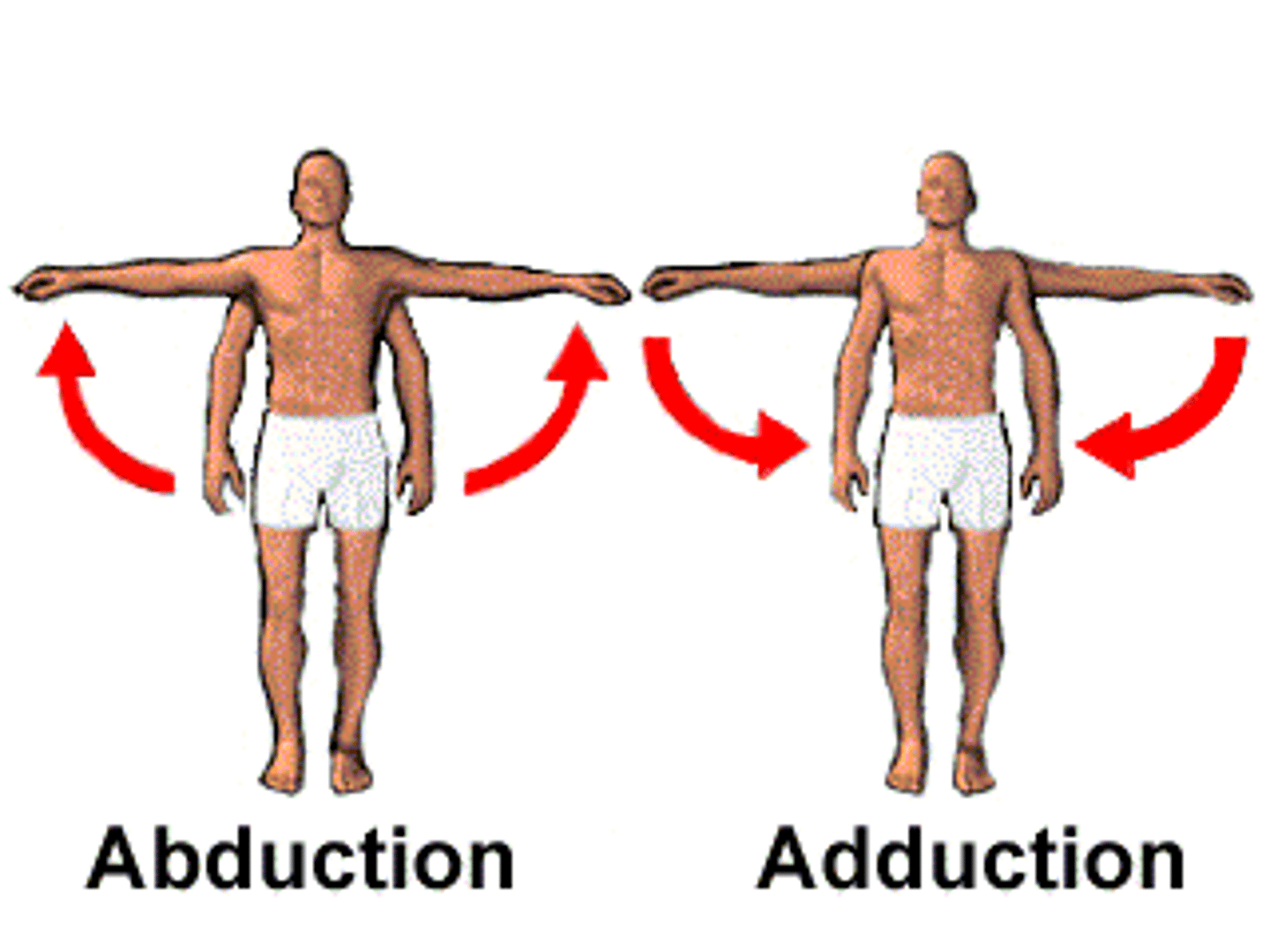

Abduction

movement of a limb away from the midline (note fingers)

adduction

movement of limb toward the midline

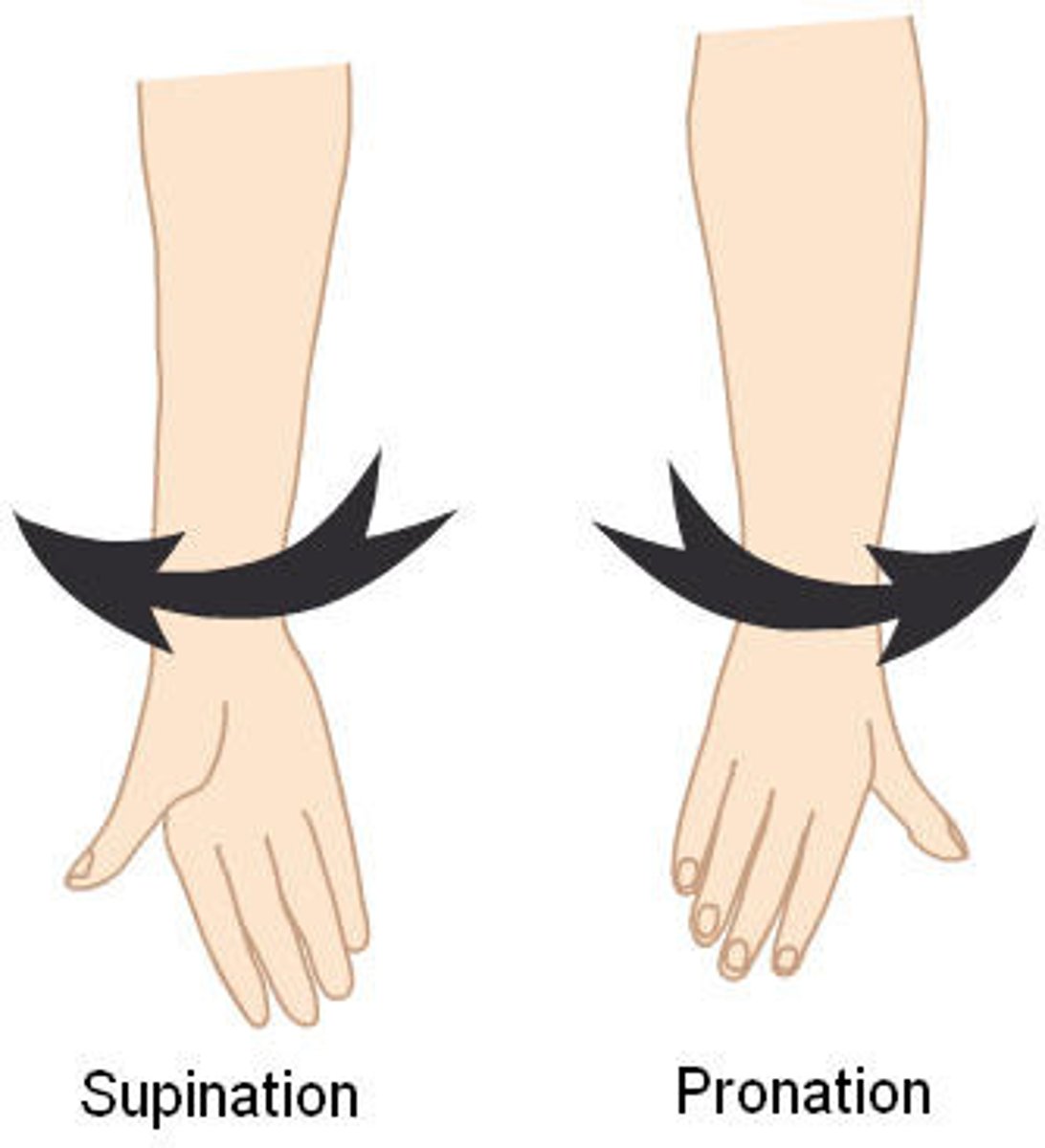

pronation

make the palm face posterior in AP

Supination

make the palm face anterior in ap

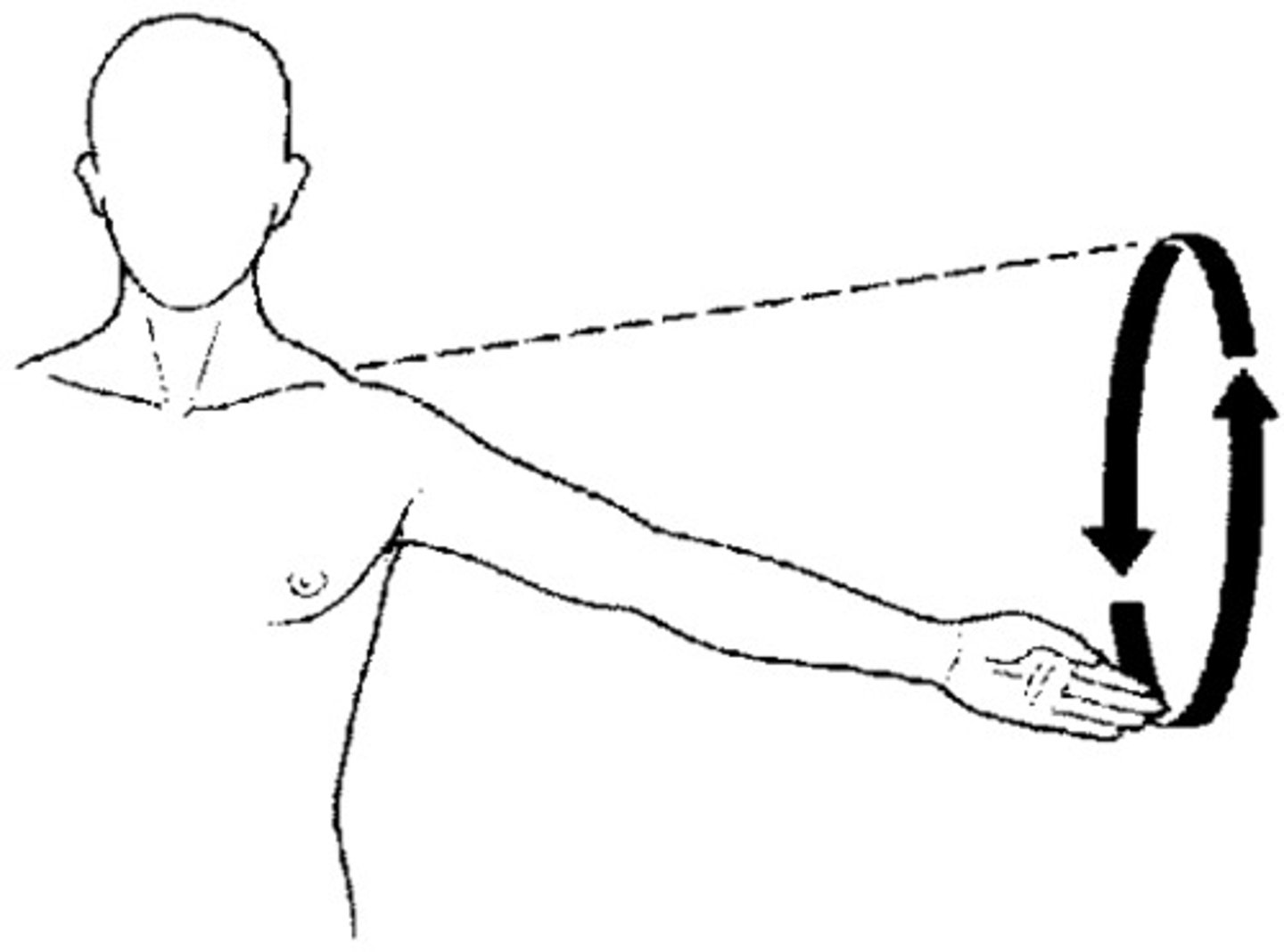

Circumduction

the distal end of a bone describes a circle while the proximal end stays staionary

inversion

turning sole of foot medially at the ankle

Eversion

turning sole of foot laterally at the ankle

protraction

moving the mandible or clavicle anteriorly

retraction

moving mandible or clavicle posteriorly

Elevation

movement in a superior direction

depression

movement in an inferior direction

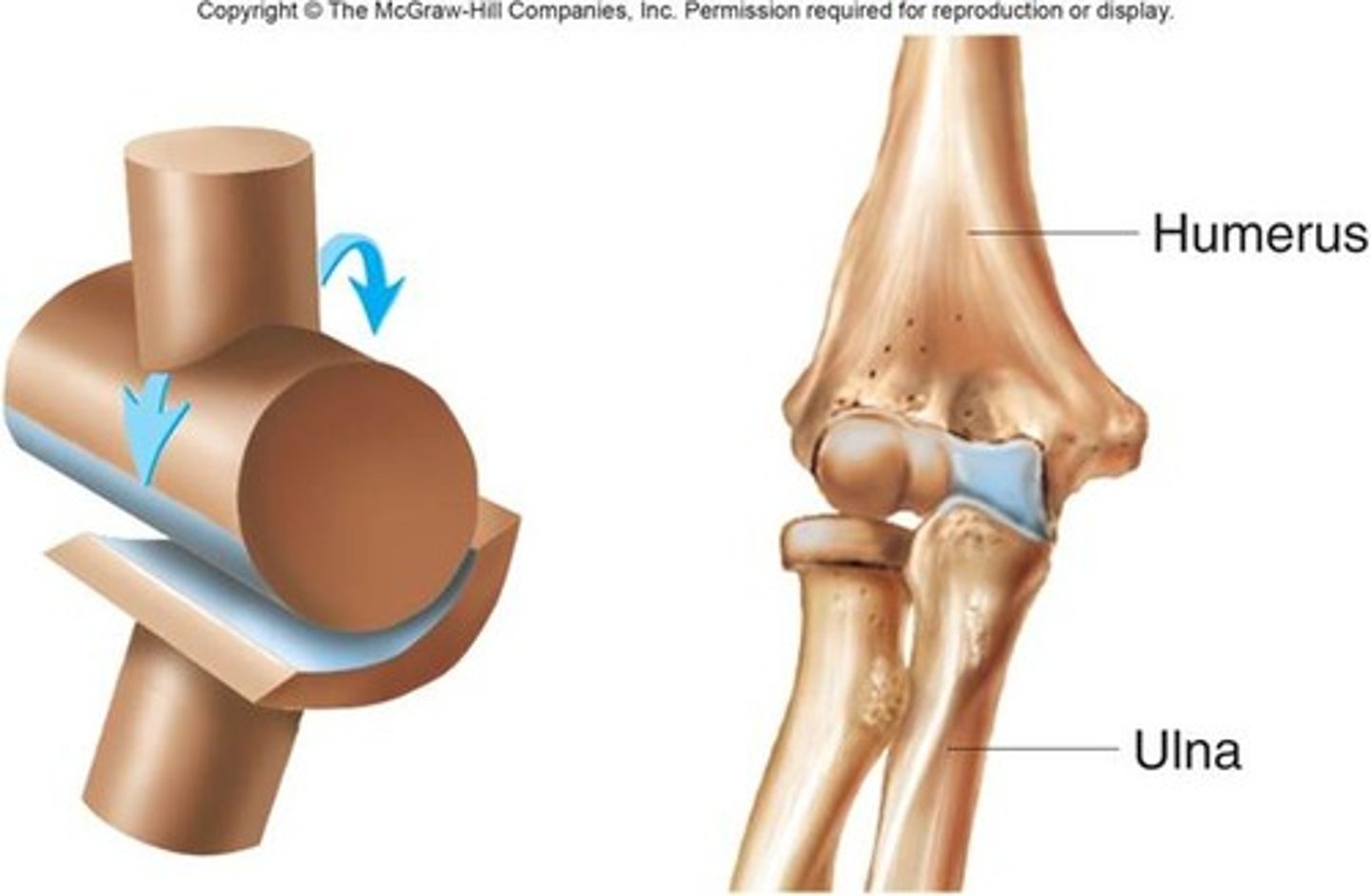

Hinge joints

concave surface of one joint acceots the convex surface of another joint
*monaxial

Movements-mainly flexion and extension

Ex:elbow knee, phalangeal joints

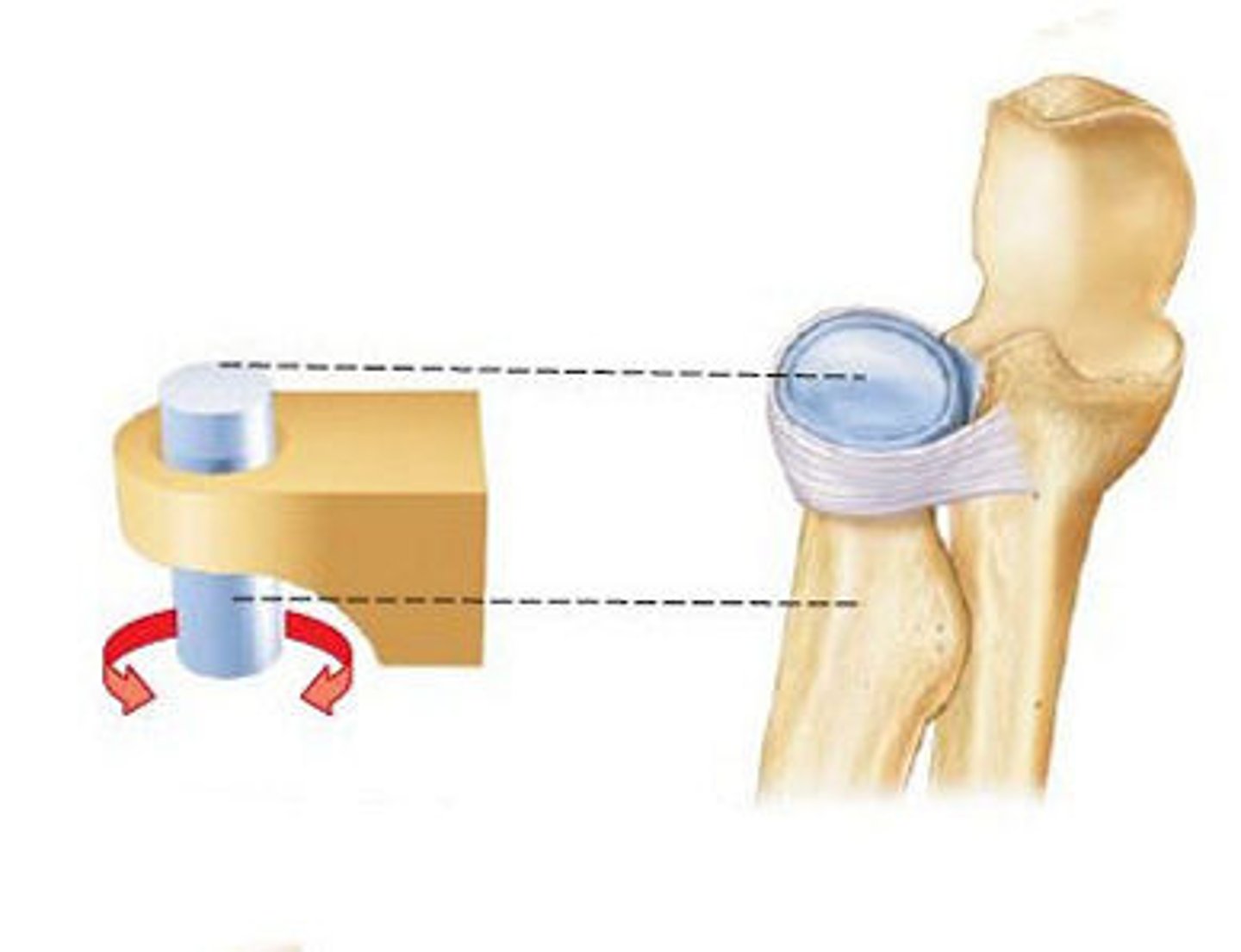

Pivot joints

also monoaxial, a rounded process of one bone fits into a shallow depression in another bone and then rotates

Movements- pronation and supination

Ex:proximal radioulnar joint, atlantoaxial joint

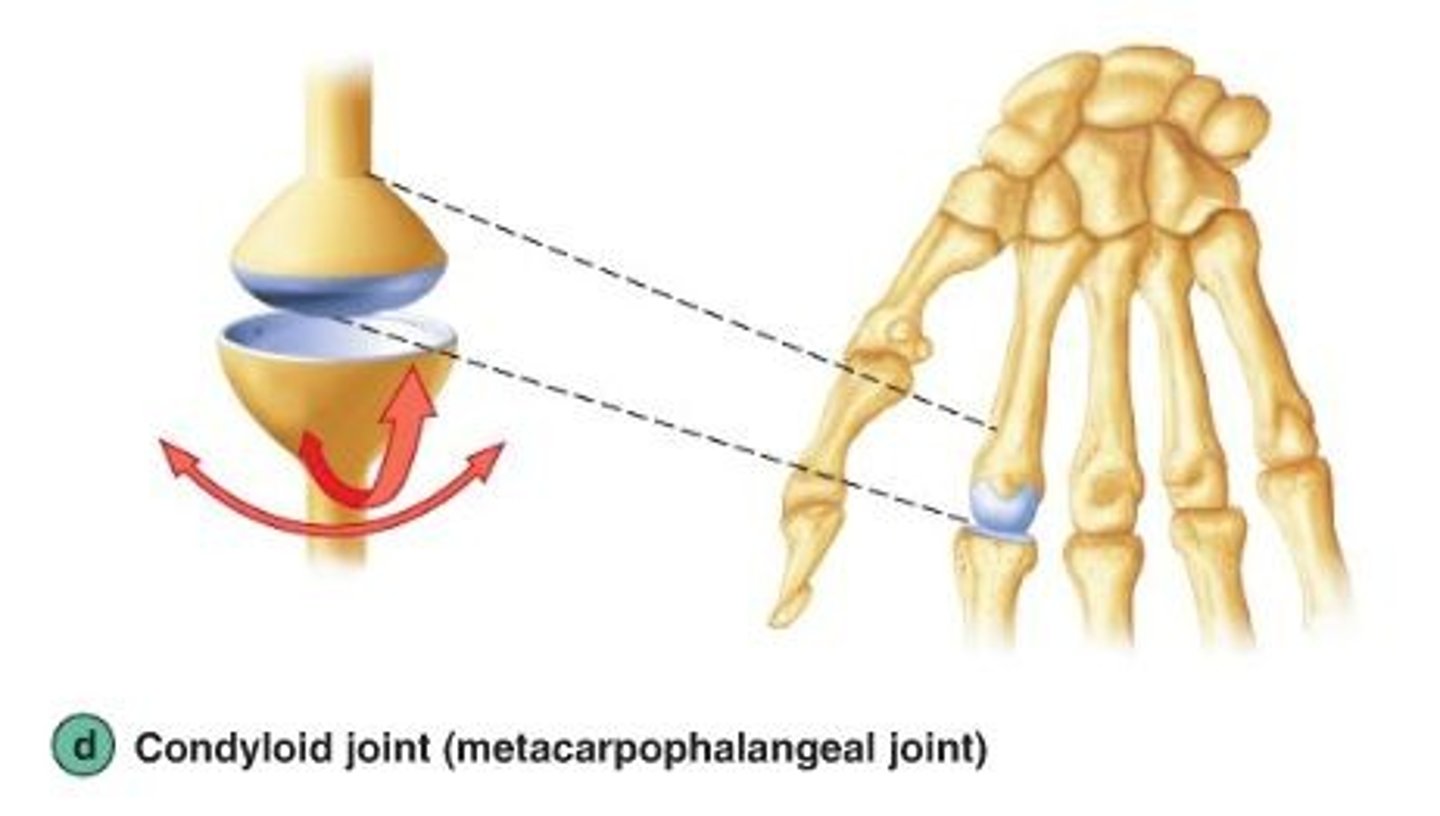

Ellipsoidal joints

biaxial joints, an oval depression in one bone accepts an oval shaped condyle of another bone; movements-mainly flexion-extension, and a little adduction and abduction; Ex: metacarpals and phalanges

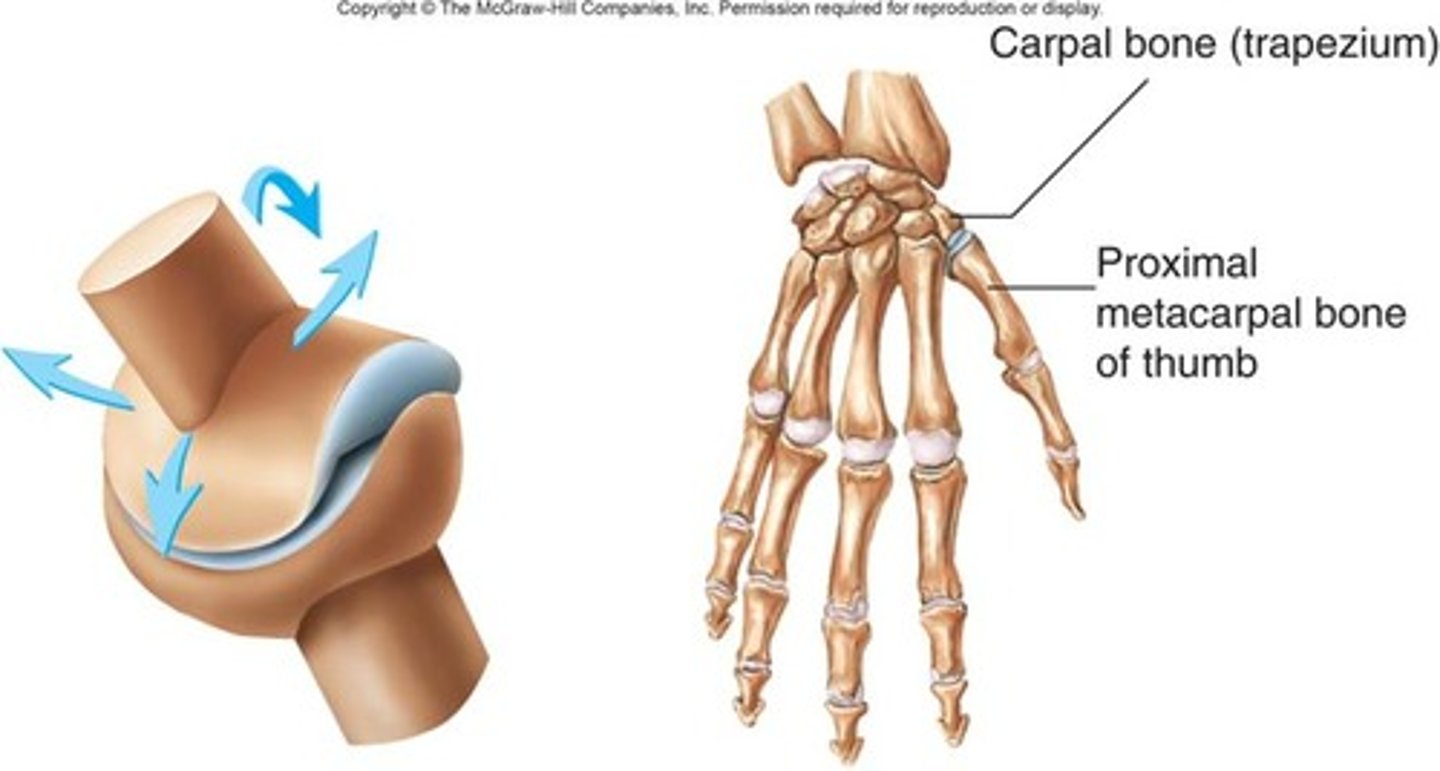

saddle joints

a convex surface which fits into a concavity, movements- medial/lateral, anterior/posterior, Ex: carpometacarpal joint of the first digit

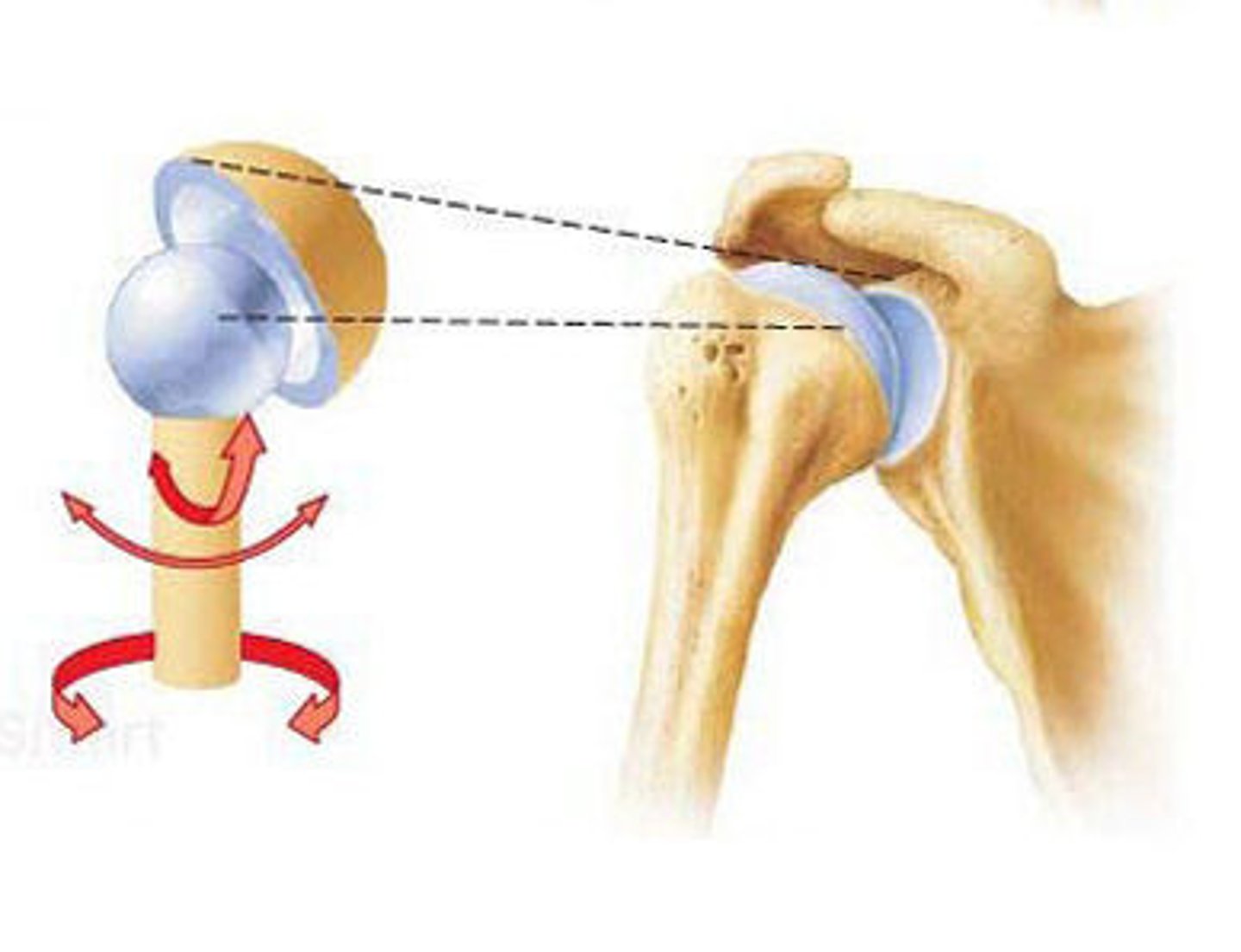

Ball and Socket Joints

Multiaxial
movements-circumduction, flexion, extension, abduction, adduction, rotation
Ex: shoulder joint, hip joint

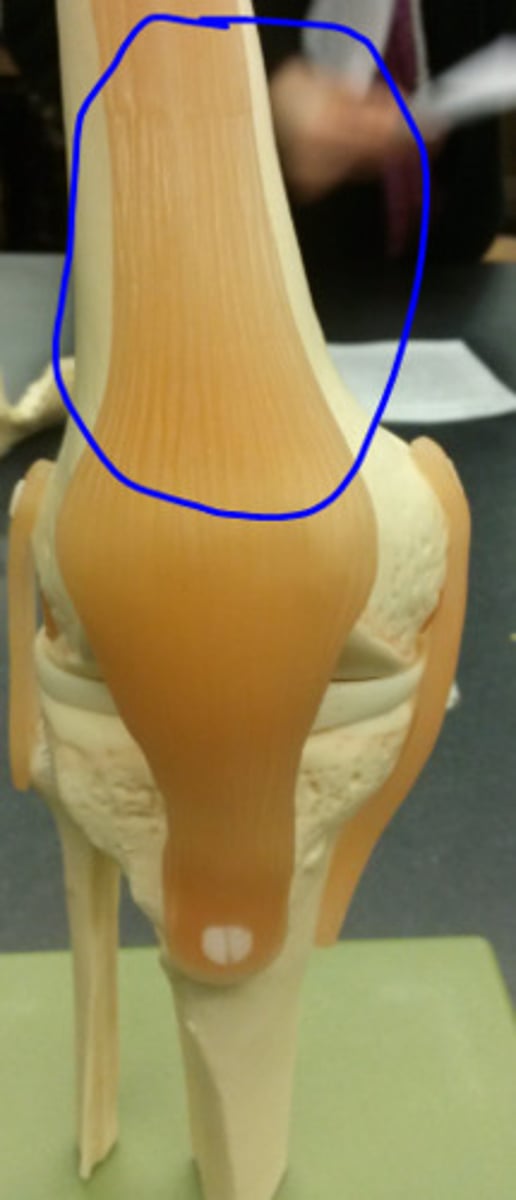

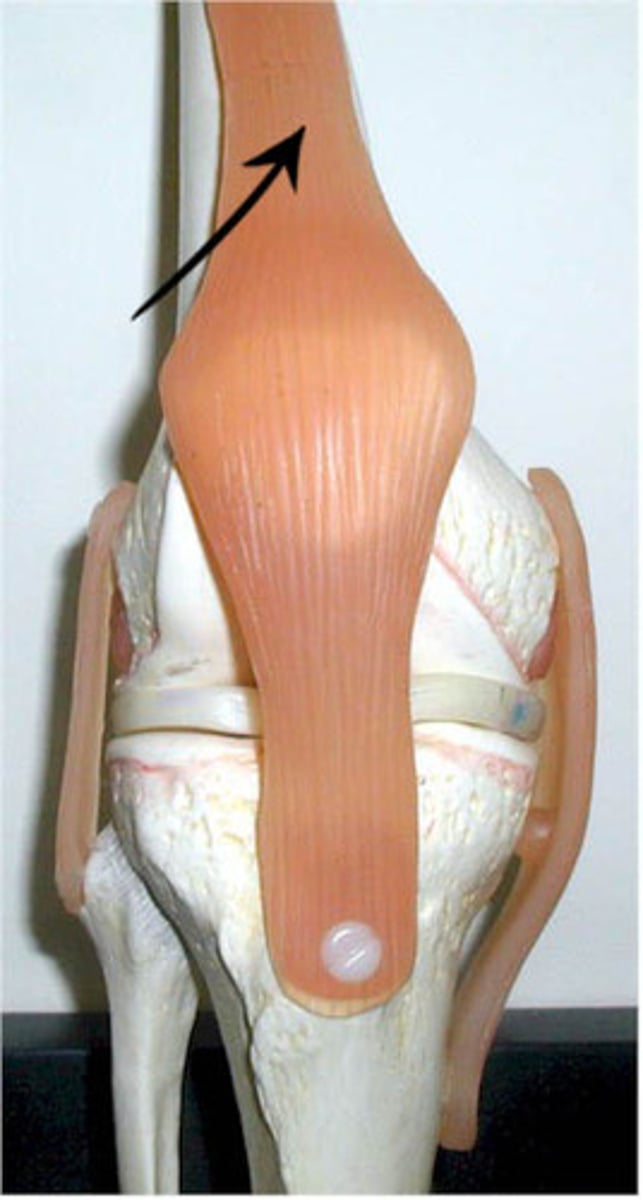

Tendon of Quadricepts

patella

Patellar Ligament

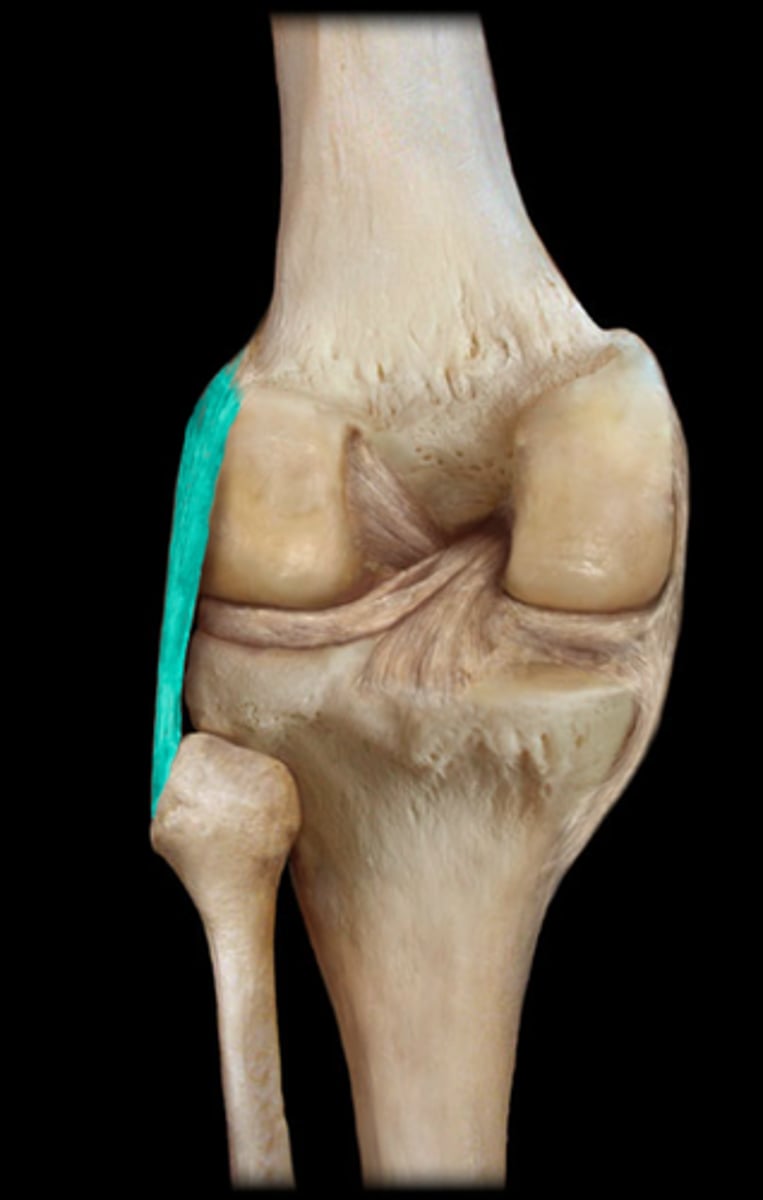

Fibular collateral ligament

Lateral Meniscus

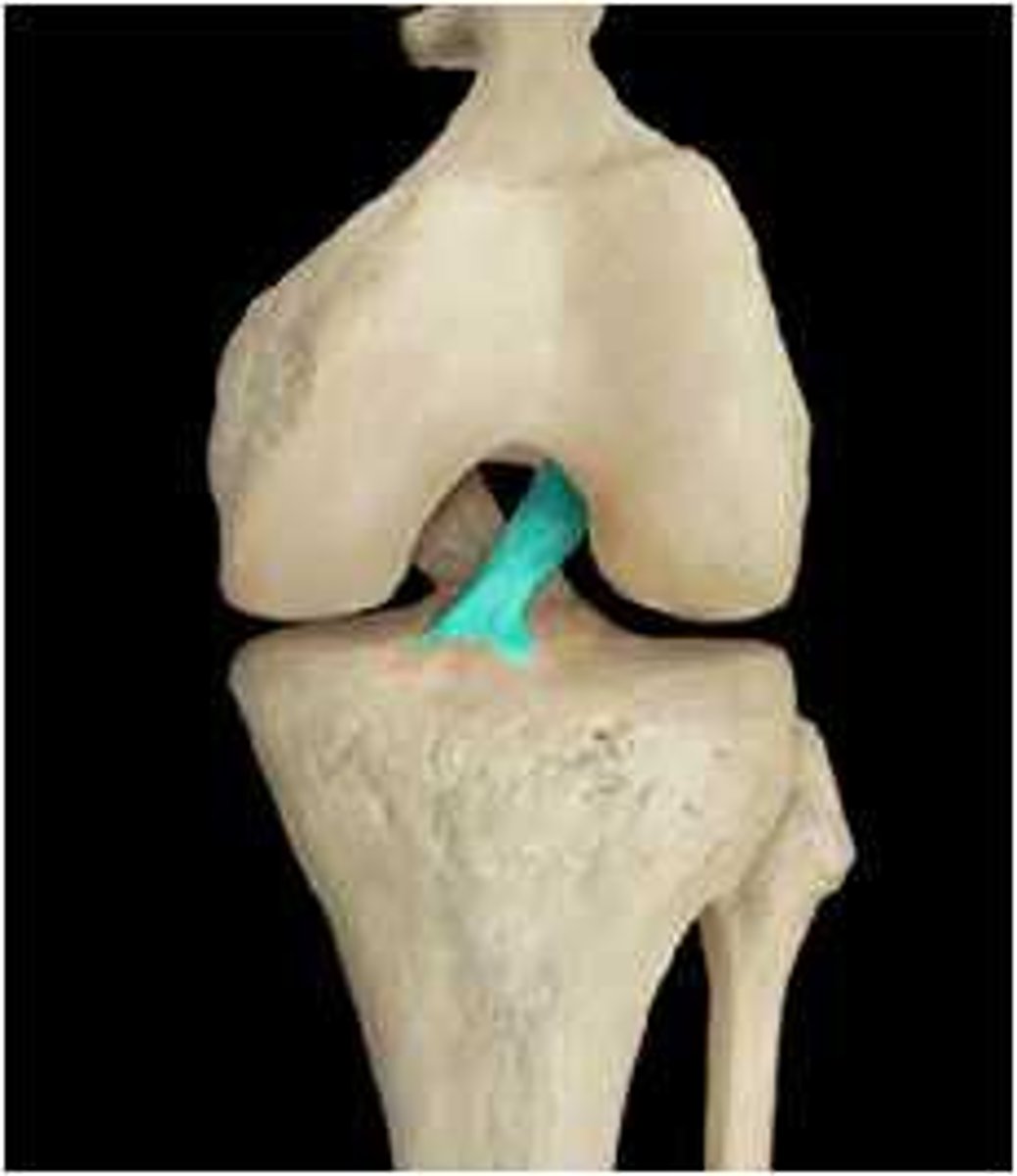

Posterior Cruciate ligament

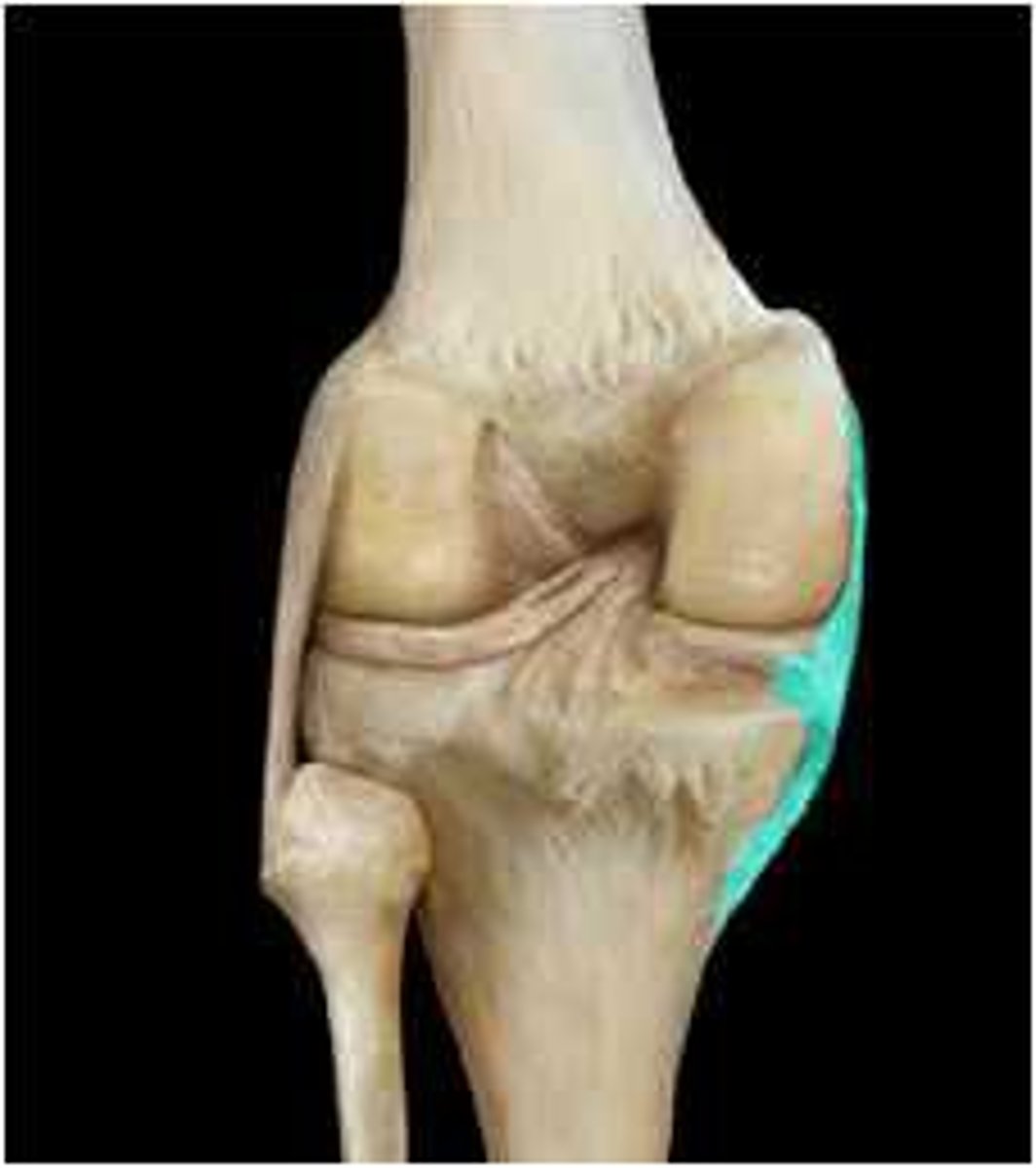

Tibial Collateral Ligament (MCL)

Anterior Cruciate Ligament (ACL)

Medial Meniscus

Unhappy trio

MCL, ACL, Medial meniscus

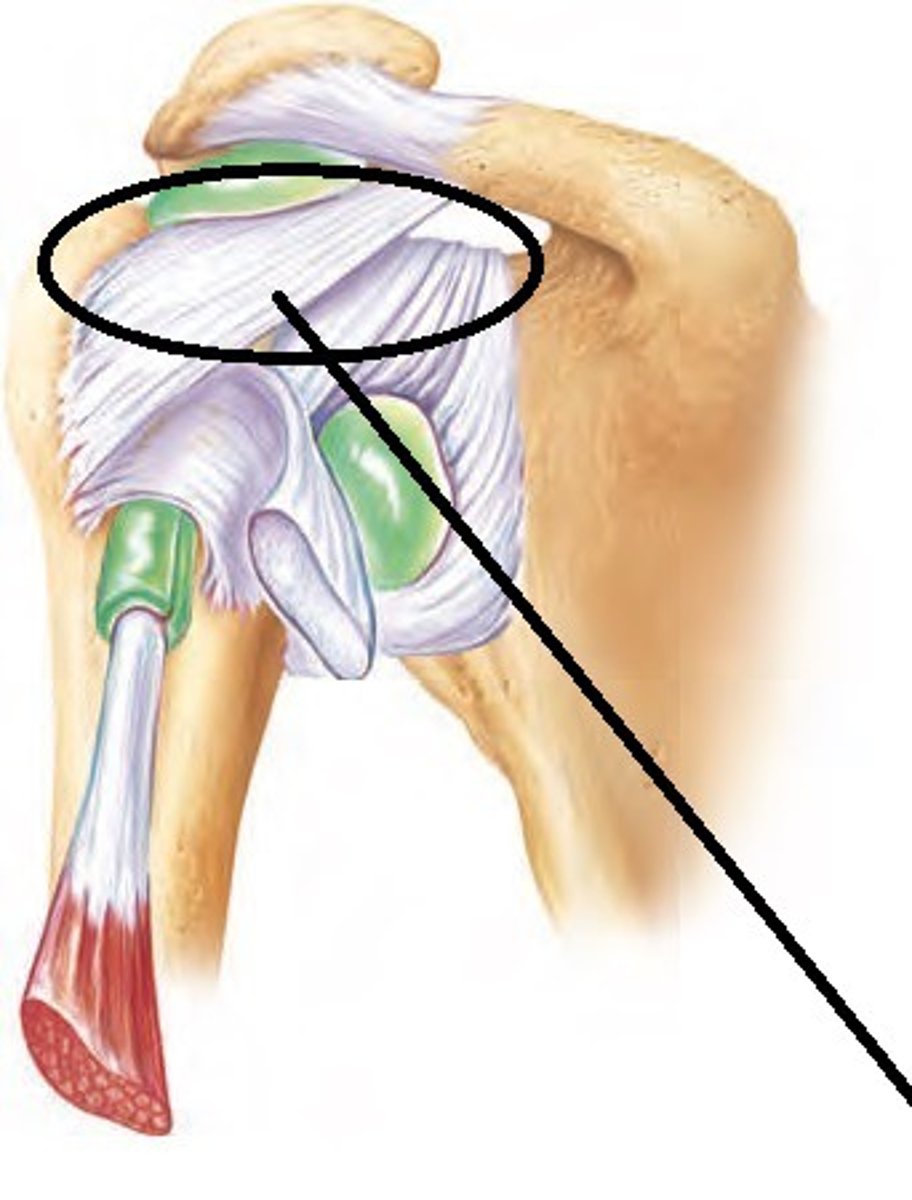

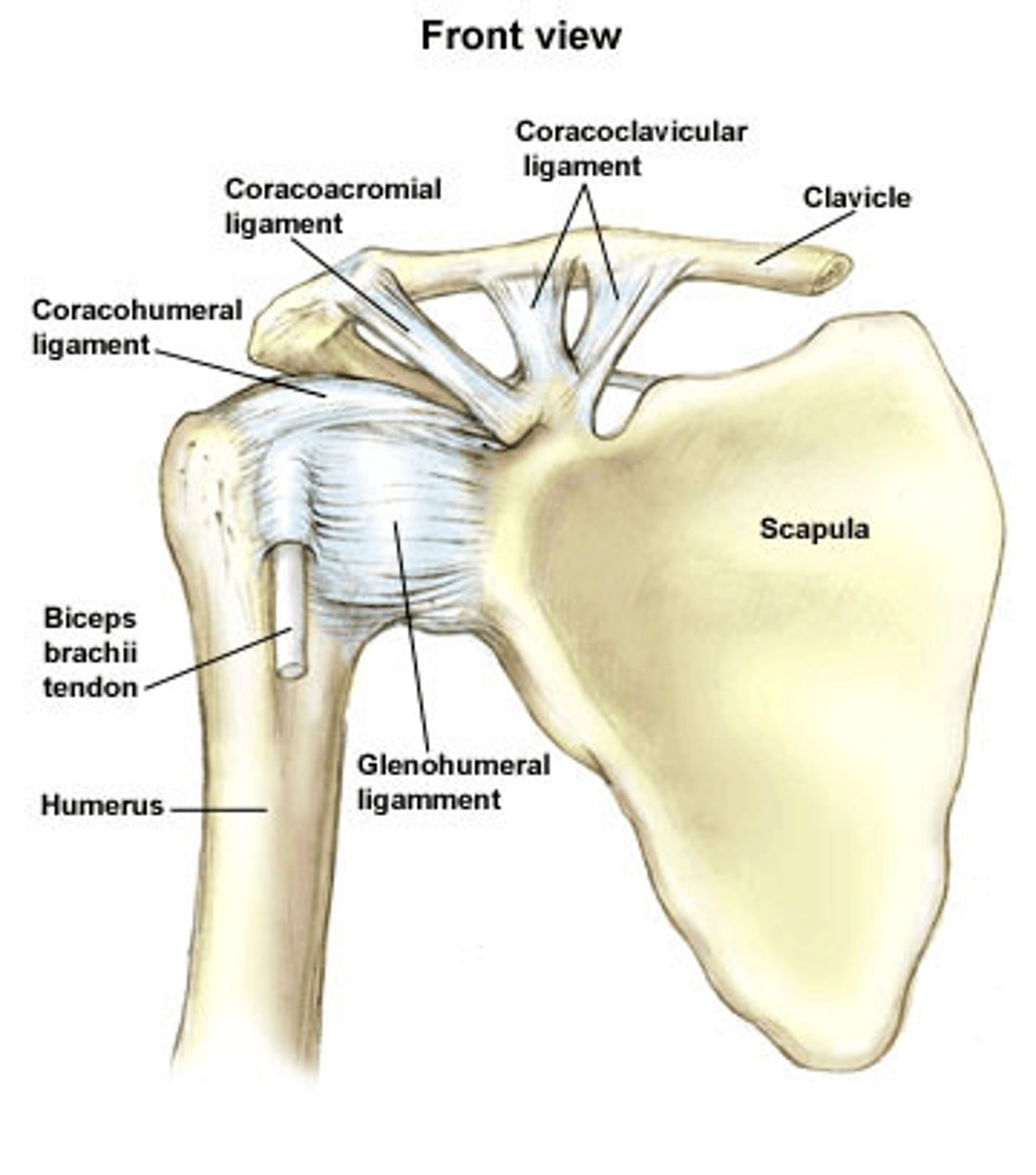

coracohumeral ligament

glenohumeral ligament

What is the shoulder joint reinforced by?

4 rotator cuff tendons

Inferior dislocation

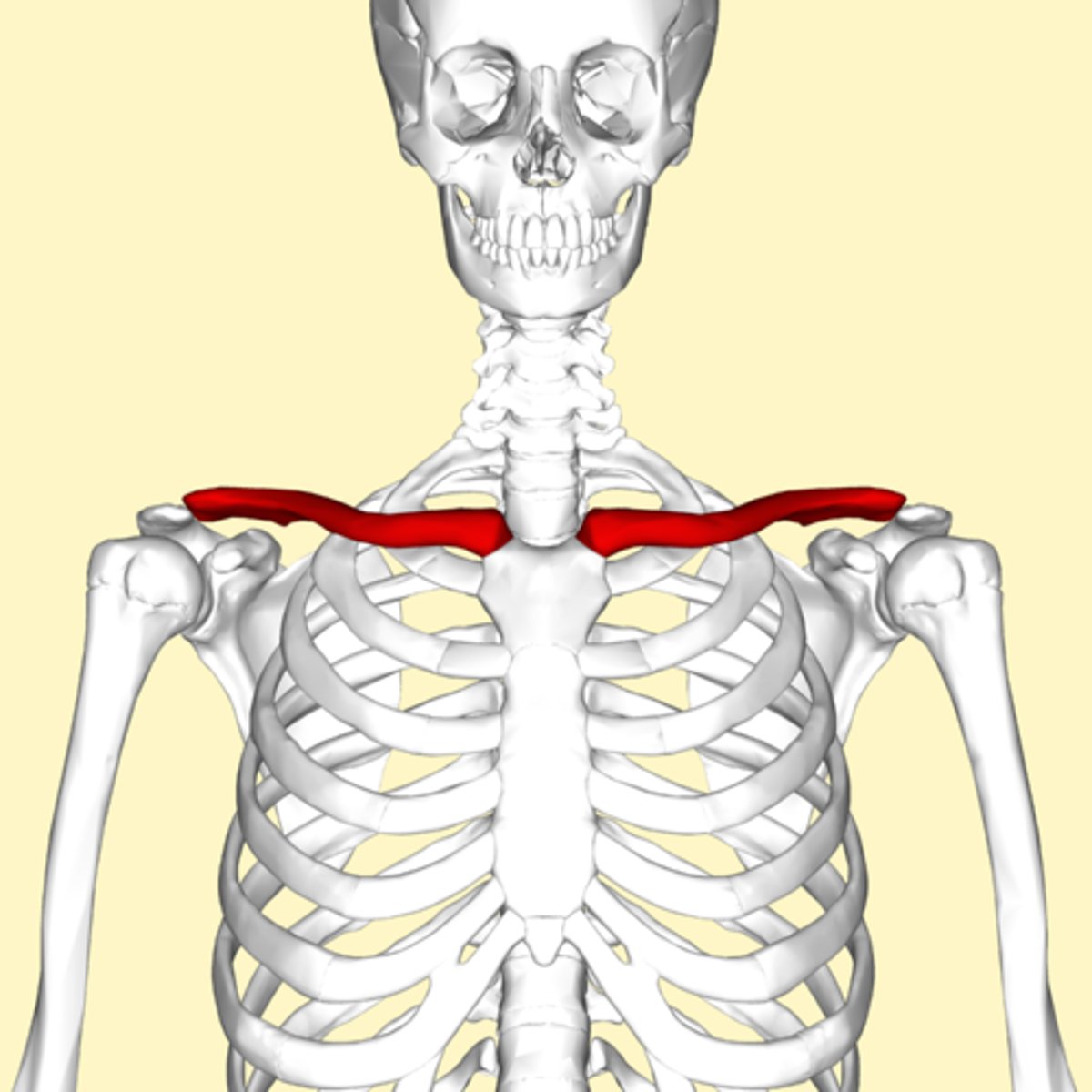

Clavicle collarbone

Acromioclavicular ligament

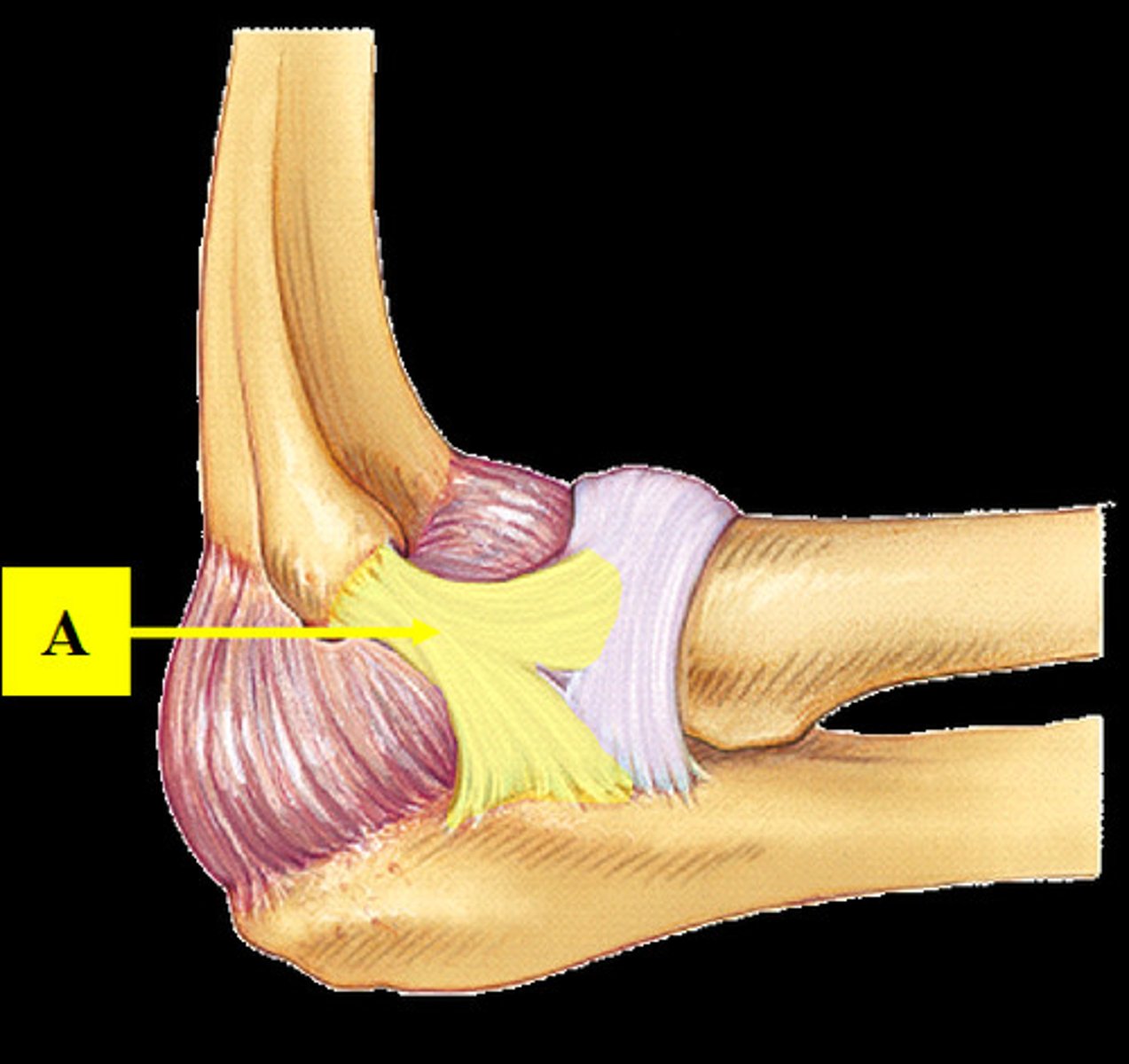

Radial collateral ligament

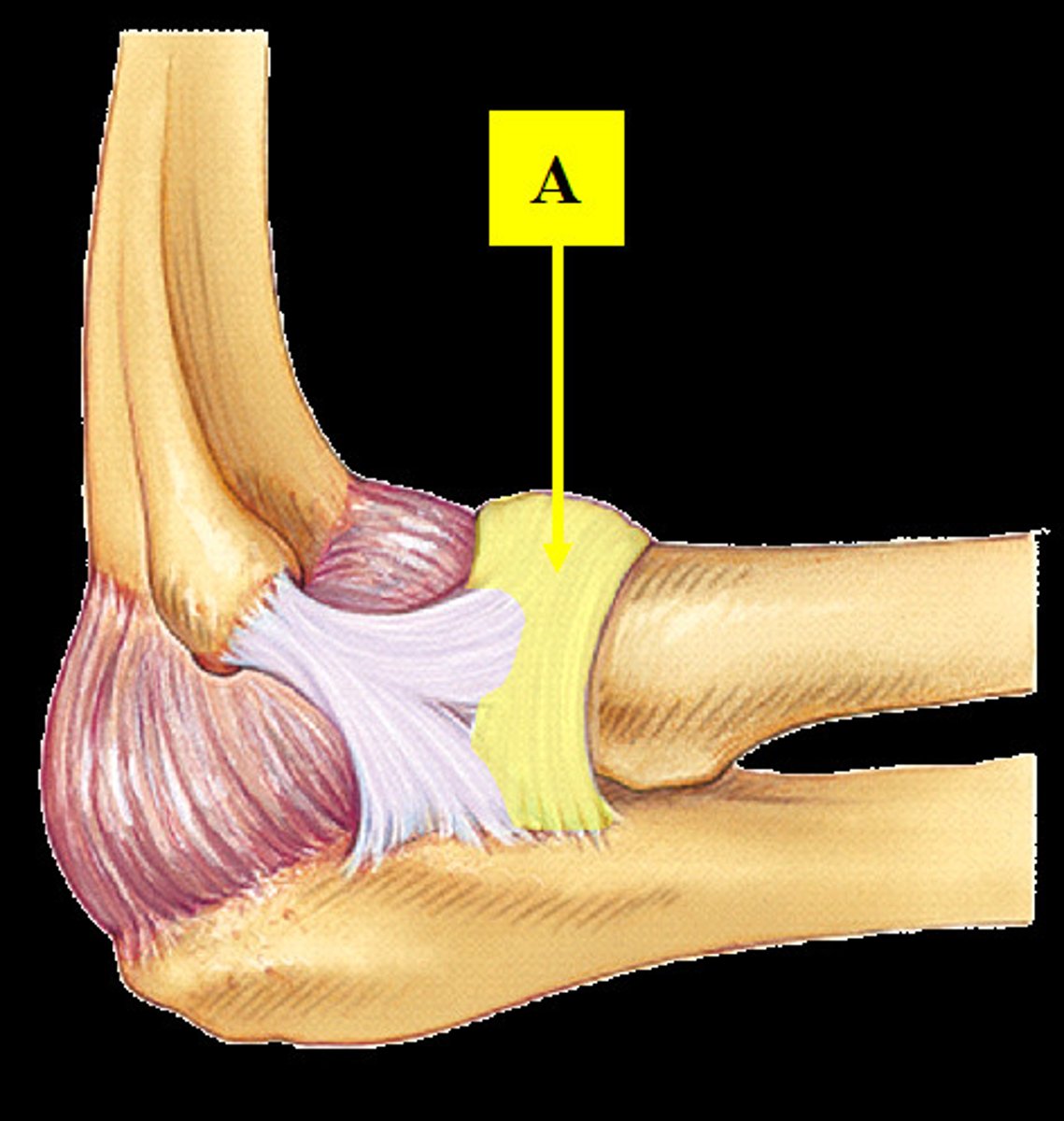

Anular ligament

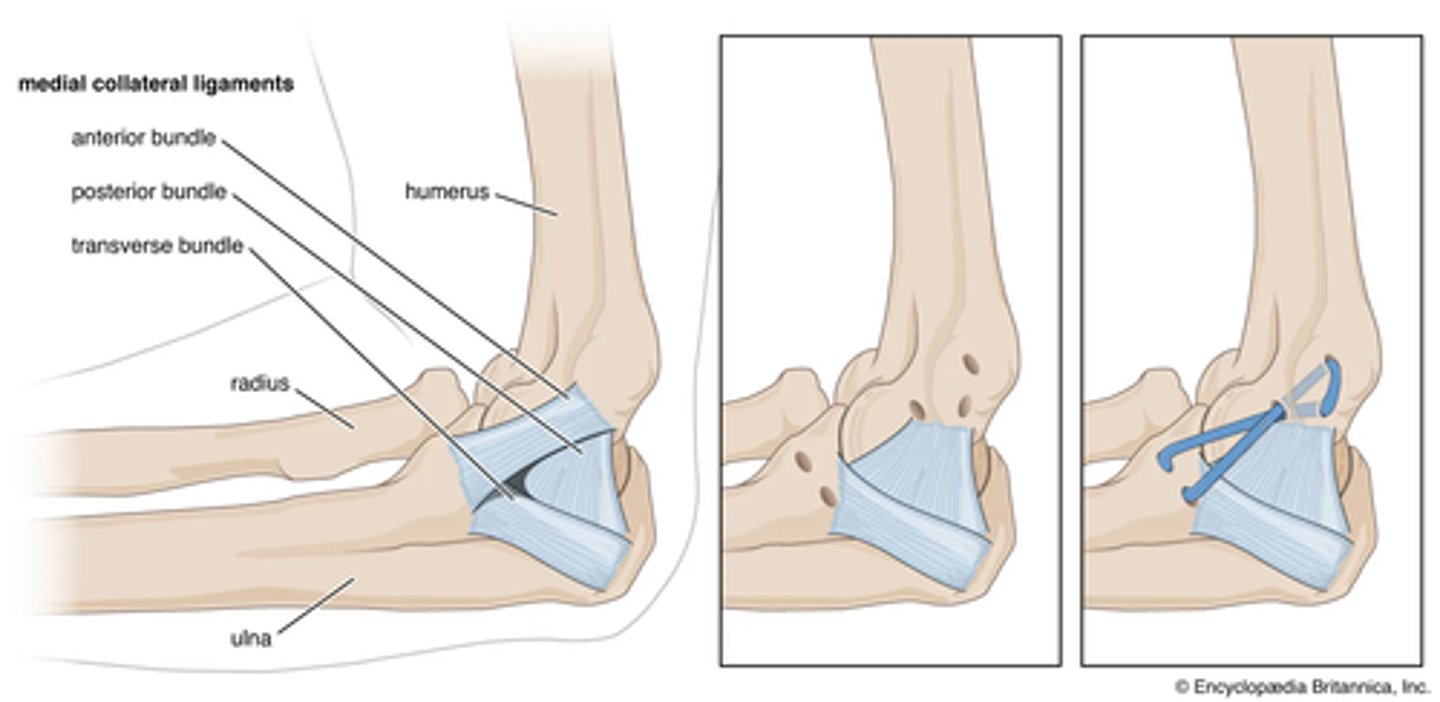

Ulnar collateral damage

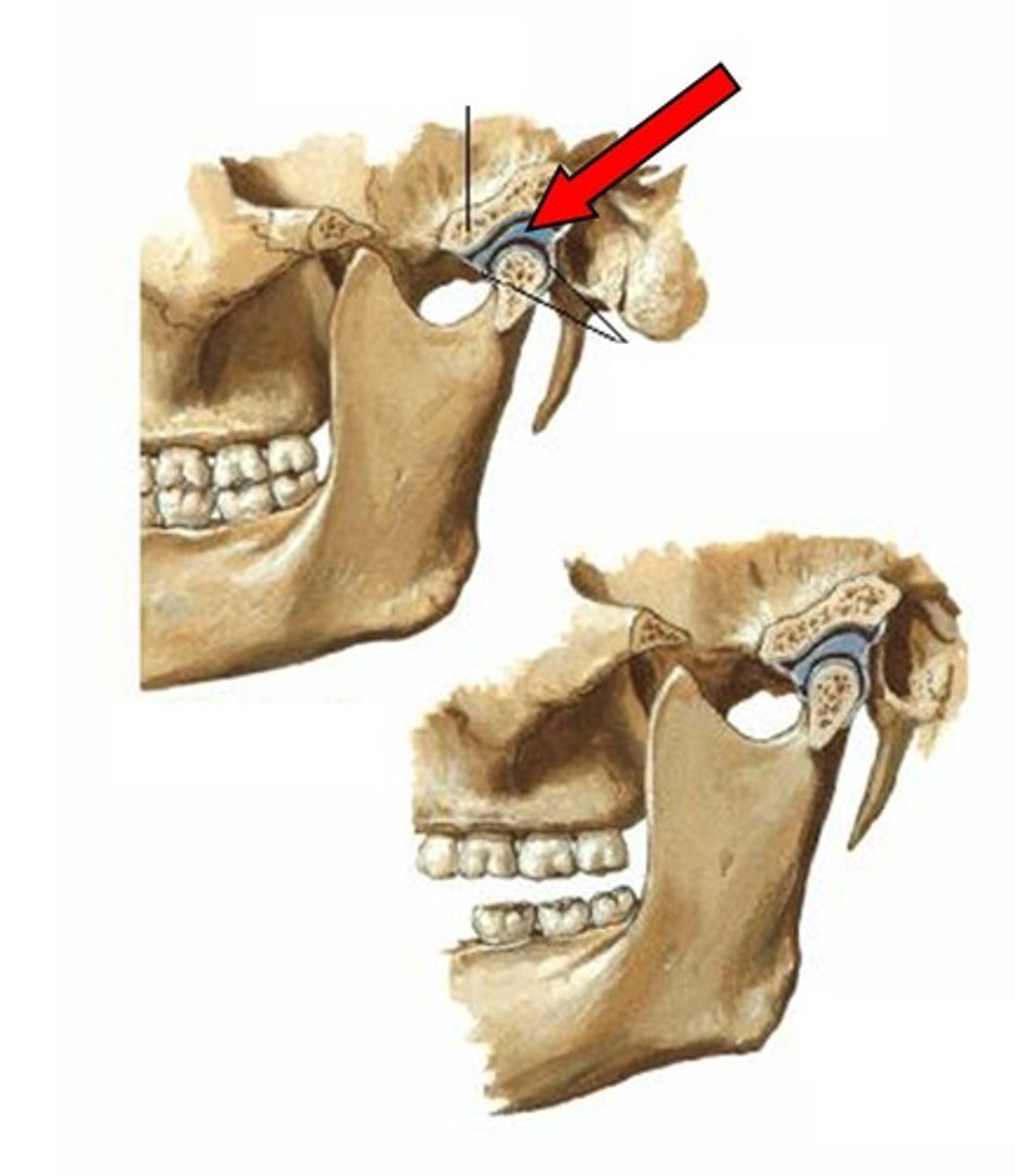

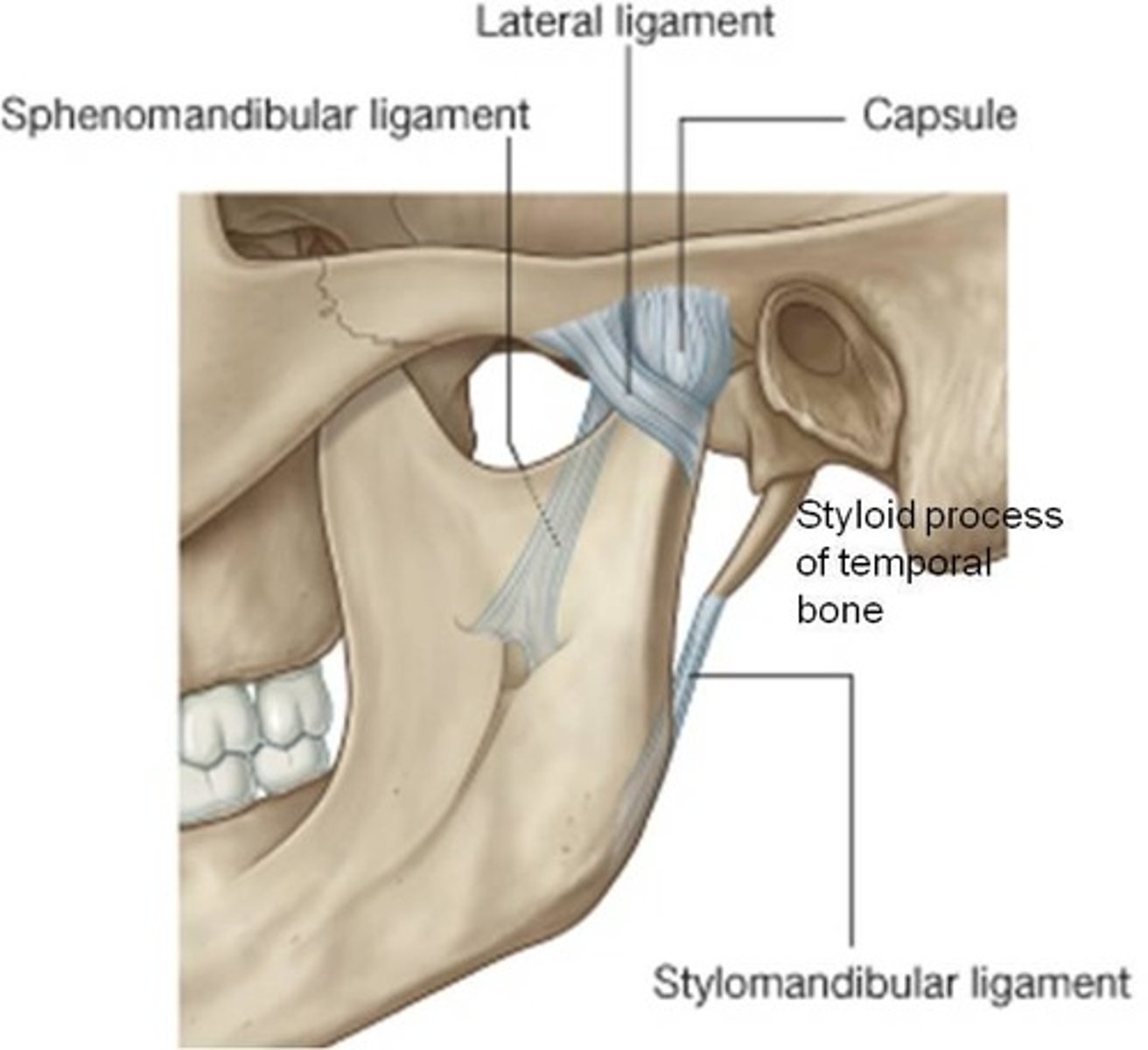

Articular capsule (temporomandibular joint)

Synovial membrane (temporomandibular joint)

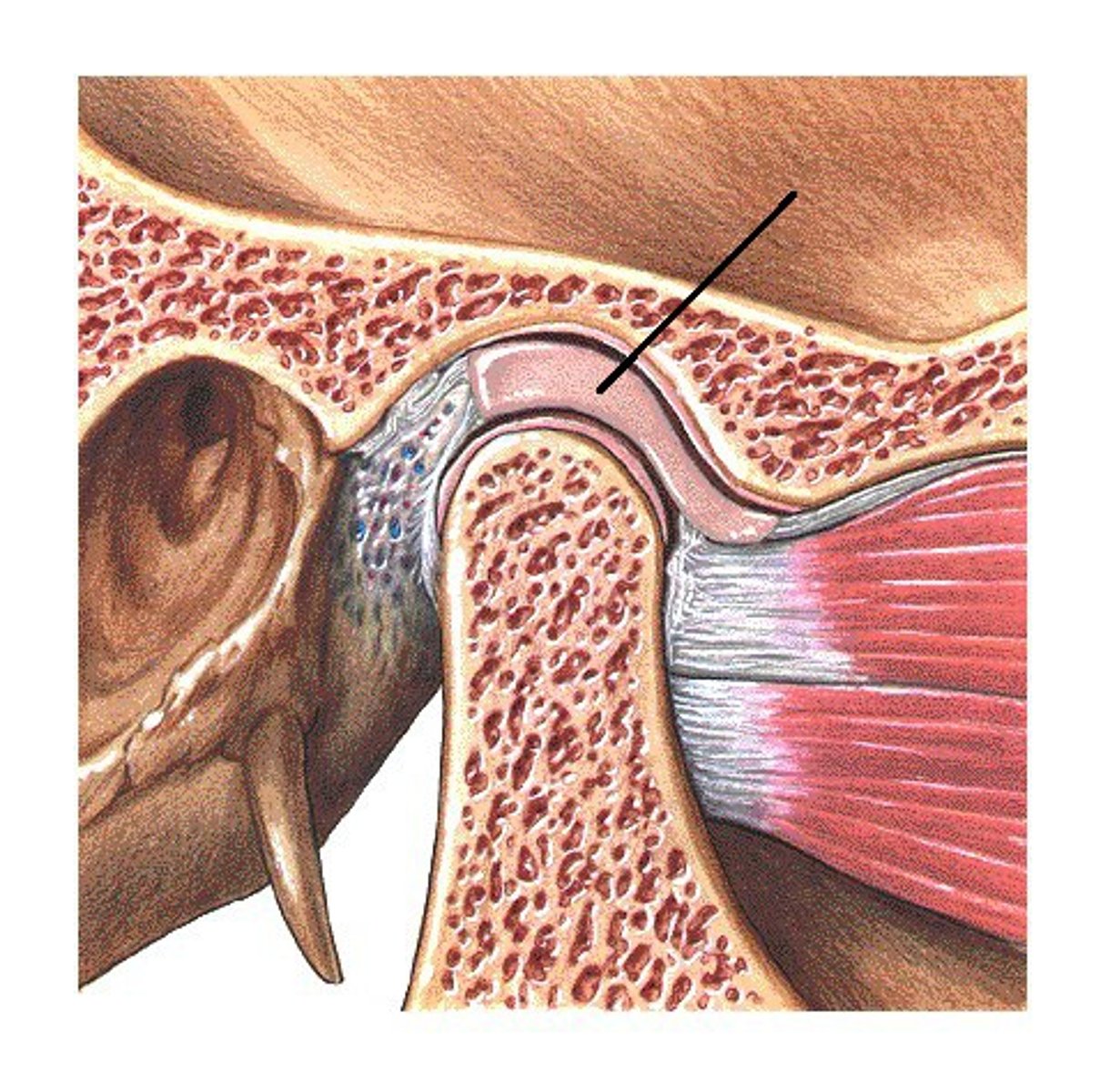

articular disc (temporomandibular joint)
