6 Terms

1
New cards

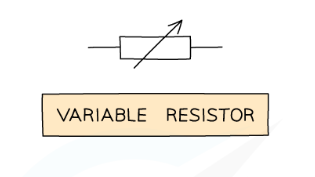

changes resistance in the circuit by changing length of resistive material which in turn alters current flowing through the circuit

2
New cards

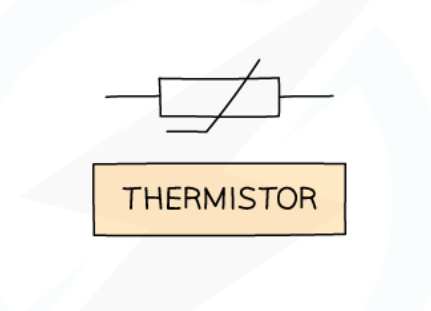

temperature sensitive resistor, resistance changes with temperature.

temp increase resistance decrease

applications: thermostats fire alarms

3
New cards

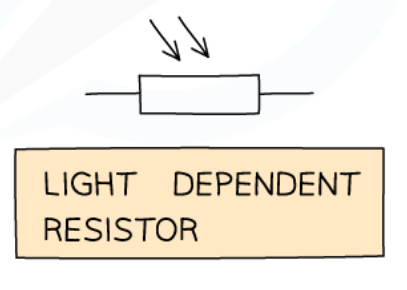

changes resistance based on light intensity

light intensity increase resistance decrease

applications: burglar alarms, automatic street lighting

4
New cards

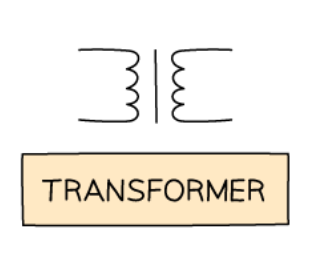

Transformers 'step up' and 'step down' current

5
New cards

Protect expensive components from current surges and act as a safety measure

against fire

6
New cards

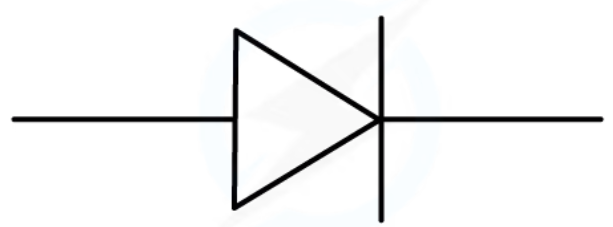

diode

allows current in only one direction
