EKG review: Axis, BBB, MI rules

Normal axis

both leads I and aVF are positively deflected

LAD

Lead I is positively deflected, but aVF is negatively deflected

RAD

Lead I is negatively deflected, but aVF is positively deflected

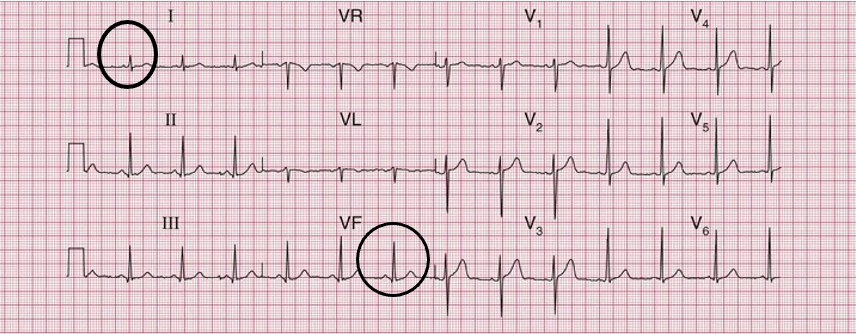

eRAD

both leads I and aVF are negatively deflected

subendocardial ischemia

represented by ST segment depression

transmural ischemia (injury)

represented by ST segment elevation

pathological Q waves

longer than 0.4 sec or deeper than 2 small boxes or deeper than 25% of the R wave (if present)

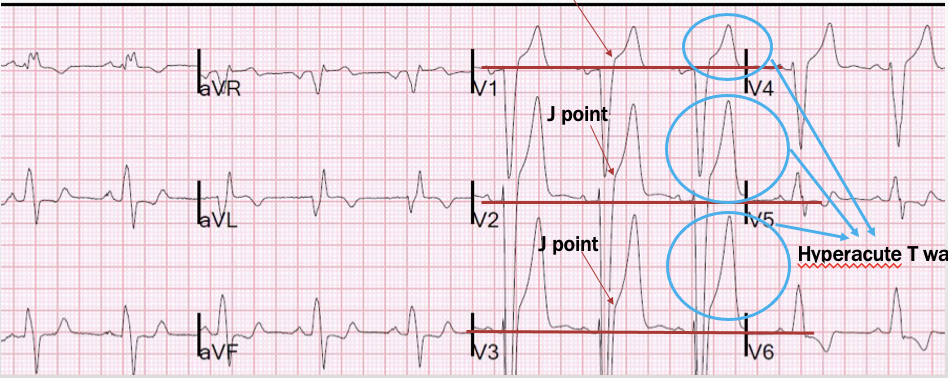

STEMI

1+ mm ST elevation in 2 or more contiguous leads w/ reciprocal changes

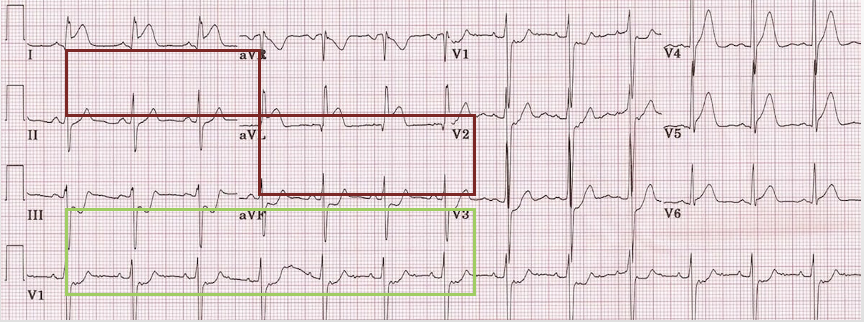

Lateral wall STEMI

ST elevations in 2+ lateral leads (I, aVL, V5, V6) + reciprocal changes in the inferior leads (II, III, aVF)

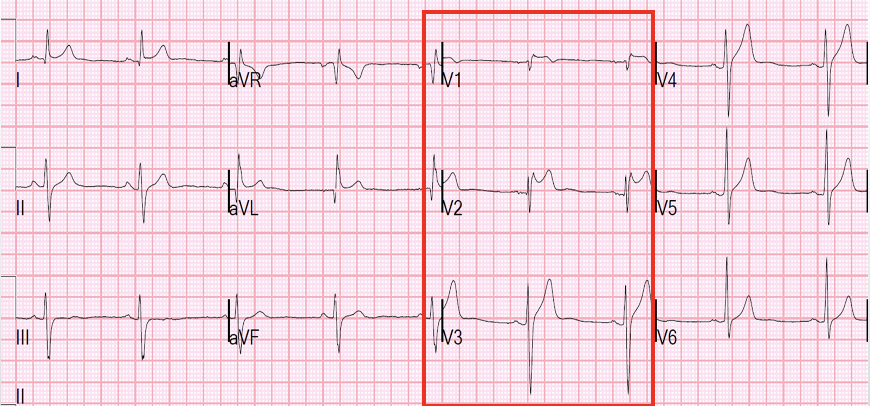

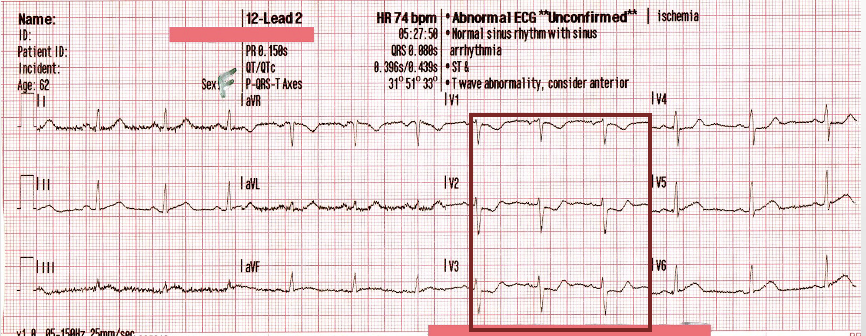

Anteroseptal STEMI

ST elevation in leads V1-4

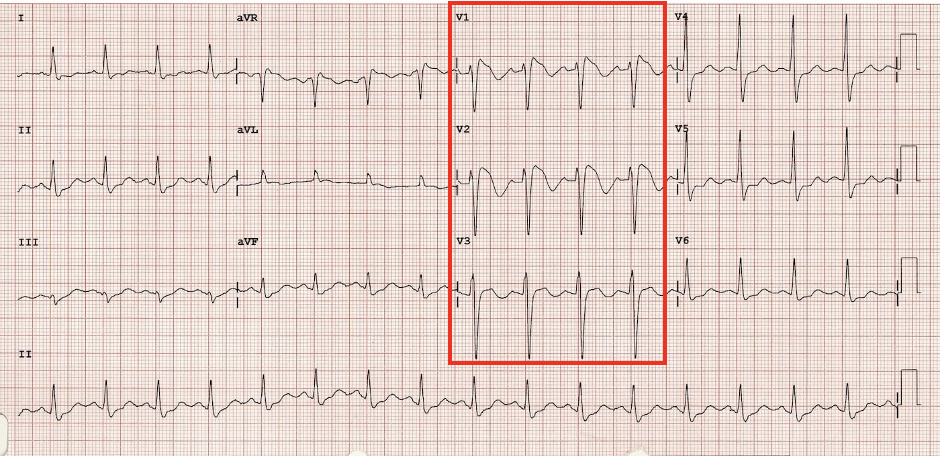

Posterior MI (12 lead)

ST depression in leads V1-4

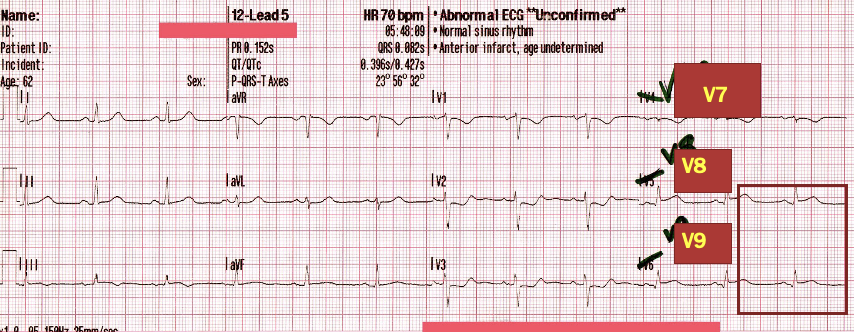

Posterior MI (15 lead)

ST depression in leads V1-4 w/ ST elevation in leads V7-V9

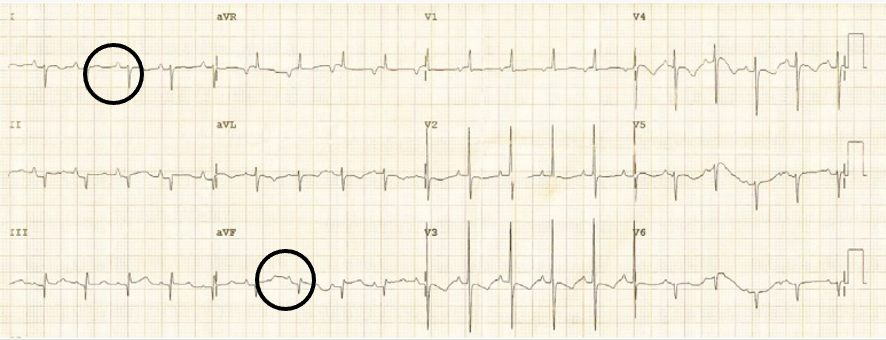

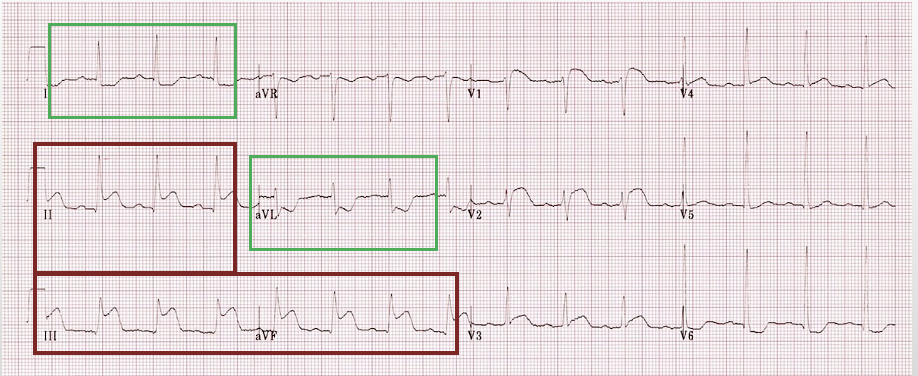

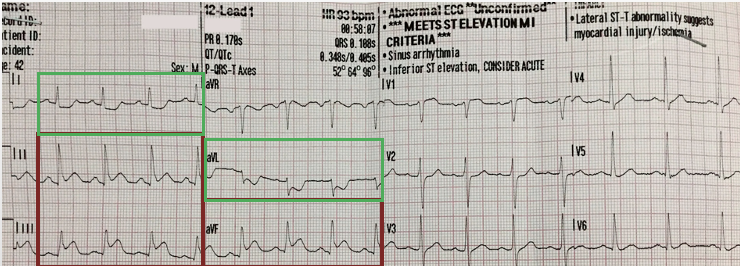

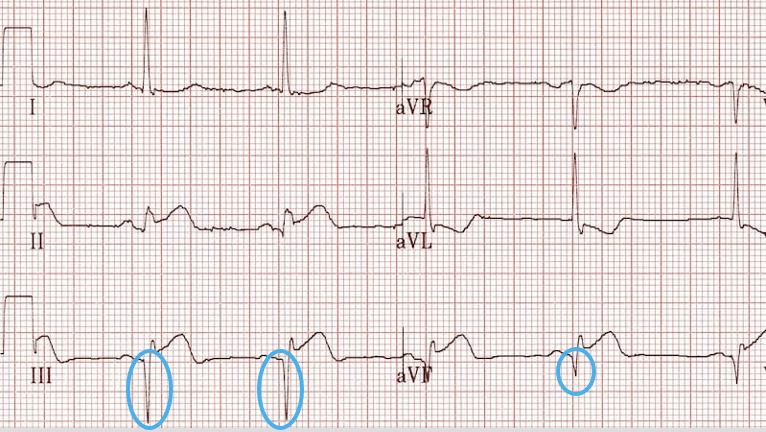

Inferior MI

ST elevation in inferior leads (II, III, aVF) w/ reciprocal changes in leads I and aVL

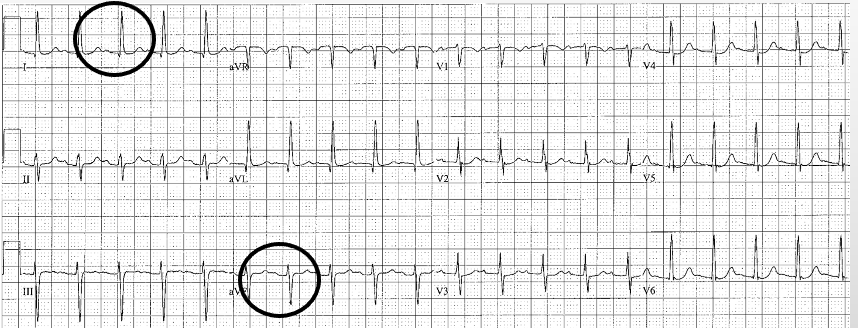

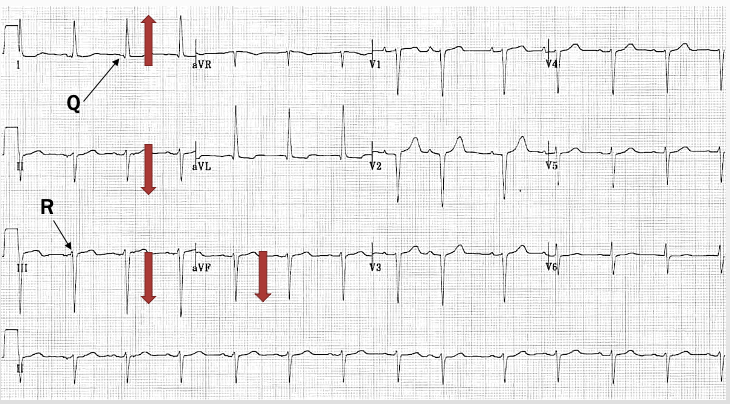

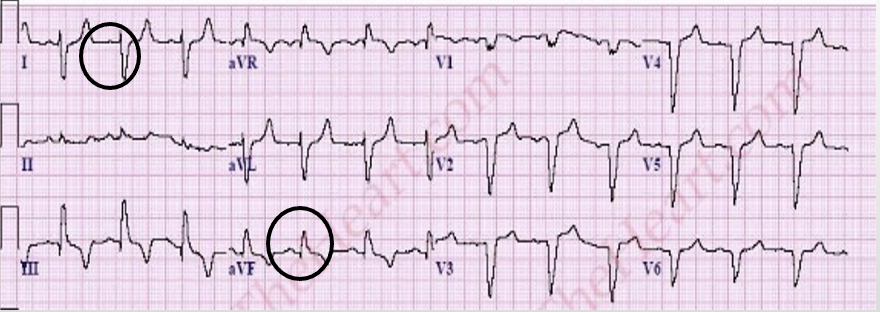

left anterior fascicular block (LAFB)

LAD, Q wave in lead I + R wave in lead III, mostly - lead II & III

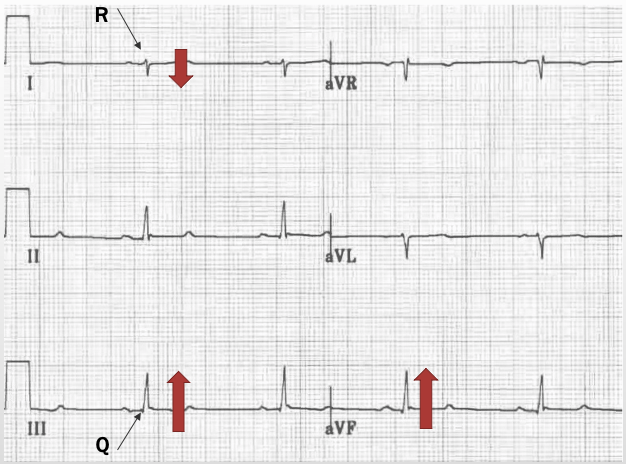

left posterior fascicular block (LPFB)

RAD, R wave in lead I and Q wave in lead III, mostly + lead III

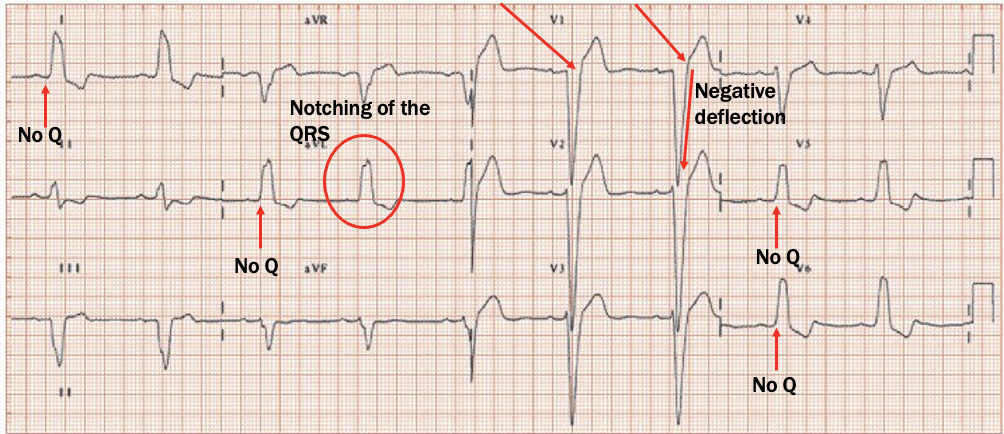

LBBB

V1: dominant S wave (W)

Lead I: wide QRS, RS pattern

Lateral leads: no Q waves, notched QRS (double QRS) =broad notched R (M)

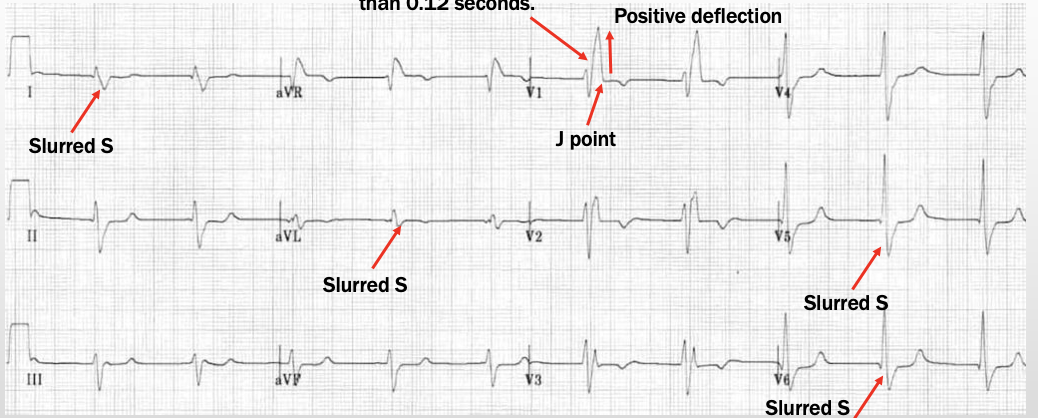

RBBB

Lead V1: wide QRS, rSR pattern (M) (usually V1-3)

Lateral: slurred S (sometimes W seen)

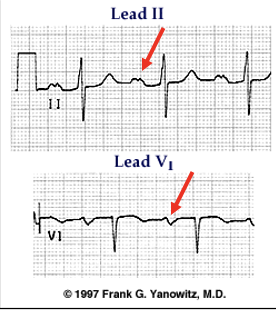

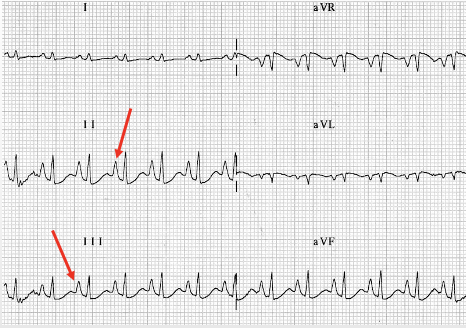

RAE (P-pulmonale)

Leads I, II, III: upright P taller than 2.5 mm

Lead V1: biphasic P w/ bigger + initial deflection & smaller - terminal deflection

LAE (P-mitrale)

Leads I, II, II: upright humped P wave

Lead V1: biphasic P wave w/ small + initial deflection and larger - terminal deflection

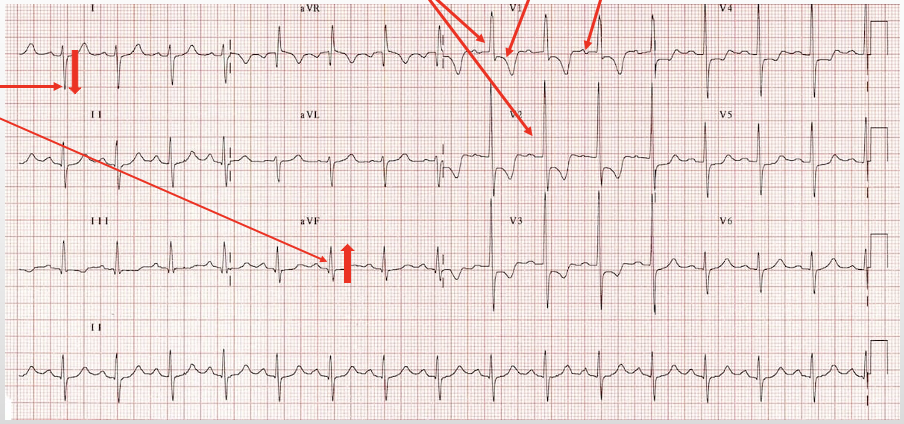

RVH

R:S ratio of 1+ mm in leads V1 & V2

supported by: RAE, RAD, strain pattern (concave ST segment turning into an inverted T wave)

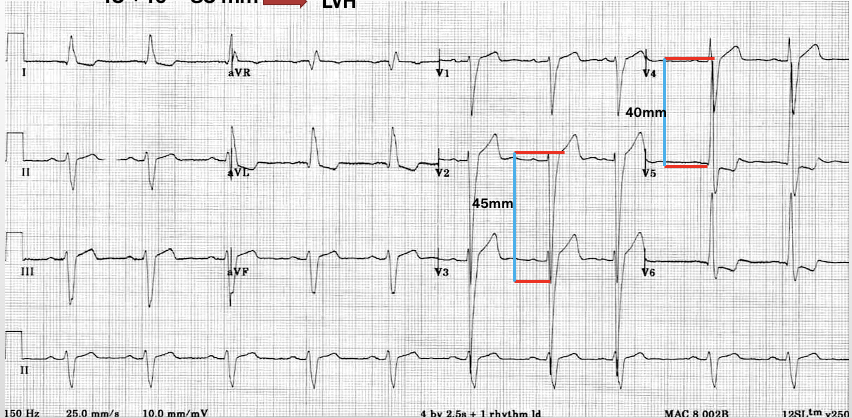

LVH

deep S waves in leads V1 & V2, tall R waves in lateral leads, LAD

-add the deeper S to the taller R; must be + or = to 35 mm

-if R wave is > 12 mm or if any chest lead is > 45 mm

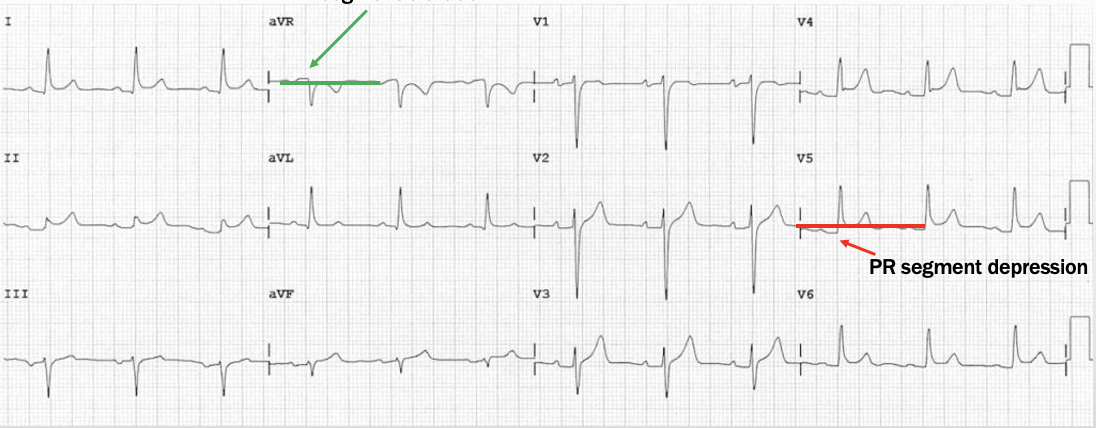

Pericarditis

PR depression & global concave ST elevation w/ no reciprocal changes

PR segment elevation in aVR (if there is ST depression in any lead other than aVR and V1 or any Q is not pericarditis)

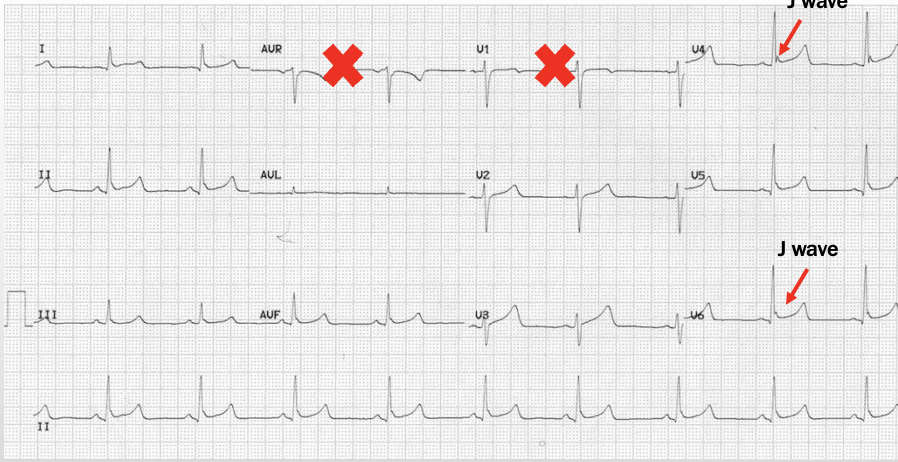

Early repolarization (BER)

global concave ST elevation, terminal QRS notching (J wave, Osborn wave), large T waves, no reciprocal ST depression (outside of aVR and V1)

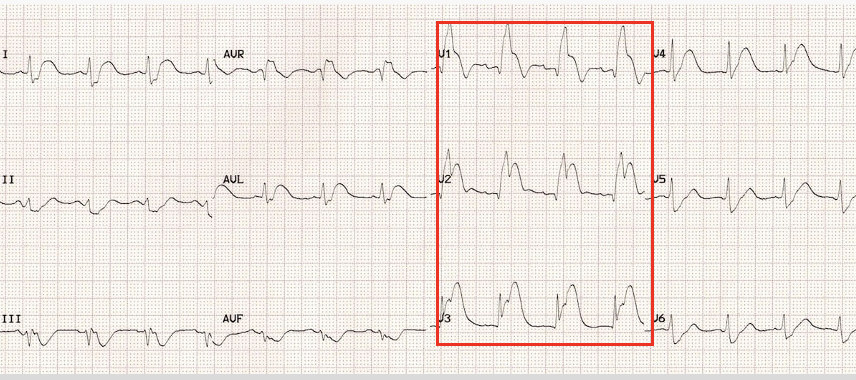

Brugada Type 1

convex ST elevation in V1-3 (coved shaped)

Brugada Type 2

saddle shape ST elevation in V1-3 (carousel horses sign)

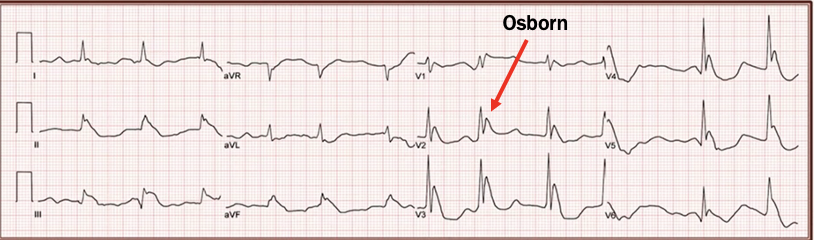

Hypothermia

J waves; prolonged PR, QRS, QT; various bradyarrythmias

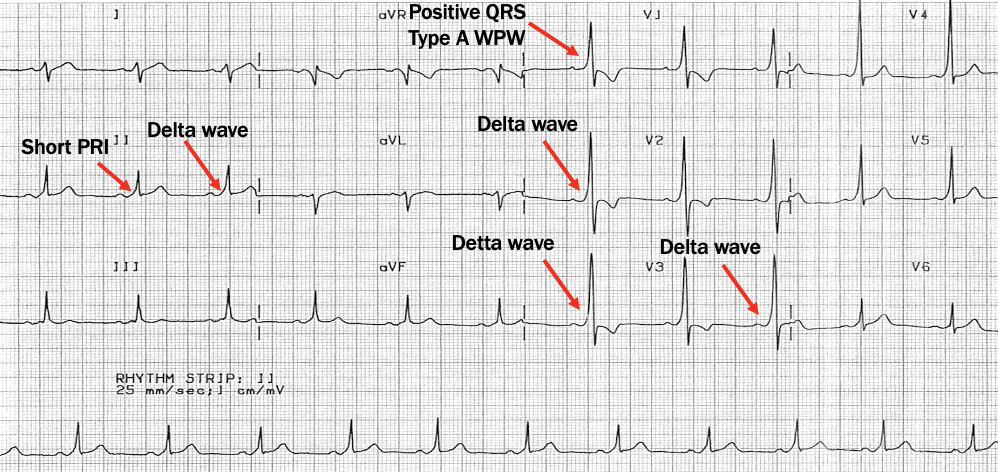

WPW

short PR, wide QRS, delta wave

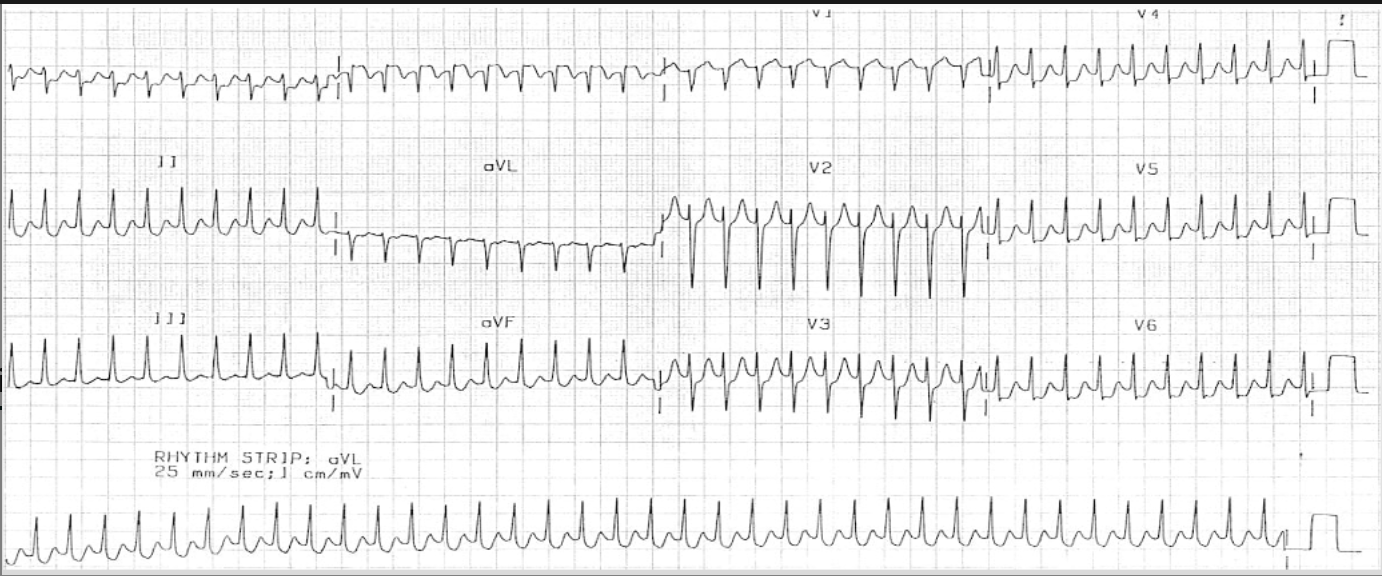

Orthodromic narrow tachycardia

narrow QRS, no P wave

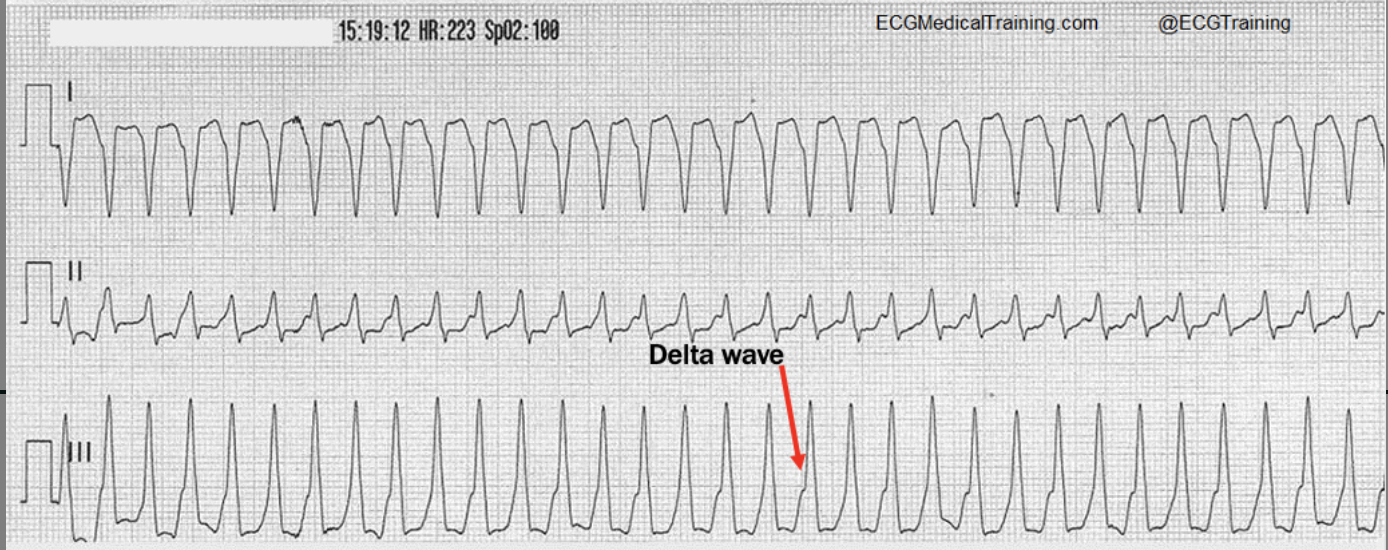

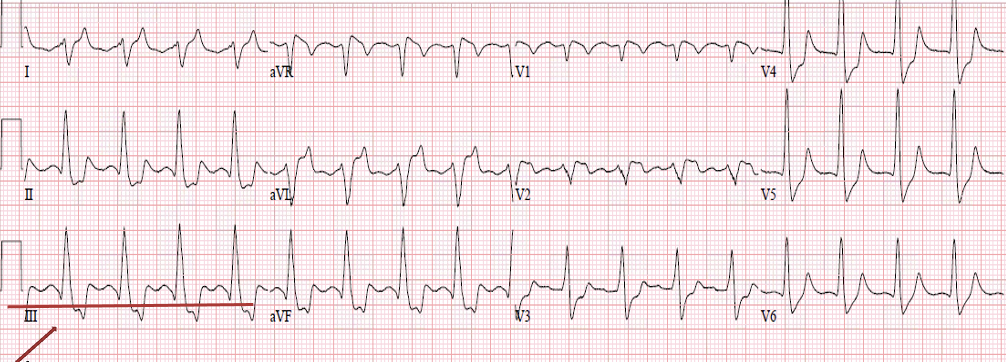

Antidromic wide tachycardia

wide QRS, no P waves
