14 Terms

1
New cards

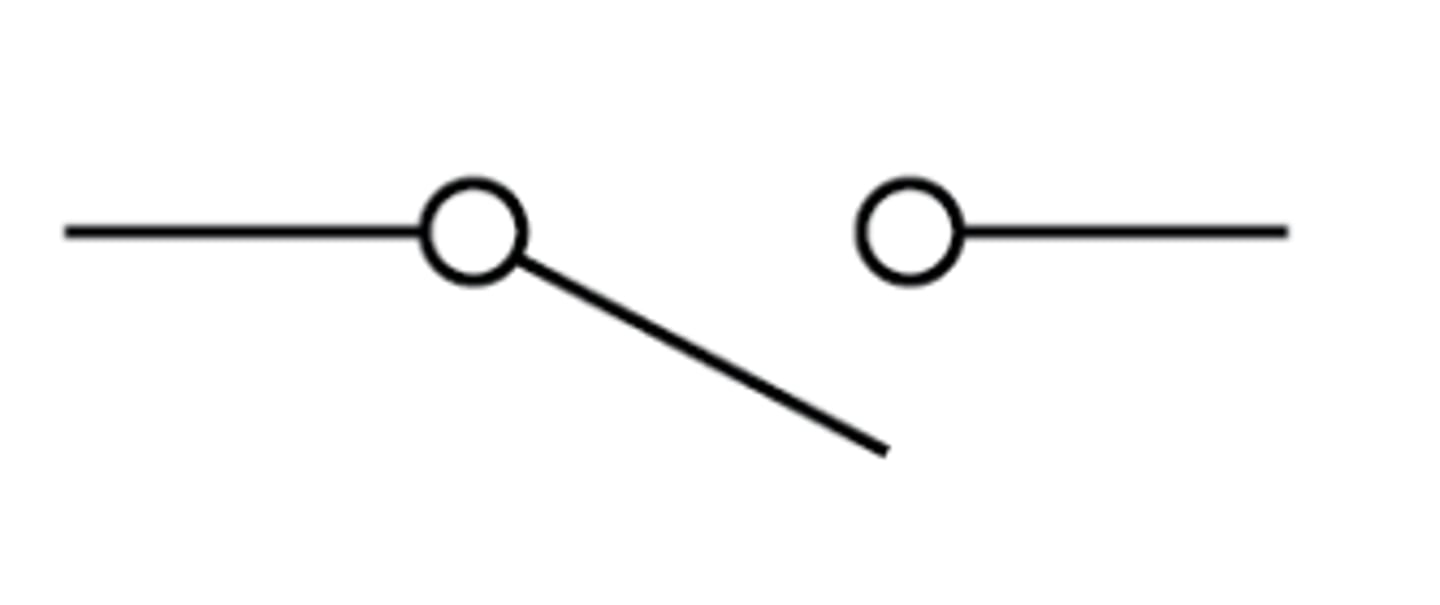

Switch (open)

Used to turn a circuit off

<p>Used to turn a circuit off</p>
2
New cards

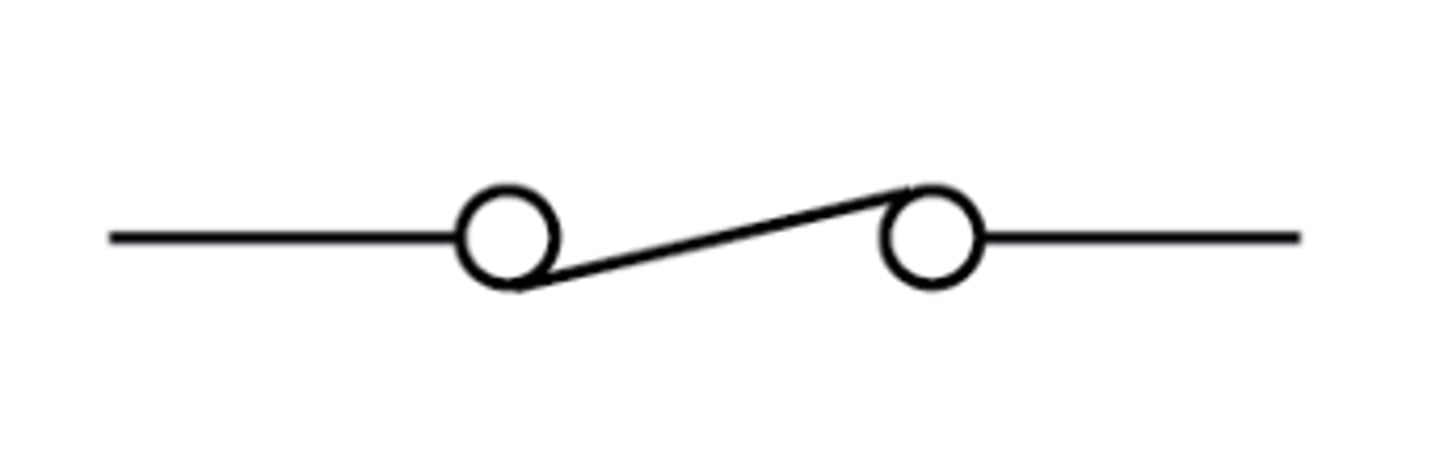

Switch (closed)

Used to turn a circuit on

<p>Used to turn a circuit on</p>
3
New cards

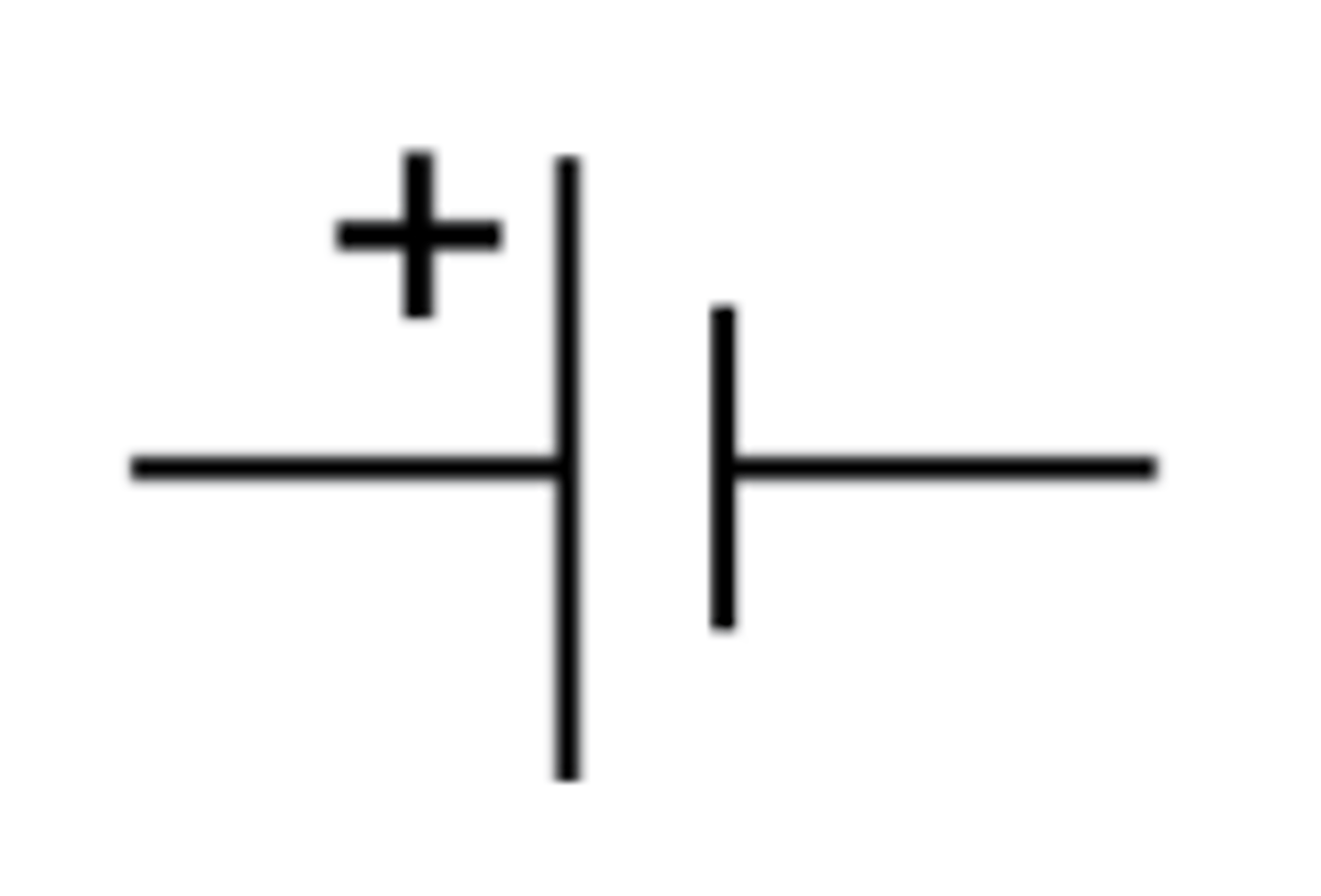

Cell (electrical)

Provides the energy for a circuit

<p>Provides the energy for a circuit</p>
4
New cards

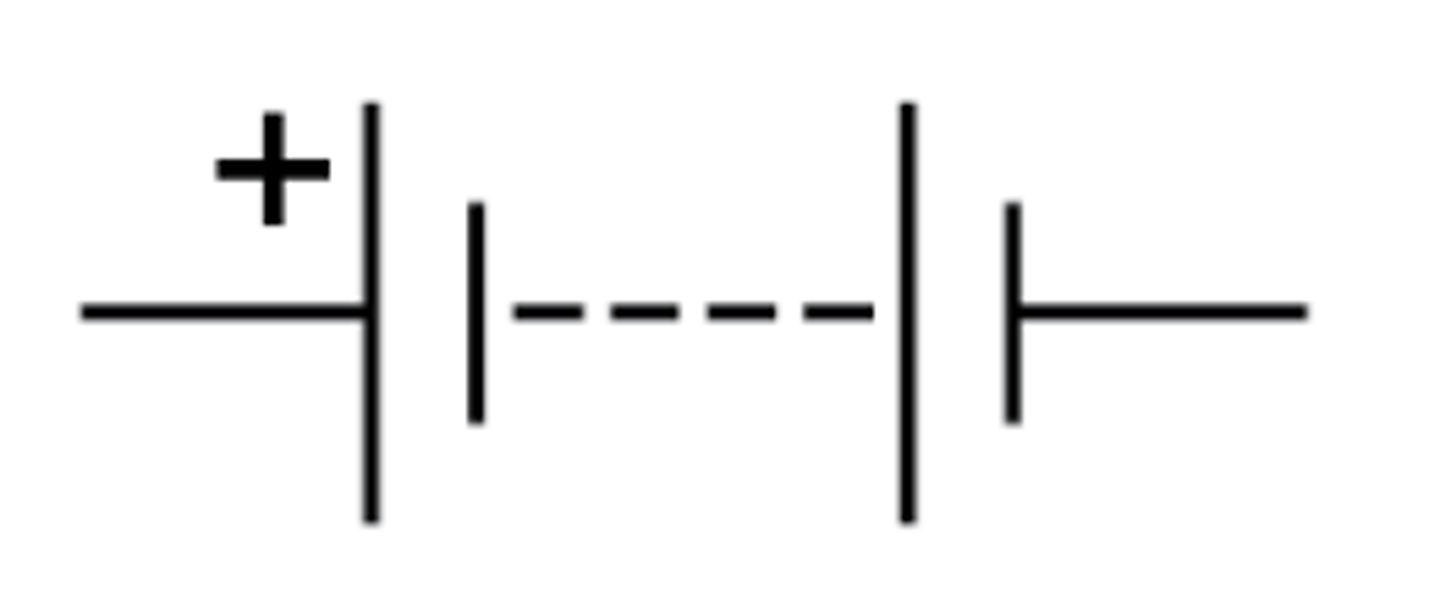

Battery

Two or more cells connected together

<p>Two or more cells connected together</p>
5
New cards

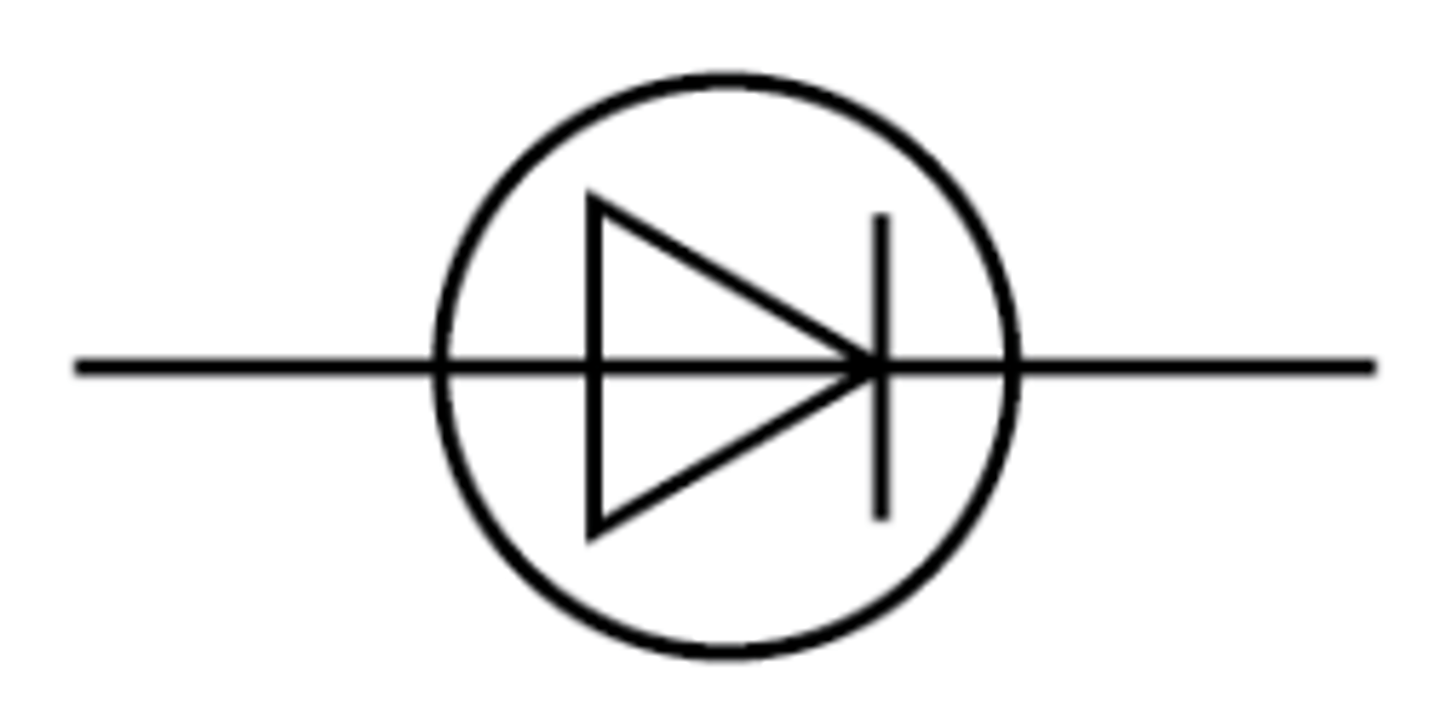

Diode

A device that allows current to flow in one direction only

<p>A device that allows current to flow in one direction only</p>
6
New cards

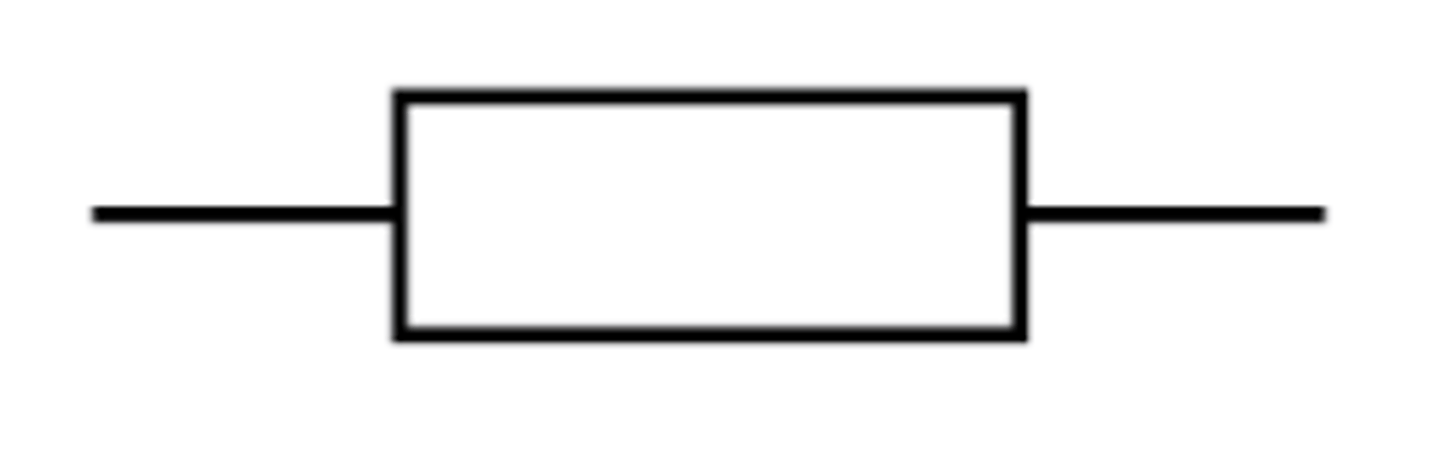

Resistor (fixed)

A device that restricts or limits the flow of current

<p>A device that restricts or limits the flow of current</p>
7
New cards

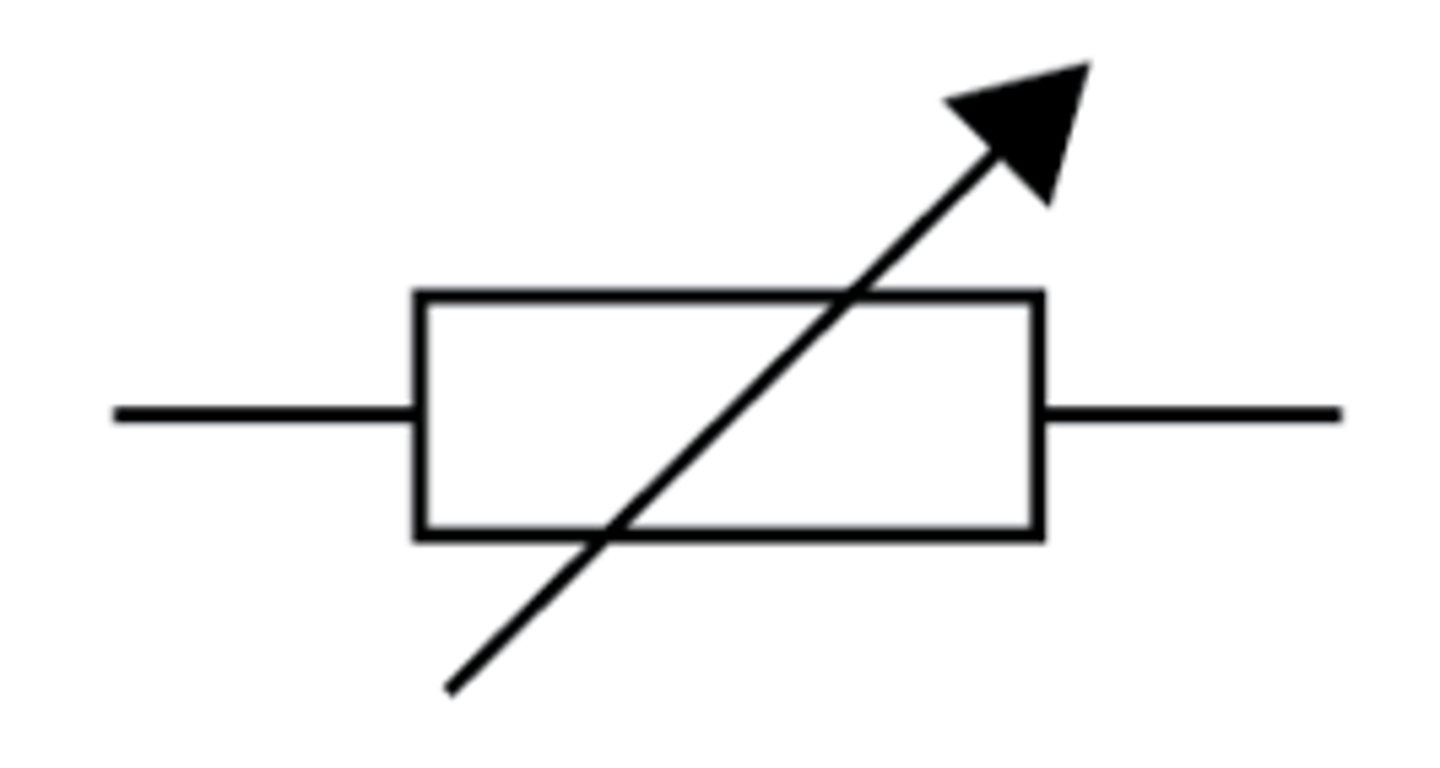

Variable resistor

A device that has a slider which can be moved to change the resistance

<p>A device that has a slider which can be moved to change the resistance</p>
8
New cards

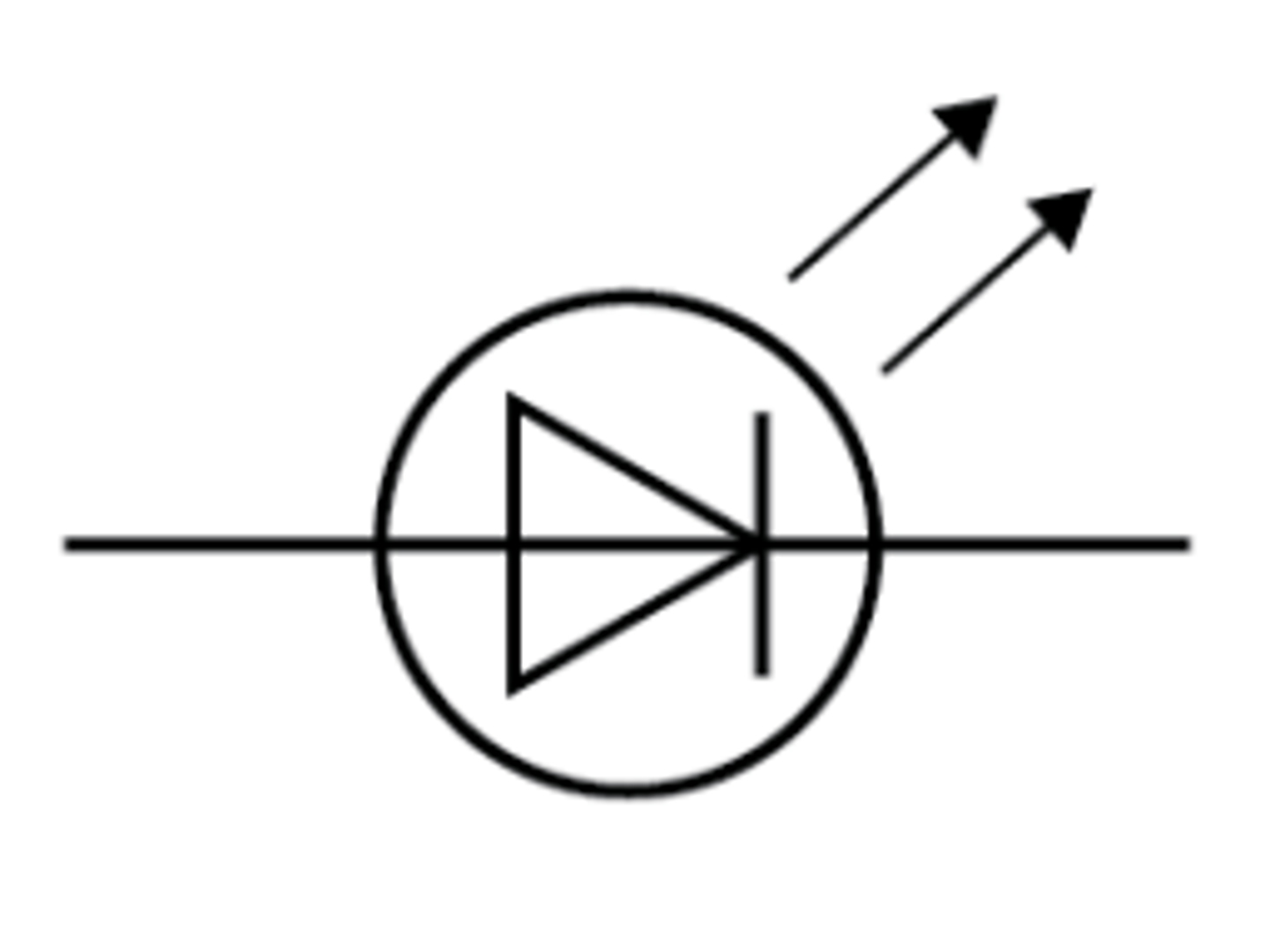

LED (light-emitting diode)

A diode which emits light and is much more efficient than a filament bulb

<p>A diode which emits light and is much more efficient than a filament bulb</p>
9
New cards

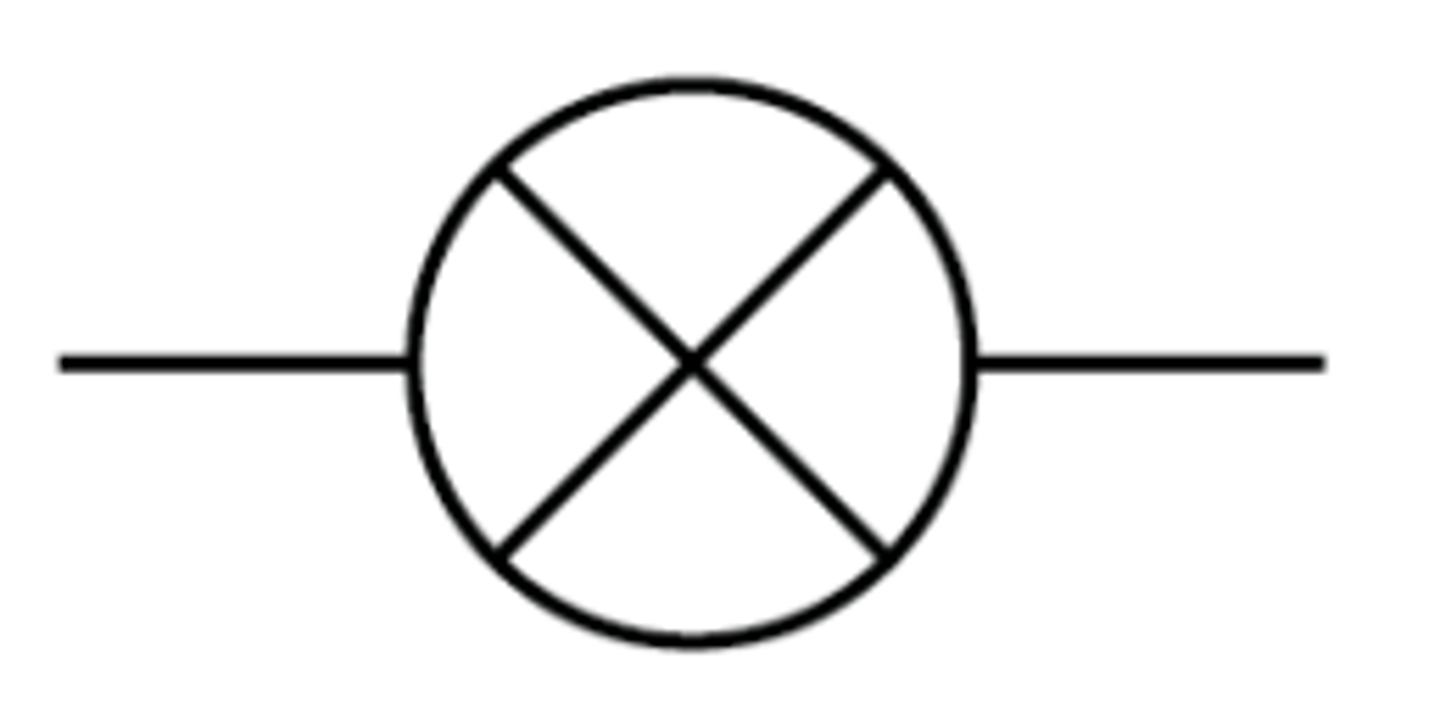

Lamp (filament bulb)

A device containing a filament in a bulb that heats up when a current flows so that it emits light

<p>A device containing a filament in a bulb that heats up when a current flows so that it emits light</p>
10
New cards

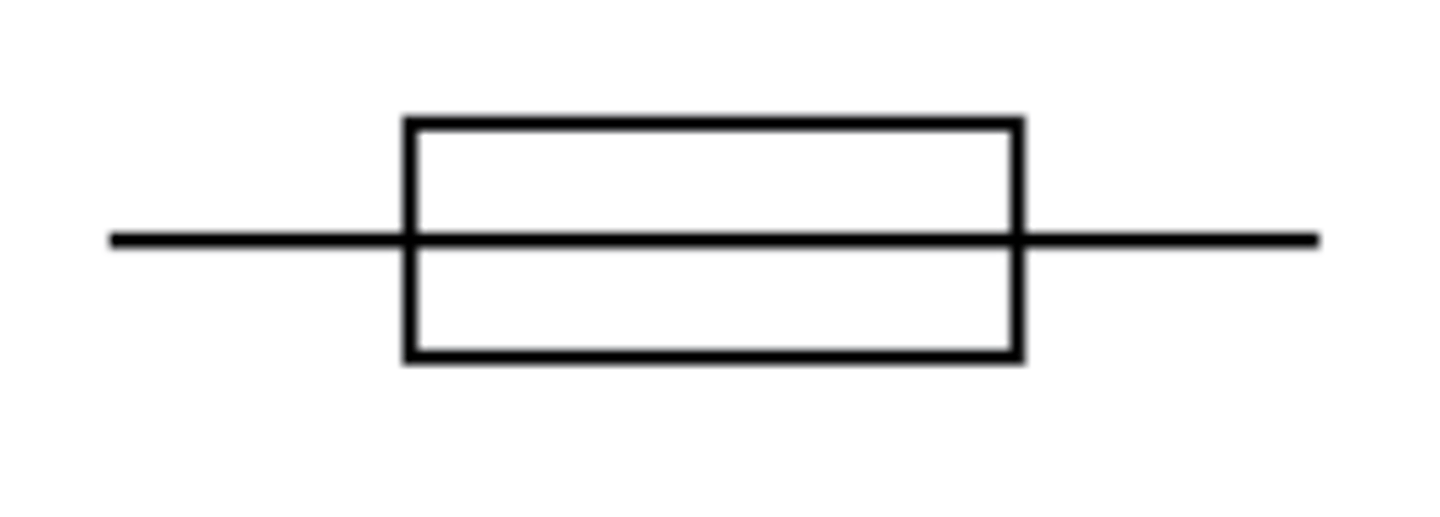

Fuse

A safety device consisting of a strip of wire that melts, breaking an electric circuit, if too much current passes through it

<p>A safety device consisting of a strip of wire that melts, breaking an electric circuit, if too much current passes through it</p>
11
New cards

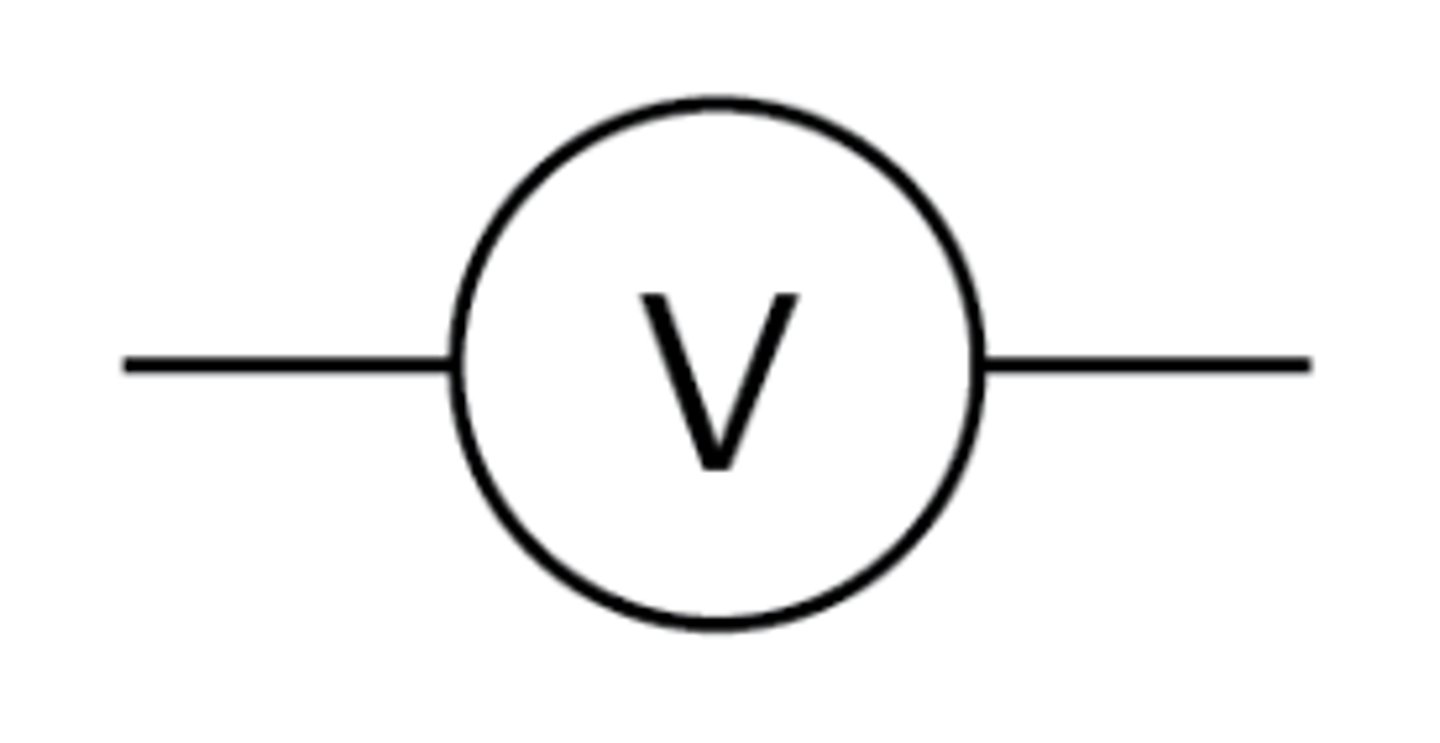

Voltmeter

A device placed in parallel with a component to measure the potential difference (voltage) across it

<p>A device placed in parallel with a component to measure the potential difference (voltage) across it</p>
12
New cards

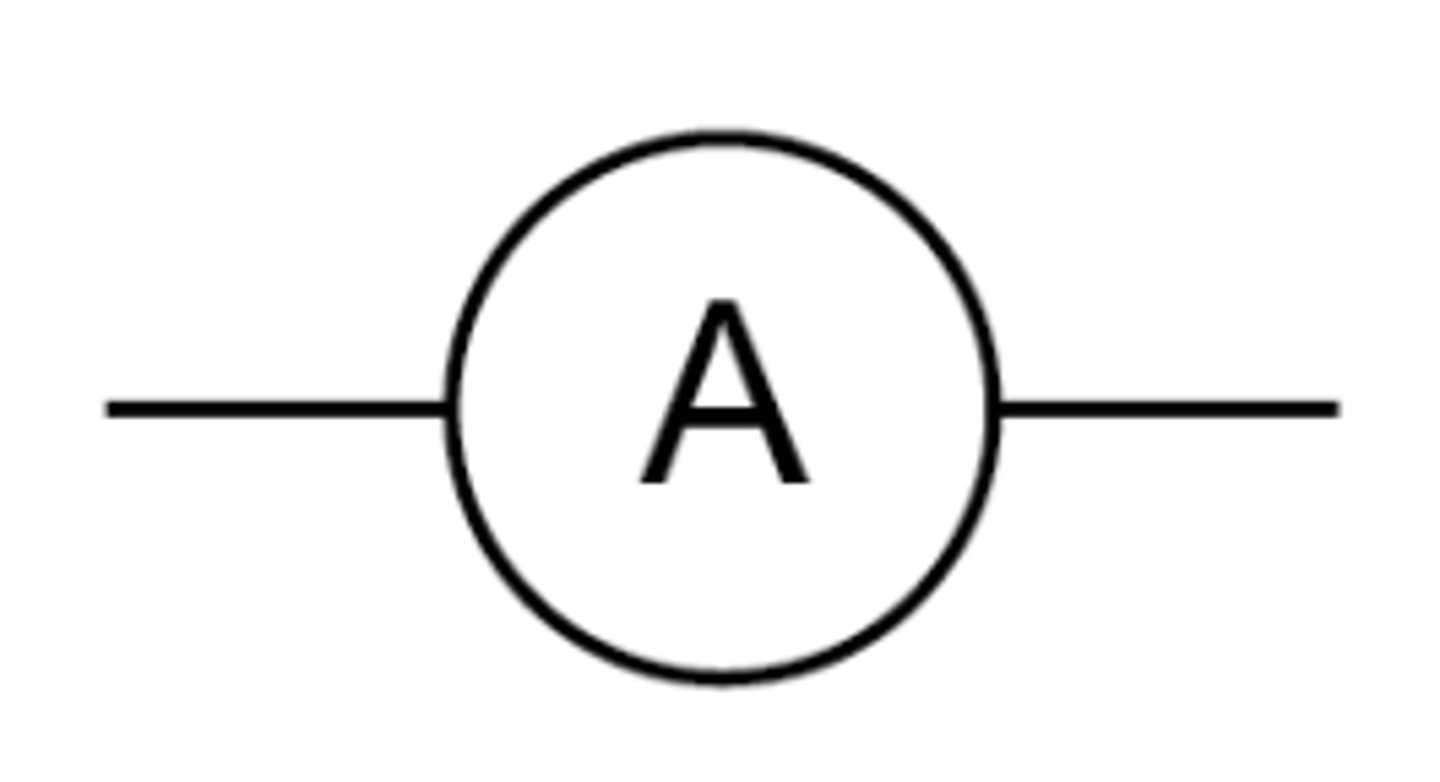

Ammeter

A device placed in series with a component to measure the current through it

<p>A device placed in series with a component to measure the current through it</p>
13
New cards

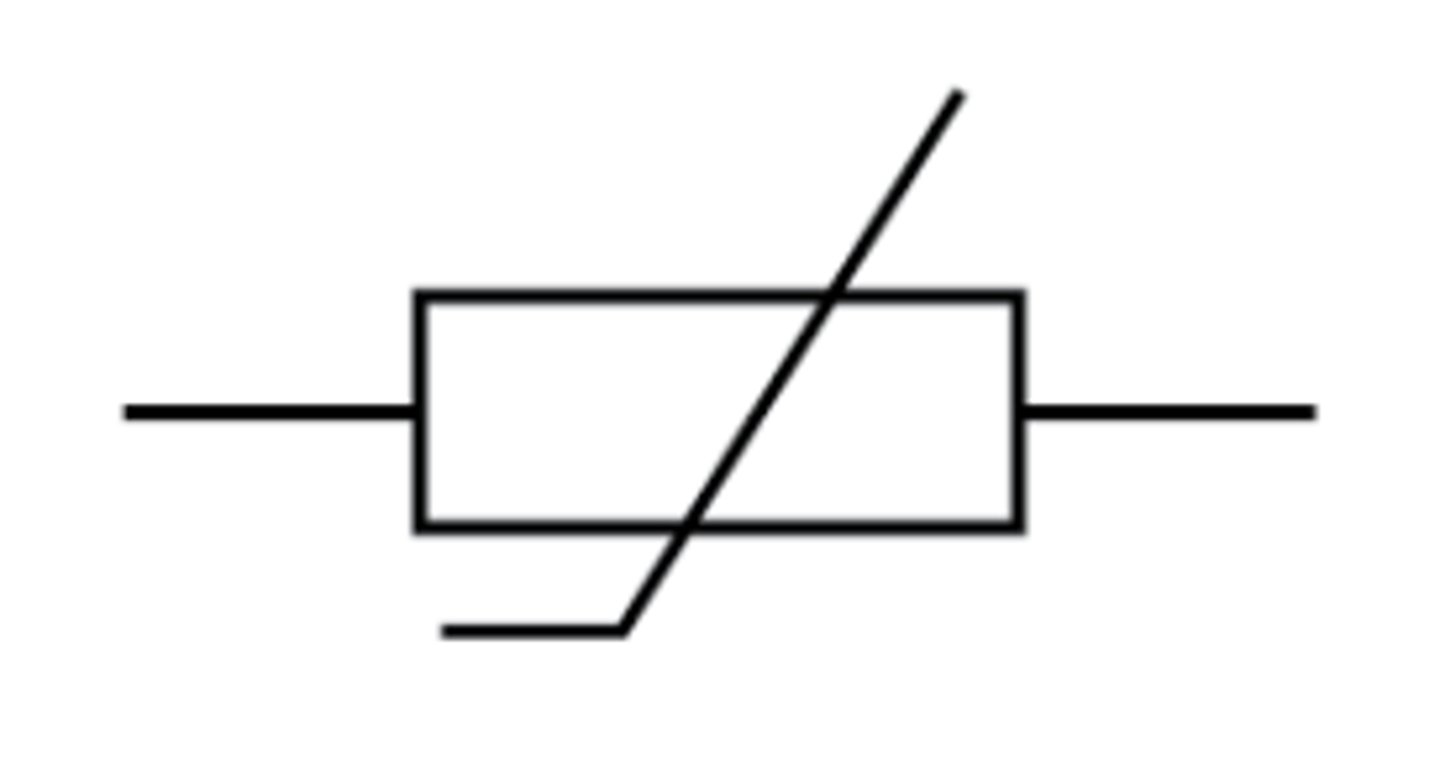

Themistor

A device whose resistance decreases as the surrounding temperature increases

<p>A device whose resistance decreases as the surrounding temperature increases</p>
14
New cards

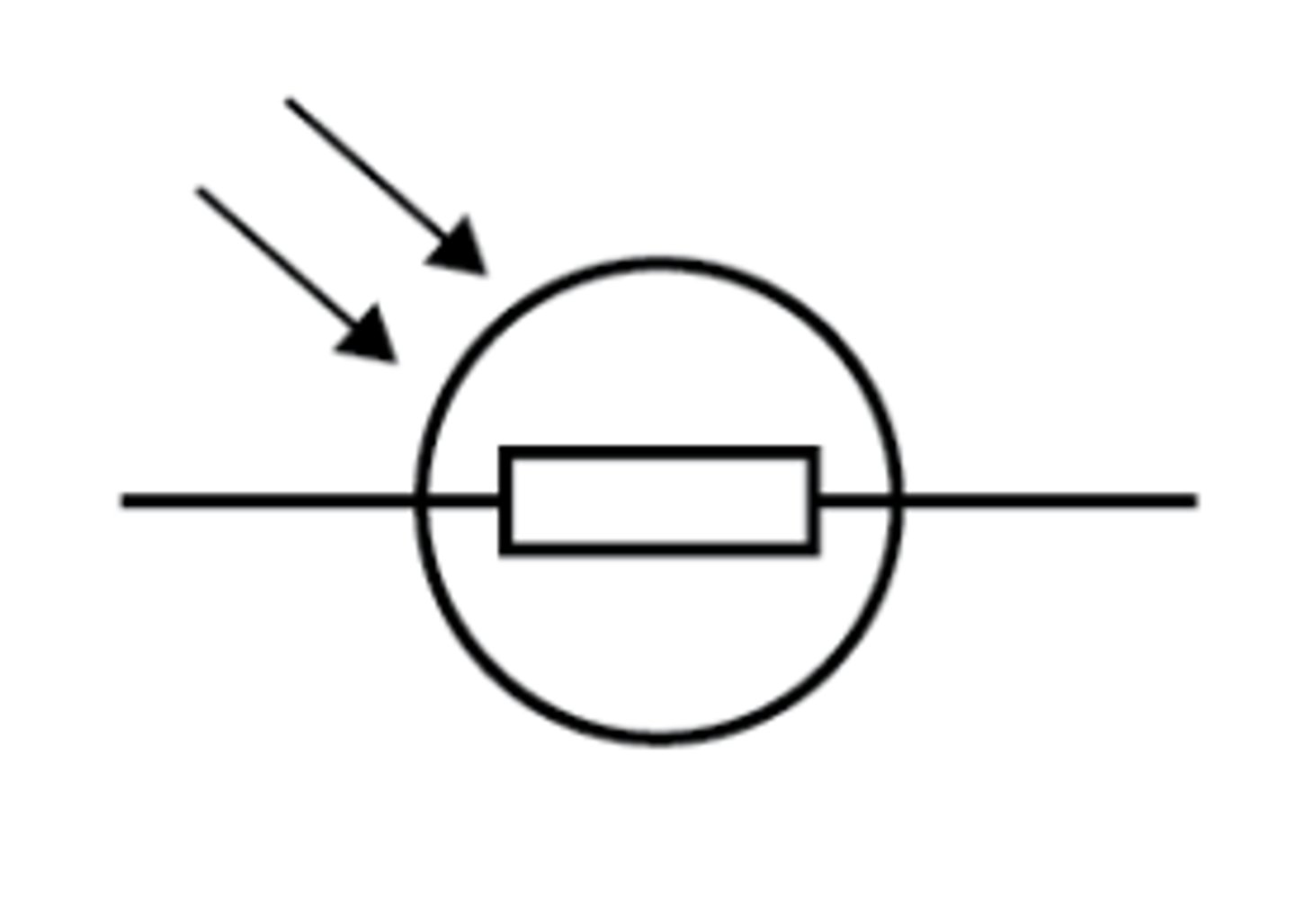

LDR (light-dependent resistor)

A device whose resistance decreases as the surrounding light intensity increases

<p>A device whose resistance decreases as the surrounding light intensity increases</p>
