GI and Urinary Tract

What technical advancements have been made that allows for improved imaging of the GI tract?

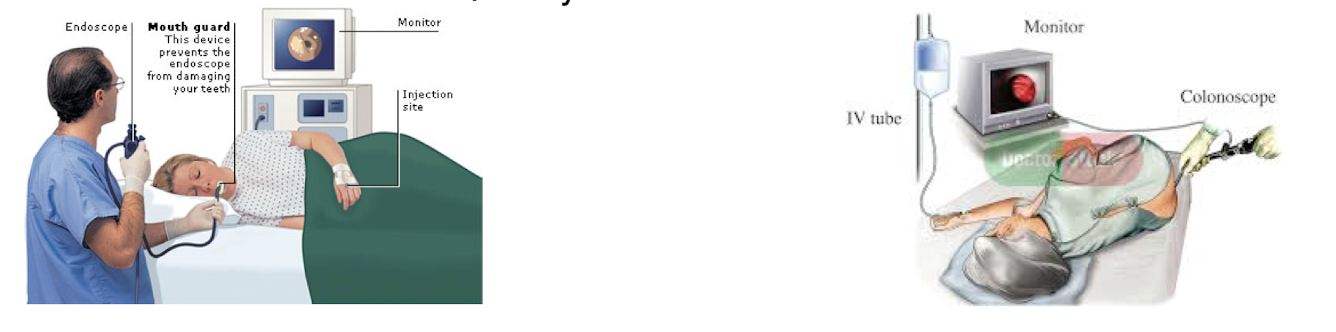

The development and perfection of endoscopy

What are the benefits and risks of endoscopy?

Risks: sedation and perforation

Benefits Endoscopy is becoming preferential

• direct referrals to GI

• safer

• biopsy capability

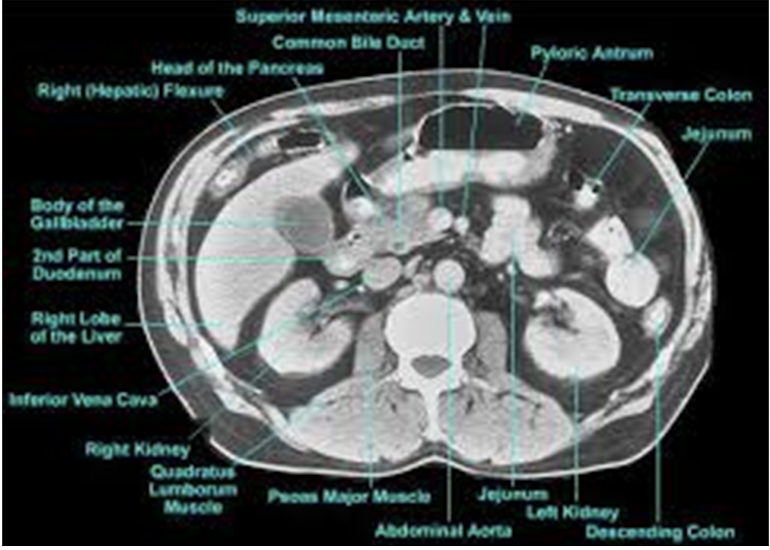

Identify the parts of the GI tract with CT imaging

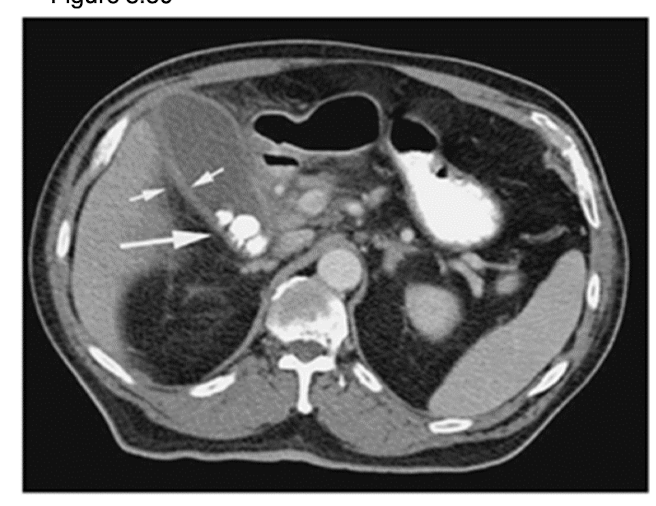

What is occurring in the CT scan?

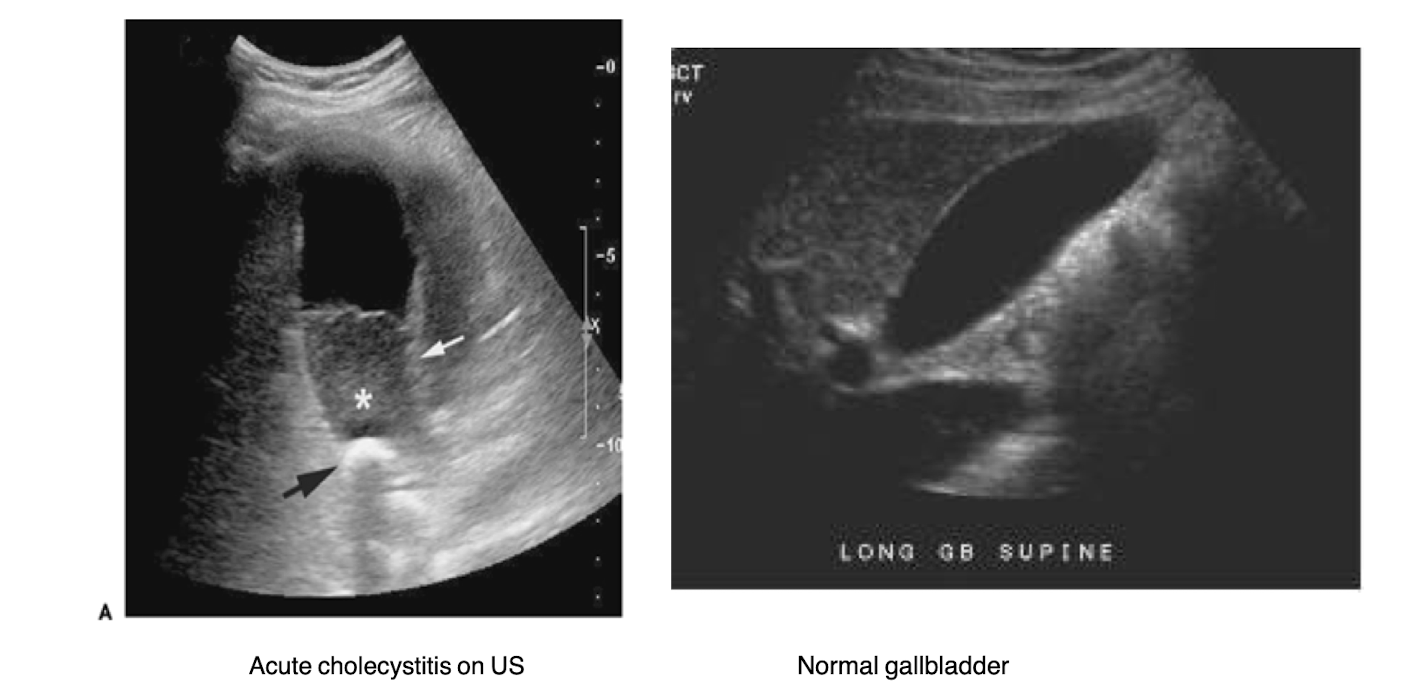

Acute cholecystitis - enlarged gallbladder

What is the investigative method of choice for evaluating the biliary system?

ultrasound

What do the MRCP and ERCP evaluate? What is the difference between them?

MRCP - magnetic resonance cholangiopancretography

• more invasive

ERCP - endoscopic retrograde cholangiopancreatography

Both are used to evalute the biliary tree and pancreatic lesions

When is bowel prep used?  When should it not be used?

Bowel prep is used before diagnostic procedures like colonoscopy to clear the intestines.

It should not be used in patients with bowel obstruction or severe inflammatory bowel disease. Not needed for toxic megacolon (extremely dialted colon, acute ulceralitve colitis or for obstruction)

When is abdominal CT preferred?

It is more definitive than U/S and gives more info about internal organs and structures, especially in cases of trauma or complex abdominal pain.

It will indicate inflammatory bowel disease, bowel obstruction, abscesses and fistulas

When is angiography used?

diagnose and therapy for GI bleed

How are nuclear studies used to study the GI tract?

• help with hepatobiliary studies and GI bleeding localization

• when U/S is inconclusive

• more sensitive than angiography

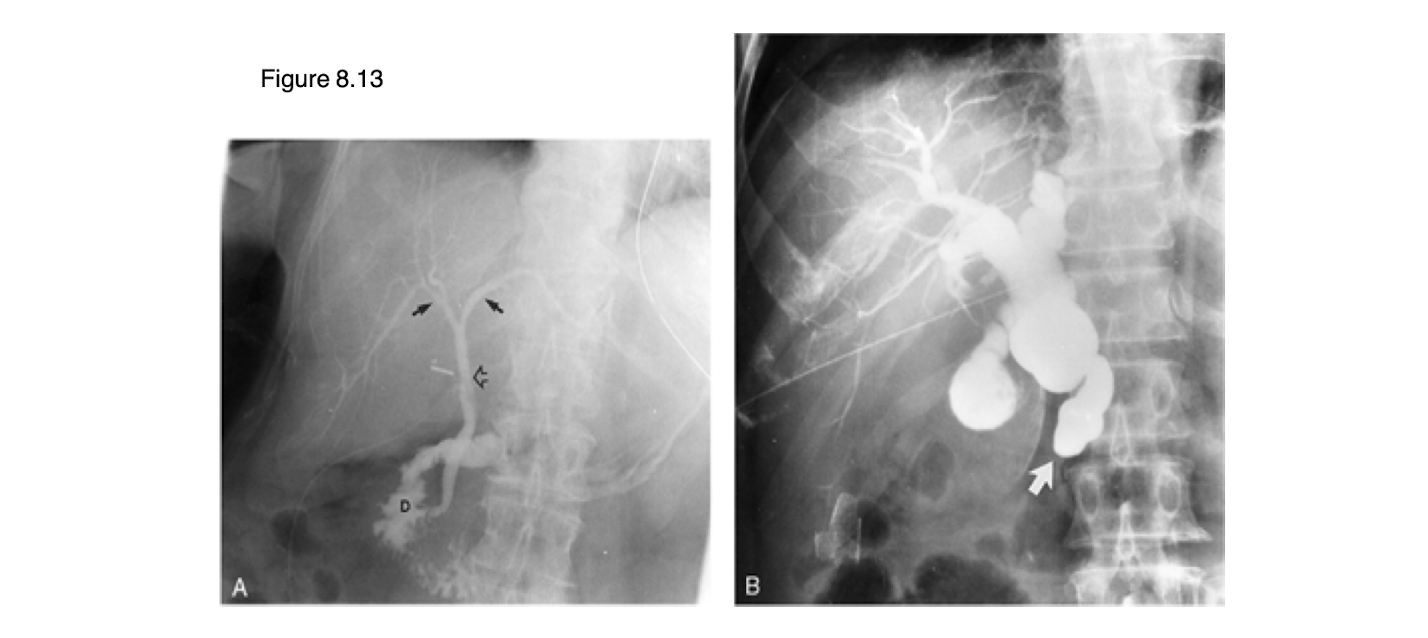

The left image is normal. What is occurring in the right image?

dilated common bile duct

What role does MRI play in GI imaging?

used to evaluate hepatobiliary system and metastases

What is the normal anatomic appearance of the stomach, duodenum, jejunum, and colon?

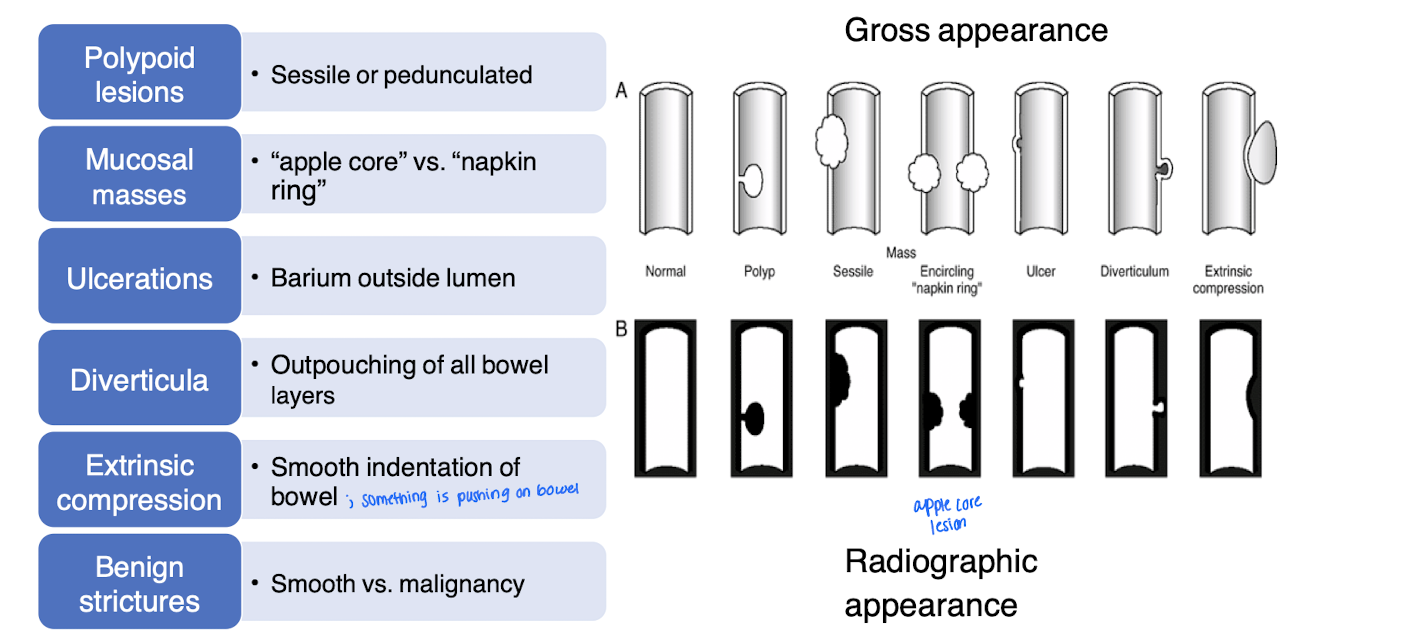

Pathology: sessile or pedunculated is _____

polypoid lesion

Pathology: tends to look like an “apple core” or “napkin ring”

mucosal mass

Pathology: on imaging, barium will leak outside the lumen because _____ erodes completely through the intestinal wall

ulcerations

Pathology: outpouching of all bowel layers

diverticulum

Pathology: smooth indentation of the bowel; looks like something is pushing the bowel

Extrinsic compression

Pathology: described as smooth vs malignancy

a non-cancerous narrowing of a tube-like structure in the body, most commonly the esophagus, which can cause difficulties with swallowing. It is often caused by scar tissue from chronic inflammation, such as that from acid reflux (GERD), and other injuries.

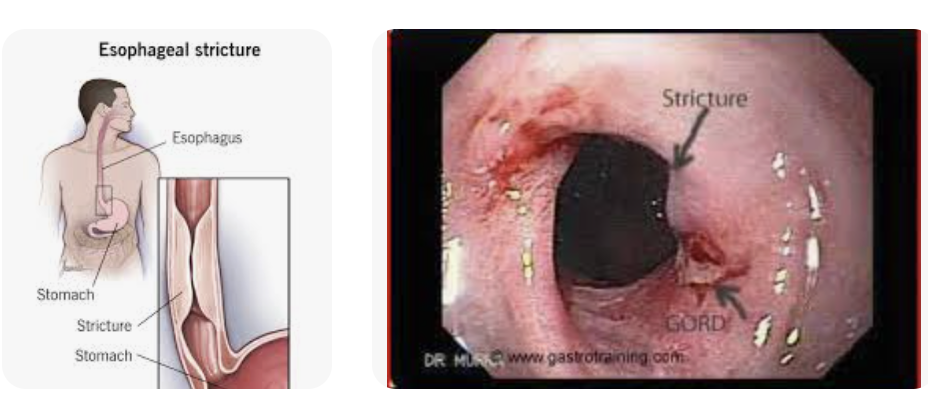

Benign strictures

What is A?

sessile polyp - wide base

What is B?

Pedunculated polyp - on a stalk

What is observed on the double contrast study in the GI tract?

a. Mucosal mass

b. Diverticula

c. Pedunculated polyp

d. Sessile polyp

c. Pedunculated polyp - wide stalk

What is shown on the imaging?

a. Mucosal mass

b. Diverticula

c. Pedunculated polyp

d. Sessile polyp

a. Mucosal mass - apple core or napkin ring

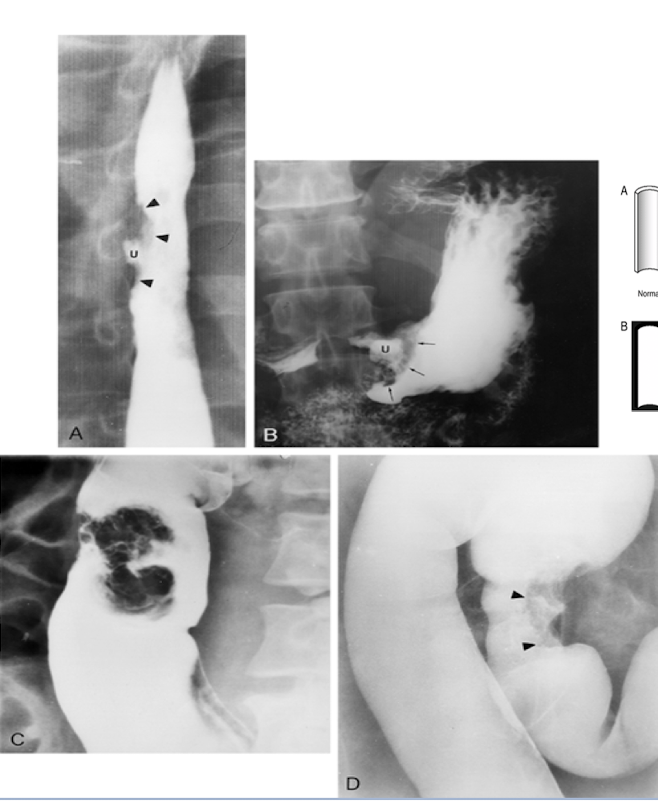

What is D?

a. Mucosal mass

b. Diverticula

c. Pedunculated polyp

d. Sessile polyp

d. Sessile polyp

What are the images showing?

Duodenal ulcers

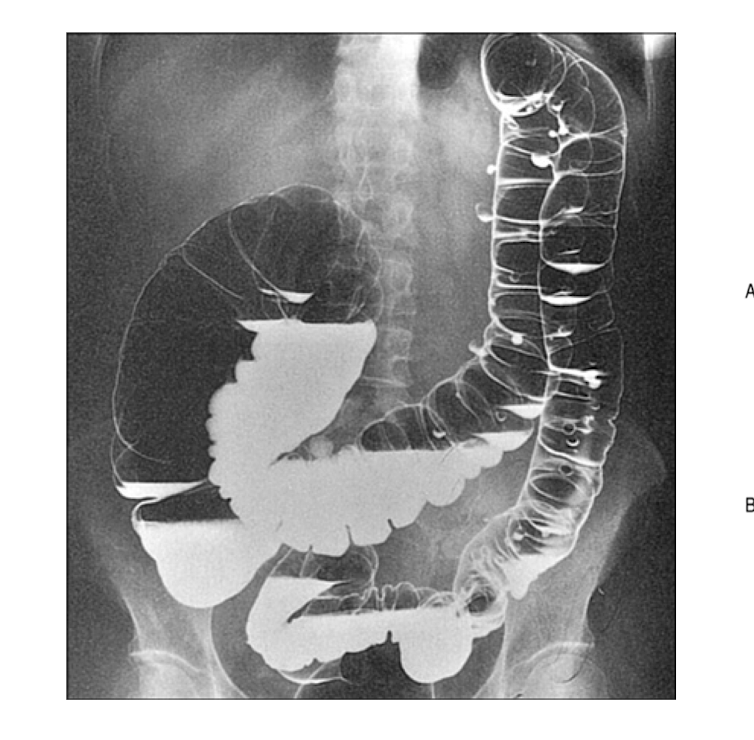

What is shown on the image?

Diverticulum

What are the images showing?

strictures

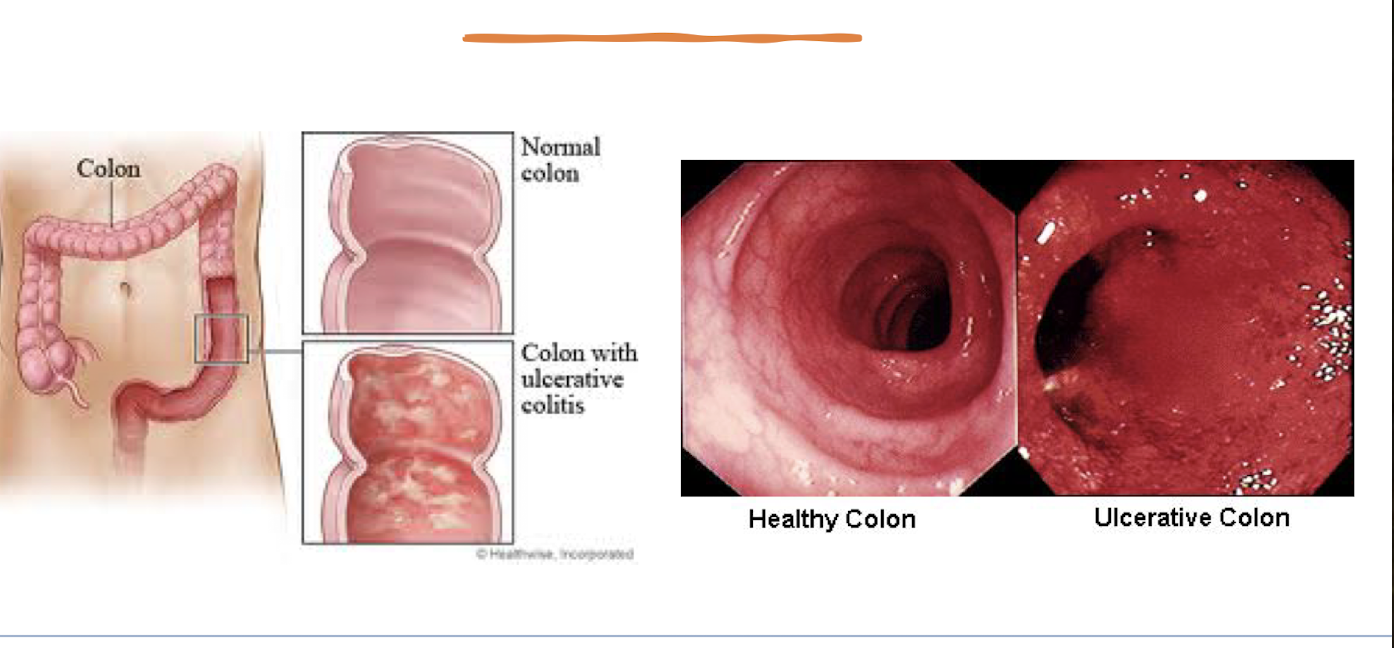

What is ulcerative colitis?

• type of inflammatory bowel disease (progressive inflammatory movement)

• bowel wall edema

• shallow, coalescent ulcerations: pseudopolyps

• prone to undergo malignant change

What is this diagnosis?

Ulcerative colitis

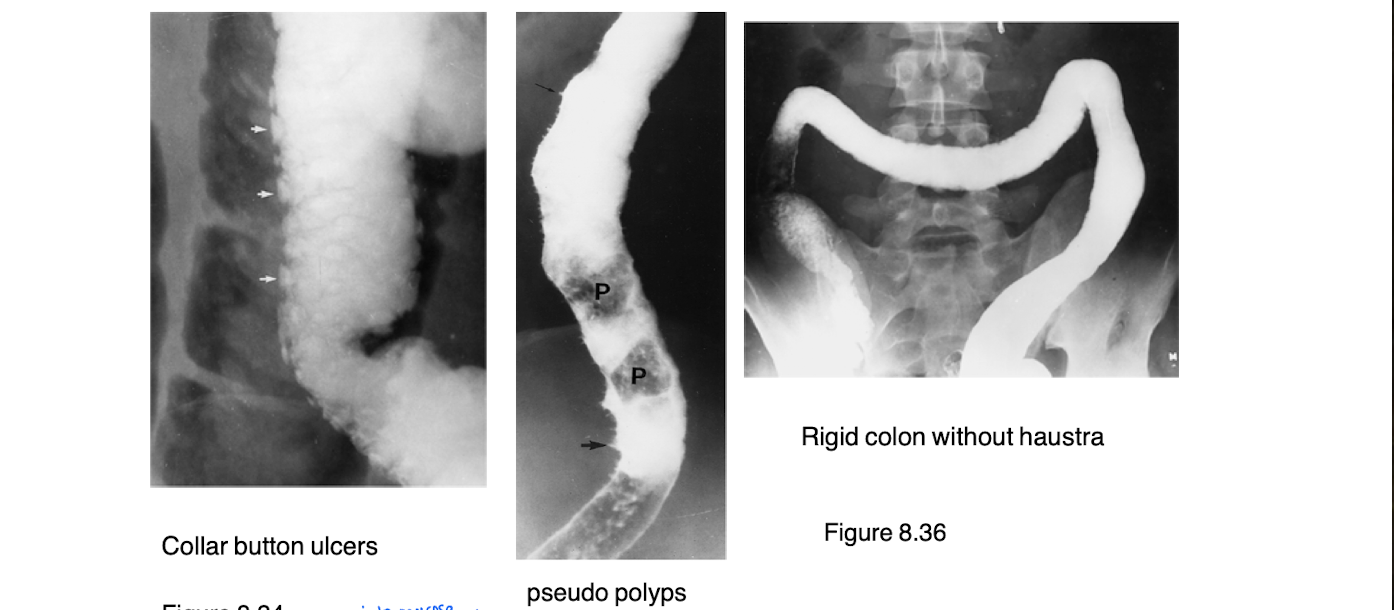

What are a hallmark to ulcerative colitis

No haustra

Collar button ulcers

Describe Crohn’s Disease

• type of inflammatory bowel disease

• strictures, obstruction, and fistulas are seen

• skin lesions

• cobblestone created by skip lesions

• increased risk of colon cancer

Which type of IBS has an increased risk of colon cancer?

Crohn's Disease

What can be seen in the image?

Cobblestoning for Crohn’s disease

What is shown in the CT (left)?

small bowel inflammation

What are the more common GI tract abnormalities of the pediatric population?

Foreign body

Pyloric stenosis - common in boys and presents around 3 weeks of age with projectile vomiting because food is backing up

Hirschsprung disease

Intussusception

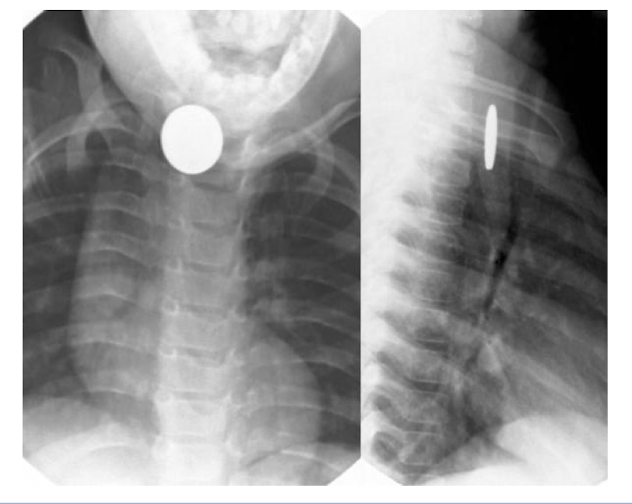

What is shown on the pediatric imaging?

Esophageal Foregin body

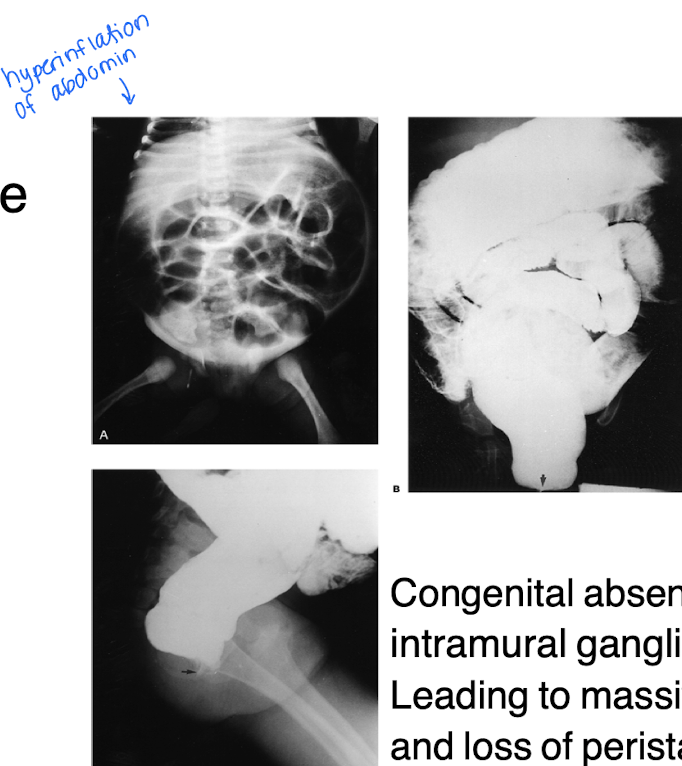

What is Hirschsprung disease?

A congenital absence of intramural ganglion leading to massive dilation, and loss of peristalsis

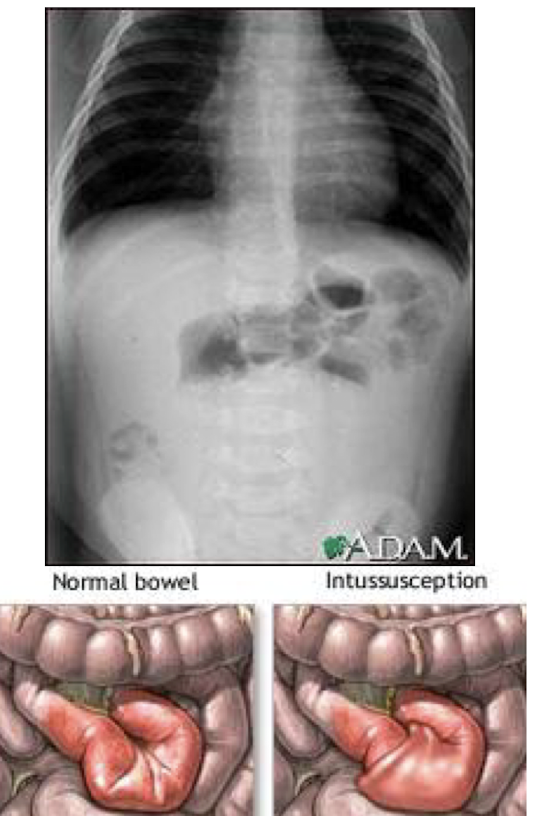

What is intussusception

A condition where a part of the intestine telescopes into an adjacent segment, causing obstruction and potential ischemia.

How is the diagnosis of intussusception confirmed and treated at the same time?

Diagnosis is typically confirmed through an abdominal ultrasound or CT scan, and treatment is performed via an air contrast enema or surgical intervention.

What are the studies used to evaluate the urinary tract, how are they performed and what are the indications of each?

• Intravenous urogram (IVU) aka IVP uses contrast dye to visualize the urinary tract, assessing kidney function and identifying obstructions, stones, or abnormalities.

• Retrograde examinations - contrast via small catheter

• Cystogram/voiding cystourethrogram - imaging while voiding

  • Check for vesicoureteral reflex in kids

• Nephrostogram uses contrast dye to visualize the kidneys and renal pelvis, often performed when urine flow is obstructed or to assess kidney anatomy.

• U/S

• CT

• MRI

• Isotope study

What is the initial study of the urinary tract imaging?

Ultrasound

• eval kidney shape and size

• determine if mass is solid vs cystic

• transrectal for prostate

When is CT used in the urinary tract?

• renal trauma

• calculi

When is MRI used in the urinary tract?

masses

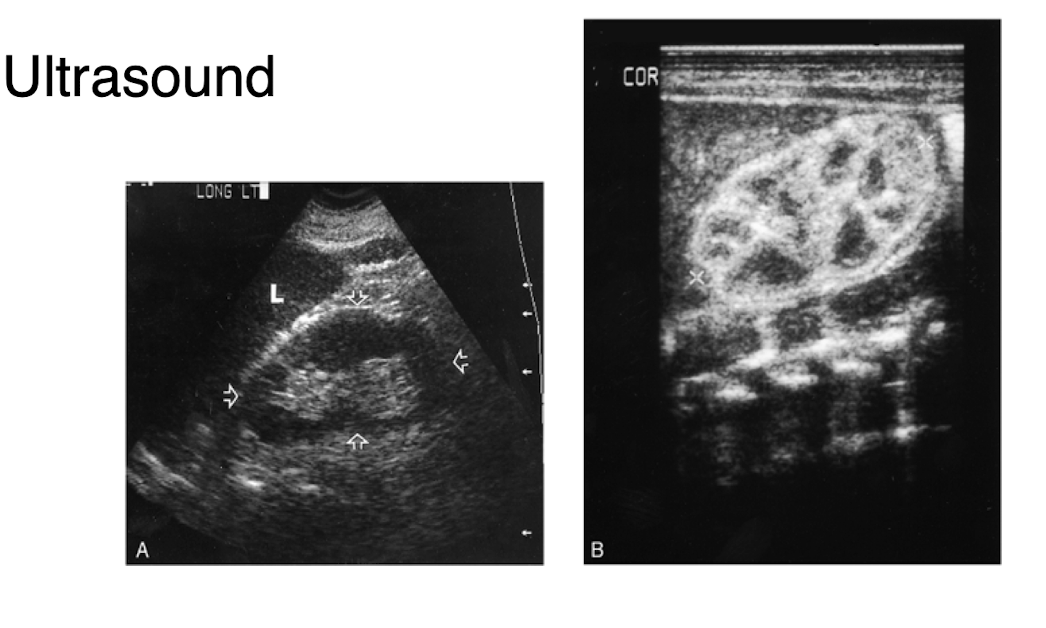

What is shown in this ultrasound of the urinary system?

normal renal ultrasound with the right image being the kidneys

Describe the appearance of "normal" collecting system, ureters, bladder, and prostate

The normal collecting system appears smooth and well-defined,

ureters displaying no obstruction or dilation

the bladder shows uniform thickness without wall irregularities

prostate gland is of normal size and echogenicity, free of lesions or abnormalities.

What is the "normal" vascularity of the kidneys?

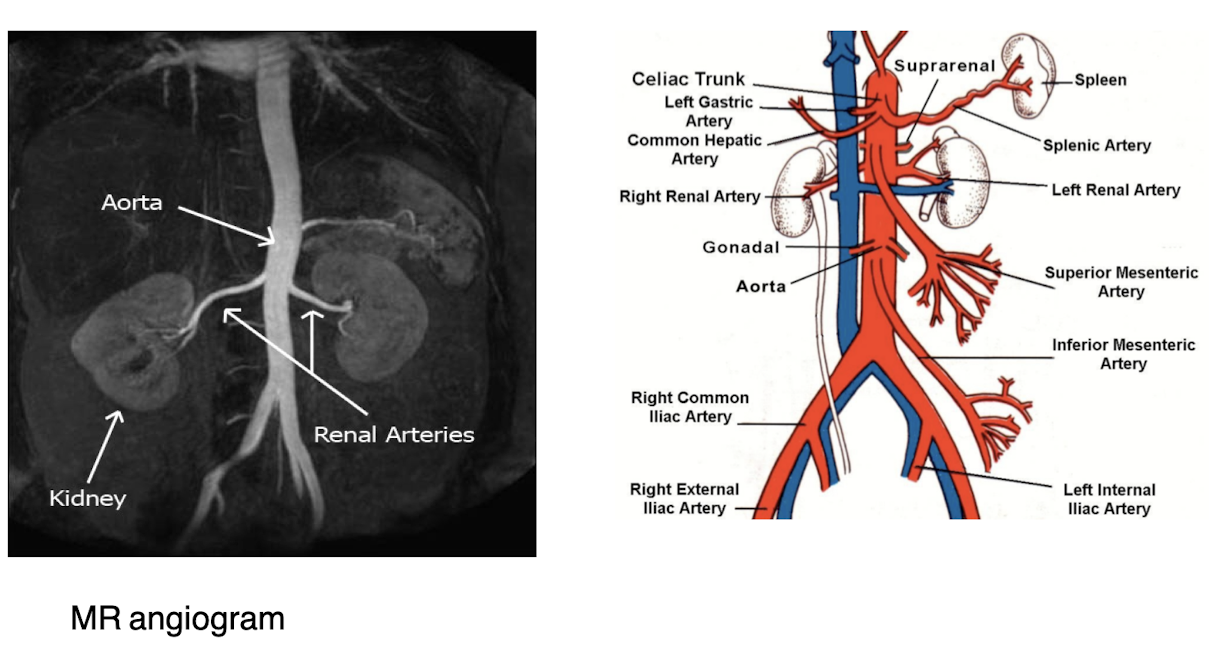

The kidneys have a highly vascular structure, with renal arteries supplying blood and a rich network of capillaries, ensuring adequate perfusion for filtration and waste removal.

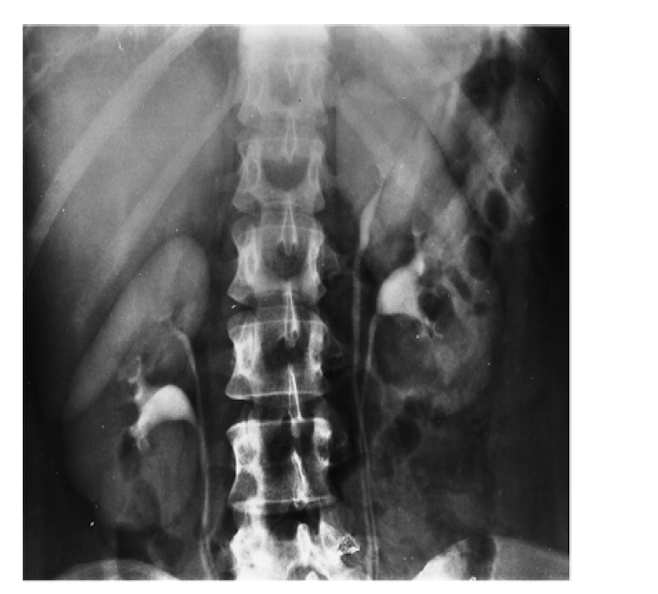

What is a duplication of the collecting system?

A congenital anomaly where there are two ureters and renal pelvises associated with a single kidney, leading to potential drainage issues.

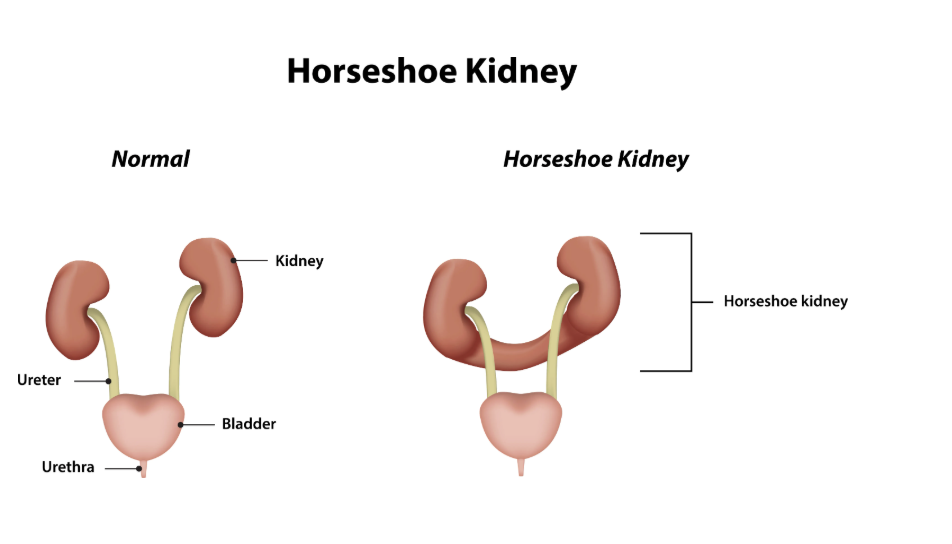

What is a horseshoe kidney?

A congenital abnormalitiy where the two kidneys are fused together at their lower ends, forming a "U" shape, which can affect their function and position.

What are posterior urethral valves and how are they diagnosed?

Most common cause of urethral obstruction in male children. They are abnormal folds of tissue in the urethra that obstruct urine flow, diagnosed through ultrasonography or cystoscopy.

What is ureterocele?

congenital abnormality with a dilated distal end of ureter

What is renal ectopia?

Congenital condition where the kidneys are not in the appropriate spots

What are common causes of urinary obstruction?

Congenital or acquired

• Stones - common cause of acquired obstruction

• tumor

• operative manipulation

What changes will you see when imaging an acute obstruction?

Dilated renal collecting system, hydronephrosis, or hypofunction of the affected kidney.

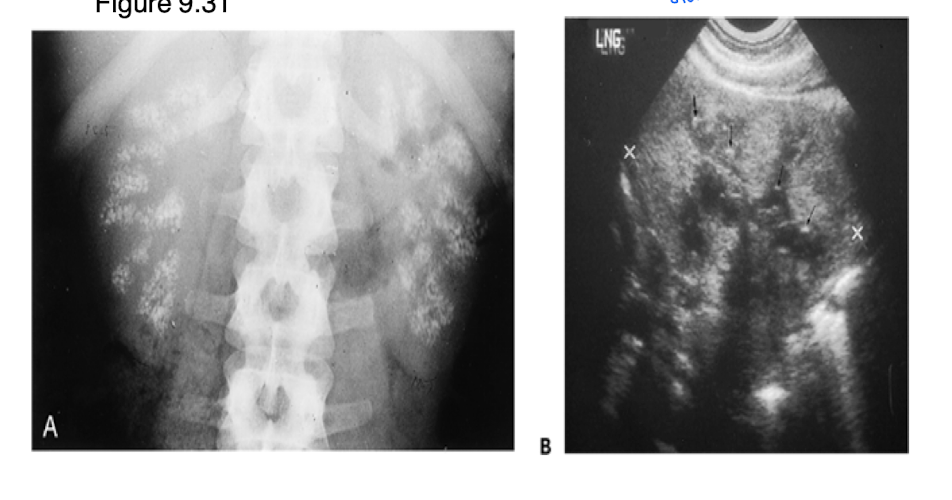

What is nephrocalcinosis? How does it appear on film?

• calcium deposits in renal tissue due to increased serum calcium

• Uniform opacity, bilateral, and stone is clear, and precise

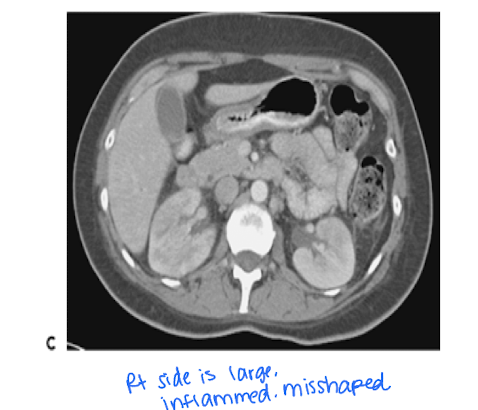

When is imaging indicated in a patient with pyelonephritis?

pyelonephritis is a severe urinary tract obstruction when there is suspicion of abscess, obstruction, or complications.

An infection that can be difficult to dx on CT if patient is not responsive to treatment

After a renal mass is detected, what is the next logical step?

Further imaging including CT

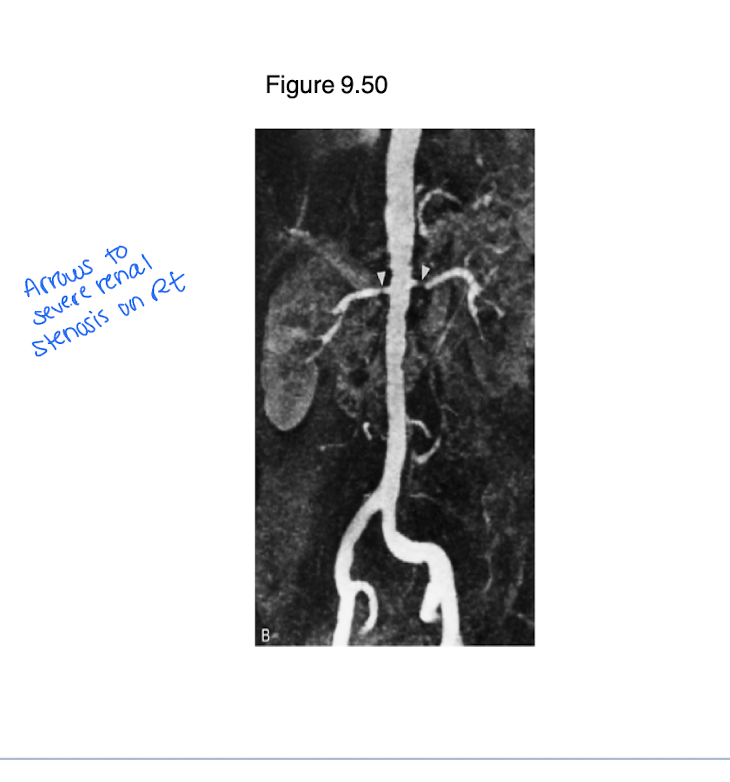

Vascular lesions can lead to renal artery occlusion. What diagnostic tool would be used to evaluate?

Doppler u/s

Angiography

Why would we do a CT of the abd and pelvis when there is injury to the urinary tract?

evaluate kidney function

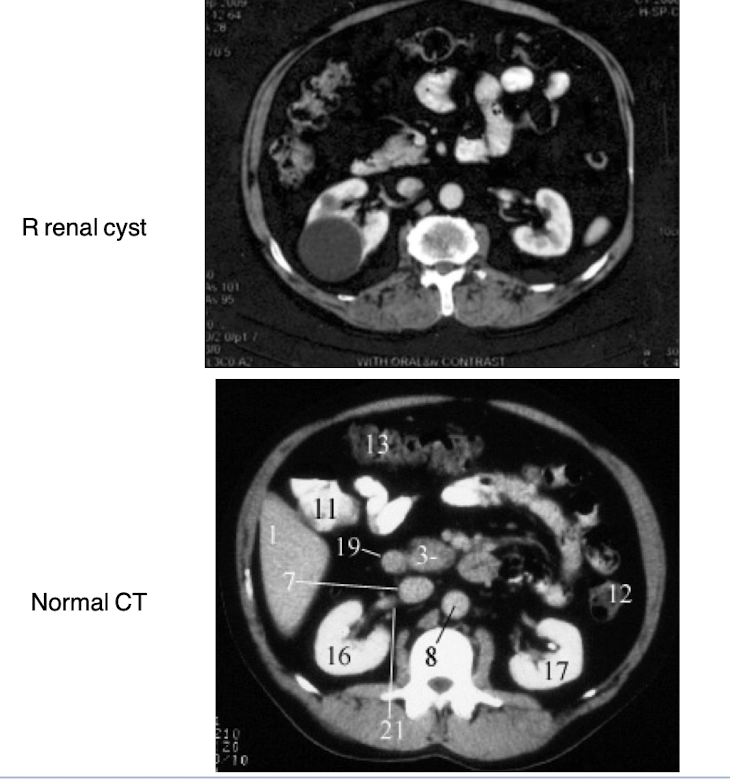

Differentiate between renal cysts and renal carcinoma including characteristics, how they appear when imaged.

Renal cysts are typically simple, fluid-filled sacs that are asymptomatic and have thin walls, while renal carcinoma presents as a solid mass with irregular borders and may show enhancement on imaging studies. Cysts appear anechoic on ultrasound, whereas carcinomas are often hypoechoic and may display vascularity on Doppler imaging.

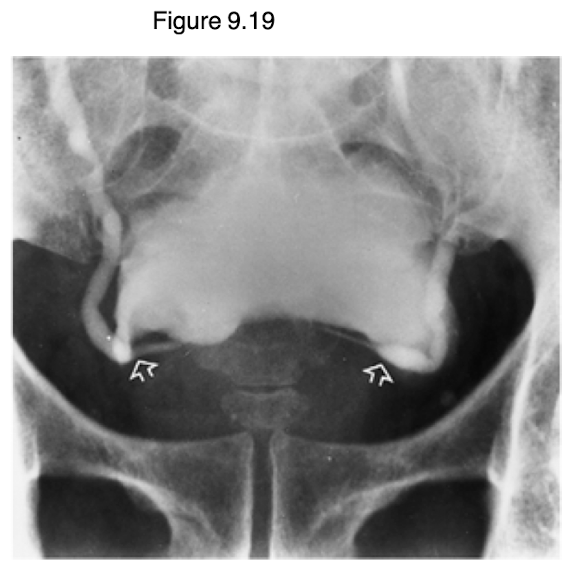

What is extrinsic compression?

A condition where external structures apply pressure on the urinary tract or kidneys, potentially causing obstruction or dysfunction.

The image does the bladder having an abnormal shape and elevation. This is secondary to an enlarged prostate. What would this be called?

Extrinsic compression

What is vesicoureteral reflux and how is it diagnosed?

Vesicoureteral reflux (VUR) is a condition where urine flows backward from the bladder into the ureters and kidneys, often due to a malfunctioning valve at the ureter-bladder junction.

Juse Cystogram/voiding cystourethrogram

A 42 y/o white female presents with colicky (gassy) pain in her left flank for 4 hours. Patient was working at her desk when the pain began. Nothing makes the pain better or worse. It radiates to the left groin. The patient has never had pain like this before. She rates it 9/10.

On exam she is diaphoretic and in acute distress. CV and lung exam is normal. Abd exam reveals CVA tenderness and no other abnormalities.

Vitals:

T: 36.8C

P: 90 bpm

R: 28

BP: 128/76

What tests would be ordered?

What do you expect to find?

She has kidney stones

Order CT of abd/pelvis

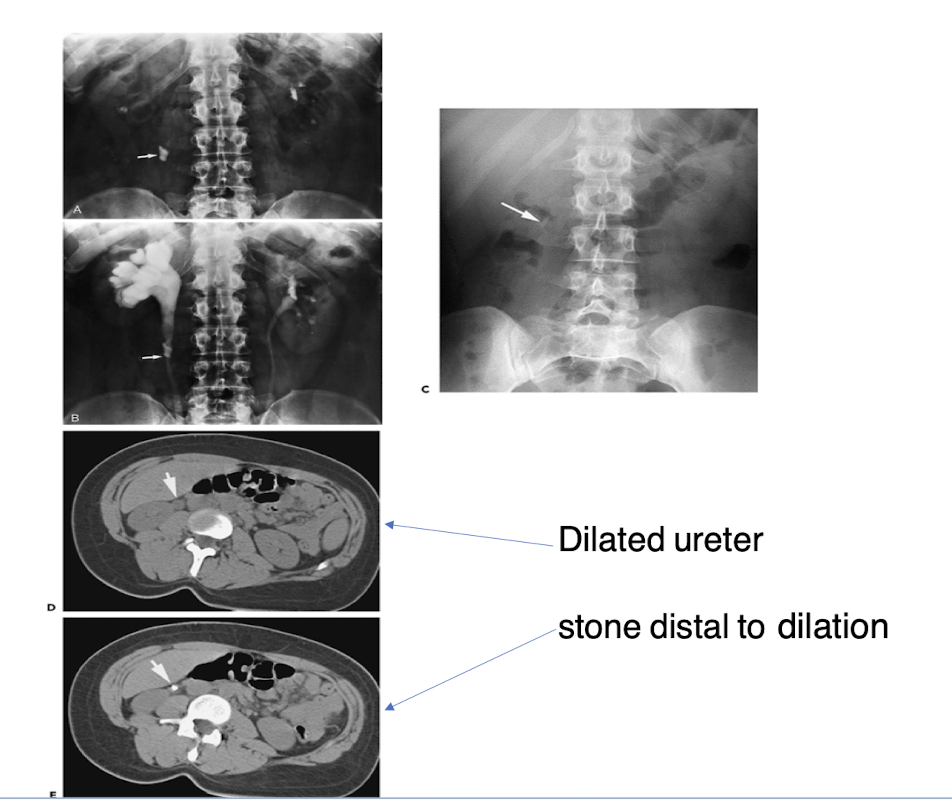

Should see radiopaque mass and dilation of ureter too
