8 Terms

1
New cards
<p>PARIETOCANTHIAL PA WATERS -FACIAL BONES</p><p>SID</p><p>COLLIMATION</p><p>CR</p><p>TECHNIQUE</p>

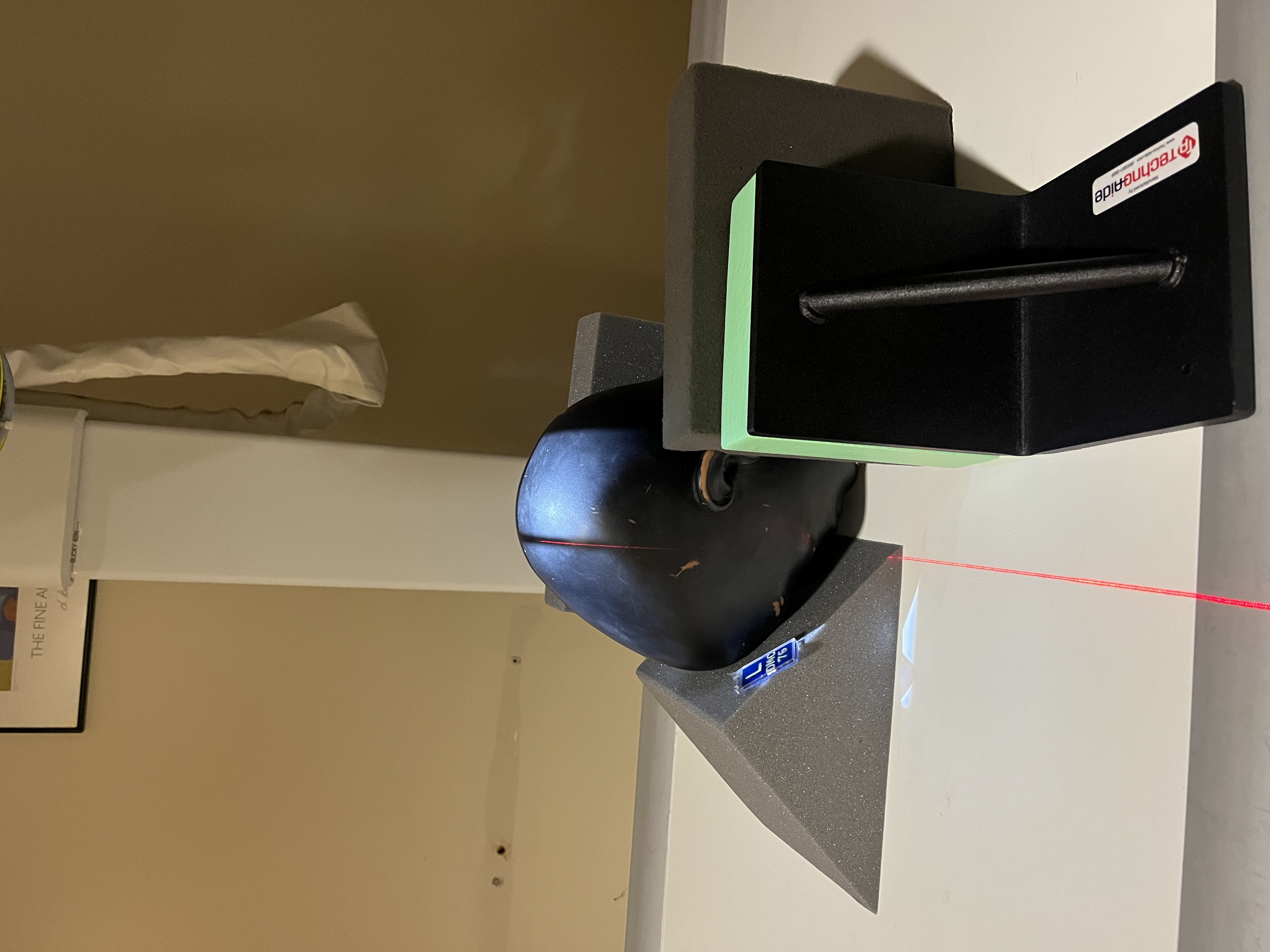

PARIETOCANTHIAL PA WATERS -FACIAL BONES

SID

COLLIMATION

CR

TECHNIQUE

SID: 40

COLLIMATION: 21 × 23

CR- hyperextend neck, mentalmeatal line perp to Ir , EXIT at acanthion * USE BIG SPONGE

TECHNIQUE - 87 kvp 160s 16 MAs

<p>SID: 40</p><p style="text-align: start">COLLIMATION: 21 × 23</p><p style="text-align: start">CR- hyperextend neck, mentalmeatal line perp to Ir , EXIT at acanthion * USE BIG SPONGE</p><p style="text-align: start">TECHNIQUE - 87 kvp 160s 16 MAs</p>
2
New cards
<p>Lateral Facial bones</p><p>SID</p><p style="text-align: start">COLLIMATION</p><p style="text-align: start">CR</p><p style="text-align: start">TECHNIQUE</p>

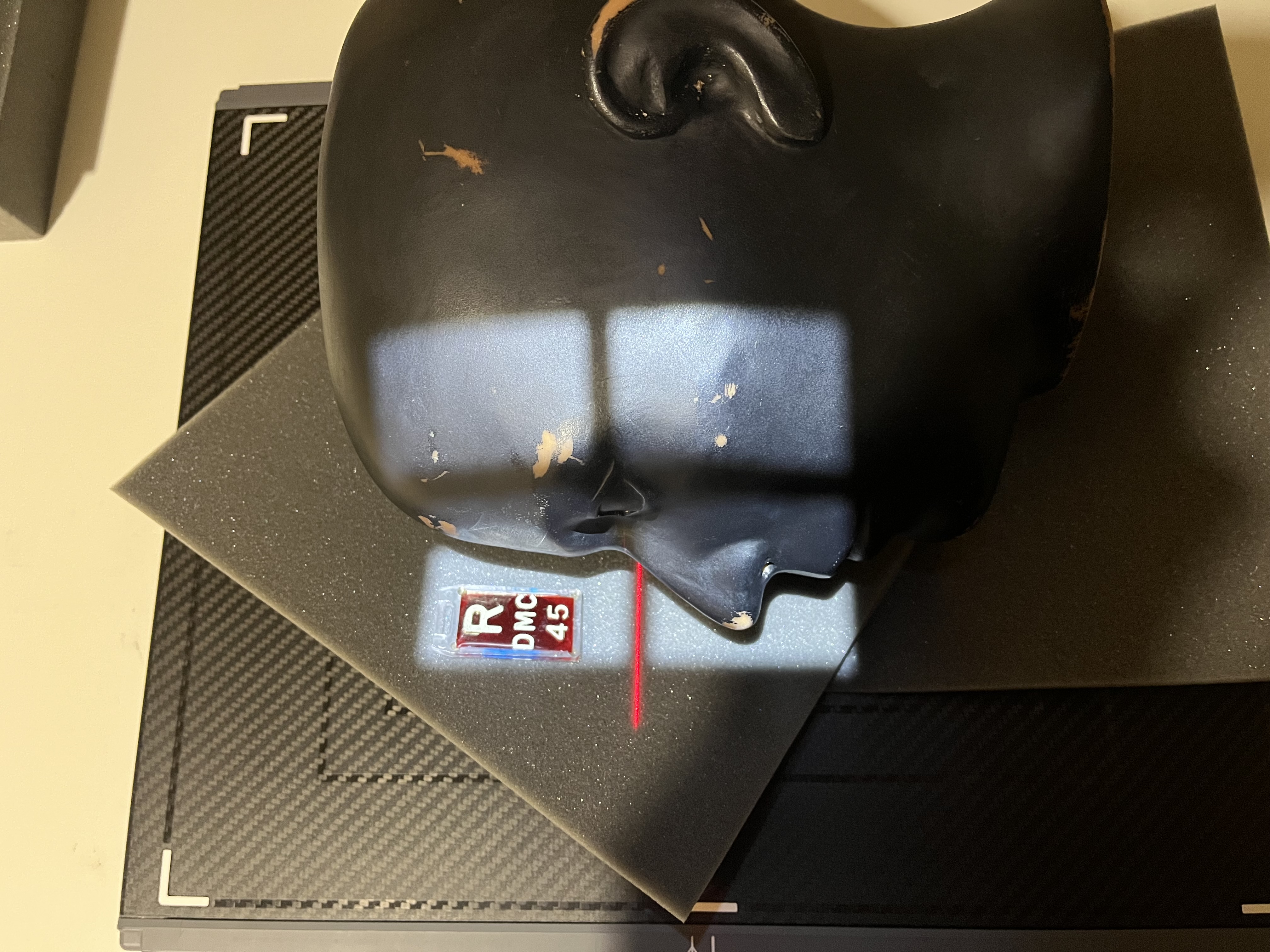

Lateral Facial bones

SID

COLLIMATION

CR

TECHNIQUE

SID; 40

COLLIMATION 19 × 24

CR- a little bit above prominence of cheek & midway between outer canthus & EAM

TECHNIQUE ; 85 kvp 160s 4 MAs

<p>SID; 40</p><p style="text-align: start">COLLIMATION 19 × 24</p><p style="text-align: start">CR- a little bit above prominence of cheek &amp; midway between outer canthus &amp; EAM</p><p style="text-align: start">TECHNIQUE ; 85 kvp 160s 4 MAs</p>
3
New cards
<p>PA AXIAL CALDWELL ; facial bones</p><p>SID</p><p style="text-align: start">COLLIMATION</p><p style="text-align: start">CR</p><p style="text-align: start">TECHNIQUE</p>

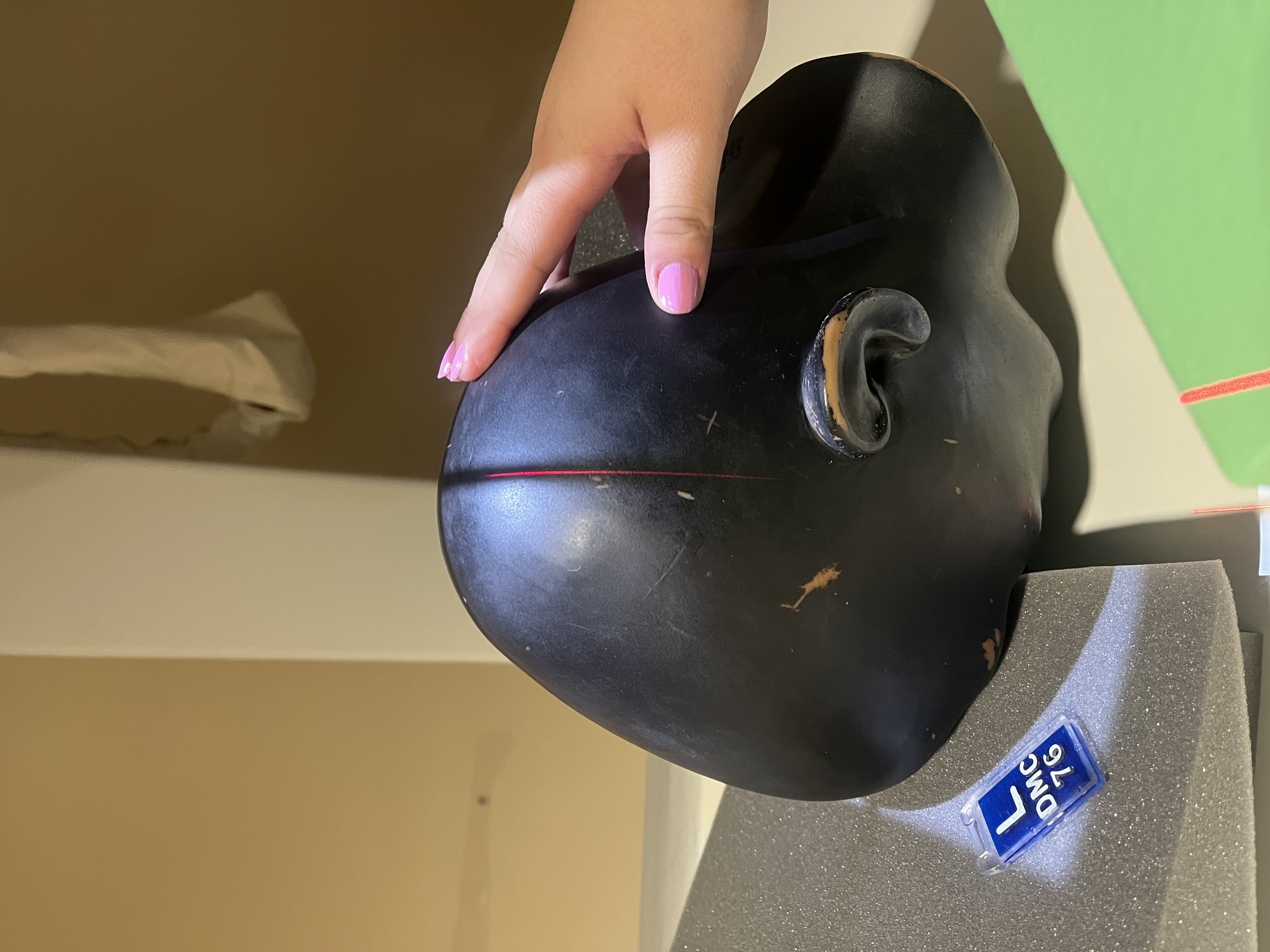

PA AXIAL CALDWELL ; facial bones

SID

COLLIMATION

CR

TECHNIQUE

SID ; 40

COLLIMATION; 19 × 19

CR- 15* caudad to exit at Naision

TECHNIQUE 85 kvp at 10 MAs

<p>SID ; 40</p><p style="text-align: start">COLLIMATION; 19 × 19</p><p style="text-align: start">CR- 15* caudad to exit at Naision</p><p style="text-align: start">TECHNIQUE 85 kvp at 10 MAs</p>
4
New cards

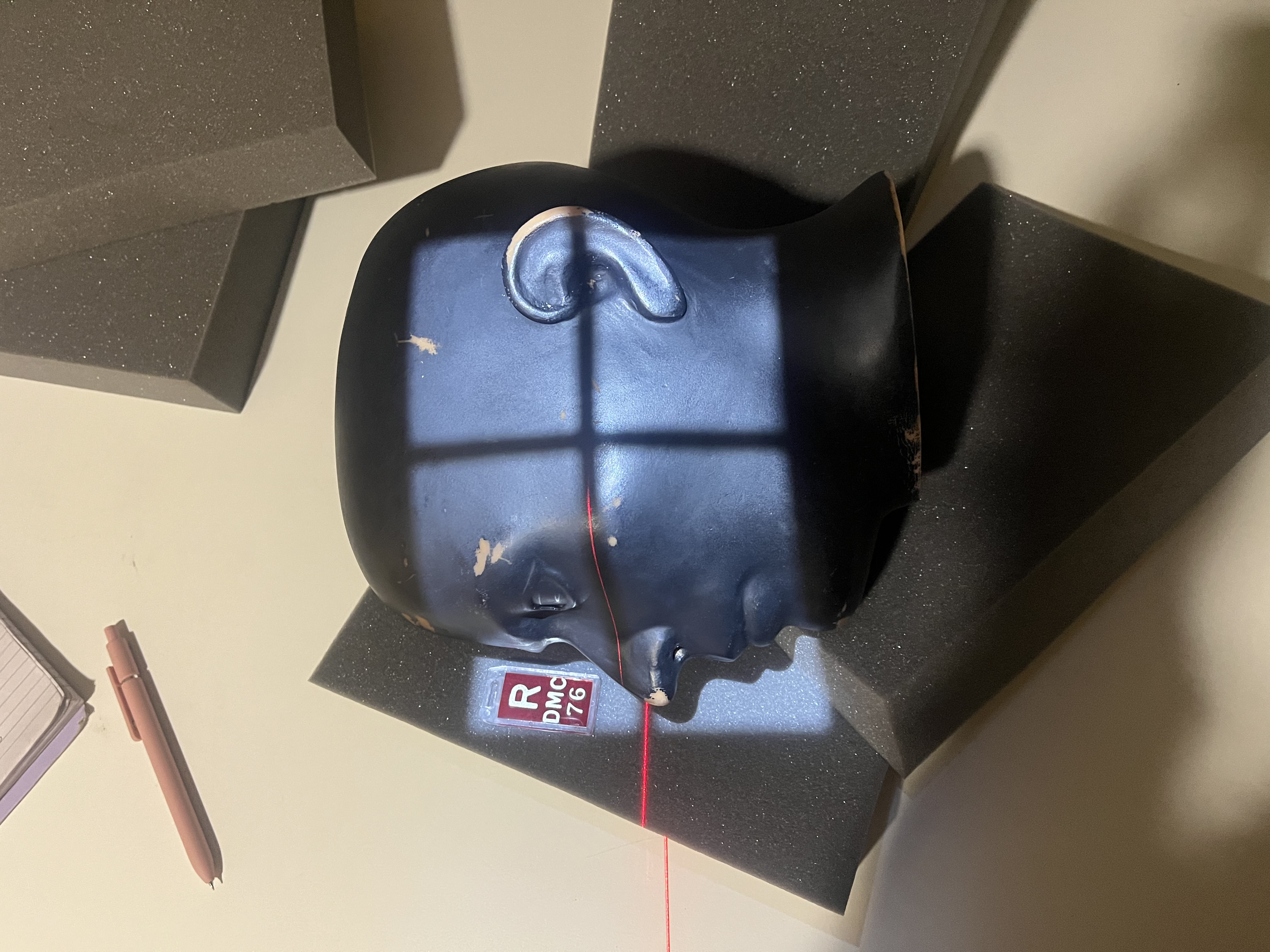

lateral Sinus

SID

COLLIMATION

CR

TECHNIQUE

SID: 40

COLLIMATION : 19 × 19

CR-midway between outer canthus and EAM

TECHNIQUE ; 85 kvp at 4 MAs

5
New cards
<p>PA CALDWELL SINUS</p><p>SID</p><p style="text-align: start">COLLIMATION</p><p style="text-align: start">CR</p><p style="text-align: start">TECHNIQUE </p>

PA CALDWELL SINUS

SID

COLLIMATION

CR

TECHNIQUE

SID- 40

COLLIMATION: 19 × 19

CR- put big sponge under chin angle 15* caudad to exit at naision

TECHNIQUE : 85kvp 10.24 MAs

<p>SID- 40</p><p style="text-align: start">COLLIMATION: 19 × 19</p><p style="text-align: start">CR- put big sponge under chin angle 15* caudad to exit at naision</p><p style="text-align: start">TECHNIQUE : 85kvp 10.24 MAs</p>
6
New cards
<p>PARIETOCANTHIAL PA WATERS SINUS</p><p>SID: </p><p style="text-align: start">COLLIMATION</p><p style="text-align: start">CR</p><p style="text-align: start">TECHNIQUE </p>

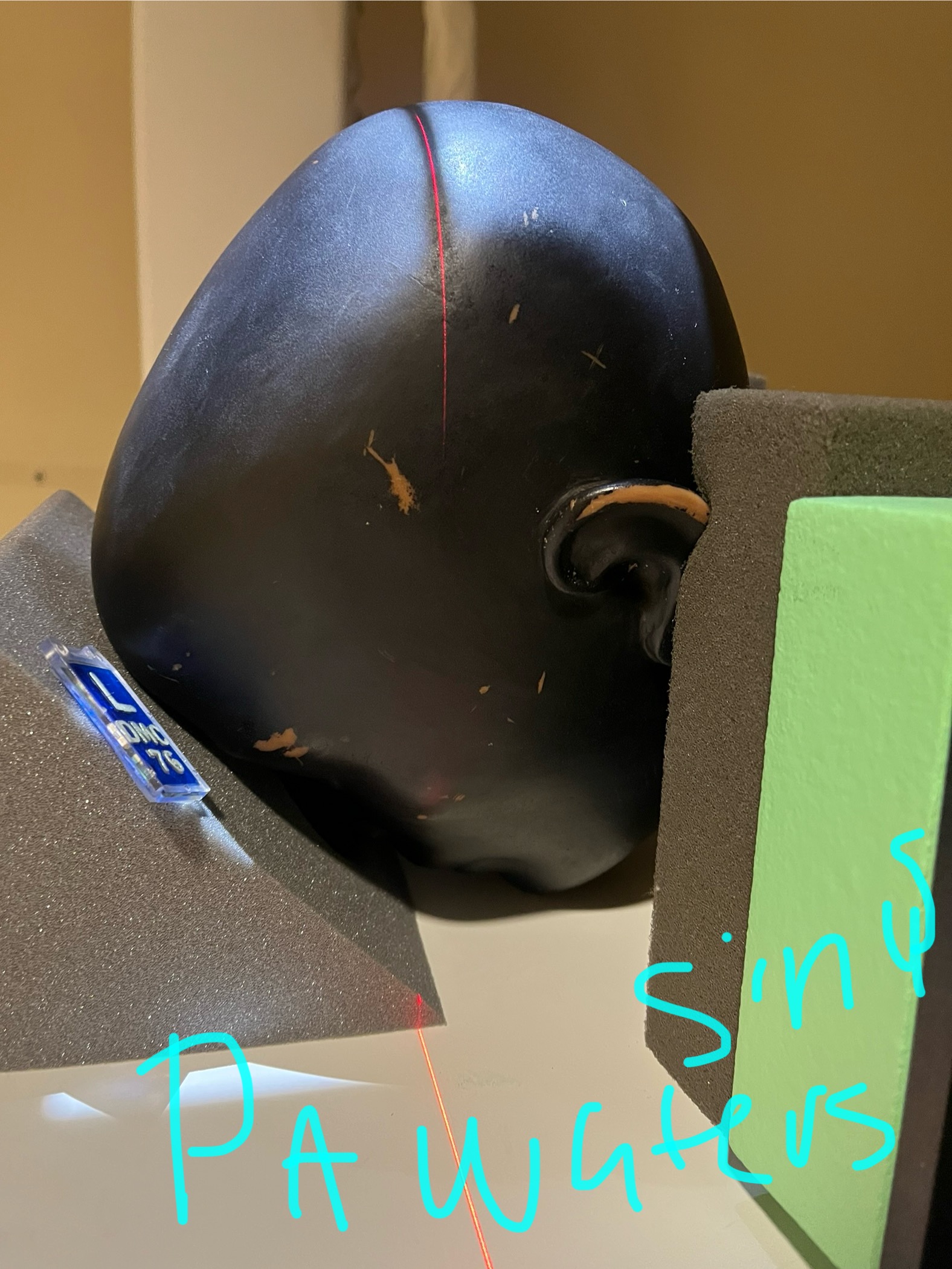

PARIETOCANTHIAL PA WATERS SINUS

SID:

COLLIMATION

CR

TECHNIQUE

SID: 40

COLLIMATION 19 × 24

CR-* PUT BIG SPONG UNDER FOREHEAD TO PLACE MML AN OML ALIGNED* to exit at acanthion

TECHNIQUE - 85 kvp at 20

<p>SID: 40</p><p style="text-align: start">COLLIMATION 19 × 24</p><p style="text-align: start">CR-* PUT BIG SPONG UNDER FOREHEAD TO PLACE MML AN OML ALIGNED* to exit at acanthion </p><p style="text-align: start">TECHNIQUE - 85 kvp at 20</p>
7
New cards
<p>NASAL BONES LATERAL</p><p>SID</p><p style="text-align: start">COLLIMATION</p><p style="text-align: start">CR</p><p style="text-align: start">TECHNIQUE</p>

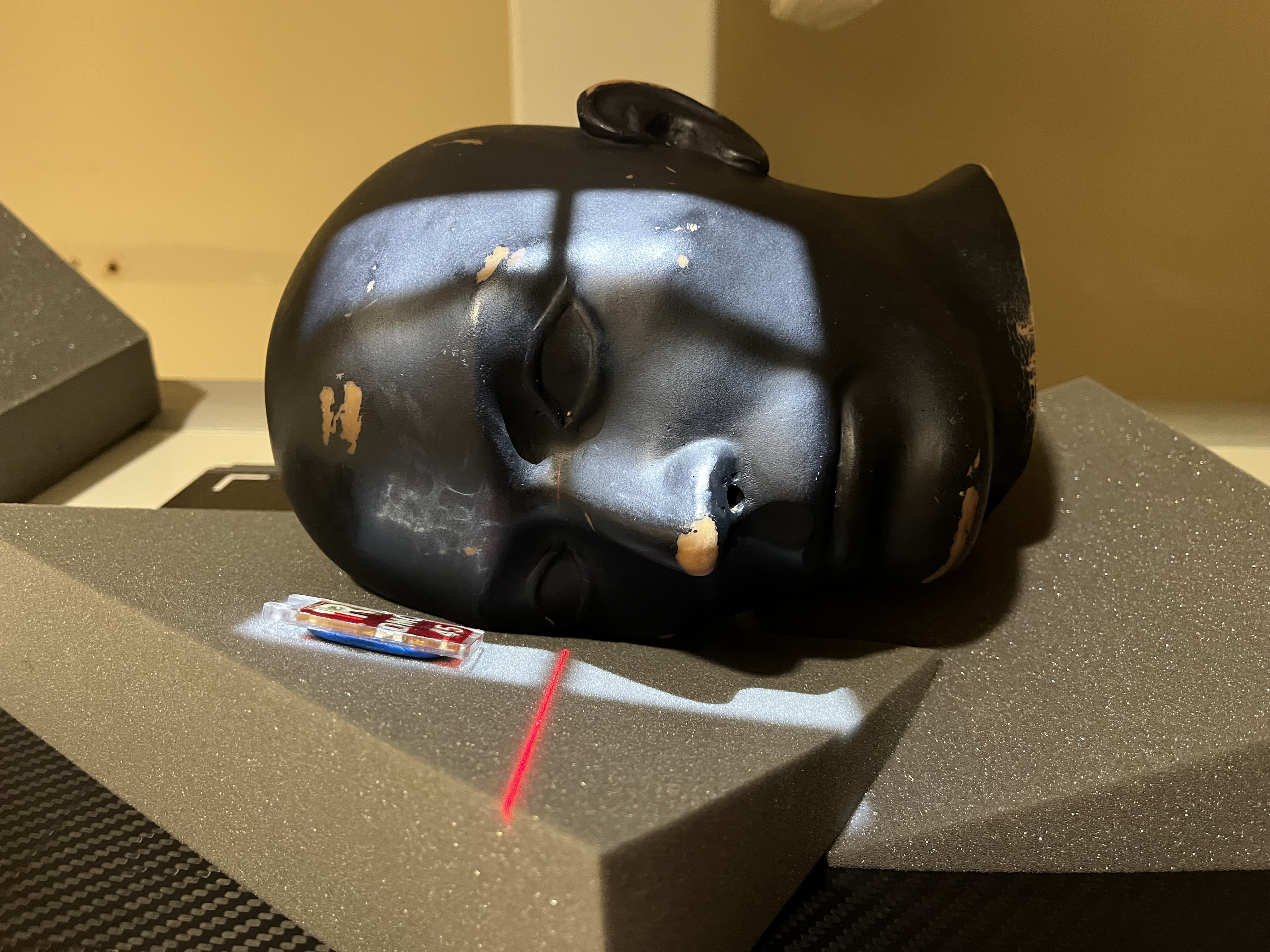

NASAL BONES LATERAL

SID

COLLIMATION

CR

TECHNIQUE

TABLETOP

SID-40

COLLIMATION 12 × 18

CR - ON OUTER CANTUS

TECHNIQUE - 65 kvp at 2.56

<p>TABLETOP</p><p>SID-40</p><p style="text-align: start">COLLIMATION 12 × 18</p><p style="text-align: start">CR - ON OUTER CANTUS</p><p style="text-align: start">TECHNIQUE - 65 kvp at 2.56</p>
8
New cards

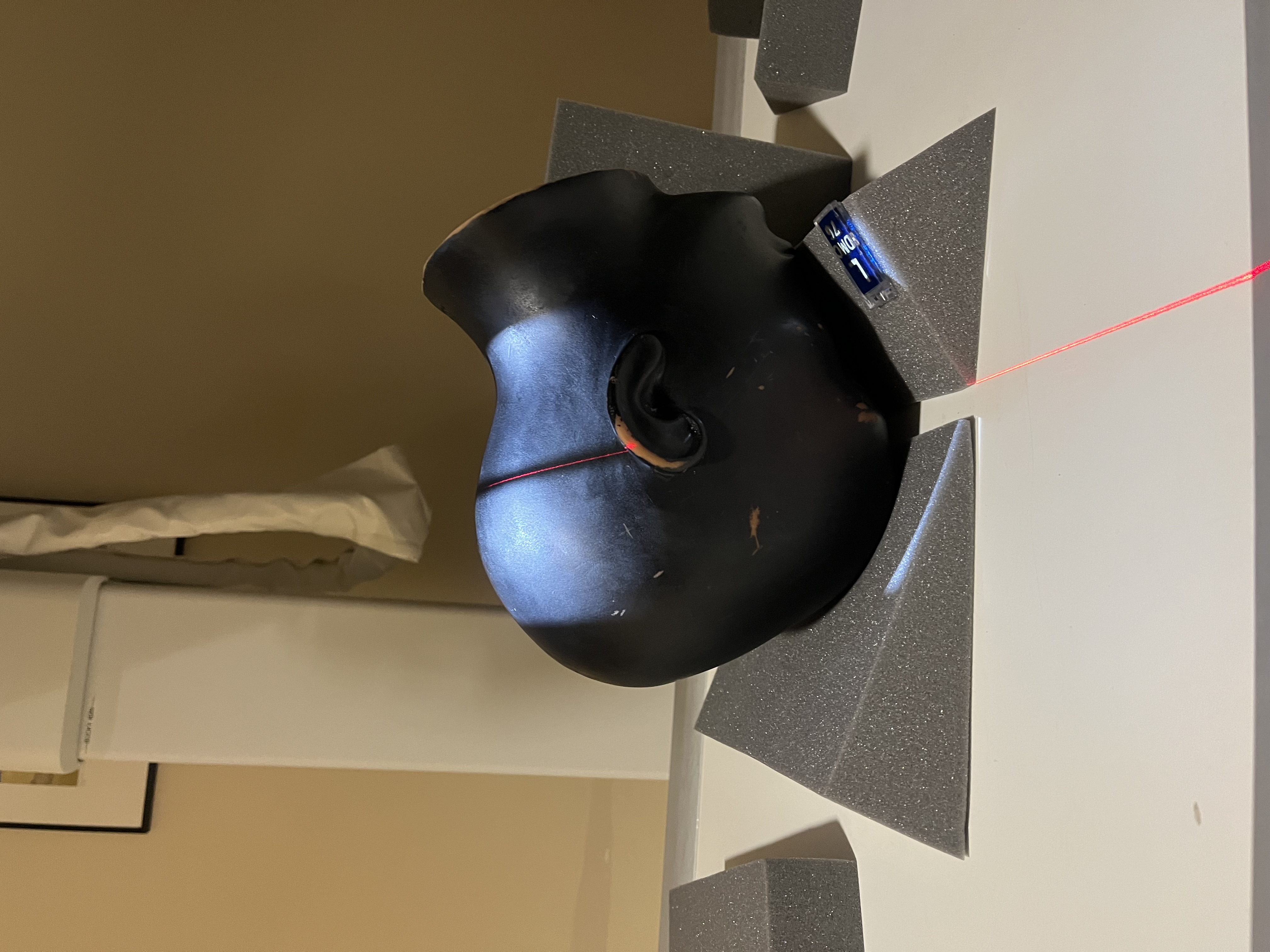

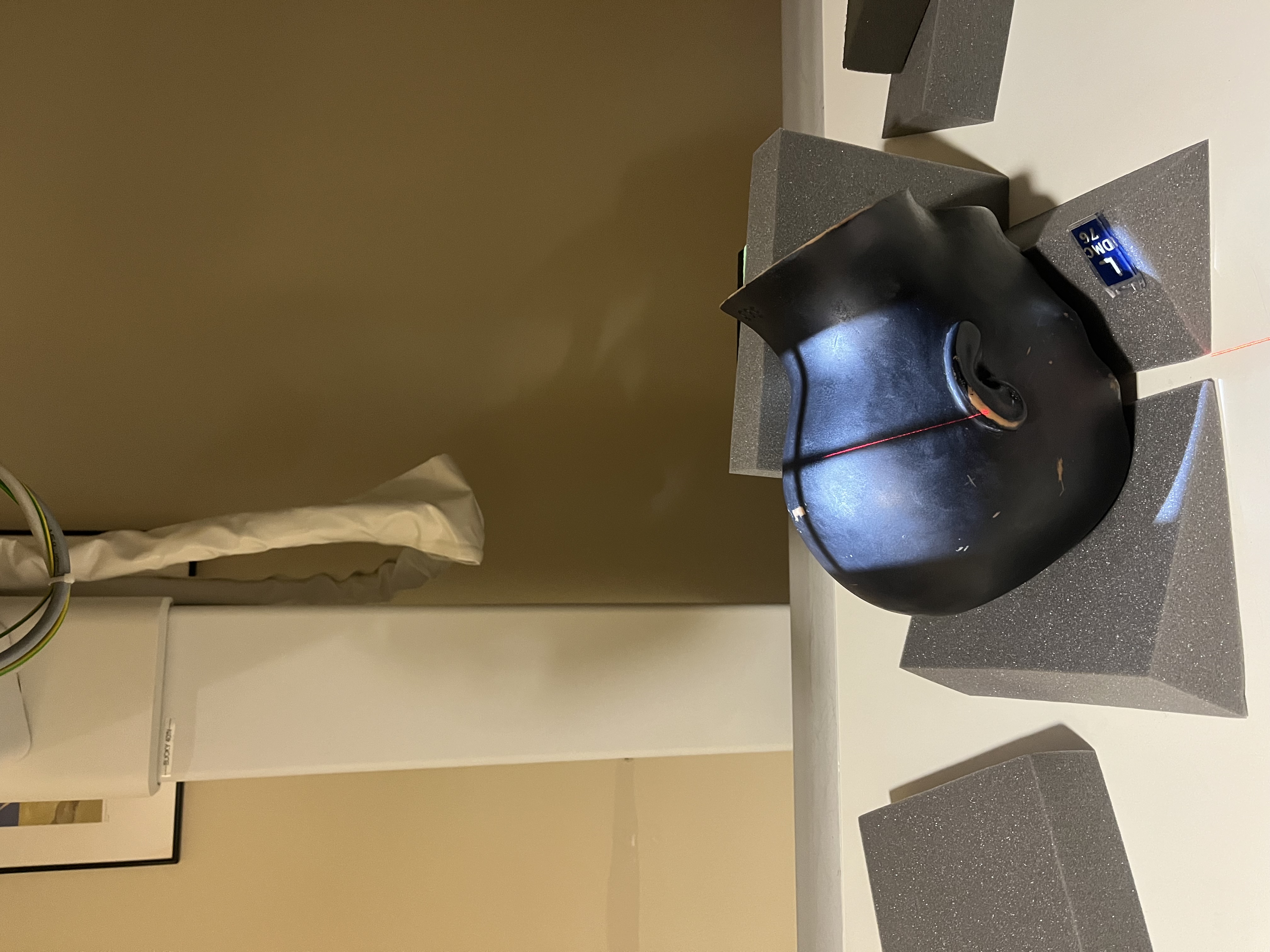

SMV

SID

COLLIMATION

CR

SID- 40”

COLLIMATION- 18× 16

CR- midway between mandibular condoles and symphyhis
