24 Transition Metals

transition metal def

a d-block element which forms an ion with an incomplete d-subshell

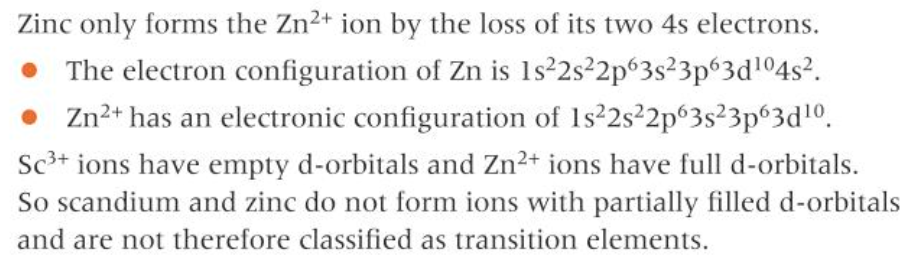

• (scandium and zinc are d-block elements, but don’t fit the rest of this definition so aren’t classified as transition elements)

electron configuration of scandium

electron configuration of zinc

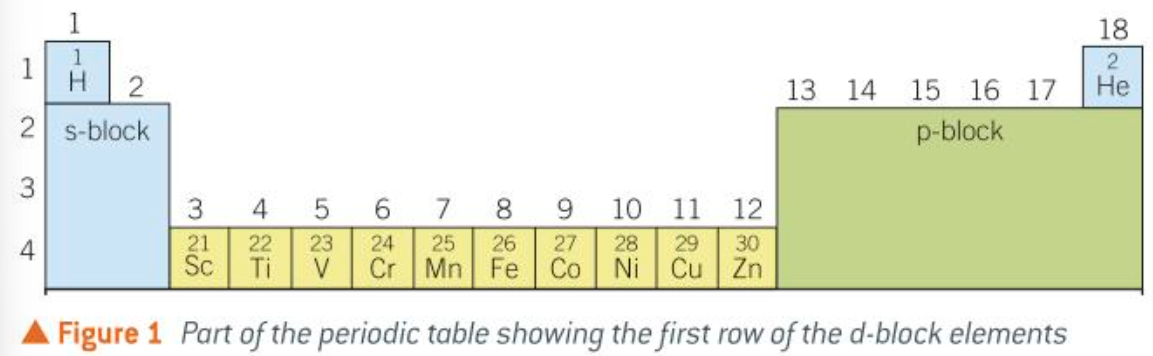

d-block of periodic table

why are d-block elements called that

the 3d subshells have the highest energy and electrons are added to 3d orbitals

properties of transition metals

the incomplete d-subshell is responsible for a number of general properties of transition elements:

• variable oxidation states

• catalytic action

• coloured compounds

• formation of complexes

uses of transition metals

• coinage: copper, silver, nickel, zinc

• construction and the production of tools: iron

• electrical cables and water pipes: copper

• aerospace industry and medical applications (joint replacement and cosmetic dentistry): titanium

what are the special cases of transition metals where their subshells fill differently

chromium and copper

• it’s believed that a half-filled d5 subshell and a fully filled d10 subshell give additional stability to the atoms

rules for electron configuration of d-block ions

when the d-block elements form positive ions from their atoms, they lose their 4s electrons before losing any of the 3d electrons.

• when forming an atom, the 4s orbital fills before the 3d orbitals

• when forming an ion, the 4s orbital empties before the 3d orbitals

electron configuration of Fe, Fe2+, Fe3+

how do the variable oxidation states change across the transition metals

the number of oxidation states increases across the transition elements series to manganese, then decreases.

they all form compounds with an ox no. of +2 (resulting from the loss of 2e-)

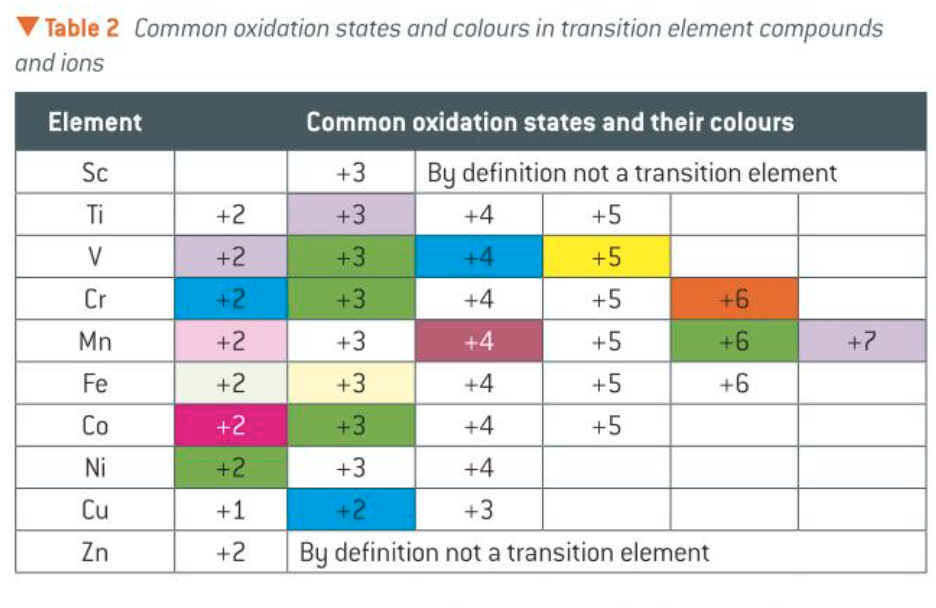

common oxidation states and their colours

when is a species often a strong oxidising agent

when a species contains a transition element in its highest oxidation state

catalyst def

a substance that increases the rate of a chemical reaction without being used up in the process; a catalyst provides an alternative route for the reaction with lower activation energy

Contact process

• the production of sulfur trioxide from the oxidation of sulfur dioxide

• catalysed by vanadium (V) oxide V2O5(s)

• 2SO2(g) + O2(g) ⇌ 2SO3(g)

Haber process

• the manufacture of ammonia from the rxn between nitrogen and hydrogen

• catalysed by a finely divided iron catalyst

• N2(g) + 3H2(g) ⇌ 2NH3(g)

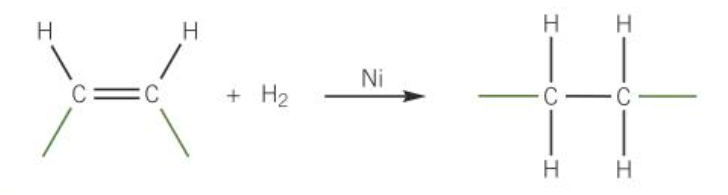

Hydrogenation of vegetable fats in the manufacture of margarine

• nickel is used as the catalyst

catalytic decomposition of hydrogen peroxide

• forms oxygen

• uses manganese (IV) oxide MnO2(s) as the catalyst

• 2H2O2(aq) → 2H2O(l) + O2(g)

examples of heterogenous catalysis

when the catalyst is in a different state to the reactants

• catalytic decomposition of hydrogen peroxide using MnO2

• hydrogenation of vegetables fats using nickel

• the Contact process using V2O5 (vanadium V oxide)

• the Haber process using a finely divided iron catalyst

rxn between iodide ions and peroxodisulfate ions S₂O₈^2-

• catalysed by Fe2+(aq) ions

• S2O82-(aq) + 2I-(aq) → 2SO42-(aq) + I2(aq)

  • when this rxn is carried out with a trace of starch, a blue-black colour forms showing the formation of iodine

  • with a small amount of Fe2+(aq) added, the blue-black solution forms much more quickly demonstrating the catalytic action of it

rxns to show how Fe2+ catalyses the rxn between iodide ions and peroxodisulfate ions S₂O₈^2-

• Fe2+(aq) reacts: S₂O₈^2-(aq) + Fe²⁺(aq) → 2SO4^2-(aq) + Fe³⁺(aq)

• Fe²⁺(aq) regenerated: Fe³⁺(aq) + 2I^-(aq) → I₂(aq) + Fe²⁺(aq)

the rxn of Zn metal with acids

• catalysed by the presence of Cu2+(aq) ions

• Zn(s) + H2SO4(aq) → ZnSO4(aq) + H2(g)

examples of homogenous catalysts

when the catalyst is in the same physical state of the reactants

• rxn between iodide ions and peroxodisulfate ions S₂O₈^2- using Fe2+(aq)

• the rxn of Zn metal with acids using Cu2+(aq)

complex

metal ion with co-ordinately bonded ligands

• complex ions aren’t restricted to d-block elements (e.g. Al can form complex ions)

ligand def

a molecule or ion that donates a pair of electrons to a central metal ion to form a coordinate bond or dative covalent bond

dative covalent bond/coordinate bond def

special kind of covalent bond that’s formed when one of the bonded atoms provides both of the electrons for the shared pair

coordination number

indicates the number of coordinate bonds attached to the central metal ion

shapes of complexes

• linear (Ag+ complexes)

• square planar (Pt2+ and Ni2+ complexes)

• tetrahedral (with larger ligands e.g. Cl-, when ligands are too big for six to fit)

• octahedral (most complexes with small ligands e.g. H2O, NH3)

examples for shapes of complexes

• linear [Ag(NH₃)₂]⁺ (in Tollen’s reagent)

• square planar [PtCl₄]^2-

• tetrahedral [CuCl₄]^2-

• octahedral [Cu(H₂O)₆)²⁺

bond angles and coordination numbers for shapes of complexes

• linear: 2, 180

• square planar: 4, 90

• tetrahedral: 4, 109.5

• octahedral: 6, 90

monodentate ligands

a ligand that’s able to donate 1 pair of e- to a central metal ion

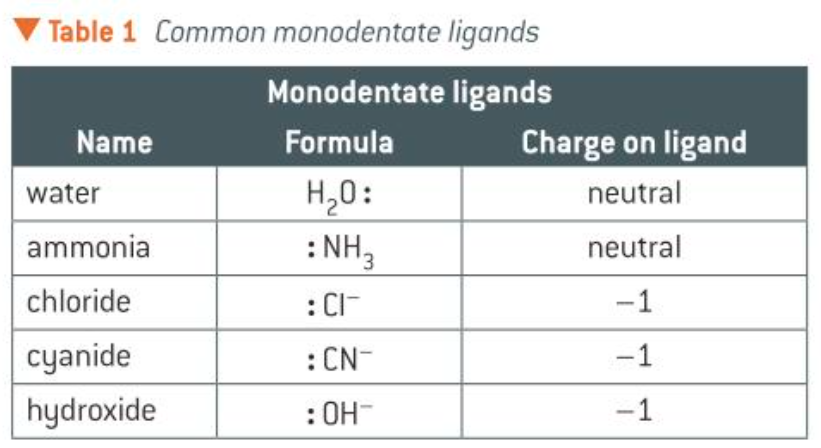

common monodentate ligands

bidentate ligands

when a ligand can donate two lone pairs of e- to the central metal ion, forming 2 coordinate bonds

most common bidentate ligands

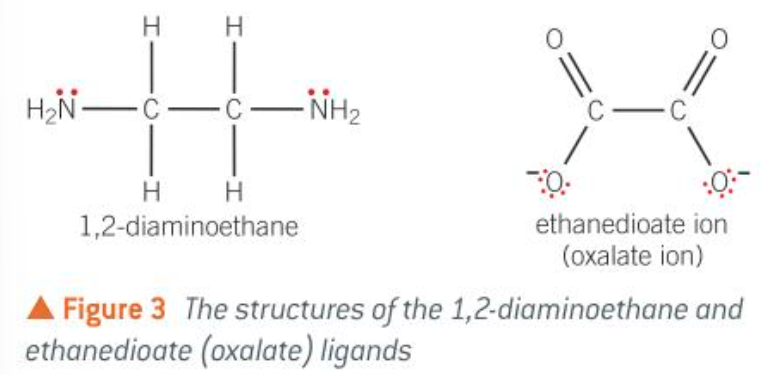

1,2-diaminoethane is shorted to en

ethandioate aka oxalate ion

how does 1,2-diaminoethane, en, form coordinate bonds

each nitrogen atom donates a pair of e- to the central metal ion, forming a coordinate bond

how does ethanedioate form coordinate bonds

each negatively charged oxygen atom donates a pair of electrons to the central metal ion

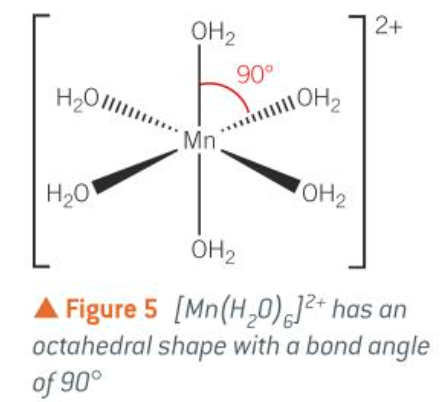

six coordinate complex shape

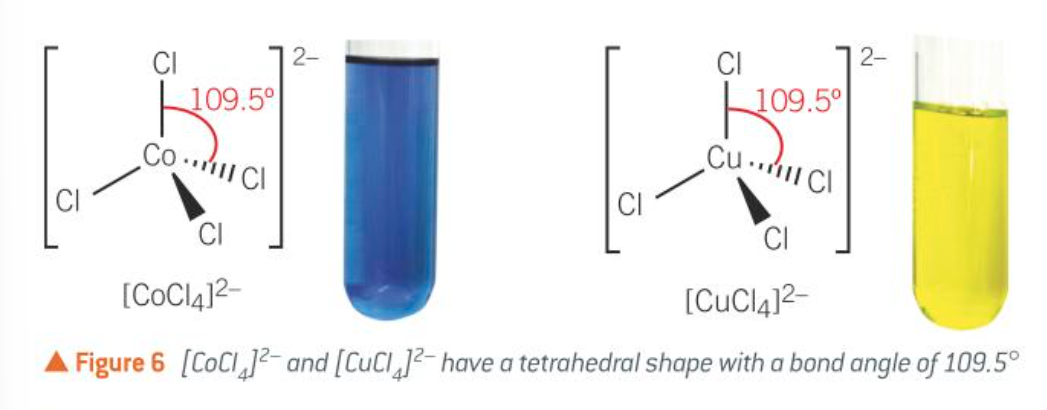

four coordinate complexes: tetrahedral shape

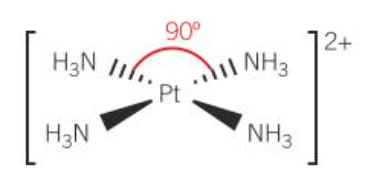

four coordinate complexes: square planar complexes

stereoisomer def

compounds with the same structural formula but with a different arrangement of the atoms in space

optical isomers

stereoisomers that are non-superimposable mirror images of each other

what does the type of stereoisomerism of a complex ion depend on

• the number and type of ligands that are attached to the central metal ion

• the shape of the complex

  • some 4-coordinate and 6-coordinate complex ions containing two different monodentate ligands show cis-trans isomerism

  • some 6-coordinate complex ions containing monodentate and bidentate ligands can show both cis-trans and optical isomerism

cis-trans isomerism in complex ions

• the shape of the complex holds groups in different orientations about the central metal ions

• cis-trans isomerism occurs in some square planar and octahedral complex ions

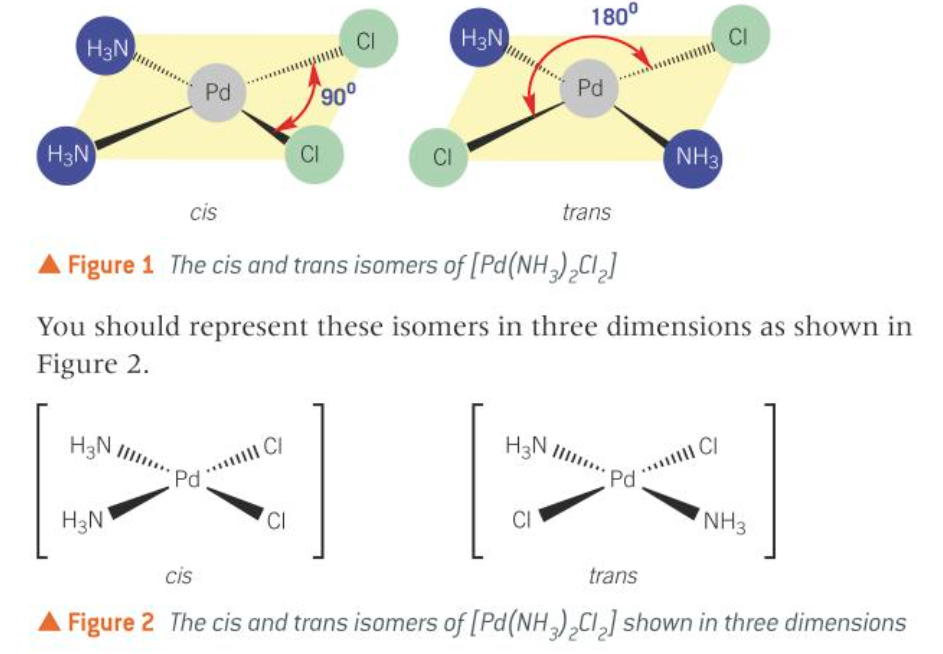

cis-trans isomerism in square planar

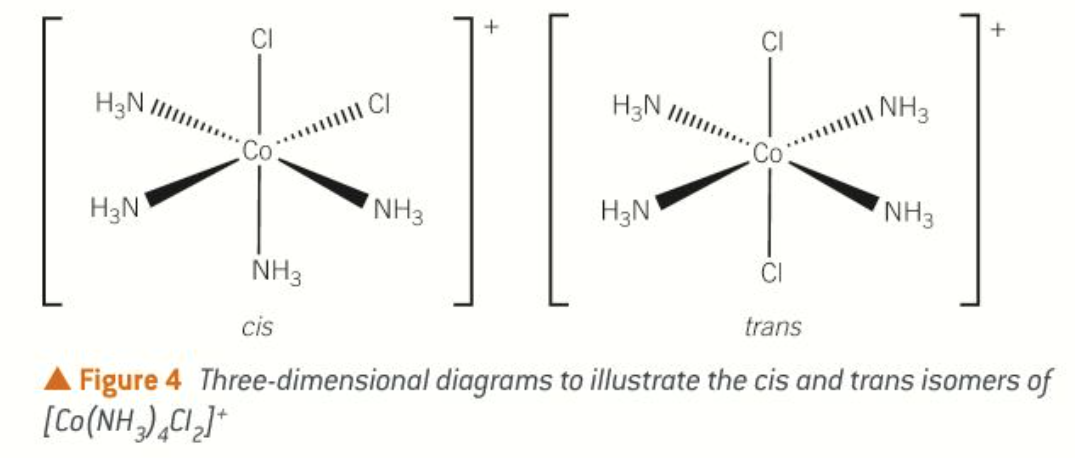

cis-trans isomerism in octahedral complexes with monodentate ligands

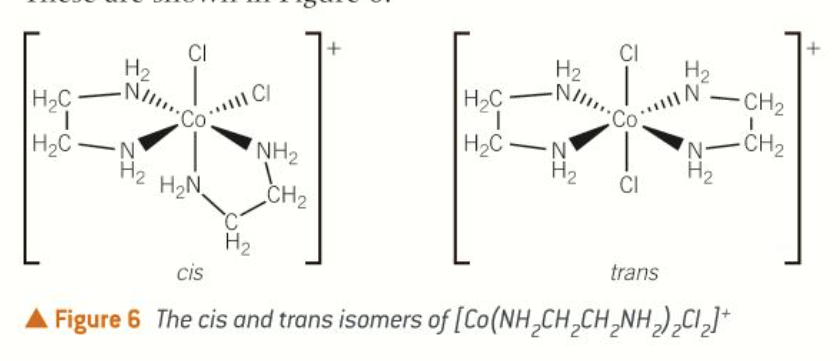

cis-trans isomerism in octahedral complexes with bidentate ligands

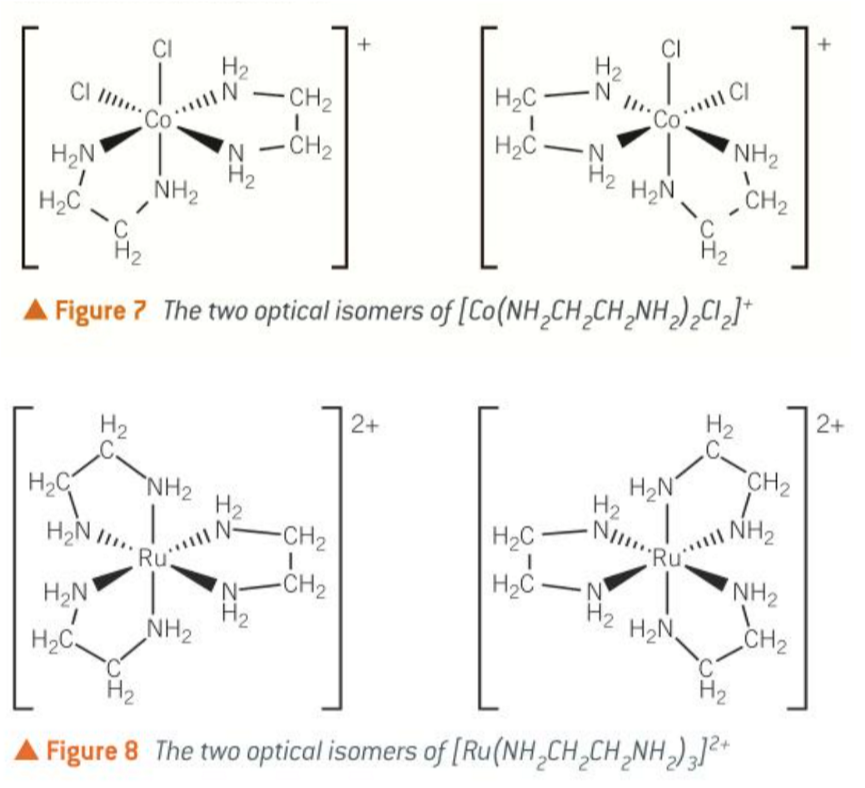

optical isomerism in octahedral complexes

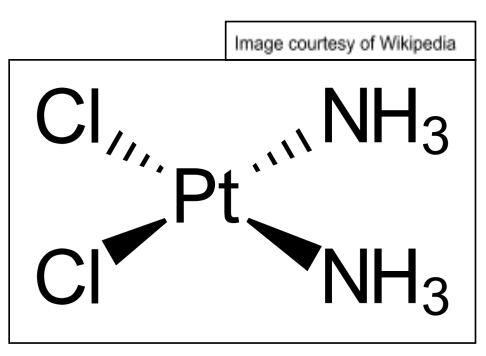

cis-platin

• cisplatin is the cis isomer of a square planar complex of platinum

  • it has both chlorine atoms on the same side

• it’s commonly used as a cancer therapy drug

• drugs like cisplatin target components of cells that are chiral, so only one isomer of the drug will be the correct orientation to ‘fit’ the cells.

• cisplatin can cause serious side effects such as hair loss, meaning it has to be administered in small amounts to try and reduce these effects while still targeting the cancerous cells

ligand substitution

when one ligand in a complex ion is replaced by another ligand

what happens when CuSO4 is dissolved in water

the pale blue complex ion [Cu(H₂O)₆]²⁺ is formed in (aq)

what happens when XS NH3(aq) is added (dropwise) to a solution containing [Cu(H₂O)₆]²⁺

the pale blue solution colour changes to form a dark blue solution

when dropwise:

• a pale blue ppt of Cu(OH)2 forming in the first stage of the rxn

• the Cu(OH)2 ppt dissolving in XS NH3 to form a dark blue solution

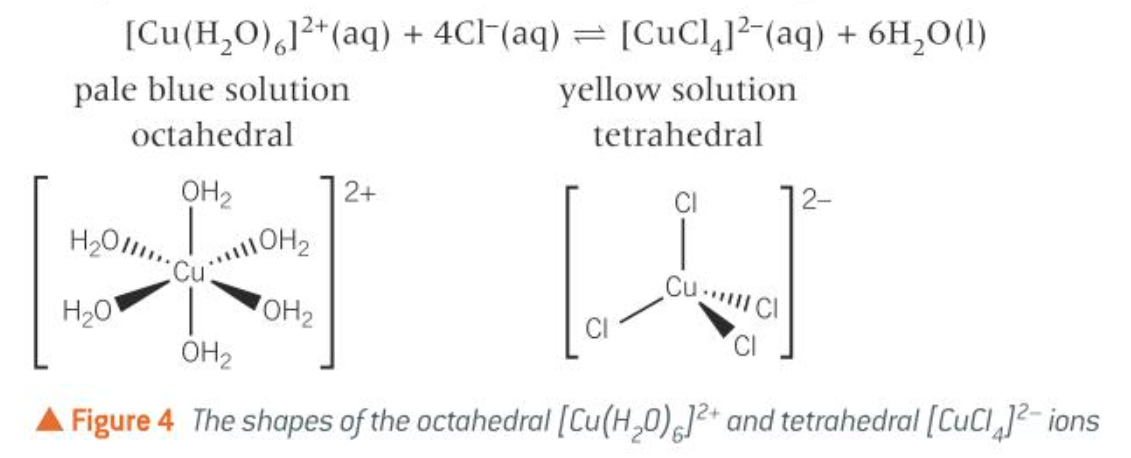

what happens when an XS of conc HCl is added to a solution containing [Cu(H₂O)₆]²⁺

pale blue solution changes to form a yellow solution

• if water is added to the yellow solution, a blue solution will be formed, although more dilute and paler in colour than the original blue solution

• if you take care making observations, you will see an intermediate green solution (the result of the two solutions mixing)

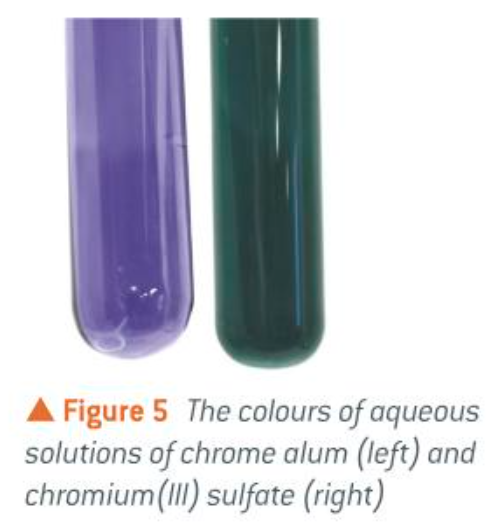

what happens when KCr(SO₄)₂ • 12(H₂O) (aka chrome alum) is dissolved in water

the complex ion [Cr(H₂O)₆]³⁺ (a pale purple solution) is formed

what happens when Cr₂(SO₄)₃ is dissolved in water

• a green solution containing Cr3+ is formed - [Cr(H₂O)₅SO₄)⁺ where one of the H₂O ligands has been replaced by a the SO₄^2-

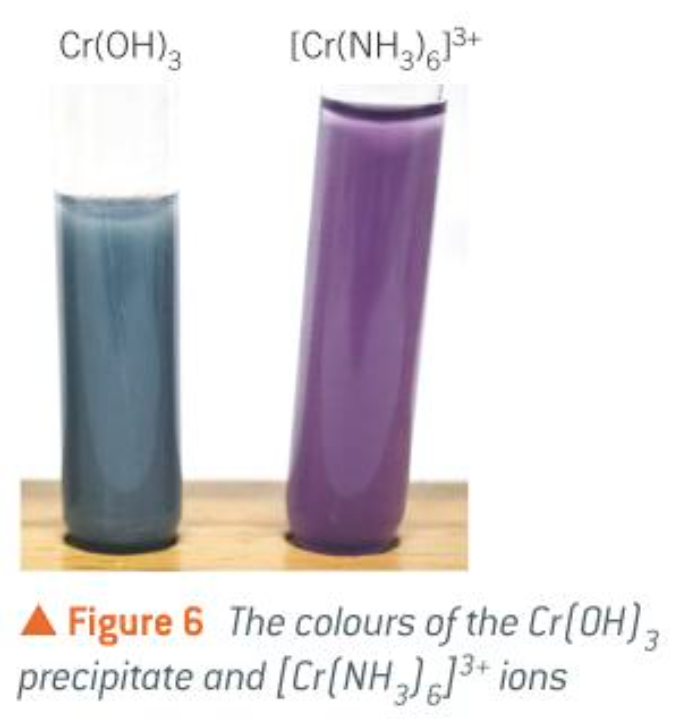

what happens when you add XS NH3(aq) dropwise to [Cr(H₂O)₆]³⁺

1. initially a grey-green ppt of Cr(OH)3 is formed

2. the Cr(OH)3 ppt dissolves in XS NH3 to form the complex ion [Cr(NH₃)₆]³⁺

equation for what happens when you add XS NH3(aq) dropwise to [Cr(H₂O)₆]³⁺

[Cr(H₂O)₆]³⁺(aq) (violet) + 6NH₃(aq) → [Cr(NH₃)₆]³⁺(aq) (purple) + 6H₂O(l)

haemoglobin

• contains four protein chains held together by weak IMF

• each protein has a haem molecule within its structure

• the central metal ion in a haem group is Fe2+ which can bind to oxygen gas O₂

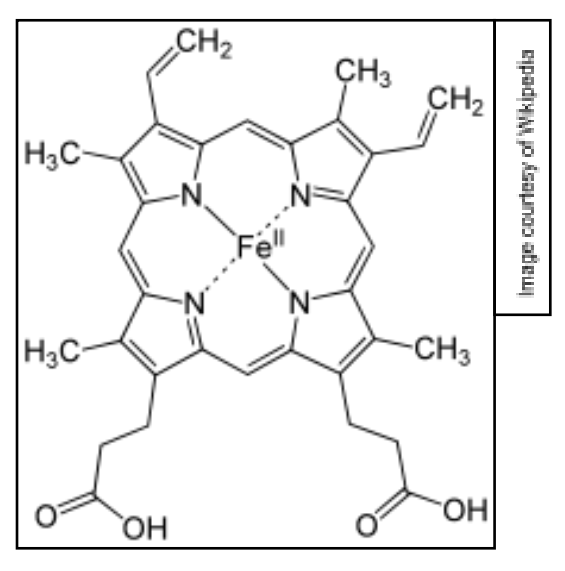

haem

• a component of haemoglobin is another common example involving multidentate ligands

• it consists of a central Fe2+ ion and a tetradentate porphyrin ring

• the central Fe2+ ion can also form coordinate bonds with one or two additional axial ligands

• this gives haemoglobin an overall octahedral structure

• the shape and structure allow it to transport oxygen around the body

a ligand substitution rxn occurs when the oxygen usually bound to haem is replaced with carbon monoxide CO.

the CO binds more strongly than oxygen so can’t be removed. therefore CO is toxic to humans as it prevents oxygen being transported around the body

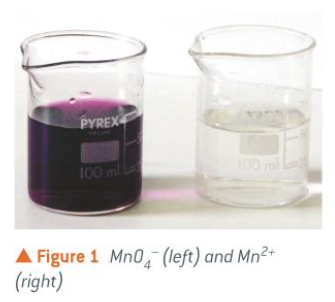

colour of MnO4- and Mn2+

purple to colourless

redox rxn between Fe2+(aq) and MnO4- (manganate VII ions)

• Fe2+ is oxidised to Fe3+

• MnO4- is reduced to Mn2+

• the solution containing MnO4- ions is purple and is decolourised by Fe2+(aq) to form a colourless solution containing Mn2+(aq)

reduction of Fe3+ to Fe2+ by I-(aq)

• orange-brown Fe3+(aq) are reduced to pale green Fe2+(aq)

• but this is obscured by the oxidation of the I- to form I2(aq) which has a brown colour

reactions for the reactions of Cr₂O₇^2- and Cr³⁺ (with and without Zn)

Cr₂O₇^2-_(aq) + 14H⁺_(aq) +3Zn_(s) → 2Cr³⁺_(aq) + 7H2O_(l) + 3Zn²⁺_(aq)

with XS Zn:

Zn_(s) + 2Cr³⁺_(aq) → Zn²⁺_(aq) + 2Cr²⁺_(aq)

equation for oxidation of Cr³⁺ to CrO₄^2-

3H₂O₂ + 2Cr³⁺ + 10OH^- → 2CrO₄^2- + 8H₂O

reduction of Cu2+ to Cu+

when Cu2+(aq) reacts with XS I-(aq), forms a white ppt but I₂ is a brown solution so ppt masked

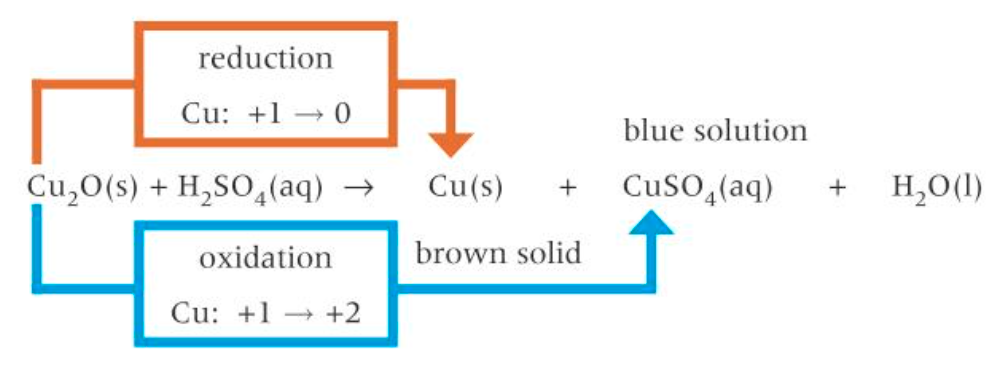

disproportionation of Cu+ ions with hot dilute sulfuric acid

identifying cations

• transition metal ions:

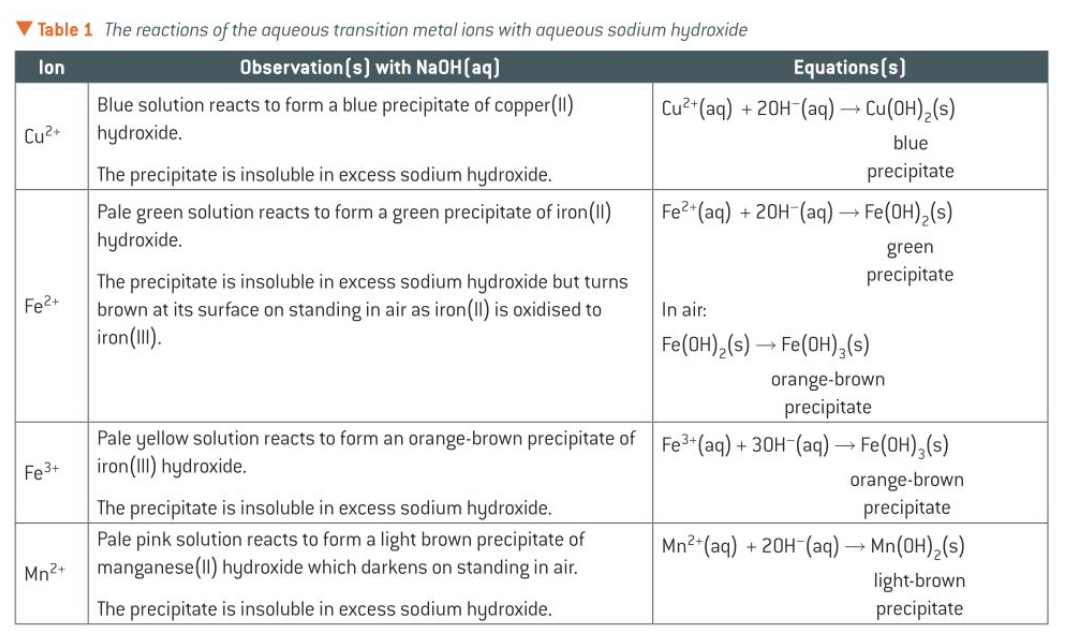

  • NaOH(aq) produces ppts with aqueous TM ions

  • these rxns can be used for identifying TM ions in an unknown solution

  • need to know the observations for these rxns

• NH4+:

  • when heated with OH- ions, NH4+ reacts to produce NH3

  • NH4⁺_(aq) + OH^-_(aq) → NH_3(g) + H₂O_(l)

  • heat gently

  • test w damp red pH indicator paper will turn blue

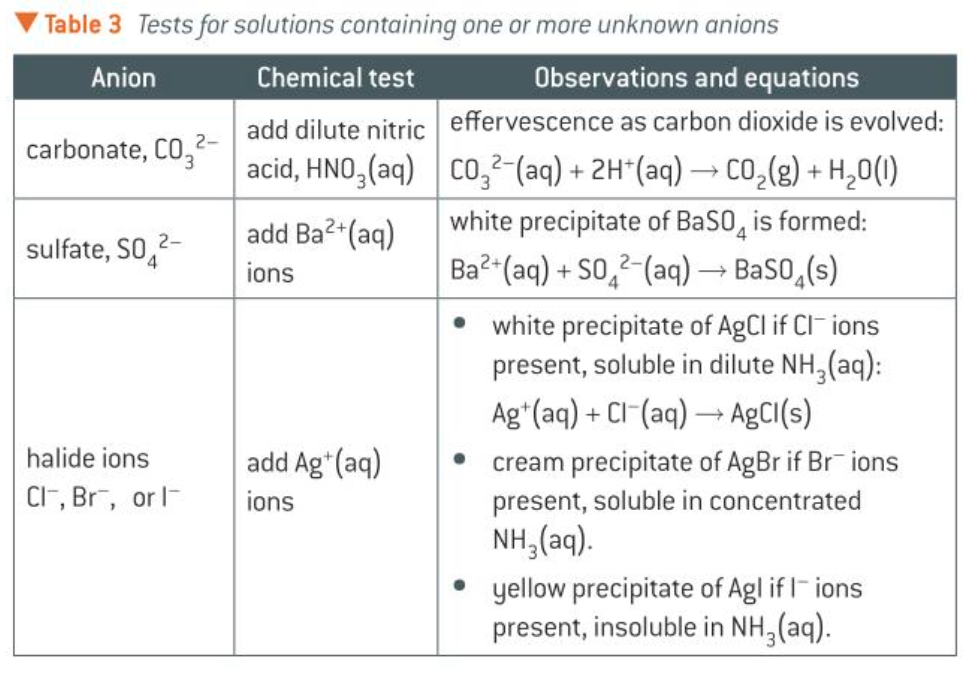

identifying anions
