Week 6: Software Architecture and Architectural Style

What is domain modelling and why is it important?

Domain modelling is the process of visually representing real-world entities, their attributes, and relationships. It helps in understanding and designing the software requirements more clearly by using class diagrams, entity-relationship models, etc.

How to model asynchronous behavior in sequence diagrams?

Use asynchronous messages (open arrowheads) to represent non-blocking calls. For browsing and payment, indicate separate threads or concurrent lifelines to show parallel execution.

How to represent a failure scenario in sequence diagrams?

Add a conditional guard (e.g., [searchFailed]) on a return path. Use alt fragment to depict both success and failure branches in the sequence. X at the lifeline shows object deletion or failure end.

What is software architecture and what are architectural styles?

Software Architecture: The high-level structure of a software system, defining its components and their interactions. Architectural Style: A reusable solution and design pattern for recurring system organization problems (e.g., layered, microservices).

. What’s the difference between architecture and architectural style?

- Architecture = actual system blueprint.

- Style = template or guideline used in designing architectures (e.g., client-server, SOA).

Difference between decomposition and modularity?

- Decomposition: Breaking down a system into smaller parts (e.g., classes, components).

- Modularity: Designing these parts to function independently, promoting maintainability and reusability.

Describe Pipe-and-Filter architecture.

• Concept: Data is passed through sequential filters connected by pipes.

• Pros:
  • Modularity – Filters are independent and easily replaced.
  • Reusability – Same filters can be used across different workflows.
  • Scalability – Filters can be run in parallel on large datasets.

• Cons:
  • Latency – Each stage adds delay to data processing.
  • Error Handling – Debugging across filters is difficult.
  • Bottlenecks – One slow filter affects the whole pipeline.

• Best For: Streaming pipelines, compilers, ETL.

• Focus: Performance, Scalability.

Blackboard

• Concept: A shared central repository (“blackboard”) is updated by independent knowledge sources.

• Pros:
  • Flexibility – Easy to plug in new components.
  • Parallelism – Multiple modules can contribute concurrently.
  • Fault Tolerance – System continues even if some modules fail.

• Cons:
  • Coordination Complexity – Hard to manage module interaction.
  • Unpredictability – Execution depends on data availability.
  • Overhead – Frequent access to shared data can slow performance.

• Best For: AI systems, robotics, decision systems.

• Focus: Fault Tolerance, Flexibility.

🔹 Layered

• Concept: System split into hierarchical layers: Presentation(handles the UI/user interaction → Business( manages the core application logic) → Persistence( manages access to the database) → Database (actual data storage layer)

• Pros:
  • Separation of Concerns – Cleanly divides logic.
  • Maintainability – Layers can be changed independently.
  • Security – Can implement access controls per layer.

• Cons:
  • Performance Cost – Each request passes through many layers.
  • Rigidity – Difficult to bypass layers for optimization.

• Best For: Enterprise systems, OS design.

• Focus: Maintainability, Security.

SOA (Service-Oriented Architecture)

• Concept: Distributed system using services that communicate via standardized protocols (e.g., REST, SOAP).

• Pros:
  • Reusability – Services can be shared across apps.
  • Scalability – Services scale independently.
  • Technology Agnostic – Different services can use different tech.

• Cons:
  • Complexity – Requires orchestration and service discovery.
  • Security – Requires strong inter-service protection.
  • Latency – Network-based communication adds delay.

• Best For: Large distributed systems, legacy modernization.

• Focus: Scalability, Security, Flexibility.

🔹 Microservices

• Concept: Apps broken into independent services, each owning a specific responsibility.

• Pros:
  • Scalability – Services scale based on demand.
  • Faster Development – Small teams own different services.
  • Fault Isolation – Failure in one service doesn’t crash system.

• Cons:
  • DevOps Burden – Deployment and monitoring of many services.
  • Data Consistency – Difficult to maintain across services.

• Best For: High-traffic, cloud-native systems.

• Focus: Performance, Scalability, Fault Tolerance.

🔹 Event-Based

• Concept: Components communicate through publish/subscribe async events.

• Pros:
  • Loose Coupling – Services don't call each other directly.
  • Real-Time – Fast, responsive systems.
  • Scalability – Event queues allow high throughput.

• Cons:
  • Debugging – Hard to trace event flow.
  • Out-of-Order Events – Requires handling and retry logic.
  • Infrastructure Needs – Needs brokers like Kafka or RabbitMQ.

• Best For: Real-time analytics, IoT, notifications.

• Focus: Scalability, Performance, Flexibility.

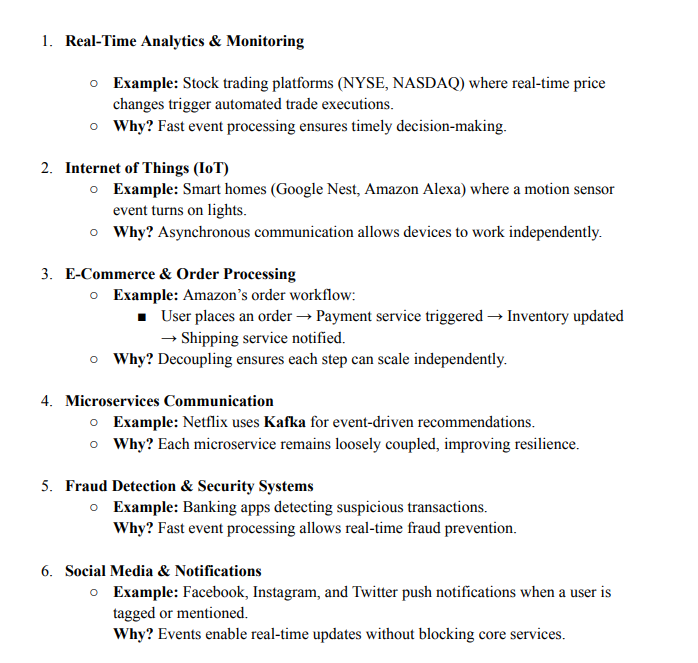

Best Use Cases for Event-Based Architecture

Choosing the Right Architecture for Trade-offs

Choosing the Right Architecture Based on Real-World Needs

Which architecture is best for simple data processing?

Pipe-and-Filter.

Which architecture suits AI and knowledge-based systems?

Blackboard.

What style is ideal for enterprise apps?

Layered or SOA.

What’s best for scalable, resilient systems?

Microservices.

How do Event-Based Architecture and Microservices work together, and why is this combination effective?

• How to Combine:
  Microservices are designed as small, independently deployable units. Instead of making direct API calls, they use event-based communication by publishing and subscribing to messages—resulting in a highly decoupled system.

• Steps to Implement:

  • Use an event broker (e.g., Kafka, RabbitMQ) to handle message delivery.

  • Each microservice subscribes to specific events and reacts accordingly.

  • Services publish events like "Order Created" or "Payment Processed" that trigger actions in other services.

• Example:

  • An Order Service publishes an "Order Placed" event.

  • Inventory Service listens and updates stock.

  • Shipping Service listens and begins shipment prep.

• Why It’s Effective:

  • ✅ Scalability: Services can be scaled independently.

  • ✅ Resilience: A failure in one service doesn't affect others.

  • ✅ Flexibility: New services can join by simply subscribing to existing events.

How does combining Event-Based Architecture with SOA improve system design?

• How to Combine:
  SOA normally uses synchronous communication (e.g., REST, SOAP). By integrating event-driven mechanisms, services publish or listen to events, reducing tight coupling.

• Steps to Implement:

  • Services still use standard protocols (SOAP/REST).

  • Instead of making direct service calls, they publish events (e.g., "User Registered").

  • Other services listen for and respond to these events.

• Example:

  • Customer Service publishes "New Customer Registered".

  • Marketing Service listens and sends a welcome email.

• Why It’s Effective:

  • ✅ Flexibility: New services can be added by subscribing to events.

  • ✅ Performance: Reduces latency by avoiding blocking service calls.

How does Event-Based Architecture enhance a Layered Architecture system?

• How to Combine:
  Instead of tightly synchronized interactions between layers (e.g., UI → Logic → DB), layers send and respond to events asynchronously.

• Steps to Implement:

  • Each layer emits or subscribes to events for processing.

  • E.g., Presentation → Business Logic → Data Layer via event triggers.

• Example:

  • UI sends "Deposit Made" event.

  • Logic Layer processes and validates.

  • Data Layer asynchronously updates DB.

• Why It’s Effective:

  • ✅ Loose Coupling: Layers operate independently.

  • ✅ Scalability: Layers can scale based on event load.

What’s the advantage of implementing Microservices with a Layered Architecture?

• How to Combine:
  Each microservice internally follows a layered structure (Presentation → Business Logic → Data Access), rather than using one global monolith.

• Steps to Implement:

  • Split business functions into separate microservices.

  • Each has its own layered internal design.

• Example:

  • User Service with Presentation, Logic, and DB layers.

  • Payment Service with its own set of internal layers.

• Why It’s Effective:

  • ✅ Decoupling: Services evolve independently.

  • ✅ Maintainability: Each can be updated or scaled without affecting others.

How does combining Microservices with SOA improve software architecture?

• How to Combine:
  SOA is typically monolithic and service-based. Microservices split those services into smaller, independently deployable units.

• Steps to Implement:

  • Break SOA services (e.g., HR, Payments) into microservices.

  • Use REST APIs or service buses for communication.

• Example:

  • ERP System: HR, Finance, Supply Chain split into separate microservices.

• Why It’s Effective:

  • ✅ Flexibility: Smaller parts evolve independently.

  • ✅ Speed: Faster deployment and iteration of each function.

What happens when you combine Event-Based Architecture, Microservices, and SOA?

• How to Combine:
  Microservices provide independent modules. SOA orchestrates high-level workflows. Event-based messaging binds them together asynchronously.

• Steps to Implement:

  • Microservices publish and consume events (e.g., "Order Placed").

  • SOA layer coordinates the flow using event-based triggers.

• Example:

  • Order Service publishes event.

  • Inventory Service updates stock.

  • Payment Service processes the payment, all via events.

• Why It’s Effective:

  • ✅ Scalability: Each service scales on its own.

  • ✅ Performance: Async handling improves responsiveness.

  • ✅ Resilience: Failures don’t cascade across the system.

Why combine architectural styles in system design?

Combining styles provides scalability, flexibility, and maintainability by leveraging the strengths of each pattern:

• Event-Driven + Microservices → Best for scalability and fault tolerance

• Event-Driven + SOA → Enables loose coupling and enterprise flexibility

• Microservices + SOA → Combines modular development with enterprise-wide communication

• Microservices + Layered → Offers clear structure with scalable, independent services

How does Amazon combine hybrid architectures in its e-commerce platform?

Architectures: Microservices + Event-Driven + SOA

• Microservices: Break down into services (auth, order, inventory)

• Event-Driven: Publishes events like "Order Placed" to trigger other services

• SOA: Legacy systems (e.g., catalog, payments) use REST/SOAP

Benefits:
✅ Flexibility, ✅ Real-time responsiveness, ✅ Smooth legacy integration

How is hybrid architecture applied in online banking systems like Wells Fargo?

A:

Architectures: Microservices + SOA + Layered

• Microservices: Used in new features like mobile apps

• SOA: Powers core banking (balances, transfers)

• Layered: Backend uses separate presentation, logic, and data layers

Benefits:
✅ High modularity, ✅ Strong compliance, ✅ Clean maintainability

What hybrid architecture powers Netflix’s content delivery?

Architectures: Microservices + Event-Driven + SOA

• Microservices: Handle auth, recs, billing

• Event-Driven: Events like "Watch History Updated" trigger recommendations

• SOA: Backend systems (e.g., profiles, billing) use SOA for reliability

Benefits:
✅ Real-time personalization, ✅ Performance, ✅ System resilience

How are hybrid architectures used in EHR (Electronic Health Records)?

Architectures: SOA + Event-Driven + Layered

• SOA: Manages stable services (patient records, billing)

• Event-Driven: Triggers alerts (e.g., "New Test Result")

• Layered: Internally structured into UI, logic, and data layers

Benefits:
✅ Real-time updates, ✅ Loose coupling, ✅ Scalable health systems

How does Facebook use hybrid architecture to scale social media features?

Architectures: Microservices + Event-Driven + Layered

• Microservices: For feed, auth, ads, messaging

• Event-Driven: Triggers like "New Post" update feeds

• Layered: Backend separates logic from presentation and storage

Benefits:
✅ Feature independence, ✅ Real-time communication, ✅ Strong maintainability

How do platforms like Walmart or eBay apply hybrid architectures?

Architectures: SOA + Microservices + Event-Driven

• SOA: For reliable core services (inventory, orders, payments)

• Microservices: Handle search, promotions, recommendations

• Event-Driven: "Item Purchased" or "Stock Updated" triggers downstream services

Benefits:
✅ Scalability, ✅ Fast innovation, ✅ Real-time inventory and status updates

What are the main benefits of hybrid architectural styles?

• 🔁 Scalability: Microservices + Event-Driven

• 🔀 Flexibility: SOA + Microservices

• 🔧 Maintainability: Layered + Modular components

• ⚡ Real-Time Processing: Event-Driven async updates

• 🛠 Best for complex, large-scale systems that mix modern and legacy tech
