6 Terms

1
New cards

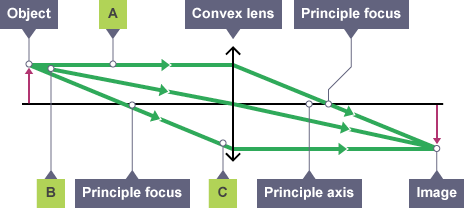

convex ray diagram

the middle ray won`t refract as it goes through axis

<p>the middle ray won`t refract as it goes through axis </p>
2
New cards

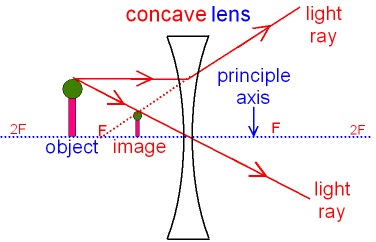

concave lens ray diagram

knowt flashcard image
3
New cards

in a concave lens

the image will always be virtual diminished upright and on same side of lens

4
New cards

in a convex lens between 1f and 2f the image will be

real inverted magnified beyond 2f on other side of lens

5
New cards

in a convex lens at 2f the image will be

real inverted same size at 2f on other side of lens

6
New cards

in a convex lens nearer than f makes a image

virtual upright magnified on same side of lens
