15 Terms

1

New cards

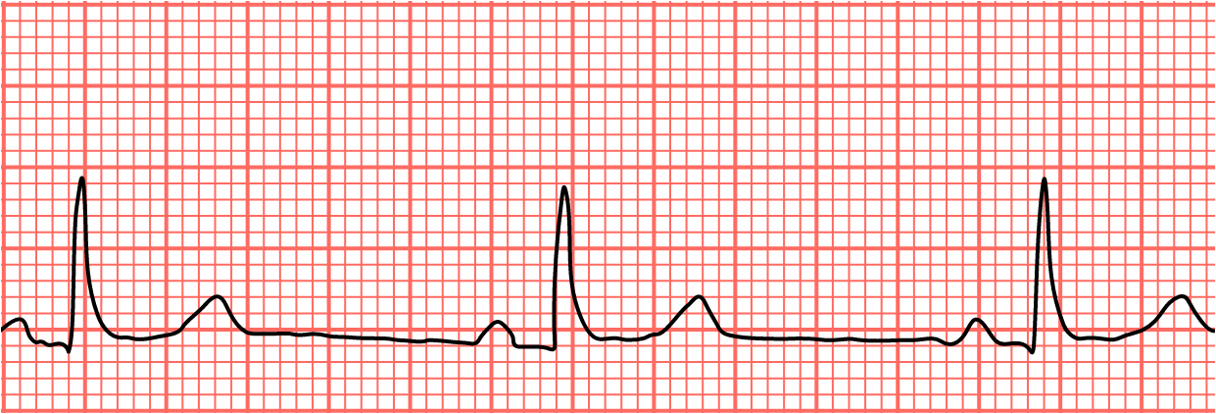

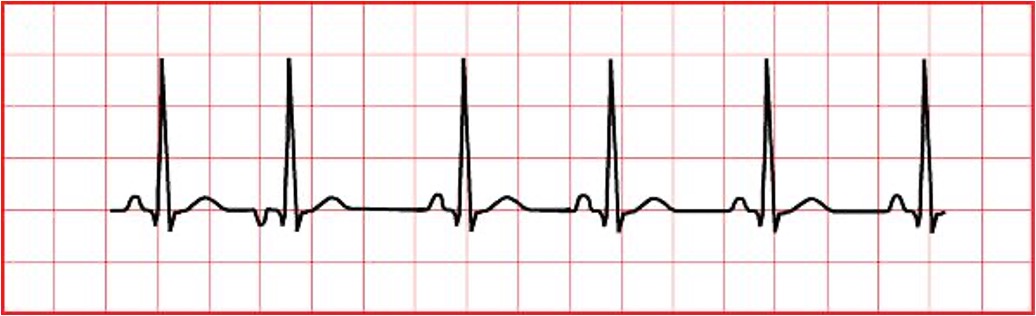

Sinus Arrhythmia

HR:60-100 bpm

P-wave:1 per QRS complex

Regularity: irregular

PR Interval:Normal

QRS Duration: Normal

<p>HR:60-100 bpm</p><p>P-wave:1 per QRS complex</p><p>Regularity: irregular</p><p>PR Interval:Normal</p><p>QRS Duration: Normal</p><p></p>

2

New cards

Sinus Tachycardia

HR:>100 bpm

P-wave:1 per QRS complex

Regularity:regular

PR Interval:Normal

QRS Duration:Normal

<p>HR:>100 bpm</p><p>P-wave:1 per QRS complex</p><p>Regularity:regular</p><p>PR Interval:Normal</p><p>QRS Duration:Normal</p><p></p>

3

New cards

SA Nodal RE-Entrant Tacycardia

HR:>100 bpm

P-wave:1 per QRS complex

Regularity: Regular

PR Interval: Normal

QRS Duration: Normal

<p>HR:>100 bpm</p><p>P-wave:1 per QRS complex</p><p>Regularity: Regular</p><p>PR Interval: Normal</p><p>QRS Duration: Normal</p><p></p>

4

New cards

Sinus Bradycardia

HR:<60 bpm

P-wave:1 per QRS complex

Regularity:regular

PR Interval:Normal

QRS Duration: Normal

<p>HR:<60 bpm</p><p>P-wave:1 per QRS complex</p><p>Regularity:regular</p><p>PR Interval:Normal</p><p>QRS Duration: Normal</p><p></p>

5

New cards

Sinus Pause

HR: 60-100 bpm

P-wave:absent/ but appears after pause

Regularity:irregualr

PR Interval:Normal

QRS Duration:Normal

<p>HR: 60-100 bpm</p><p>P-wave:absent/ but appears after pause</p><p>Regularity:irregualr</p><p>PR Interval:Normal</p><p>QRS Duration:Normal</p><p></p>

6

New cards

Premature Atrial Complex

HR:60-100 bpm

P-wave: Premaure

Regularity: Irregular

PR Interval:Normal

QRS Duration: Normal

<p>HR:60-100 bpm</p><p>P-wave: Premaure</p><p>Regularity: Irregular</p><p>PR Interval:Normal</p><p>QRS Duration: Normal</p><p></p>

7

New cards

Junctional Premature Complex

HR:60-100 bpm

P-wave: absent

Regularity:Irregular

PR Interval:absent

QRS Duration: Normal

<p>HR:60-100 bpm</p><p>P-wave: absent</p><p>Regularity:Irregular</p><p>PR Interval:absent</p><p>QRS Duration: Normal</p><p></p>

8

New cards

Ectopic Atrial Tachycardia

HR:150-250 bpm

P-wave:abnormal

Regularity:regular

PR Interval:Normal

QRS Duration: Normal

9

New cards

AV Nodal Re-Entrant Tachycardia

HR:150-250 bpm

P-wave: absent

Regularity:Regular

PR Interval: shorten

QRS Duration: Normal

<p>HR:150-250 bpm</p><p>P-wave: absent</p><p>Regularity:Regular</p><p>PR Interval: shorten</p><p>QRS Duration: Normal</p><p></p>

10

New cards

Junctional Escape

HR: 40-60 bpm

P-wave: absent

Regularity: Regular

PR Interval: Absent

QRS Duration: Normal

<p>HR: 40-60 bpm</p><p>P-wave: absent</p><p>Regularity: Regular</p><p>PR Interval: Absent</p><p>QRS Duration: Normal</p><p></p>

11

New cards

Accelerated Junctional Rhythm

HR: 60-100 bpm

P-wave: absent

Regularity: Regular

PR Interval: Absent

QRS Duration: Normal

<p>HR: 60-100 bpm</p><p>P-wave: absent</p><p>Regularity: Regular</p><p>PR Interval: Absent</p><p>QRS Duration: Normal</p><p></p>

12

New cards

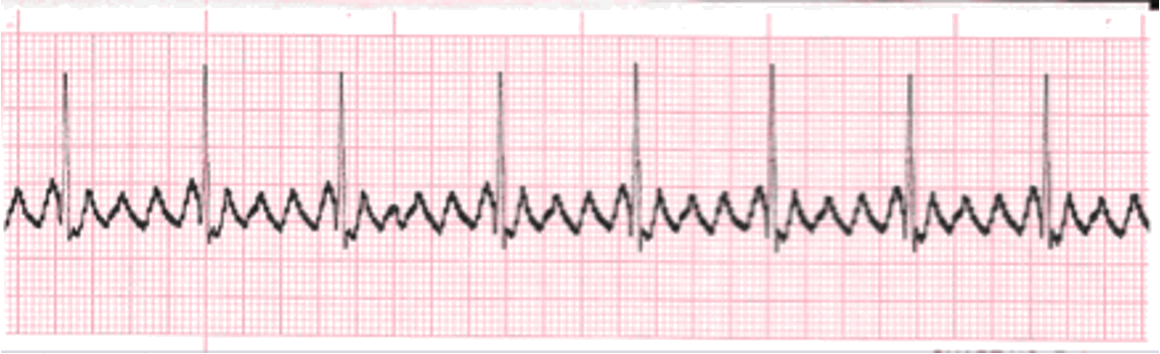

Atrial flutter

HR: 240-400 bpm

P-wave:Sawtooth

Regularity: Regular

PR Interval: None

QRS Duration: Normal

<p>HR: 240-400 bpm</p><p>P-wave:Sawtooth</p><p>Regularity: Regular</p><p>PR Interval: None</p><p>QRS Duration: Normal</p><p></p>

13

New cards

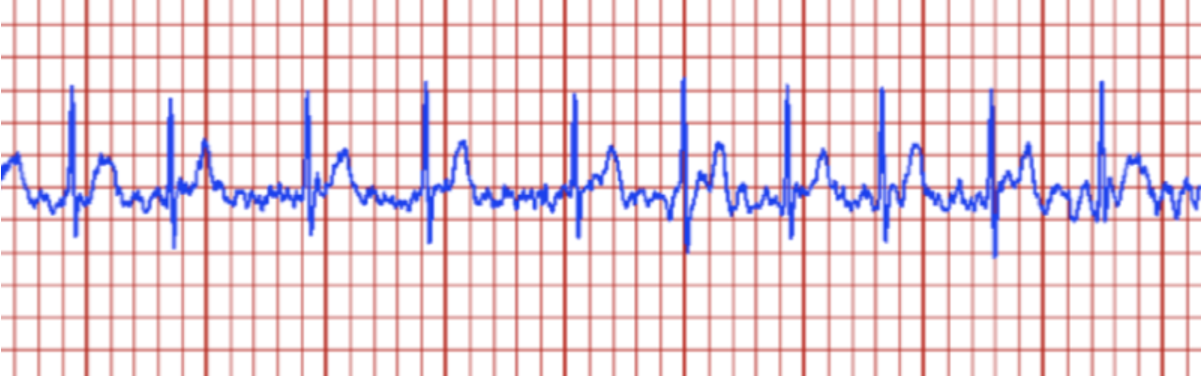

Atrial Fib

HR:100-175 bpm

P-wave:absent

Regularity: Irregular

PR Interval: None

QRS Duration: Normal

<p>HR:100-175 bpm</p><p>P-wave:absent</p><p>Regularity: Irregular</p><p>PR Interval: None</p><p>QRS Duration: Normal</p><p></p>

14

New cards

Wandering Atrial Pacemaker

HR:60-100 bpm

P-wave: morphology

Regularity: Irregular

PR Interval: Normal

QRS Duration: Normal

<p>HR:60-100 bpm</p><p>P-wave: morphology</p><p>Regularity: Irregular</p><p>PR Interval: Normal</p><p>QRS Duration: Normal</p><p></p>

15

New cards

Multifocal Atrial Tachycardia

HR: >100 bpm

P-wave:multiple morphologies

Regularity: irregular

PR Interval: Normal

QRS Duration: Normal
