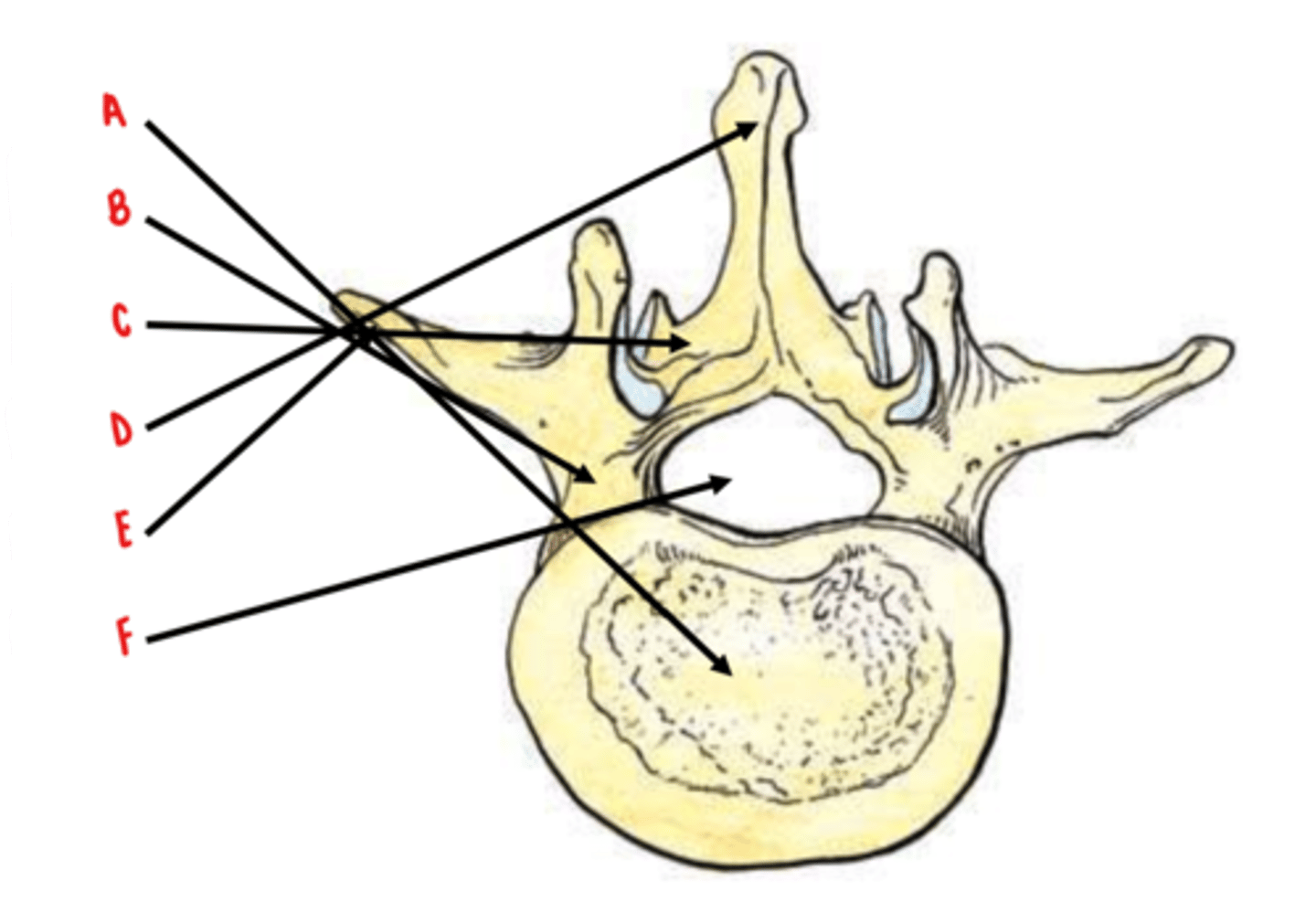

body
Identify A
pedicles
Identify B
laminae
Identify C
spinous process
Identify D
transverse process
Identify E
vertebral foramen
Identify F
Atlas (C1)
What vertebrae is this?

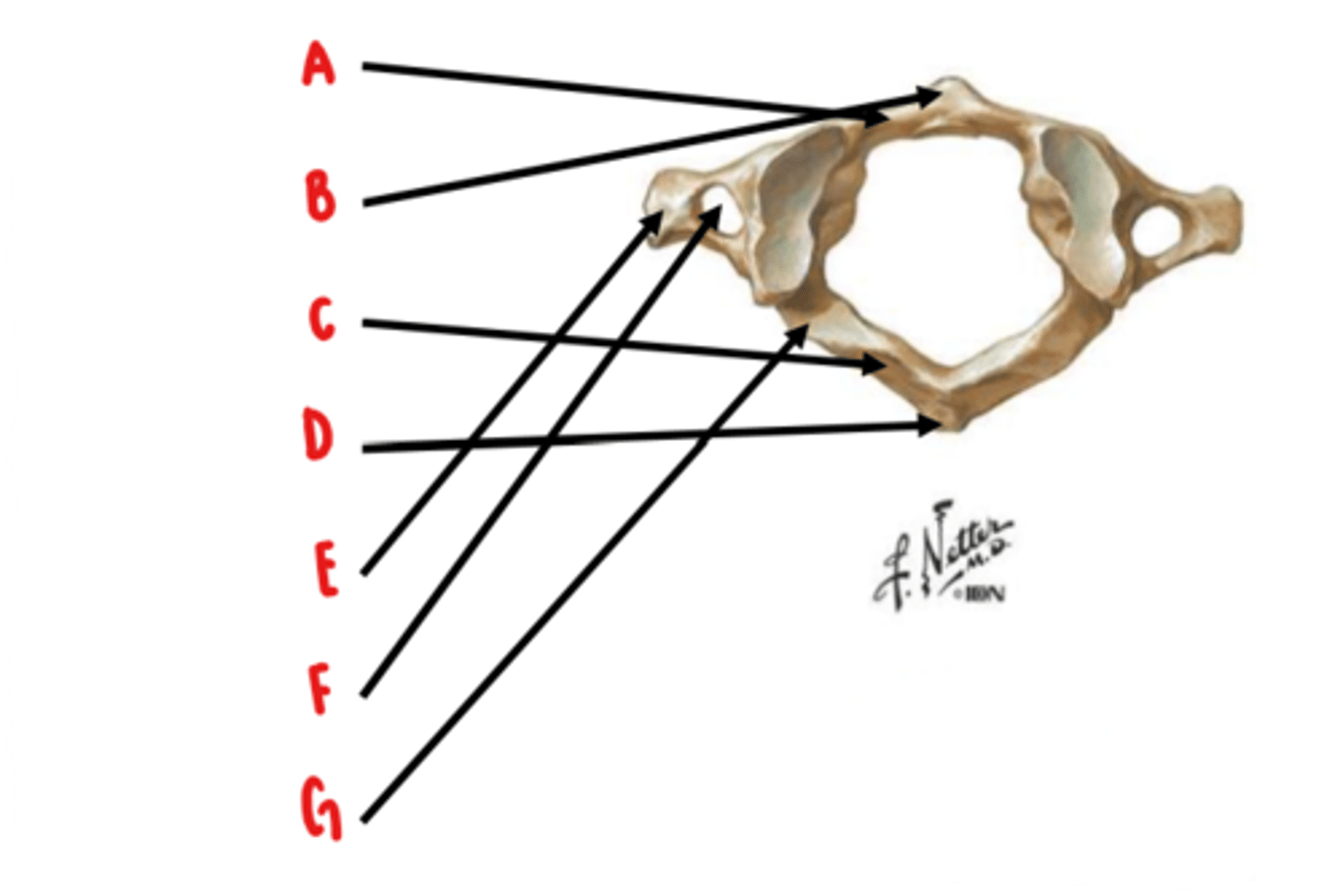

anterior arch
Identify A
anterior tubercle
Identify B
posterior arch
Identify C
posterior tubercle
Identify D
transverse process
Identify E
transverse foramen
Identify F
groove for vertebral artery
Identify G
groove for vertebral artery in posterior arch
What is the easiest way to distinguish the superior surface of the atlas?
Axis (C2)
What vertebrae is this?

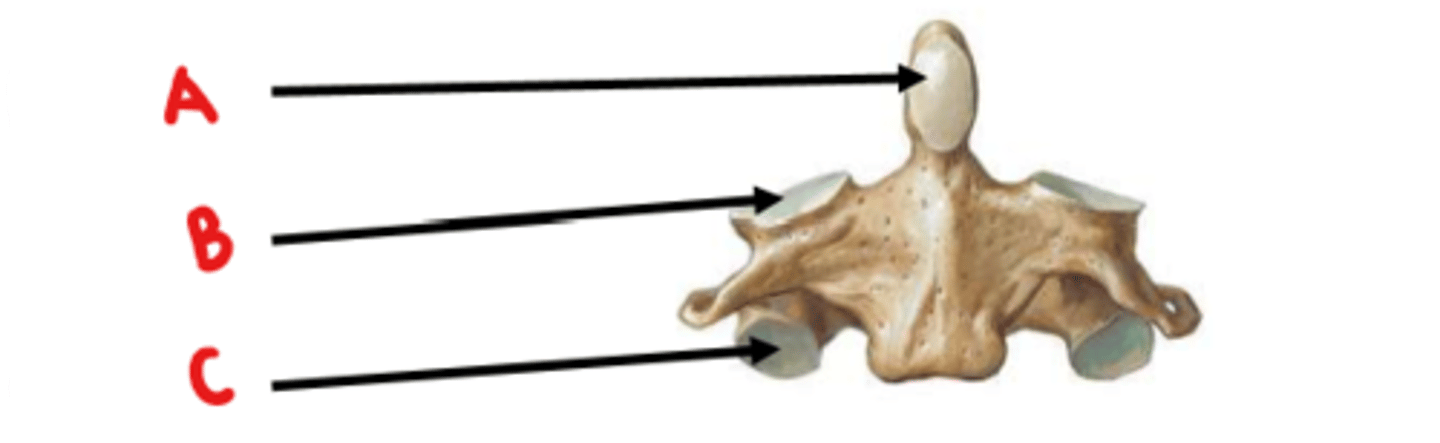

odontoid process (dens)
Identify A
superior articulating facet
Identify B
inferior articulating facet
Identify C

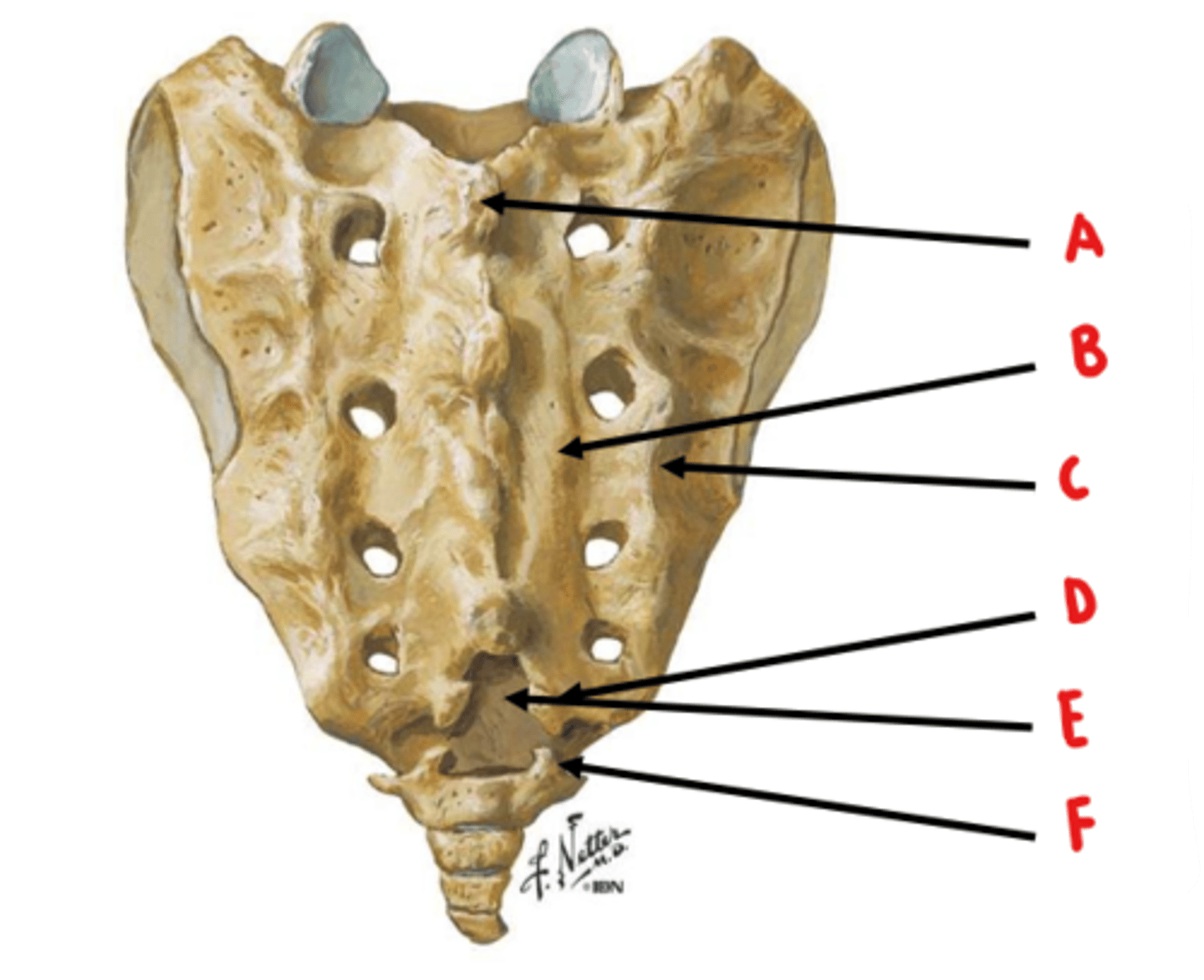

median sacral crest
Identify A
medial sacral crest
Identify B
lateral sacral crest
Identify C
sacral cornua
Identify D
sacral hiatus
Identify E
coccygeal cornua
Identify F
anterior sacral foramen = ventral rami
posterior sacral foramen = dorsal rami
ventral rami are larger because they innervate a larger area of tissue
What structures exit through the anterior and posterior sacral foramen? Which is larger and why?
uncinate process
Identify the blue structure
transverse process
Identify the purple structure
pedicles
Identify the green structure
spinous process
Identify the yellow structure
C1 and C2
What vertebrae is being examined?
Odontoid process (dens)
Identify the purple structure
anterior arch/tubercle
Identify the red structure
posterior arch/tubercle
Identify the green structure
lateral masses
Identify the blue structure
thoracic
What vertebrae is being examined?
thoracic vertebral body
Identify the blue structure
spinous process
Identify the yellow structure
pedicles
Identify the green structure
transverse processes
Identify the purple structure
rib
Identify the pink structure
lumbar
What vertebrae is being examined?
lumbar vertebral body
Identify the blue structure
pedicles
Identify the green structure
transverse processes
Identify the purple structure
spinous processes
Identify the yellow structure
joint space between superior and inferior articulating facets
Identify the red line
intervertebral foramen
Identify the orange structure
pedicles
Identify the green structure
spondylolysis
pars interarticularis
oblique view
What condition is being examined for in this radiograph?
What structure is it looking for?
What view is this radiograph in?
