Ch 12 Lymph Nodes Sonography

What are lymph nodes?

-visualized on either side of the aorta

-linear structures

What can lymph nodes be mistaken for?

adrenal glands so know the location

What are lymph nodes?

-visualized on either side of the aorta

-linear structures

What can lymph nodes be mistaken for?

adrenal glands so know the location

Para Aortic Lymph Nodes has………

2 major retroperitoneal areas

Para Aortic Lymph Nodes:

-iliac and hypogastric groups in the pelvis

-paraaortic group in upper retroperitoneum

-follow the course of great vessels

-pancreatic area

-renal hilar area

-mesenteric region

What is the normal nodes measurement?

<1 cm

What is the normal cortex measurement?

<3mm

Are normal abdominal nodes usually visualized by US?

no they are not

Where are lymph nodes usually located?

along vessels like the aorta

What is the sonographic appearance of the para-aortic lymph nodes?

-hypoechoic

-homogenous

-possible enhancement

-rounded focal

When you scan the para aortic lymph nodes what should you look for?

if they are reproducible and to look for the hilum

What is the measurements of the para-aortic lymph nodes

1-3 cm

cortex <3mm is normal

Para Aortic lymph nodes displace what organs?

-kidneys

-IVC
-aorta

-SMA

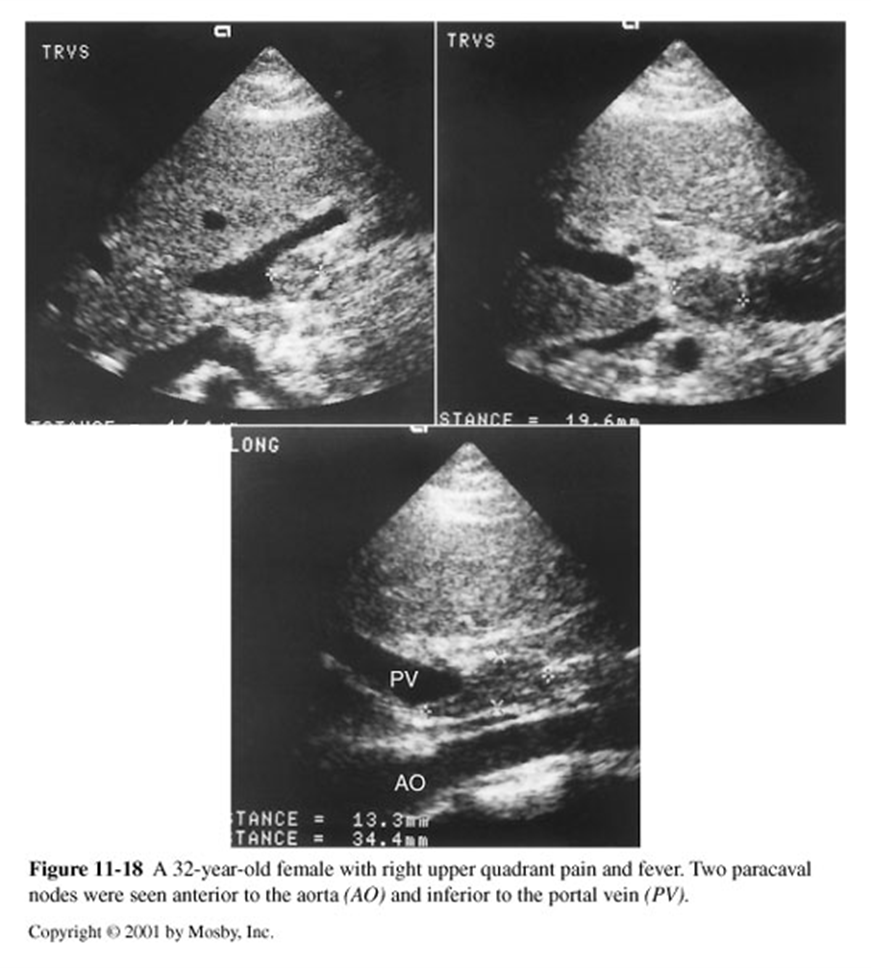

What are the pictures showing?

lymph nodes

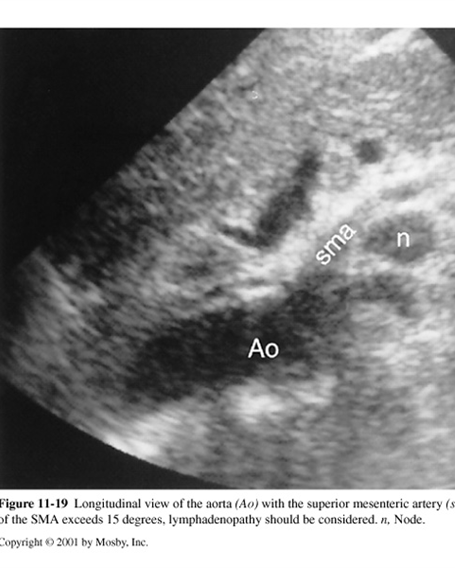

What is this image showing

The sandwich sign

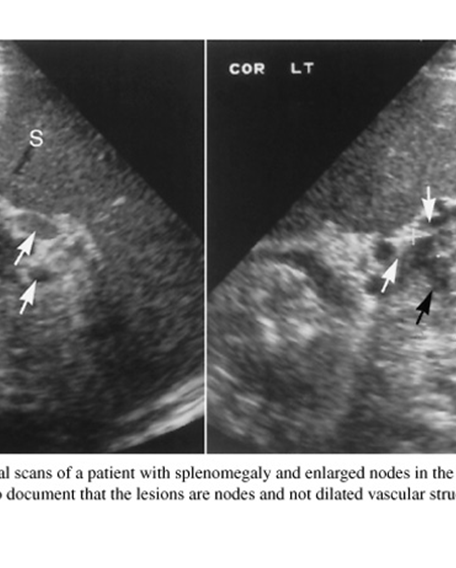

What are these images showing?

lymph nodes

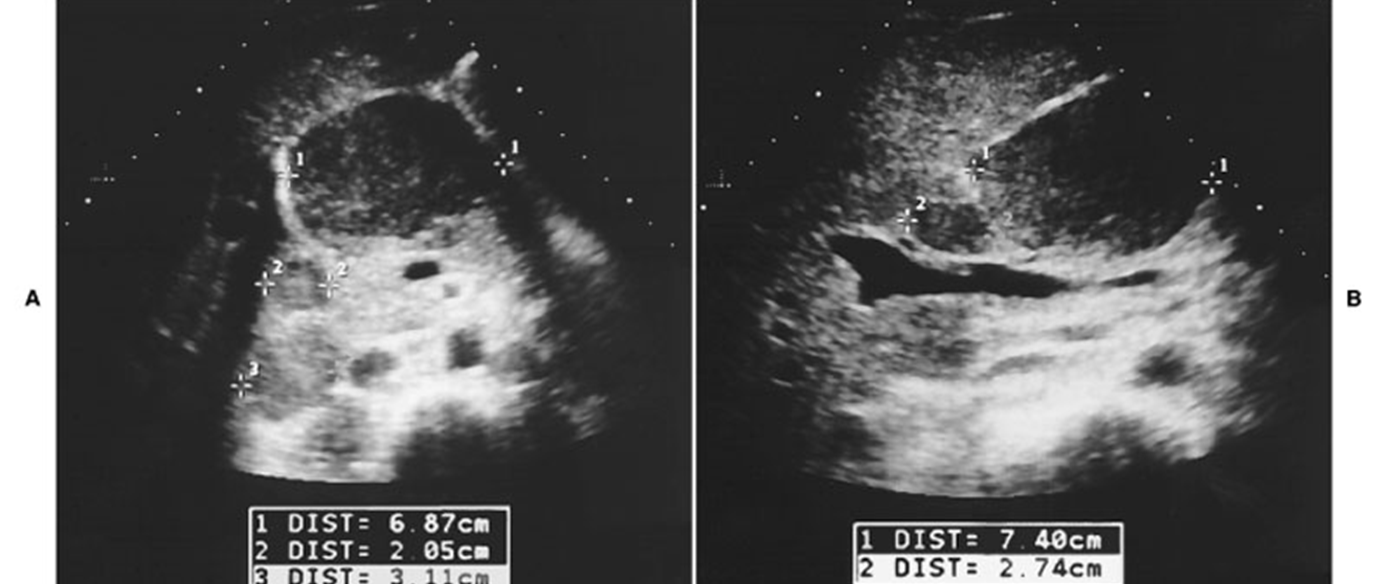

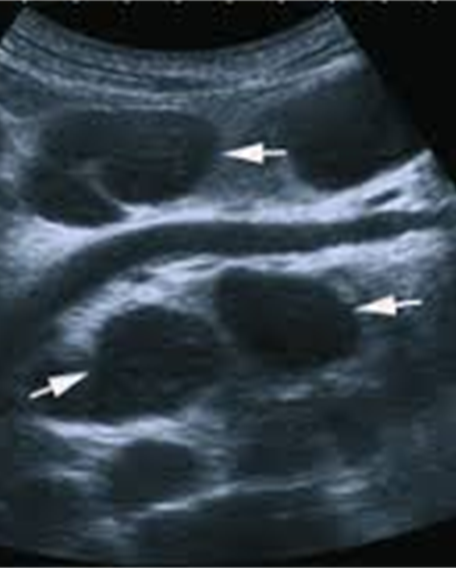

What are the images showing?

lymphadenopathy

What are the lymph nodes mistaken for?

-muscle

-bowel

-vessel

How can lymph nodes be differentiated from these things?

use color doppler to show the hilum and to prove it’s not a vessel

-measure in all three planes

-lymph nodes will not compress

-mice borders on a lymph node
