Anatomy lab exam drawing diagrams

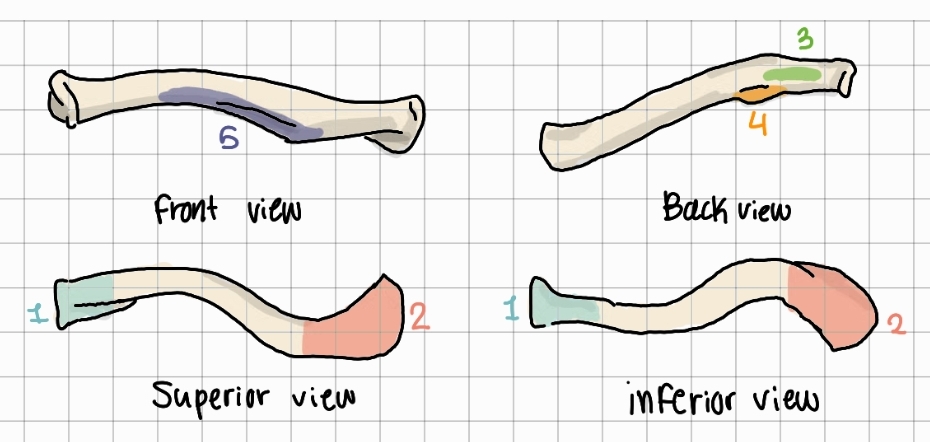

1

sternal/medial end of the clavicle

2

acromial/lateral end of the clavicle

3

deltoid tubercle of the clavicle

4

conoid tubercle of the clavicle

5

subclavian groove of the clavicle

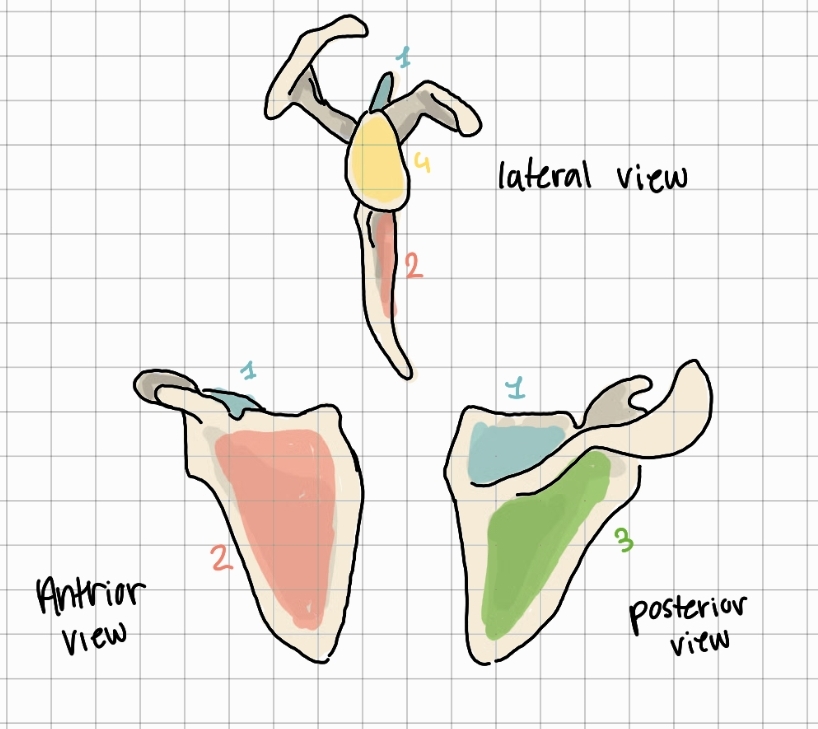

1

supraspinous fossa

2

subscapular fossa

3

infraspinous fossa

4

glenoid fossa

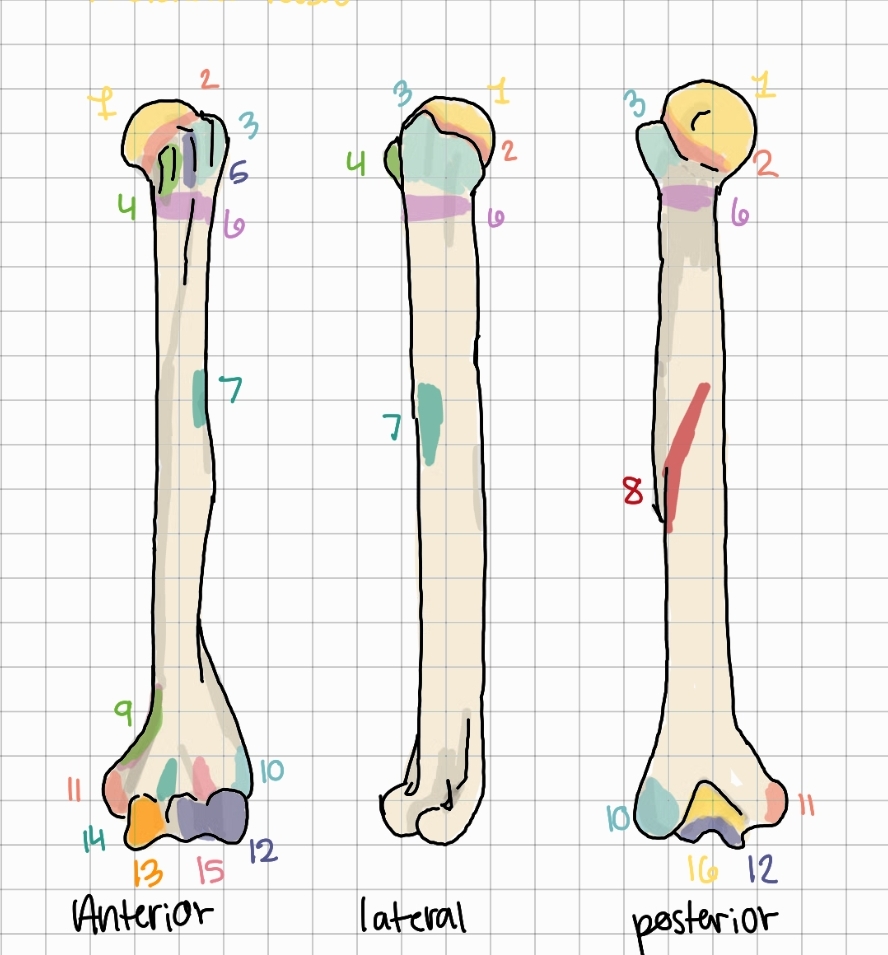

1

head of the humerus

2

anatomical neck of the humerus

3

greater tubercle of the humerus

4

lesser tubercle of the humerus

5

intertubercular ridge of the humerus

6

surgical neck of the humerus

7

deltoid tuberosity of the humerus

8

Radial groove of the humerus

9

supracondylar ridge of the humerus

10

medial epicondyle

11

lateral epicondyle

12

trochlea

13

capitulum

14

Radial fossa

15

corocoid fossa

16

olecranon fossa

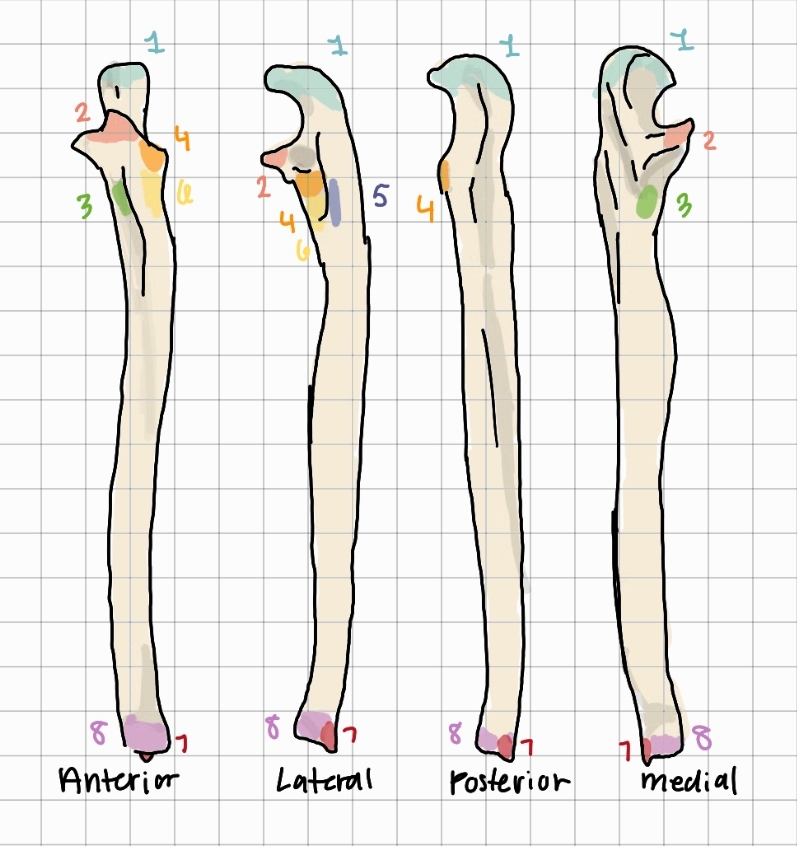

1

Olecronon process of ulna

2

Corocoid process of ulna

3

tuberosity of the ulna

4

radial notch of the ulna

5

supinator crest

6

supinator fossa

7

styloid process of the ulna

8

head of ulna

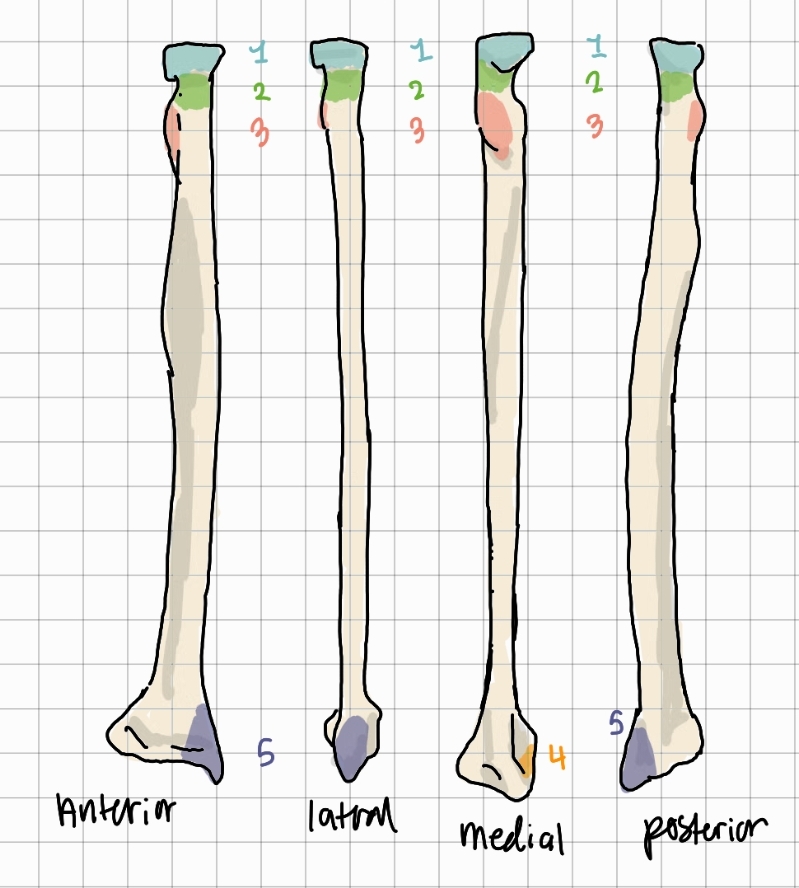

1

head of radius

2

neck of radius

3

radial tuberosity

4

ulnar notch

5

styloid process of radius

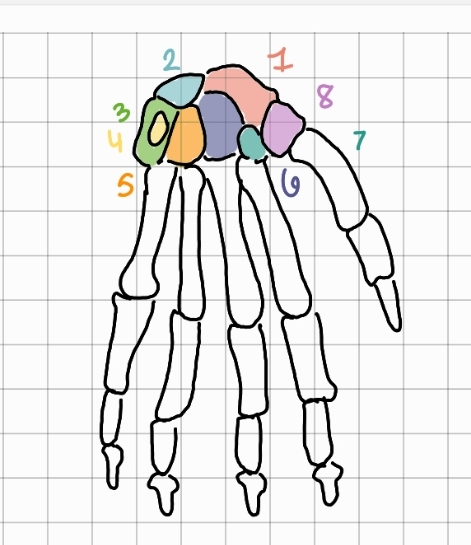

1

scaphoid

2

lunate

3

triquetrum

4

pisiform

5

hamate

6

capitate

7

trapezoid

8

trapezium

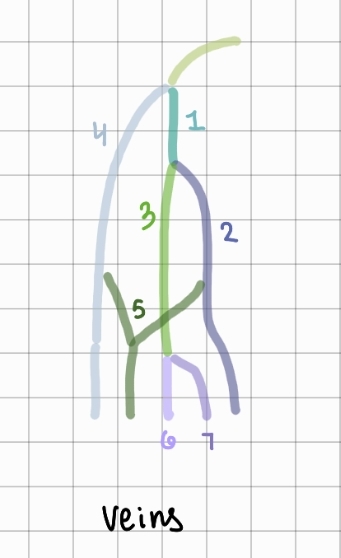

1

axillary vein

2

basilic vein

3

brachial vein

4

cephalic vein

5

median cubital

6

radial vein

7

ulnar vein

top green

subclavian vein

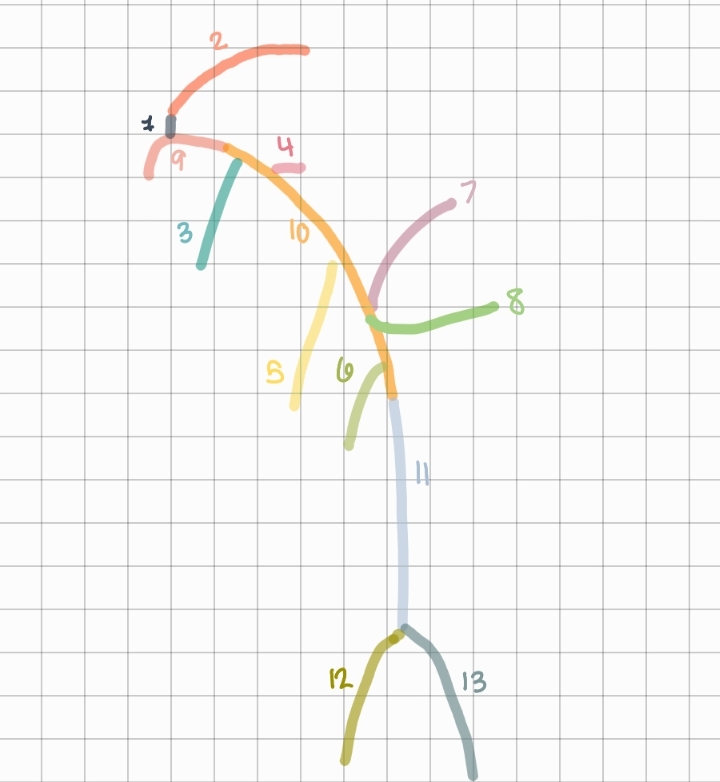

1

thyrocervical trunk

2

transverse cervical artery

3

superior thoracic artery

4

thoracoacromial artery

5

lateral thoracic artery

6

subscapular artery

7

posterior circumflex humeral artery

8

anterior circumflex humeral artery

9

subclavian artery

10

axillary artery

11

brachial artery

12

ulnar artery

13

radial artery
