ADV Robotics

 Which of the following awards does NOT qualify you for the State Competition?

Judges Award

. What should you do if you make a mistake while recording in the engineering notebook?

Draw a single horizontal line through the mistake, then sign and date

What should be done with any blank space on a page in the engineering notebook?

Draw a forward slash and initial

 What term is commonly used to describe the most common successful design?

Meta

 Which of the following actions should not be done with a dremel?

Hammering

Which of the following is not one of the precautions for using an angle grinder?

Make sure sparks will go towards you

Which of the following is not a part on a drill?

 Lock Nut

What would you use to adjust the stiffness of a hacksaw blade?

Tension knob

Which is the most dangerous tool we will use in Advanced Robotics?

Grinder

Which of the following vehicles would be considered holonomic?

helicopter

 Which of the following bases would be best suited for traversing rough terrain?

Tank Treads

Which of the following base designs operates using only three wheels?

Y-Drive

How many different buttons can you program on the joystick?

7-12

 Where do you type the code for controller commands in the competition template?

usercontrol()

What type of lift requires the least amount of horizontal space?

cascading

Which of the following is NOT used to overcome a load greater than the output torque?

use blue (600rpm) gear box

Which of the following intake designs requires the robot to drive over an object?

top roller

 How many different colors can a vision sensor detect at one time?

7

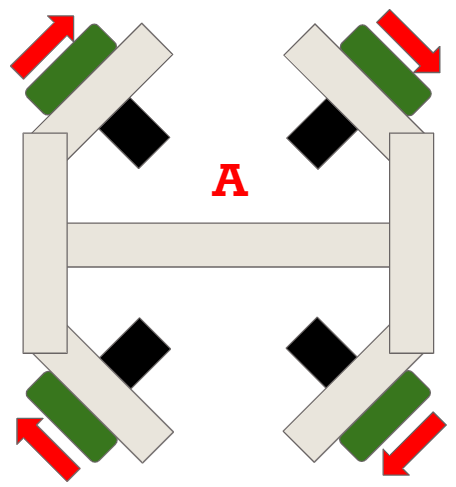

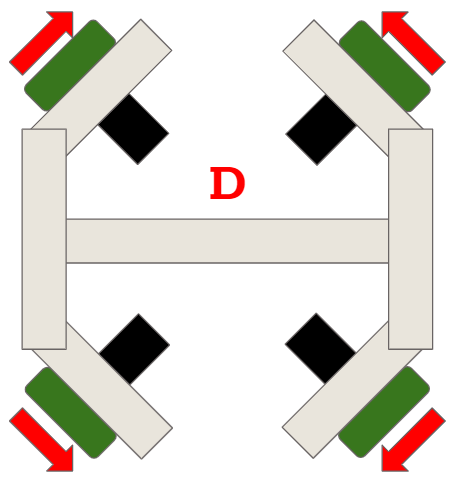

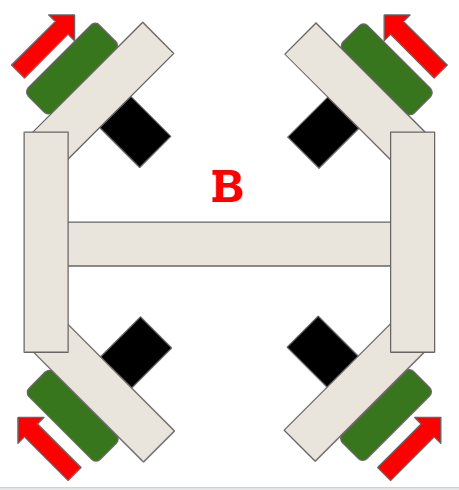

forward motion

no motion

Forward-Right Diagonal Movement

Strafe Right

Point Turn Right

Responsible for designing and construction the robot

Build Team

Learns the strengths and weaknesses of every team at a tournament

Scout Team

Often has a spotter that is responsible for overall match strategy

Drive Team

Develops both autonomous and driver control routines for the robot

Programming Team

Critical for winning the Excellence and Design Award

Documentation Team

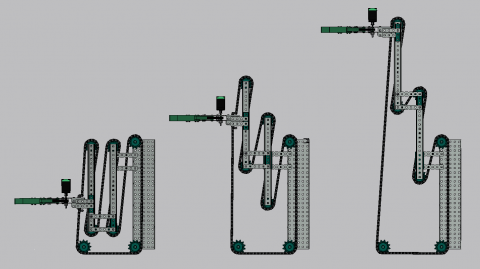

Cascade lift

Double reverse 4-bar lift

4-bar lift

Scissor lift

Arc lift
