CSC 203 Final: Arrays

How to create an array?

import numpy as np

array_name = np.array([#,#])

array_name.ndim

an array’s number of dimensions

array_name.shape

Always outputted as a tuple specifying an array’s dimensions (e.g., rows, columns)

array_name.size

An array’s total number of elements (product of the shape tuple’s values)

Example: a = np.array([1,2,3])

1-dimensional so a.ndim → 1 & a.shape → (3,) & a.size → 3

Example: b = np.array([[1,2,3],[4,5,6]])

2-dimensional so b.ndim → 2 & b.shape → (2,3) & b.size → 6

Example: d = np.array([[1],[2],[3],[4],[5]])

2-dimensional so d.ndim → 2 & d.shape → (5,1) & d.size → 5

3D array_name.shape format

(layers, rows, columns)

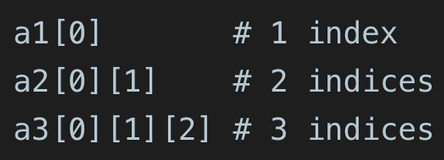

Another way to think about ndim

How many indices do you need to refer to one specific element of the array? That "how many" is your n or dimensionality of the array

In 1D arrays

A tuple with only one element in Python must have a trailing comma, e.g., (5,), to distinguish it from just the number 5.

Example:

• floats = np.array([0.1, 0.2, 0.3, 0.4])

• floats.shape

(4,)

1D shape example

a = np.array([1, 2, 3, 4, 5]) # a simple list of 5 elements.

print(a.shape)  # (5,)

print(a.ndim)   #1

2D column example

b = np.array([[1], [2], [3], [4], [5]]) # 5 rows, 1 column.

print(b.shape)  # (5, 1)

print(b.ndim)   #2

2D row example

c = np.array([[1, 2, 3, 4, 5]]) # 1 row, 5 columns.

print(c.shape)  # (1, 5)

print(c.ndim)   #2

np.arange(#)

Creates an array with a sequence of integers, similar to Python’s range()

np.arange() parameters

start = The beginning value of the sequence (default is 0).

stop = The sequence will go up to, but not include, the stop value.

step = The difference between consecutive elements (default is 1). To decrement, step is negative and start is a number greater than stop.

np.arange() output

array([#, #])

array_name.reshape(#,#)

Changes the shape of an array without changing its data. By reshaping, we can add or remove dimensions or change number of elements in each dimension.

reshape requirement

New shape must contain the exact same number of elements as the original array

Broadcasting

When one operand is a single value, called a scalar, NumPy performs the element-wise calculations as if the scalar were an array of the same shape as the other operand, but with the scalar value in all its elements.

Broadcasting also works with arrays of different shapes when compatible.

Original array is unchanged

Indexing 1D arrays

Same as Python lists; indexes start at 0

Indexing 2D arrays

Use array_name[row, column] to access an element

Selecting a row in 2D array

Use array_name[row]

Selecting sequential rows

Use slicing and indices: array_name[start:stop]

(stop not included)

Selecting non-sequential rows

Use a list of indices: array_name[[0,2,4]]

What slicing returns

Slices return views of the original array whenever possible

Example: c = np.array[

 [[1, 2, 3],

  [4, 5, 6]],   # Layer 1

 [[7, 8, 9],

  [10, 11, 12]] # Layer 2

]

3-dimensional so c.ndim → 3 & c.shape → (2,2,3) & c.size → 12

No extra brackets

ndim is 1D → shape has one number, hence the trailing comma.

Extra brackets

like np([[1], [2], [3]]) make it 2D → shape is (3,1) or (3 rows, 1 column).
