Trauma 201 Tibia Plateau, Femur, Ex Fix

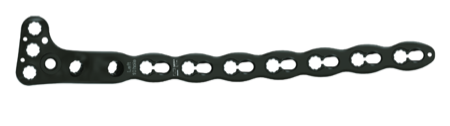

Longest Axsos Distal  femur plates in a tray

16 Hole Plate

What tray to bring for Axsos 3 distal femur

Axsos 5.0 ORIF

Axsos Plates

Axsos Targeting Instruments

Axsos Targeter

Backup

Dall Miles, Mini Frag, LRC

What screws work in Axsos 5.0 system

4.5 Cortical, 3.2 Drill

5.0 Locking, 4.3 Drill

6.0 Cancellous

5.0 Periprosthetic

Options to get around hip stems with axsos 3

Variable Angle Extension Arm

Cables

Peri prosthetic screws

Non locking screws

Variable angle extension arm, what screws, what angle

30 degree angle, 4.0mm locking screw in it

Disposables for Axsos 3 drill bits

AxSOS 5.0:

4.5 Cortical: 3.2 Drill

5.0 Locking 4.3 Drill

T20

AxSOS 4.0

4.0 Locking: 3.1 Drill

3.5 Cortical: 2.5

T15

Distal Lateral Femur Plate - Pangea

Distal Medial Femur Plate - Pangea

Distal Medial Femur Plate

Longest Pangea distal femur plates you offer is?

20 Hole

What are the lengths of the Pangea medial femur plates?

4-14 is 5.0 drill bit is 3.2 for Cortical, 4.3 for Locking

2,3,4,6 - for 3.5 drill bit is 2.5mm

Cemented hip stems, risk for peripro femur fractures higher or lower than Press Fit?

Press Fit are a higher risk for periprosthetic fractures

Fracture gaps and how that plays a role on the stress on a plate

As fracture gap increases, stress on plate increases.

Pangea overall, what drill bits go with it, small frag and large frag?

Small Frag: 2.5 for locking and non locking

Large Frag: 3.2 for cortical, 4.3 for locking

3.2 for 4.0 locking

Risk factors for non union:

Obesity

Open Fracture

Comminution

Infection

How far up should you go up the stem for a plate?

half way up the stem, you do not need to go all the way up the greater trochanter

Two cortical widths up

Locking mechanism in Pangea, and how it works?

Cobalt Chrome screws, create their own threads into the plate which is TI6Al4V

How many times you can go in and out with locking screws?

3 times

Variable angle of Pangea locking screws?

30 Degrees

AxSos Proximal Lateral Tibia Plate

How many rafting screws do they have?

AxSOS Proximal Medial Tibia, they both have 3

AxSOS Distal Lateral Femur Plate

Plate positions for lateral and medial axsos plates?

Proximal Lateral Tibia: Direct Lateral

Proximal Medial Tibia: Direct Medial or Posteromedial

Distal Lateral Femur: Direct Lateral

Can you put screws in AxSOS Proximal Lateral Femur targeting hole?

No, Non locking only in distal lateral femur

Proximal Lateral Tibia Plates

Extra Articular Antereolateral Proximal Tibia Plates

Proximal Medial Tibia Plate

Proximal Posteromedial Tibia Plates

Partial Articular Proximal Lateral Tibia Plates

?

Angular and length unstable fracture patterns

Angular is Schatzker 4, Length is Schatzker 6

Which Plateau is Convex?

Lateral Plateau; Smaller, Convex, Higher

Which Plateau is concave?

Medial Plateau, Larger, Concave, Lower

How to make an exfix more stable?

More pins —More Stable, adding additional pins to the existing frame

Adding more planes increase stiffness

Moving the rod closer to the bone

Addition additional rods (double stacking)

Main Components of Ex Fix?

Pins, Rods, Couplers

Hoffman 3 Rod Diameters and lengths?

11mm

100-650

How far should the ex fix be off skin?

2 Finger breadths

Different pin sizes that we offer and what type of pins?

4/5/6, most common is 5

Transfixing Pins, 4/5. 5/6

Hybrid Pins: 3/5, 4/5, 3/5 is most common

Blunt Tip

Cancellous

Self Drilling Pin

Transfixing

Coupler sizes?

Green, 5,8,11

Grey 4,5,6

What is elastic deformation and what does it relate to?

Elastic deformation is how far something can go with still being able to go back to original form, this is yield strength,

What is plastic deformation and what does it relate to?

when something is stressed so far it leads to permanent deformation, this is ultimate strength
