Molecular Shapes and Geometry

Match the drawing and name of the geometry to the angle and name. This is from Ch.7 - Molecular Structure and Polarity.

AB₂

180°, linear

AB₃

120°, trigonal planar

AB₂E

< 120°, bent

AB₄

109.5°, tetrahedral

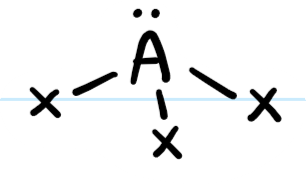

AB₃E

< 109.5°, trigonal pyramidal

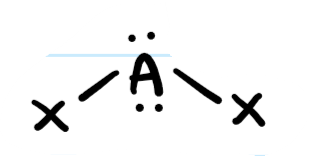

AB₂E₂

109.5°, bent

AB₅

120° & 90°, trigonal bipyramidal

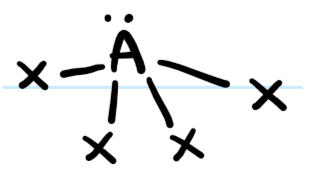

AB₄E

< 120° & < 90°, seesaw

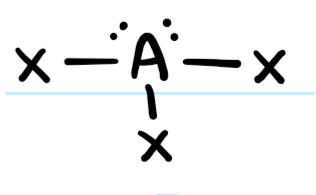

AB₃E₂

< 90°, T-Shaped

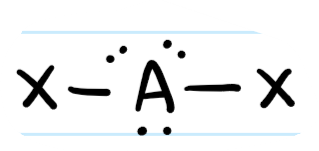

AB₂E₃

180°, linear

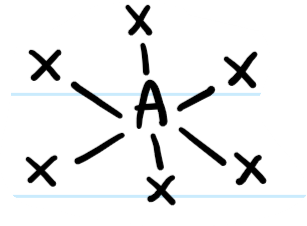

AB₆

90°, octahedral

AB₅E

< 90°, square pyramidal

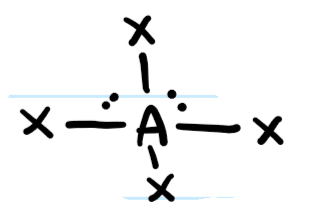

AB₄E₂

90°, square planar

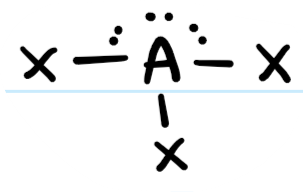

AB₃E₃

90°, T-Shaped

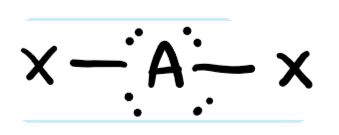

AB₂E₄

180°, linear
