Histology - Epithelial & Connective Tissue

What connective tissue is shown

FIbrocartilage

Location: Intervertebral discs of the spine or pubic symphysis

Cell: Chondrocyte

What is the pointer showing

Sickle cell anemia. (Flat compared to the usual round blood cells)

What type of connective tissue is this

Dense White Fibrous Regular Connective Tissue.

Location : Ligaments and tendons

Cell: Fibroblast

What connective tissue is shown

Compact bone / Osseous Tissue

Location : Bones

Cells : Osteocyte

What tissue is shown

Reticular connective tissue

Location : Lymph node & Spleen

Cell : Fibroblast

What tissue is shown

Dense White Fibrous Irregular Connective Tissue

Location : Dermis of skin & organ capsules

Cell : Fibroblast

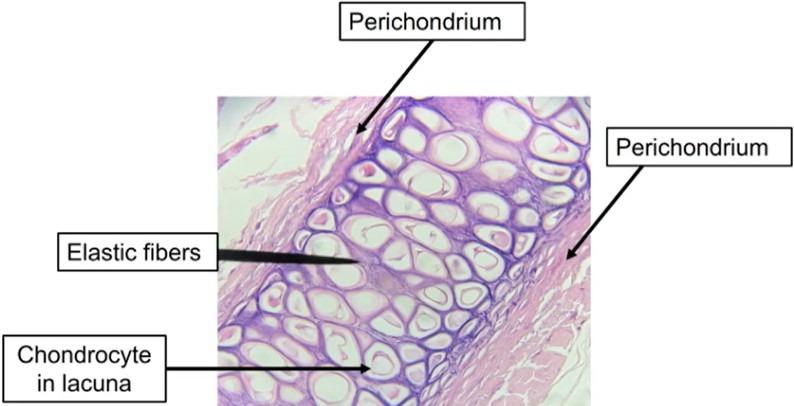

What tissue is shown

Elastic Cartilage

Location : Ear & epiglottis

Cell : Chondrocyte

What tissue is shown

Hyaline Cartilage

Location : Epiphysis & trachea

Cell : Chrondrocyte

What tissue is shown

Adipose Connective Tissue

Location : Hypodermis

Cell : Adipocyte

What cells are shown

Simple columnar epithelium

Location : hollow walls of organs & gallbladder

What cells are shown

Simple Squamous Epithelial

Location : Bowman’s Capsule (as shown in image, but can also be found in the endothelium & alveoli)

What cell is shown

Non-Keratinized stratified squamous epithelium

Location : Oral mucosa, vagina, esophagus

Label all parts

1- Goblet Cells

2- Cillia

3- Pseudostratified ciliated columnar epithelium

Location : Trachea

Label all parts

1- simple cuboidal epithelium

2- lumen

Location : Renal/kidney tubules, thyroid/pituitary gland

Label all parts

1- simple squamous epithelium

2- glomerulus (bowman’s capsule)

3- simple cuboidal epithelium

What cells are shown

Keratinized stratified squamous epithelium

Loction : epidermis of skin

What cells are shown

Transitional epithelium

Location : Bladder

Location for simple squamous epithelium

Alveoli (lungs), Glomerular (capsule of kidney), & endothelium (blood vessels)

Location for simple cuboidal epithelium

Kidney tubules, thyroid/pituitary gland

Location for transitional epithelium

Bladder

Location for simple columnar epithelium

Stomach down -

small intestine, colon, stomach, gallbladder, uterus

Location for pseudostratified ciliated columnar epithelium

Trachea, bronchi, auditory canal of middle ear

Location for non-keratinized stratified squamous epithelium

espohagus, pharynyx, vagina, tongue, anus

Location for keratinized stratified squamous epithelium

Skin & scalp

What epithelial tissue is this

Stratified cuboidal epithelium, found in sweat glands

Where is stratified cuboidal epithelium found

sweat glands, not thyroid/pituitary glands like simple cuboidal

What tissue is shown

Fibrocartilage

What tissue is shown

Dense irregular connective tissue (epidermis)

What tissue is shown

Dense regular connective tissue

What tissue is shown

Reticular connective tissue (lymph nodes, spleen)

What epithelial is highlighted

Simple cuboidal epithelium

What cell is shown

Simple columnar epithelium

What cell is highlighted below

simple squamous epithelium
