Lecture 3 - prostate kV/kV Image Matching + Rotational Translations

ONCOL 306 - Imaging. University of Alberta

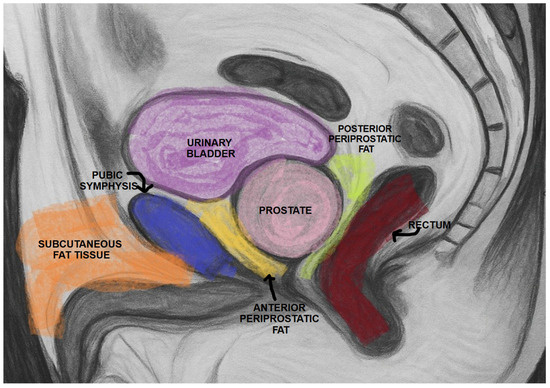

what is the best bony primary match structure of the prostate

the pubic symphysis

• lies directly anterior to the prostate

On CTs, sometimes we can see white spots on the prostate. what pathology are these?

these are typically calcifications

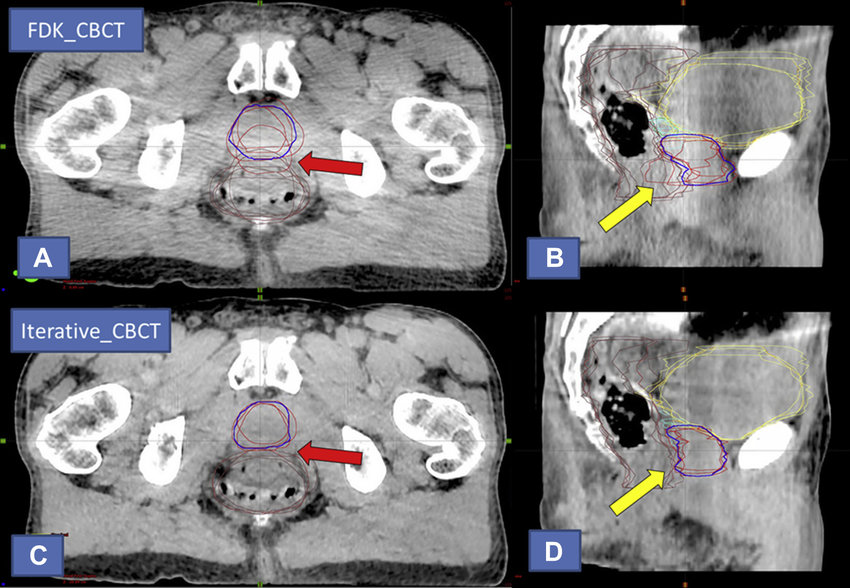

what is the most important soft-tissue matching area on transverse CT for prostate patients?

prostate-rectal interface

how does rectal anatomy affect prostate position

• width

• ant/post rectal length

rectal width does not significantly affect prostate position but increased ant/post rectal length will shift prostate anteriorly

when should a patient be taken off the bed to manage rectial issues?

if rectal gas or stool is present, the patient may need to pass gas or empty rectum before imaging

on a CT, if one femoral head appears more anterior than the other, what rotational movement is indicated?

a roll

what method is used if the patient’s tattoos are not aligned with isocenter?

the patient is being treated with a shift method: align to tatoos first, then apply couch shifts to isocenter

why is the isocenter placed more superior in prostate in high risk patients?

to include nodal volumes in PTV

what three structures are included in the PTV for high-risk prostate patients?

prostate, seminal vesicles, and pelvic lymph nodes

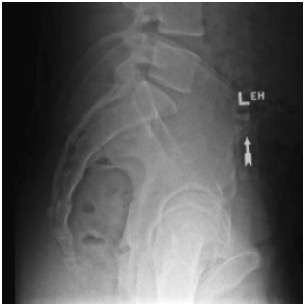

On a MV riight lateral image, what bony anatomy can be used to assist with the match

the pubic symphysis and the sacrum

why are the femoral heads not reliable for prostate matching?

they do not correlate well with prostate position

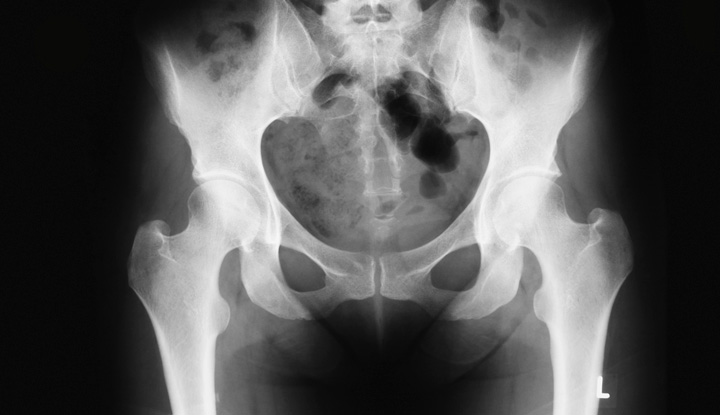

what are primary and secondary match structures on AP imaging?

primary: pubic symphysis or pelvic brim

secondary: obturator foramen or iliac crests

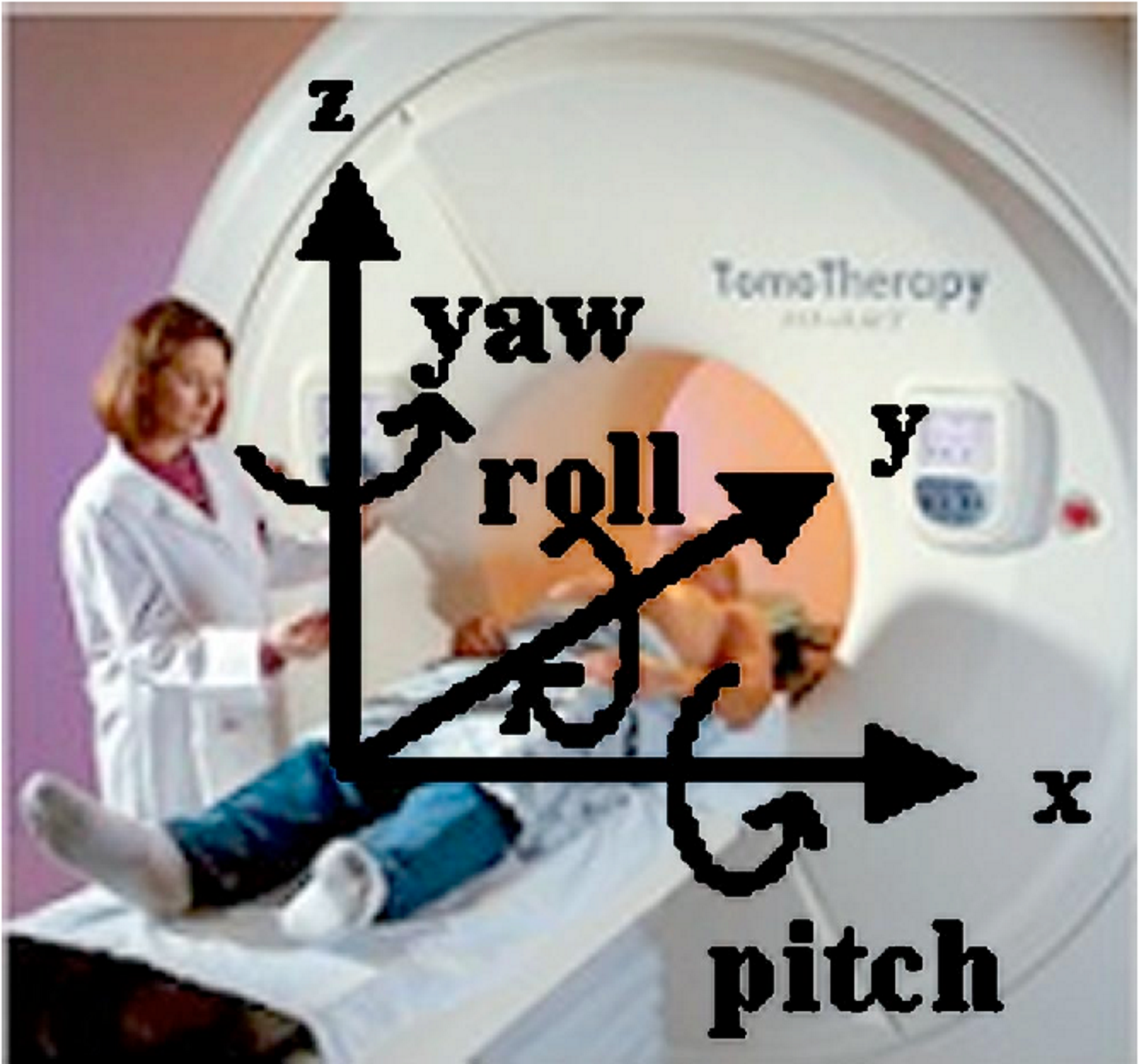

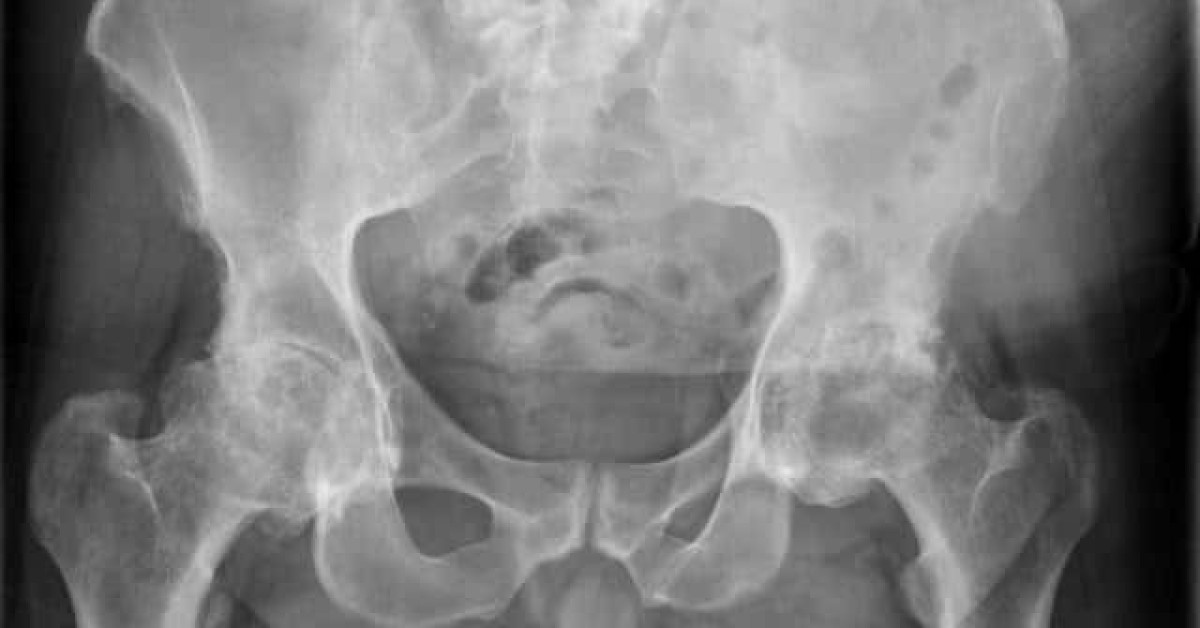

what rotational translation could be suggested with a mismatched obturator foramen?

A roll rotation: one hip is higher than the other

why is glute relaxation important for prostate set-up

tension cen introduce rotation or positioning error

• patients may need to lift and relax

what can kV/kV imaging be matched to?

bony anatomy only

what adjustments are made during the A/P image match

left/right and sup/inf

what adjustments are made during the lat image match

ant/post

why can’t rotational errors be corrected with couch shifts?

couch shifts correct translational movements (x,y,z) not rotation

what is the consequence of an uncorrected roll in high-risk prostate cancer patients?

part of the PTV (especially nodal volumes) may fall outside the treated area, increasing rectal dose

what rotational error does a sup/inf mismatch on A/P suggest?

a pitch issue

during patient set-up, the lateral tattos align but the anterior tattoo is inf of lazer. what has occurred?

there is most likely a bladder filling issue

what characterizes a yaw rotational error?

Obvious hip asymmetry (rotation around the z-axis)

• requires repositioning the patient.

wht must superior anatomy be included in matching for high-risk prostate patients

because nodal volumes extend superiorly beyond the prostate

what is the most primary lateral match structure in prostate cases?

sacrum is used typically as pubic symphysis is often blurry

• if pubic symphysis is sharply defined you an use that

what two structures should not be used as primary match structures for prostate?

iliac crests and femoral heads

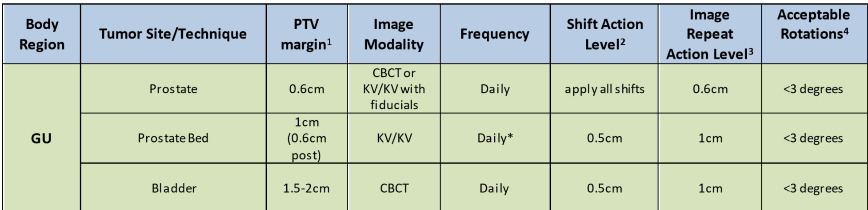

what is the prostate bed shift action level

half of the PTV margin (1 cm) = 5 mm

• if shift is larger than 5 mm, apply shift

• if below, we don’t need to apply

when can shifts be applied without repeat imaging for prostate bed?

when all shifts are below 1 cm (image repeat action level)

what should be assessed during the initial global image review prior to image matching

symmetry, bone alignment, rotations, and pathologies (fractures, zippers, and buttons)

why must bladder and bowel prep issues be addressed before matching?

A full rectum or empty bladder can significantly displace the prostate, making matching unreliable.

What is the recommended three step matching sequence for prostate imaging?

1. global assessment

2. AP match (sup/inf, left/right)

3. Lateral match (ant/post)

What is the goal of the global assessment before image matching?

Assess symmetry, rotations, bony alignment, and obvious positioning errors.

What structures are useful for assessing symmetry during global assessment?

Obturator foramen, pelvic inlet, iliac crests, femoral heads.

What common artifacts or issues should be ruled out during global assessment?

Zippers, buttons, foreign objects, fractures, or hardware.

why can the pubic symphysis be unreliable on lateral imaging?

it can appear blurry and difficut to visualize clearly

What indicates a roll error on a/p imaging

Pelvic inlet or obturator foramen not lining up; one hip higher than the other.

Can translational couch shifts correct roll, pitch, or yaw?

No—rotational errors require patient repositioning.

What is the dosimetric consequence of uncorrected roll in high-risk prostate?

PTV (especially nodes) may be missed and rectal dose may increase.

Why are skin tattoos not always reliable?

External alignment does not always reflect internal anatomy.

What indicates an acceptable final match despite minor discrepancies?

Iliac crests level, no clear rotation, AP and lateral matches aligned.

When is repeat imaging required for prostate patients?

When any shift exceeds 1 cm.
