Firewalls - CompTIA Security+ SY0-701 - 4.5

Network based Firewalls

• Filter traffic by port number or application

- Traditional vs. NGFW

• Encrypt traffic

- VPN between sites

• Most firewalls can be layer 3 devices (routers)

- Often sits on the ingress/egress of the network

- Network Address Translation (NAT)

- Dynamic routing

Next Generation Firewall (NGFW)

The OSI Application Layer (Layer 7) - All data in every packet

• Can be called different names

- Application layer gateway

- Stateful multilayer inspection, deep packet inspection

• Broad security controls

- Allow or disallow application features

- Identify attacks and malware

- Examine encrypted data

- Prevent access to URLs or URL categories

Ports and protocols

• Make forwarding decisions based on protocol

(TCP or UDP) and port number

- Traditional port-based firewalls

- Add to an NGFW for additional security

policy options

• Based on destination protocol and port

- Web server: tcp/80, tcp/443

- SSH server: tcp/22

- Microsoft RDP: tcp/3389

- DNS query: udp/53

- NTP: udp/123

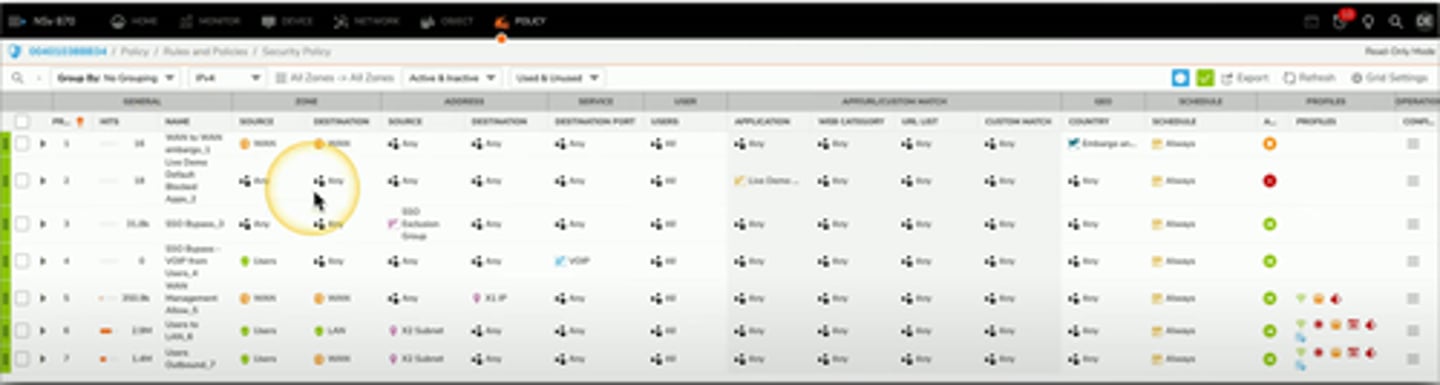

Firewall Rules

A logical path

- Usually top-to-bottom

Can be very general or very specific

- Specific rules are usually at the top

Implicit deny

- Most firewalls include a deny at the bottom

- Even if you didn't put one

Access Control List (ACLs)

- Allow or disallow traffic

- Groupings of categories (Source IP, Destination IP, port number, Time of Day, Application, etc.)

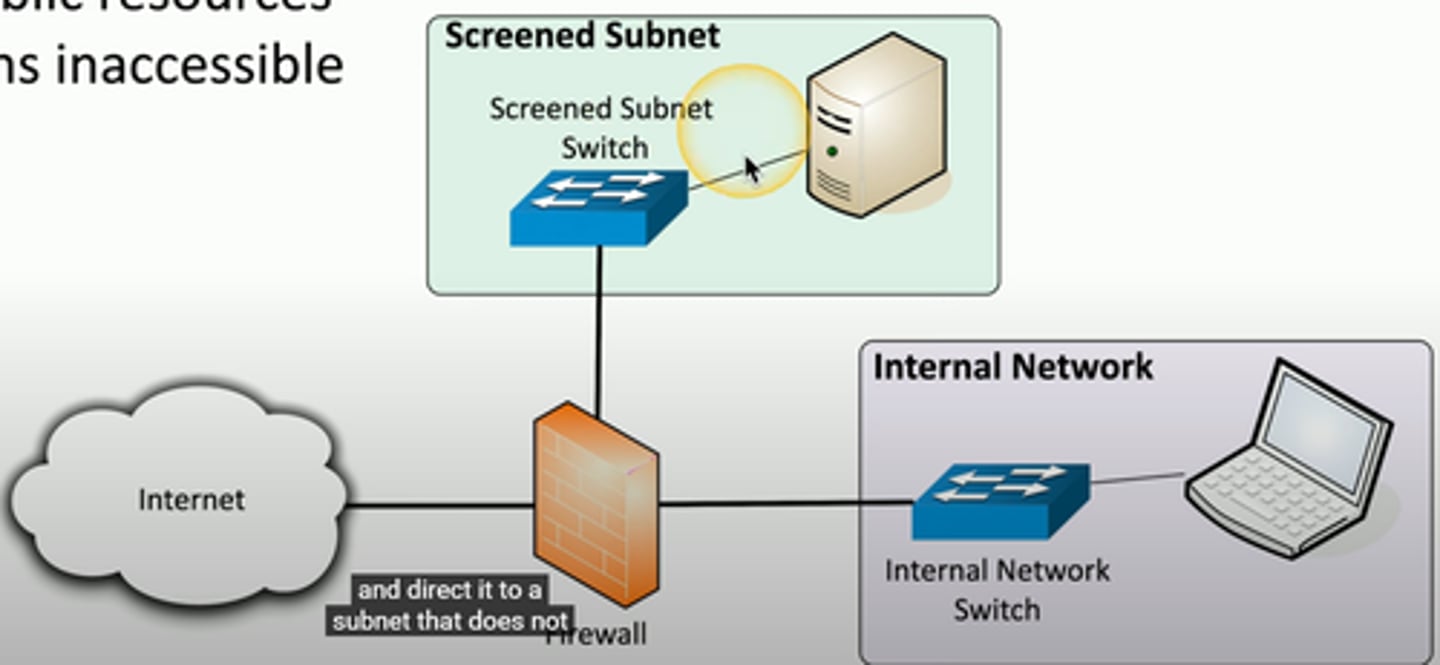

Screened Subnet

An additonal layer of security between you and the internet

- Public access to public resources

- Private data remains inaccessible

IPS rules

Intrusion Prevention System

- usually integrated into a NGFW

Different ways to find malicious traffic

- Look at the traffic as it passes by

Signature based

- Look for a perfect match

Anomaly based

- Build a baseline of what's normal

- Unusual patterns are flagged
