Lab final Section 2 - Organic Nomenclature and modeling

What is a structural isomer

Same molecular formula but different connectivity

What is a cis/trans isomer?

same connectivity but different spacial arrangement around a double bond

condensed formula vs. line angle?

Condensed: group is written out.

Line-angle: bonds are represented by lines, carbons at the ends/junctions

What is the IUPAC base names for carbon chains?

1 - meth

2 - eth

3 - prop

4 - but

5 - pent

6 - hex

7 - hep

8 - oct

9 - non

10 - dec

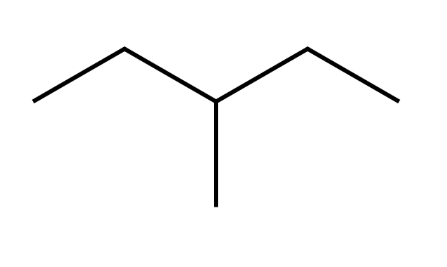

Identify the name for this structure.

3-methylpentane

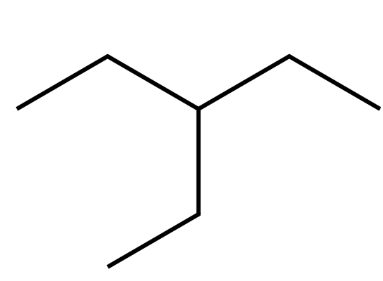

Identify the name for this structure.

3-ethylpentane

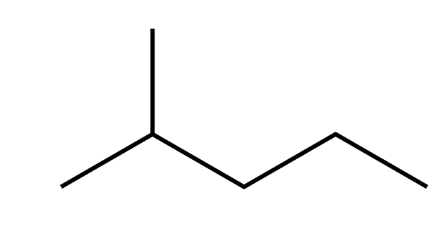

Identify the name for this structure.

2-methylpentane

Identify the name for this structure.

3-methylhexane

The molecular formula for the simple alkane butane is….

C4H10

What is the molecular formula of cyclobutane?

C4H8

What is the difference between butane and cyclobutane?

The loss of 2 hydrogen atoms

Identify this structure

3-isopropyl-2-methylhexan

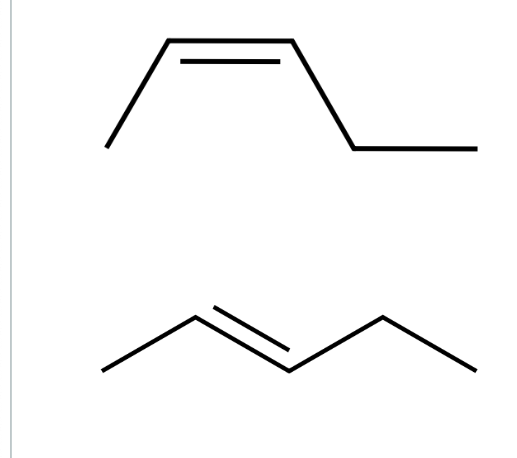

The top image is                 pent-2-ene

Cis

The bottom Structure is             pent-2-ene

trans

Wedges and dashes are used to indicate the ________ in a drawn structure.

3D shape

A wedge shows that the ato or group is __________

coming out of the page

A dash indicates that the atom or group is _______

attached to a lighter element
