Light Frame construction (wood and steel) ppt.5 Exam 1 studying

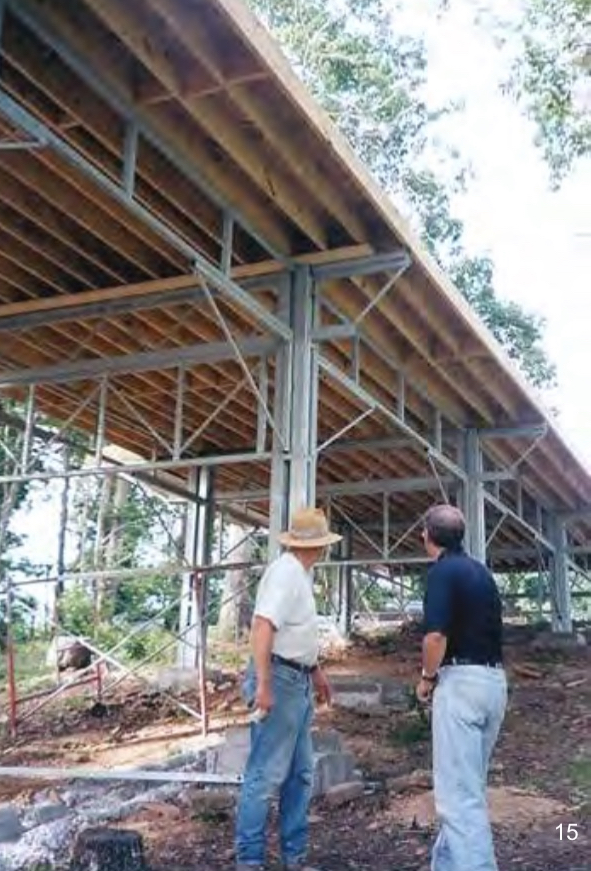

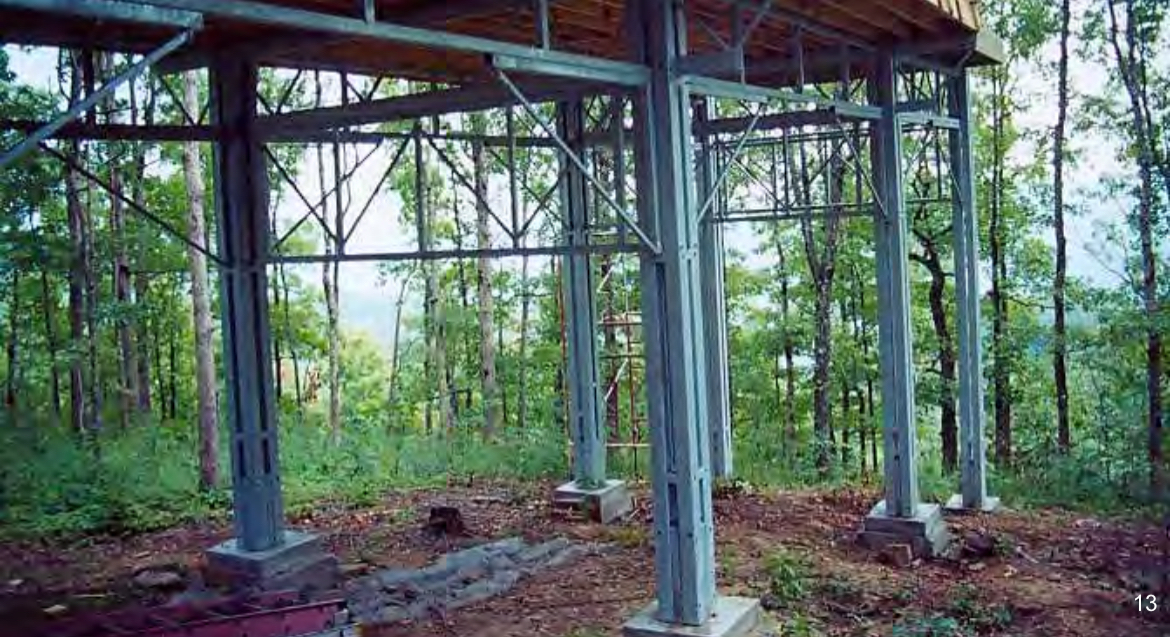

What framing is shown in this image?

Braced steel frame

What does sloped glass do in building construction?

Discourages bird collisions

What type of floor framing is shown in this image?

Dimension lumber floor frame

What are 4 structural framing methods shown here?

Joists, rim joists or headers, blocking, sills

Describe one example of floor frame sill (and anchoring)

Pressure treated lumber building sills bolted to the steel trusses as a base for the floor frame to rest upon

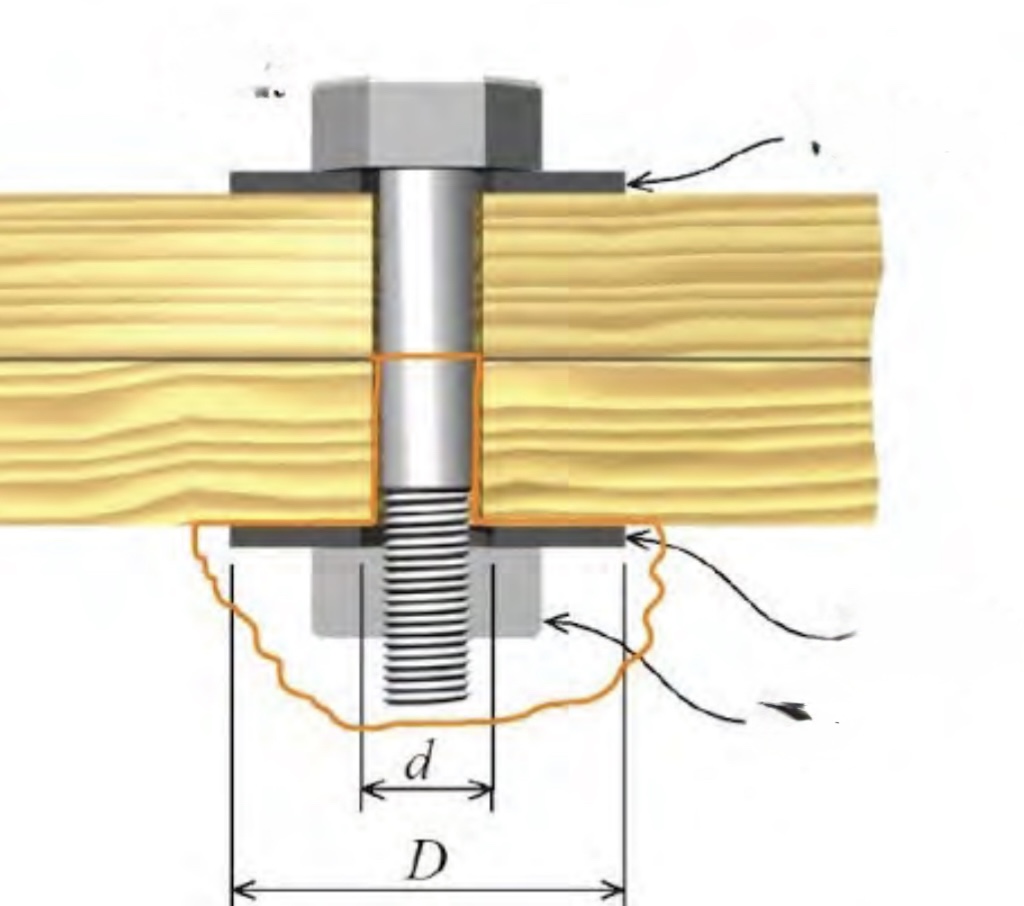

Label this diagram showing floor frame sill and anchoring

In the Nest House, how was subflooring secured?

Secured using construction adhesive perpendicular to the joists and 8D nails / deck screws

In the nest house, how are the joints in the plywood arranged?

Staggered

What is the most important in avoiding squeaky floors?

Must properly fasten the subfloor to the joists

What is used to properly fasten the subfloor to the joists?

Nails or screws 12“ on center in the field of plywood and 8” on the edges

What is one main difference between the traditional practice and framing efficiency of where walls meet

Traditional practice = creates “U” that is hard to insulate

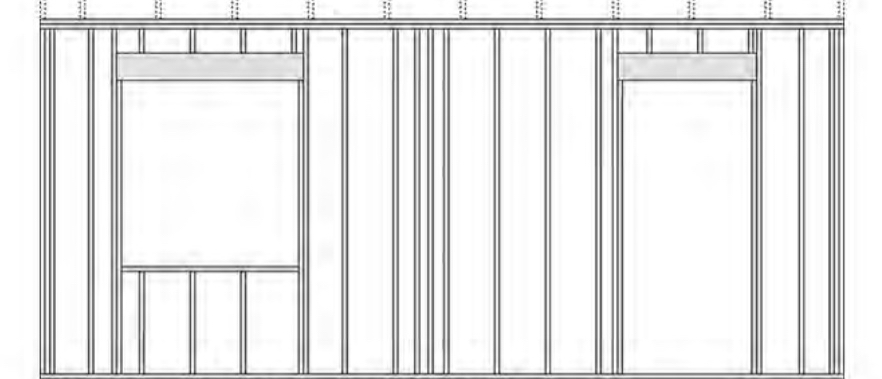

Does this wall framing show the conventional / traditional practice or framing efficiency / advanced techniques?

Conventional / traditional

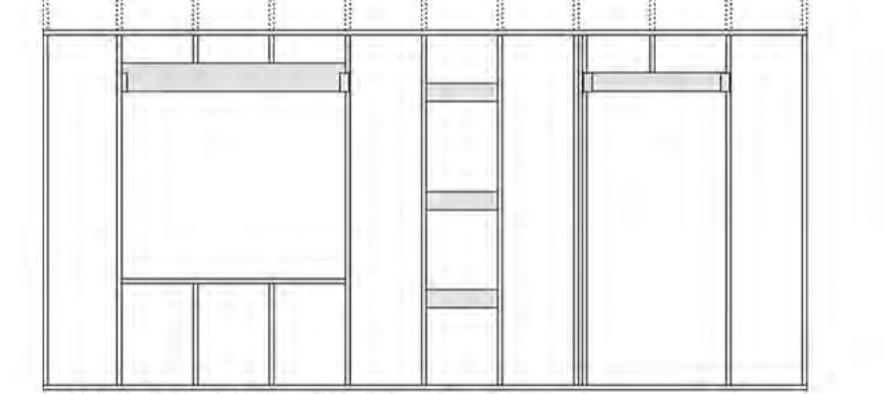

Does this wall framing show the conventional / traditional practice or framing efficiency / advanced techniques?

Framing efficiency / advanced techniques

What are 3 types of wall bracing?

Steel bracing, continuous sheathing, braced wall panels

When rafters or joists bear on a wall they have a _ ___ bearing surface

Minimum bearing surface

How are birdsmouth cuts (seat cuts) in sloped rafters secured?

They are toe nailed or screwed thru the rafter into the plates or rafter/wind hurricane anchors

What are stringers?

The primary structural component of stairs

What are treads?

2×4’s spanning between stringers and supporting the tread material

How are treads secured?

3/4” plywood sub floor secured to the 2×4 with deck screws and adhesive

How is the finish floor secured?

Oak strip flooring nailed to the plywood subfloor

How are risers secured?

MDF risers nailed with galvanized finish nails to the stringers and clear coated along with the floorboards

What do self tapping screws, c-shaped structural members, and u-shaped runner channels do?

They fasten one thing to another in light gauge steel framing

What are the 3 basic components of light gauge steel framing?

Self tapping screws, c-shaped structural members, u-shaped runner channels

What are self tapping screws?

Drills its own hole, then treads into the hole

What are c-shaped structural members?

They are of various depth, width, and gauge (thickness of the walls) of steel

What are u-shaped runner channels?

They create the number of plates and rim boards or rafters

List potential advantages of light gauge steel construction

Non combustible, lighter weight, longer spans, consistently sized members, more stable in humid conditions, termite resistant,. less drilling for services, recyclable/ reusable

List potential disadvantages of light gauge steel construction?

• Can be more labor intensive than wood

• Thermal conductivity

• Condensation

• insulation costs

• higher faster costs

• galvanic action

What are 6 framing accessories of light gauge steel framing?

• End clips

• Web Stiffeners

• Foundation clips

• Bracing

• Hangers

• Channel

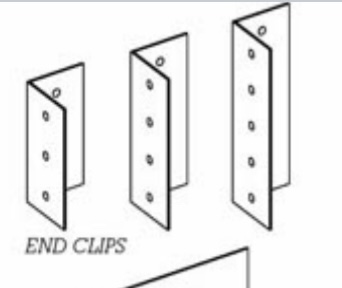

What is shown in this image?

End clips

What is shown in this image?
