AdU Building Utilities 3

3 (ar. chun)

A self-contained unit which houses all the necessary air conditioning components such as the compressor, condenser and evaporator in the same cabinet

Unitary/ Room Air-Conditioner

A type of air conditioning system composed of two separate sections, one installed inside the room (fan coil unit) while the other is mounted outside the building (air cooled condensing unit)

Split Type Air-Conditioner

A type of split type air conditioning system

Package/Cabinet Type Air-Conditioner

A type of air conditioning system used for large installation using ducts

Centralized Type Air-Conditioner

An evaporative cooler (also swamp cooler, desert cooler and wet air cooler) is a device that cools air through the evaporation

Evaporative Cooler

A portable air conditioner is one on wheels that can be easily transported inside a home or office. Portable air conditioners are either evaporative or refrigerate.

Portable Unit

A dehumidifier is generally a household appliance which reduces the level of humidity in the air, usually for health or comfort reasons, or to eliminate dank smells.

Dehumidifier

A heat pump is an air conditioner that contains a valve that lets it switch between "air conditioner" and "heater “. When the valve is switched one way, the heat pump acts like an air conditioner, and when it is switched the other way, it reverses the flow of the liquid inside the heat pump and acts like a heater.

Heat Pumps

a hot outdoor coil, releases the collected heat outside.

condenser

are serpentine tubing surrounded by aluminum fins.

evaporator and condenser coils

usually made of copper

tubing

moves a heat transfer fluid (or refrigerant) between the evaporator and the condenser.

A pump, called the compressor

are usually located on the outside air portion of the air conditioner.

compressor and condenser

located on the inside the house, sometimes as part of a furnace.

evaporator

With this type of system, the air treating and refrigeration plants may be located some distance from the conditioned space in a central mechanical room.

All Air System

not only cleans the air, but also heats or cools, humidifies or dehumidifies.

central treating station

is brought into the conditioned space through ducts and distributed through outlets or mixing terminals

final cooling-heating medium (air)

are those with fan coil unit types of room terminals to which may be connected one or more water circuits.

All-Water Systems

may be supplied from a remote source and circulated through the coils in the fans coil terminals which is located in the conditioned space.

cooling medium (such as chilled water or brine)

is obtained through an opening in the wall or from bleed-off from the interior zone system or by infiltration

Ventilation

are generally located in areas where sound, exhaust and vibration of equipment are of general planning concern.

Generator rooms

• Buildings requiring an expected load of 200 KVA or above shall be provided with a transformer vault • Transformers may be mounted on poles or structures within the property if enough space is available

• Located in a service area (askarel, dry, oil immersed transformer, cabling and other electrical devices

Transformer Vault

It is a room or space in a building dedicated to electrical equipment.

Electrical Room

is a room or space in a building dedicated to the mechanical equipment and its associated electrical equipment

A mechanical room or a boiler room

It is a room or space within a building for the storage or installation of mechanical or electrical/electronic devices.

Equipment Room

Any inadvertent physical contact with power transmission

ACCIDENTAL CONTACT

The process of treating air to control simultaneously its temp, hum, etc.

AIR CONDITIONING

The frame on both side of escalator

BALUSTRADE

A close vessel for heating

BOILER

A device designed to stop a descending car from beyond its normal limit of travel

BUFFER

Enclosure for housing the operator etc. of a crane

CAGE/ CAB

Total horse power

CAPACITY OF WORK, PROJECT OR PLANT

The load carrying unit of an elevator

CAR

Mech device to increase pressure upon the refrigerant

COMPRESSOR

Arrangement of pipes/ tubing in which vaporized refrigerant is liquefied by the removal of heat

CONDENSER

Boiler unsafe or disqualified

CONDEMED BOILER OR UNFIRED PRESSURE VESSEL

Machine for lifting or lowering and moving horizontal

CRANE

Passageway made of sheet of metal for conveying air

DUCT

Hoisting and lowering mechanism

Area - 3861sq cm

Height - 1.20m

Capacity - 277k

DUMBWAITER

A hoisting and lowering mechanism with a car or platform which move in guides in a vertical direction

ELEVATOR

Portion of a floor, balcony, or platform for loading or unloading

ELEVATOR LANDING

Steel wire rope attached to the car

ELEVATOR WIRE

The moving parts of a machine are so guarded that physical contact by any part of the human body is precluded or prevented

ENCLOSED

Power driven, inclined, continuous stairway

ESCALATOR

Liquid refrigerant is vaporized to produce refrigeration

EVAPORATION

Inspection made on boiler

EXTERNAL INSPECTION

Apparatus for raising or lowering a load by the application of a building force

HOIST

A shaft for the travel of elevator or dumbwaiters

HOIST WAY

Inspection when boiler is shutdown

INTERAL INSPECTION

A vessel permanently connected to system by inlet and outlet pipes for storage of a liquid refrigerant

LIQUID RECEIVER

Boiler mounted on a self- propelled track

LOCOMOTIVE BOILER

Pressure 1.05kgs/sqm

Temp 250° F

LOW PRESSURE HEATING BOILER

The driven unit of equipment

MACHINE

Enclosure for housing the hoisting mechanism and power plant

MACHINE HOUSE

Any or all the moving parts of a machine

MACHINE PARTS

All that has a mechanical functions

MECHANICAL PLANT

Horizontal passenger carrying device

MOVING WALK

The part of a machine which performs an operation on the stock Location where stock material is fed to the machine

POINT OF OPERATION

Fired boiler which is self- contained Intended for temporary location

PORTABLE BOILER

Any device by which the motion of an engine is transmitted to or received by another machine

POWER TRANSMISSION MACHINERY

Main function is to drive or operate either directly or indirectly, other mechanical equipment

PRIME MOVER

Equipment designed and operated for a specific purpose

PROCESS MACHINE

Absorption of heat while expanding or evaporating

REFRIGERANT

12,000 BTU/hr.

200 BTU/min

TON OF REFRIGERATION

A cable made up of electric conductor s which provides electrical connection between the elevator car and a fixed outlet in the hoist way

TRAVELLING CABLE

Pressure is obtained from external source or from an indirect application of heat

UNFIRED PRESSURE VESSEL

Supplying or removing air by natural or mechanical means

VENTILATION

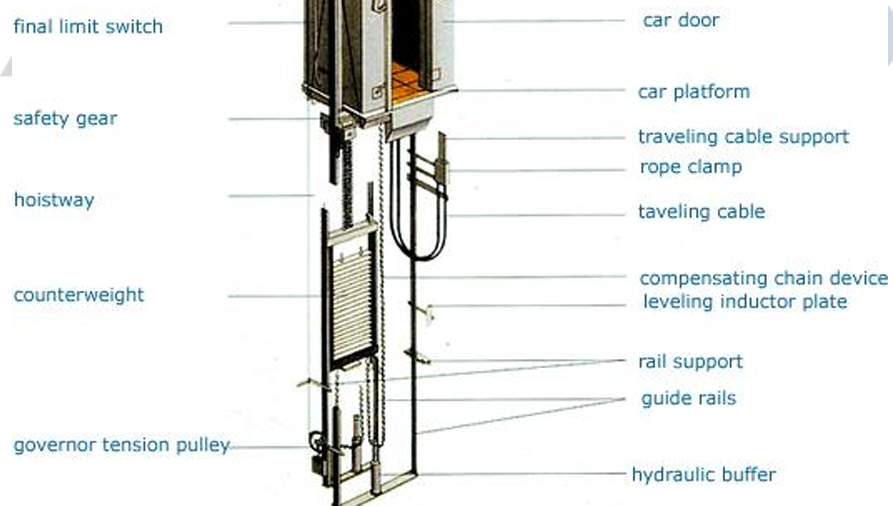

Elevator Parts

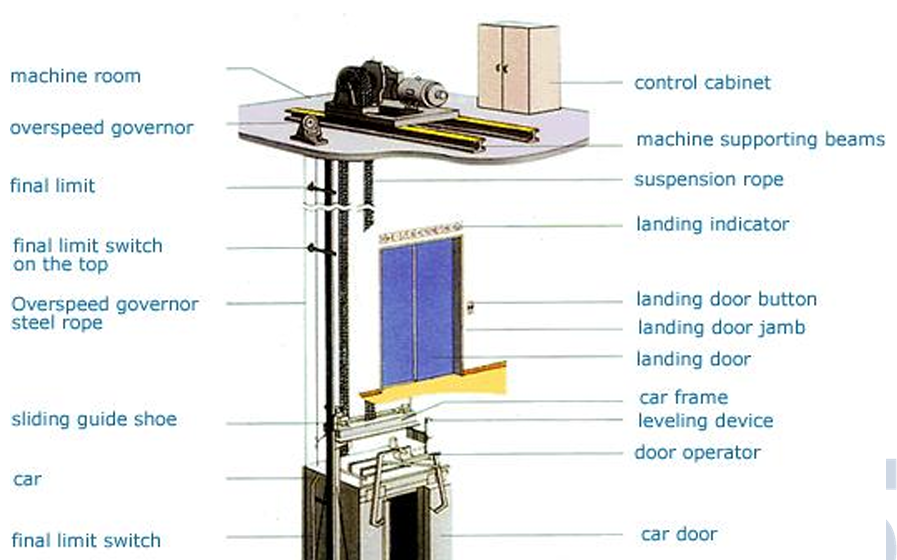

Elevator Parts

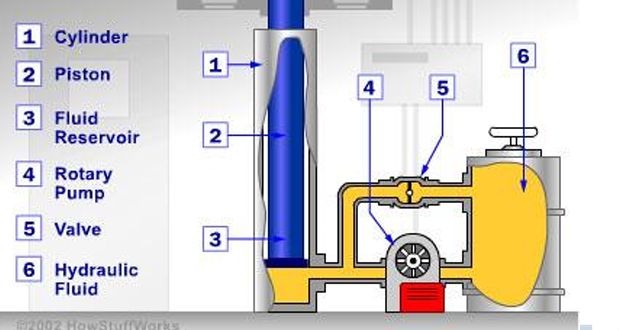

hydraulic elevator parts

is a visually evaluated radiant energy that permits us to see.

Light

Ratio of the flux absorbed by a medium to the incident flux.

ABSORPTANCE

General term for the process by which incident flux is dissipated.

ABSORPTION

Directional lighting to emphasize a particular object or draw attention to a part of the field of view.

ACCENT LIGHT

Angular distance between the vertical plane containing the sun and the plane of the meridian.

ALTITUDE

A single opaque or translucent element to shield a source from direct view at certain angles or to absorb unwanted Light.

BAFFLE

Device used with electric discharge lamp to obtain the necessary circuit conditions for starting and operating.

BALLAST

Popular term for ultraviolet energy near the visible spectrum

BLACK LIGHT

The terms Brightness and Luminance are almost entirely interchangeable, with the latter being the newer term

BRIGHTNESS

The unit of luminous intensity

CANDELA

Luminous intensity expressed in candelas.

CANDLE POWER

General lighting system in which the entire ceiling is, in effect, one large luminary, as in louvered ceilings and luminous ceilings.

CEILING AREA LIGHTING

Cavity can form by the ceiling, the plane of the luminaries, and the wall surfaces between these two planes.

CEILING CAVITY

Enclosure containing the ballast, starter, lamp holders, and wiring for a fluorescent lamp.

CHANNEL

Sky having less than 30% cloud cover.

CLEAR SKY

Part of a building rising clear of the roofs and whose walls contain windows for lighting the interior.

CLERESTORY

Ratio of the luminous flux (lumens) from a luminaire received on the work plane to the lumens emitted by the luminaire’s alone.

COEFFECIENT OF UTILIZATION

Ratio of the daylight illuminance on a plane to the exterior illuminance on a horizontal plane from the whole of an obstructed sky assumed or known luminance.

DAYLIGHTING FACTOR

Electric discharge lamp of the glow discharge type.

COLD-CATHODE LAMP

Lighting by means of light sources shielded by a plane parallel to the wall and attached to the ceiling that distribute light over the wall.

CORNICE LIGHTING

Lighting by means of sources shielded by a ledge or horizontal recess that distribute light over the ceiling and upper wall.

COVE LIGHTING

The angle, measured up from the nadir, between the vertical axis and the first line of sight at which the bare source not visible.

CUT OFF ANGLE (OF A LUMUNAIRE)

Ratio of the flux leaving a surface or medium by diffuse reflection to the incident flux.

DIFFUSE REFLECTANCE

Process by which the incident flux is redirected over a range of angles.

DIFFUSE REFLECTION

Process by which the incident flux passing through a surface or medium is scattered.

DIFFUSE TRANSMISSION

Ratio of the diffusely transmitted flux leaving a surface or medium to the incident flux.

DIFFUSE TRNSMITTANCE

Light that is not predominantly incident from any particular direction.

DIFFUSE LIGHTING

Device to redirect or scatter the light from a source, primarily by the process of diffuse transmission.

DIFFUSER

Variant of general diffuse lighting in which the luminaries emit little or no light at angles near the horizontal.

DIRECT-INDIRECT LIGHTING

Lighting by luminaries distributing 90 to 100% of the emitted light in the direction (usually downward) of the surface to be illuminated.

DIRECT LIGHTING
