15 Terms
2, linear sp, 180, 2, 0
Geometry Name: Linear
Bonding Domains:
Electron Pair Geometry/Hybridization:
Bond Angle:
# of Bonding Directions:
# of Lone Pairs:
3, trigonal planar sp2, 120, 3, 0
Geometry Name: Trigonal Planar
Bonding Domains:
Electron Pair Geometry/Hybridization:
Bond Angle:
# of Bonding Directions:
# of Lone Pairs:
3, trigonal planar sp2, 120, 2, 1

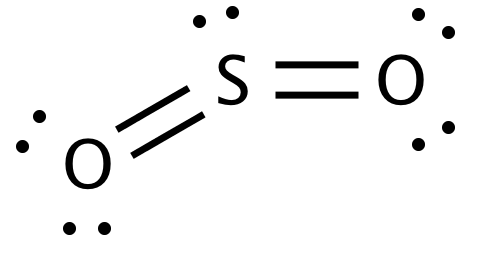

Geometry Name: Bent
Bonding Domains:
Electron Pair Geometry/Hybridization:
Bond Angle:
# of Bonding Directions:
# of Lone Pairs:
4, tetrahedral sp3, 109.5, 4, 0
Geometry Name: Tetrahedral
Bonding Domains:
Electron Pair Geometry/Hybridization:
Bond Angle:
# of Bonding Directions:
# of Lone Pairs:
4, tetrahedral sp3, 107, 3, 1
Geometry Name: Trigonal Pyramidal
Bonding Domains:
Electron Pair Geometry/Hybridization:
Bond Angle:
# of Bonding Directions:
# of Lone Pairs:
4, tetrahedral sp3, 104.5, 2, 2

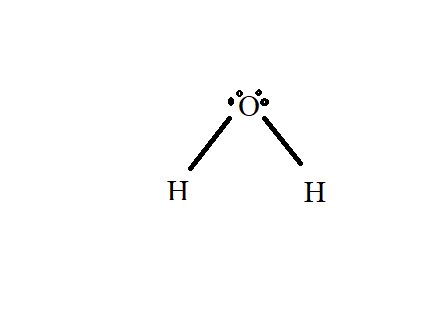

Geometry Name: Bent
Bonding Domains:
Electron Pair Geometry/Hybridization:
Bond Angle:
# of Bonding Directions:
# of Lone Pairs:
5, trigonal bipyramidal, 120 and 90, 5, 0
Geometry Name: Trigonal Bipyramidal
Bonding Domains:
Electron Pair Geometry:
Bond Angle:
# of Bonding Directions:
# of Lone Pairs:
5, trigonal bipyramidal, 120 and 90, 4, 1

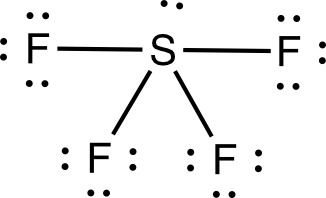

Geometry Name: Seesaw
Bonding Domains:
Electron Pair Geometry:
Bond Angle:
# of Bonding Directions:
# of Lone Pairs:
5, trigonal bipyramidal, 120 and 90, 3, 2
Geometry Name: T-shaped
Bonding Domains:
Electron Pair Geometry:
Bond Angle:
# of Bonding Directions:
# of Lone Pairs:
5, trigonal bipyramidal, 120 and 90, 2, 3
Geometry Name: Linear
Bonding Domains:
Electron Pair Geometry:
Bond Angle:
# of Bonding Directions:
# of Lone Pairs:
6, octahedral, 90, 6, 0

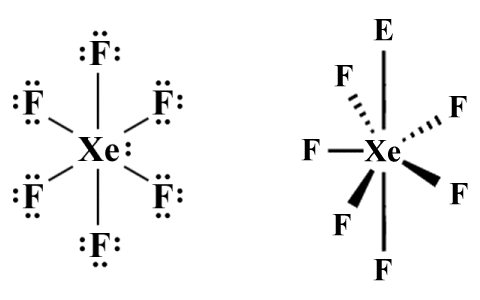

Geometry Name: Octahedral
Bonding Domains:
Electron Pair Geometry:
Bond Angle:
# of Bonding Directions:
# of Lone Pairs:
6, octahedral, 90, 5, 1
Geometry Name: Square Pyramidal
Bonding Domains:
Electron Pair Geometry:
Bond Angle:
# of Bonding Directions:
# of Lone Pairs:
6, octahedral, 90, 4, 2
Geometry Name: Square Planar
Bonding Domains:
Electron Pair Geometry:
Bond Angle:
# of Bonding Directions:
# of Lone Pairs:
6, octahedral, 90, 3, 3
Geometry Name: T-shaped
Bonding Domains:
Electron Pair Geometry:
Bond Angle:
# of Bonding Directions:
# of Lone Pairs:
6, octahedral, 90, 2, 4
Geometry Name: Linear
Bonding Domains:
Electron Pair Geometry:
Bond Angle:
# of Bonding Directions:
# of Lone Pairs:
