200 Terms

1
New cards
X-rays are monoenergetic
False
2
New cards
Which of the following interactions between x-ray photons with matter involve a matter-antimatter annihilation reaction
Pair production
3
New cards
What is the maximum period of time a thermoluminescent dosimeter (TLD) may be worn as a personal device
3 months
4
New cards
The digital ionization dosimeter provides an instant read-out of dose information when connected to a computer via a connector such a (an)
universal serial bus (USB)
5
New cards
Which of the following is the SI unit of electric current
Ampere
6
New cards
Cosmic radiation occurs in which two forms
Solar and galactic
7
New cards
Carbon has an atomic number of 6. One of its isotopes has a mass of 14. The number of neutrons in this isotope is
8
8
New cards
What is the maximum number of electrons in the M shell
18
9
New cards
Which of the following describes the highest point of wave
crest
10
New cards
Although coherent scattering is most likely to occur _____, some of this unmodified scattering occurs throughout the diagnostic range and may result in small amounts of radiographic fog
at less than 10 keV
11
New cards
Through which of the following routes can radon enter houses
1. Crawl spaces under living areas
2. Floor drains and sump pumps
3. Porous cement block foundations
1, 2, and 3
12
New cards
In the electromagnetic spectrum, higher frequencies are associated with
shorter wavelengths and higher energies
13
New cards
What is the unit of mass
Kg
14
New cards
The nucleus of the atom contains
protons and neutrons
15
New cards
Which of the following is a form of radiation that is capable of creating electrically charged particles by removing orbital electrons from the atom of normal matter through which it passes
ionizing radiation
16
New cards
Which of the following is a disadvantage of the optically stimulated dosimeter
Exposure not determinable on the day of occurrence without an in-house reader
17
New cards
Which of the following electron shells has the highest binding energy
K
18
New cards
Which of the following are forms of electromagnetic radiation
1. Microwaves
2. Visible light
3. X-rays
4. Gamma rays
5. Ultraviolet radiation
1, 2, 3, 4, and 5
19
New cards
Annihilation radiation is used in which of the following modalities
Positron emission tomography
20
New cards
Which of the following radiation quantities use the same unit of measure
1. Effective dose and equivalent dose
2. Exposure and effective dose
3. Absorbed dose and equivalent dose
1 only
21
New cards
Three different filters are incorporated into the detector packet of the optically stimulated luminescence dosimeter. Of what are these filters made of
Aluminum, tin, and copper
22
New cards
X-rays are carriers of
manmade electromagnetic energy
23
New cards
The atomic number is calculated by determining the number of
protons
24
New cards
Which of the following interactions results in the conversion of matter into energy
annihilation reaction
25
New cards
When discussing the EM spectrum, which type of radiation has the greatest velocity:
1. Gamma
2. X-rays
3. Heat
None of these
26
New cards
What do radiation weighting factors take into consideration?
1. The overall risk of exposure to humans from ionizing radiation
2. Both the internal and external dose measurements
3. The fact that some types of radiation are more efficient at causing biologic damage than other types of radiation for a given dose
3 only
27
New cards
When interacting with another element, Neon loses a neutron. What can it be described as now
an isotope
28
New cards
Electromagnetic radiation travels or propagates through space in the form of a wave but can interact with matter as a particle of energy called a photon. This dual nature is referred to as
wave-particle duality
29
New cards
Which of the following units of measure are not SI units
1. Roentgens
2. Coulombs per kilogram, grays, sieverts
3. Rads and rems
1 and 3 only
30
New cards
The optically stimulated luminescence (OSL) dosimeter is "read out" by using a (an)
laser light at selected frequencies
31
New cards
Because of the OSL dosimeter's sensitivity down to as low as for x-ray and gamma ray photons in the energy range 5 keV to 40 MeV, it is an excellent and practical monitoring device for
employees working in low-radiation environments and for pregnant workers
32
New cards
Which of the following instruments is called a cutie pie
Ionization chamber-type survey meter
33
New cards

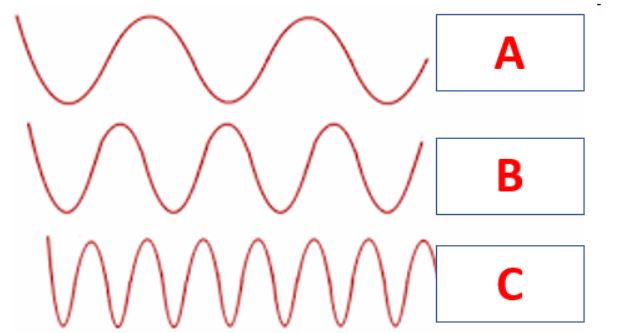

Which of the waves has the highest/most energy?
Which of the waves has the highest/most energy?
C
34
New cards
How is dose area product usually specified
In units of mGycm^2
35
New cards
When changing employment, what must a radiation worker convey to his/her new employer
Data pertinent to accumulated permanent equivalent dose to be placed on file
36
New cards
Photon wavelength is
inversely proportional to photon frequency
37
New cards
During what phase of mitosis are the centromeres severed followed by the sister chromatids moving apart and are then subsequently pulled toward opposite poles of the mitotic spindle
Anaphase
38
New cards
If the thyroid receives an absorbed dose of 0.3 Gy from an exposure to gamma radiation, what is the effective dose in Sv
.015 Sv
39
New cards
Which of the following are by-products of photoelectric absorption
Photoelectron and characteristic photon
40
New cards
Which of the following are advantages of the personnel digital ionization dosimeter
1. Instant access to reports
2. No waiting time for mailing dosimeters
3. Lightweight and durable
4. Can be dropped or scratched with little chance of harm to the device
1, 2, 3, and 4
41
New cards
The x-ray photon energy required to initiate pair production is
1.022 MeV
42
New cards
What do optically stimulated luminescence dosimeters, thermoluminescent dosimeters, pocket ionization chambers, and digital ionization dosimeters have in common
These devices are all used for personnel monitoring
43
New cards

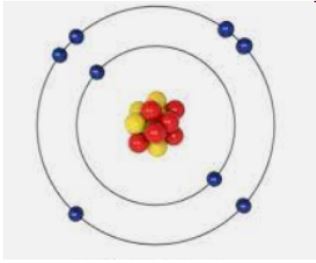

How many electrons are noted in this atom
How many electrons are noted in this atom
8
44
New cards
Whenever the letter "M" appears under the current monitoring period or in the cumulative columns of a personnel monitoring report, it signifies that a (an)
Equivalent dose below the minimum measurable radiation quantity was recorded during that time
45
New cards
The symbol Z indicates
Atomic number of an atom
46
New cards
Which of the following results in all-directional scatter
Compton interaction
47
New cards
Which component(s) of the Geiger-Muller survey meter alerts the operator to the presence of ionizing radiation
An audio amplifier and speaker
48
New cards
Photon energy and photon frequency are
directly proportional
49
New cards
Which of the following instruments generally has a check source of a weak, long-lived radioisotope located on one side of its external surface to verify its constancy daily
Geiger-Muller survey meter
50
New cards
Particles associated with electromagnetic radiation that have neither mass nor electric charge are
x-ray photons
51
New cards
The electron orbital shell that is known to be closest to the nucleus is the
K shell
52
New cards
In photoelectric absorption to dislodge an inner-shell electron from its atomic orbit, the incoming x-ray photon must be able to transfer a quantity of enegy
as large as or larger than the amount of energy that holds the electron in its orbit
53
New cards
Which of the following is not a type of interaction between x-radiation and biologic matter
Bremsstrahlung
54
New cards
Which of the following is NOT a requirement that radiation survey instruments must meet
They must all be equally sensitive in the detection of ionizing radiation
55
New cards
Alpha particles have a radiation weighting factor (Wr) that is numerically equal to
20
56
New cards
What is the most common unit of measure of equivalent dose
Millisievert
57
New cards
If an atom is considered stable this means
It contains equal numbers of protons and electrons
58
New cards
Which of the following devices contains an aluminum oxide detector
Optically stimulated luminescence dosimeter
59
New cards
Three different filters are incorporated into the detector packet of the optically stimulated luminescence (OSL) dosimeter. These filters are respectively made of
1. Aluminum
2. Copper
3. Molybdenum
4. Rhenium Tungsten
5. Tin
1, 2, and 5 only
60
New cards
What is the tissue weighting factor for breast
.05
61
New cards
Which of the following terms refers to the radiation that occurs when an electron spontaneously drops down from an outer shell of an ionized atom to fill a vacancy in an inner shell of that atom
Characteristic photon, or characteristic x-ray
62
New cards
What unit is used to measure radiation exposure in the metric International System of Units
Coulomb per kilogram
63
New cards
During the process of coherent scattering, an incident low-energy x-ray photon interacts with
an atom and may transfer its energy by causing some or all of the electrons of the atom to momentarily vibrate and radiate energy in the form of electromagnetic waves
64
New cards
Which of the following formulas is used to calculate effective dose:
1. EfD = (D x Wr)1 + (D x Wr)2 + (D x Wr)3
2. EfD = D x Wr x Wt
3. EfD = D / Wr x Wt
2 only
65
New cards
During which of the following subphases of mitosis do the centrioles migrate to opposite sides of the cell and begin to regulate the formation of the mitotic spindle
Prophase
66
New cards
The x-ray tube consists of a (an) _____ and a (an) _____
Anode and cathode
67
New cards
Which side of the tube is considered the "negative" side

Cathode
68
New cards
What does the "cathode" side of the tube do
Produce a thermionic cloud, conduct the high voltage to the gap between cathode and anode, and focus the electron stream as it heads for the anode
69
New cards
What does the cathode assembly consist of
Filament(s), focusing cup, and associated wiring
70
New cards
Why is tungsten the metal of choice with regards to the filament
High melting point and difficult to vaporize
71
New cards
How many filaments does an x-ray tube have
1 or 2
72
New cards
What is the purpose of the focusing cup
Houses filament and narrows thermionic cloud as it is driven toward anode
73
New cards
What is the focusing cup made from
Nickel
74
New cards
As more and more electrons build up, what is their tendency to do
The negative charges begin to oppose the emission of additional electrons; electrons tend to diverge, not travel in straight lines
75
New cards
What is the name of the phenomenon of electrons not traveling in straight lines because of negative charges opposing emission of more electrons
Space charge effect
76
New cards
Which side of the tube is considered "positive"
Anode
77
New cards
What does the anode assembly consist of
Anode, stator, and rotor
78
New cards
What are some of the anode functions
Serves as a target surface for electrons from filament, conducts high voltage from x-ray generator, and is primary thermal conductor
79
New cards
Does the rotor spin for all x-ray tubes
No, only rotating anodes have a spinning rotor. Stationary tubes are low power with no spinning rotor
80
New cards
If the rotor turns, how fast and why
7 - 50 microseconds; the faster the anode rotates, the greater the dissipation
81
New cards
What is the target focal tract made of
Tungsten - rhenium alloy
82
New cards
Why is tungsten the choice of metal for the target tracts
High atomic number, high melting point, and heat conducting ability
83
New cards
What is the function of the focal spot
Area of focal tract impacted by electron beam at one time
84
New cards
Line focus principle refers to
Reducing effective area of focal spot; permits the best resolution of detail while permitting as large an actual area as possible to increase thermal conductivity
85
New cards
The effective focal spot is controlled by the size of the actual focal spot. What two things control this
length of filament and anode target angle
86
New cards
Due to the anode heel effect, which side of the beam is more intense
Cathode
87
New cards
What is the stator comprised of
Induction-motor electromagnets
88
New cards
What does the stator do
Turn the anode
89
New cards
Where is the stator located
Outside the vacuum of the envelope
90
New cards
Where is the rotor located
Inside the stator and inside the envelope
91
New cards
What is the glass envelope made of
Several different types of heat-resistant pyrex glass
92
New cards
At what point does the primary beam exit the envelope
Window segment
93
New cards
What is the primary function of the vacuum
Remove air to permit electrons to flow from cathode to anode without encountering the gas atoms of air
94
New cards
What is the job of the housing around the x-ray tube
Control leakage and scatter radiation, isolate the high voltages, and provide a means to cool the tube
95
New cards
Leakage radiation must not exceed
100 mR/hr, at 1 meter
96
New cards
Off Focus radiation is composed of
Photons that were not produced at the focal spot
97
New cards
Consequences of ionization in human cells include
1. Creation of atoms
2. Production of free electrons
3. Creation of highly reactive free radicals capable of producing substances poisonous to the cell
4. Creation of new biologic molecules detrimental to the living cell
5. Injury to the cell that may manifest itself as abnormal function or loss of function
1, 2, 3, 4, and 5
98
New cards
X-rays are a form of which of the following kinds of radiation
Ionizing
99
New cards
Which of the following is a method of explaining radiation to the public
BERT
100
New cards
Which of the following radiation quantities is intended to be the best overall measure of the biologic effects of ionizing radiation
Effective dose
