Simplified naming instruments

Amalgam Carrier - Double Ended

To carry + dispense amalgam into cavity preparation

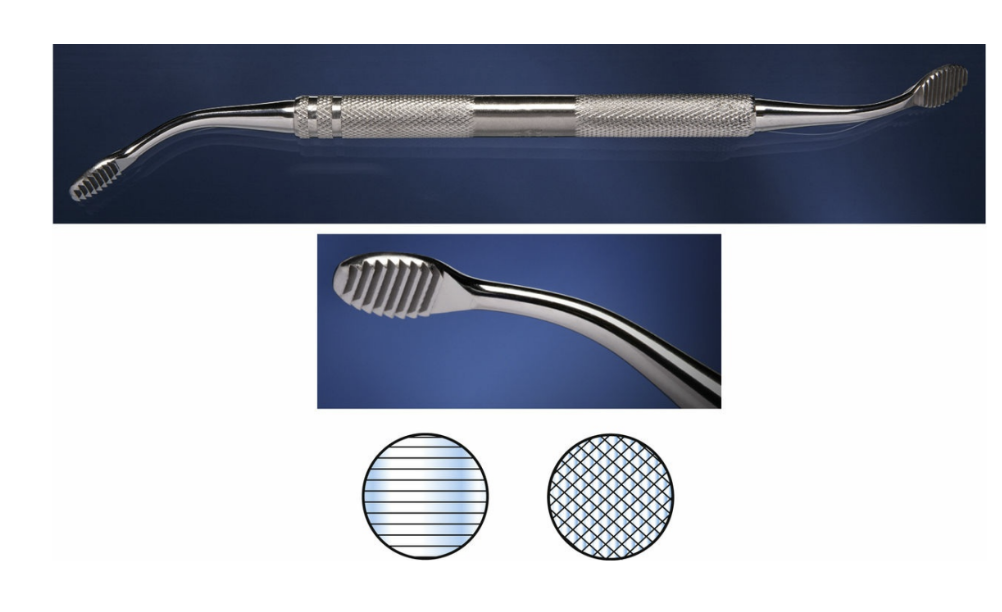

Amalgam Condenser

To pack + condense amalgam into cavity preparation

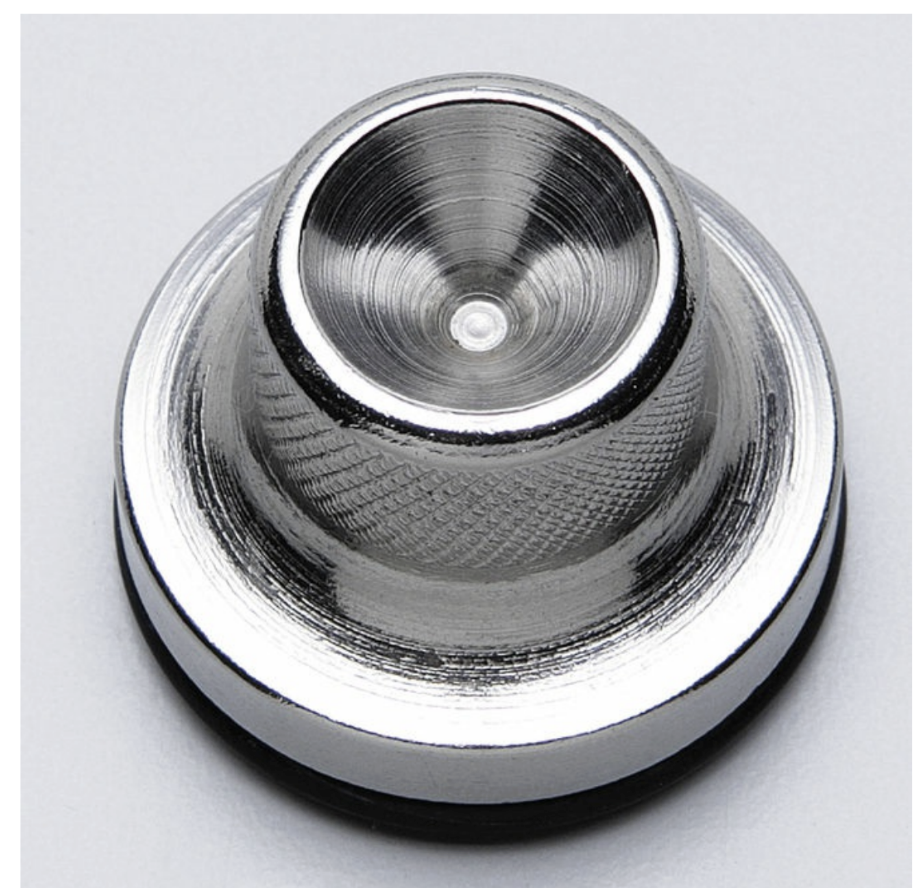

Amalgam Well

To hold amalgam before it is placed in preparation

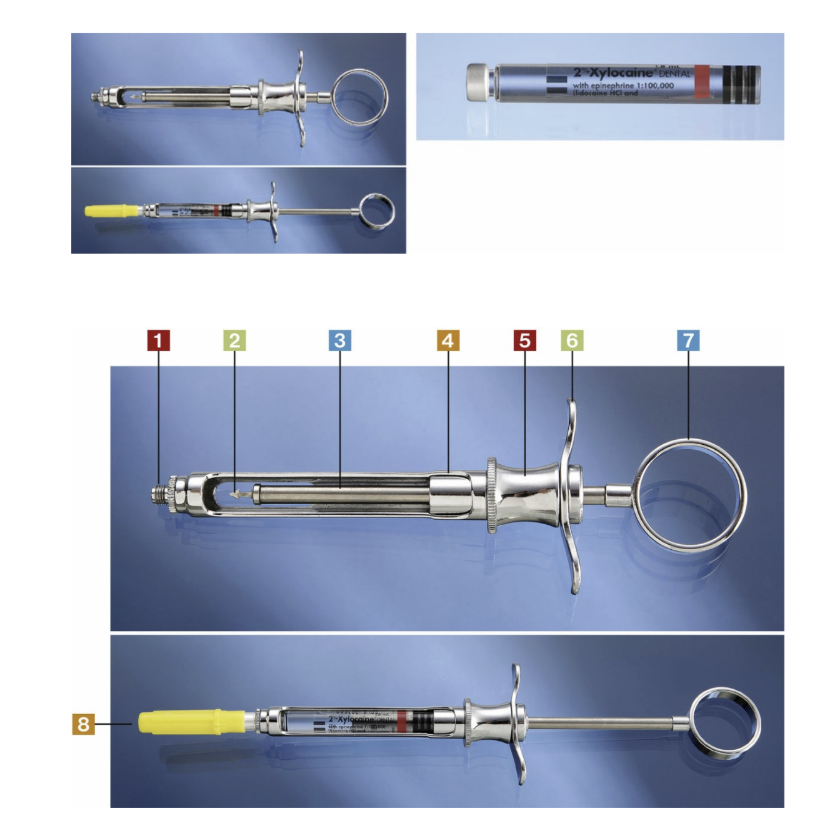

Anesthetic Aspirating Syringe

To administer a local anesthetic

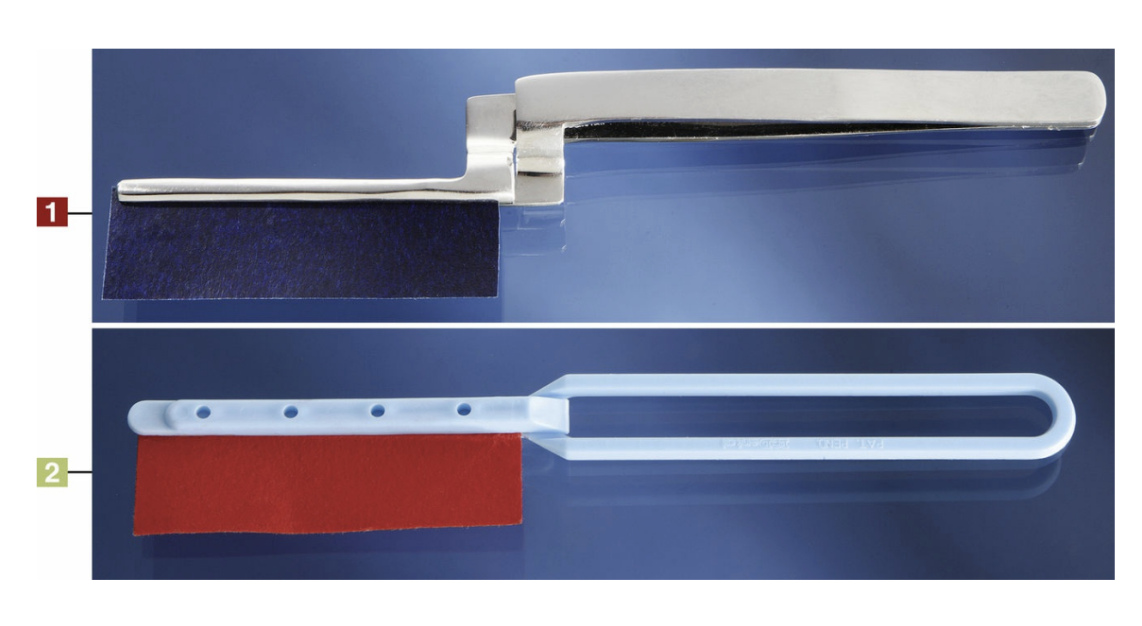

Articulating Paper Holder with paper

To hold articulating paper in place

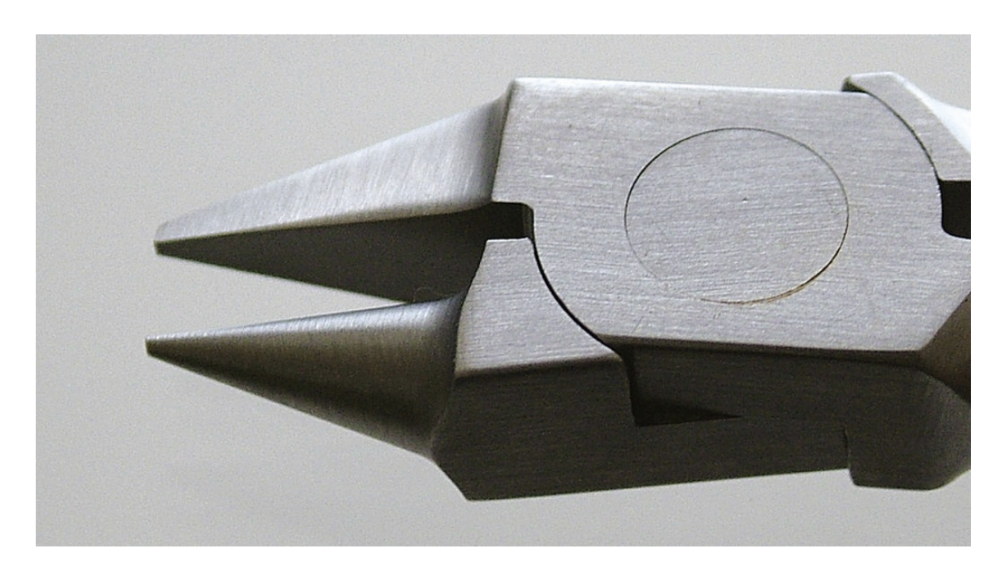

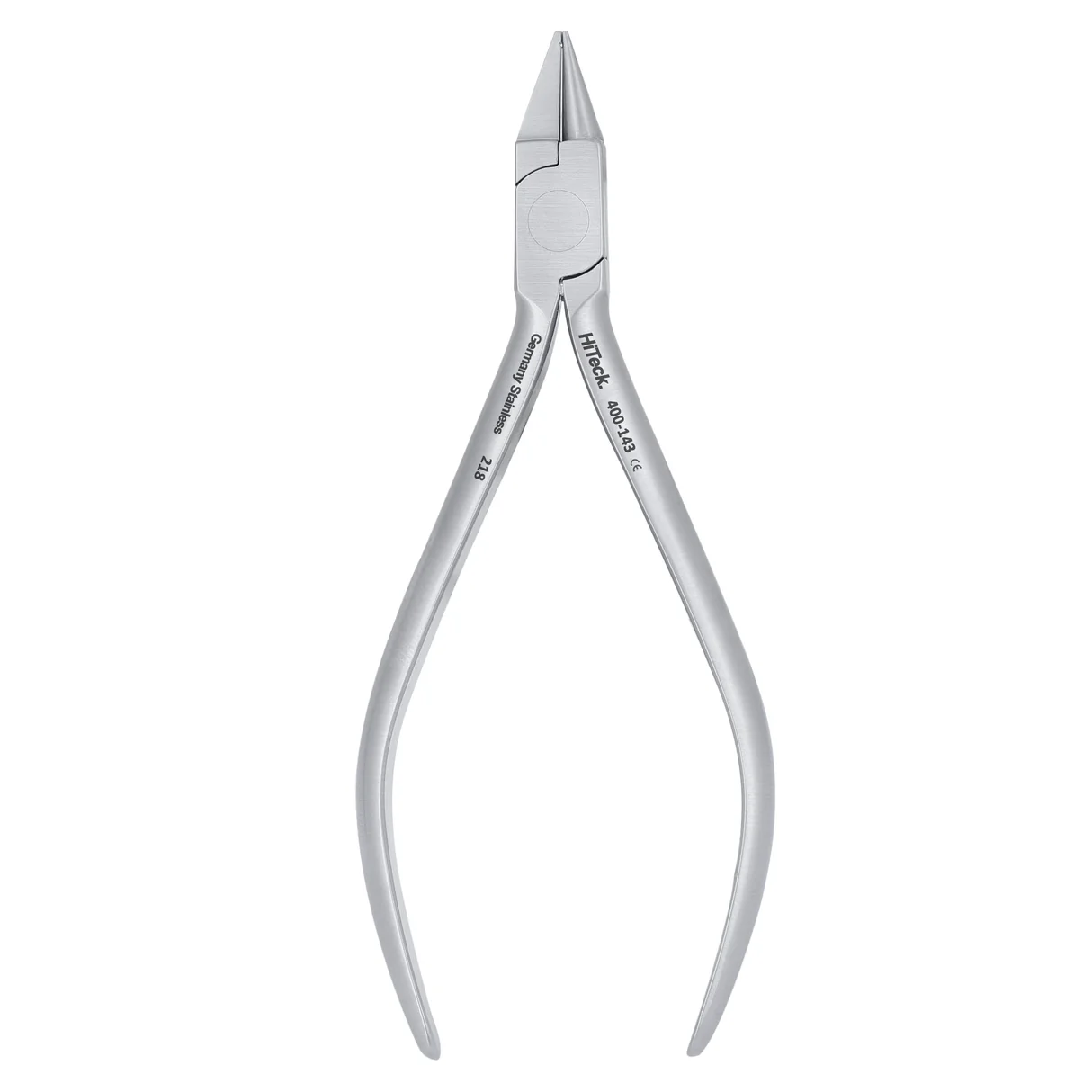

Bird Beak Pliers

To bend and form orthodontic wire

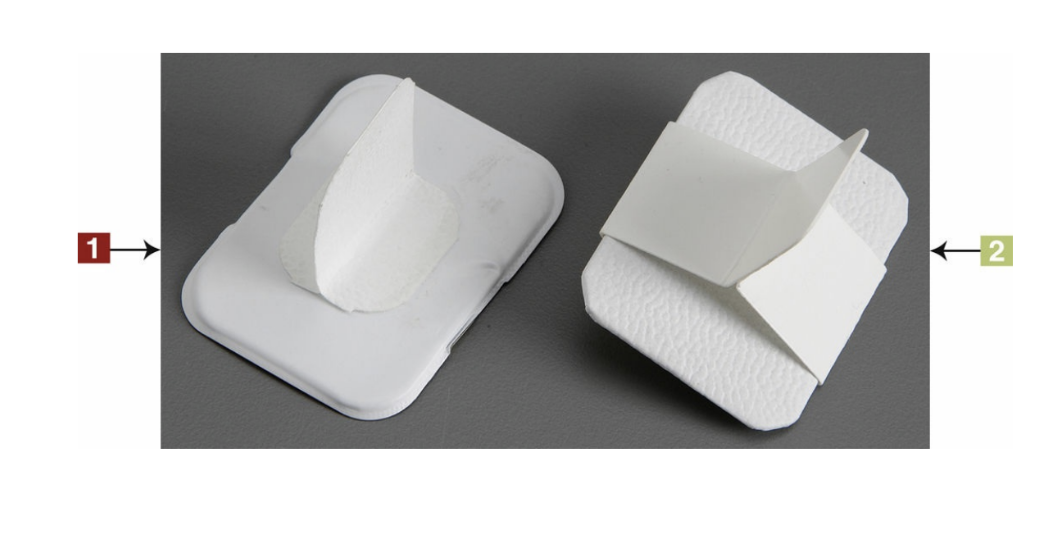

Bite-Wing Tabs

To take a bite-wing radiograph projection

Bone File

To remove or smooth rough edges of alveolar bone

Burnisher – Acorn

Used for forming and defining occlusal (biting surface) anatomy

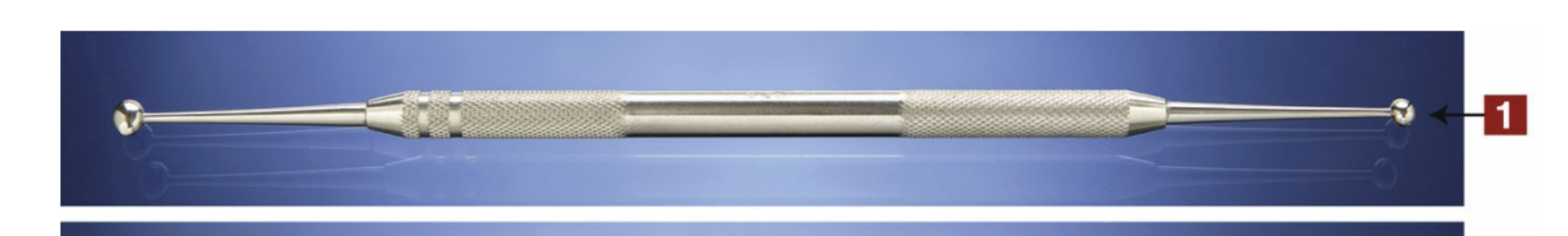

Burnisher – Ball

Used for smoothing amalgam after condensation

Burnisher – Football

Used for shaping and polishing interproximal surfaces (between teeth)

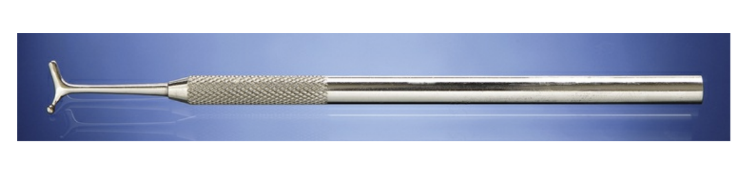

Burnisher – T- Ball

To burnish temporary filling material

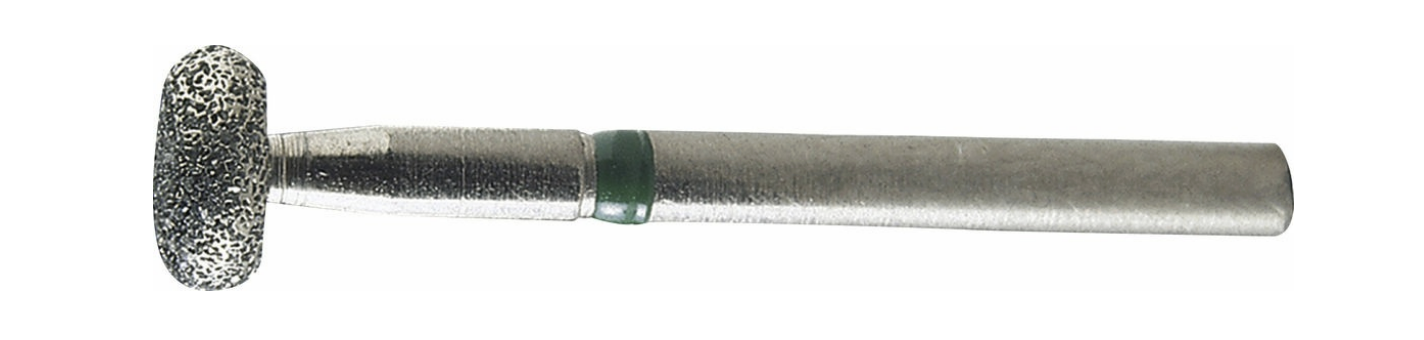

Burs – Finishing

To equilibrate or adjust occlusion

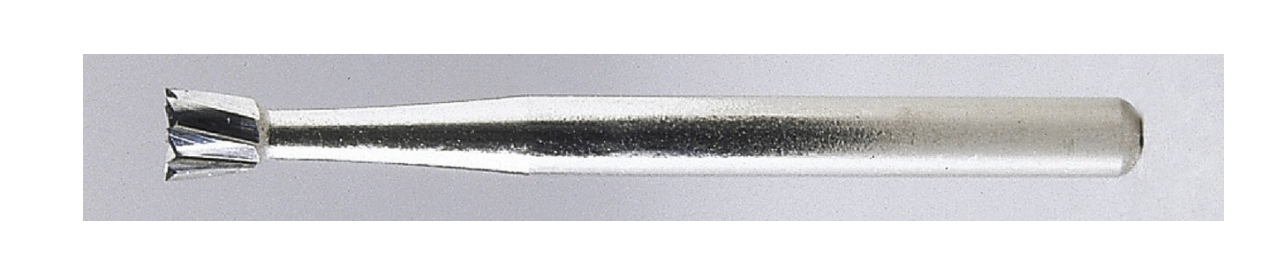

Burs – Inverted Cone

To finish composite restoration

Burs – Pear-Shaped

To remove caries

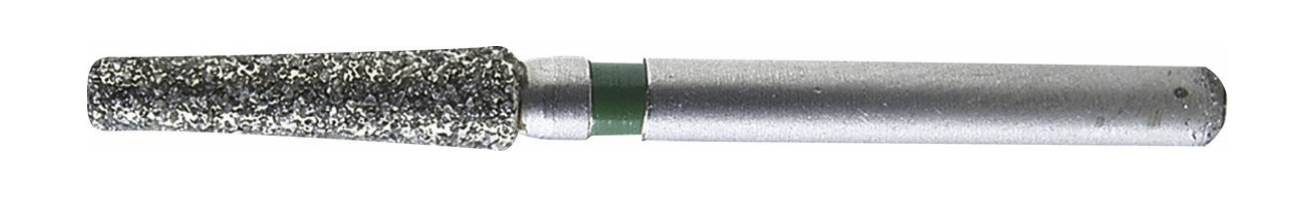

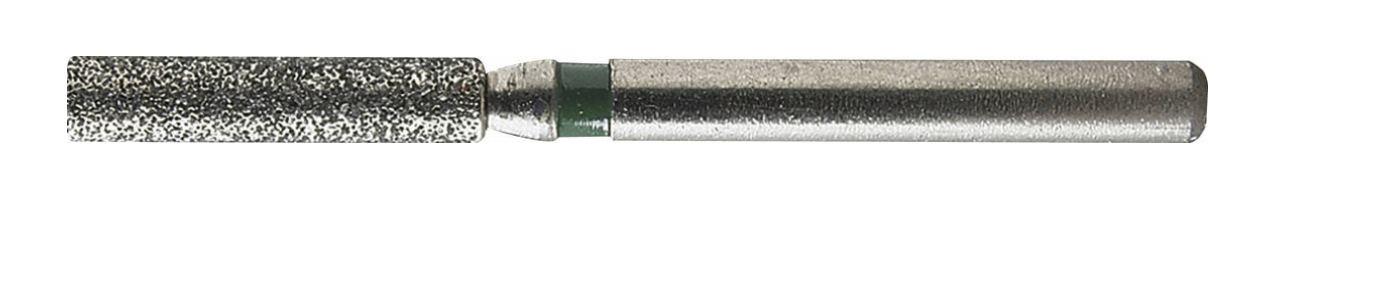

Burs - Diamond

To reduce a tooth for crown preparation

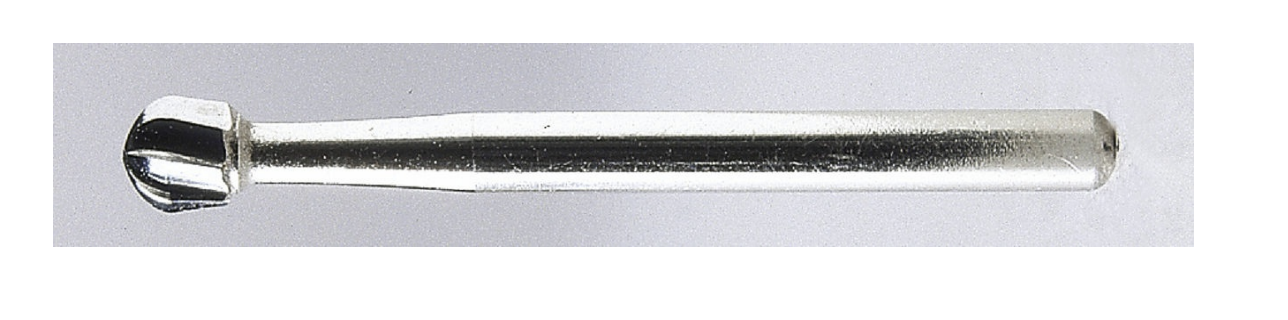

Burs - Round

To open tooth for endodontic treatment

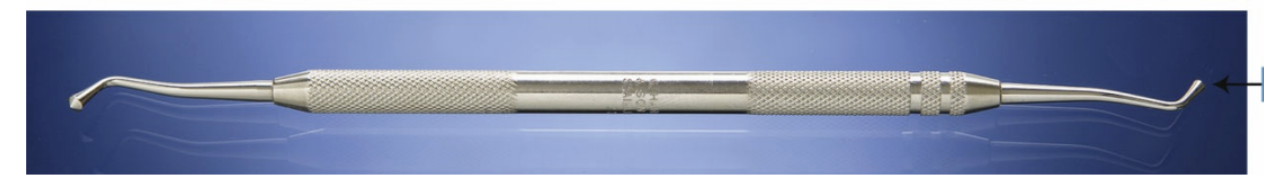

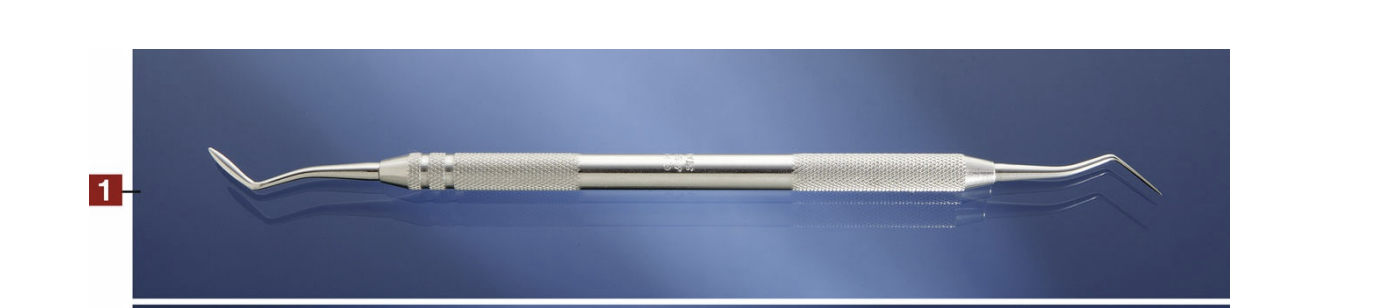

Carvers - Hollenback

Functions:

To contour and carve restorative materials

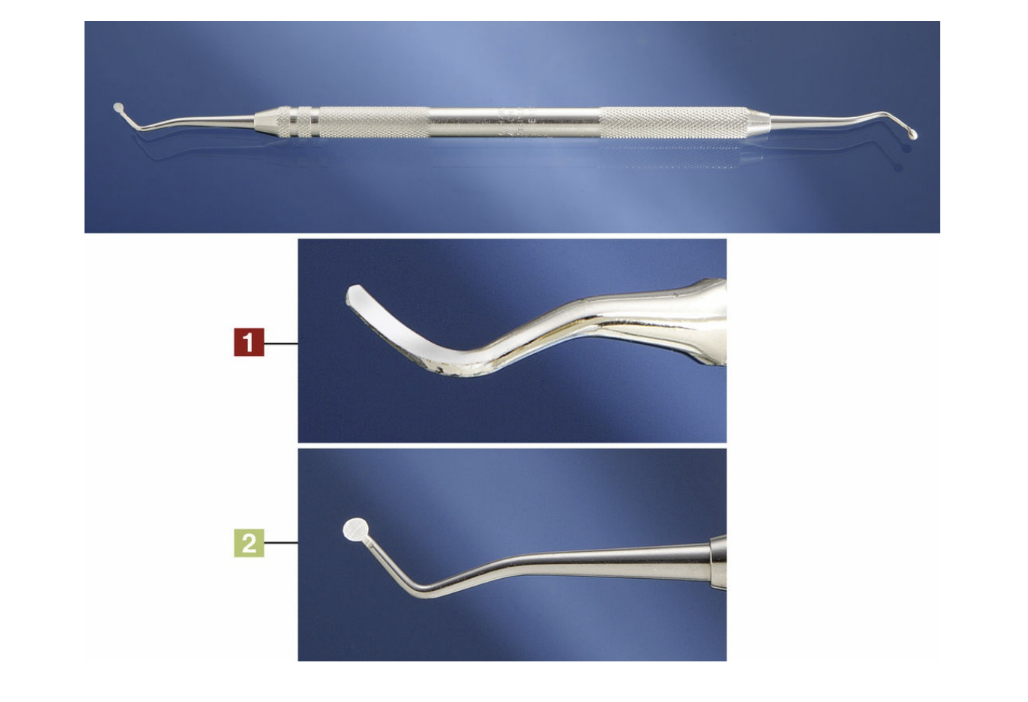

Carvers- Discoid-Cleoid

1 is discoid end, 2 is cleoid end

To carve occlusal anatomy into amalgam restorations

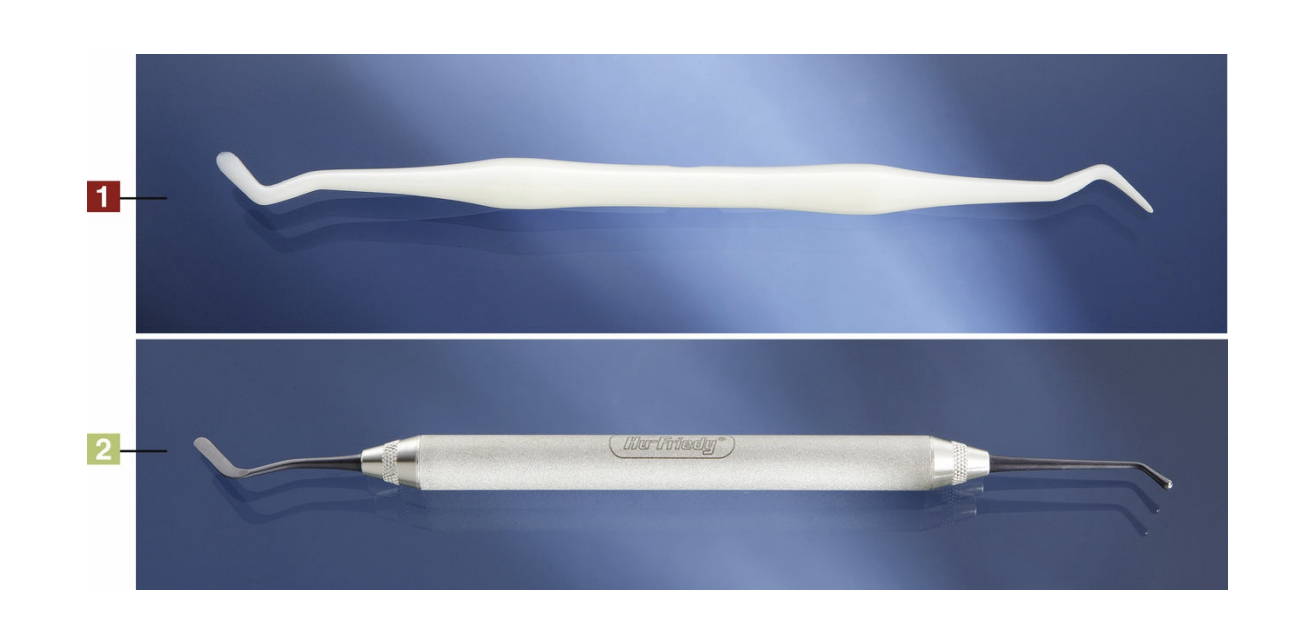

Composite Placement Instrument

1 is plastic, 2 is metal

To place, condense, and carve composite material in cavity preparation

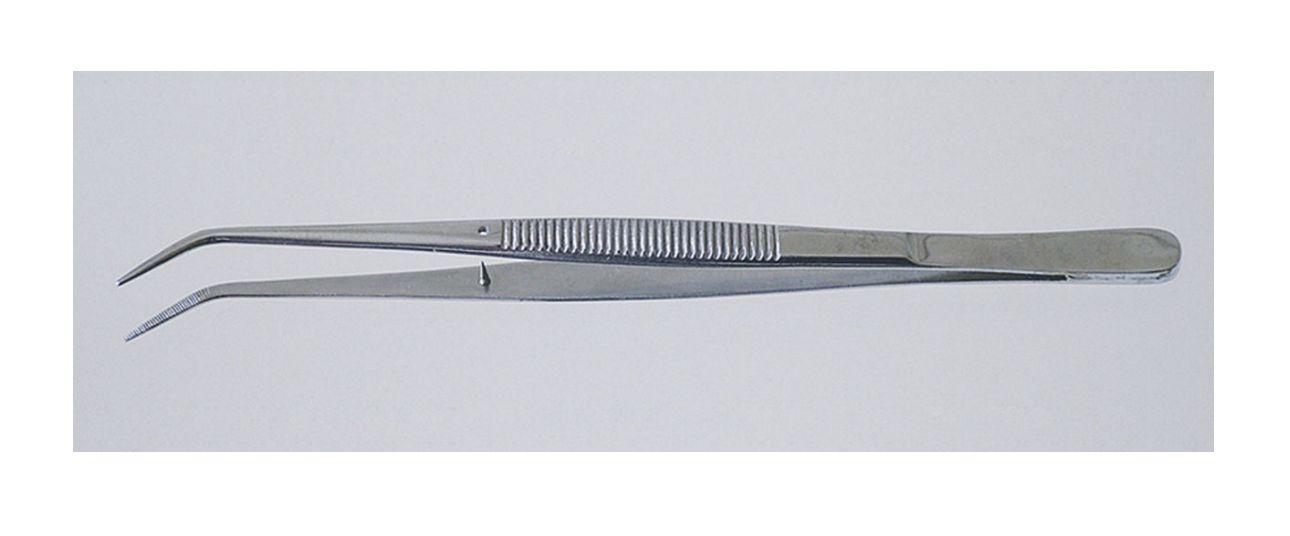

Cotton Forceps (pliers)

To manipulate + transfer materials in/out of oral cavity

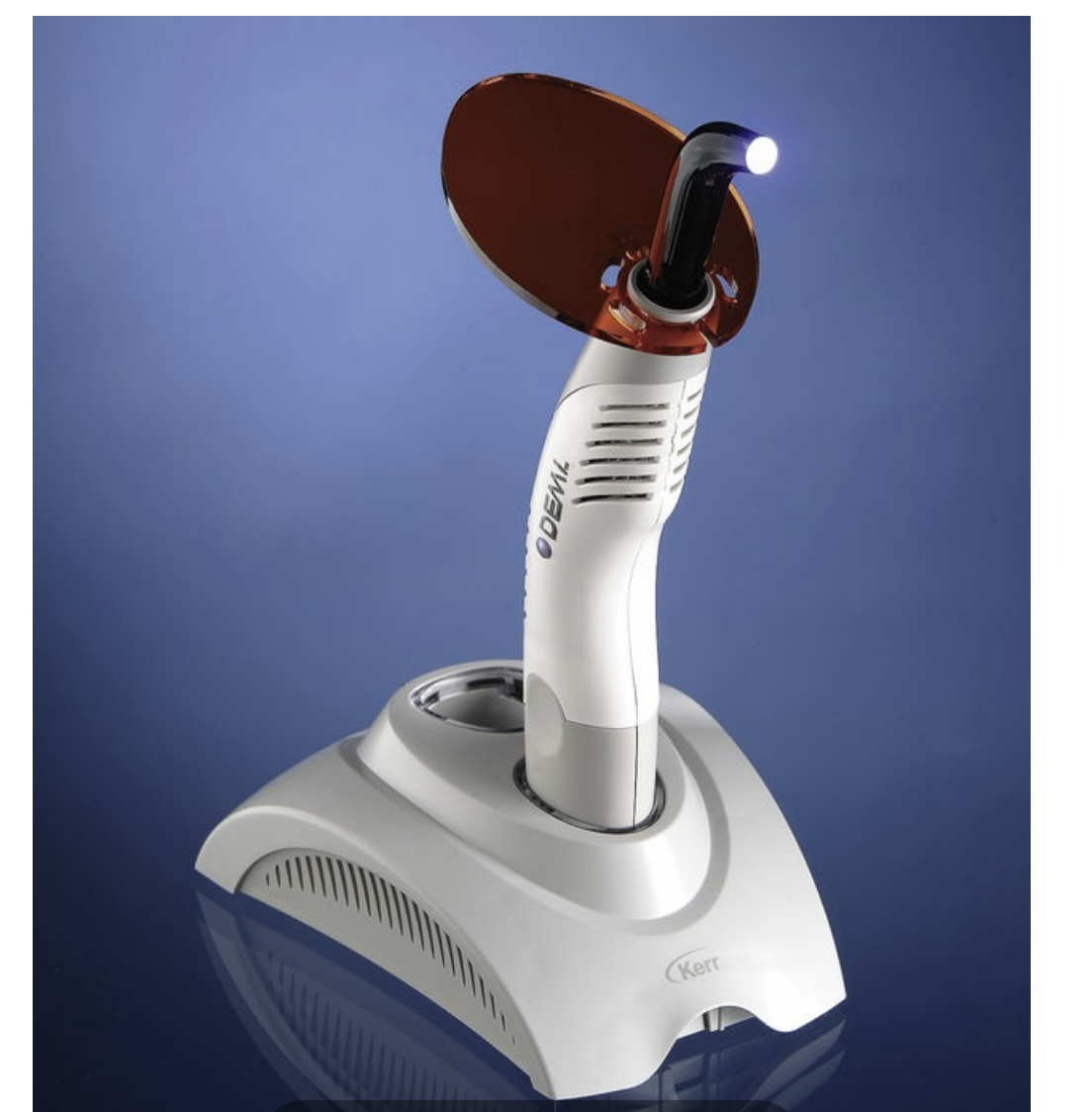

Curing Light

Used to "set" light-cured materials

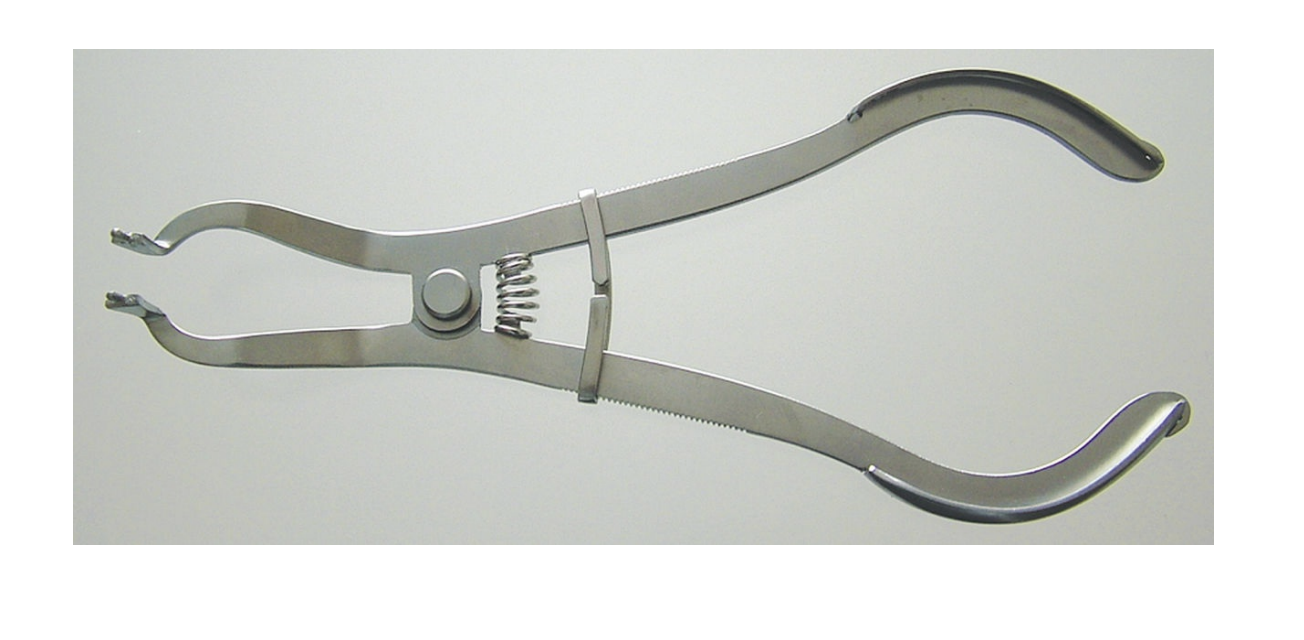

Dental Dam Forceps

Used to place and remove the dental dam clamp

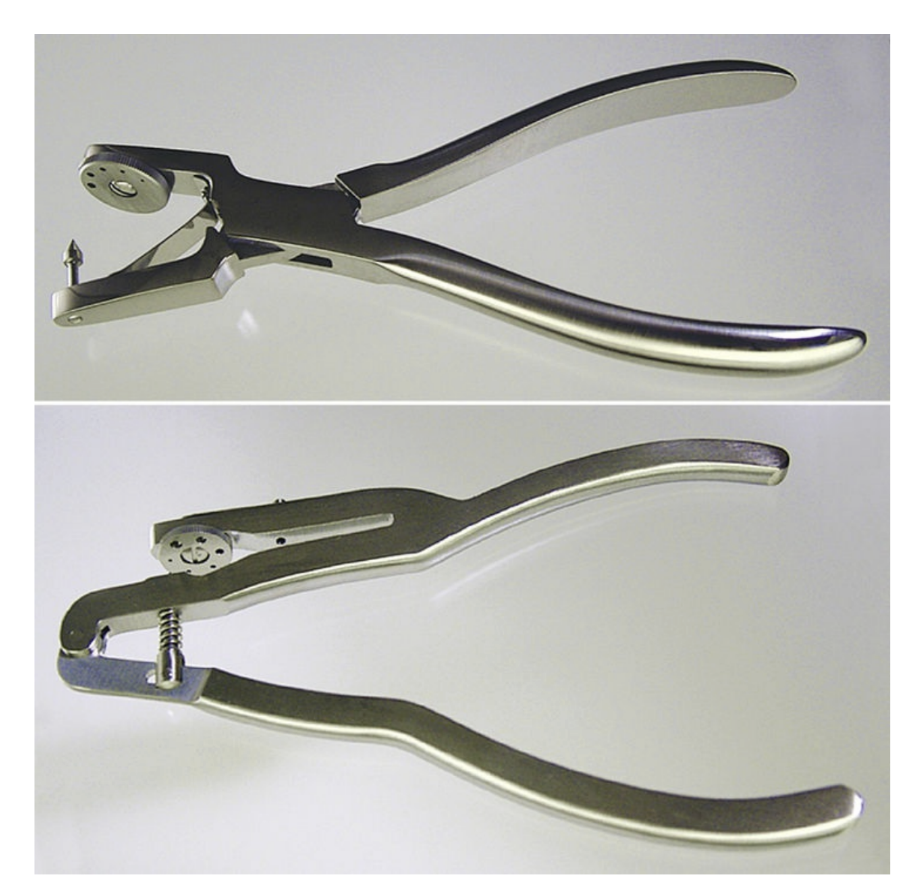

Dental Dam Punch

To punch holes in dental dam for each individual tooth

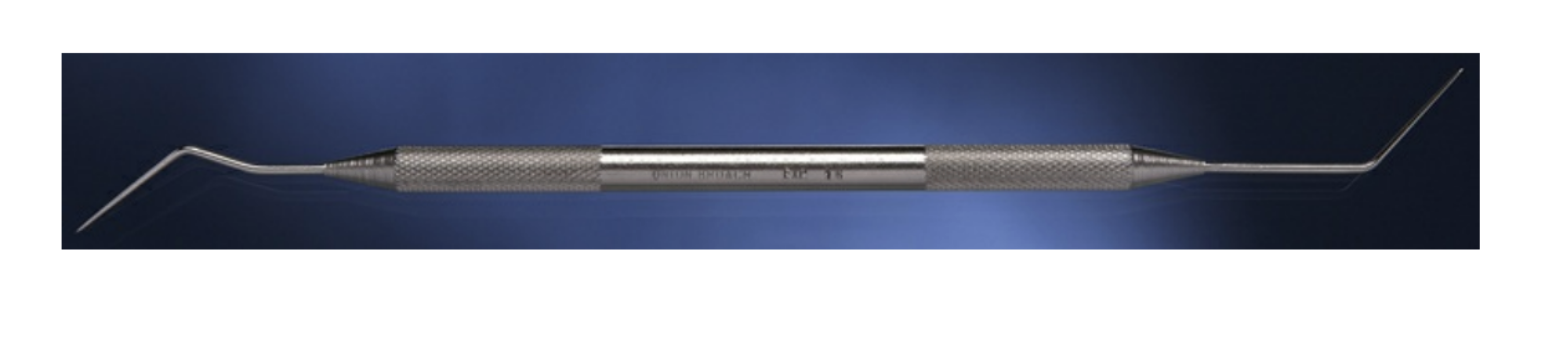

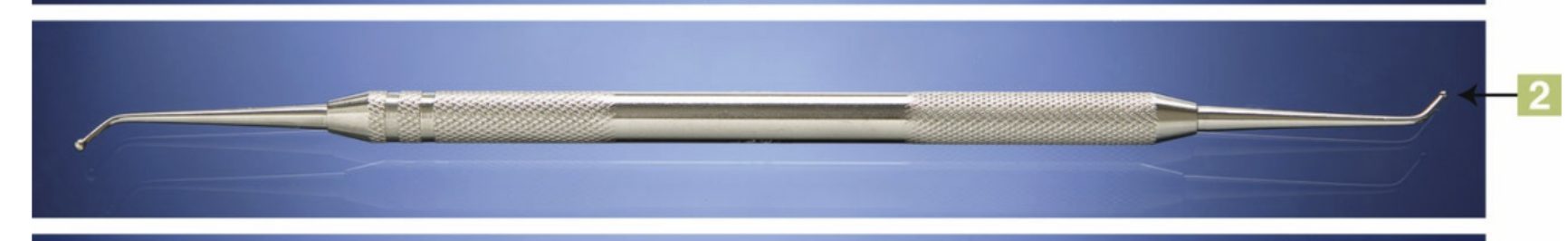

Endodontic Explorer
Helps locate canal openings

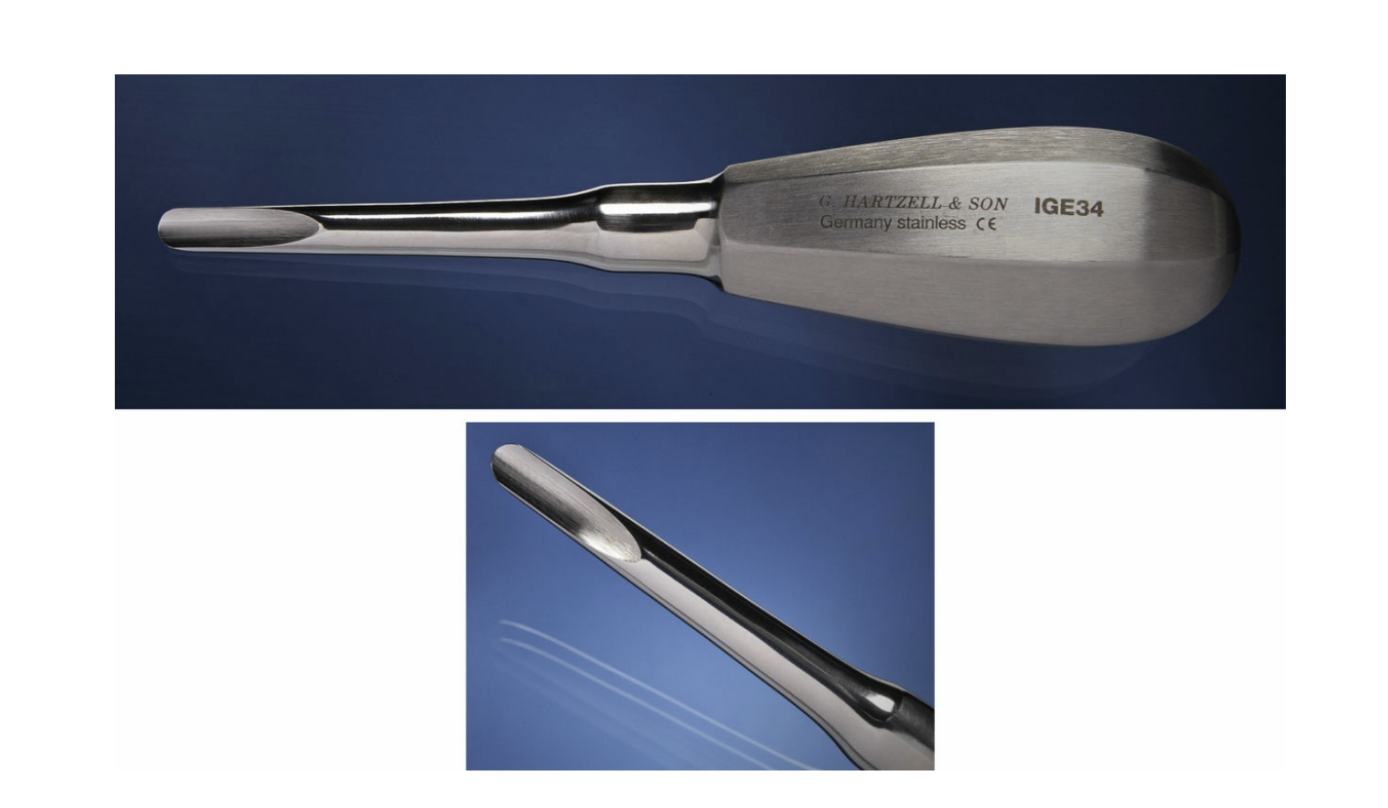

Elevators - Straight

To separate and lift tooth from socket

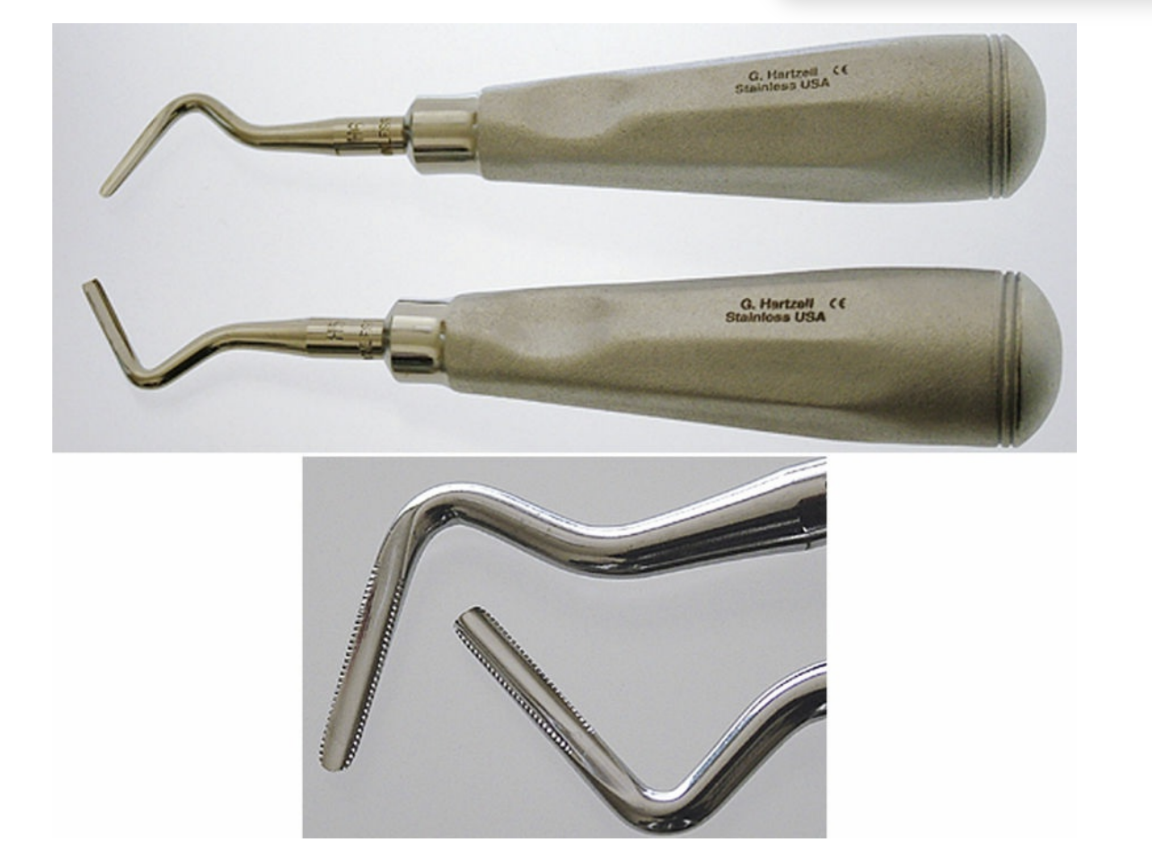

Elevators – Root-Tip

To lift and remove fragments of root

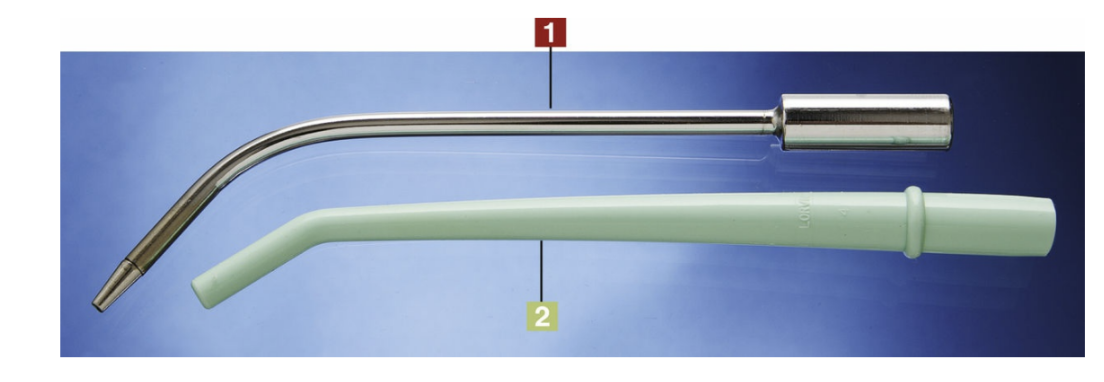

Evacuation Tip High-Volume

To evacuate fluid from oral cavity and surgical site

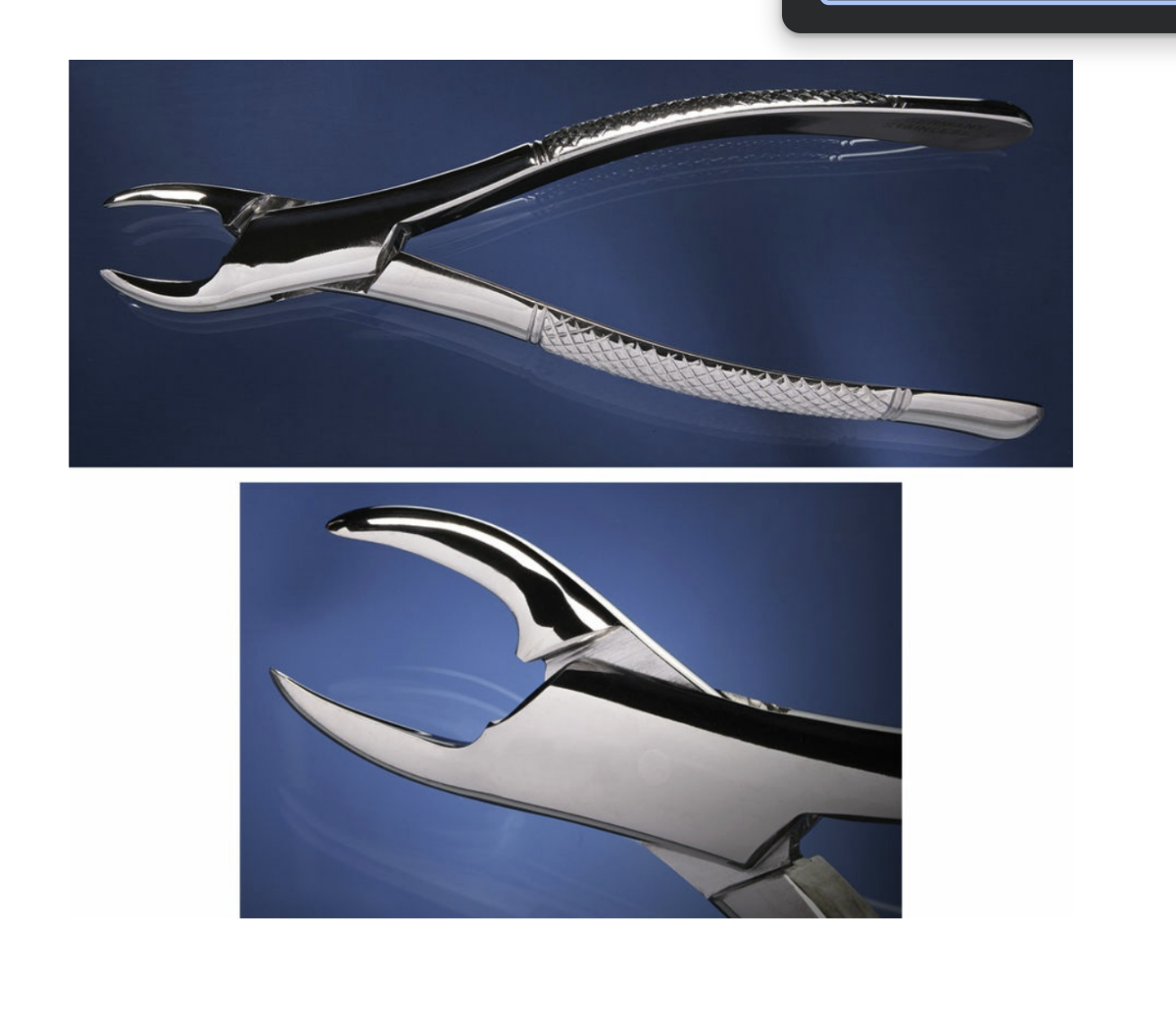

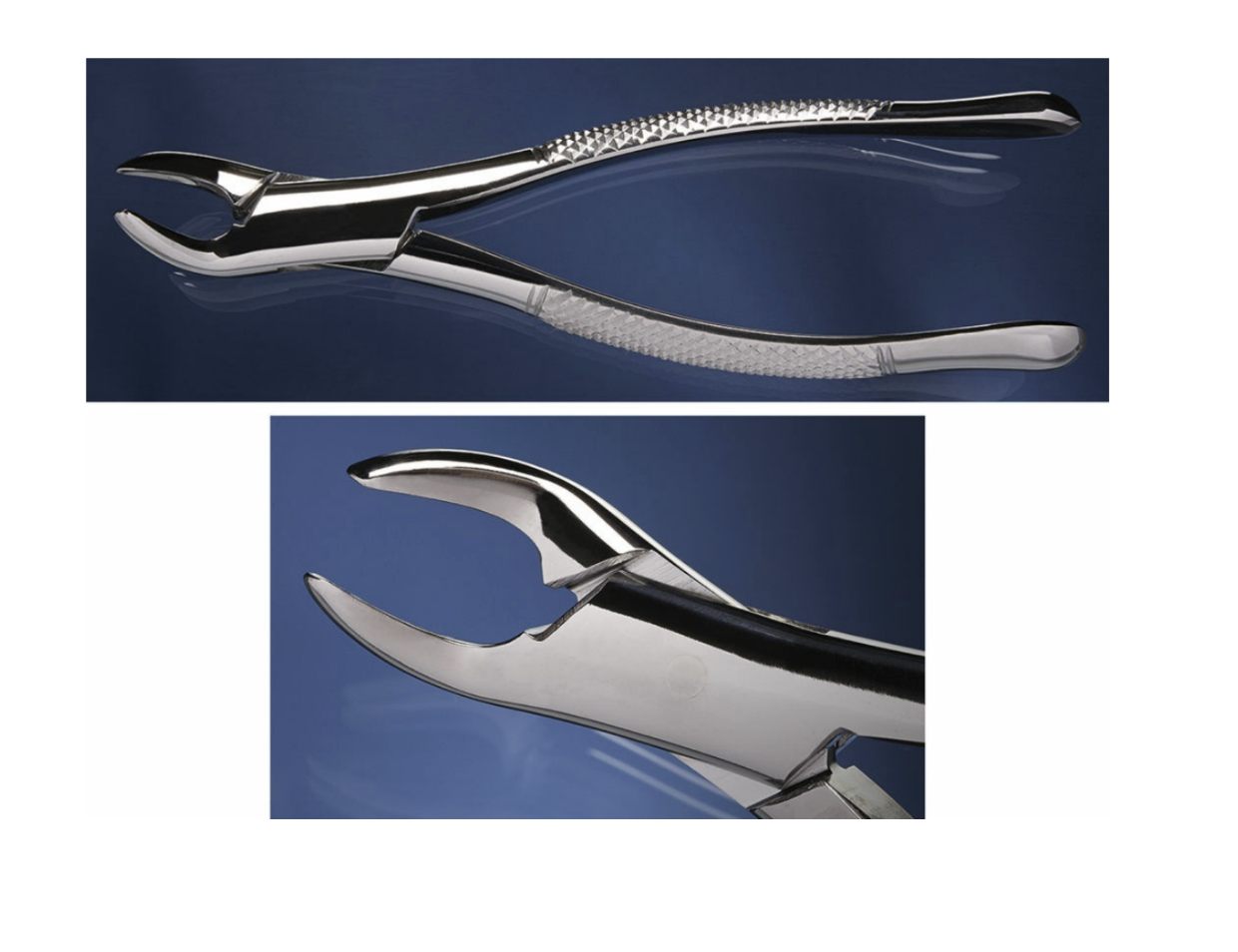

Forceps- Mandibular Universal – Cryer 151

To extract mandibular teeth

Straighter overall

Forceps- Maxillary Universal – Cryer 150

To extract maxillary teeth

More curved overall

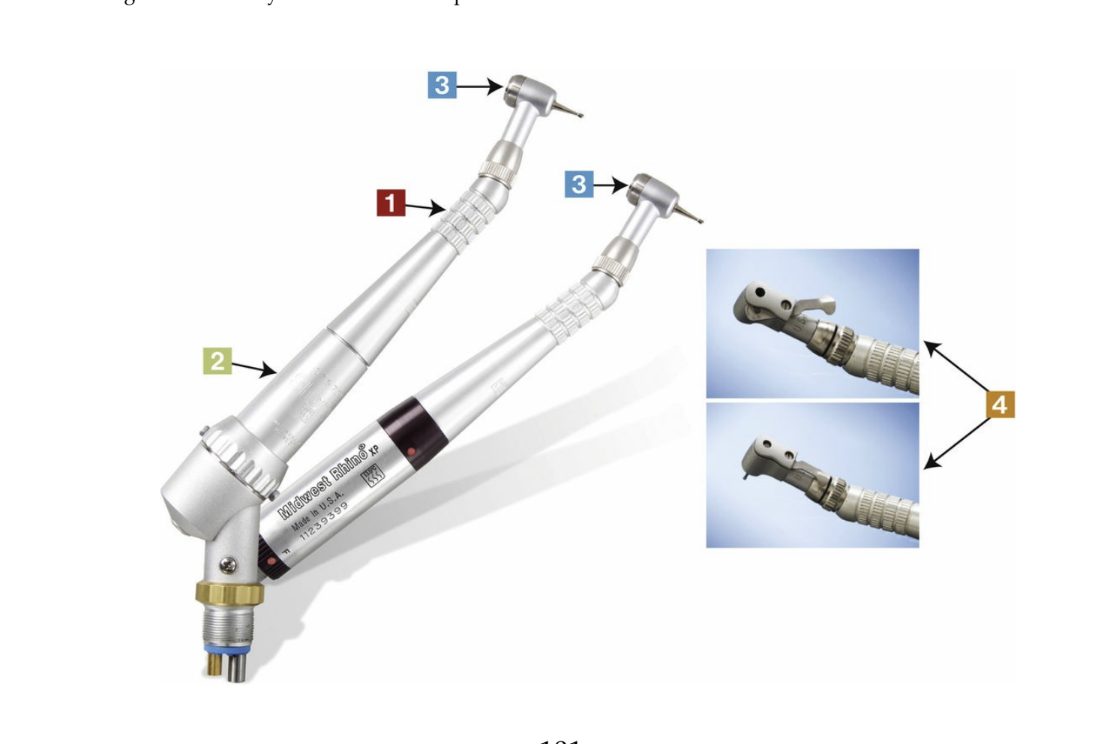

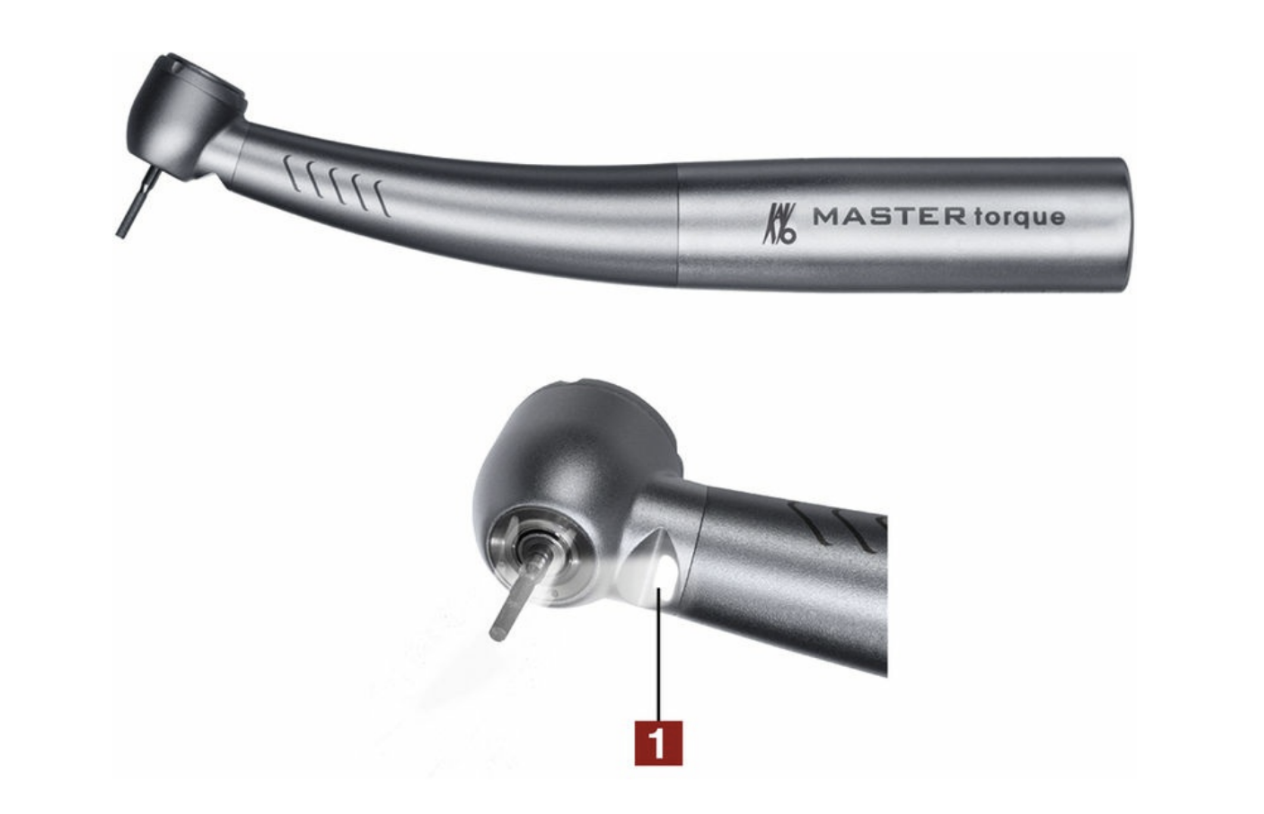

Handpieces -Fiberoptic High-Speed

To illuminate tooth during preparation for restoration

This one has a light

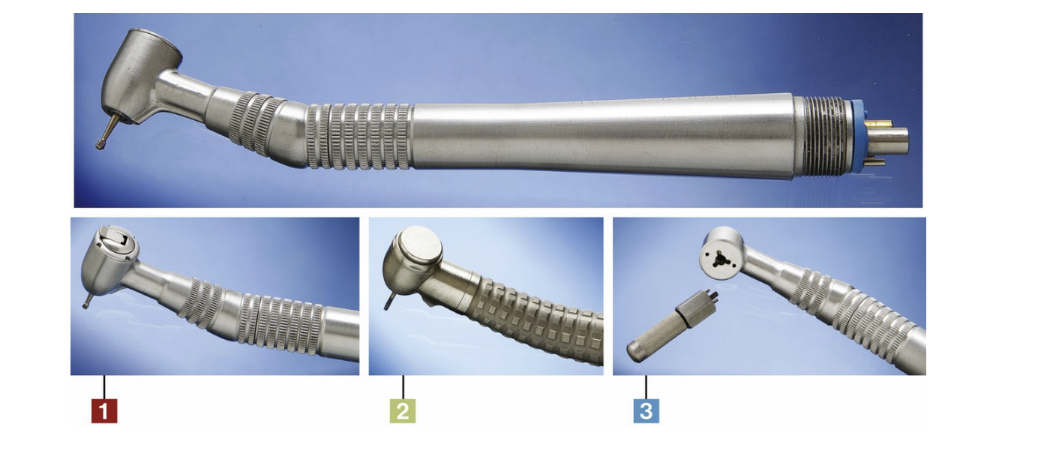

Handpieces – High-Speed

To use with bur to cut tooth structure

Handpieces – Slow Speed with Contra Angle Attachment

To use with burs for intraoral and extraoral procedures to remove decay

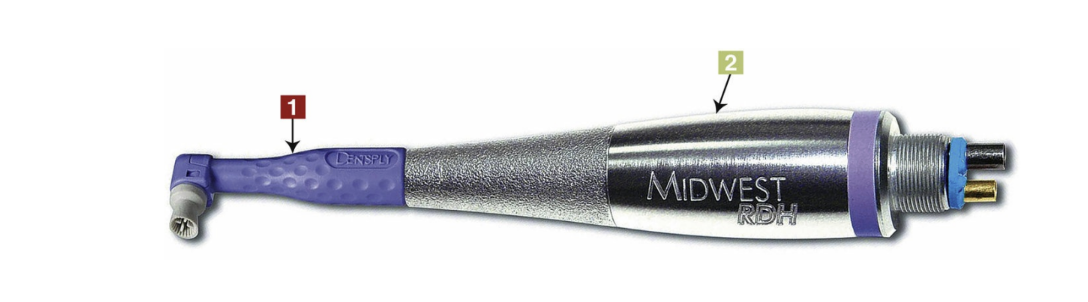

Handpieces – Slow Speed with Prophy Angle Attachment

To polish teeth with prophylaxis/prophy cup or brush attachment

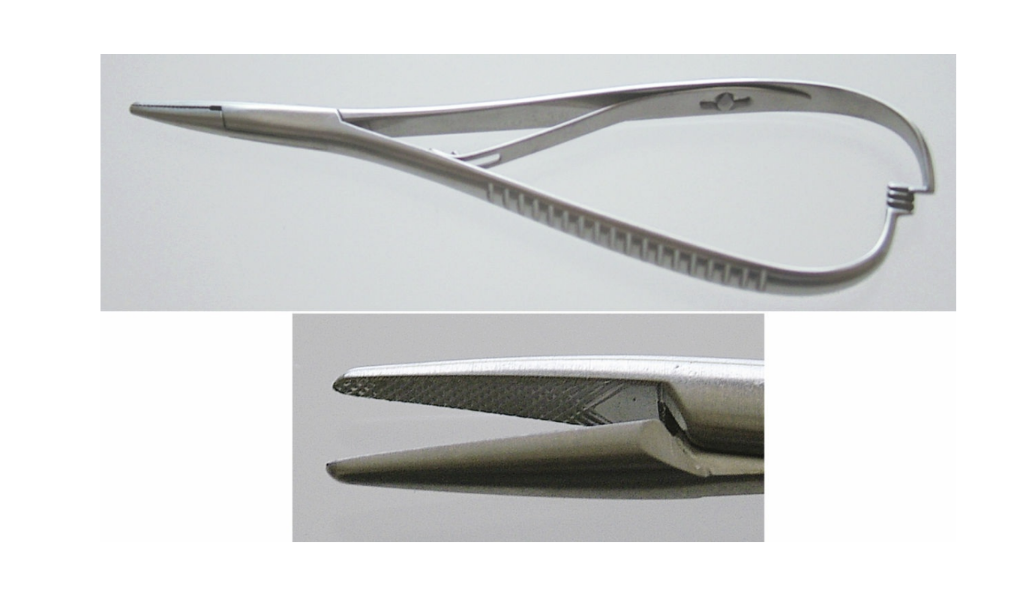

Hemostat

To hold and place separators

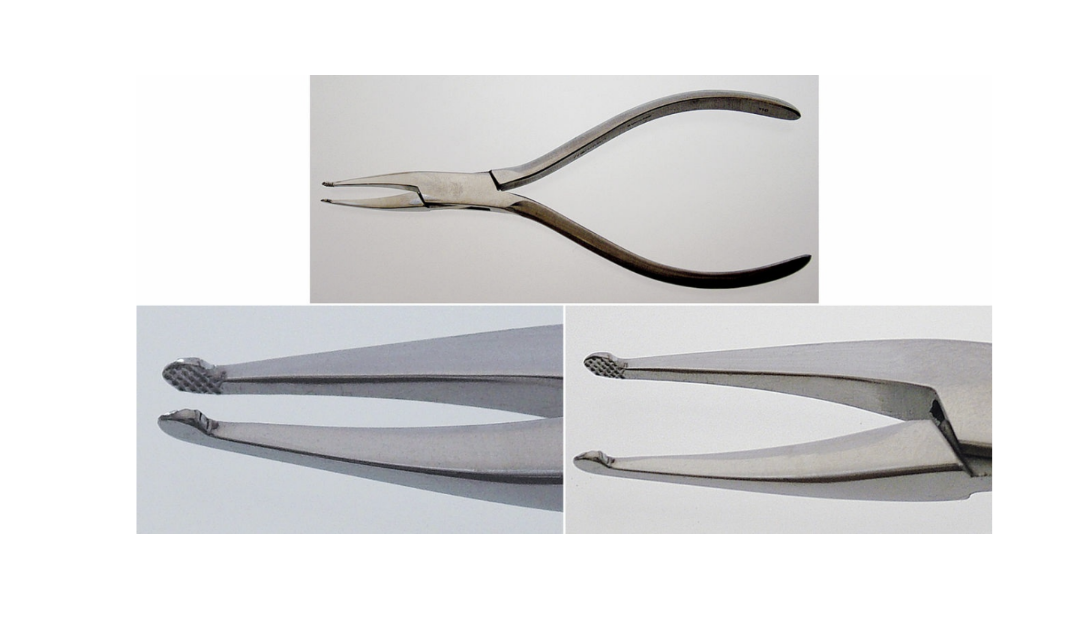

Howe (or How) Pliers

To check for loose bands

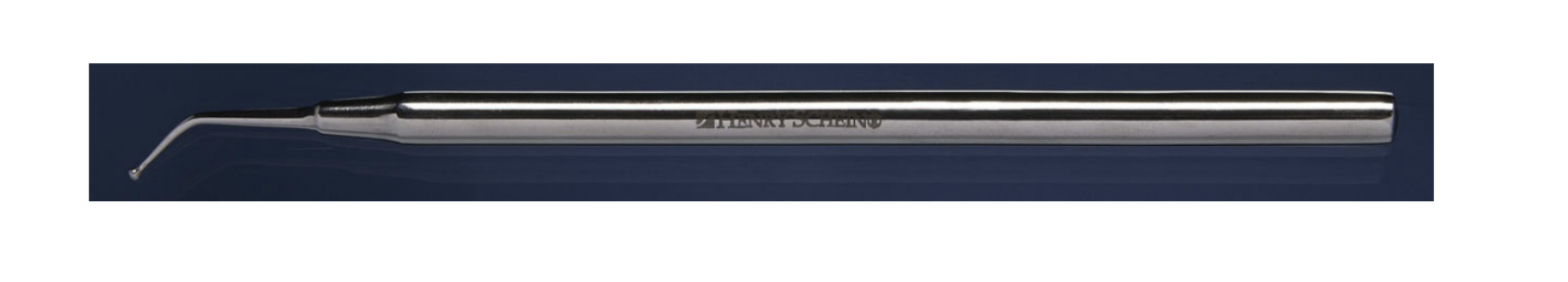

Liner Applicator

To place dental liner material (e.g. calcium hydroxide) in cavity preparation

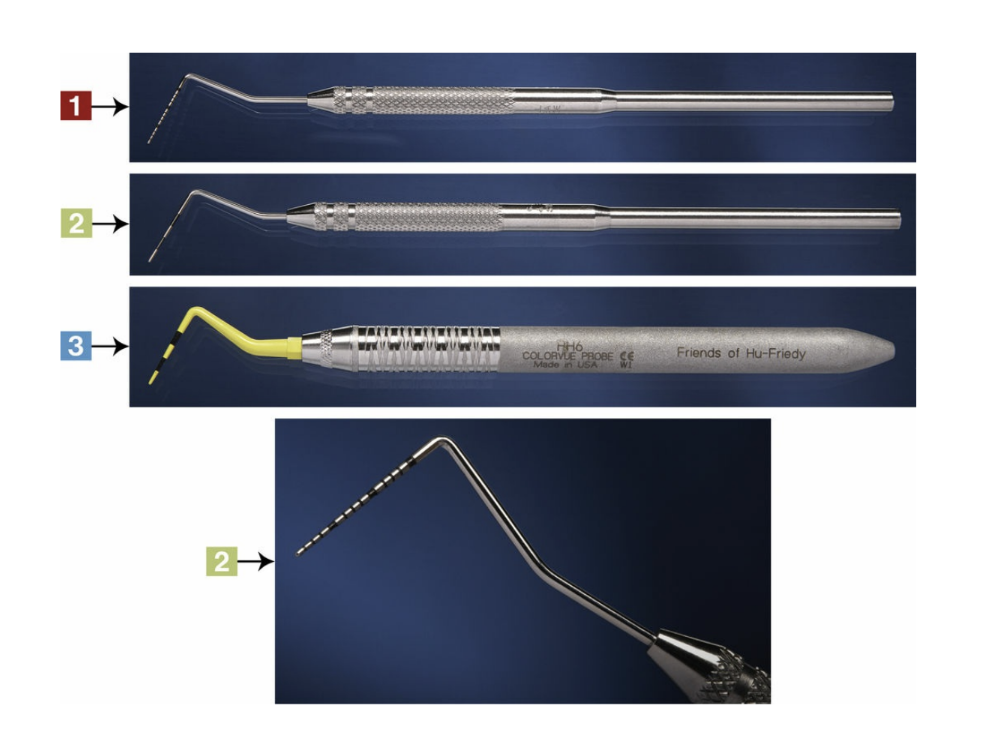

Periodontal Probe

To measure periodontal pocket depth in mm increments

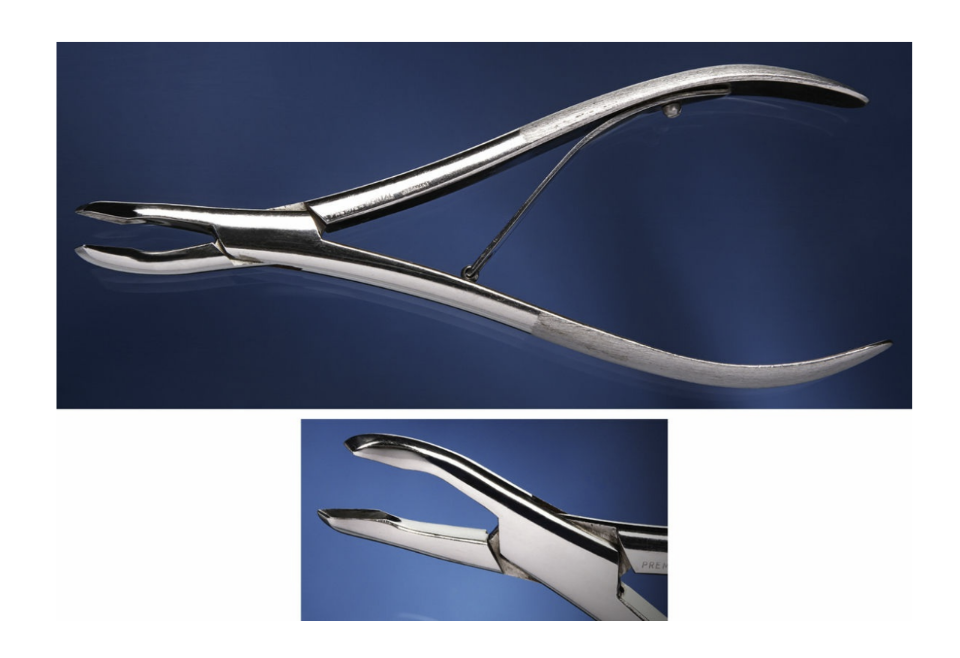

Rongeurs

To trim and remove excess alveolar bone after extraction of teeth

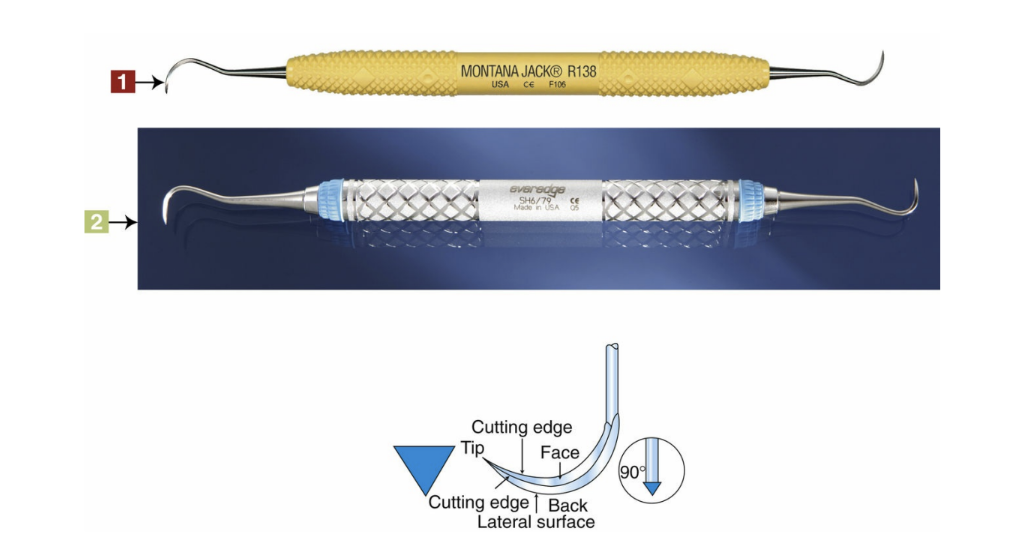

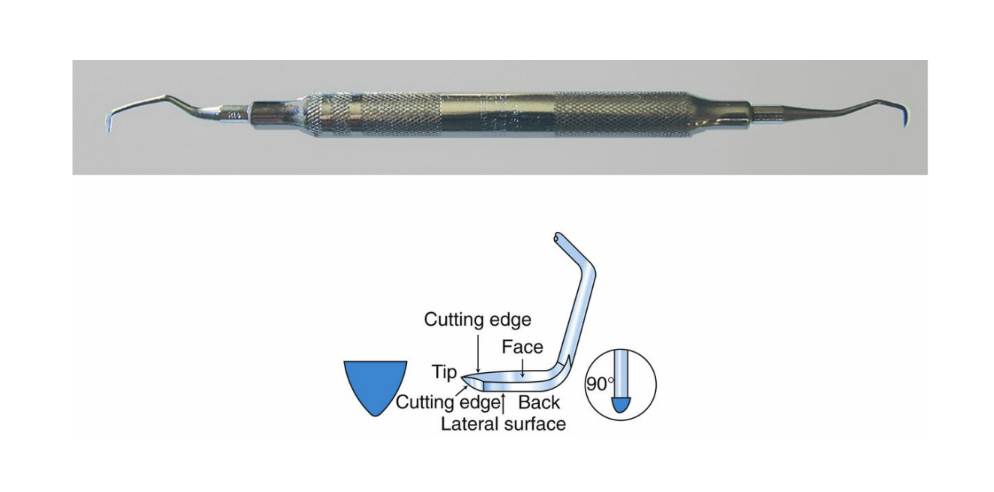

Scaler-Curved Sickle (Curved Sickle Scaler)

To remove large amounts of deposits from supragingival surfaces

Scaler-Straight Sickle

To remove large amounts of deposits from supragingival surfaces

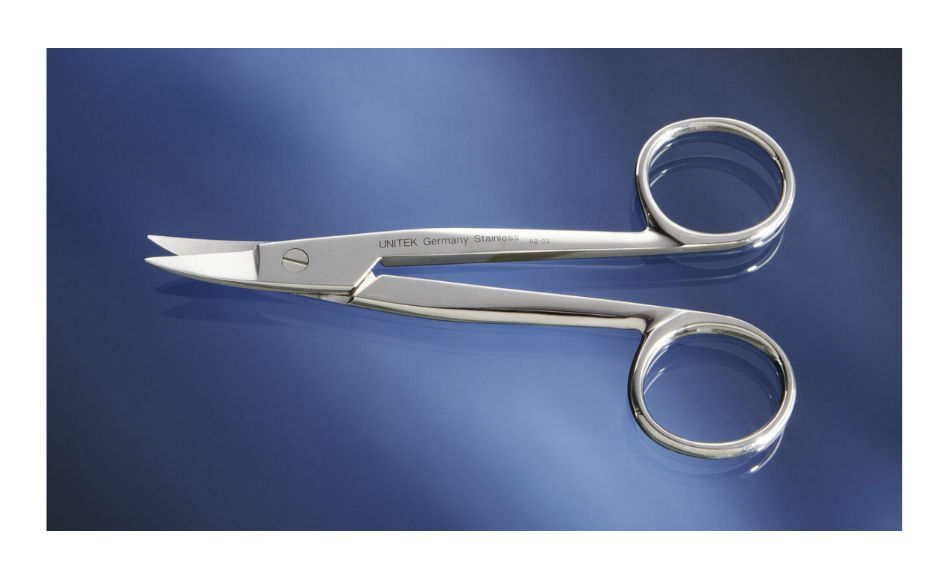

Scissors – Crown & Bridge

To trim matrix bands

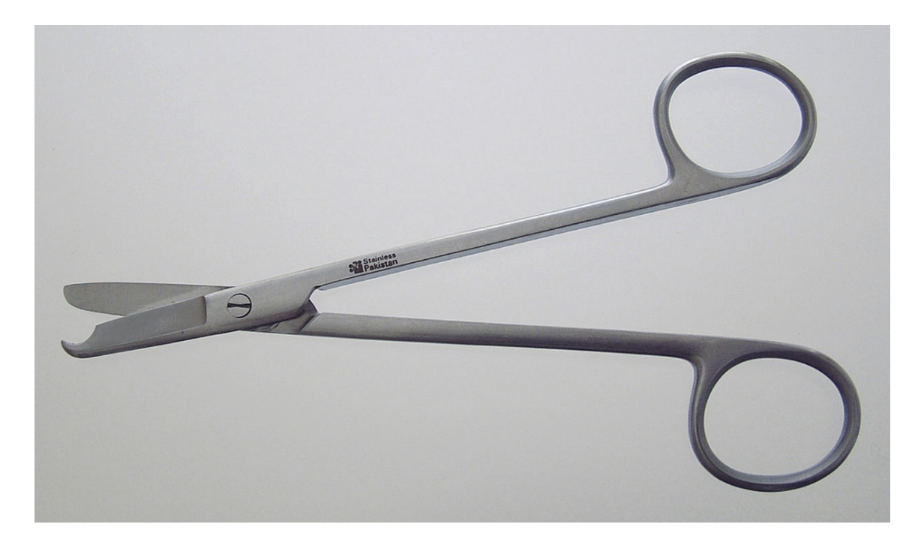

Scissors – Suture

To cut sutures

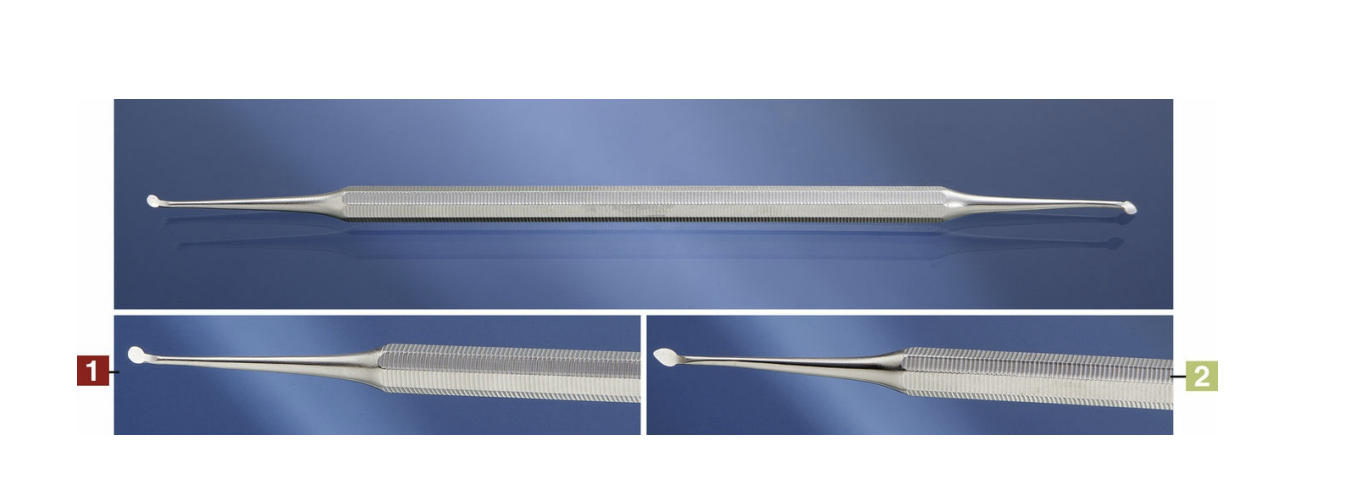

Spoon Excavator

1 large (curved blade), 2 small (round blade)

To remove carious dentin

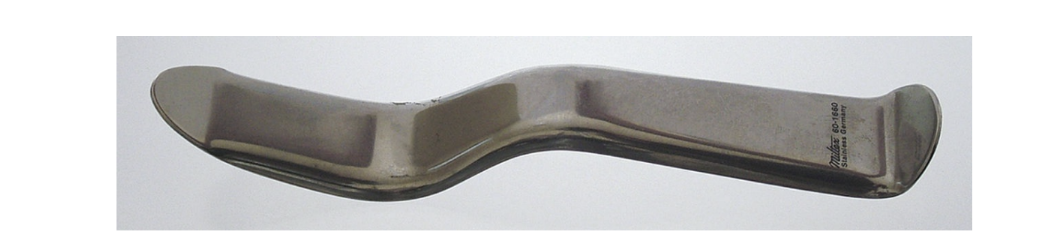

Tongue & Cheek Retractor

To hold and retract tongue or cheek during surgery

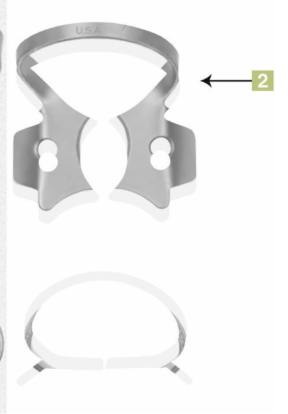

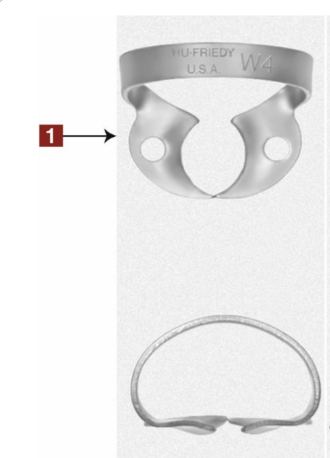

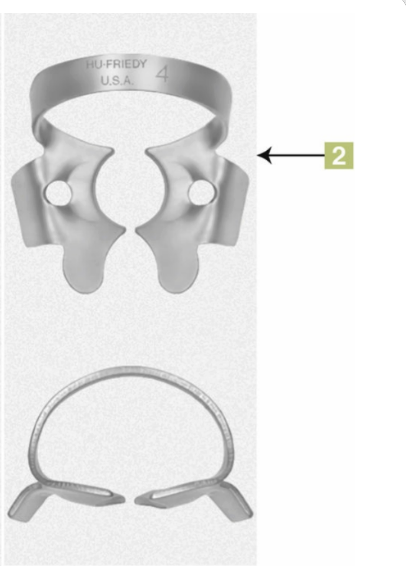

Universal Clamps – Mandibular (Winged Clamp)

To anchor and stabilize dental dam

Universal Clamps – Mandibular (Wingless Clamp)

To anchor and stabilize dental dam

Universal Clamps – Maxillary (Winged Clamp)

To anchor and stabilize dental dam

Universal Clamps – Maxillary (Wingless Clamp)

To anchor and stabilize dental dam

Universal Matrix Band

Supports the tooth while its being filled with restorative material
