complex impedence Z
Z=R+j(XL+XC)
2
New cards
unity power factor SERIES
|XL|=|XC|
3
New cards
unity power factor PARALLEL
C=L/(R²+w²L²)
4
New cards
base resistor equation
Rb = hfe(Vbb-Vbe)/Ic
5
New cards
assumed Vbe
0.7V
6
New cards
SI units: KE
Vs/rad
7
New cards
SI units: KT
Nm/A
8
New cards
motor data sheet eqns
V=IRa+E
E=KEw
T=KTI
(where V is rated voltage)
9
New cards
Vs
Vs=(Ns/Np)Vp
10
New cards
Is
Is=(Np/Ns)Ip
11
New cards
turns ratio
Np/Ns
12
New cards
motor efficiency
n=Pmech/(Pmech+I²Ra)
13
New cards
Pmech
Pmech=Tw
14
New cards
stored inductor energy
E=0.5LI²
15
New cards
PWM duty cycle
desired volts/current volts
16
New cards
PWM on time
duty cycle/frequency
17
New cards

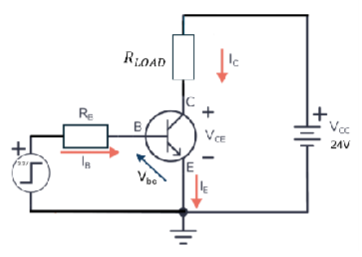

npn low side circuit
18
New cards
