43 Terms
1
New cards

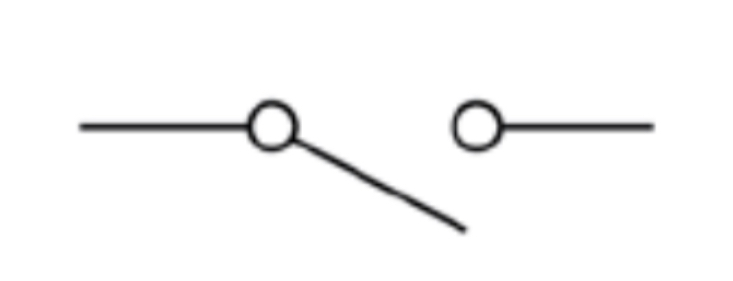

What is this symbol in a circuit diagram?
An open switch
2
New cards

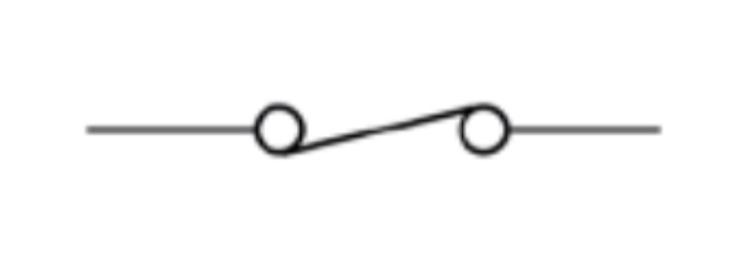

What is this symbol in a circuit diagram?
A closed switch
3
New cards
What is this symbol in a circuit diagram?
A cell
4
New cards

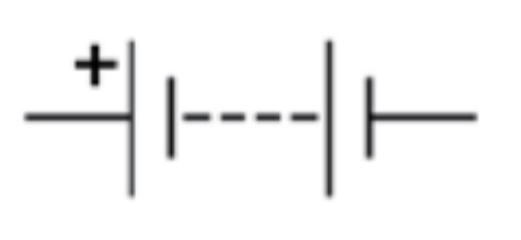

What is this symbol in a circuit diagram?
A battery
5
New cards

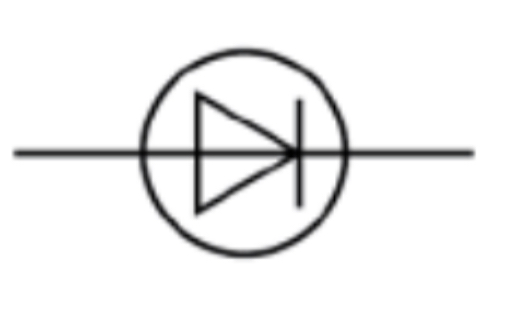

What is this symbol in a circuit diagram?
A diode
6
New cards

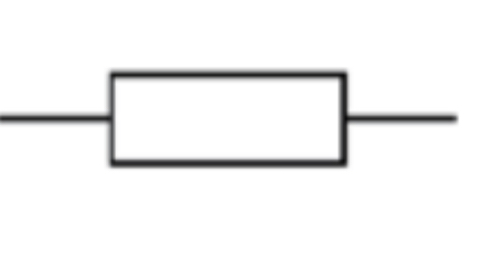

What is this symbol in a circuit diagram?
A resistor
7
New cards

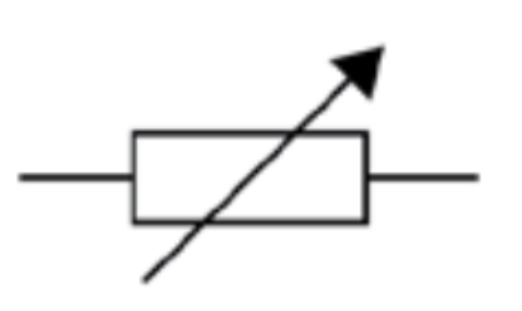

What is this symbol in a circuit diagram?
A variable resistor
8
New cards

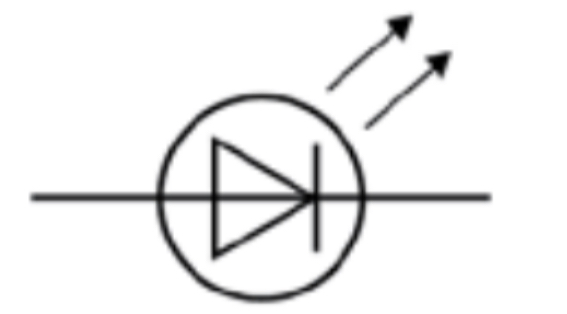

What is this symbol in a circuit diagram?
An LED
9
New cards

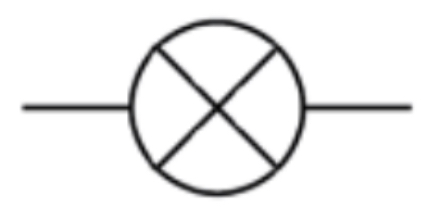

What is this symbol in a circuit diagram?
A lamp
10
New cards
What is this symbol in a circuit diagram?
A fuse
11
New cards

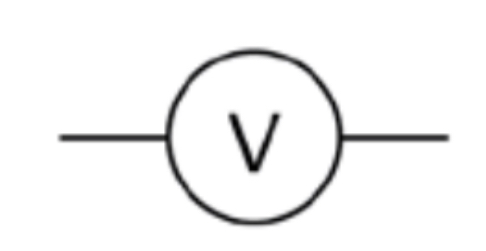

What is this symbol in a circuit diagram?
A voltmeter
12
New cards

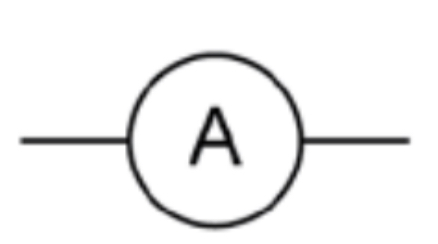

What is this symbol in a circuit diagram?
An ammeter
13
New cards

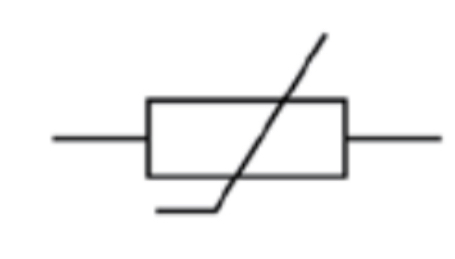

What is this symbol in a circuit diagram?
A thermistor
14
New cards

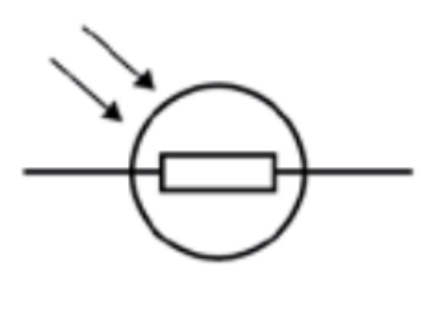

What is this symbol in a circuit diagram?
An LDR
15
New cards
What is electric current?
The flow of electric charge round the circuit
16
New cards
What is needed for a current to flow around a complete circuit?
A potential difference
17
New cards
In a series circuit what is the value of current anywhere in the circuit?
The same
18
New cards
What is potential difference?
The driving force that pushes the charge round
19
New cards
What is resistance in a circuit?
Anything that slows the flow down
20
New cards
What does the current flowing through a component depend on?
The potential difference across the component and the resistance of the component
21
New cards
What is the charge equation?
Charge (C) = Current (A) x Time (s)
22
New cards
True or false: The greater resistance across a component, the smaller the current that glows through it
True
23
New cards
What is the equation for potential difference?
Potential difference (V) = current (A) x resistance (ohms)
24
New cards

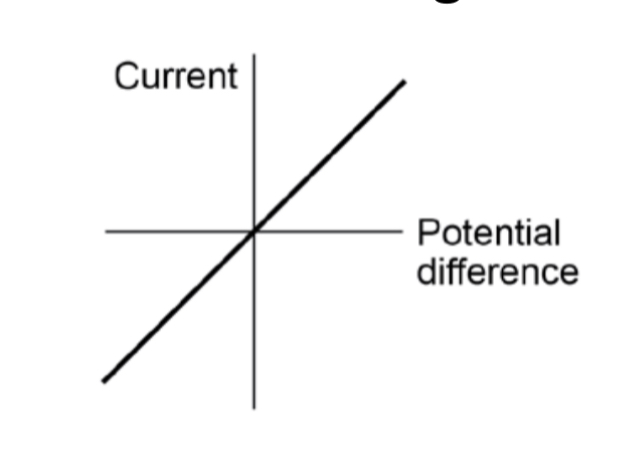

The current though an ohmic conductor is…
directly proportional to the potential difference across the resistor the resistance remains constant as the current changes)
25
New cards
The resistance is not constant at…
lamps, diodes, thermistors, LDRs
26
New cards

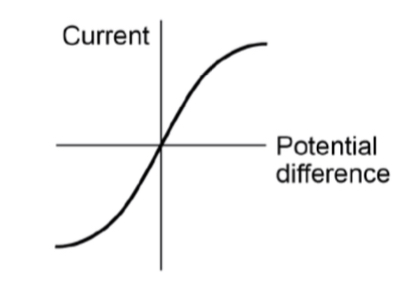

What happens to the resistance of a filament lamp as the temperature increases?
The resistance of a filament lamp increases as the temperature of the filament increases.
27
New cards

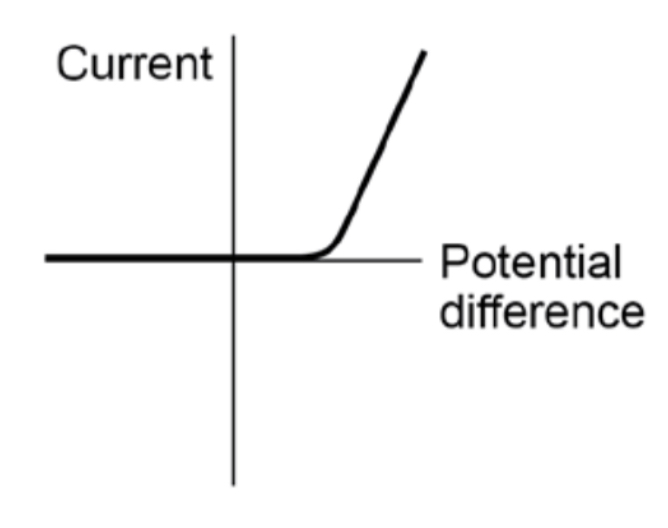

How does the current flow at a a diode?
The current through a diode only flows in one direction.
28
New cards
The diode has a very high resistance in which direction?
The reverse direction
29
New cards
What is an LDR?
A light-dependent resistor), used to detect light levels
30
New cards
What happens to an LDRs resistance as light intensity increases?
Resistance decreases
31
New cards
What is a thermistor in a circuit?
used as temperature sensors, as temperature increases, resistance decreases
32
New cards
What is a diode?
A device that allows current to flow in one direction but not the reverse direction
33
New cards
What are the series circuits rules?
There is the same current through each component (everywhere)
Cell p.d’s add up
The p.d. of the power supply is shared between the components
The total resistance of two components is the sum of the resistance in each component (R total = R1 + R)
Cell p.d’s add up
The p.d. of the power supply is shared between the components
The total resistance of two components is the sum of the resistance in each component (R total = R1 + R)
34
New cards
what are the parallel circuits rules?
The p.d. across each component is the same
The total current through the circuit is the sum of the currents through the operate components
The total resistance of two resistors is less than the resistance of the smallest individual resistor
The total current through the circuit is the sum of the currents through the operate components
The total resistance of two resistors is less than the resistance of the smallest individual resistor
35
New cards
How does static charge work?
When certain insulating materials are rubbed against each other they become electrically charged,
Negatively charged electrons are rubbed off one material and onto the other,
The material that gains electrons becomes negatively charged,
The material that loses electrons is left with an equal positive charge
Negatively charged electrons are rubbed off one material and onto the other,
The material that gains electrons becomes negatively charged,
The material that loses electrons is left with an equal positive charge
36
New cards
What happens to two objects that carry the same types of charge?
They repel each other
37
New cards
What happens to two objects that carry different types of charge?
they attract each other
38
New cards
What are attractions and repulsion between objects examples of?
Non-contact forces
39
New cards
What does a charge object create around itself?
An electric field
40
New cards
Where is the electric field strongest?
Close to the charged object
41
New cards
What happens if you place a second object in an objects electric field?
The second object experiences a force, the force gets stronger as the distance between the objects decreases
42
New cards
What is ohms law?
The current through a resistor at a constant temperature is directly proportional to the potential difference across the resistor
43
New cards
Define static electricity
Electric charge stored on insulated objects
