TOES

Where does gout usually show

big toe

what projection is this

AP toes

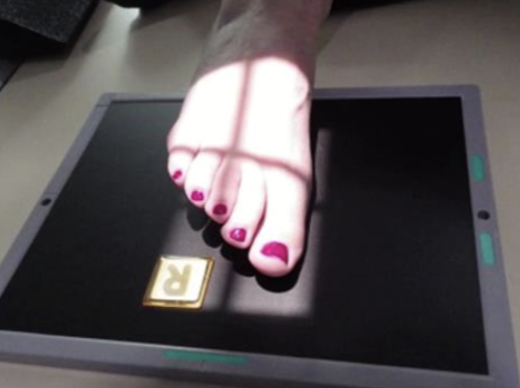

what projection is this

AP toes

in an AP toe, what do we do if we want to see an open joint space

angle the tube 15 towards the calcaneus

what projection is this

AP toes

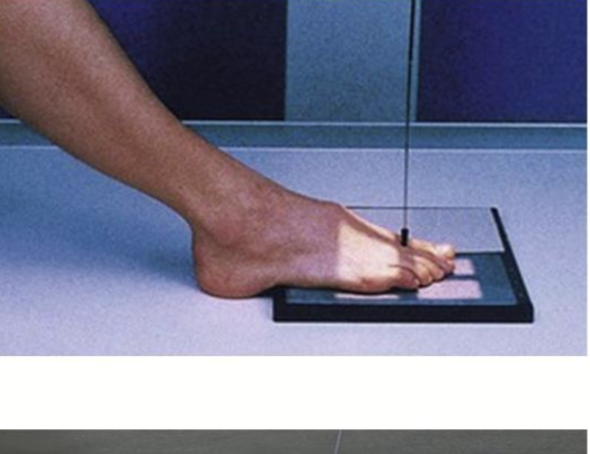

what projection is this (general)

AP oblique toes

how do we position the patient for an AP oblique to for the 1-3 toes

30-45 medial rotation

how do we position the patient for an AP oblique to for the 4-5 toes

30-45 lateral rotation

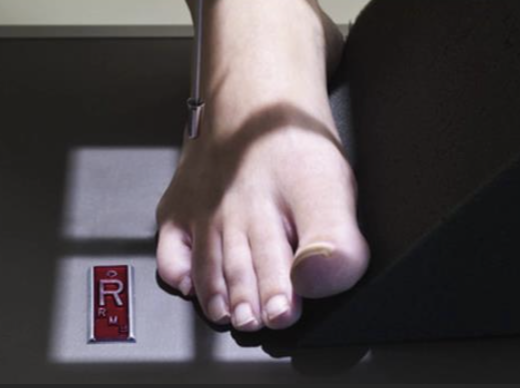

what is the projection and for which toes

AP oblique for the 1-3 toes

what is the projection and for which toes

AP oblique for the 14-5 toes

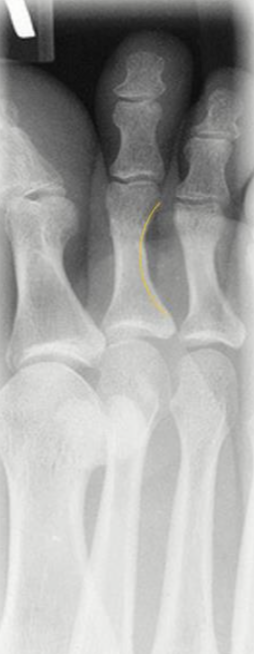

what projection is this

AP oblique toes

what projection is this

AP oblique toes

are the heads of the metatarsals overlapping on a AP oblique toe projection, yes or no

yes

for lateral toes, how do we position for the 1-3 toes

lateromedial

for lateral toes, how do we position for the 14-5 toes

mediolateral

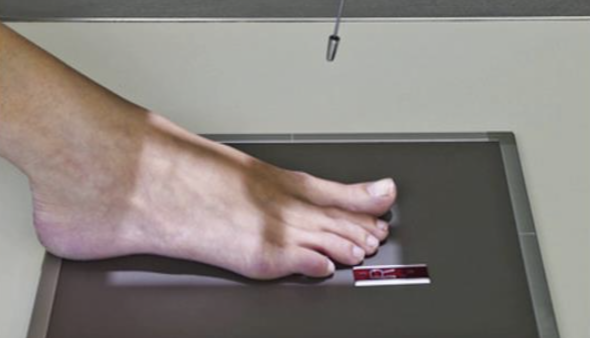

what projection is this

lateral toes mediolateral

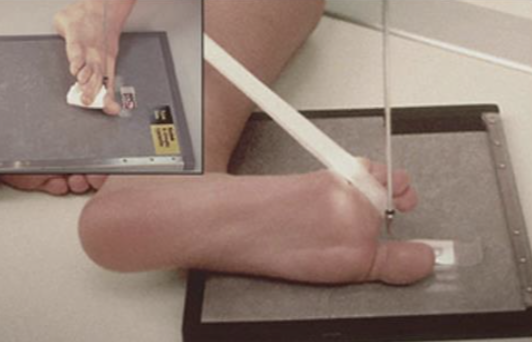

what projection is this

lateral toes lateromedial

where is the CR if it is on a lateral toe for the first toe

IP joint

where is the CR if it is on a lateral toe for the 2-5 toes

PIP joint

how would you descirbe the concavity of the lateral toe

increased concavity of the anterior surface on the distal phalanx and posterior surface of the proximal phalanx

In an AP oblique projection of the 4th toe, the foot is medially rotated 30-45 degrees. true or false

false, they are rotated laterally
