Circuit analysis

0.0(0)
studied byStudied by 0 people
0.0(0)
full-widthCall Kai
learnLearn
examPractice Test
spaced repetitionSpaced Repetition
heart puzzleMatch
flashcardsFlashcards
GameKnowt Play
Card Sorting

1/18

encourage image

There's no tags or description

Looks like no tags are added yet.

Study Analytics
Name
Mastery
Learn
Test
Matching
Spaced

No study sessions yet.

19 Terms

1
New cards

What is a circuit?

knowt flashcard image
2
New cards

What is a voltage?

knowt flashcard image
3
New cards

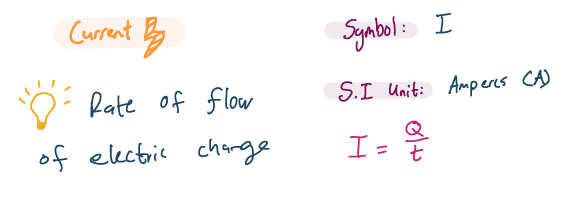

What is current?

knowt flashcard image
4
New cards

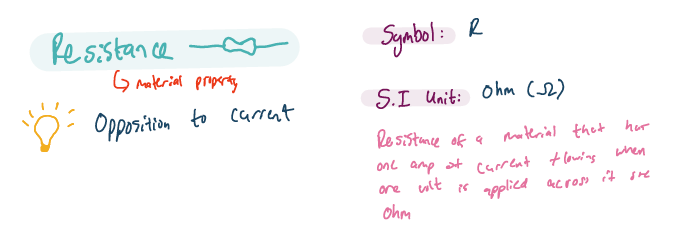

What is resistance?

knowt flashcard image
5
New cards

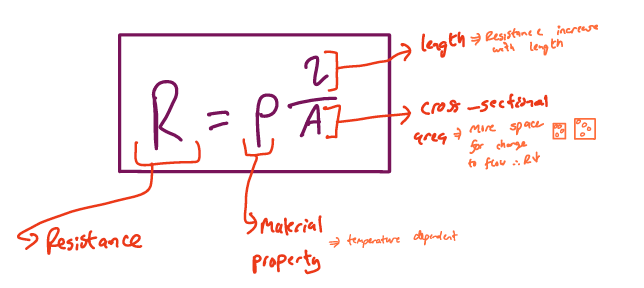

What is the formula for resistance from the material’s property and physical shape

knowt flashcard image
6
New cards

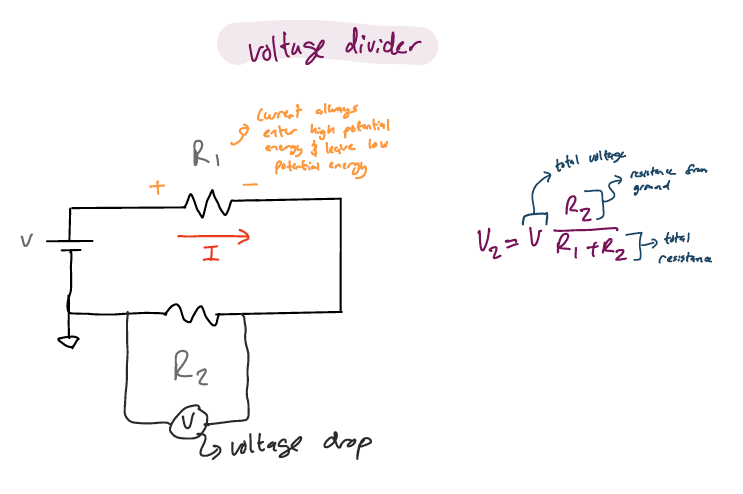

What is a voltage divider?

knowt flashcard image
7
New cards

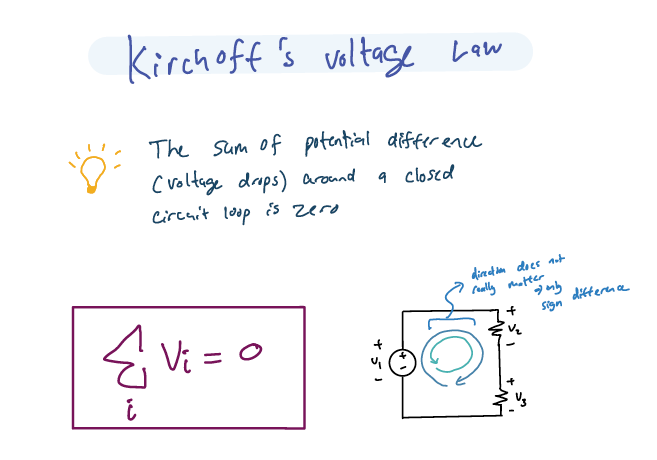

What is Kirchoff’’s voltage law?

knowt flashcard image
8
New cards

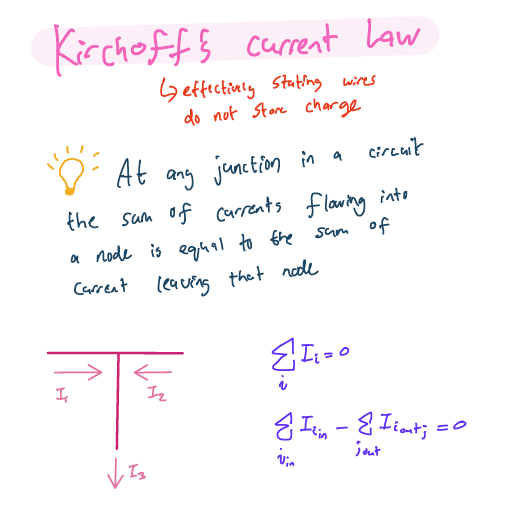

What is Kirchoff’’s current law?

knowt flashcard image
9
New cards

What is Thevenin equivalent circuit?

knowt flashcard image
10
New cards

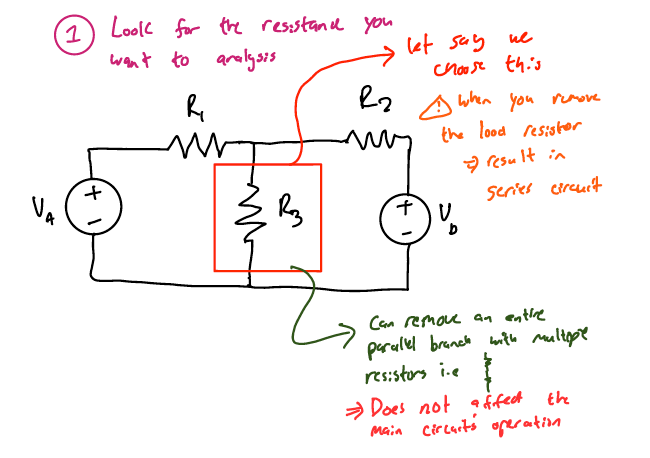

What is step 1 for Thevenin equivalent circuit?

knowt flashcard image
11
New cards

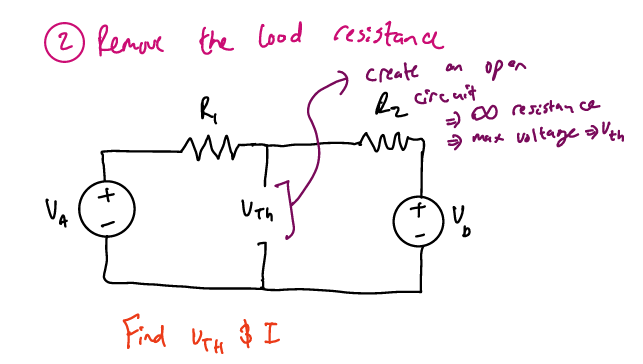

What is step 2 for Thevenin equivalent circuit?

knowt flashcard image
12
New cards

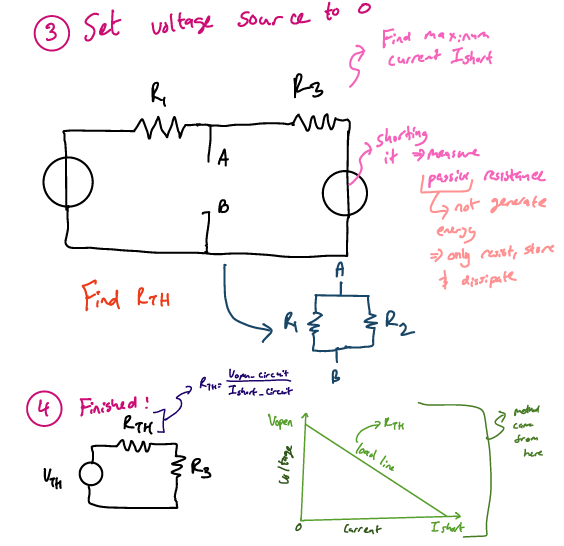

What is step 3 for Thevenin equivalent circuit?

knowt flashcard image
13
New cards

What is Norton’s equivalent?

knowt flashcard image
14
New cards

What is a capacitor and formula for capacitance?

knowt flashcard image
15
New cards

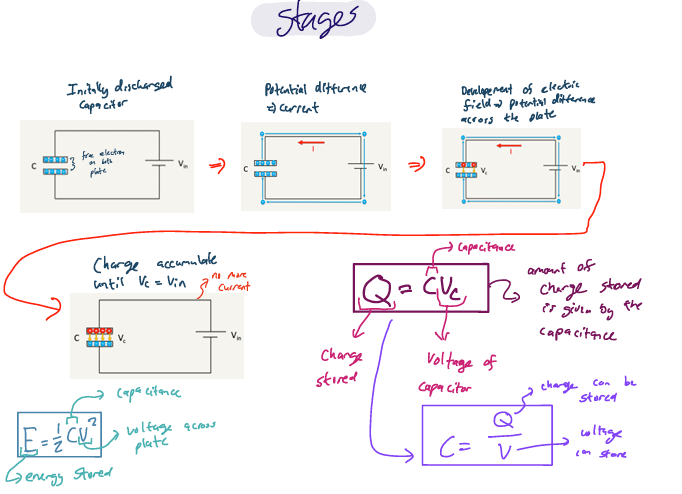

What are the stages of a capacitor charging?

knowt flashcard image
16
New cards

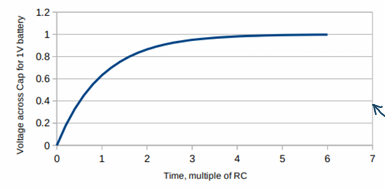

Draw a graph for a capacitor charging

knowt flashcard image
17
New cards

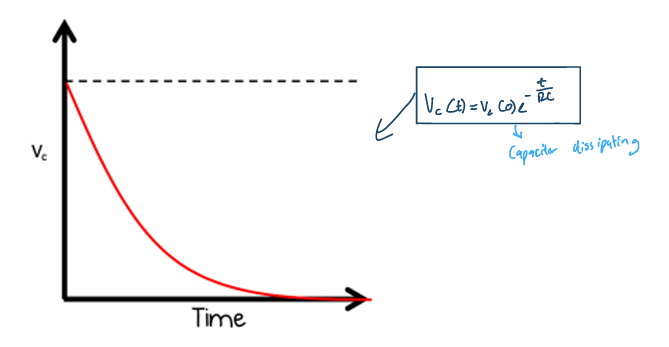

Draw a graph of a capacitor discharging

knowt flashcard image
18
New cards

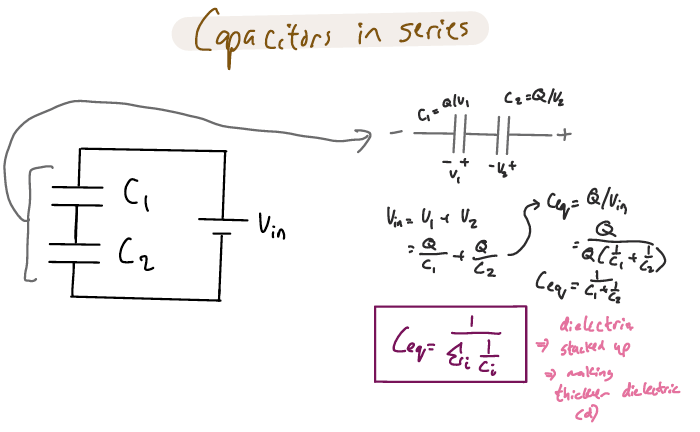

How to find the effective capacitor of capacitors in series?

knowt flashcard image
19
New cards

How to find the effective capacitor of capacitors in parallel?
