WEEK 3
Last updated 12:27 PM on 10/27/25
Name | Mastery | Learn | Test | Matching | Spaced | Call with Kai |
|---|
No analytics yet
Send a link to your students to track their progress
7 Terms
1
New cards

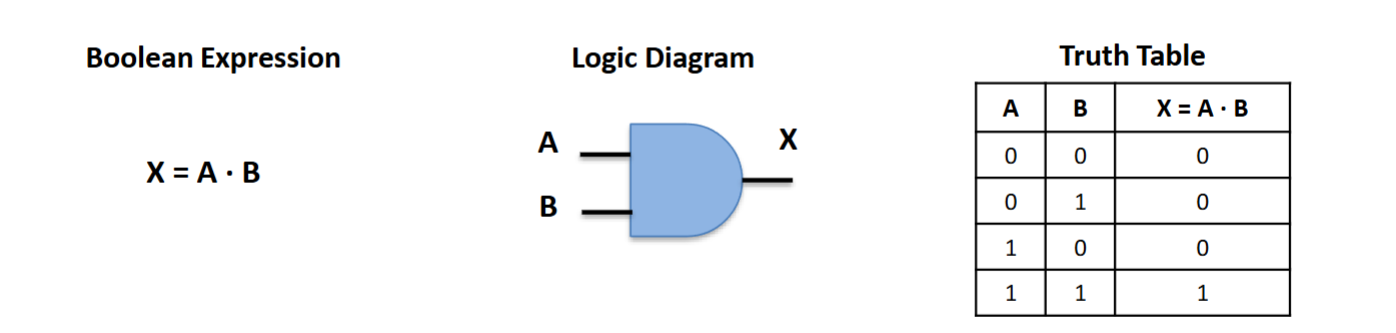

What is the output of an AND gate
output is one when all gates are 1 otherwise 0
2
New cards
What is the output of an OR gate
output is a 0 when all inputs are 0 otherwise its 1
3
New cards

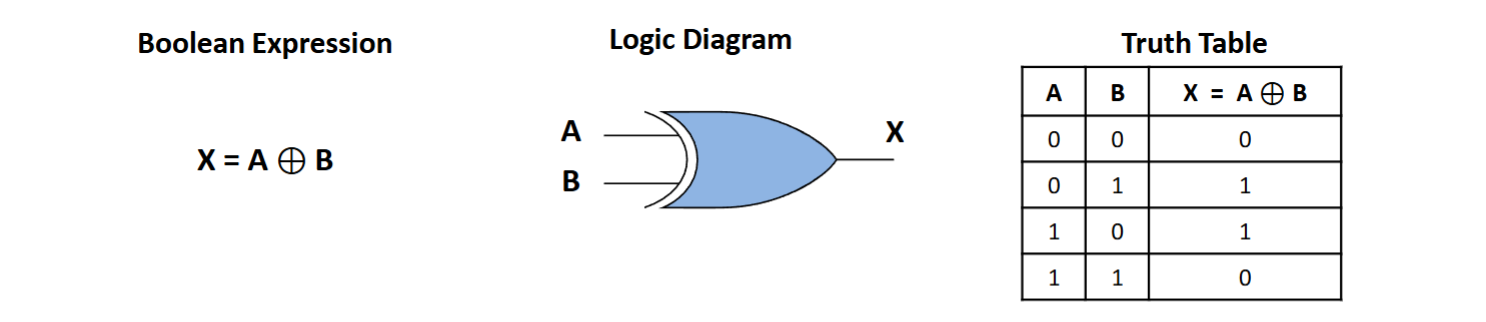

What is the output of an XOR gate
output is one when inputs are different, otherwise 0
4
New cards

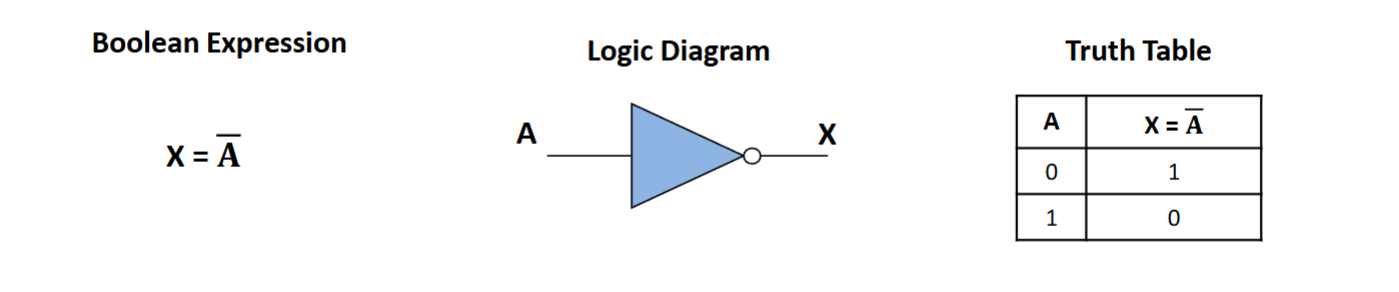

What is the output of a NOT gate
The input is inversed
5
New cards

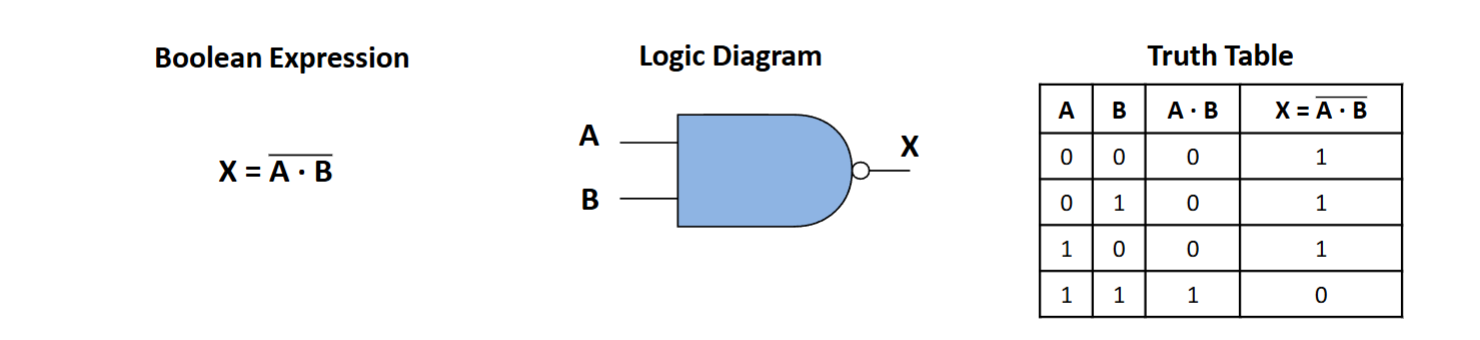

What is the output of a NAND gate
inverted AND, all inputs must be 1 to get 0 otherwise all other combinations = 1
6
New cards
What is the output of a NOR GATE
inverted OR
all inputs must be 0 to get 1
otherwise all other combinations = 0
7
New cards

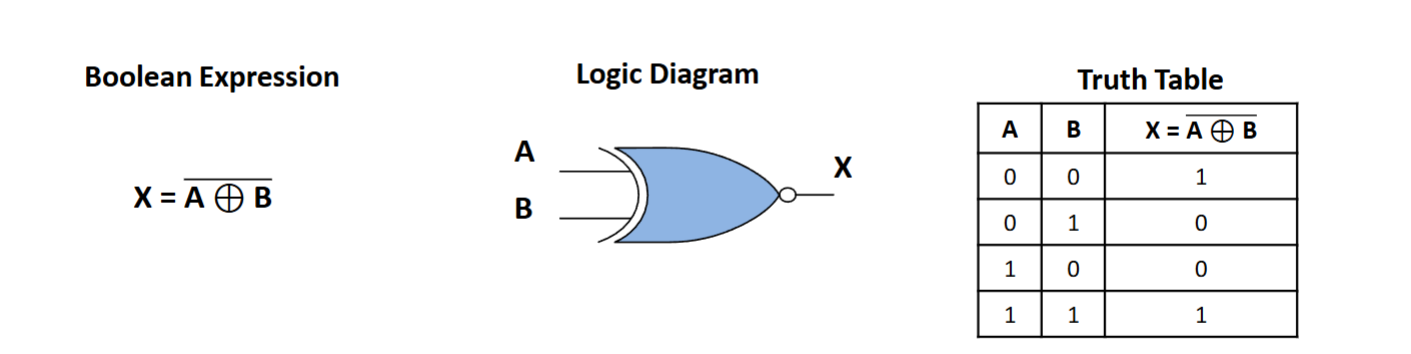

What is the output of XNOR
is 1 when inputs are same
otherwise its 0
