12 lead interpretation

Sodium

Flows into the cell to initiate depolarization

Potassium

Flows out of the cell to initiate repolarization

decreased or increased levels of potassium result in the following:

• hypokalemia- increased myocardial irritability

• hyperkalemia- decreased automaticity/ conduction

Calcium

Has a critical role in depolarization of the pacemaker cells (maintains depolarization) and in myocardial tractility (involved in the contraction of heart muscle tissue)

decreased or increased levels of calcium result in the following:

hypocalcemia: decreased contractility and increased myocardial irritability

hypercalcemia: increased contractility

Magnesium

Stabilizes the cell membrane; acts in concert with potassium and opposes the actions of calcium

decreased or increased levels of magnesium result in the following:

hypomagnesemia: decreased conduction

hypermagnesemia: increased myocardial irritability

P wave

Depolarization of the atria

P-R interval

Depolarization of the atria and the delay at the AV junction

QRS Complex

Depolarization of the ventricles and repolarization of the atria

ST segment

Period between ventricular depolarization and beginning of repolarization

T wave

Ventricular repolarization

R-R interval

Time between two successive ventricular depolarizations

Autonomic nervous system

§The parasympathetic nervous system

§Concerned primarily with vegetative functions

§Sends messages primarily through the vagus nerve

§Rest and digest nervous system

§Vagus stimulation

§Acetylcholine (ACh) signals SA node, slowing heart

§Atropine opposes ACh effect

§The sympathetic nervous system

§Prepares the body to respond to various stresses

§Fight or flight

§Increases heart rate

§Strengthens the force of cardiac muscle contractions

§Provides other adaptive responses

§Norepinephrine

§Epinephrine

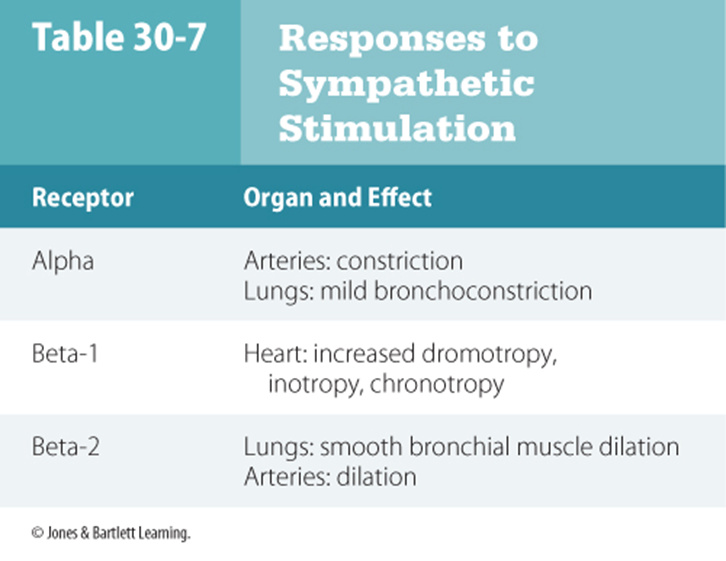

receptors

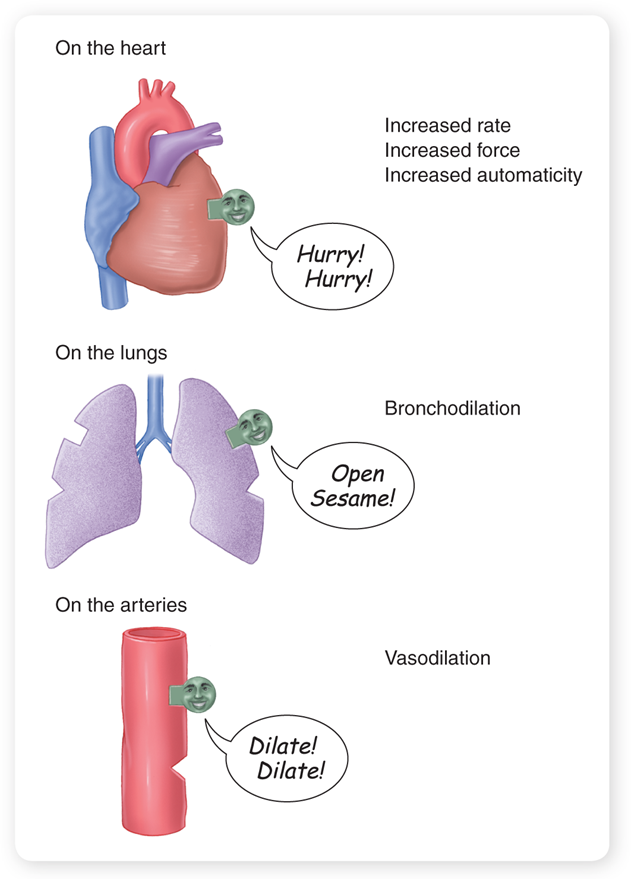

Beta Agents

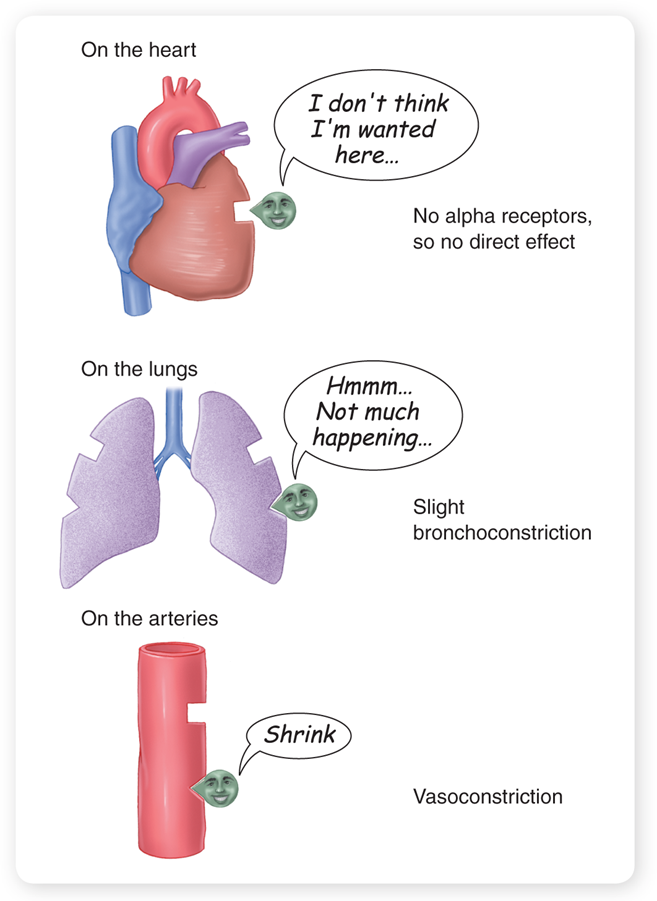

Alpha Agents

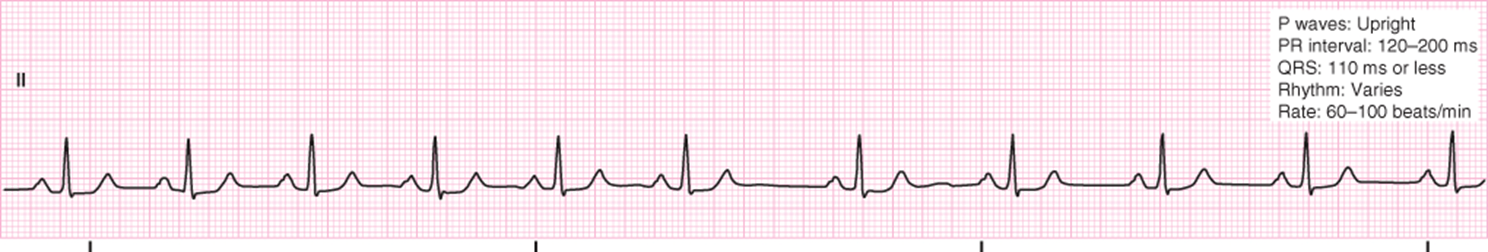

Normal Sinus rhythm

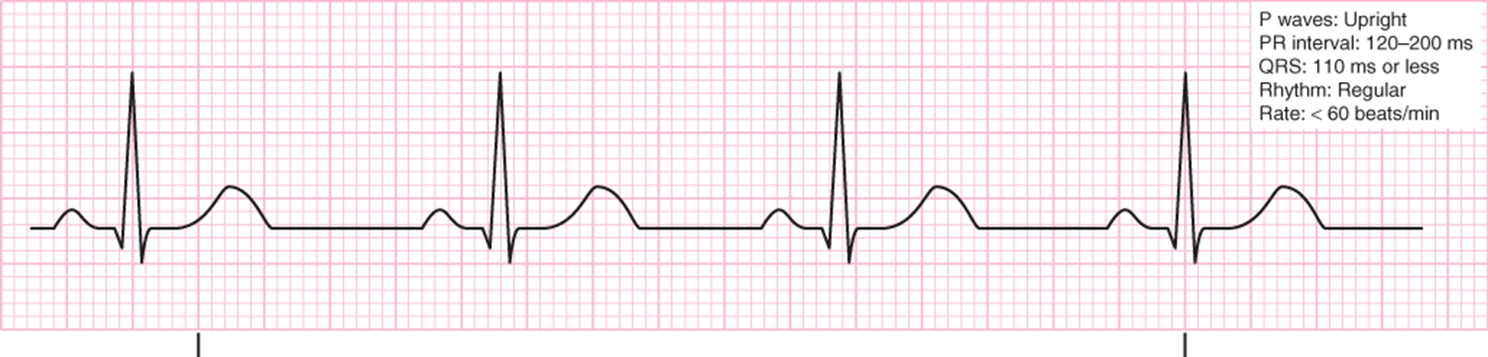

Sinus bradycardia

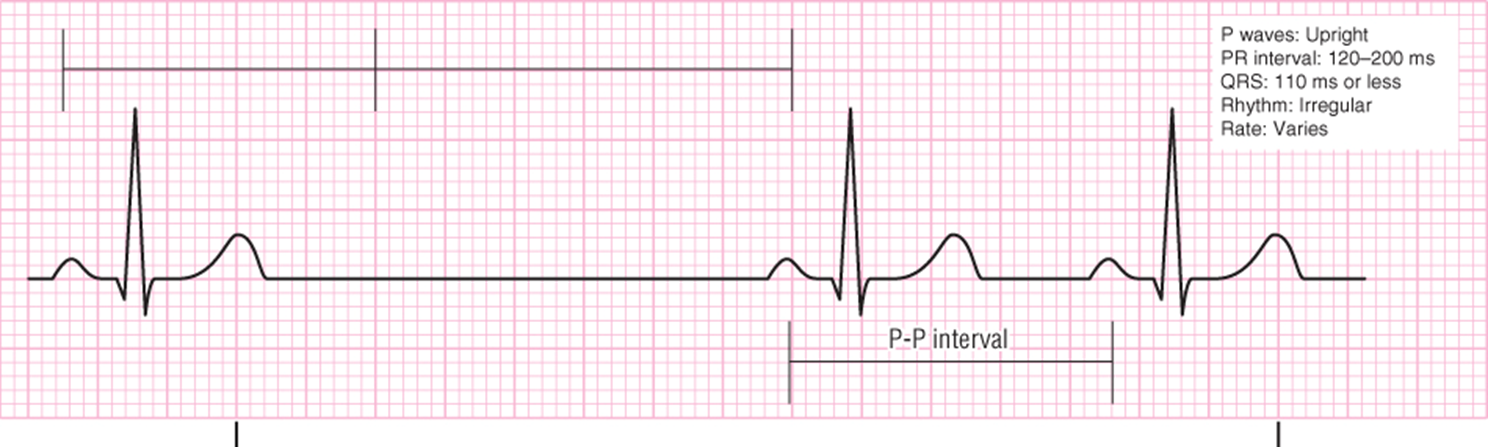

Treatment focuses on patients tolerance to

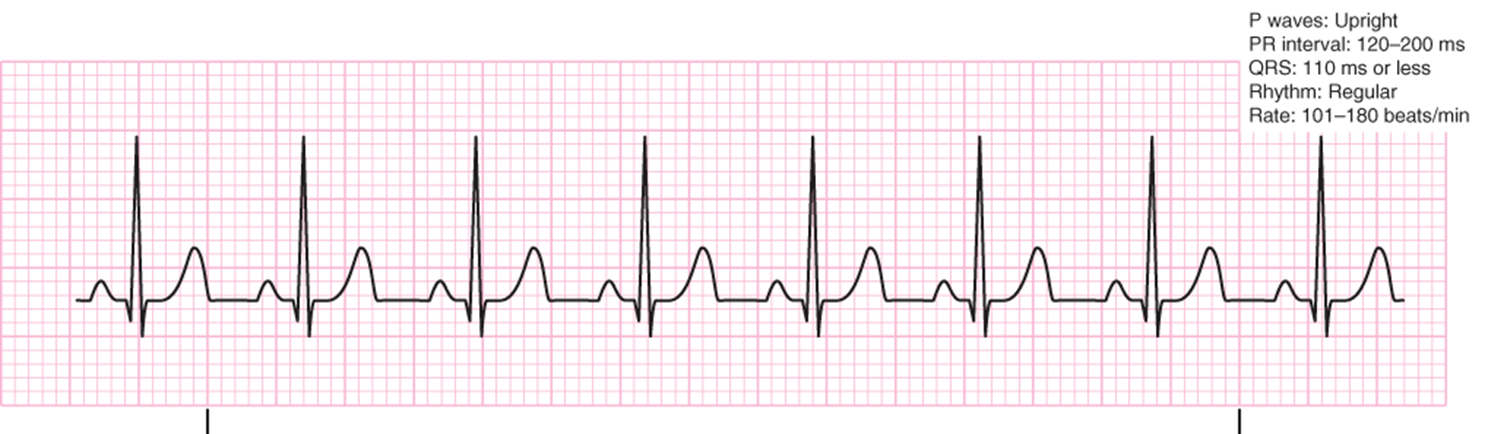

§Sinus tachycardia

§Sinus dysrhythmia

§Sinus arrest

§Sick sinus syndrome

§Encompasses a variety of rhythms that involve a poorly functioning SA node and is common in older patients

§Announces itself in many ways

§Patients may remain asymptomatic or they may experience a syncopal or near-syncopal episode, dizziness, and palpitations.

§Atrial rhythms

§Any area of the atria may originate an impulse.

§Some rhythms originating from the atria produce upright P waves that precede each QRS complex, but they are not as well rounded as those generated by the SA node.

§Wandering atrial pacemaker

§Treatment is usually not indicated in the prehospital setting.

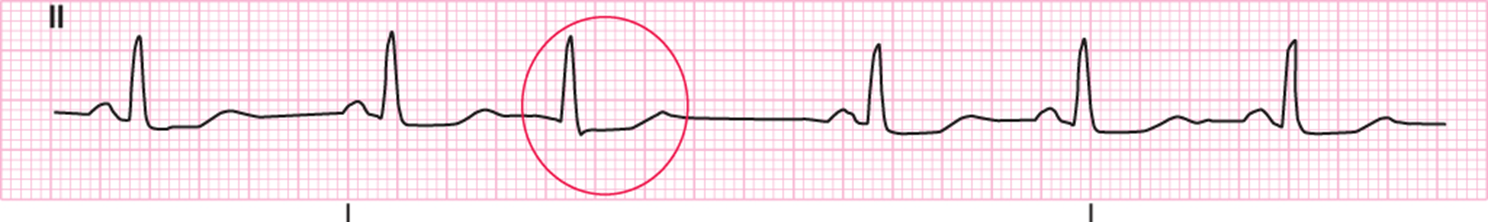

§Premature atrial complex

§When frequent, treatment is focused on correcting underlying cause.

§Supraventricular tachycardia

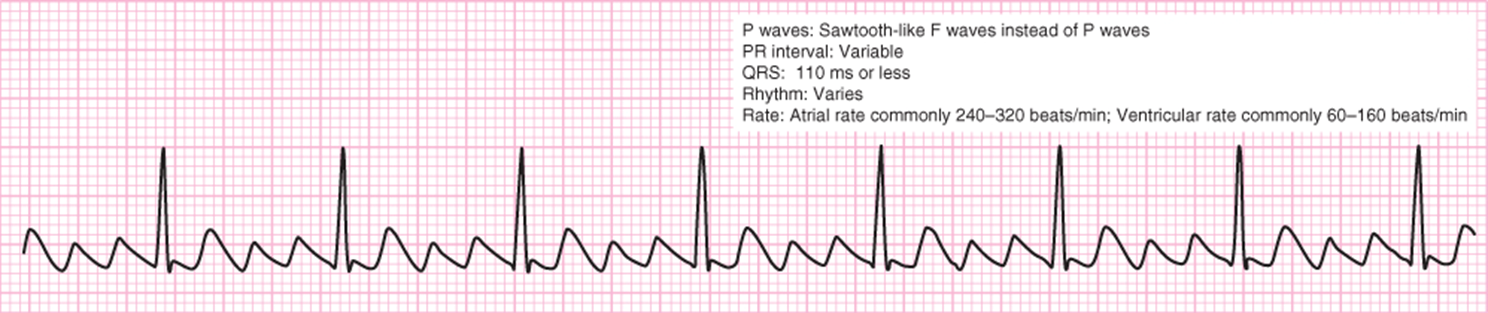

§Atrial flutter

§Medication or electrical cardioversion

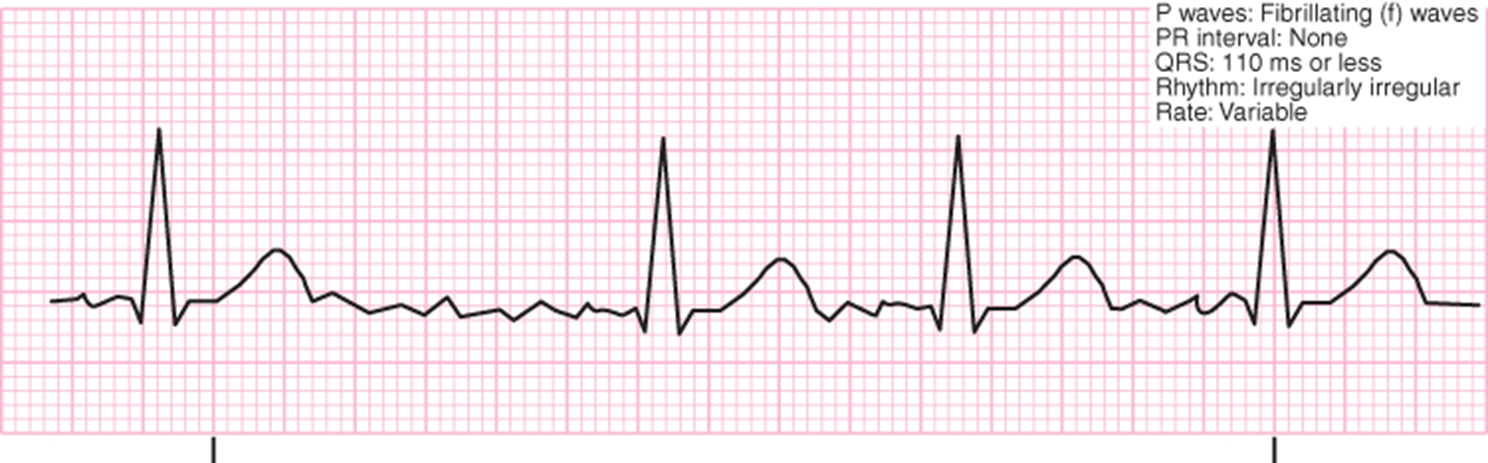

§Atrial fibrillation

§Prehospital treatment is usually limited to supportive care.

§Multifocal atrial tachycardia

§Treatment is usually deferred until arrival at the ED.

AV-nodal reentrant tachycardia and AV reciprocating tachycardia

Regular, narrow, complex tachycardias without obvious P waves preceding every complex

Often termed PSVT (paroxysmal)

AVNRT is the most common

AVRT is a similar-appearing tachycardia that results from an accessory pathway.

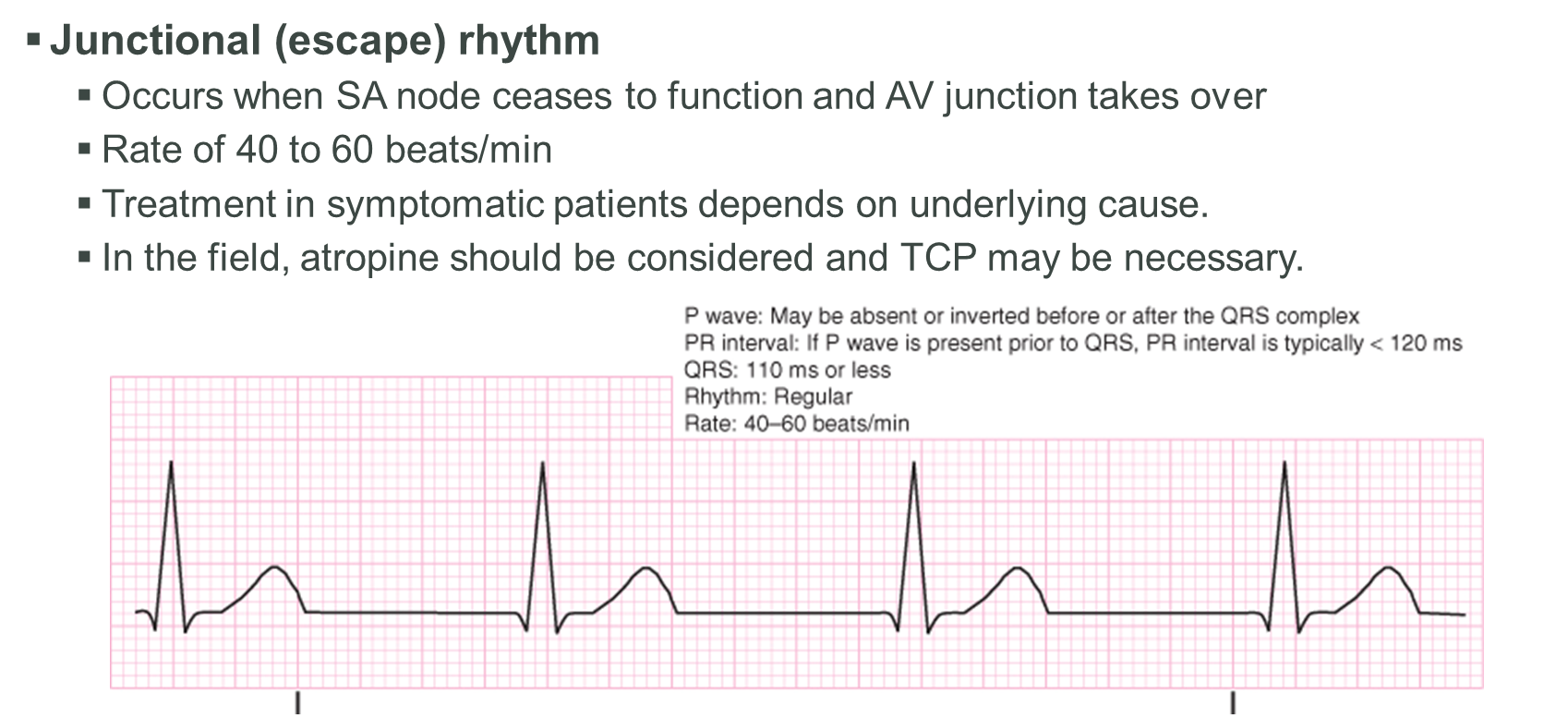

Junctional (escape) rhythm

In the field, atropine should be considered and TCP may be necessary.

Accelerated junctional rhythm

Seldom requires treatment in the prehospital setting (but should be monitored)

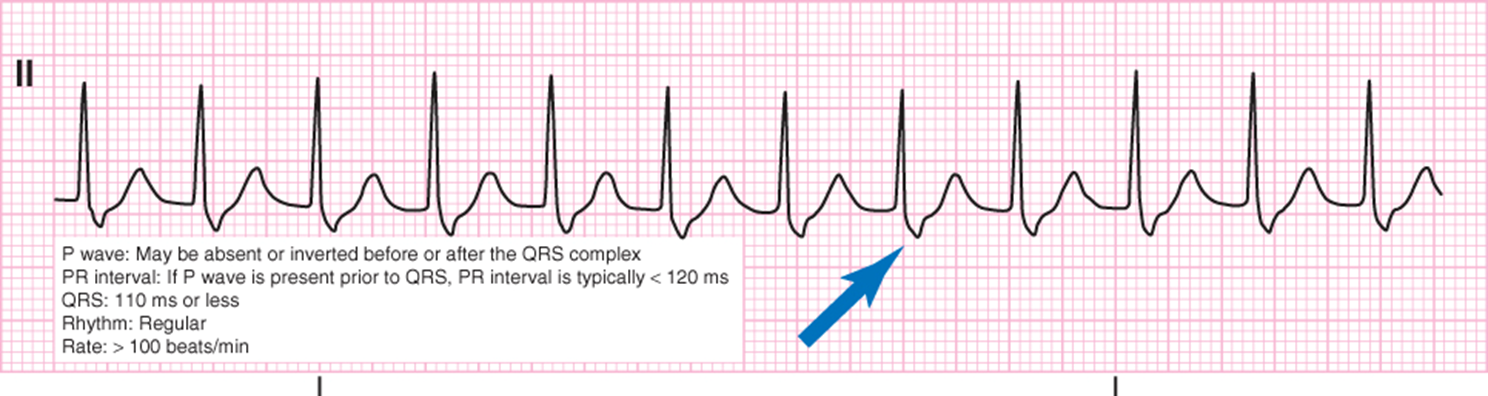

Junctional tachycardia

Premature junctional complex

Rarely treated in the prehospital setting

§First-degree AV block

§Second-degree AV block: Mobitz type 1 (Wenckebach)

Second-degree AV block: Mobitz type II (Classical

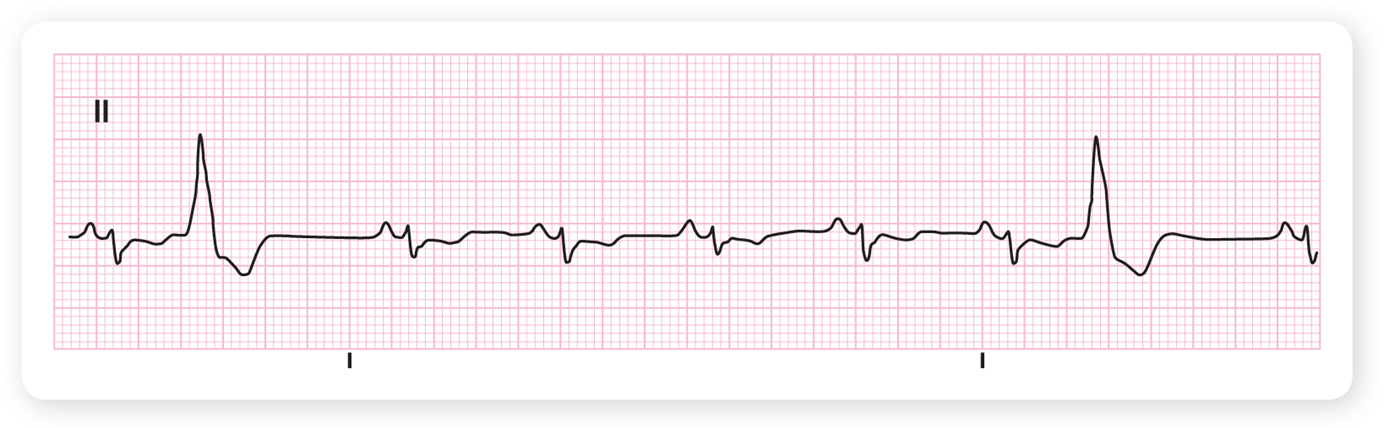

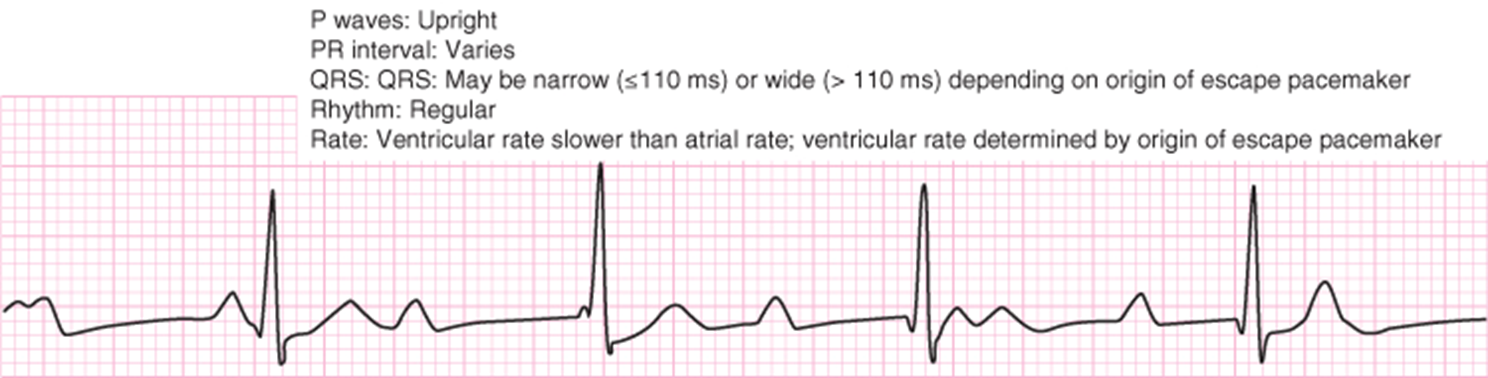

§Third-degree AV block (complete AV block)

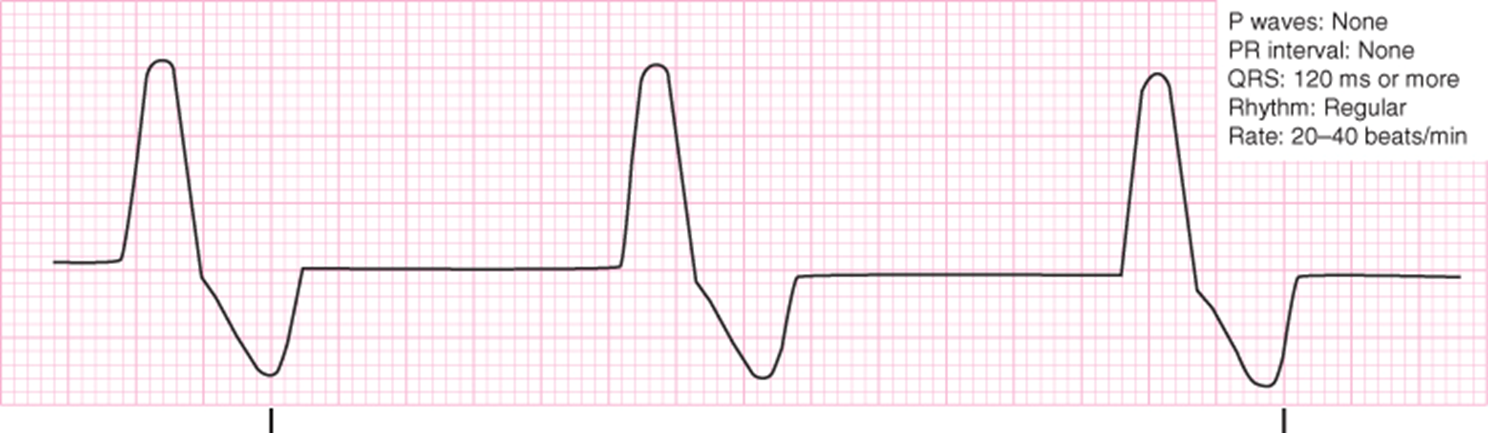

§Idioventricular rhythm

§Accelerated idioventricular rhythm

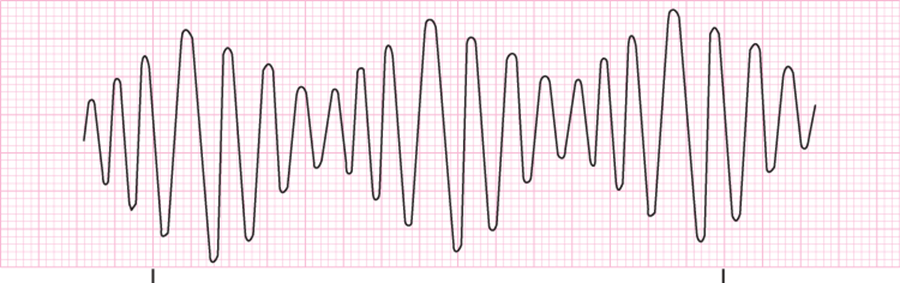

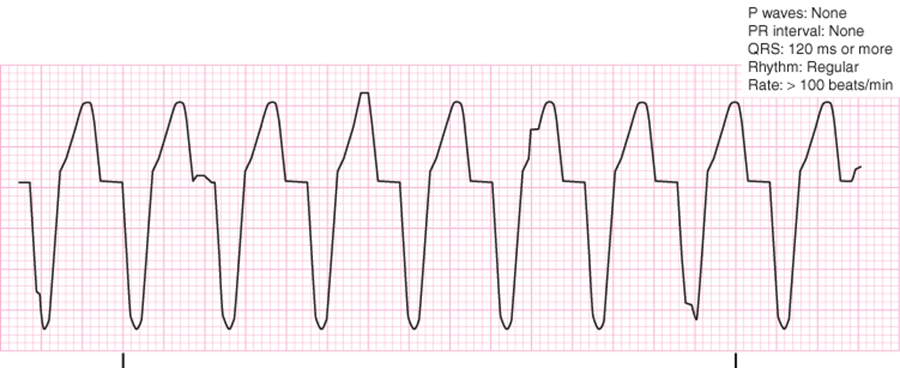

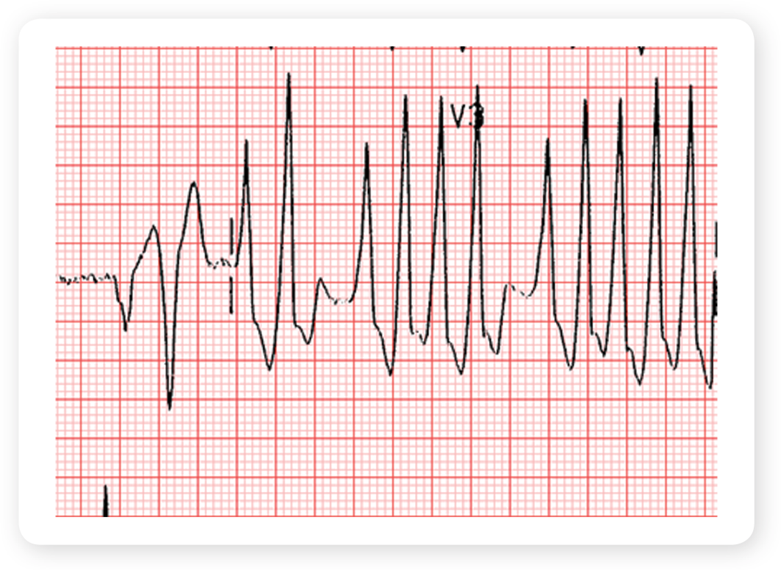

§Ventricular tachycardia

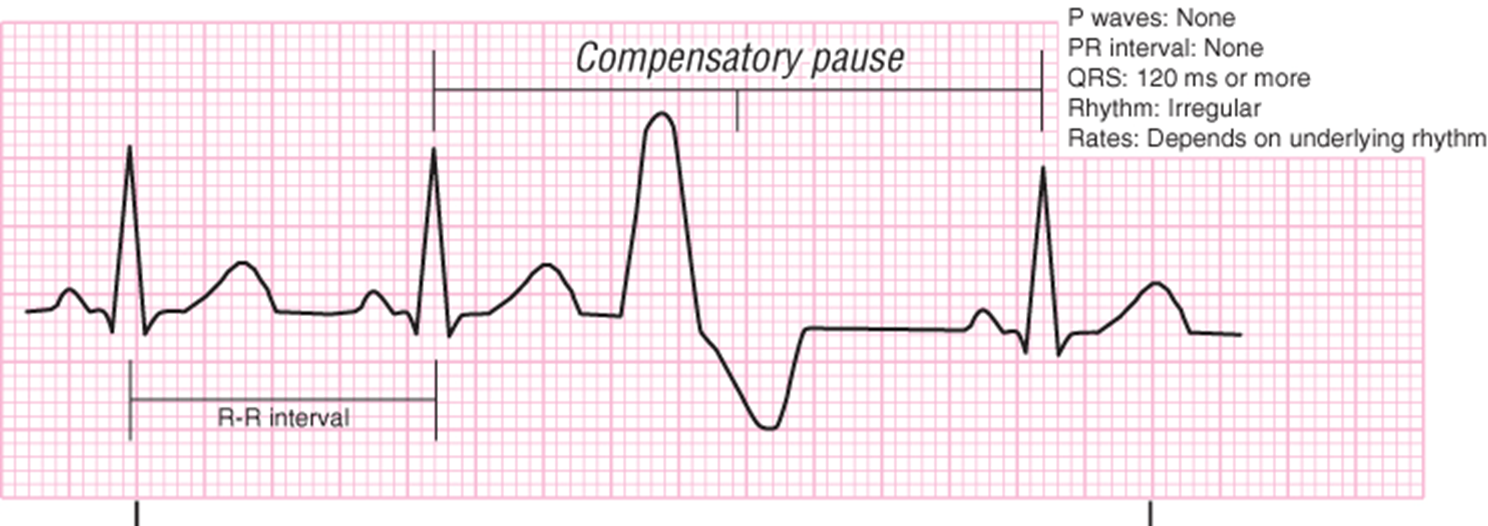

Premature ventricular complex (PVC)

§Unifocal premature ventricular complexes

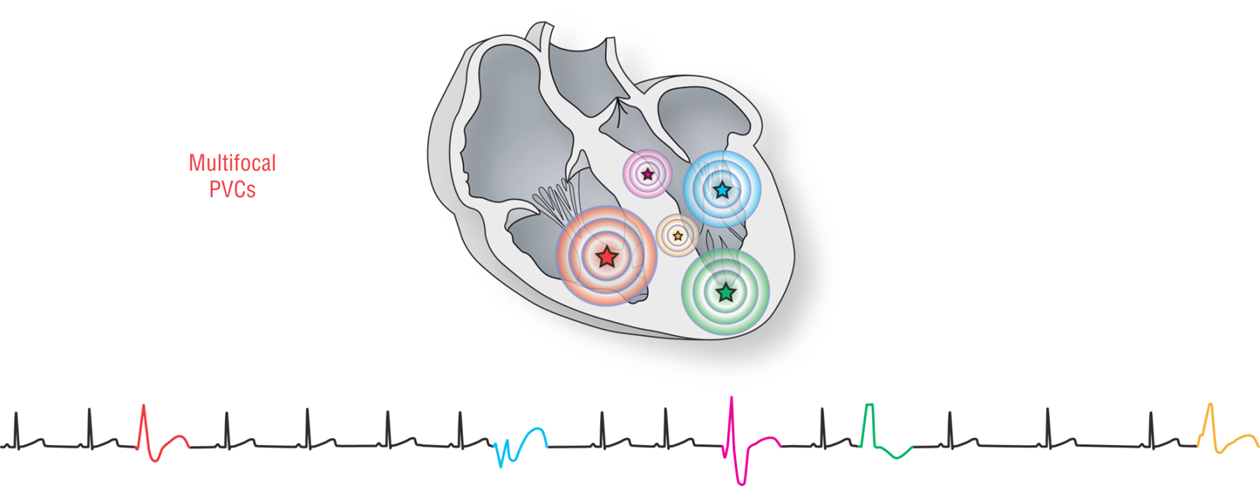

Premature ventricular complex- Multifocal

Premature ventricular complex

Couplet

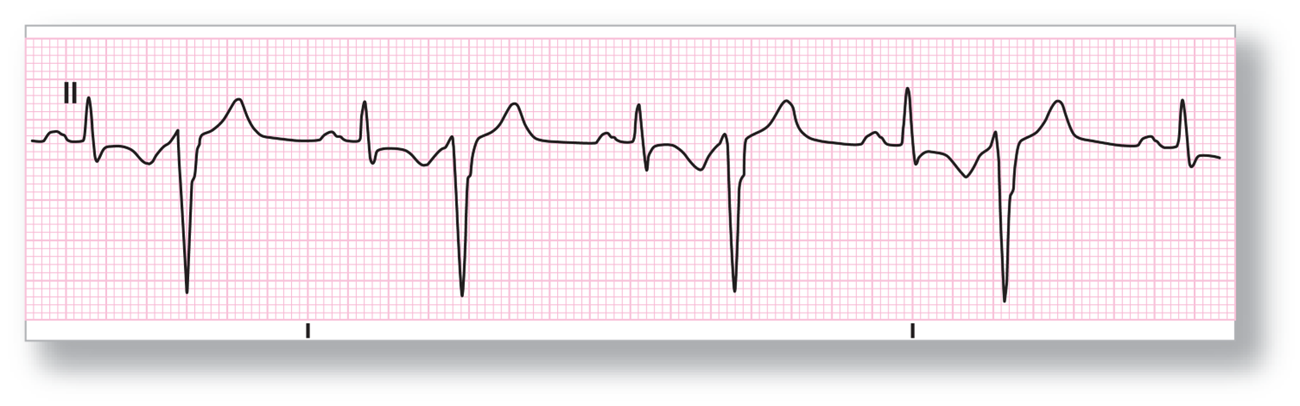

Premature ventricular complex

Bigeminy, Trigemini

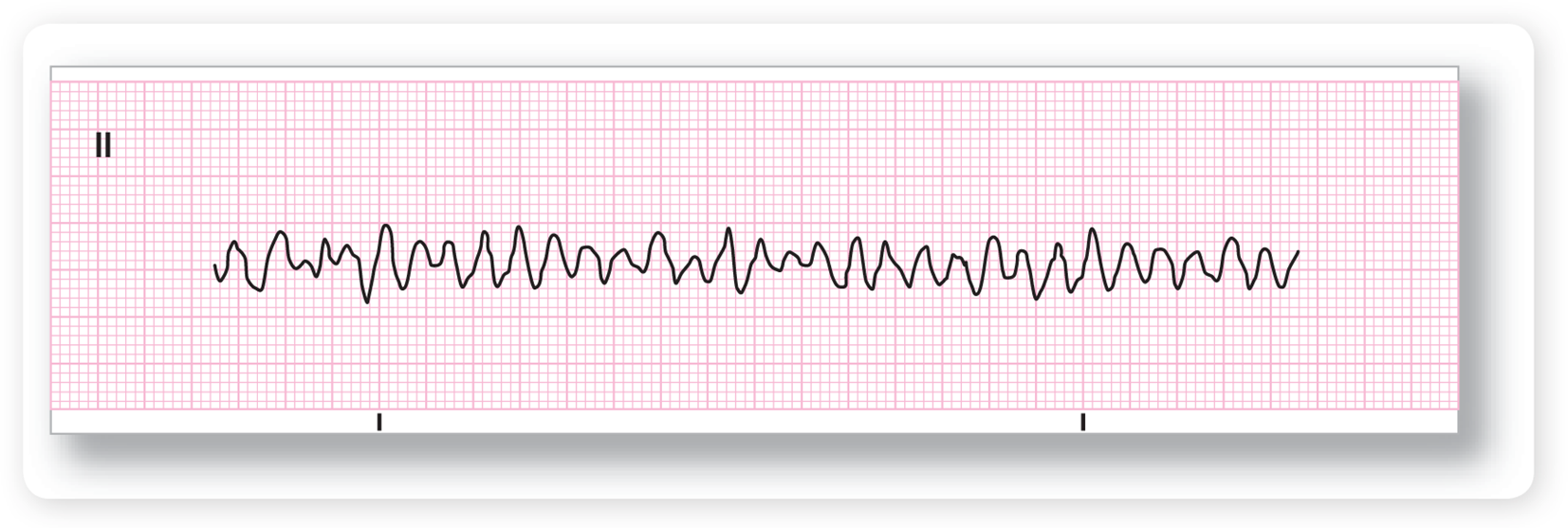

§Ventricular fibrillation (VF)

Rhythm in which the entire heart is no longer contracting

Quivering without organized contraction

Random depolarization of many cells

Rhythm most commonly seen

Responds well to defibrillation

Chest compressions help make the heart more susceptible to defibrillation.

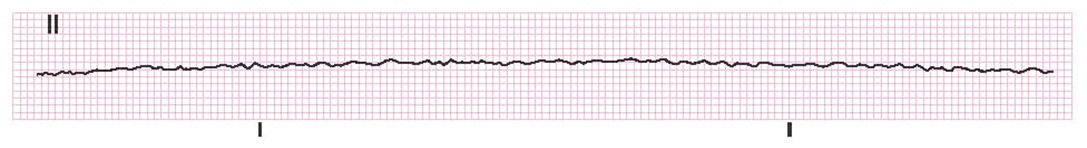

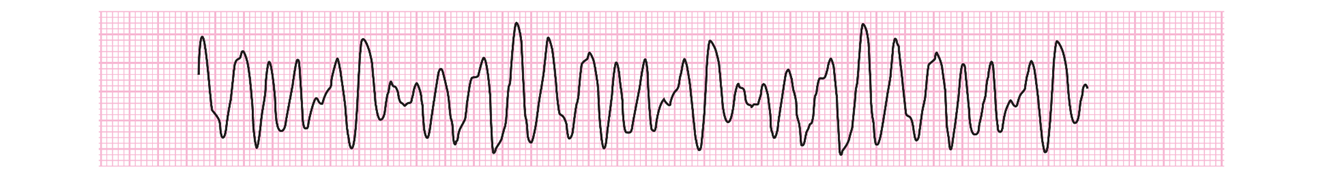

§Ventricular fibrillation (VF)

§Ventricular fibrillation (VF)

§Ventricular fibrillation (VF)

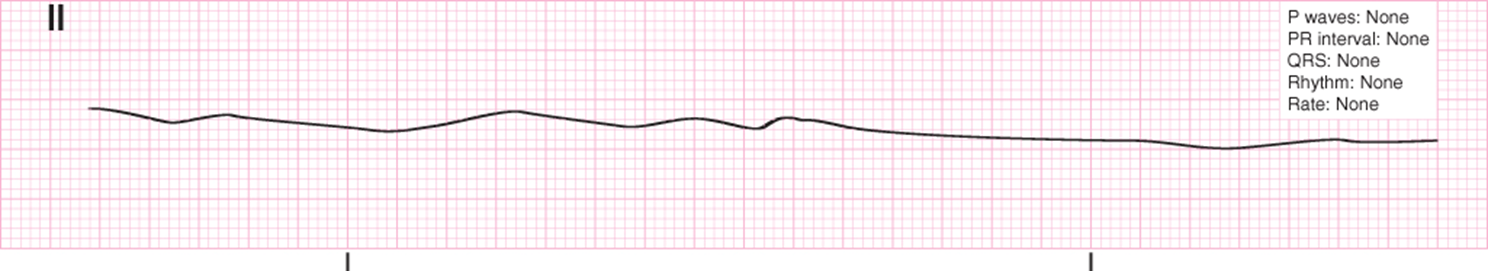

§Asystole

Paced Rhythms

Many types exist.

Ventricular pacemakers are attached to the ventricles only.

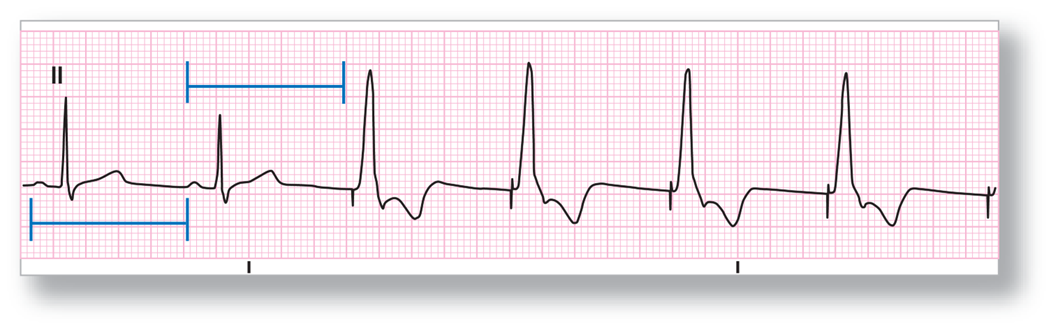

Demand pacemakers

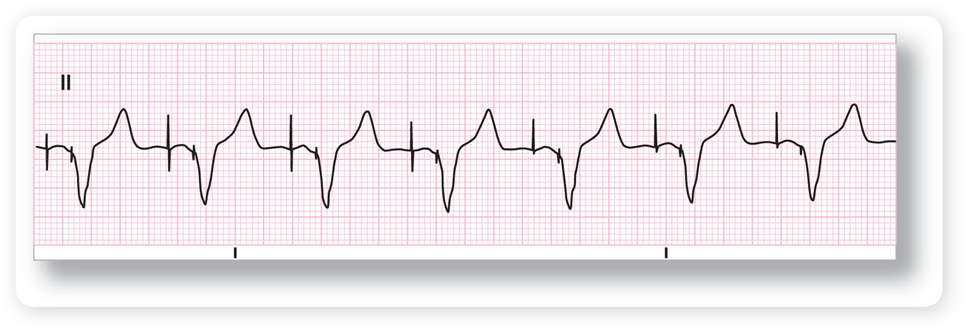

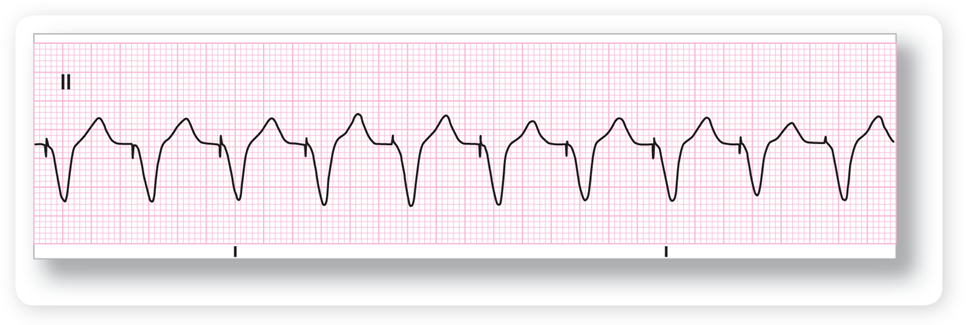

§Artificial pacemaker rhythms

§Artificial pacemaker rhythms

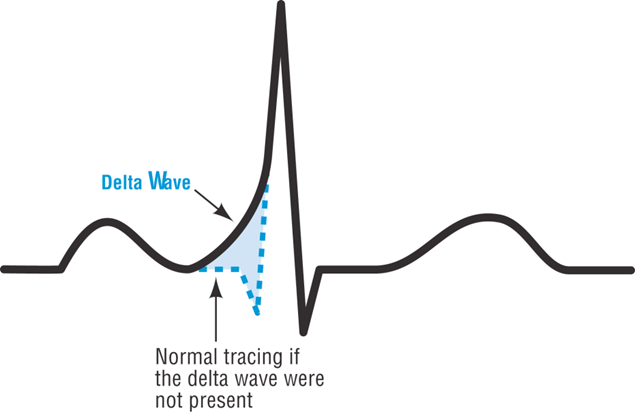

§Delta wave

atrial fibrillation with Wolff-Parkinson-White syndrome

§Osborne (J) wave

primarily caused by hypothermia

§Hyperkalemia on an ECG

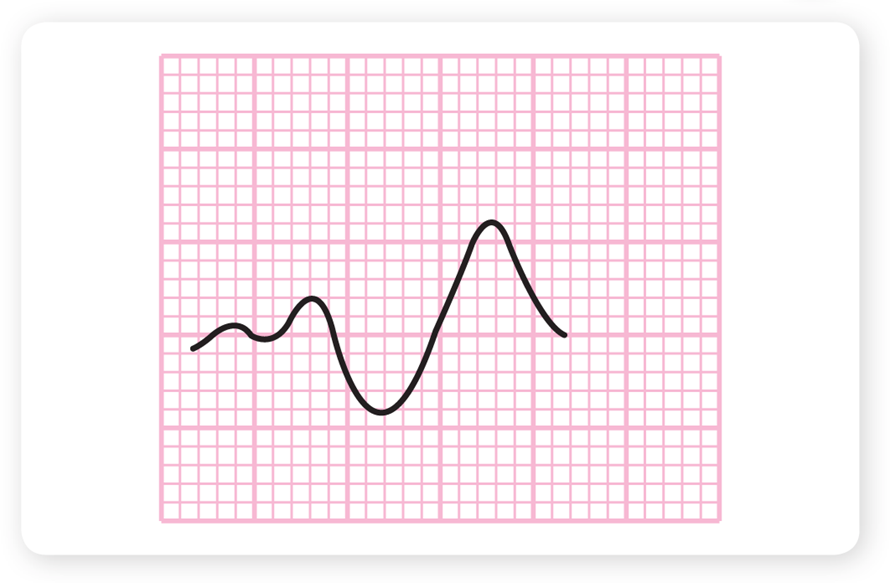

Profound, severe hyperkalemia

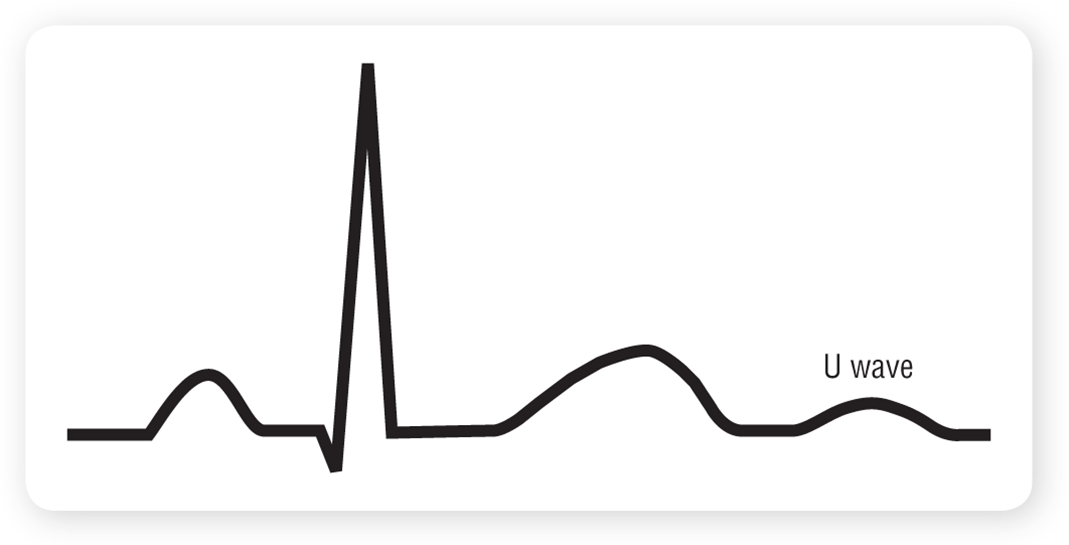

Hypokalemia

ECG Leads record

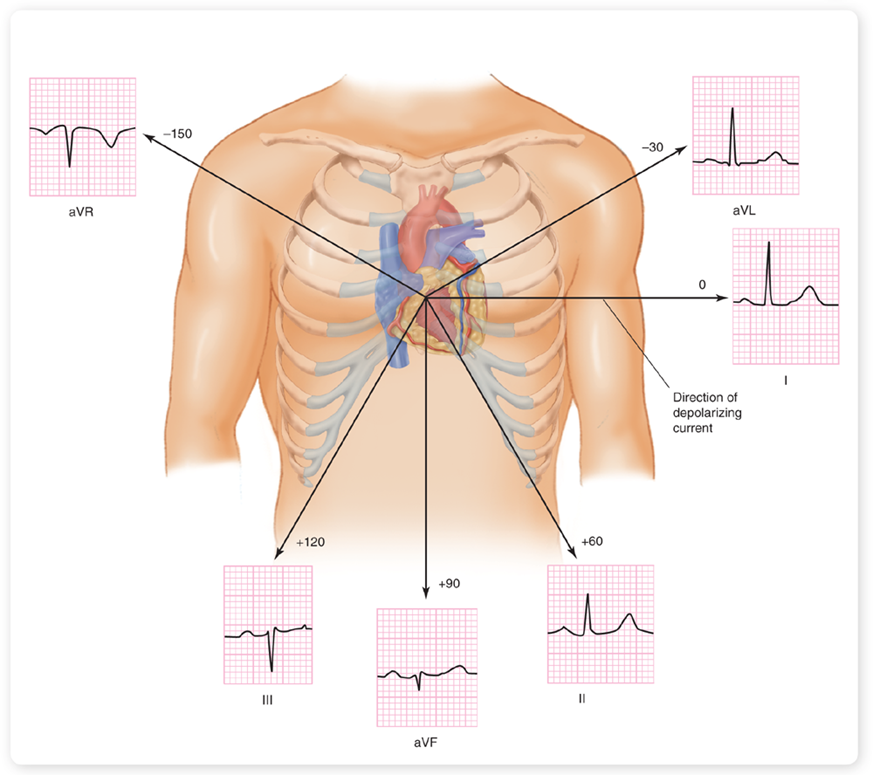

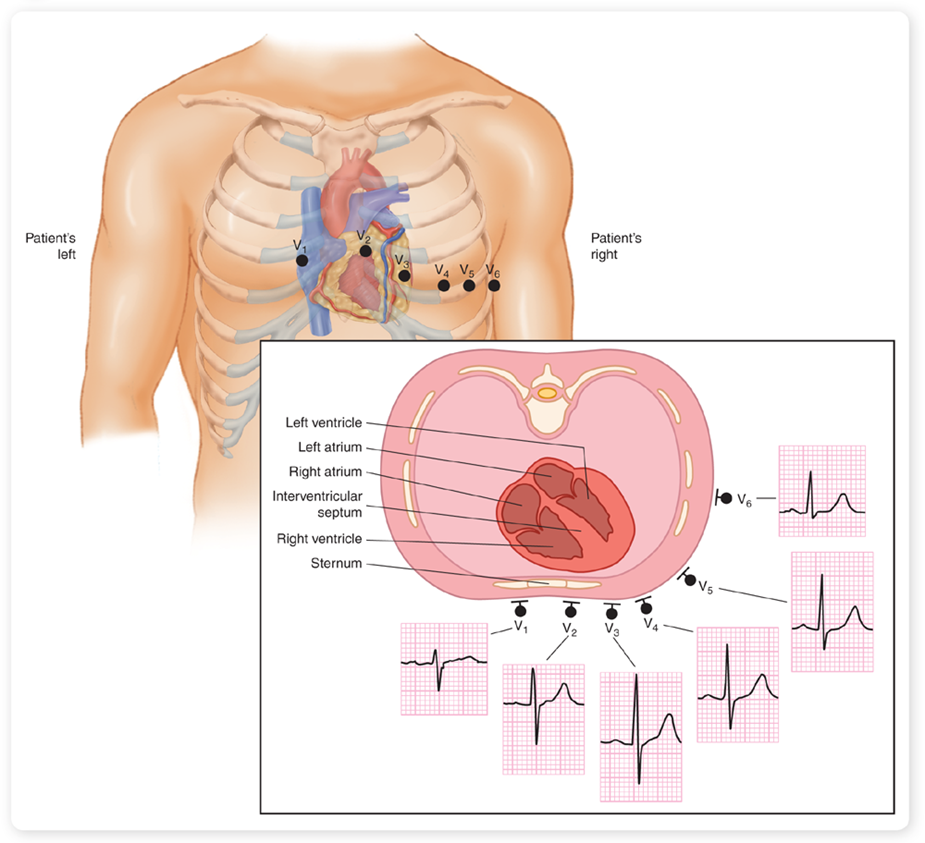

Leads look at

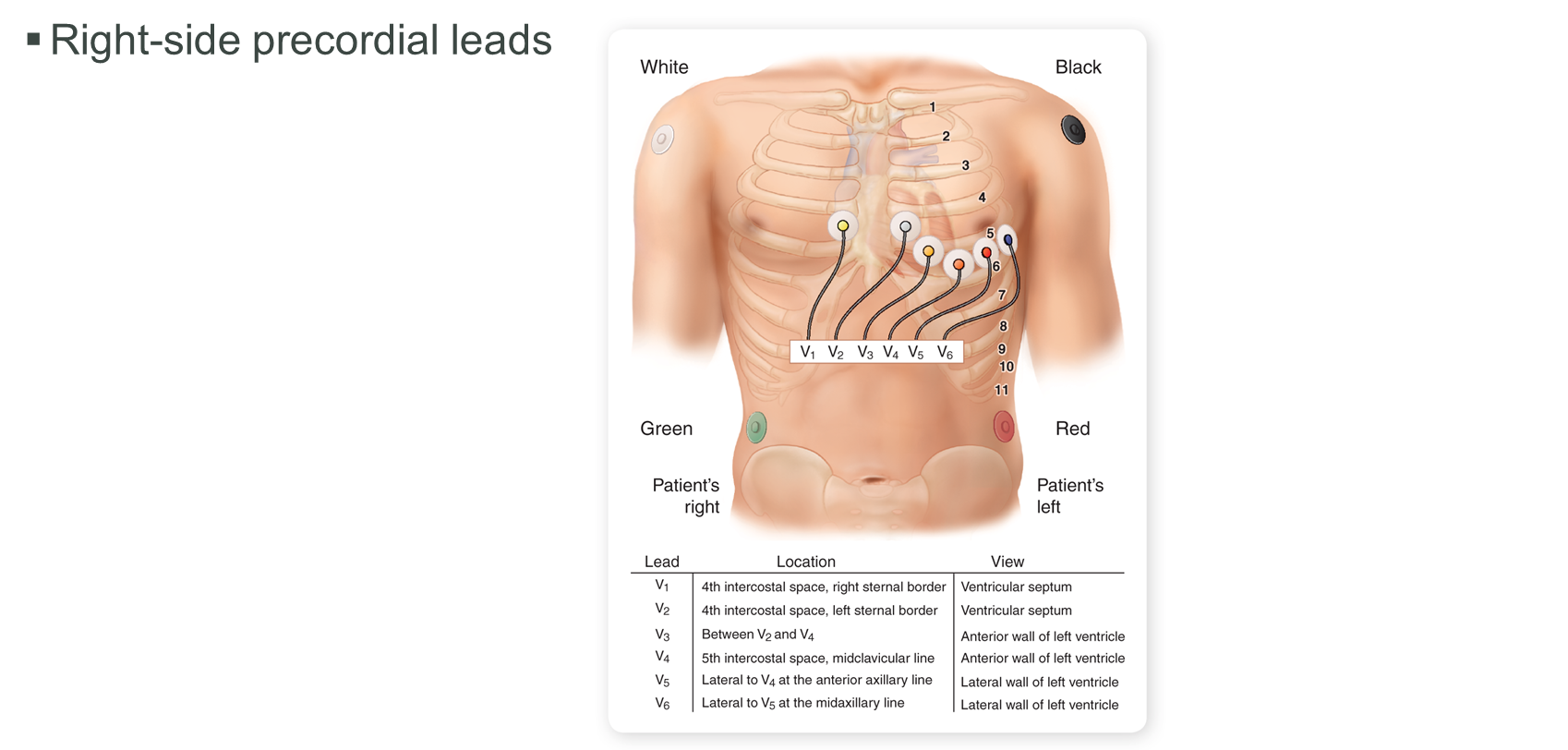

§Right-side precordial leads

Focus of ECG leads

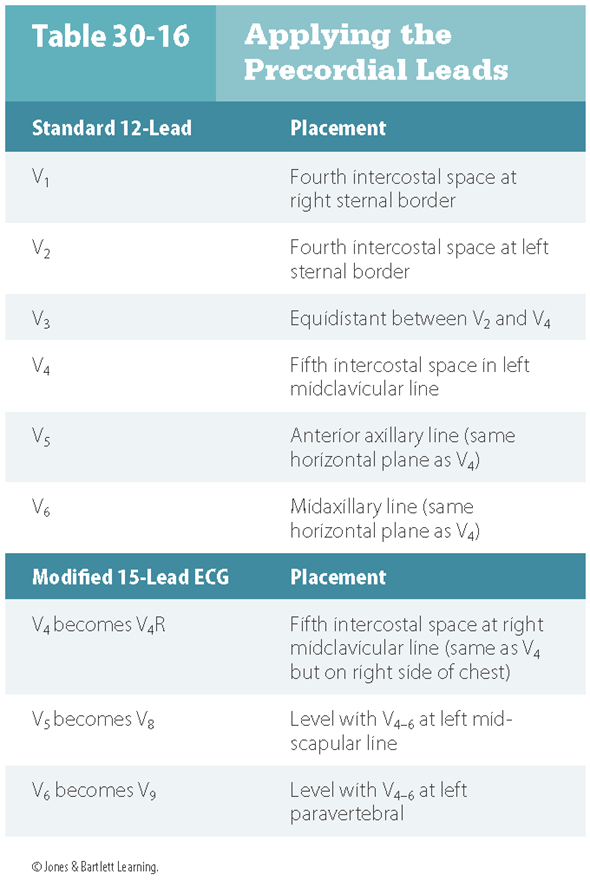

15 lead placement

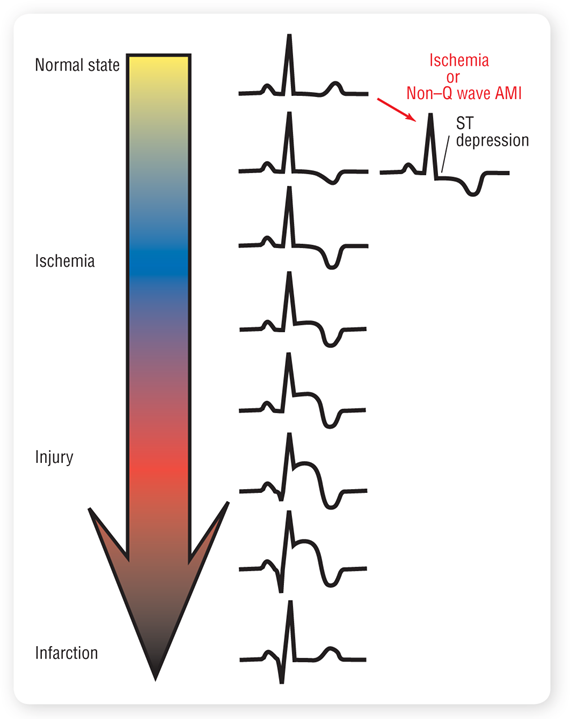

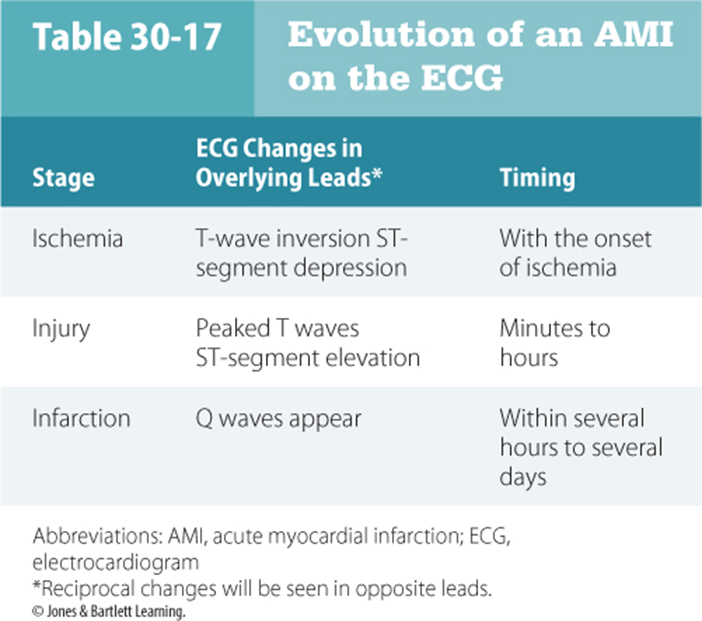

Evolution of an AMI

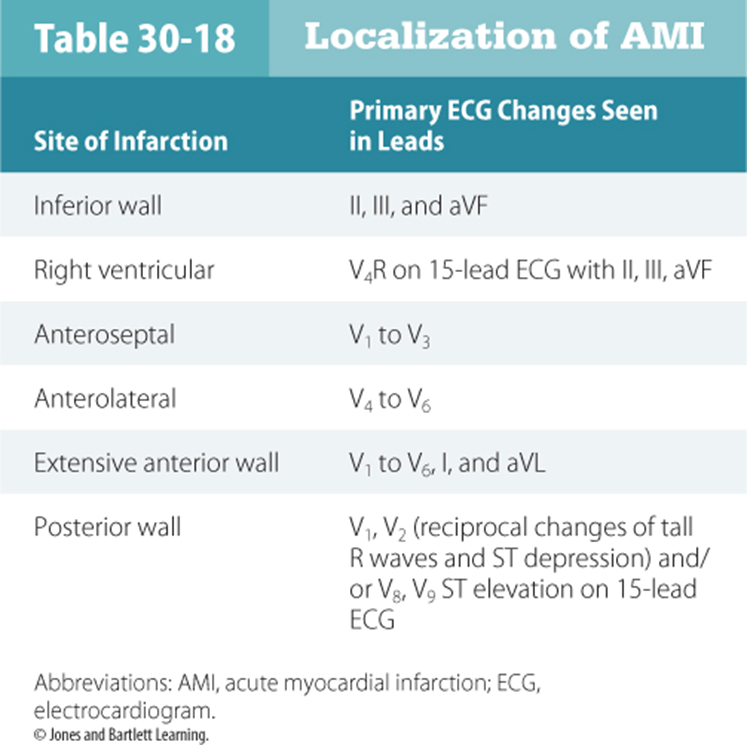

localization of AMI

§Evolutionary pattern of acute myocardial infarction

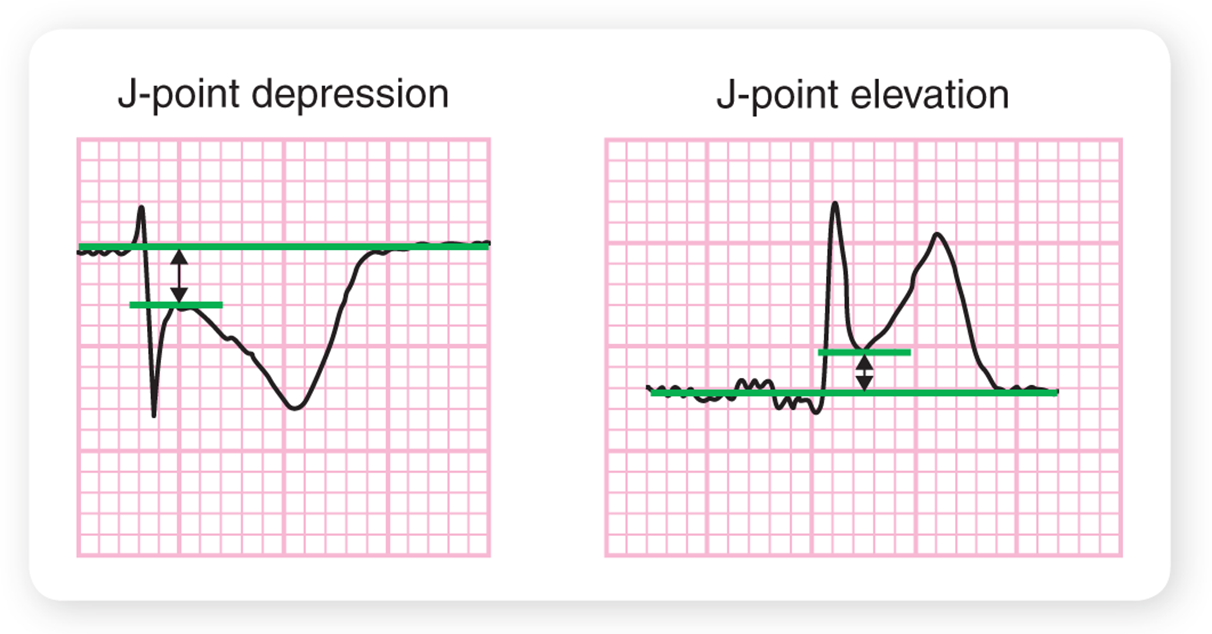

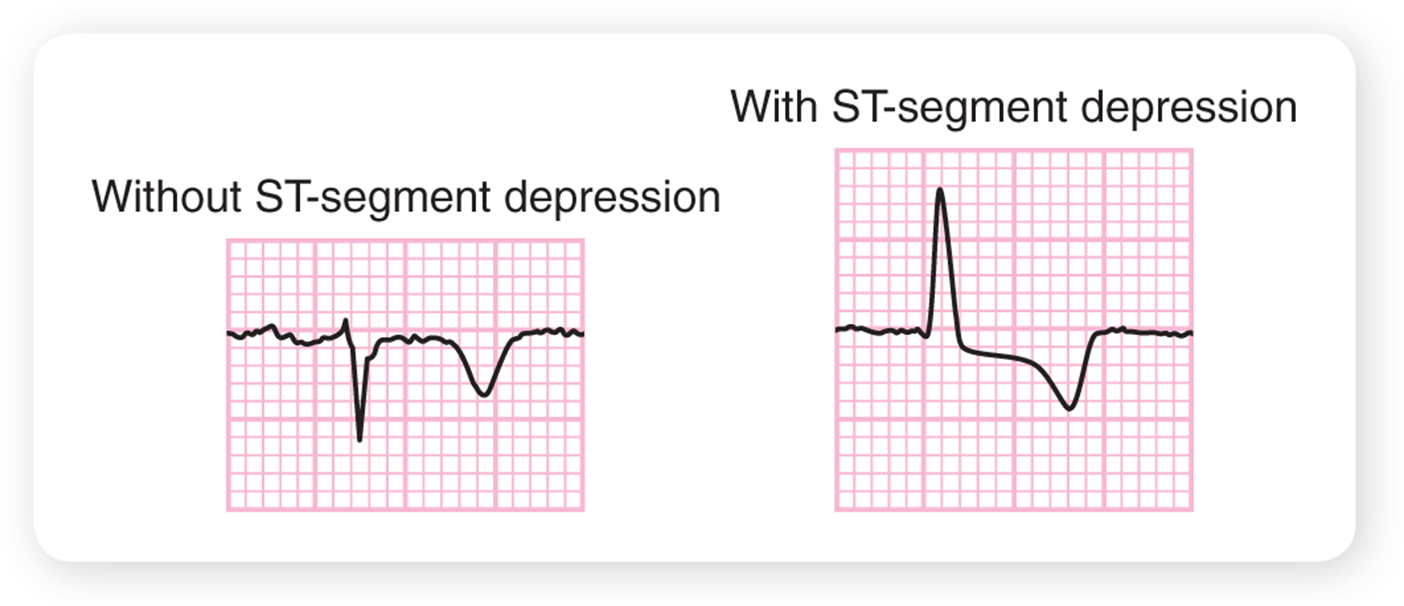

J point Depression and Elevation

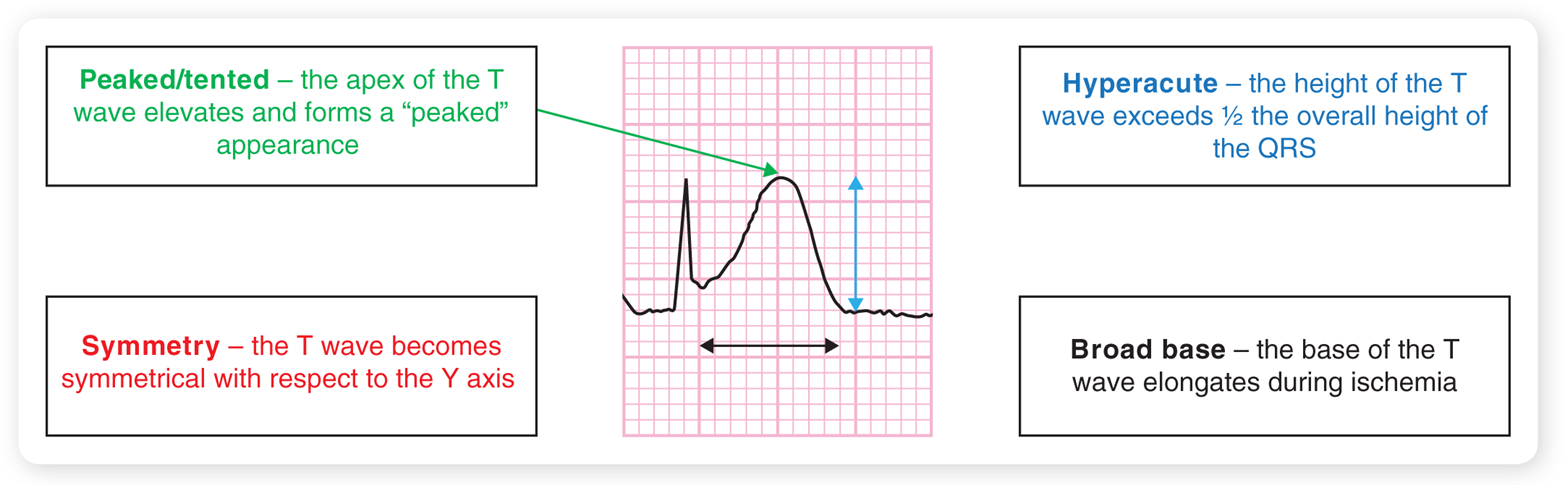

§T-wave inversion

T-wave morphology

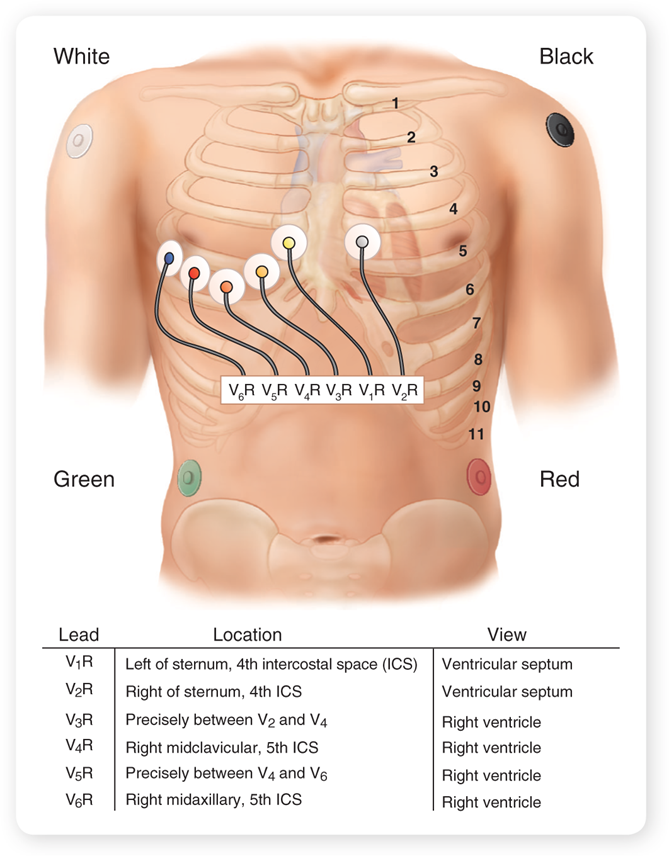

Right Side Leads

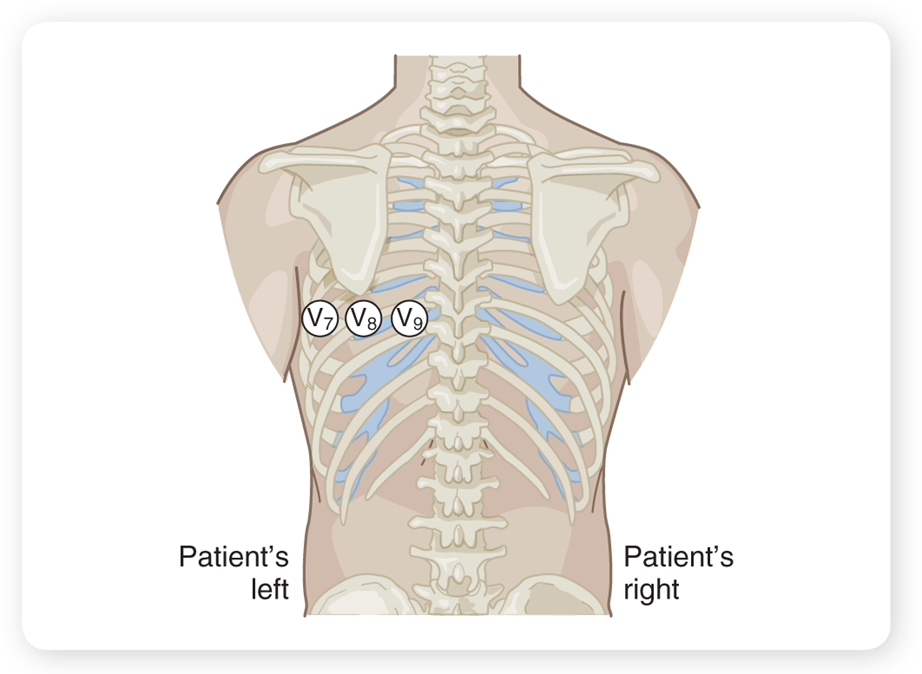

Posterior Leads

§Convex versus concave ST segment

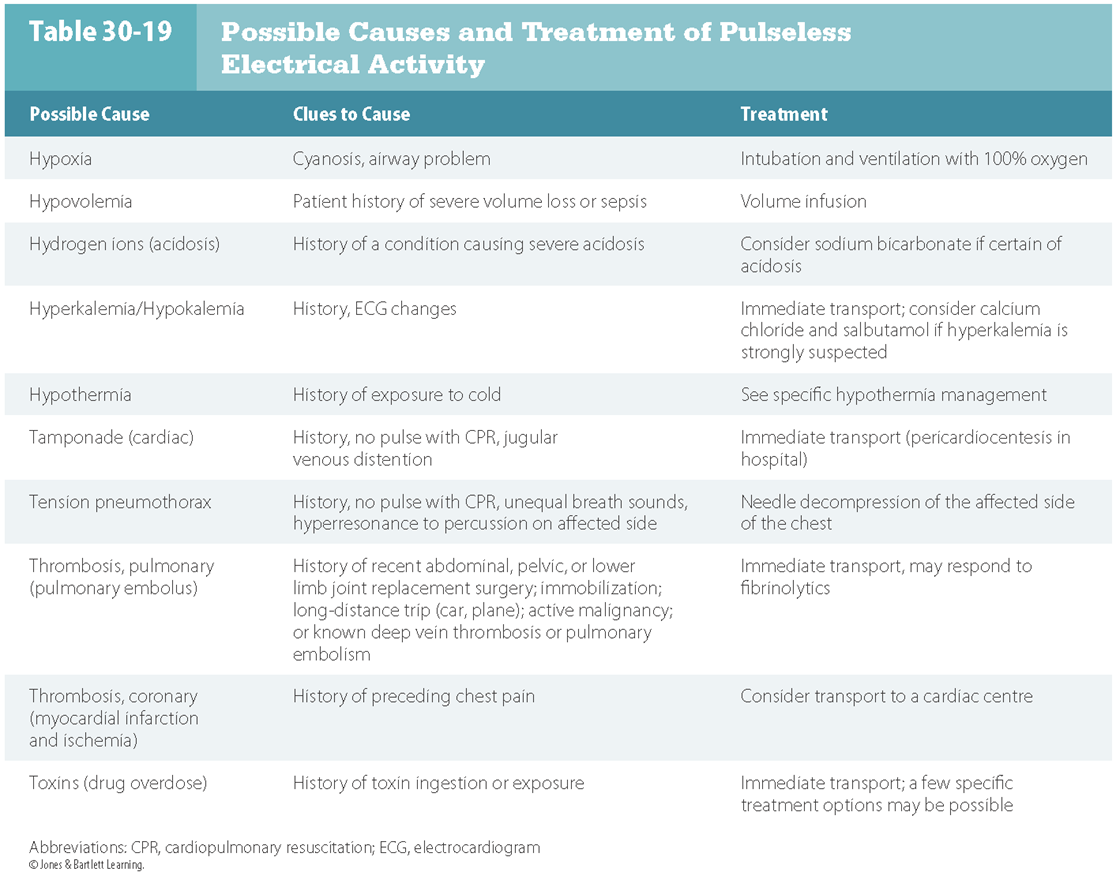

H’s and T’s

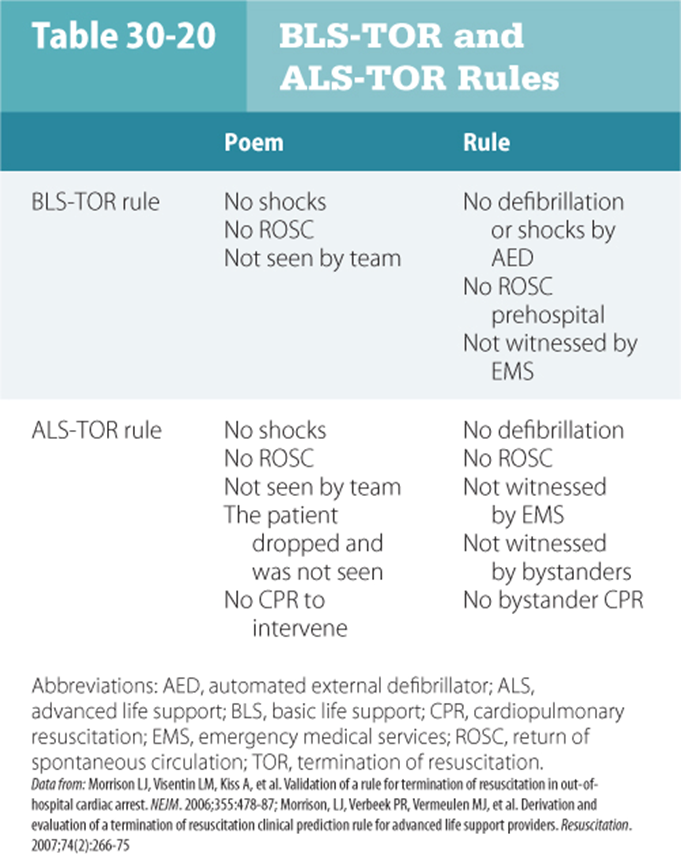

BLS-TOR and ALS-TOR rules

OLOL

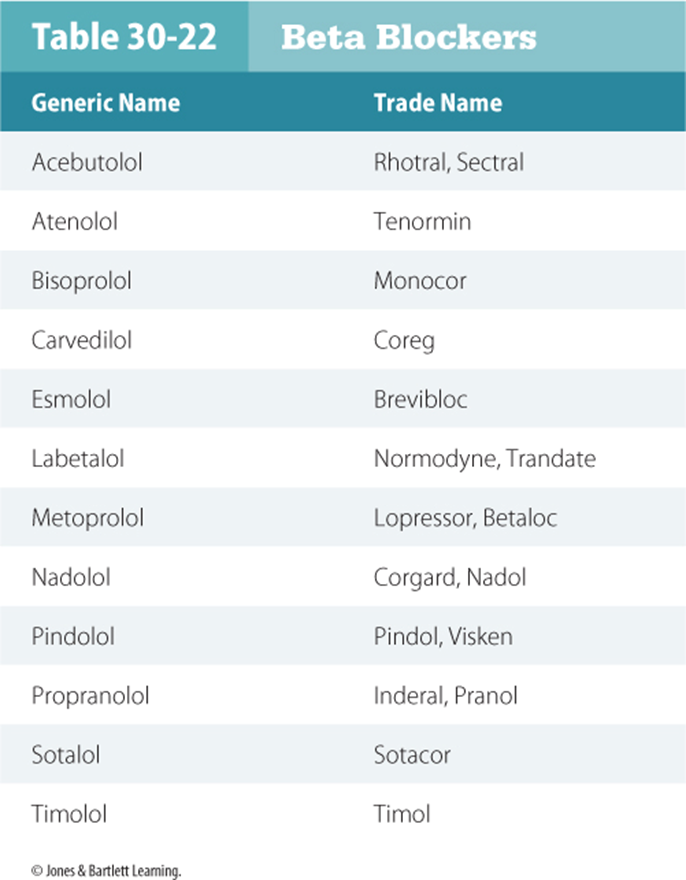

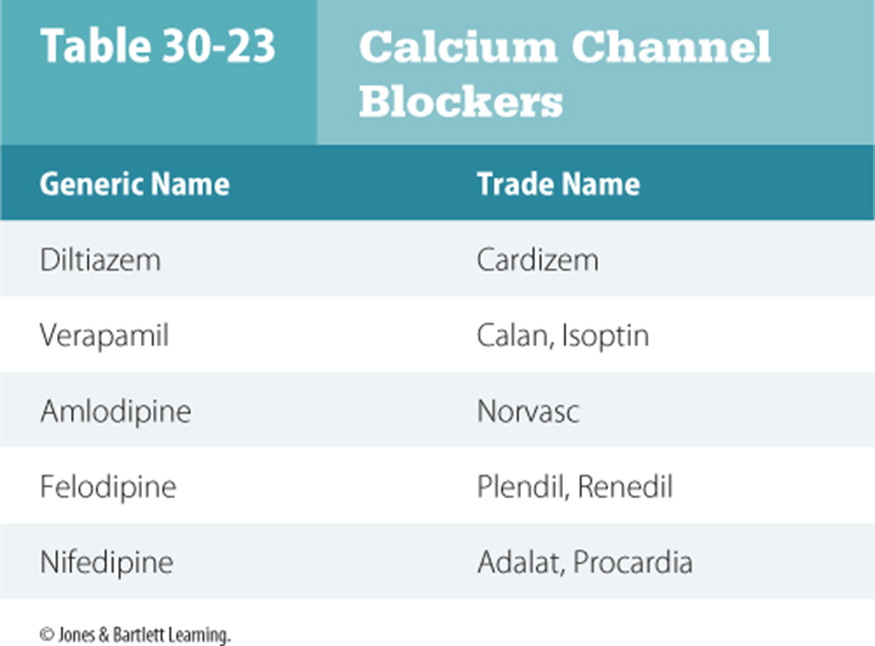

Calcium channel blockers

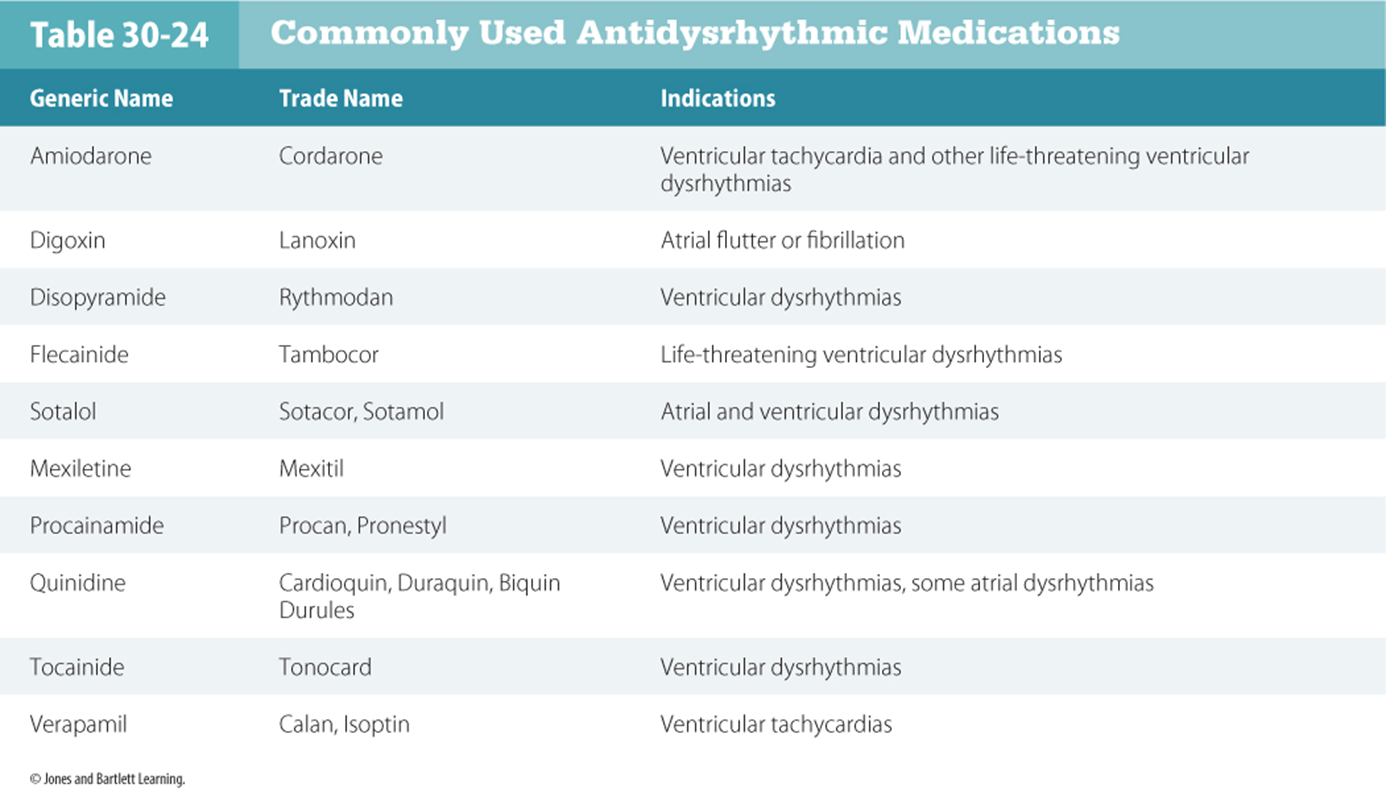

Antidysrhythmic Medications

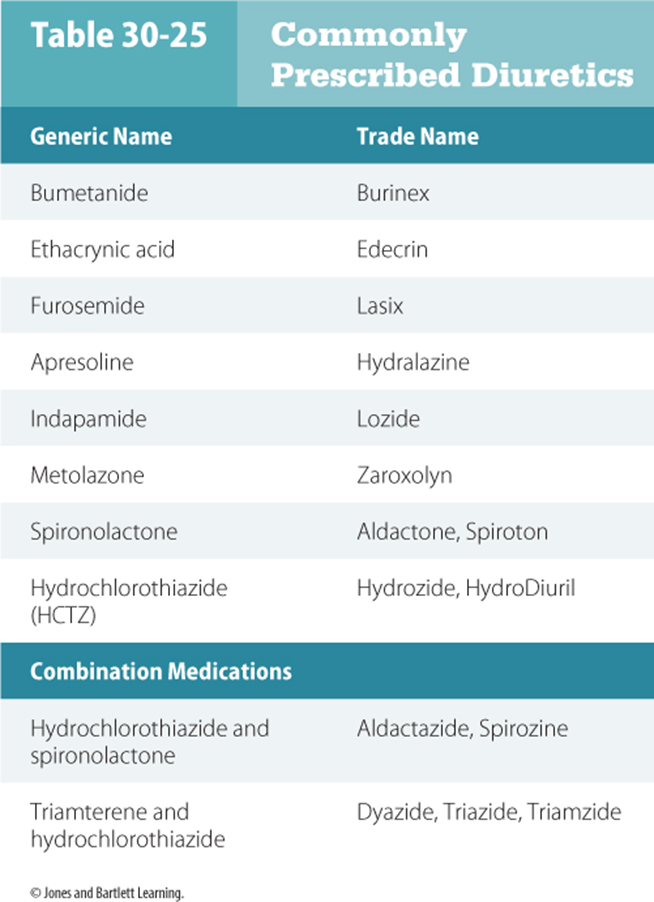

Diuretics

Antihypertensive Medications

anticoagulant medications

§Blood thinners

§Diminish the ability of the blood to clot

§Prescribed to patients who have had recurrent problems with blood clots and to patients who might be prone to develop clots

§Apt to bleed excessively

§Traditional oral anticoagulant drug is warfarin (Coumadin); newer medications include dabigatran (Pradax), rivaroxaban (Xarelto), and apixaban (Eliquis).

Antiplatelet Medications

Medications interfere with platelet aggregation and clot formation

Prescribed to patients with CHD and those with a coronary artery stent

Useful in the setting of AMI

Patients apt to bruise easily or bleed excessively

Most common antiplatelet medication is ASA; alternatives include dipyridamole (Aggrenox, Persantine) and ticlopidine (Ticlid). Other newer antiplatelet agents that are commonly administered for an acute STEMI include: clopidogrel (Plavix), ticagrelor (Brilinta), and prasugrel (Effient).
