Corrosion

What is corrosion?

Gradual deterioration/destruction of metal/alloy starting at its surface by chemical or electrochemical reaction between the metal and the surrounding environment (air, moisture) is called corrosion. It can be a slow or fast process based on nature of metal and the surrounding environment.

Eg.: Rusting of iron: reddish brown deposition on iron and steel objects due to hydrated ferric oxide (Fe₂O₃.nH₂O)

Eg.: Green scales on copper vessels due to the formation of basic cupric nitrate Cu(NO₃)₂ + Cu(OH)₂

Why is the study of corrosion important for engineers and metallurgists?

Some consequences of corrosion:

1. severe economic loss

2. hampers safety of equipment

3. pipe leakages of inflammable and toxic gases can result in fire hazards and environmental pollution

4. failure of machine parts when metal becomes brittle

5. frequent replacement and maintenance of corroded parts → indirect financial loss → production loss

6. contamination of products

7. 25% of the annual production of iron is wasted because of corrosion

Why metals undergo corrosion?

Naturally, metals are present in their oxidized form in their ores.

→ During their extraction, lot of energy is put to reduce metal ions to metal atoms. Hence, metals are always in higher energy sate and thermodynamically unstable.

→ Metals try to lower their energy by spontaneously reacting with chemicals present in their surrounding environment like O₂ and H₂O.

This process of loss of metal is termed as metallic corrosion

Explain Electrochemical theory of corrosion by taking iron as example

When iron is exposed to atmosphere O₂ and H₂O the following changes occur:

→ Formation of minute anodic and cathodic areas on metal surface (galvanic cells)

At anode: Oxidation occurs

→ Fe oxidises to Fe²⁺ ferrous ions and liberates e^-s

→ Metal is destroyed and lost at the surface due to dissolution

→ Fe²⁺ ions start moving towards the cathodic area through metal

At cathode:

→ Chemical species present undergo reduction

→ The cathodic area provides the surface for reduction but remains unaffected

Depending on the environment, there are 3 possible reactions:

1) Air and moisture present (under neutral conditions)

½ O₂ + H₂O + 2e^-s → 2OH^-

2) Only moisture present and air absent (under neutral conditions)

2H₂O + 2e^-s → 2OH^- + H₂

3) Acidic medium in absence of air

2H+ + 2e^-s → H₂ ↑

→ The OH- ions formed move towards anode

Near the cathodic area:

→ Ferrous hydroxide is formed

Fe²⁺ + 2OH^- → Fe(OH)₂

On further reacting with Air and moisture we get hydrated ferric oxide

It is a brownish red corrosion product called rust

2Fe(OH)₂ + ½ O₂ + H₂O → [Fe₂O₃ • 3H₂O]

What are the types of corrosion?

1. Differential Metal Corrosion (Galvanic or Bimetallic corrosion)

2. Differential Aeration corrosion (Concentration cell corrosion)

What is Differential Metal Corrosion

→ 2 dissimilar metals are in contact with eachother in a corrosive environment

→ metal with lower electrode potential → undergoes oxidation → undergoes corrosion

→ metal with higher electrode potential → remains unaffected

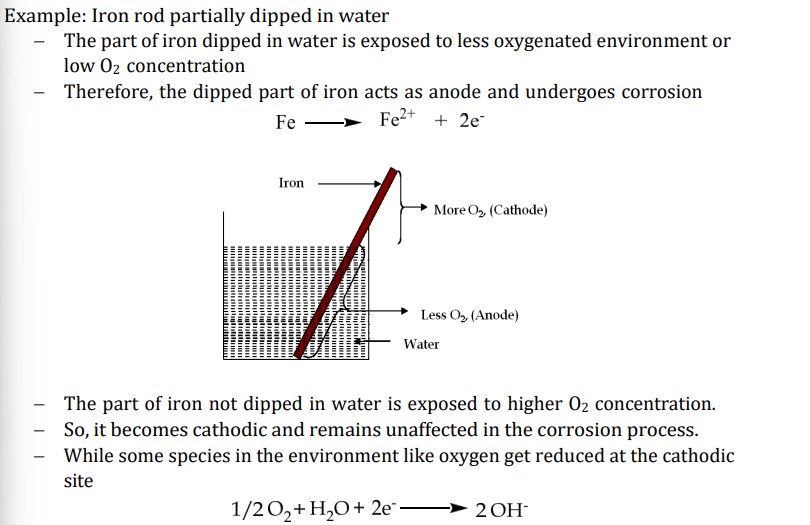

What is Differential Aeration Corrosion

→ occurs when metal is exposed to different conc of air (O2)

→ part of metal exposed to lower conc → lower electrode potential → anodic → undergo corrosion

→ part of metal exposed to higher conc → higher electrode potential → remain unaffected

eg. part of the nail inside the wall, window rods inside the frame, partially buried pipeline in soil, paper pins inside paper

What are the different types of Differential aeration corrosion

1. Water line corrosion

2. Pitting corrosion

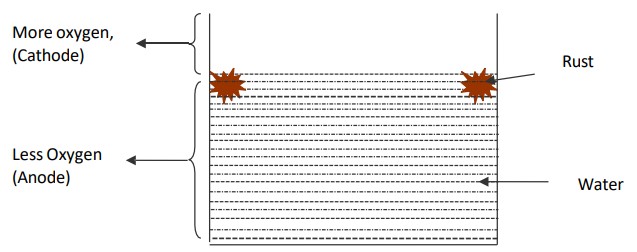

What is water line corrosion

Part of water tank below water line is exposed to low O₂ conc.

eg. steel/iron tanks partially filled with water and ships floating in ocean for long time

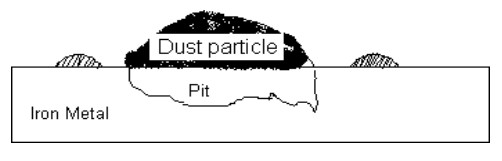

What is pitting corrosion?

→ observed when dust particles or oil drops get deposited over the surface of metal

→ portion of metal covered is less aerated (less oxygenated) → anodic → corrosion → forms deep narrow pit

→ area not covered → exposed to higher conc of O₂ → cathodic → unaffected

Why is pitting corrosion more dangerous form of corrosion?

Pitting corrosion is a more dangerous, intense and localized form of corrosion. Because, once pit is formed, the corrosion rate is accelerated due to further decrease in concentration of O₂ within pit. Hence, in a short duration, a narrow pit is formed resulting in the sudden breakdown of the metal.

What is stress corrosion?

→ occurs when some part of the metal is under stress and exposed to specific corrosive environment.

→ stressed part becomes more reactive (anodic).

→ when this portion is exposed to specific corrosive environment, chemicals get chemisorbed on these sites and initiates corrosion.

What is stress corrosion cracking?

Stress corrosion decreases ductility, increases brittleness and results in cracking of metal surface which is called stress corrosion cracking.

Explain caustic embrittlement in boilers

It is a form of stress corrosion in boilers operating at high pressure, at stressed regions of the boiler.

→ Specific corrosive environment: NaOH (caustic soda)

→ Boilers are made of mild steel

→ they undergo corrosion at the stressed portion when exposed to hot concentrated alkaline solution (NaOH)

→ Na₂CO₃ is added to reduce scaling.

When boiler feedwater is boiled: Na₂CO₃ undergoes hydrolysis to give NaOH.

Na₂CO₃ + H₂O → 2NaOH + CO₂

→ NaOH formed flows into hairline cracks by capillary action and accumalates.

When conc of NaOH>10% then it reacts with Fe to give Na₂FeO₂ (sodium ferrite)

Fe + 2NaOH → Na₂FeO₂ + H₂

which decomposes into Fe₃O₄ (ferrosoferric oxide) and NaOH

3Na₂FeO₂ + 4H₂O → Fe₃O₄ + 4H₂ +6NaOH

NaOH is replenished → Cyclic attack → Corrosion Cracking → Boiler failure

List all the factors affecting rate of corrosion

1. Nature of metal

2. Relative anodic and cathodic area

3. Nature of corrosion product

4. pH

5. Temperature

6. Conductance of medium

How does Nature of Metal influence corrosion rate?

→ metals with lower electrode potential like active metals (K, Na, Mg, Zn) → more reactive → corrode

→ metals with higher electrode potentials like noble metals (Ag, Au, Pt) → less susceptible

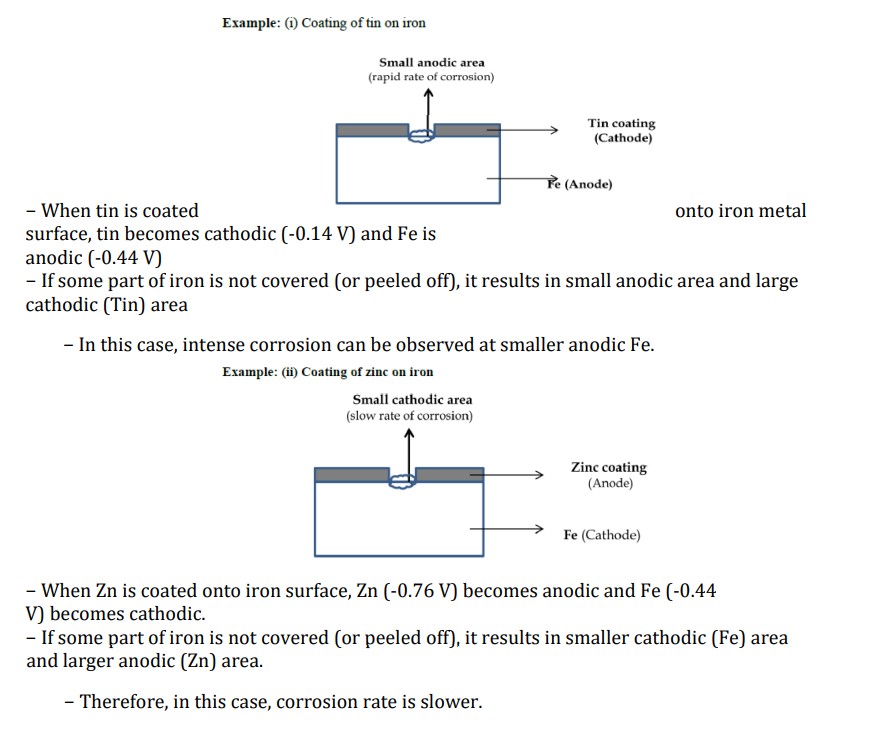

Why corrosion rate is faster when anodic area is smaller?

When metal corrodes, part of it becomes anode another part becomes cathode.

Larger cathodic area → Higher demand for consuming electrons → smaller anodic area tries to fulfil the demand of cathode by rapid liberation of electrons

How does nature of corrosion product affect corrosion rate?

→ may or may not prevent further corrosion

→ most metals form their oxides as corrosion products (thin film/layer)

→ if oxide is highly insoluble, stable, non-porous → protective

Eg.: The corrosion products of Al, Cr, Ti, etc. form passive oxide layers over the metal surface preventing further corrosion of metal

Eg.: The corrosion products of Fe, Zn, Mg, etc. unstable and therefore, do not prevent further corrosion of metal.

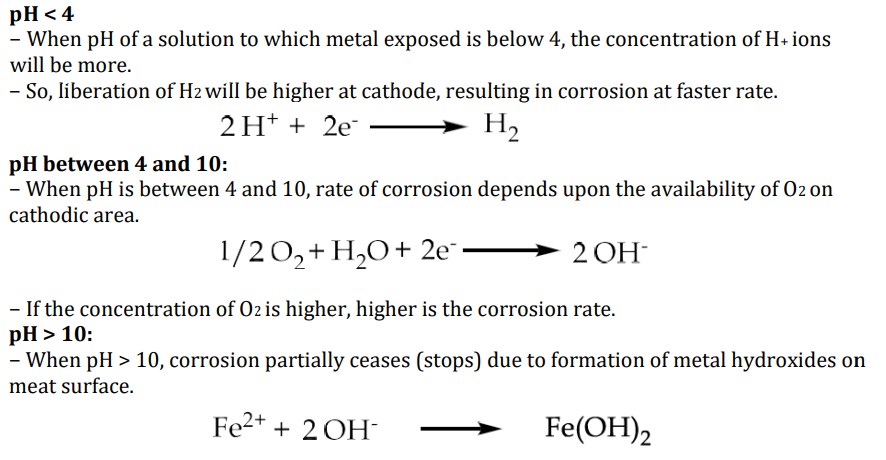

Explain how pH affects the rate of corrosion and the different cases

Corrosion rate increases with decrease in pH

pH of the solutions decides the type of cathodic reaction

Note: some metals like Al, Zn etc. undergo corrosion in alkaline medium in a faster rate.

How and why does temperature affect rate of corrosion?

Increase in temperature → Increase in conductance → decrease in polarization → increased corrosion rate

Example:

Rate of O₂ reduction is doubled for every 30 °C rise in temperature

Rate of H₂ evolution is doubled for every 10 °C rise in temperature

How does conductance of medium affect corrosion? Give example

Rate of corrosion increases with increase in the conductance of the medium

Higher the conductivity of medium → migration of ions between the anodic and cathodic regions is faster → decrease in polarization → increase in corrosion rate.

Eg. Metal immersed in sea water undergoes faster corrosion than the metals dipped in river water/normal water/distilled water. This is because sea water contains high concentration of salt, Na⁺ and Cl^- ions.

List the methods commonly used to control corrosion

1. Protective coating

2. Cathodic protection

3. Anodic protection

4. Corrosion inhibitors

5. Design and selection of materials

What is cathodic protection?

The method of protecting a metal against corrosion by making the entire metal cathodic by providing electrons from external source.

→ Anodic area is eliminated by converting the entire metal into cathode.

Can be done done in 2 ways:

1. Sacrificial Anode method

2. Impressed Current method

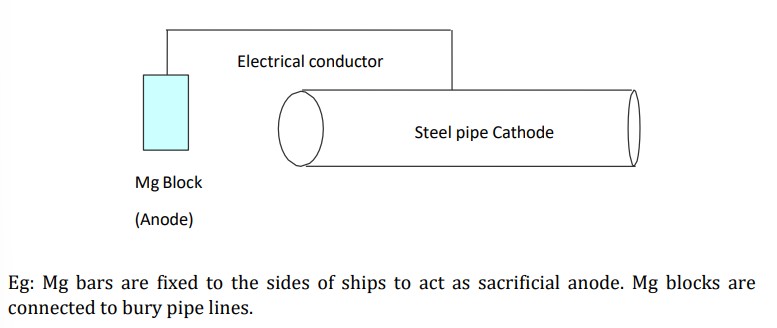

What is Sacrificial anode method?

→ metal to be protected is connected to more active metal

→ when in contact → anodic metal is anodic area and entire iron is cathodic area → galvanic cell is set up

→ anodic metal undergoes oxidation and provides e^-s to iron

→ entire specimen becomes cathodic and protected

→ in the process, anodic metal undergoes corrosion by sacrificing itself hence they are frequently replaced

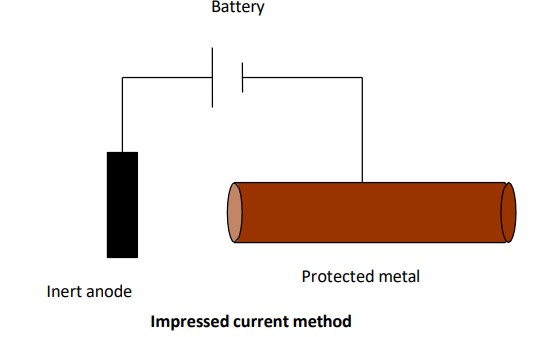

What is Impressed Current method?

→ e^-s are supplied to the metal from external source

→ metal to be protected is connected to -ve terminal of DC source

→ +ve terminal to inert anode like graphite to complete the circuit

→ In such condition/set up, metal acts as cathode, does not undergo corrosion and remains unaffected.

What is CPR

“Corrosion penetration rate (CPR) is defined as the speed at which any metal in a specific environment deteriorates due to a chemical reaction.

→ It indicates the amount of corrosion loss per year in thickness and the speed at which corrosion spreads to the inner portions of a material.

→ The rate of deterioration depends on the environmental conditions and the nature of metal under consideration.

expressed in Mils penetration per year (mpy) or millimetre per year (mmpy).

What are the general methods to measure corrosion rate?

1. Weight loss method: Weight loss of the metal before and after exposure to the corrosive environment.

2. Electrochemical methods: Measurement of corrosion potential or corrosion current. Corrosion tendency is measured by coupling the test metal with standard half-cell and determining the corrosion current or potential

Explain weight loss method

→ used for measurement of uniform corrosion

→ exposure of weighed peice of test metal/alloy to a specific environment for precise time

→ accompanied by thorough cleaning to remove corrosion products

→ determine weight of loss metal

The corrosion rate is best described in terms of the thickness or weight loss where the surface of the metal disintegrates uniformly across the area that has been exposed

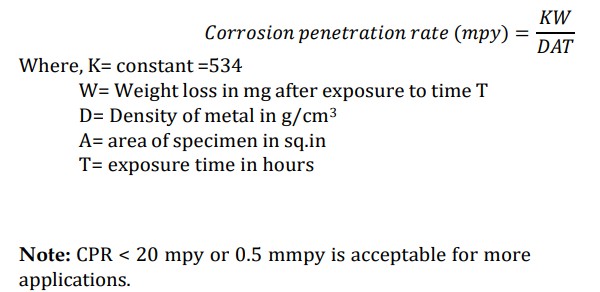

CPR Formula

What is metal finishing?

Wide range of processes carried out in order to modify the surface properties

What is the technological importance of metal finishing?

✓ A decorative appearance.

✓ An improved corrosion resistance.

✓ An improved heat resistance.

✓ An improved surface hardness.

✓ An improved resistance to wear and tear.

✓ An improved resistance to abrasion.

✓ An improved solderability.

✓ Good thermal conductivity.

✓ Good electrical conductivity.

✓ Good thermal reflectivity.

✓ Good optical reflectivity

What is electroplating?

It is a process in which a layer of metal is deposited on the surface of another metal by applying electric current

The common metals used for electroplating are Zn, Cu, Ni, Cr, Ag, Pt, Au, etc.

Explain Electroplating of Gold

Plating bath used: Cyanide Baths (because cyanide is a complexing agent)

Depending on applications, plating is carried out in different pH range:

1. Acid cyanide bath:

→ pH range: 3.8 - 4.3

→ maintained using citric acid

→ used in gold plating for PCB, connnectors

2. Neutral cyanide bath:

→ pH: 6-8

→ monopatassium phosphate and potassium citrate

→ used for gold plating on semiconductors

3. Alkaline cyanide bath:

→ pH: 12

→ dipotassium phosphate and potassium cyanide

→ used for gold plating on semiconductors

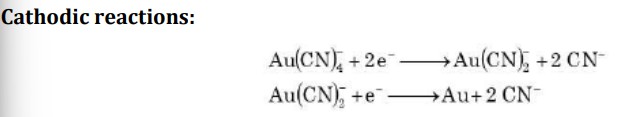

What conditions are required for electroplating of gold on printed circuit boards and connectors?

ACID CYANIDE BATH (pH: 3.8-4.3)

Plating bath: Potassium gold cyanide and citric acid

Operating temp: 21-47°C

Anode: Platinum covered Niobium

Cathode: Object to be plated with gold

How is gold cyanide plating bath managed

→ Cyanide bath is unstable under highly acidic condition with pH < 3.5

→ Gold metal dissolves very fast in cyanides, therefore inert anode is used instead of pure gold metal

→ AuCl₃ is periodically added to cyanide bath to maintain the concentration of [Au(CN)₄]⁻.

→ Concentration of gold ions should be minimum in plating bath to obtain a good coherent deposit.

What is Electroless plating?

“Electroless plating is the method of depositing a metal or alloy over a substrate (conductor or non-conductor) by chemical reduction method without using electrical energy.

→ It is a non-galvanic plating method

→ It is a redox reaction.

→ It involves several simultaneous reactions in an aqueous solution, which occur without the use of external electrical power.

also known as Chemical plating or Autocatalytic plating

What are some advantages of Electroless plating over Electroplating?

→ Electrical energy is not used.

→ It helps in coating non-conducting, non-metallic surfaces like plastics, semiconductors, etc.

→ It has the ability to plate complicated and irregular shapes (edges, inside holes, etc).

→ It results in a coating with more consistent thickness.

→ Lower operating costs

→ Resulting deposits have unique physical, chemical, mechanical and magnetic properties

What are some disadvantages of Electroless plating over Electroplating

→ Rate of deposition is slow.

→ Analytical control of the bath is required.

→ Process could be expensive due to the usage of high-cost chemicals.

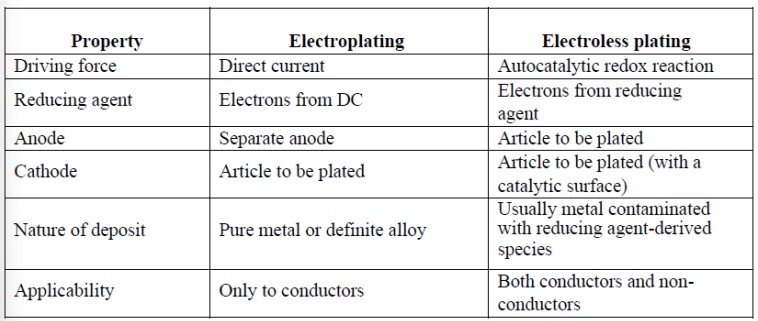

Difference between Electroplating and Electroless plating

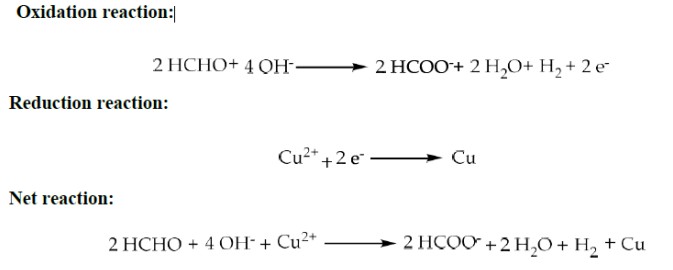

What are the steps in the method of Electroless plating of Copper?

In this method, Copper is deposited on a surface without passing electric current.

1. The surface is treated chemically to remove oils and other impurities like corrosive elements.

2. Surface activation is required

→ Etching by acid treatment.

 → The surface can be electroplated with a thin layer of metal to be plated, followed by heat treatment.

→ Insulators like plastics, glass, and circuit boards are activated chemically. The material is dipped in SnCl₂ containing HCl at 25 °C, followed by PdCl₂. SnCl₂ reduces Pd²⁺ ions to Pd metal which is deposited on the surface of the material which catalyses redox reaction (coating).

3. Surface preparation is followed by dipping the metal to be coated in the plating bath.

Bath consists of;

→ Metal salt: 12 g/L solution of CuSO₄

→ Reducing agent: 8g/L solution of HCHO (formaldehyde)

→ Buffer: 15 g/L NaOH + 55 g/L Rochelle salt

→ Complexing agent, 20 g/L EDTA

→ Stabilizer: Thiourea

→ pH: 11 – 12

→ Temperature: Room temperature

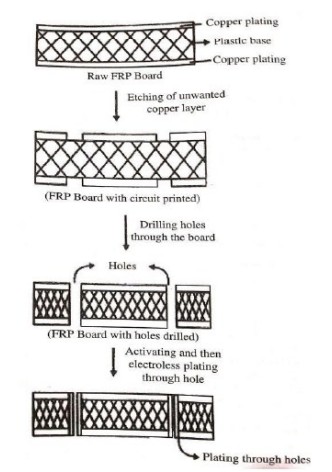

Electroless plating of Copper in Printed circuit boards

Electroless plating of Copper is used in the manufacturing of double sided, multi-layer PCBs. Through hole connections are necessary for the electrical connections between two sides of the board. It is done by drilling holes and then by electroless plating.

The steps involved are as follows:

1. Initially, the base object, plastic board is degreased and etched in acid.

2. The plastic board is then partially covered with copper foils (copper clad board).

3. The copper clad board is printed with the required pattern of the circuit.

4. On etching, copper below the printed pattern is etched away, leaving behind the circuit pattern.

5. The connection between 2 sides of PCB is made by drilling holes, activation (treating the board with SnCl₂ containing HCl and PdCl₂), followed by plating through holes by electroless plating.

6. The activated board is immersed in plating bath maintained at 25 ºC (room temperature).

7. Plating is carried out at a rate of 1 – 5 μm/h, till a thickness of 5 – 100 μm is obtained.

What is anodizing

Anodizing is a process of artificially forming protective passive oxide film on the surface of metals such as Al, Mg, Ti, Zr, Ta, Cr, etc by electrochemical oxidation.

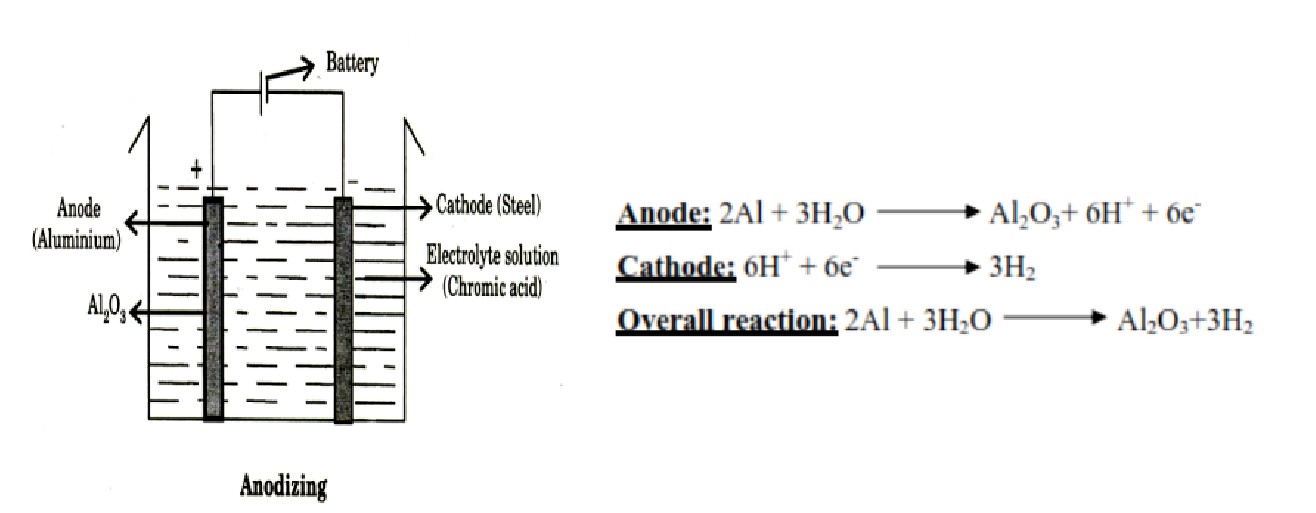

Explain anodizing process

1. the article (aluminium) is cleaned, degreased, polished

2. taken as anode in an electrolytic cell

3. It is immersed in an electrolyte consisting of 5-10% chromic acid.

4. Steel or copper is taken as cathode.

5. Temperature of the bath is maintained at 35°C.

6. A current density of 100 Acm^-2 or more (or applied potential 0-40 V) is applied which oxidizes outer layer of Al to Al₂O₃ that gets deposited over the metal.

7. The passivity of aluminium is due to the formation of a thin and compact layer of aluminium oxide over the metal. This phenomenon is known as anodizing or anodic oxidation or anodic passivity.

What are some uses of anodizing?

→ Anodized articles are used as an attractive, highly durable and corrosion resistant material

→in ceilings, floor, escalators, lobbies, staircase, curtain walls, tiffin carriers, soapboxes, household utensils, window frames, exterior for roofs, walls, buildings and in many home appliances.

→ Anodized aluminium is also used in computer hardware, exhibit displays, scientific instruments and in a range of home appliances and consumer products.

Difference between Surface Conversion Coating and Metal coating

Surface Conversion Coating: In this method outer surface of the base metal is converted into protective coating through chemical reactions. Example: Anodizing ,Phosphating

Metal Coating: Deposition of protective metal over the surface of base metal is known as metallic coatings. It is divided into anodic metal coatings and cathodic metal coatings.

What are anodic metal coatings

Anodic metal coatings are coatings which are anodic to the base metals.

Examples are aluminium, magnesium, zinc, and cadmium coatings on iron.

These metals are above iron in the galvanic series and undergo corrosion thereby protecting iron.

A characteristic feature of anodic coatings is that the base metal on which the coating is done will not get corroded even if the coating peals off.

This is due to the formation of large anodic and small cathodic areas.

Example: Galvanizing.

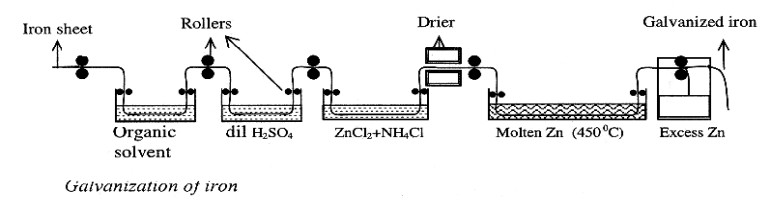

Explain Galvanizing Process for zinc coating on iron

The process of coating a layer of zinc on iron by hot dipping is called as galvanizing.

1) Iron sheet is passed through organic solvent to remove oil or grease present on it.

2) Then it is washed with dil.H₂SO₄ (pickling) to remove any rust (oxide layer) present on the surface

3) Then it is treated with a mixture of aqueous solution of zinc chloride (ZnCl₂) and ammonium chloride (NH₄Cl) which acts as flux and then dried.

4) The treated sheet is dried and dipped in molten zinc at 430-470 ºC.

5) Excess zinc present on iron sheet is removed by rolling, wiping or passing blast of air.

Uses of Galvanization

→ roofing sheets, buckets, bolts, nuts, nails, pipes etc.

→ Galvanizing and tinning by hot dipping is more economical than electroplating.

→ Hot dipping is limited to the coating of low melting point metals like Zn, Sn and Al over iron.
