Clinical biomechanics midterm SG (Davis)

What can a orthosis do?

- Improve function by:

• Supporting skeletal system due to weakness

• Decrease inappropriate movement

• Maintain appropriate movement

• Limit motion

• Prevent deformities

- Improve Quality of Life

- Decrease pain

When applying an orthoses what should you watch out for?

• Discomfort

• Pain

• Skin irritation

• Nerve compression

• Muscle weakness that can develop over time

• Possible increase in energy expenditure

• Psychological effect

• Patient must be able to don, doff and want to use it

When developing goals for the orthosis, what are the 4 main things to take into consideration?

What is one this orthosis can also do?

Assist joint movement when joint movement is insufficient

Stabilize a joint by stopping or limiting motion when joint movement is excessive, abnormal or unwanted

Protect joint or skeletal component from excessive, unwanted or deleterious loading or forces that may cause pain or injury

Assist in management of joint or skeletal deformities

Prevent deformity

• Accommodate, balance or support a fixed deformity

• Correct a flexible deformity that interferes with function

Basic terminology - joints

• Free

• Assist

• Resist

• Stop

• Hold

• Free: No control is exerted, and the joint is free to move in a designated plane

• Assist: Assists motion by applying an external force to increase the range, velocity, or force of a desired motion (IE, a spring, elastic band, motor, pneumatic force, muscle e-stim)

• Resist: Resists unwanted motion by applying a force to decrease the velocity or force of an undesirable movement

• Stop: Stop or limit motion at a joint. The prescription must indicate the specific motion to be stopped and then the stop is to occur in the rom

• Hold: Controls and eliminated all motion at a joint in all planes. The prescription must indicate the specific joint position for the hold

Orthotic materials and properties

• Strength

• Brittleness

• Ductility

• Stiffness

• Elasticity

Strength

• The maximum external load or force that a material can sustain or support before breaking…commonly subjected to compressive, tensile, and bending forces

Brittleness

• Materials that when loaded do not deform (change in shape) before breaking are called brittle

Ductility

• Materials that yield or deform in response to loading prior to breaking are called ductile

Stiffness

• The amount of deformation that occurs when a material is loaded. Materials that do not deform very much in response to loading are very stiff

Elasticity

• The ability of materials that deform in response to loading to return to their original dimensions when unloaded. Materials that can return to their pre deformed size and shape have good elastic memory

Orthotic materials and properties

• Plasticity

• Viscoelasticity

• Hardness

• Density

• Durability or fatigue resistance

• Corrosion resistance

Plasticity

• The ability of materials that deform in response to loading to retain the deformation even after the deforming force has been removed

Viscoelasticity

• The ability of materials to demonstrate both elasticity and plasticity when deformed in response to loading

Hardness

• A material’s resistance to permanent indentation in response to a compression load. Hardness is measured in durometer

Density

• A material’s weight per unit of volume. Materials that are lightweight but strong are most desirable

Durability or Fatigue resistance

• The ability of material to withstand cyclic loading without breaking or deforming significantly

Corrosion resistance

• The degree to which a material is able to resist degradation in response to exposure to chemicals, often exposed to water, perspiration, possibility of urine

Shoes

• Shoes were traditonally designed to?

• Shoes are considered to be the _____ of a orthosis and may also be a _____ _____ by design

• Shoes can be modified to redistribute what? Not only through the foot and ankle but also alter forces transmitted throughout the?

• Well designed shoes can frequently help with?

• Improper shoes can cause what?

• Traditionally designed to protect feet from injuries and inclement weather. Designed to support feet during activities

• Considered the foundation of an orthosis and may also be a corrective device by design

• Can be modified to redistribute weight bearing not only throughout the foot and ankle, but also can alter forces transmitted throughout the lower limb

• Well designed shoes can frequently promote healing, prevent further injury and provide an adequate foundation for lower limb orthotics

• Improper shoes can cause blisters, calluses, ulcers, deformity

Therapeutic footwear is designed to do what 5 things?

• Enhance shock absorption

• Reduce shear stresses on the foot

• Accommodate and support foot deformities

• Accommodate or relieve pressure-sensitive areas

• Accommodate shoe inserts and other devices that are worn inside the shoes

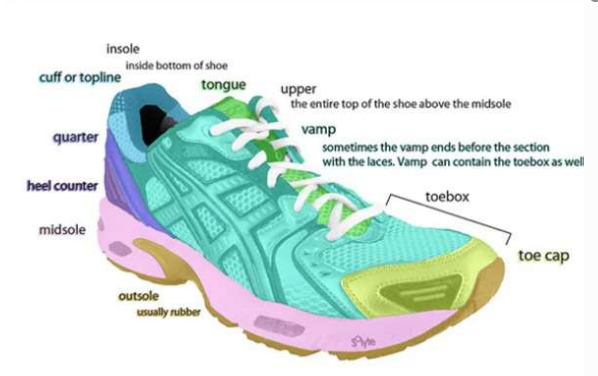

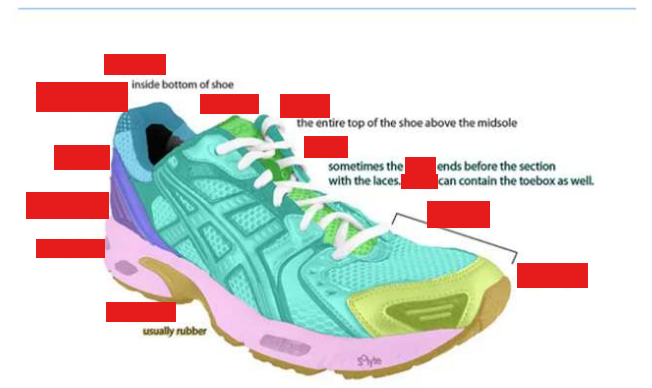

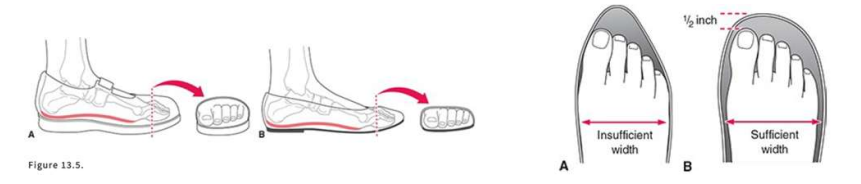

View the following image and fill in the red boxes:

Toe box, Vamp, Insole, Outsole, Midsole

When recommending shoe fits for patients, what should you know/consider?

• Try on shoes with proper socks, braces and orthotics

• Leave adequate space in the toe box (1/4 to 1/2 inch rule)

• Try on shoes in the afternoon or evening, as your feet expand throughout the day

Foot Orthoses (FO)

• What are they?

• What should you consider when recommending a foot orthoses?

• What are the general goals of a foot orthoses?

• Can be custom-made, custom-fit, or modified prefabricated appliances designed to apply forces to a client’s foot to improve function.

• Consider the client’s size and weight, how and where the client intends to use the device, and the source of abnormal forces or loads that contribute to complaints

Goals of a foot orthoses:

• Provide cushioning to improve shock absorption

• Provide relief for pressure-sensitive plantar structures

• Reduce shearing forces on the foot

• Balance or support the joints of the foot in a neutral position

• Limit or restrict excessive or abnormal movements

• Correct flexible deformity

• Accommodate and support a fixed deformity

Foot Orthoses (FO)

• What are the two categories of FO based on function?

Accommodative orthoses

• Designed to provide protection or relief to areas or structures of
  the foot

• Reduce plantar pressure and improve shock absorption

• Reduce shearing forces, relieve painful or pressure-sensitive
  structures

• Prescribed for patients that are diabetic or other forms of
  neuropathies

• Useful for patients with significant rigid or fixed deformities
  (moderate to severe OA)

Functional (Biomechanical) orthoses

• Designed to support and control the subtalar joint, rearfoot, and
  forefoot and influence the biomechanical functioning of the foot
  during walking and running

• Include use of wedges or posts that prevent abnormal
  compensatory movements

Foot orthoses (FO): Define the following

• Soft

• Semi ridged

• Ridged

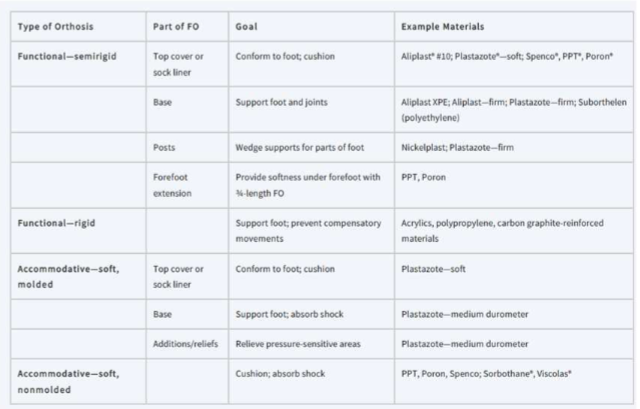

• Soft: Flexible foam type materials provide cushioning, improve shock absorption, decrease shear forces

• Semirigid: Combination of soft and rigid materials including cork, rubber, or plastics that provide some flexibility and shock absorption

• Rigid: Strong, stiff, and durable materials such as plastic and metals used to assist with transfer of weight, stabilize and control abnormal motion

ASK ABT THIS ONE

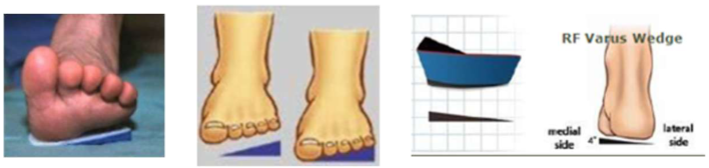

Posts or wedges

• What are they? What do they do?

Material added onto the shell (extrinsic) or the shell itself is made thicker (intrinsic) within the rearfoot and/or forefoot region to either:
• Support in case of limited motion
• Control motion in cases of excessive motion
• Maximum amount is about 3-4 deg

Posts or wedges: Supporting limited motion foot deformities

• Give examples for pronation and supination

• Limited motion into calcaneal eversion (pronation of STJ) will be supported (build
  ground up to the foot) with a medial (varus) rearfoot wedge/post

• Limited motion into forefoot supination, client presents with rigid forefoot valgus,
  will be supported (build the ground up to the foot) by a lateral (valgus) forefoot
  wedge (post)

What are the causes of orthosis failure?

• Poorly performed/no biomechanical evaluation

• Improper or inappropriate casting

• Inappropriate materials used

• Inappropriate prescription

• Improper shoes/shoe wearing habits

• Patient refuses to wear the orthotic

What are some Do’s and Dont’s when it comes to healthy foot care?

Do’s

• Be aware of food conditions

• Alert care providers immediately if
  a problem is noted

•  Inspect feet after removing shoes
  • Wear white socks if at risk for
  wounds

• Daily foot hygiene and lubrication

• Regular toenail care

• Be fitted with proper footwear

• Regularly check shoes/orthotics
  for wear

• Select appropriate activities

• Optimize body weight/BMI

Don'ts

• Do not walk barefoot

• Do not soak feet in water

• Do not walk on hot surfaces (sand)

• Do not use chemicals or sharp objects to remove
  calluses

• Do not use nail polish

• Do not wear new shoes without frequent checks

• Do not wear socks with constricting bands

• Do not wear inappropriate shoes

• Do not smoke cigarettes or use tobacco products

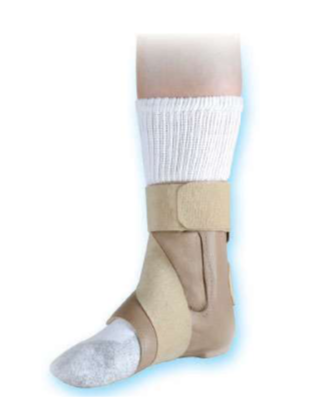

Varus/Valgus corrections - What are:

• Medial T-strap

• Lateral T-strap

• Supramalleolar orthoses (SMO)

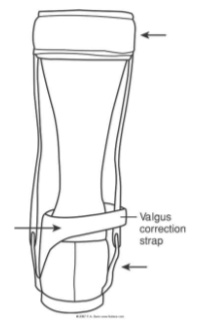

Medial T-strap

• The leather strap arises from the shoe quarter covering the medial malleolus and buckles to the lateral upright pushing laterally to correct a valgus (eversion) deformity

Lateral T-strap: The leather strap arises from the shoe quarter covers the lateral malleolus and buckles to the medial upright pushing medially to correct a varus (inversion) deformity.

Supramalleolar Orthoses (SMO): A low-profile supramalleolar design for subtalar joint control to limit varus or valgus within the ankle joint, which also assist with DF during swing

More on supramalleolar orthosis (SMO)

• Where are the trimlines?

• Is there a hinge? Y or N

• What does it provide compared to FO, and what does it still allow?

• When are these commonly used?

• Superior trimlines are above malleoli

• No hinge

• Provide increased medial/ lateral stability compared to FO and still allow DF/PF

• Commonly used in pediatrics for those with excessive pronation

What are the differences between SMO, Posterior Leaf Spring, Medial leather t-strap, and Solid Ankle AFO?

(Insert here)

AFO types - Conventional

• Made with what and extends from where to where?

• Distally attach to?

• The mechanical ankle joint must align with?

• Can have what two things?

• Type of joint and what does it mean?

• What is one draw back with this orthosis?

• Used mostly when?

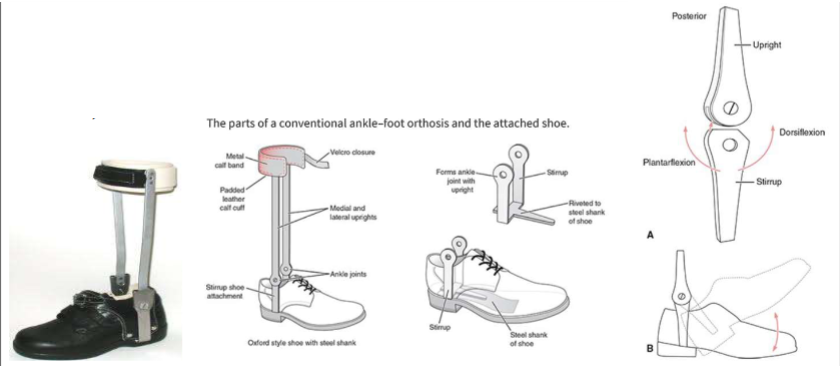

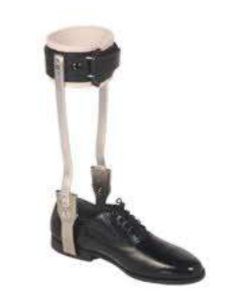

• Made with metal double uprights extend from ankle joint to calf band

• Distally attach shoe

• Mechanical ankle joint must align with the axis of the anatomical joint

• Can have ankle stops or ankle assist

• Are single axis joints (allow movement only in the sagittal plane)

• Heavy, require more energy expenditure

• Used mostly when there are skin or swelling issues

More on AFO Conventional

• What does it stop?

• What does it assist?

• Stops: restrict ankle motion at predetermined joint ROM such as 0 degree PF stop; DF stop; Limited motion stop

• Assists: produce force to aid a designated joint motion; use of channels on side of AFO and tiny springs; DF assist; DF-PF assist.

AFO types: Posterior Calf Shell AFO

• Can vary in?

• The farther _____ the medial and lateral trimlines extend and the more the is enclosed the more _____ the AFO _____ ______.

• When trimlines are located inch or more behind the widest part of the malleoli, what does this cause?

• Can vary in rigidity (varies on the type, thickness and shape of material used) and assistance offered to ankle motion

• The farther anterior the medial and lateral trimlines extend and the more the limb is enclosed the more rigidly the AFO resists movement

• When trimlines are located inch or more behind the widest part of the malleoli, the AFO is more flexible supporting ankle during swing but little effect during stance (Typically called a Posterior Leaf Spring Orthosis)

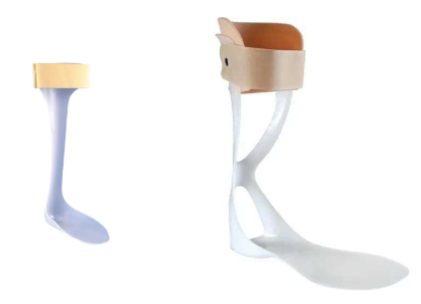

Posterior leaf spring (PLS):

• Trimlines are _____ to malleoli

• Motions occurs as the material does what?

• When is it indicated to use?

• Usually set in small degree of what motion?

• Medial and lateral stability?

• When is this not a good choice?

• Trimlines are posterior to malleoli

• Motion occurs as material bends and recoils

• Indications: DF weakness

• Usually set in small degree of DF

• Medial and lateral stability varies but limited

• Not a good choice if there is significant PF weakness or spasticity

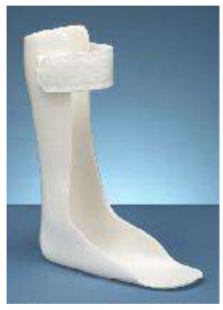

Solid ankle AFO:

• Where do the ankle trimlines extend/anterior to?

• What does it not permit?

• Very what?

• When is it often used?

• What is difficult when wearing this and why?

• The ankle trimlines extend to or anterior to the malleoli

• Doesn’t permit any movement

• Very strong and stable

• Often used with spasticity or when goal is to manipulate the GRFV and affect the knee during stance

• The blocking of PF makes it difficult to rise from chair, go up ramps, squat and eliminates active push off during gait

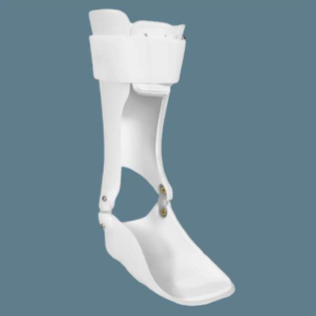

HAFO - Free motion

• Restricts what motions?

• Free motion for what two movements?

• When is it indicated to use?

• Restricts frontal and transverse plane motion

• Free motion for ankle DF and PF

• Indications: when there is absent or weakness of inv/ever; functional strength of DF/PF

(ASK ABOUT THIS ONE)

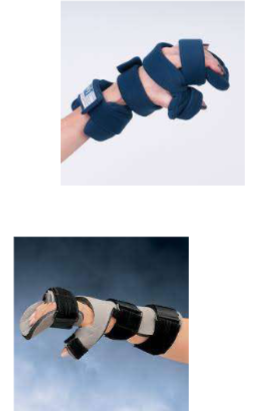

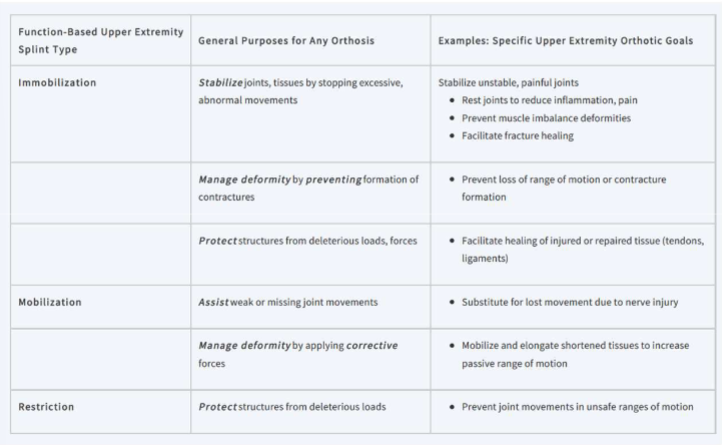

Categories of splints

• What are static splints (with sub categories)?

• What are dynamic splints?

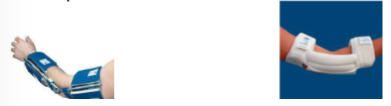

Static Splints: passive supports that hold a joint or body part in a particular stable position (a position of rest or functional position)

• Subcategories include serial static and static progressive splints these are used to increase joint ROM. They mobilize shortened tissue.

Dynamic Splints: Impart forces to targe joint to substitute for missing muscle contraction or apply a low load prolonged stresses to increase tissue length. Often use elastic bands, springs, or material that store and release energy.

More on static and static progressive splints

• What are they used for?

• How do they mobilize tissues?

• Low load prolonged stress produces and stimulates what?

• Specialized splints that are used as part of a program to increase joint ROM by increasing connective tissue length

• Mobilize shortened tissues and increase their length by applying low load, but prolonged tensile stresses at the end point of the available passive joint ROM

• Low load prolonged stress produces stress relaxation and stimulates the connective tissue cells to increase tissue turnover and remodeling

More on dynamic splints

• What are they and what do they do?

• Used to provide?

• This splint must apply only a certain amount of force, why?

• Mobilization devices that apply dynamic forces to the body, usually by using elastic bands, springs, or other materials with elastic memory that store and release energy

• Used to provide low load prolonged stress to increase joint ROM, however, the end range force is dynamic and is usually produced by a spring or elastic material

• Splint must apply only the amount of force required to hold the end range position, the use of high tensile loads that produce pain and limit total end range time is less effective

Shoulder slings

• What are they used for? What about patients with hemiplegia?

• Should have what and why?

• What is commonly made of and what type of designs can it have?

• Often used to protect from subluxation, Use to protect and immobilize the shoulder after surgery or fracture. May be used with patients that present with hemiplegia, worn to
  prevent subluxation of the shoulder while the arm is flaccid.

• Reduce pain

• Ideally should have broad straps and cuffs to help distribute pressure

• Commonly made of fabric construction, an assortment of designs
  include the figure 8, universal sling, bandanna sling, flail arm sling

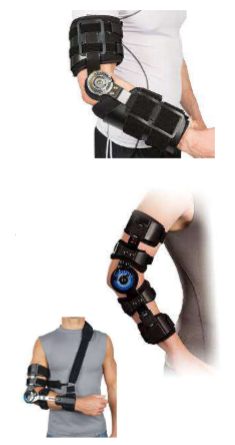

Elbow orthoses

• Commonly used to (Static/restrictive and dynamic/mobilize)

Static orthoses or restrictive - No movement, protect healing of repaired structures.

• Can be removed for topical ointments and hygiene

• As ROM returns, the angle of the splint can be adjusted by reforming the plastic shell

• Used with burns, fractures, tendon injury, nerve injury, vascular repairs, and cubital tunnel syndrome



Dynamic orthoses or mobilize - Used to improve contractures that are limiting ROM

• Splints used for clients with burns and elbow contractures.

Tone reducing orthoses

• When are they used?

• Primary objective? How is the hand placed? How long should it be worn for?

• Anti-spasticity splints are prescribed when hypertonicity is present

• Primary objective is to reduce flexor tone, reduce the incidence of contractures, and maintain the arches
  • Placing hand and fingers in an extended and abducted
  position
  • Creates firm pressure on the palmer surface of the hand
  • Avoid over pressure areas and potential skin irritation
  • Worn 2 hours on and 2 hours off

What are the therapeutic benefits for orthosis for trunk and cervical regions?

Intra-abdominal pressure

• Considered controversial

• Pressure exerted on the abdomen by the corset or rigid orthosis creates a cylinder effect, which in turn raises the intracavitary pressure

• Believed to reduce the intradiscal pressure during forward bending

Muscle relaxation

• Reduces the need for abdominal contractions as the cylinder effect to support the vertebral column is created passively, thus relaxing the abdominal and erector spinae muscles

• Decreasing the need for contractile support of the vertebral column may relax the muscles and reduce existing pain

Restriction of motion

• Primary method employed for motion control is the three-point pressure system

• Amount of limitation varies between the designs, however, a reduction in the
  motion at retrospective intervertebral segments has been linked to a reduction in
  pain and spinal instability

Postural realignment

• Increased IAP, relaxation of muscle in spasm, and restriction of movement can assist in facilitating improved posture and reduce compensatory postures related to pain

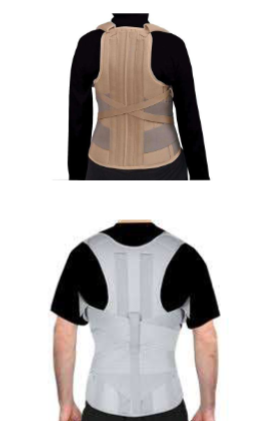

Throacolumbosacral orthoses - Soft

• Example of these?

• What does it limit?

• What does it help with?

• Inserts (stays) can be used for?

• How can it affect breathing?

• Corsets

• Limit thoracic flexion

• Offer flex/ext control. May provide some control for side-
  bending and rotation

• Inserts (stays) can be used to increase the control provided

• Can alter breathing patterns of normal patients by reducing the tidal volume and increasing the respiratory rate (may be appropriate for patient with spinal cord injury or muscular dystrophy)

Lumbar belts

• What does it restrict?

• May prevent what?

• Prolonged use can cause?

• What can it remind the user of?

• NIOSH concluded that?

• Thought to restrict motion and increase IAP

• Little evidence that they prevent low back injury

• Some thought that prolonged use may lead to muscle weakness

• May provide a kinesthetic reminder

• NIOSH has concluded that because of the limitations of the studies analyzing workplace use of back belts the results cannot be used to support or refute their effectiveness in injury reduction

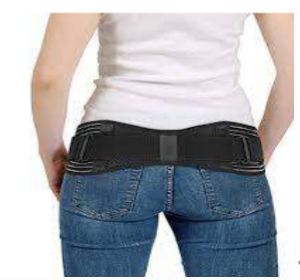

Sacroiliac belt

• Used for?

• Where is it located?

• When is it commonly used?

• Use for back pain that is attributed to SIJ hypo or hypermobility

• Locate between the iliac crests and greater trochanter

• Commonly used during pregnancy of female patients, decrease SIJ mobility, and reduce pain during symptoms associated with functional activities that may be linked to SIJ instability

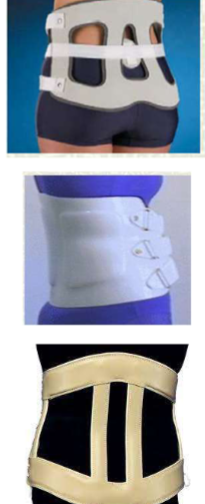

Rigid Lumbosacral Orthoses

• What system does it employ and what does it limit?

• What is it typically made from?

• Worn over or under clothes?

• When wearing one, what should you watch out for? What is commonly done to avoid it?

• How does it affect lordosis? Limits what motion?

• What does it not limit? This means you can permit what exercise?

• Employ 3-point counterforce system to limit motion in the lumbar spine

• Typical make today from molded plastic

• Worn under clothing

• Watch for rubbing or skin irritation, often use a T-shirt or body sock between skin and brace

• Lordosis is decreased to limit lumbar extension while the pelvic and thoracic bands exert a medial force that tends to limit lateral trunk motions

• There is no limitation of trunk flexion, therefore permitting light flexion exercises to increase abdominal strength while wearing the orthosis

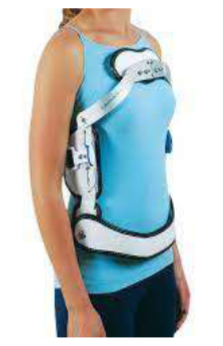

Thoracolumbosacral Orthoses- TLSO

• Controls motions in what planes?

• What type of material is it made from?

• Commonly used to?

• Stabilizes what levels of of the spine?

• Taylor device?

• Control movement in all planes

• Thermoplastic (body jacket)
  - Have total contact except over bony prominences
  - Typically bivalved “clamshell” device

• Common use
  - Restrict spinal movement after surgery
  - Limit thoracic flexion
  - Prevent progression of scoliotic curves

• Typical effective range of stabilization T5-L 4

• Taylor Device
  - Limits flexion/extension
  - Pelvic band connects with 2 posterior uprights terminating at the mid-scapular level of the thoracic region
  - 2 three-point pressure systems are coupled together to limit both flexion and extension of the lumbar and thoracic spine

TLSO- Jewett Hyper-extension Brace

• Limits what motion?

• What type of counterforce system? What does this provide and why?

• Fabricated or Prefabricated?

• Limits forward bending of spine
  provides stabilization

• 3 point counterforce system, applies anterior and posterior forces through sternal and suprapubic pads opposed by a central posterior to anterior force, thus providing a hyperextension force to unload healing vertebral compression fractures

• Prefabricated

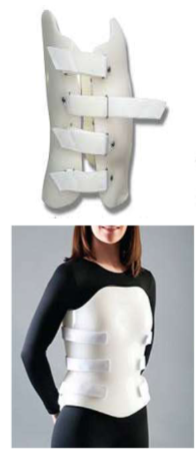

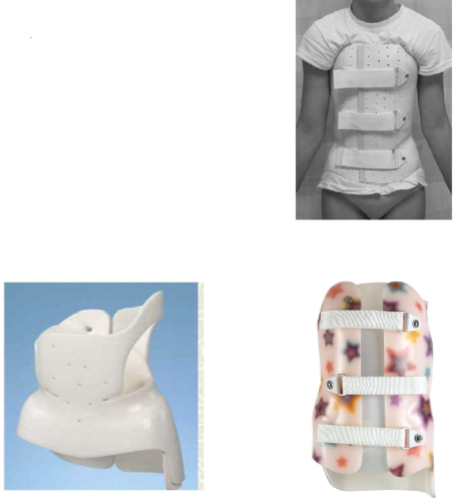

TLSO- Plastic Body Jacket

• Limits what motions?

• Fabricated with?

• Anterior and lateral trunk containment elevate what?

• Frequently used when?

• Limits Flexion, Extension, and Lateral-Rotary Movements. Well-fitted body jacket that is designed to restrict motion in all planes

• Typically fabricated with high temp copolymer plastics

• Anterior and lateral trunk containment elevate intracavity pressure, and decrease demands of the vertebral discs

• Frequently used post surgically or during acute trauma

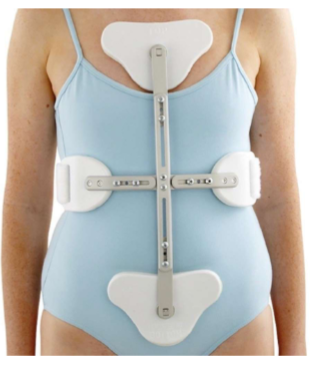

CASH (Cruciform anterior sternal hyperextension) orthosis

• Limits what motion

• Similar to what orthosis?

• Has also been used in what retraining and why?

• Issues with?

• Limit flexion

• Similar to the Jewett

• Has also been used in postural retraining to increase thoracic extension

• Issues with it migrating or rotating during functional activities

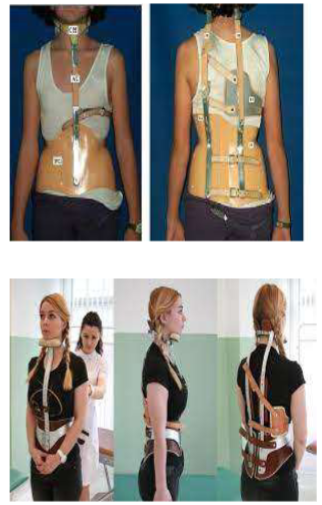

Milwaukee Brace

• Used for what condition?

• Describe the lay out of the brace.

• Positives?

• Negatives?

• Why is it not used much anymore?

• Used for scoliosis

• A CTLSO with one anterior and 2 posterior uprights that extend from the pelvic mold and connected to the cervical spine with a neck ring

• (+) are that each component of the pelvic, thoracic, and cervical region can be molded or adjusted to slow or even correct scoliotic curve

• (-) are that the brace must be worn for 12-18 months, 23 hours a day

• Not used much anymore due to poor psychological concerns, and poor acceptance by children and teens

More on scoliosis orthoses

• Used to treat?

• How long are they worn daily and at night?

• Most effective when the curve is?

• Goal of the brace?

• Types of force application? (passive and active uses what to apply pressure to where, passive uses what counterforce couple to support and correct what? )

• To treat adolescent idiopathic scoliosis

• Worn for prolonged periods of time
  - Daily for 16-23 hrs (Milwaukee, Boston, Wilmington)
  - At night: 5-7 days a week (Charleston, Providence)

• Most effective when the curve is 20-45 degrees

• Goals of the brace:
  - Support the trunk and stop or minimize the progression of the curvature
  - Decrease pain
  - Improve appearance
  - Allow for growth of the spine

• Types of force application
  - Passive and active: use pads to apply pressure at the apex of curve
  - Passive: use 3 point counterforce couple to support and correct the
  curve

Boston Brace

• Can be what two types of brace?

• Applies pressure where and why?

• As curve reduces, what is added?

• Passive and active brace

• Applies pressure at the spinal convexity to “push” the spine

• As curve reduces more pads are added

Wilmington brace

• Passive or active? What is it made from?

• Is this custom made or pre made?

• Where was this developed

• Worn for up to how many hours a day?

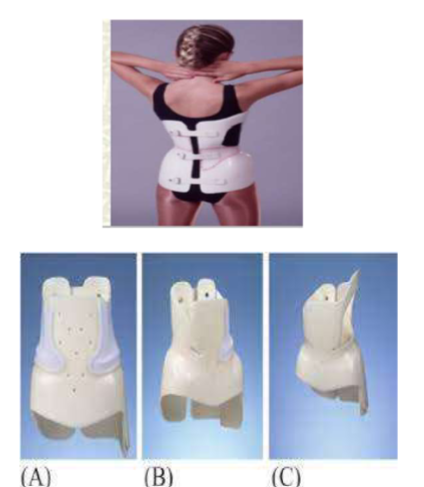

• Passive appliance fabricated from thermoplastic material

• Custom made from individual cast

• Developed at DuPont Hospital for Children in Wilmington DE

• Worn for up to 23 hours a day

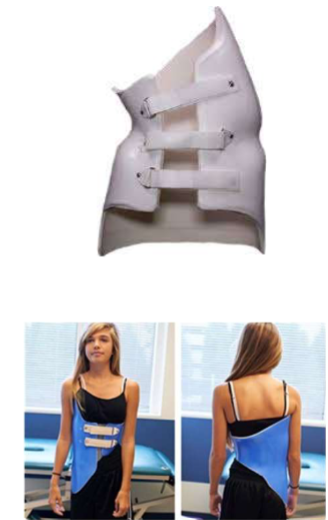

Nighttime Orthoses

• Why are these considered ‘more acceptable’ ?

• Providence brace vs Charleston bending brace?

• These may be more acceptable due to wear time and cosmesis issues

• Providence Brace
  - Passive brace employs overcorrection in a
  molded plastic appliance.
  - Applies controlled direct lateral and
  rotational forces on trunk.

• Charleston Bending Brace
  - Molded plastic TLSO formed over a cast
  of child’s trunk.
  - Applies side- bending forces toward the
  convexity of the curve to overcorrect it.
  - Most effective with a single curve with
  apices below T7

Cervical collars

• Encases what part of the body?

• Soft collars: Fabricated or prefabricated foam?

• How is it secured?

• Where can you get these?

• Describe how its laid out.

• How do they vary

• Does not significantly limit what?

• Encase the neck

• Soft Collars: prefabricated foam (different degrees of firmness)
  Secured with Velcro

• Over the counter devices

• Slightly wider posteriorly with anterior “cut-out” to accommodate the chin

• Vary in lengths and widths

• Do not significantly limit cervical spine motion

Cervical orthosis

• Are these rigid, semirigid, or not rigid?

• Prefabricated or fabricated?

• Slightly more _______ than the soft cervical collar

• Better what?

• Use with what conditions?

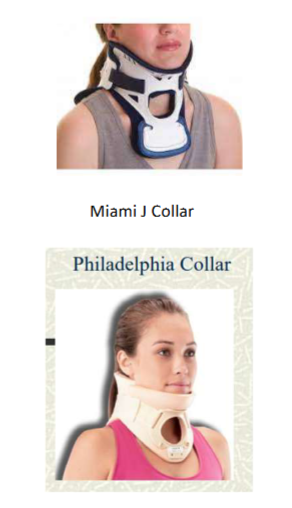

• Semirigid collars

• Prefabricated with molded chin and occiput

• Slightly more unweighting than the soft cervical collar

• Better motion control

• Use with minor muscle strain and as
  extrication orthosis following trauma

Halo vest

• Describe the layout of this.

• What does is immobilize?

• Since its top heavy what can it cause?

• Due to the pins, what does the patient have to do?

• What should the patient watch out for due to the vest and pins?

• When is it used?

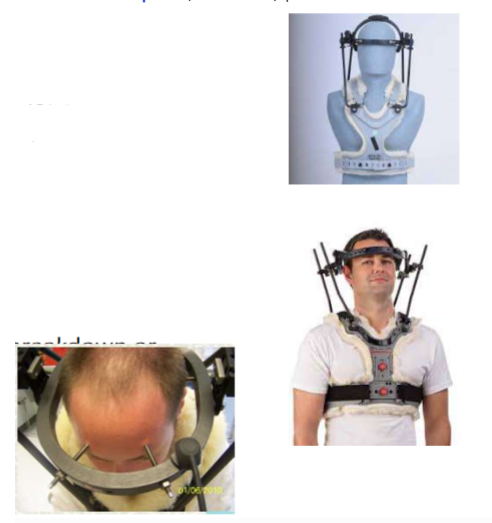

• Four posts connect anterior and posterior to chest plate. Invasive, metal ring (halo) is secured into the skull.

• Immobilization of cervical and upper thoracic spine

• Top heavy: can impair balance and increase fall risk

• Need to have pin care

• Need to watch for skin breakdown or irritation under the vest or at pins

• used in stabilizing after spinal cord injury

Legg-Calve-Pethes disease

• What is it and what is the goal is?

• What orthosis and bar is good for this condition and why?

• Due to loss of circulation to the femoral head (avascular necrosis) followed by period of revascularization which results in the bone being soft and vulnerable to forces. Goal to maintain the femoral head in the acetabulum during gait and control forces to avoid permanent deformity and OA

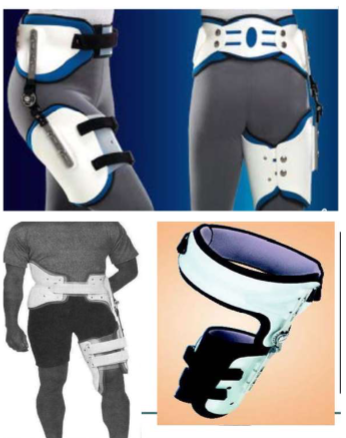

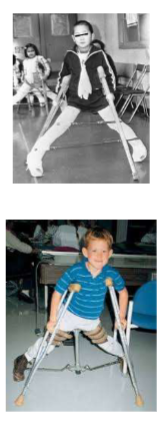

• Orthosis: Scottish Rite – allows flex and extension but hip
  held in abduction. Abduction bar

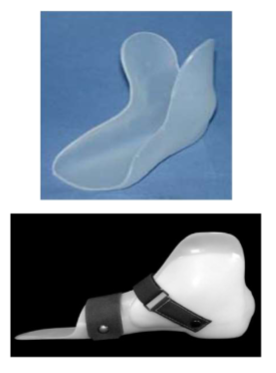

Clubfoot

• What brace is ideal for this condition and what does it do?

• When is the bracing applied?

• Why is this bracing important to use for the condition?

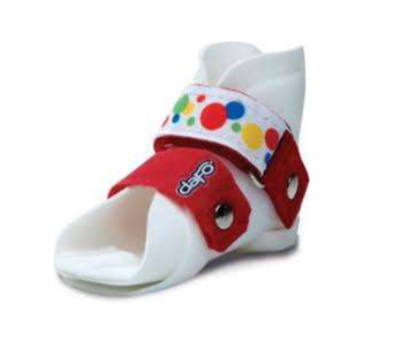

• Foot held in abducted and DF in a foot abduction brace with two
  shoes connected by a bar

• Brace applied after clubfoot has been corrected by
  manipulation, serial casting, Achilles tenotomy

• Bracing important in preventing clubfoot relapse

Developmental hip dysplasia

• What is it?

• What can be expected when a baby has this condition

• What is the treatment for baby under 6 months, how does it work, and how long the treatment is?

• The hip not formed well so the joint is partly or completely out of the
  acetabulum (shallow socket)

• See baby hip make a popping or clicking sound, legs are not same length, skin
  folds under buttocks are not symmetrical. Typically, not painful.

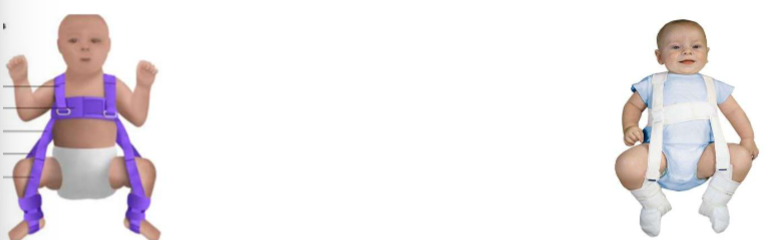

• Treatment: babies under 6 months is often Pavlik Harness. Has a shoulder
  harness attached to foot stirrups to keep legs in abducted flexed position to
  keep femoral head in acetabulum. Treatment lasts 6-12 weeks

Pressure garments

• What does it help with?

• What are the negative to wearing this?

• Is it fabricated, pre-fabricated, or custom?

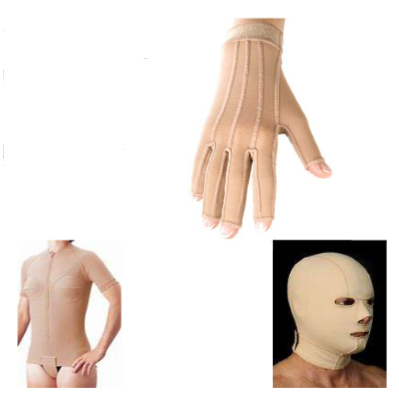

• Help to minimize hypertrophic scarring
  - Pressure reduces blood flow slowing the influx of collagen
  - Encourages reorientation of collagen
  - Minimize pain and itching
  - Provide cosmetic cover and protects against secondary
  trauma

• Can be difficult to don and doff, Can be hot and uncomfortable

• Pre-fabricated or custom

Knee joints - Axis type

• What are the three types of axis? What does each type do and used for?

• Axis alignment? Why is it aligned this way?

Axis Types

• Single
  - Designed to behave like a hinge, preventing movement in the coronal plane, providing
  medial/lateral stability
  - Free motion joints allow full knee flexion and extension, yet prevent hyperextension
  - Recommended for genu varum and genu valgum

• Offset
  - A single axis joint design with the axis set further posterior from the weight line than the
  standard single axis joint
  - Promotes maximal knee extension during WB without having to use a mechanical lock
  - Recommended for patients with needs of higher levels of stability

• Polycentric (allow the axis to translate during joint rotation see fig 15.3)
  - Designed to mimic the instantaneous center of rotation present in the anatomical knee
  - The gliding and rolling motion emulated with polycentric is intended to reduce excessive
  motion, slippage, and to provide greater comfort than conventional single axis joints

Axis alignment

• Inline or posterior offset relative to the uprights (this enhances knee extension during stance by keeping GRFV anterior to the mechanical axis)

Knee joints - Knee lock types

• What are the types of knee locks and what does each do?

• What are the subtypes of adjustable locks

Knee Lock Types

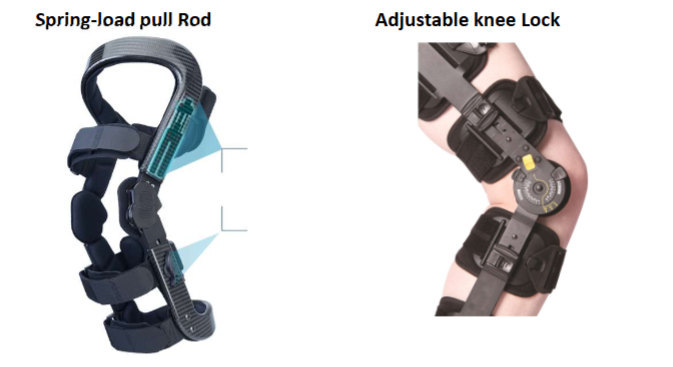

• Drop lock: (metal ring that slides down over the knee joint in extension;
  move up to release)

• Spring-load pull rod: (spring system with control rod that can be extended
  to a height for convenient reach, permits easier release of locking
  mechanism)

• Cam (Pawl) lock with Bail Release: (curved metal extends around back of
  knee, raising it releases lock – can use back of chair to push it up)

• Adjustable locks (permit you to reduce joint ROM restrictions as rehab
  progresses)
  • Fan lock
  • Dial lock
  • Ratchet lock

Knee orthoses (KO)

• Where is it enclosed on the body?

• Where should you NOT attach it to?

• Can be categorized as what three things?

• Difference between soft and rigid knee orthoses?

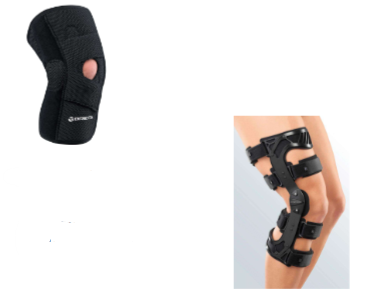

Knee Orthoses (KO)

• Enclose the knee joint (mid thigh to mid calf)

• DO NOT ATTACH TO THE ANKLE OR HIP

• Can be categorized as functional, rehabilitative or
  supportive

Soft:

• Elastic fabric or neoprene

• Typically, over the counter prefabricated

• Apply compression forces

• Little biomechanical control

Rigid:

• Rigid framework of double or single uprights (metal, plastic or
  composite material)

• Articulation at knee joint that allow free flex/ext around single or
  polycentric axis while restricting frontal plane movement

• Thigh and calf bands, straps

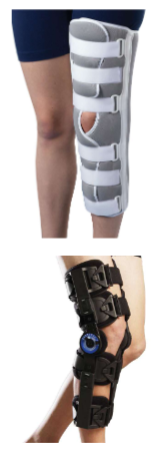

Post operative or rehabilitative KO

• How long is it used for and what does it do?

• When and how is it used and why?

• Adjustable or non adjustable?

• Usually require what type of training?

• Short term use to control motion. KNEE IMMOBILIZER

• Used after orthopedic surgery to protect structurally incompetent tissues from negative forces during healing

• Adjustable (DIAL LOCKS). 2 metal inserts on med/lat side. Adjustable Knee ROM

• Usually require gait training with crutches or a walker for safety

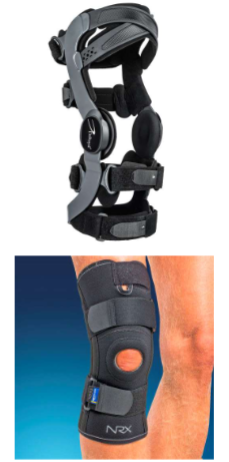

Functional KO

• Are they rigid or soft? Differences between this and rehab devices?

• Joints or no joints?

• What does it provide support to? What movements does it allow?

• What motions does it limit? Most designs implements what counterforce system?

• Also rigid, they are shorter than rehab devices (extending no farther than mid-thigh and mid-calf, less bulky)

• Can have joints or no joints

• Provide support for ligament laxity or instability

• Usually allow for free flexion/extension

• Most designed to employ 3 or 4 point counterforce systems to limit excessive movements, including varus/valgus stress and knee hyperextension.

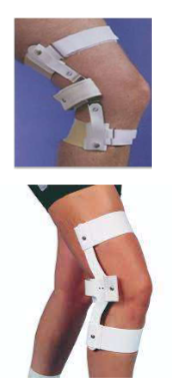

Swedish knee cage (Functional KO)

• This brace is known as the _____ of functional knee braces.

• This brace is moving or no moving parts?

• How is this brace laid out?

• Prevents what?

• Employs what forces to where countered by what forces where?

• Fabricated or prefabricated?

• What does it often do that can be an issue?

• The “OG” of functional knee braces

• No moving parts

• Anterior thigh and tibial band and a posterior band

• Prevents knee from hyperextending

• Employs a posterior to anterior force applied in popliteal fossa countered by anterior to posterior force at the distal thigh and proximal tibia

• Prefabricated device

• Often migrates down during limb use

Patellofemoral knee orthoses

• Primary goal of this orthoses?

• Soft or rigid? Made from what material?

• What can be seen around the patella when applying this orthoses?

• Primary goals of these braces are to minimize patella compression, assist in guiding patella tracking, and prevent excessive lateral shift

• Most patellofemoral orthoses are soft appliances made from elastic material as a “pull-on sleeve”

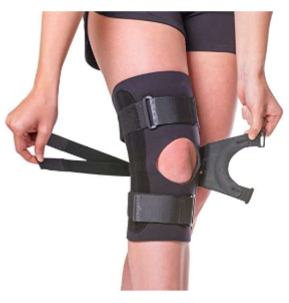

• May have a “C” or “O” shaped built up around the patellar window or pull straps that wrap around the lateral side of the patellar window to apply medially directed force

Supportive knee orthoses

• What does this provide?

• When should it be used?

• What is it made from?

• Provides support

• Indications: Patellofemoral syndrome; patellar subluxation; infra-patellar tendonitis

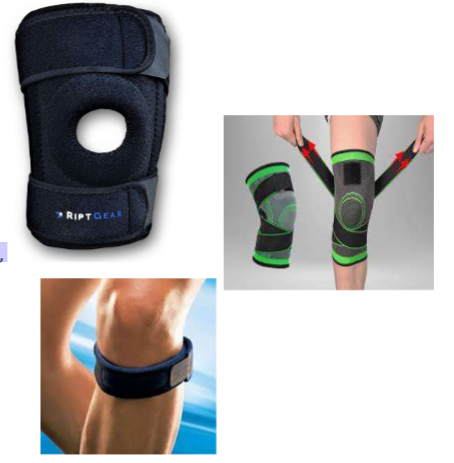

• Made from fabrics, elastic or neoprene

• Sleeves

• Infra-patellar straps (support the patella and facilitate accurate tracking, dissipate tensile forces)



Off-loading (unloading) Knee orthoses KO

• When is it used (what condition)?

• What does it do?

• What is the most common form of the condition its used for?

• Goal of the orthoses?

• Used with patients that have OA of the knee that affects only one compartment of the tibiofemoral joint

• Reduce loads on the involved joint surfaces and may decrease pain
  improve function

• Most common unicompartment OA is the medial compartment of
  the tibiofemoral joint with a varus deformity

• Goal is to apply a valgus force using 3-point counterforce system

Hip abduction brace

• What is it used for? Most frequently used after?

• Used post-op or with a femoral neck fracture. Freq used following labrum repairs.
