CH322 - Cubic Unit Cell

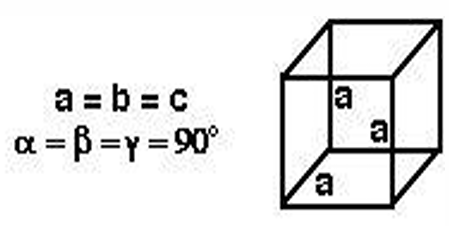

Cubic Cell

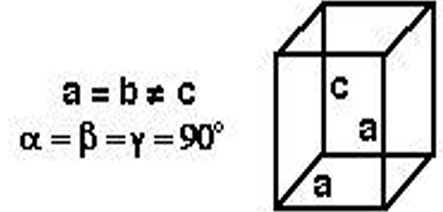

Tetragonal Cell

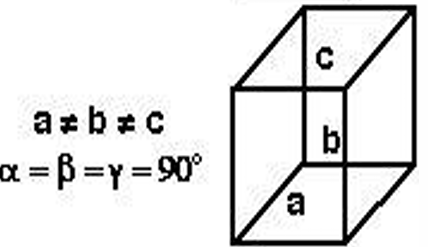

Orthorhombic Cell

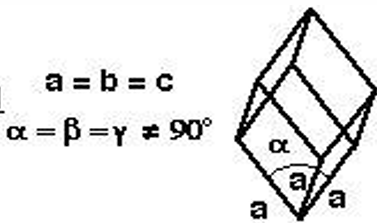

Rhombohedral Trigonal Cell

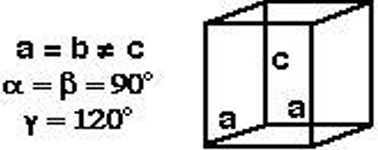

Hexagonal Cell

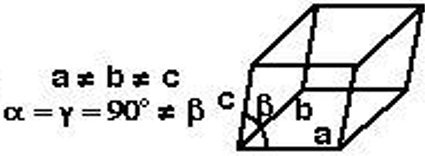

Monoclinic Cell

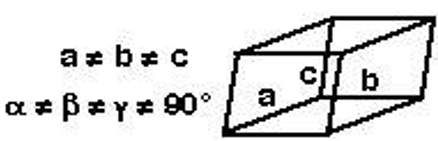

Triclinic Cell

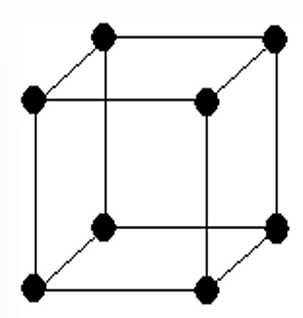

Primitive Cell

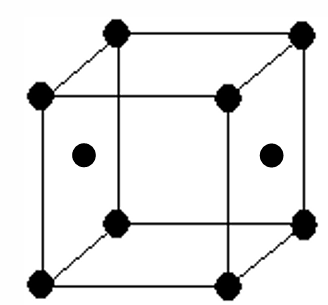

Side Centered Cell

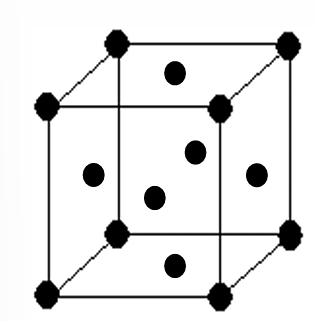

Face Centered Cell

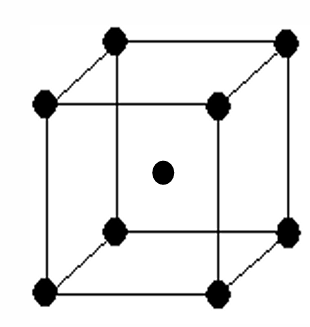

Body Centered Cell

Polonium metal crystallise with a primitive cubic unit cell. Give the relative lengths of the cell edges and the angles between them.

Cubic unit cell

Determine the total number of atoms in each primitive cubic unit cell.

1/8 × 8 = 1 = total atoms

Explain why the primitive cubic crystal structure rarely occurs.

The primitive cubic structure rarely occurs because of its low packing efficiency and stability due to a low number of nearest neighbours and a large amount of empty space.
