EKG 156 Final

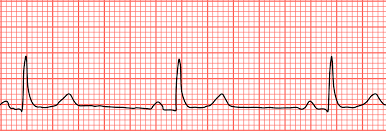

Rhythm interpretation for this

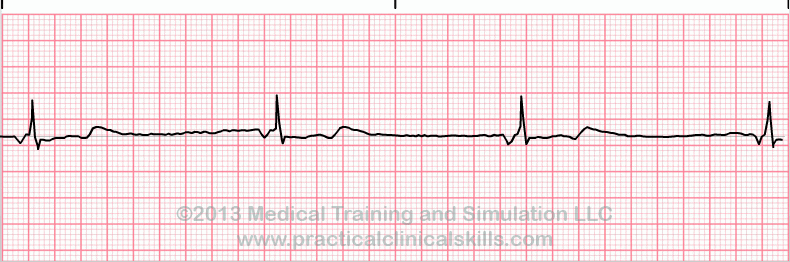

Sinus Bradychardia.Regular, less than 60 bpm, uniform pwave, 0.08 qrs, 0.12-0.20 PRI

What rhythm is this, PRI, Pwave morph, QRS, Rate

Normal sinus Rhythm, Regular, 60-100 bpm, Uniform, 0.08 QRS, .12-.20 PRI

Rhythm Interpretation

Sinus Tachycardia, Regular, 100-150 bpm, Uniform, 0.08 QRS, .12-.20PRI

Rhythm interpretation

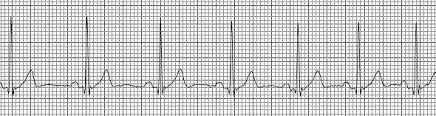

Sinus Dysrhythmia, Irregular, 60-100 bpm, Upright, 0.08 QRS, 0.12-0.20 PRI

Rhythm Interpretation

A FIB, UTD Rhythm, UTD Rate, F wave, PRI UTD, 0.08 QRS

Rhythm Interpretation

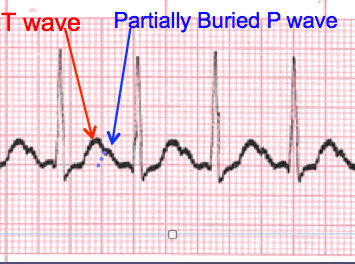

SVT, Regular Rhythm, 150-250 BPM, PWAVE UTD, PRI UTD, QRS 0.08

Rhythm Interpretation

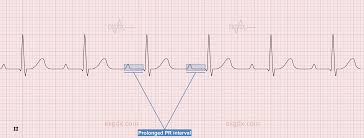

1st Degree AV Block, Regular Rhythm, Rate 60-100 bpm, Pwave consistent, PRI Greater .20s, QRS 0.08

Rhythm Interpretation

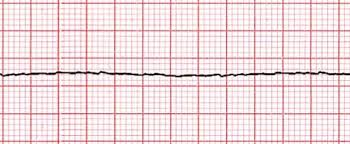

Asystole, Nothing is Determined

Rhythm Interpretation

Atrial Pacemaker, Everything is underyling rhythm determination

Rhythm Interpretation

Sinus Bradycardia with PAC, Less than 60 BPM, Regular Rhythm, Upright Pwaves, QRS 0.08, PRI 0.12-0.20s

Rhythm Interpretation

Agonal, Less than 20bpm, Irregular Rhythm, UTD Pwaves, QRS Wide and Bizzare, PRI UTD

Rhythm Interpretation

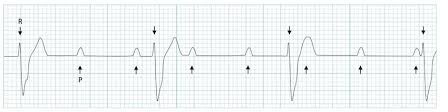

Third Degree Heart Block, Regular Rhythm, 60-100 bpm, Pwave Buried, PRI Varies, QRS .08

Rhythm Interpretation

Junctional Escape, Regular Rhythm, 40-60 bpm, PWave Inverted, PRI Before QRS less than .12, during/after UTD, QRS 0.08

Rhythm Interpretation

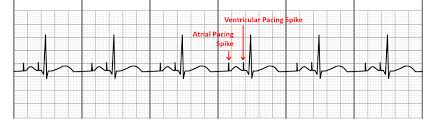

Atrial Biventricular, Underlying rhythm

Rhythm Interpretation

Second Degree AV Block Type 1, Regular rhythm, 60-100 BPM, PWave Upright, PRI Varies, QRS 0.08

Rhythm Interpretation

Atrioventricular, Underlying Rhythm

Rhythm Interpretation

Sinus Tachycardia, Regular Rhythm, 100-150 bpm, Upright, 0.12-0.20 PRI, 0.08 QRS

Rhythm Interpretation

Accelerated Junctional Rhythm, Regular Rhythm, 60-100 bpm, Inverted PWave, PRI UTD/<.12, QRS 0.08

Rhythm Interpretation

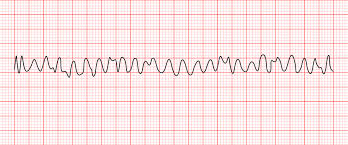

Ventricular Fibrillation, Nothing Determined

Rhythm Interpretation

Ventricular Pacemaker, Underlying Rhythm

Rhythm Interpretation

2nd Degree Type 2 , Regular Rhythm, 60-100 bpm, Upright Pwave, PRI constant, QRS 0.08

Rhythm Interpretation

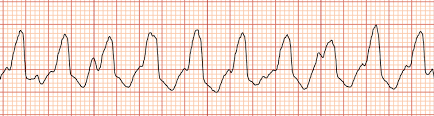

Ventricular Tachycardia, Rate more than 100bpm, UTD everything else

Rhythm Interpretation

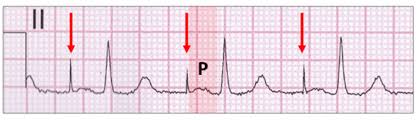

PJC, Underlying Rhythm, P wave Inverted, follow, buried, QRS 0.08

2nd Image, Rhythm Interpretation

V Fib Fine, UTD
