ABE Notation: Understanding Shape and Bond Angles in Geometry

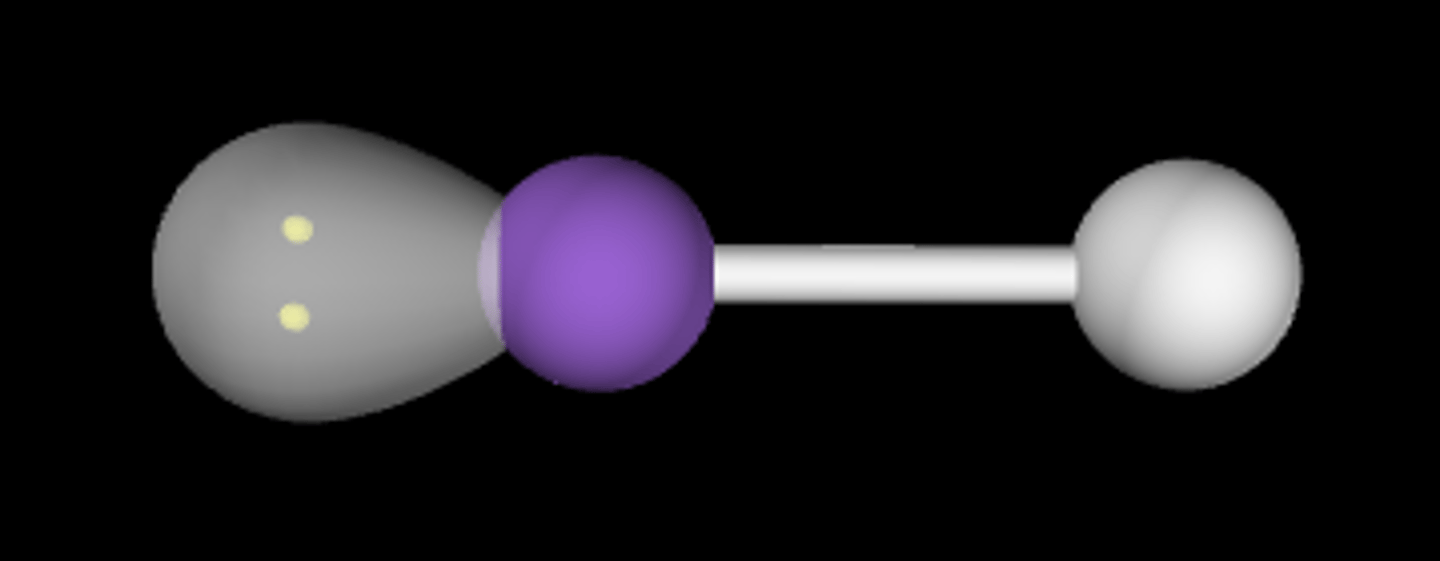

AB2

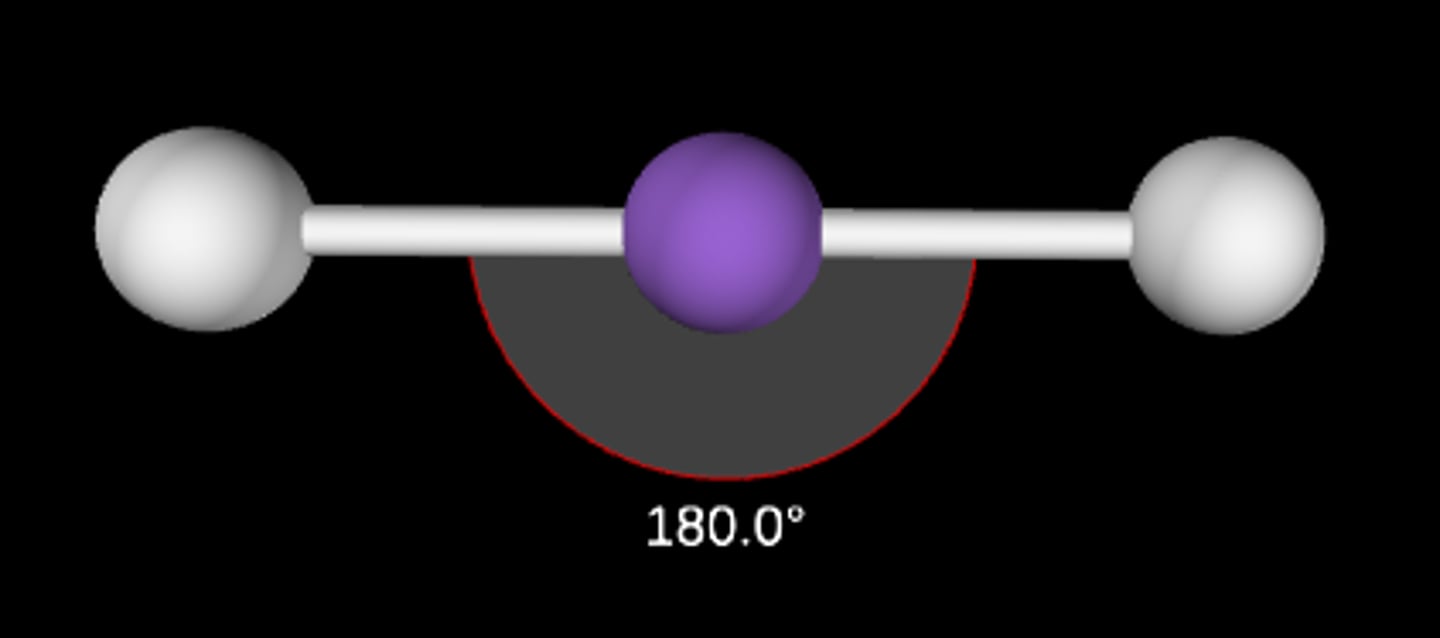

Linear; 180°; sp

ABE

Linear; 180°; sp

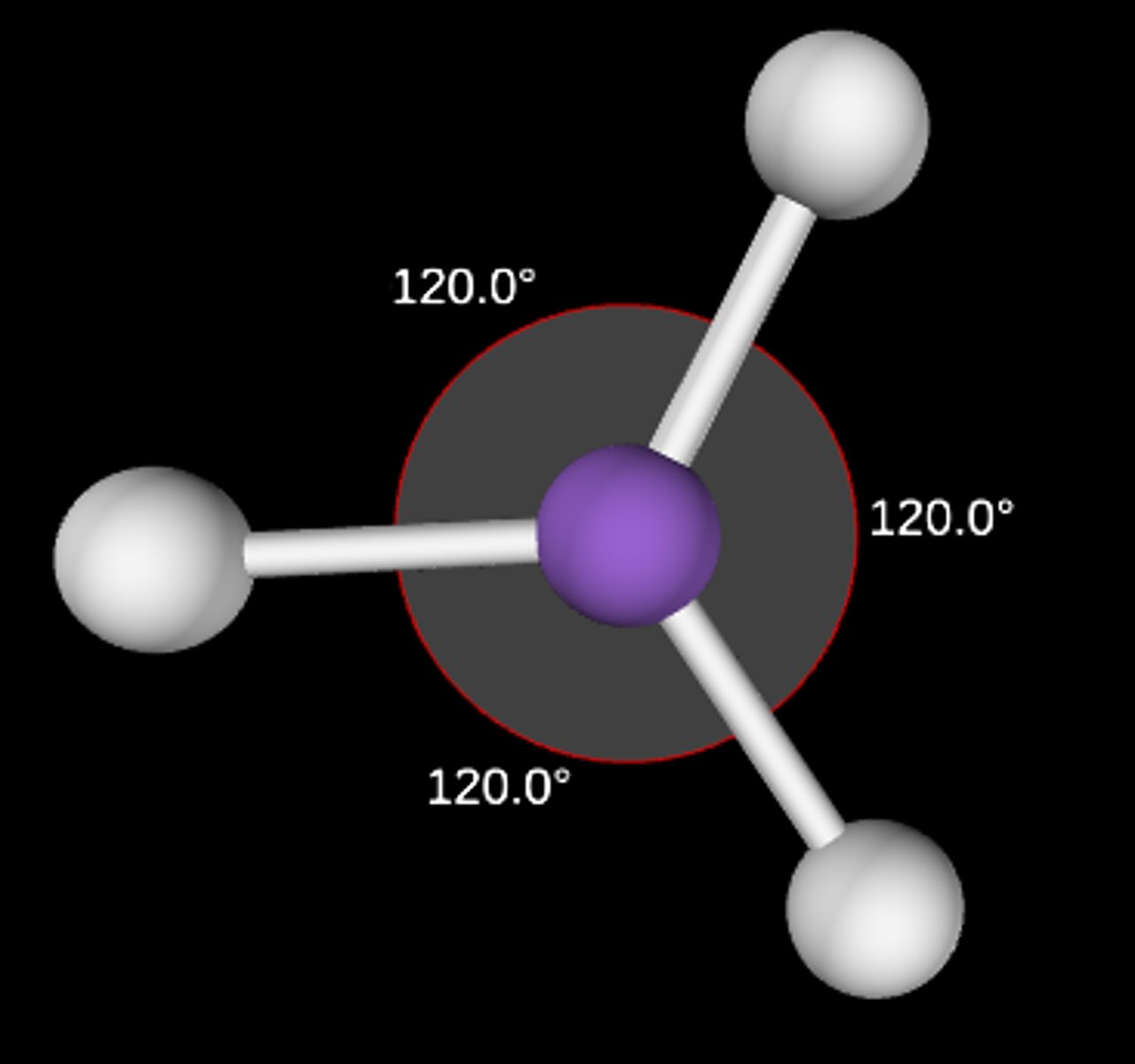

AB3

Trigonal planar; 120°; sp2

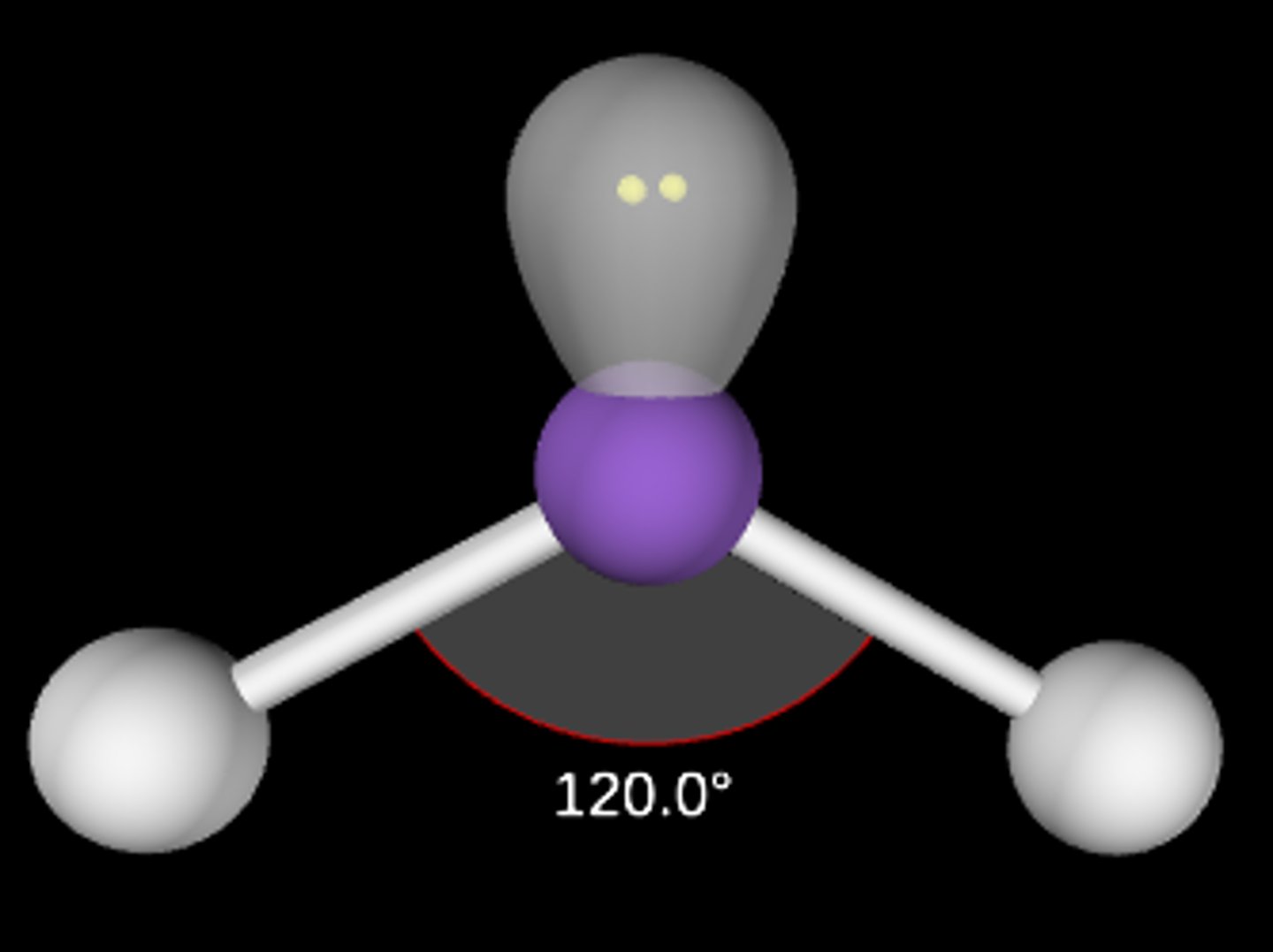

AB2E

Bent/angular; < 120°; sp2

AB4

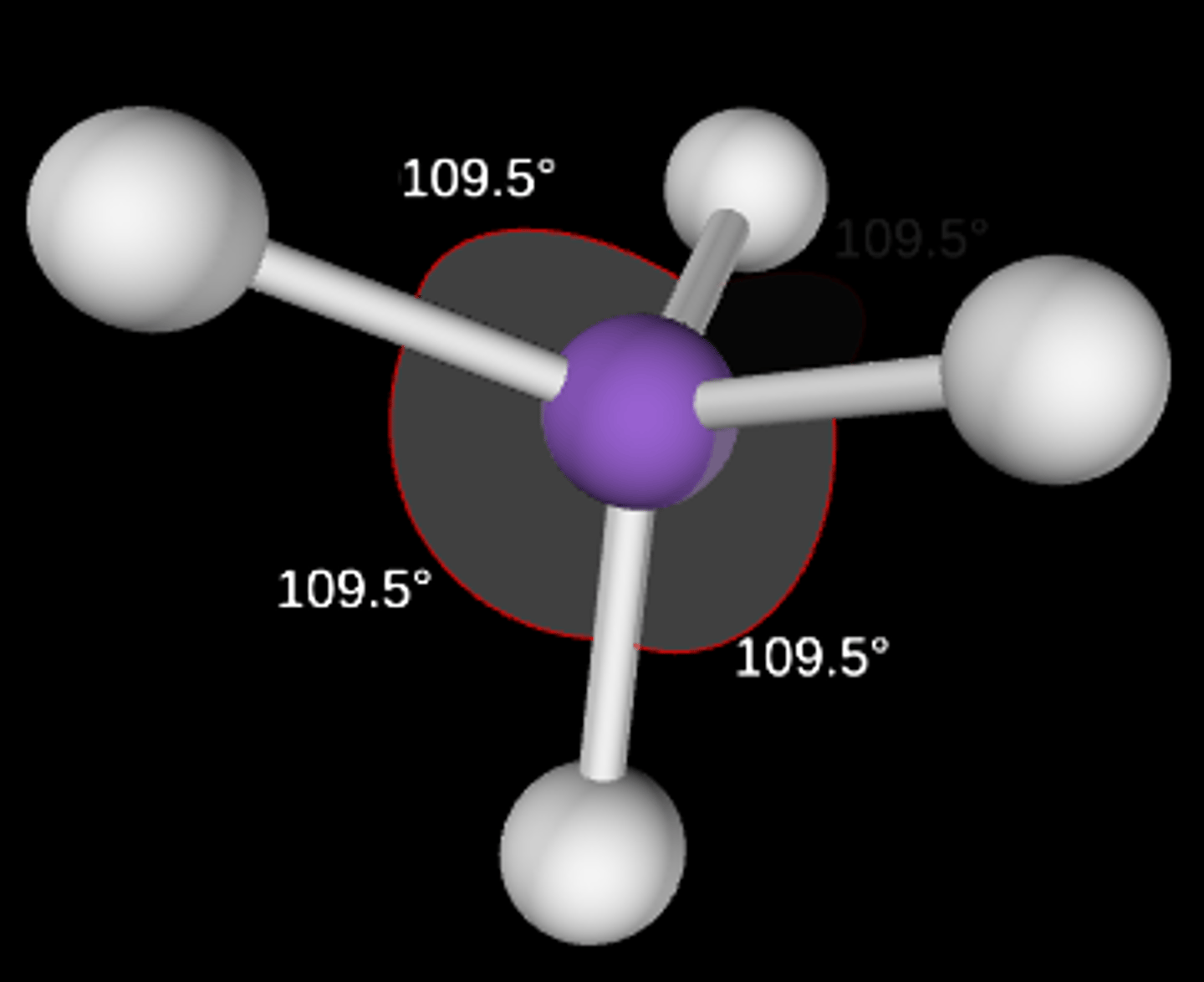

Tetrahedral; 109.5°; sp3

AB2E2

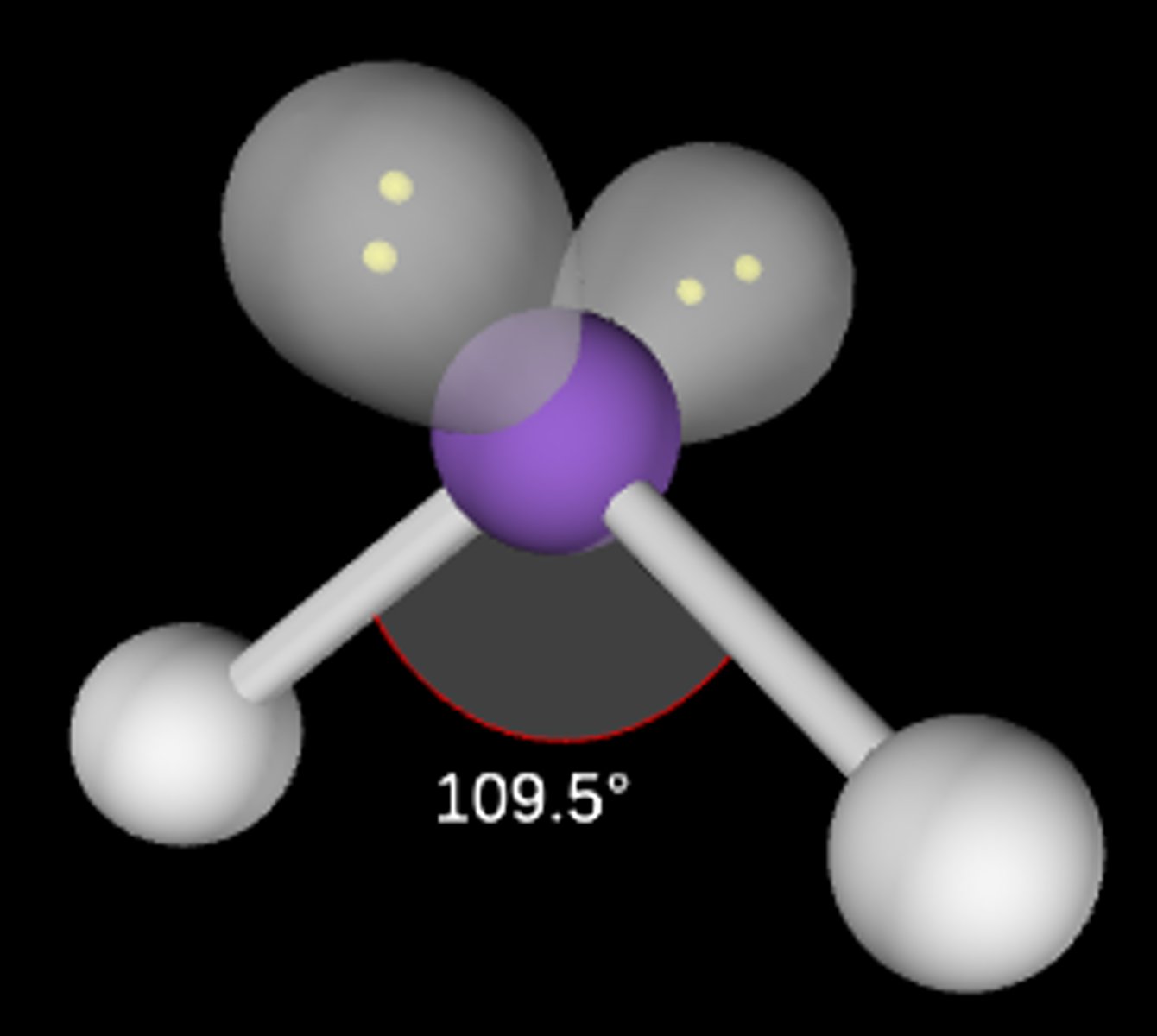

Bent/angular; <109.5°; sp3

AB3E

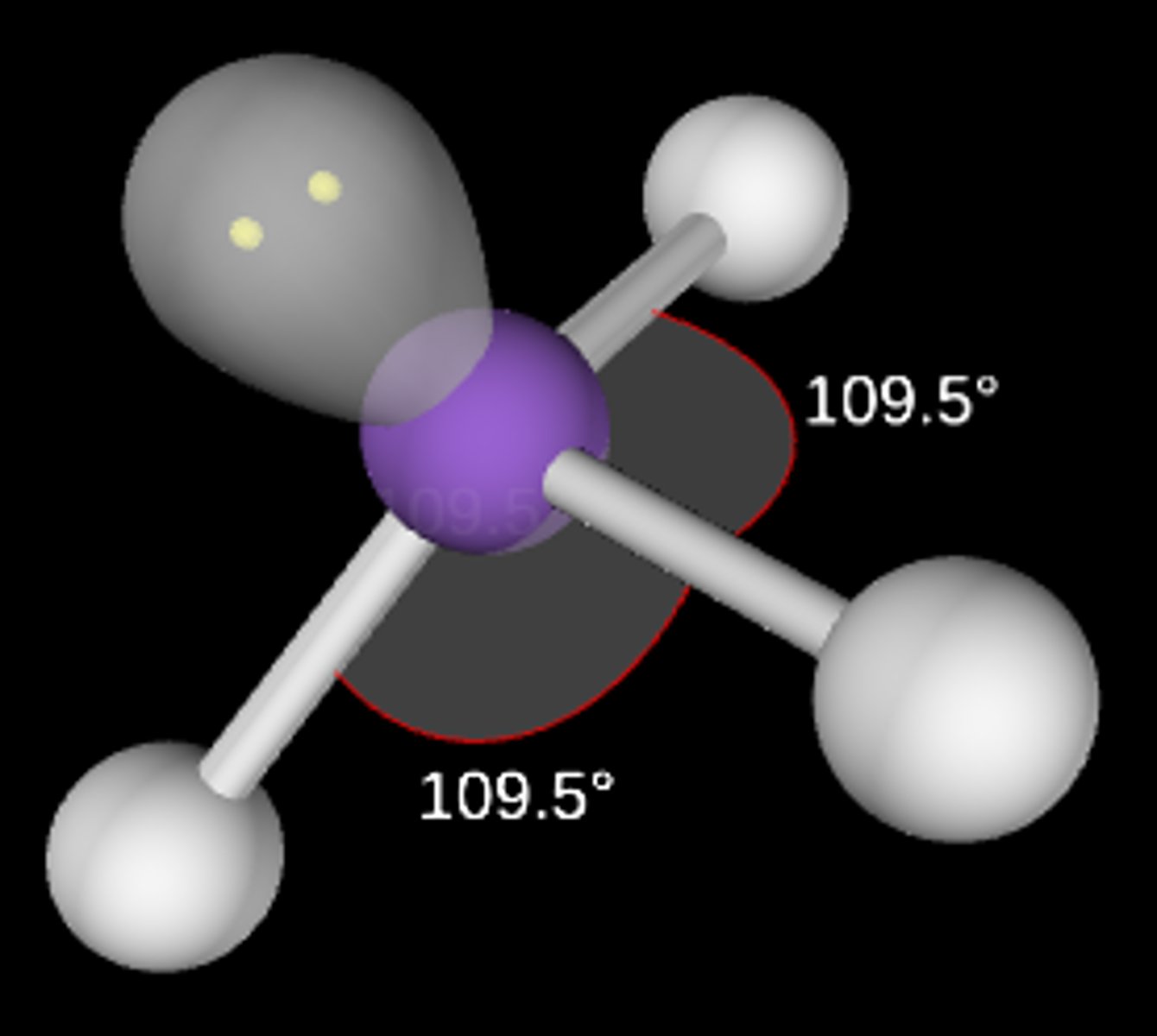

Trigonal pyramidal; <109.5°; sp3

ABE3

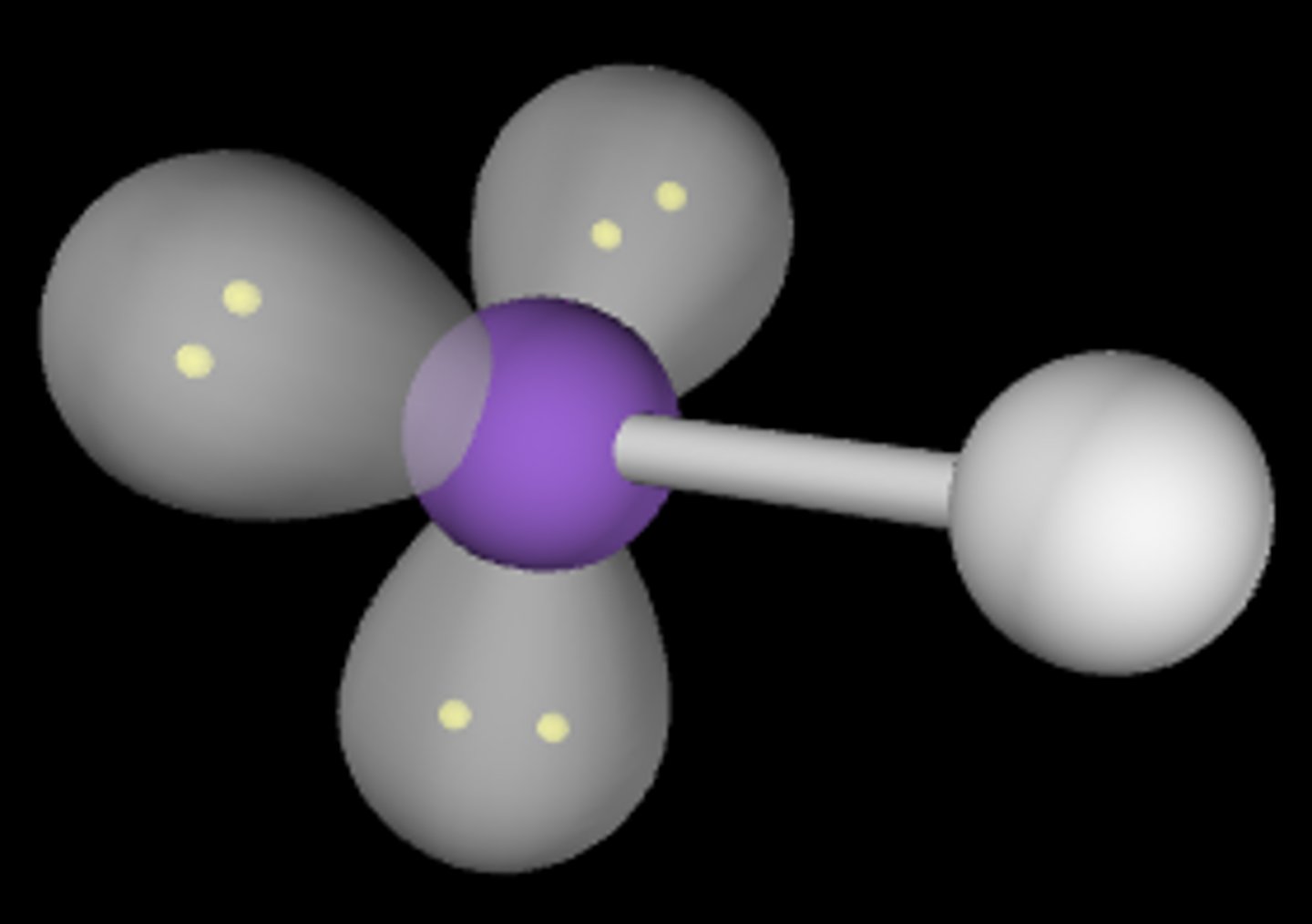

Linear; 180°; sp3

AB5

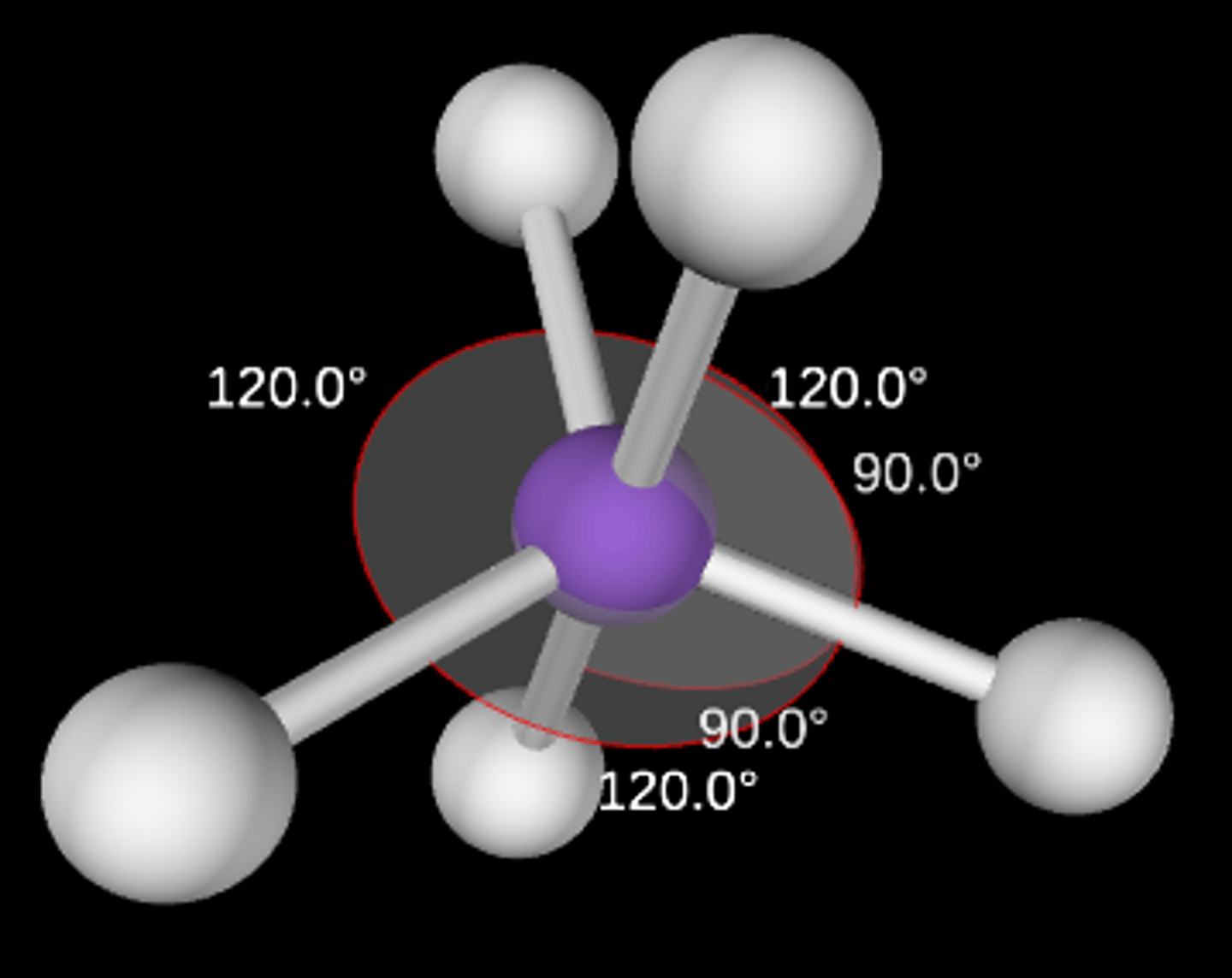

Trigonal bipyramidal; 120° and 90°; sp3d

AB4E

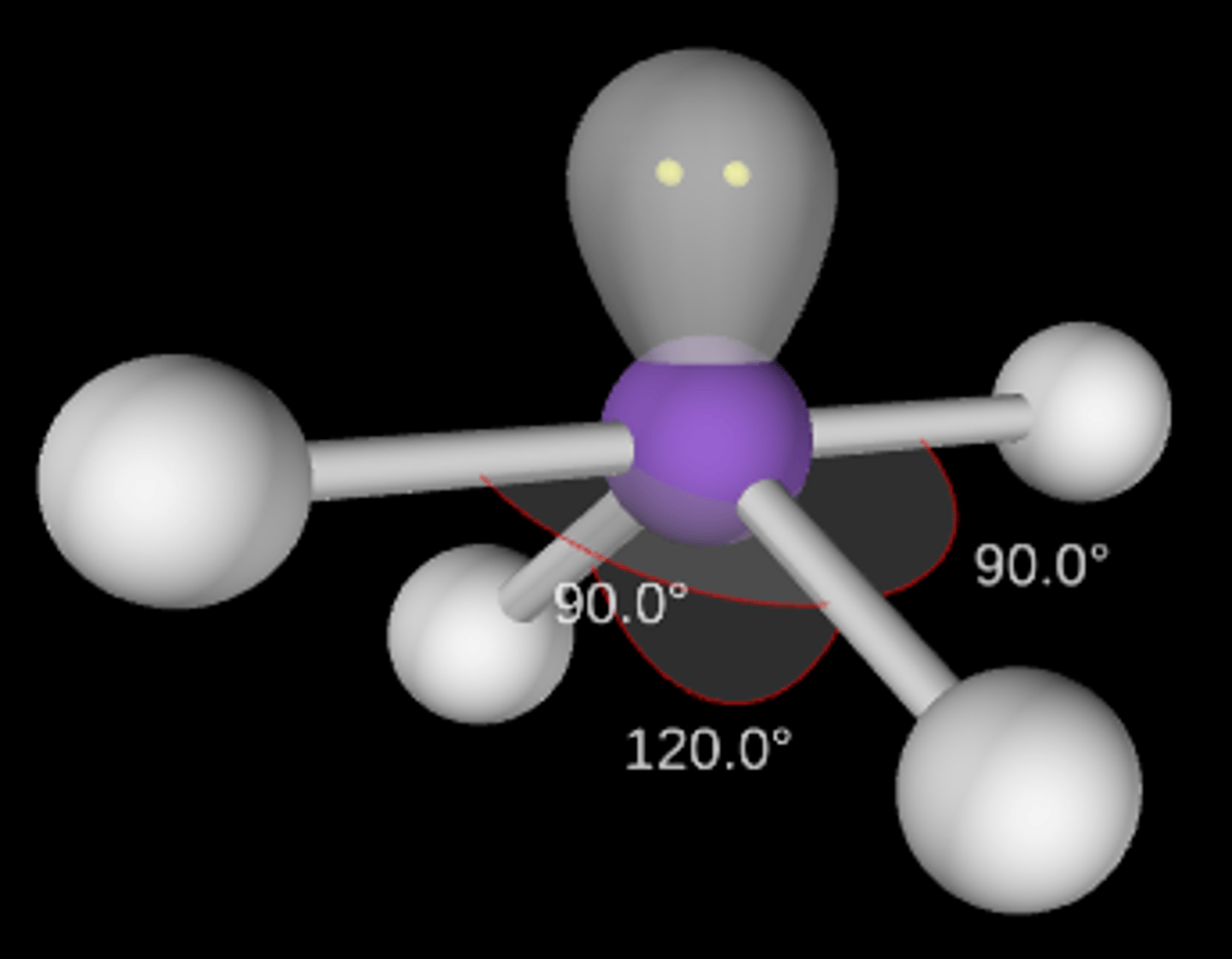

Seesaw; <90° and <120°; sp3d

AB3E2

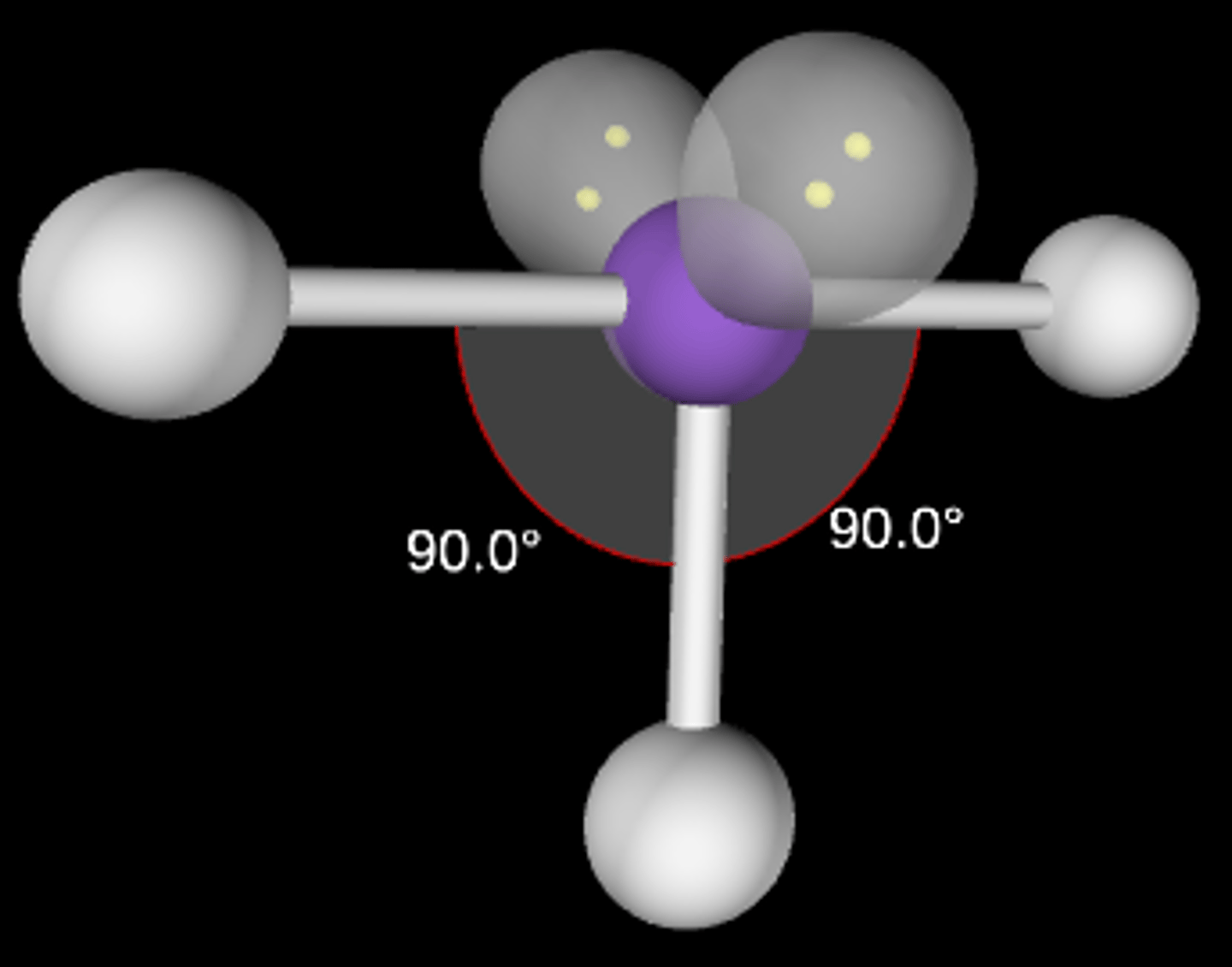

T-shaped; <90°; sp3d

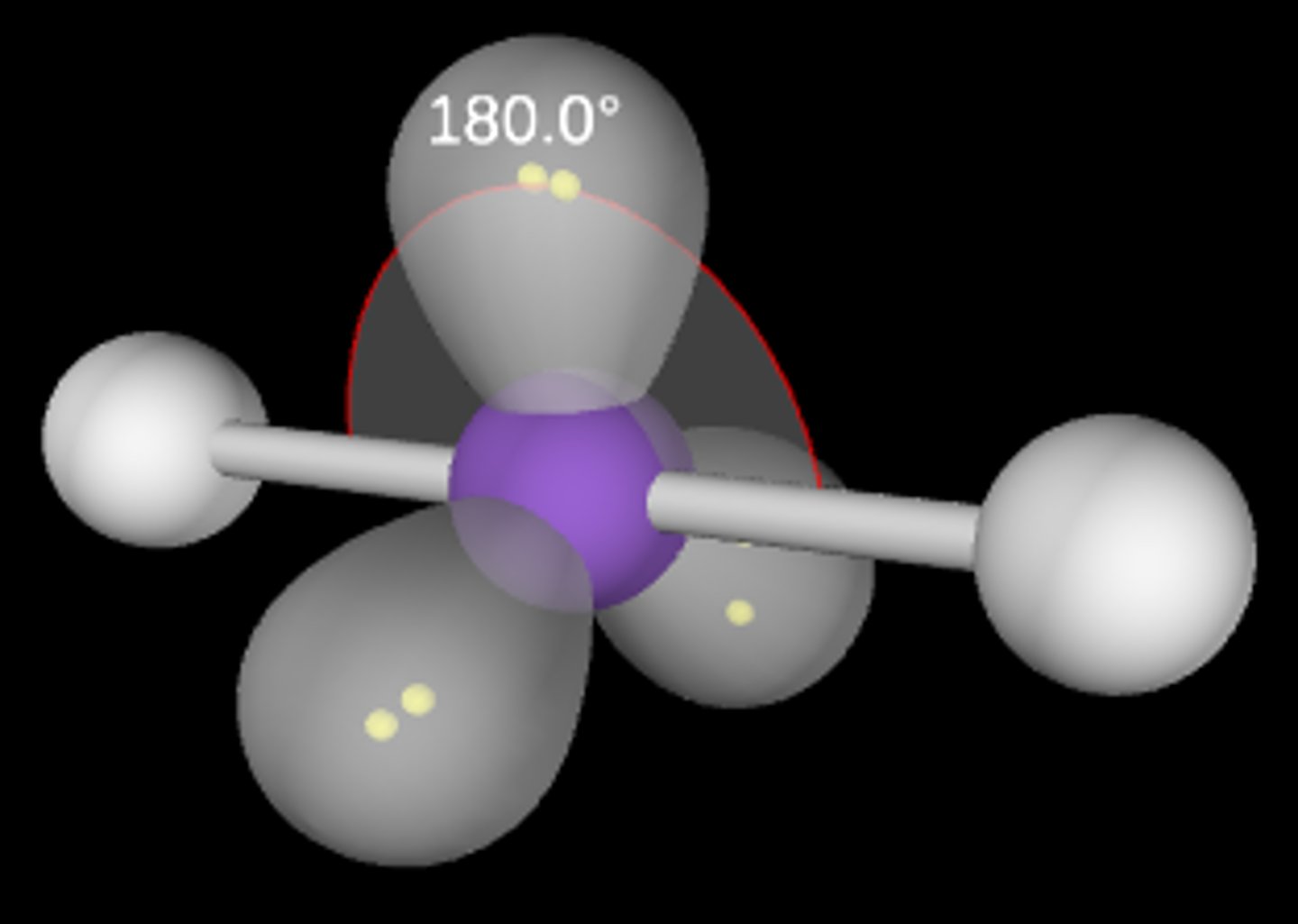

AB2E3

Linear, 180°; sp3d

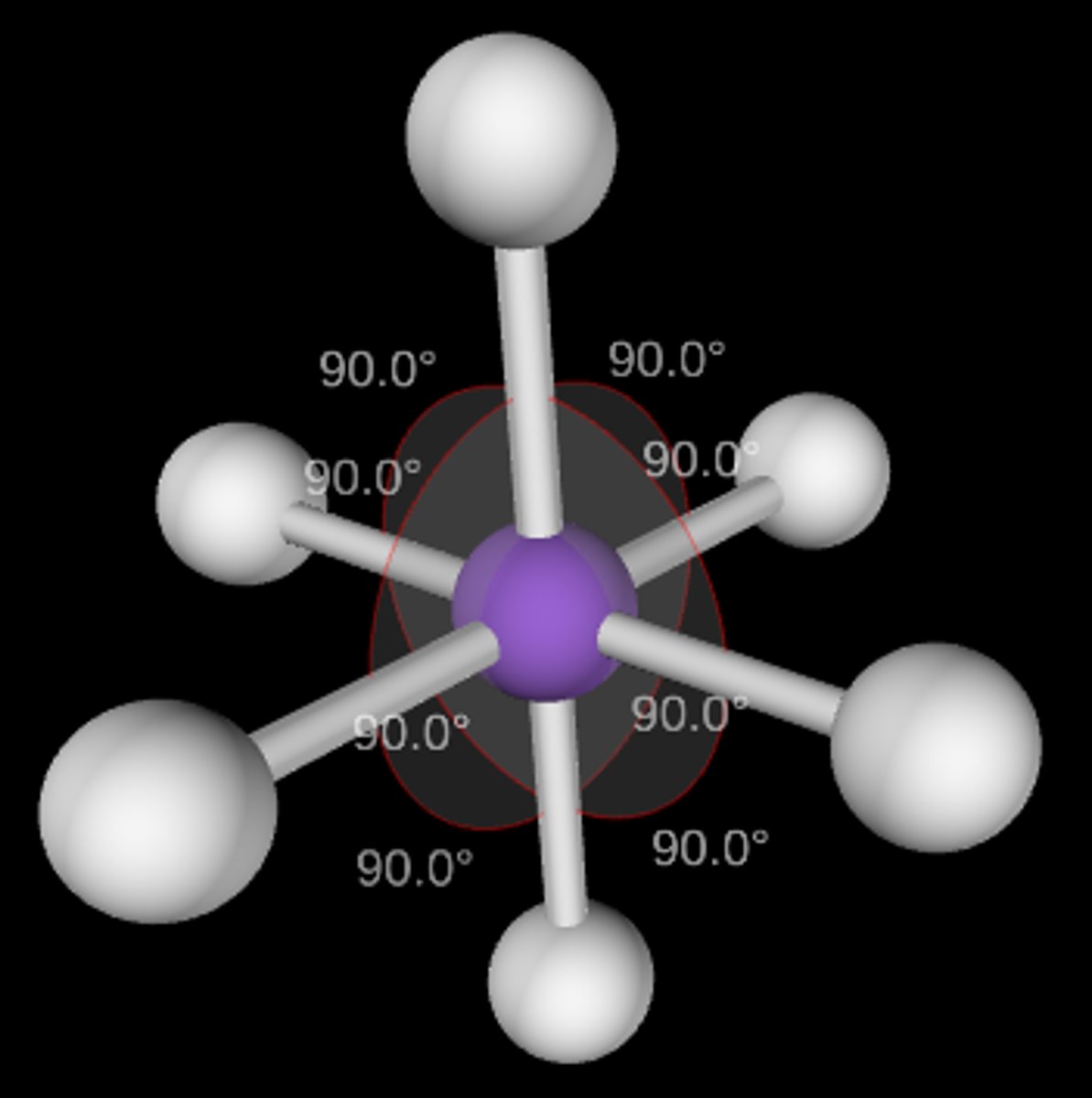

AB6

Octahedral; 90°; sp3d2

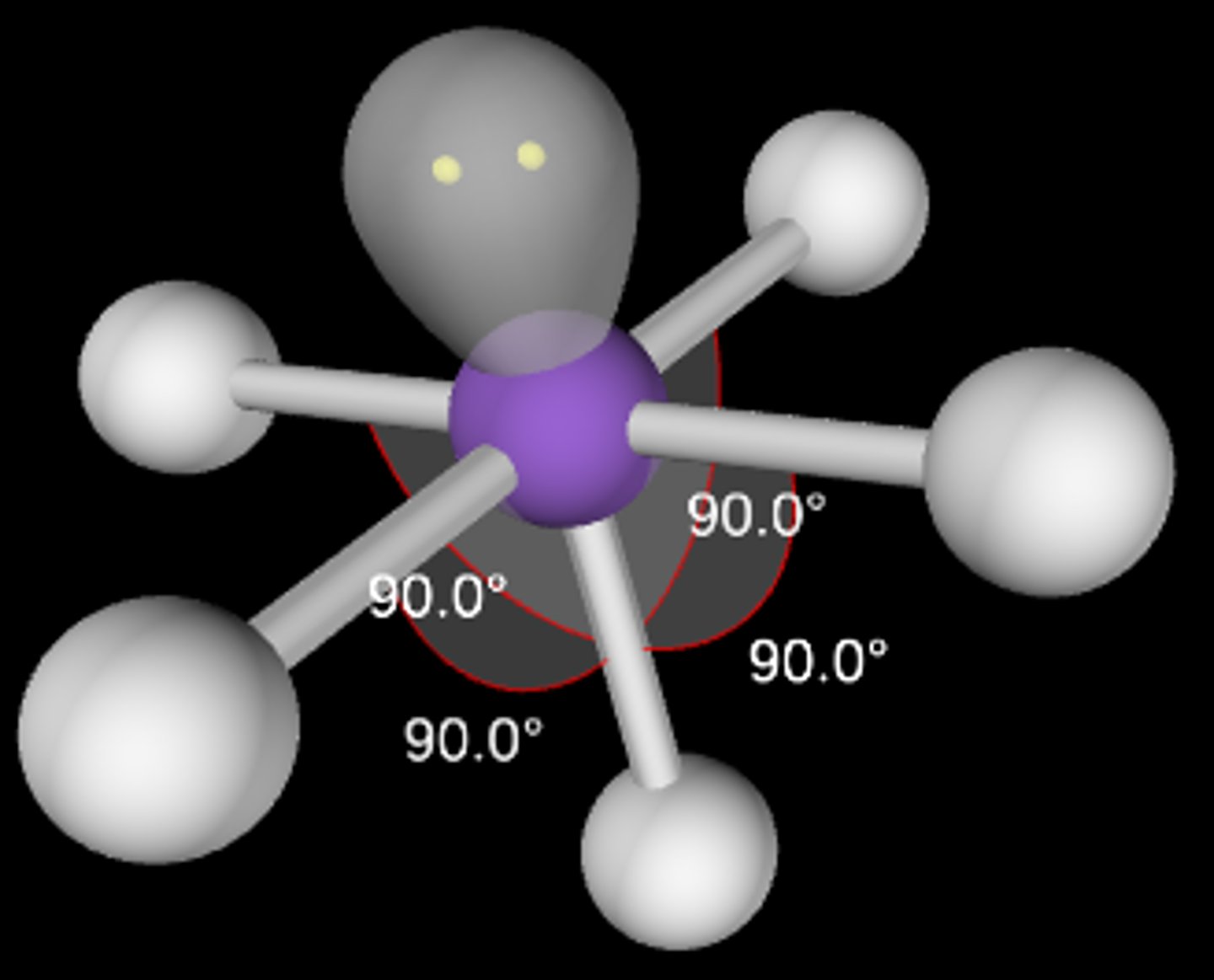

AB5E

Square pyramidal; <90°; sp3d2

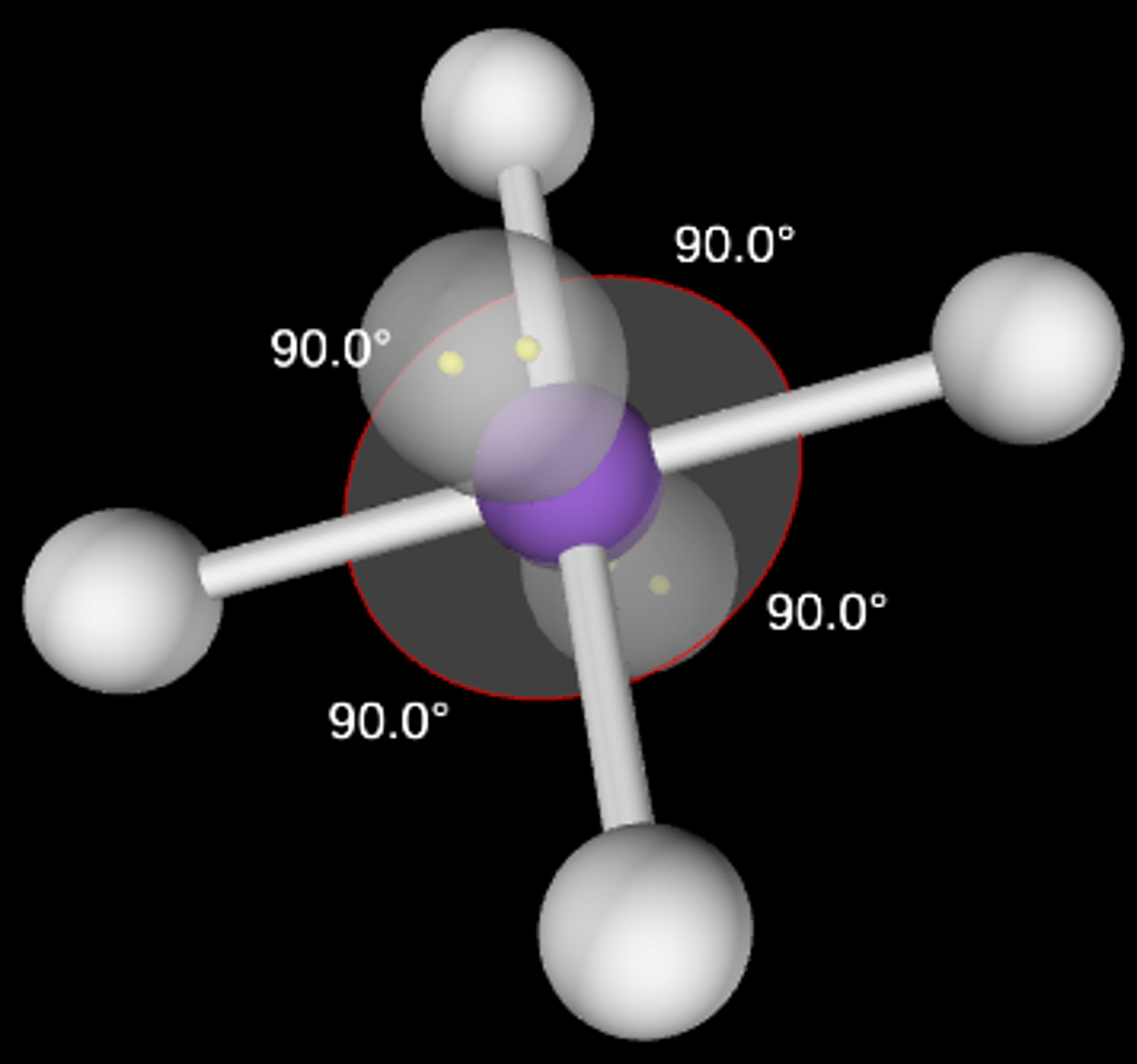

AB4E2

Square planar; 90°; sp3d2

Trigonal

Refers to triangular shape

Hedral

Refers to # of surfaces

Planar

Flat

A in ABE notation represents...

the central atom

B in ABE represents...

the # of atoms the CENTRAL ATOM is bonded to

E in ABE represents...

the # of unshared (or lone) electron PAIRS on the CENTRAL atom
