1. Parts of the X-ray (Images)

X-ray Machine Parts

1. Vertical adjustment indicator scale (0°- ±90°)

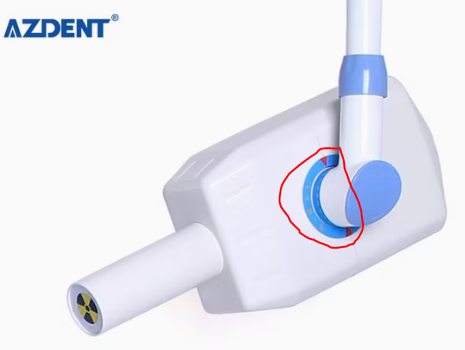

2. Horizontal adjustment/pivot

3. Control Panel

4. Support arm

5. Focal spot

6. Tubehead

7. PID/BID

   • PID — Position Indicating Device

   • BID — Beam indicating device

8. Yoke

Focal Spot

PID, BID (Cone)

• left to right rotation

Vertical Angulation Adjustment or Indicator Scale

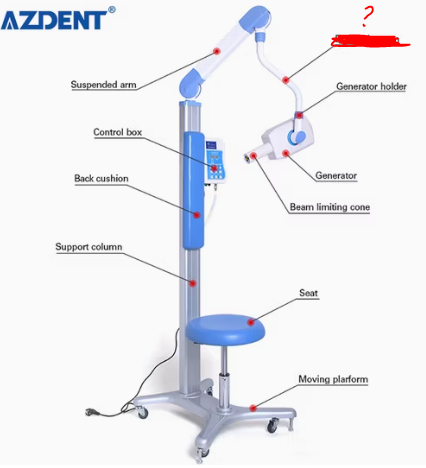

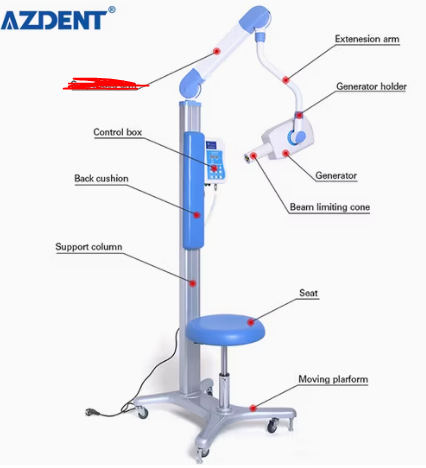

Extension Arm

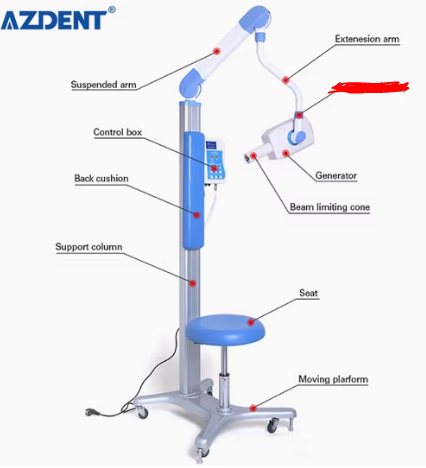

Generator Holder

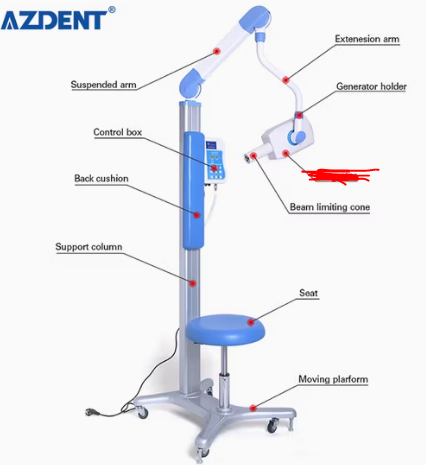

Generator

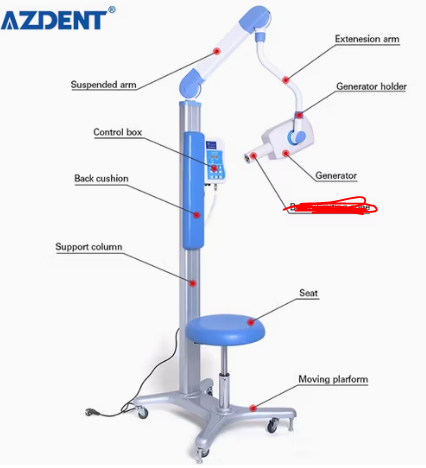

Beam Limiting Cone

Suspended Arm

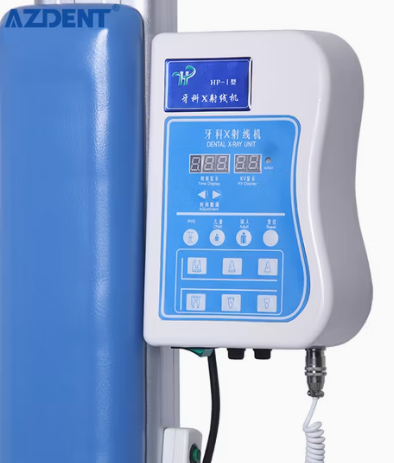

Control Box

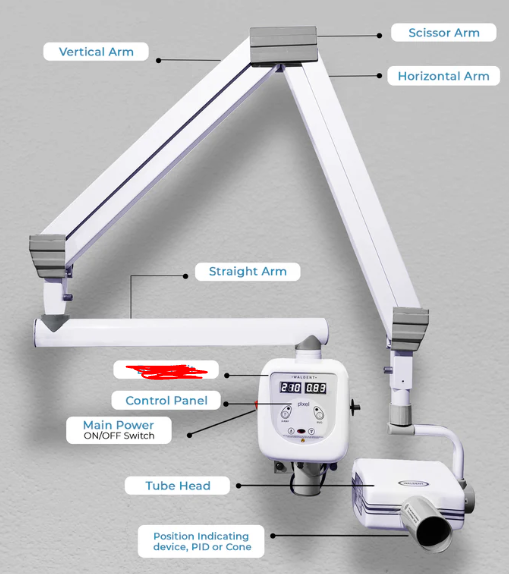

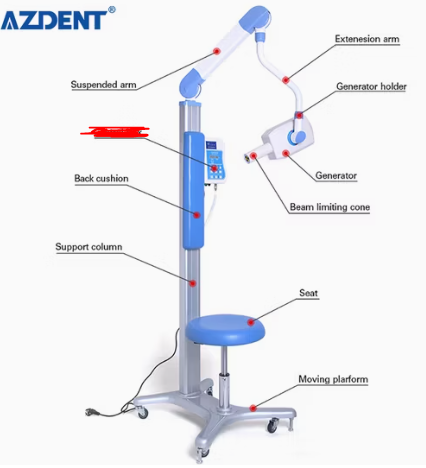

Control Panel

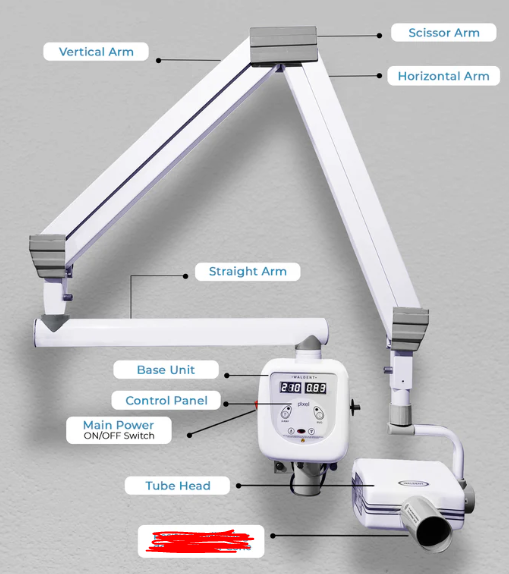

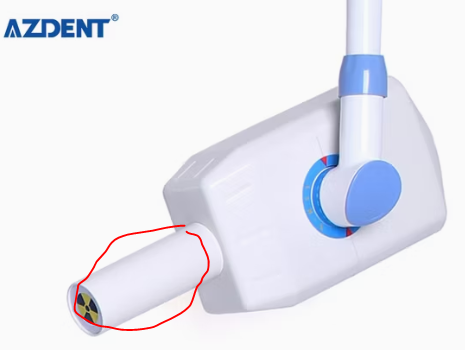

Position Indicating device, PID or Cone

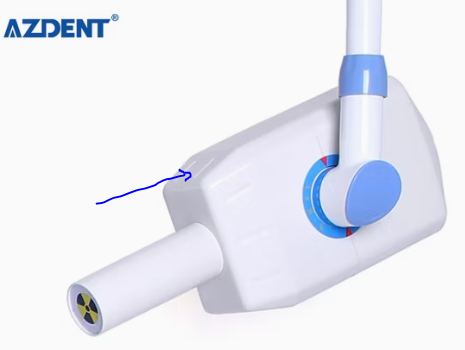

Tubehead

Base Unit

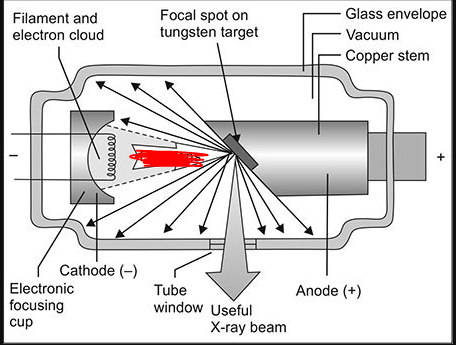

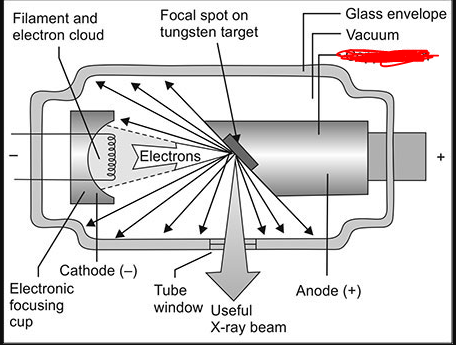

Cathode (-)

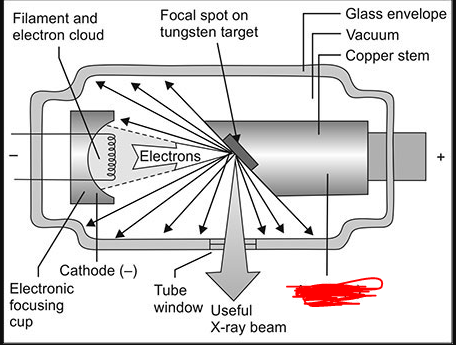

Anode (+)

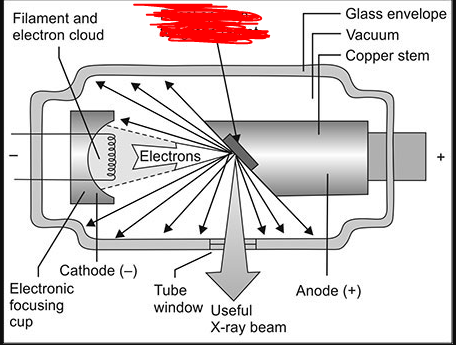

Focal spot of tungsten target

Copper stem

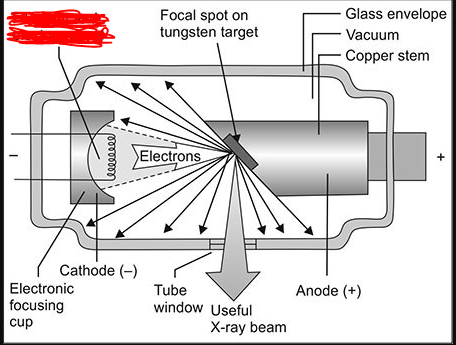

Filament and electron cloud

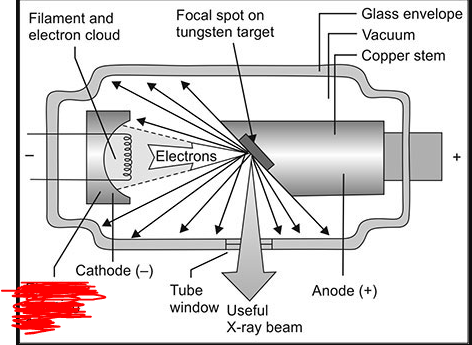

Electron focusing cup

Electrons

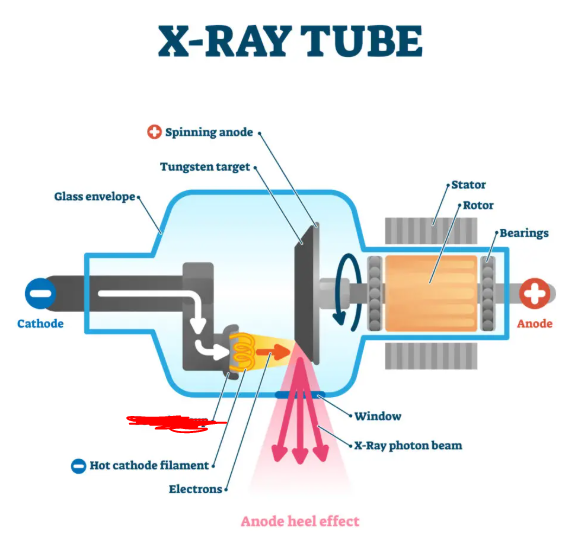

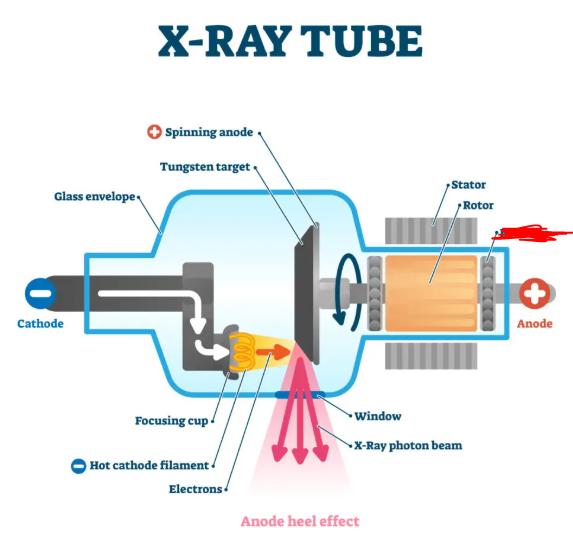

Rotor

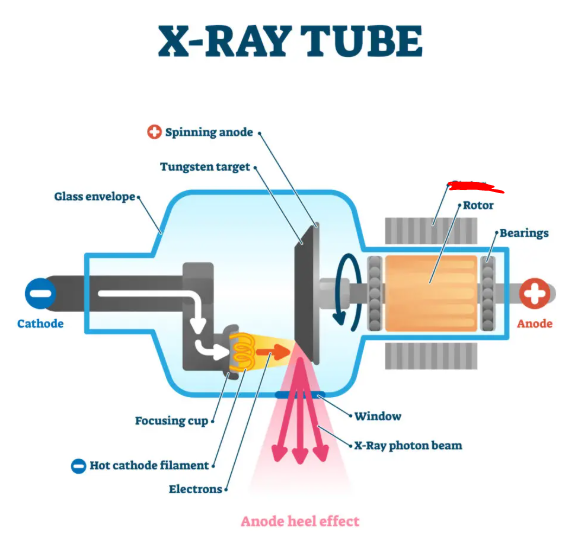

Stator

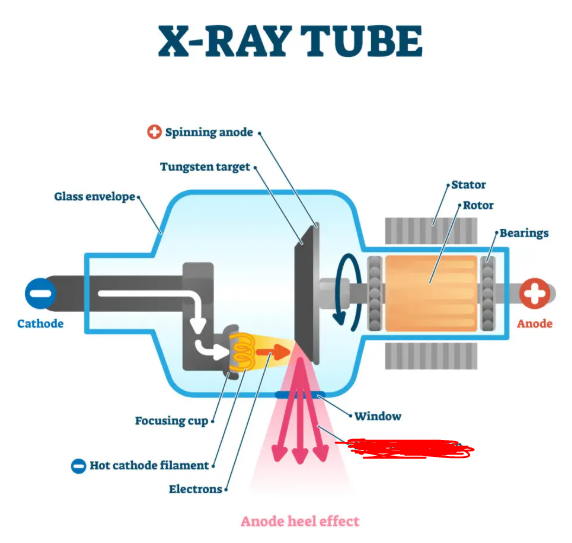

Bearings

X-ray Photon Beams

Focusing Cup

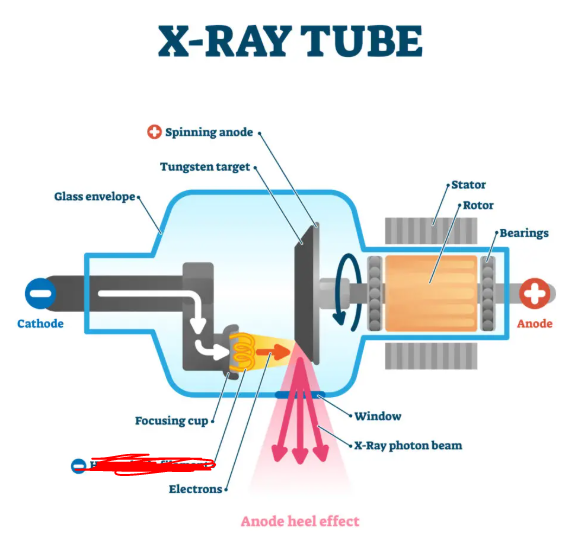

Hot Cathode Filament

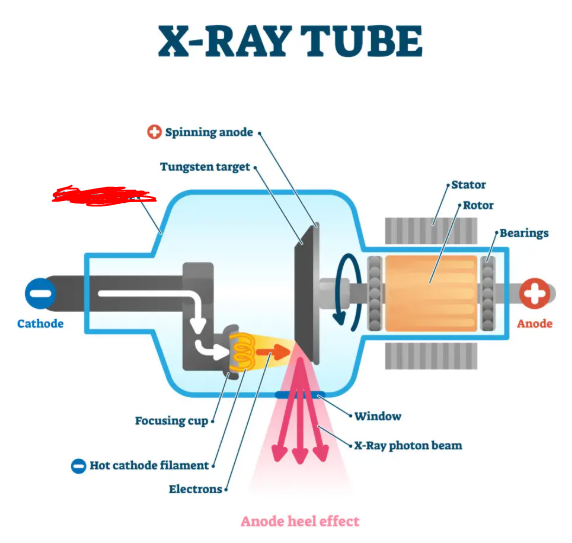

Glass Envelope

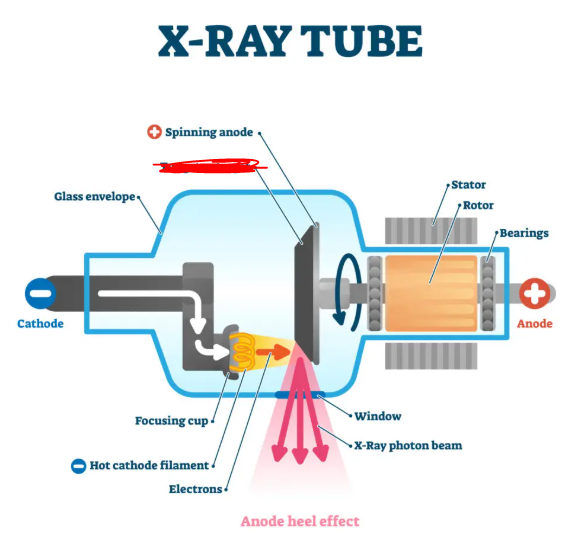

Tungsten Target

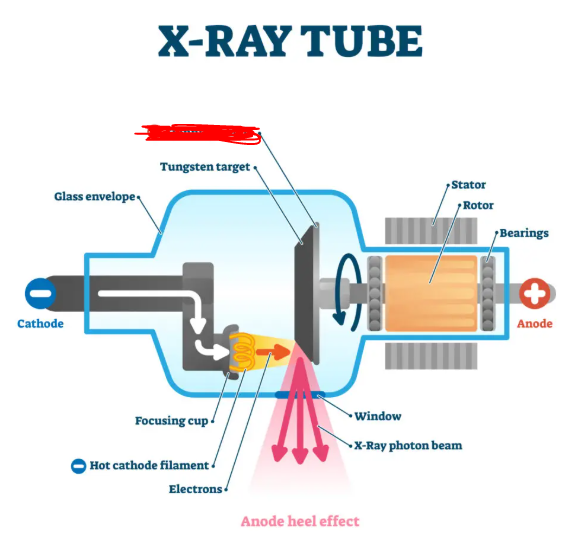

Spinning Anode

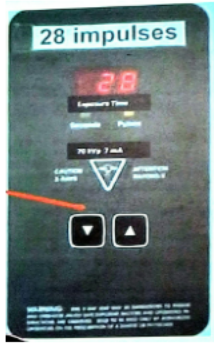

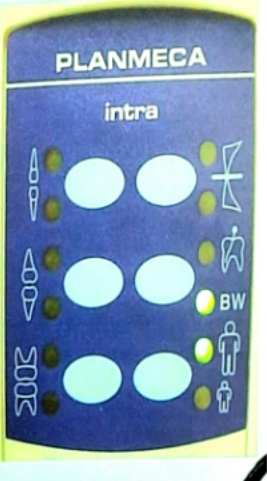

Exposure Time Adjustment

• Pre-selected exposure time per TYPE of tooth

• Exposure time for adults or kids can be selected

• Exposure time can be selected for what type of film is being used
