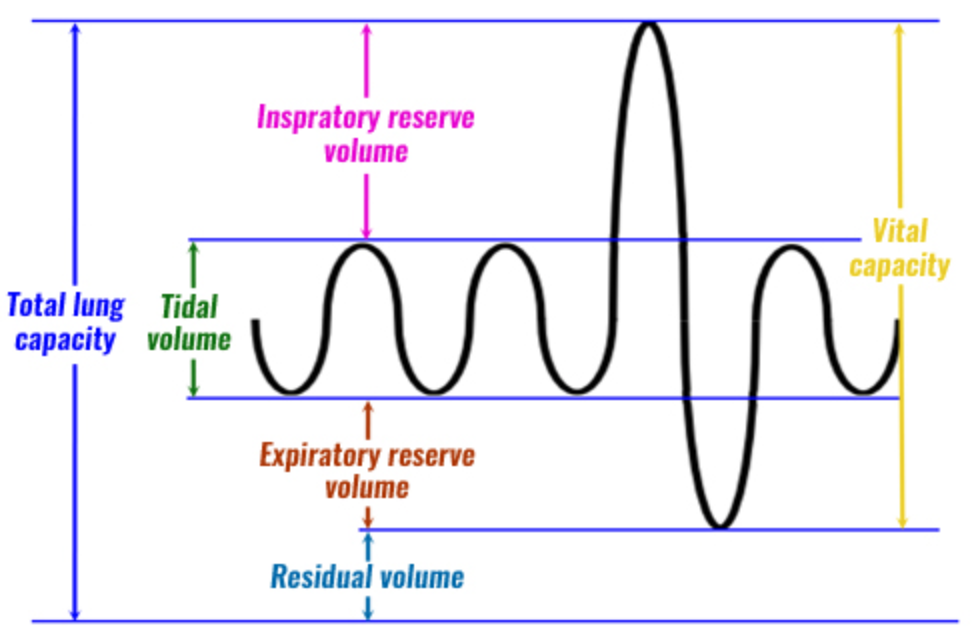

6. Pulmonary Anatomy + Lung Volumes

For Exam 3, focus on bicarb, bicarb + pH, lung anatomy, O2 exchange + causes, and chart with dif. inspiratory/expiratory volumes

Primary components of pulmonary system

1. Lungs
2. Thoracic cavity
3. Pleural space
4. Airway system

Lungs (covered by, contain, purpose, apex/base, 3 surfaces)

* Covered by visceral pleura
* Contain:
* Conducting airways
* Alveoli
* Connective tissue (interstitium)
* Purpose: provide large surface area for gas exchange
* Apex: superior aspect
* Base: inferior
* 3 surfaces:
* Costal space: lateral/ribs
* Medial: mediastinum
* Diaphragmatic: inferior

Anterior, posterior, and inferior lung borders

* Anterior: thin, sharp edge between mediastinum & costal surfaces
* Posterior: rounded; lies in paravertebral gutter; extends from C7-T10 (bottom of scapula to base of neck)
* Inferior: thin, sharp; separates base of lung from costal space

Hilum

* Triangular area on medial side of lung
* Site where “root structures” enter/leave lung
* Bronchi, blood vessels, lymph nerves

Location of lungs in thorax (superior/inferior limits)

Superior limit:

* Apex rises 2-4 cm above medial 1/3 of clavicle

Inferior limits:

* Anterior: approximately 6th rib at mid-clavical line
* Lateral: 8th rib mid-axillary line

How are lungs divided?

Segments according to bronchi

Right lung segments

* 10 segments
* RUL (right upper lobe): apical, posterior, anterior
* RML: lateral, medial
* RLL: superior, medial basal, anterior basal, lateral basal, posterior basal

Left lung segments

* 8 segments
* LUL: apico-posterior, anterior, superior lingular, inferior lingular
* LLL: superior, anteriomedial basal, lateral basal, posterior basal

Describe the left medial lobe of the left lung

NONEXISTENT!

The left lung does not have a LML because that is where there is space for the heart

Healthy lung appearance (color, texture, size)

* Brownish pink (esp. in younger person)
* Elastic, spongy
* Proper size (not inflated)

Thoracic cavity

* Enclosed “airtight” cylinder (creates suction/vacuum)
* 2 lateral (pleural) cavities
* Each contains a lung
* Central area (mediastinum) contains heart, great vessels, trachea, esophagus

Thoracic structures

* Anterior: sternum and costal cartilages
* Lateral: ribs, intercostal muscles, vessels, nerves
* Posterior: vertebral bodies
* Inferior: diaphragm

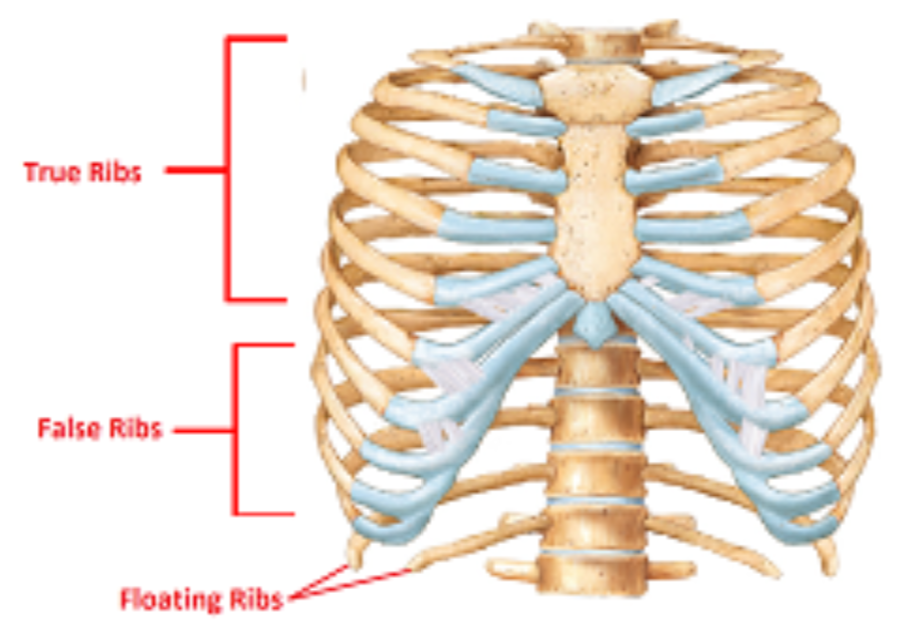

Types of ribs

1. True ribs
2. False ribs
3. Floating ribs

True ribs

* Ribs 1-7
* Attach to sternum via individual costal cartilages

False ribs

* Ribs 8-10
* Share attachment to sternum via common (shared) costal cartilage

Floating ribs

* Ribs 11-12
* Cartilage attached to body wall

Which type(s) of ribs are responsible for protecting the lungs?

* True ribs
* False ribs

Describe ribs’ attachment to thoracic vertebrae

* 2 facets on adjacent thoracic vertebrae
* Costovertebral joints
* Transverse process of thoracic vertebrae
* Costotranserve joints
* Synovial joints

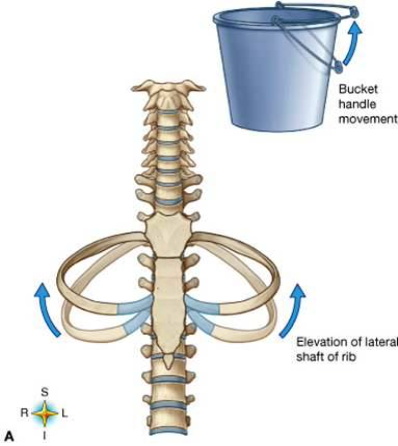

Lower rib movements

* Inspiration causes superior and lateral motion in frontal plane (bucket handle motion)
* Increases M-L dimensions of thorax

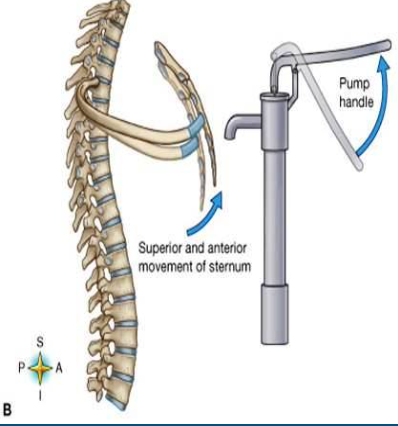

Upper rib movements

* Inspiration causes anterior and superior motion in sagittal plane (pump handle motion)
* Increases A-P dimension of upper thorax

Pleura

* Membranes lining thorax
* Pariteal (outer) layer: lines thoracic cavity, diaphragm, mediastinum
* Visceral (inner) layer: covers outer surface of lungs

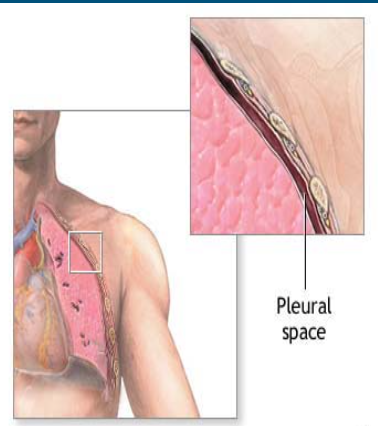

Pleural space

* Thin space between visceral and parietal pleura
* Small amount of pleural fluid to keep the layers in contact and provide lubrication
* Must have slight negative pressure (vacuum created by lymph)
* Keeps lungs inflated and able to follow thoracic wall during inspiration and expiration

Upper airway

1. Nose, mouth
2. Pharynx


1. Nasophyarynx
2. Orophyarynx
3. Larynx

Lower airway

1. Trachea
2. Bronchi
3. Bronchioles
4. Terminal bronchioles
5. $Respiratory bronchioles$
6. $Alveolar ducts$
7. $Alveoli$

$Note: final 3 are apart of respiratory zone$

Nose

* Two nasal passages continue posteriorly and inferiorly to nasopharynx
* Walls contain numerous folds of mucous membrane
* Warms/moistens (humidifies) air
* Traps foreign particles
* Mucous membranes can swell due to inflammation, infection (blocked airflow)

Pharynx

* Divided by soft palate into:
* Nasopharynx (from nasal passages)
* Oropharynx (from mouth)
* Laryngopharynx: lower end of pharynx, from tip of epiglottis to larynx (in airway) and esophagus

Larynx

“Voice box” at top of trachea

Lower airway: conducting zone (gas exchange, smooth muscle)

* Air in conducted between trachea and terminal bronchioles, but no gases are exchanged with blood


* Smooth muscle in bronchioles: site of bronchoconstriction in asthma and other inflammatory conditions

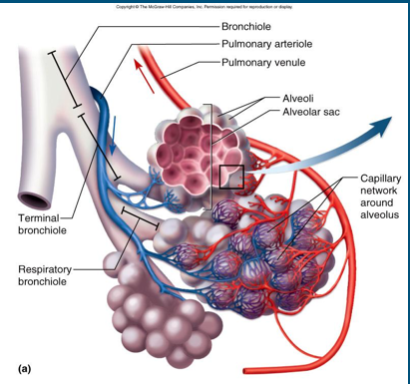

Lower airway: respiratory zone/unit (pulmonary acinus)

* Part of airway where gases are exchanged between alveoli and bloodstream
* Consists of:
* $Respiratory bronchiole$
* $Alveolar duct$
* $Alveoli$

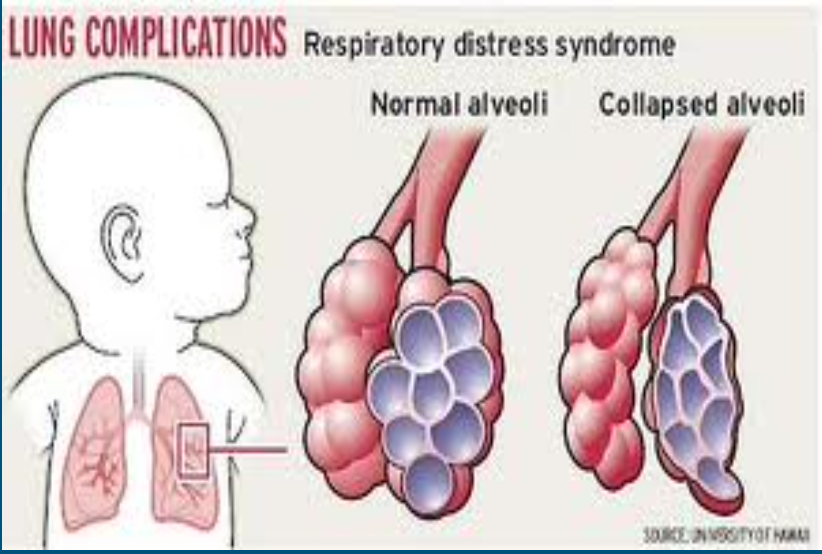

Alveolar wall

* Alveolar wall: thin layer of epithelial cells
* Squamous pneumocytes: flat, thin
* 95% of gas exchange area
* Granular pneumocytes: thick cells
* Makes surfactant (keeps lungs from sticking to each other)

Alveolar macrophages

* Free floating
* Ingest foreign debris

Capillaries

* Form web around alveolar sacs
* Very close proximity to alveolus promotes easy gas exchange

Alveolar-capillary (respiratory) membrane

* Single layer of alveolar cells
* Single layer of capillary cells
* Fused to a common basement membrane
* Very thin

Ventilation

Process of moving air in and out of lungs

Mechanics of breathing

* Thorax must be able to change shape to change pressure gradients between atmosphere and alveoli


* Gradients must be able to overcome resistance in airways

Muscles of inspiration

1. Diaphragm
2. Intercostals
3. Accessory muscles of inspiration

Muscles of expiration

1. Abdominals
2. Intercostals

Goal of inspiratory muscles

* Increase dimensions of thoracic cavity, which will
* Decrease intrathoracic pressure (create vacuum), causing
* Air to flow into lungs

Diaphragm (importance, innervation, originates from, shape, contraction, primary effect)

* Primary inspiratory muscle (75% inspiratory work)
* Phrenic nerve (C3-C5)
* Originates from:
* Xiphoid, lower 6 ribs, and costal cartilage, arches, and crura from lumbar vertebrae
* Muscle fibers arch up and in to form central tendon
* Parachute shaped
* Contraction pulls central tendon downward, diaphragm flattens
* Primary effect: inc. vertical (S-I) dimension of thoracic cavity

Respiratory effect of spinal injury above C3

Patient will likely be on vent because phrenic nerve (which innervates the diaphragm) runs from C3-C5

Diaphragmatic contractions affect on lower ribs

* Contraction moves lower ribs outward (bucket handle motion)
* How: fibers oriented so when they pull down, ribs rotate medially; lifted up and out to increase M-L dimension of lower thorax (secondary effect)

Effect of ribs being fixed in expansion (emphysema, SCI) on diaphragm

* Diaphragm is already in lower resting position
* Cannot descend much more to increase either S-I or M-L dimensions

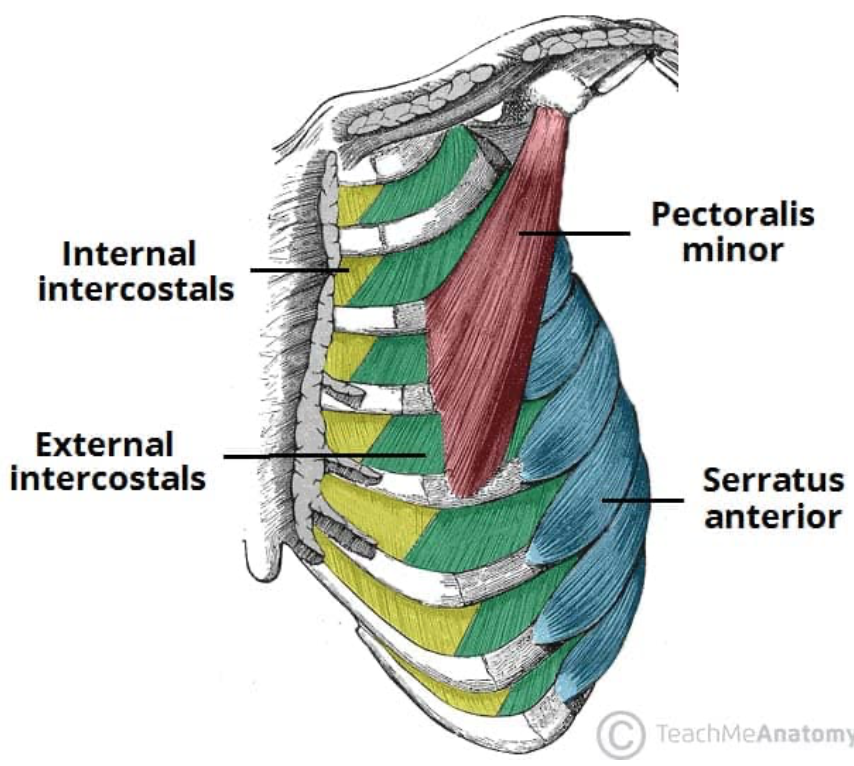

External intercostals

* Fibers run inferomedially (front of thorax) to upper border of next (inferior) rib
* Hands in front pockets direction
* Intercostal nerves (wrap around each rib)

External intercostals: inspiration

* External intercostals generally active during inspiration
* Lift ribs up and out
* Increased M-L diameter (bucket handle)
* Possible active in some types of forced expiration

Accessory muscles of inspiration

1. Sternocleidomastoid (SCM)
2. Scalenes
3. Pectorals
4. Serratus anterior

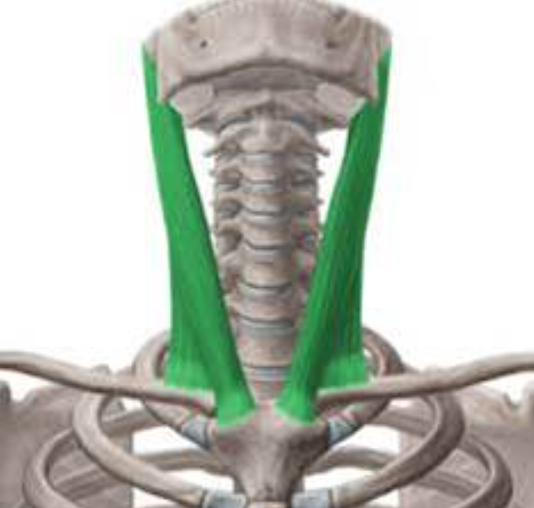

Sternocleidomastoid (SCM) effect on inspiration (motion, dimensions, innervation)

* Primarily elevates sternum in sagittal plane (pump handle effect)
* Increases A-P dimension in upper thorax
* Innervated: spinal part CN 11

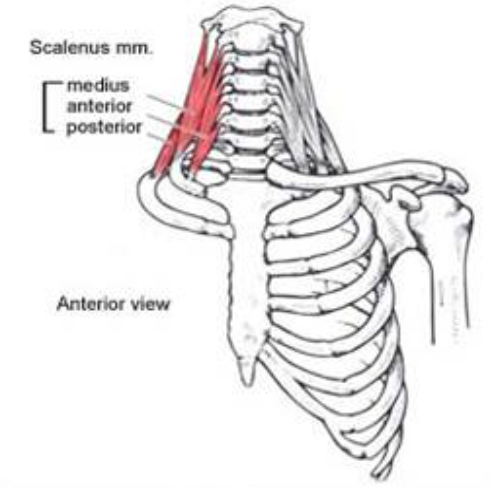

Scalenes (ant, middle, post) effect on inspiration

* Elevate upper ribs
* Work with SCM to inc. A-P dimension of thorax (pump handle)
* Innervated by ventral rami C3-C8 spinal nerve

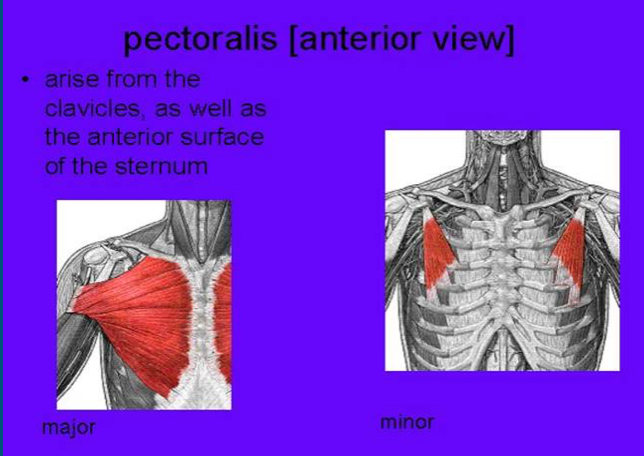

Pecs (major and minor) effect on inspiration

* Attach to sternum, costal cartilage, ribs 1-7
* If arms are fixed, pulls sternum and upper ribs forward, increasing A-P dimension of upper thorax (pump handle)
* Active in forced inspiration
* Pectoral nerve (C5-T1)

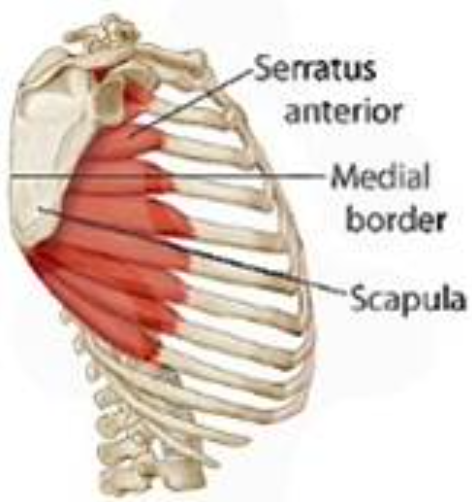

Serratus anterior effect on inspiration

* Exact role in inspiration debated
* Some evidence that if scapula is fixed, can pull ribs up and out
* If so, inc. M-L dimension of thorax
* **Long thoracic nerve (C5-C7)**

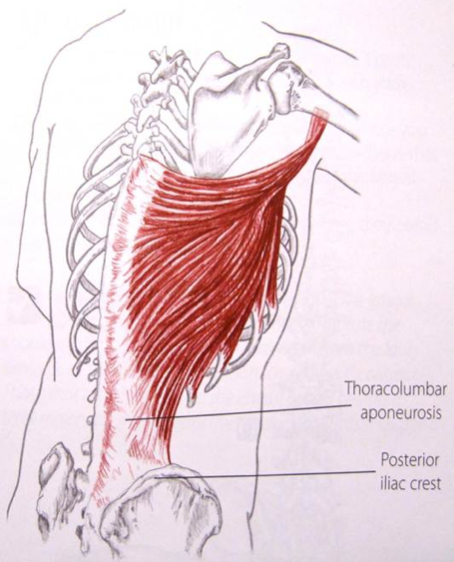

Lats as accessory to inspiration? Expiration?

* Typically active in deep inspiration
* Also helps in violent expiration (e.g. cough, sneeze)
* Only attaches to lower 3-4 ribs
* Perhaps able to stabilize thorax during deep inspiration and expiration
* Thoracodorsal nerve (C6-8)

Other muscles that may be active during inspiration

* Traps, erector spine (thoracic), iliocostalis lumborum, quadratus lumborum, serratus posterior superior and inferior, levatores costarum, transversus thoracis, subclavius
* These muscles may either directly help inspiration, or provide stability so that other accessory muscles can work

Expiration

* Resting expiration is normally passive recoil of lungs and thorax
* No muscle activity, so no energy expending during expiration (healthy lungs)
* Elasticity of thorax and lungs must be greater than resistance in airway
* Certain diseases decrease elasticity or increase resistance in airway (increasing work of expiration)

Accessory muscles of expiration

1. Abdominals
2. Intercostals

Abdominal muscles active in expiration

1. Rectus abdominis (ventral rami spinal nerve T6-12)
2. External obliques (T7-12)
3. Internal obliques (T7-12, L1)
4. Transversus abdominis (T7-12, L1)

How do abdominals aid expiration?

* All abdominals work to compress abdominal contents, forcing diaphragm upward to expel air more quickly (dec. S-I dimension of thorax)
* Important in rehabilitation: can be strengthened to assist expiration in various conditions

Internal intercostals

* Fibers run inferolaterally to next lower rib (hands in back pockets)
* Primarily assist in expiration (some sources say parasternal portion may be active in inspiration)
* Primarily decrease M-L dimension of thorax

Inspiration (dimensions of thoracic cavity, pressure in pleural space, movement of lungs, alveolar v. atmospheric pressure, air movement)

* Expand thoracic cavity in M-L, A-P, or both dimensions
* Negative pressure in pleural space (intrapleural pressure dec. creating vacuum)
* Lungs are drawn/sucked outward toward thoracic wall
* **Alveolar pressure < atmospheric pressure**
* Lungs expand
* Air flows into lungs

Pressure gradients during inspiration (pleural vs. alveolar pressure for pre, during, and end of inspiration)

Pre-inspiration:

* Pleural pressure: -5 cmH2O
* Alveolar pressure: 0 (same as atmosphere)

During inspiration:

* Pleural pressure: -7 cmH2O (becomes more negative)
* Alveolar pressure: -2 (air flows in from atmosphere)

End of inspiration:

* Pleural pressure: -8 cmH2O
* Alveolar pressure: 0 cmH2O (equal to atmosphere - air stops flowing in)

Inspiration at rest vs. increased activity

Mechanism: muscular action

* At rest: inspiration caused by diaphragm
* Increased activity: accessory muscles of inspiration become active depending on depth and frequency of inspiration

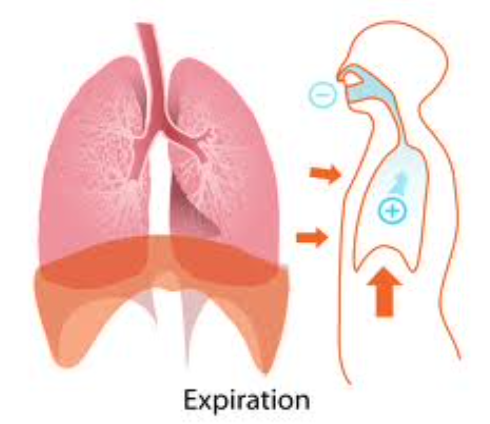

General strategy of expiration

* Decrease size of chest cavity
* Lungs recoil (squeezed slightly)
* **Alveolar pressure > atmospheric pressure**
* Air forced out of lungs

Gradients during normal expiration (how does intrapleural and alveolar pressure change; movement of air)

* Intrapleural pressure increases from -8 to -5 cmH2O
* Alveolar pressure increases from 0 to +1 cmH2O
* Air is pushed out of lungs

Gradients during forced expiration (how does intrapleural and alveolar pressure change; result)

* Intrapleural pressure can increase to +30 cmH2O
* Alveolar pressure can increase to + 38 cmH2O
* Air is forced out much more quickly

What happens if pleural pressure > pressure inside airways?

* Airways can collapse
* Decreased volume of air leaving lungs

Expiration at rest vs. with increased activity

Mechanism: muscular action

* Rest: no muscle activity; lung and chest cavity relax because of elastic recoil/rebound
* Increased activity: accessory muscles (abs, internal intercostals) become active as
* More force is needed
* Respiratory rate increases (must get air out more quickly)

MIP: Maximum Inspiratory Pressure (definition, normal female, normal male)

* Highest pressure produced during forced inspiration
* Normal female: 108 - (0.61 x age)
* Normal male: 120 - (0.41 x age)

MEP: Maximum Expiratory Pressure (definition, normal female, normal male)

* Highest pressure during forced expiration
* Normal female: 131 - (0.86 x age)
* Normal male: 174 - (0.83 x age)

Significance of MIP and MEP

* Can detect respiratory muscle weakness better than other pulmonary function tests (PFTs)
* Can be used to determine if patient needs intubation/ventilator
* If MIP/MEP are too low, intubation/ventilation is indicated
* Values can be used to set resistance when training respiratory muscles

Ventilation: need for lung/thoracic compliance

* Thoracic cavity, lungs, airway should be flexible
* Not too much resistance to inspiration
* But also sufficiently elastic recoil to cause expiration

Compliance (definitions, too low, too high)

* Ease at which lung can be inflated
* Change in lung volume for a given change in pressure
* Too low: restricts inspiration
* Too high: not enough recoil

Primary factors affecting compliance

1. Elasticity of lung and chest wall
2. Surface tension in alveoli

Elasticity

* Network of elastin and collagen in alveolar walls
* Surrounds bronchi and vasculature
* Correct proportion of elastin and collagen provides balance between strength and elasticity
* Disrupted by certain diseases
* Note: ribs must also move easily at synovial joints on vertebrae, no restrictions from intercostal structures, etc.

Surface tension in alveoli (effect normally, effect if too high)

* Inner walls of alveoli tend to stick together because of surface tension
* If surface tension is too high, alveoli collapse, making it impossible to inflate lungs

Surfactant (what is it, where is it produced, what does it do, premature babies)

* Oily substance
* Produced by granular pneumocytes within alveoli
* Decreases surface tension (so lungs don’t stick together too much), allowing alveoli to be inflated
* Premature babies may lack surfactant
* Often intubated and their lungs are sprayed with surfactant

What does resistance to airflow in lungs depend on?

1. Viscosity of gas (air)
2. Length of tube (airway)
3. Radius of tube (airway lumen)

Equation for airway resistance

\[ 8(viscosity)(length) \] / ∏(radius)^4

Describe effect of radius on resistance

* Radius indirectly effects resistance (because it is in denominator)
* Because it is raised to the 4th power, a small change in airway radius (lumen) will have a large effect on resistance

Sites of airway resistance

* 70-80% total airway resistance provided by large airways (> 2 mm diameter)
* Small airways have narrow lumens but
* Total X-sectional area of small airways is large, so total resistance is low
* Airflow in smaller airways is laminar, not turbulent

Physiologic control of airway lumen

* Bronchioles contain rings of smooth muscle under __autonomic control__
* Sympathetic: norepinephrine ➡️ bronchodilation
* Parasympathetic: acetylcholine ➡️ bronchoconstriction
* Also, local chemicals and inflammation (histamine) cause bronchoconstriction

Additional features of ventilation

1. Minute ventilation
2. Dead space
3. Alveolar ventilation

Minute ventilation/minute respiratory volume (definition, equations, normal)

* Amount of air that is inspired (or expired) in one minute
* V = tidal volume x respiratory rate
* Normal = 6 liters

Dead space (definition, included structures, normal)

* Part of airway where no gas is exchanged with blood
* Consists of all parts of airway EXCEPT respiratory zone/unit
* Normal = 150 mL

Alveolar ventilation

* Air entering respiratory zone/unit during each minute of breathing
* VA = respiratory rate x (Vt - dead space)
* Normal = 4.2

Lung volumes and capacities (what affects lung values, how are lung values measured)

* Lungs can inspire/expire certain amounts of air during various types of breathing
* Normal values may vary according to age, gender, size of person (and thus, size of lungs)
* Values affected by pulmonary diseases, inactivity, etc.
* These volumes and capacities often measured clinically to assess lung function

Pulmonary volumes

1. Tidal volume (Vt)
2. Inspirator reserve volume (IRV)
3. Expiratory reserve volume (ERV)
4. Residual volume (RV)

Tidal volume (Vt) (definition, normal value)

* Amount of air inhaled (or exhaled) with each normal breath
* Normally = 0.5 liters

Inspiratory reserve volume (IRV) (definition, normal value)

* Extra air that can be inspired at the end of resting (tidal volume) inspiration
* Normally = 3 liters

Expiratory reserve volume (ERV) (definition, normal value)

* Extra air that can be expired at the end of resting (tidal volume) expiration
* Normally = 1.1 liters

Residual volume (RV) (definition, normal value, measured)

* Air remaining in lungs after maximal (forced) expiration
* Normally = 1.2 liters
* Requires sophisticated lab equipment to measure (not easily determined)

Pulmonary capacities

1. Inspiratory capacity
2. Functional residual capacity
3. Vital capacity
4. Total lung capacity

Inspiratory capacity (definition, equation, normal)

* Amount of air that can be inspired after normal expiration
* Inspiratory capacity = Vt + IRV
* Normal = 3.5 liters

Functional residual capacity (definition, equation, normal)

* Amount of air that is left in lungs after normal expiration
* = ERV + RV
* Normal = 2.3 liters

Forced vital capacity (FVC) (definition, importance, equation, normal)

* Maximal amount of air that can be expired after max inspiration
* Best overall indication of ventilation capacity
* FVC = Vt + IRV + ERV
* Normal = 4.6 liters

Total lung capacity (definition, equation, normal)

* Maximal amount of air lungs can hold
* = Vt + RV
* Normal = 5.8 liters

Physiological functions of lungs

1. Provide O2 to body, remove CO2 from body
2. Help maintain acid-base balance
3. Help maintain body temperature (evaporative heat loss)
4. Delivers certain meds into bloodstream
5. Helps filter, metabolize toxins in blood

What do ABGs (arterial blood gases) measure?

1. Arterial O2
2. Arterial CO2

Key issues in O2/CO2 metabolism

1. Partial pressures of O2/CO2
2. Pulmonary circulation
3. Ventilation-perfusion relationships
4. Gas exchange
5. Transport of gases in blood
6. Control of respiration

Partial pressures of O2/CO2

* Each gas exerts pressure proportional to:
* Percent/fraction of the gas in the mixture
* Barometric pressure
* Fraction inspired O2 (FiO2)
* Dry atmospheric air: 0.21

PO2

* PO2 inspired air = FiO2 x barometric pressure
* Inspired air is humidified and saturated with water vapor before it reaches lungs
* Thus, pressure of water vapor must be subtracted from atmospheric pressure
* Normal PO2 = 150 mmHg

PO2 reaching alveoli

* PO2 of inspired air continues to dec. as it travels down airway and mixes with CO2 until it reaches alveoli
* Normal alveolar PO2 = 104 mmHg (slightly lower than PO2 inspired)

Factors effecting PAO2 (partial pressure of O2)

* Ventilatory (breathing rate)
* Direct relationship (inc. rate = inc. PAO2)
* Diseases that affect airway or gas exchange
