Lesson 25 - Forelimb radiography LA

What view is this?

Medio-lateral view of shoulder

How to perform a lateral shoulder view radiograph

Distal limb is pulled cranially with detector at lateral aspect of joint in vertical position

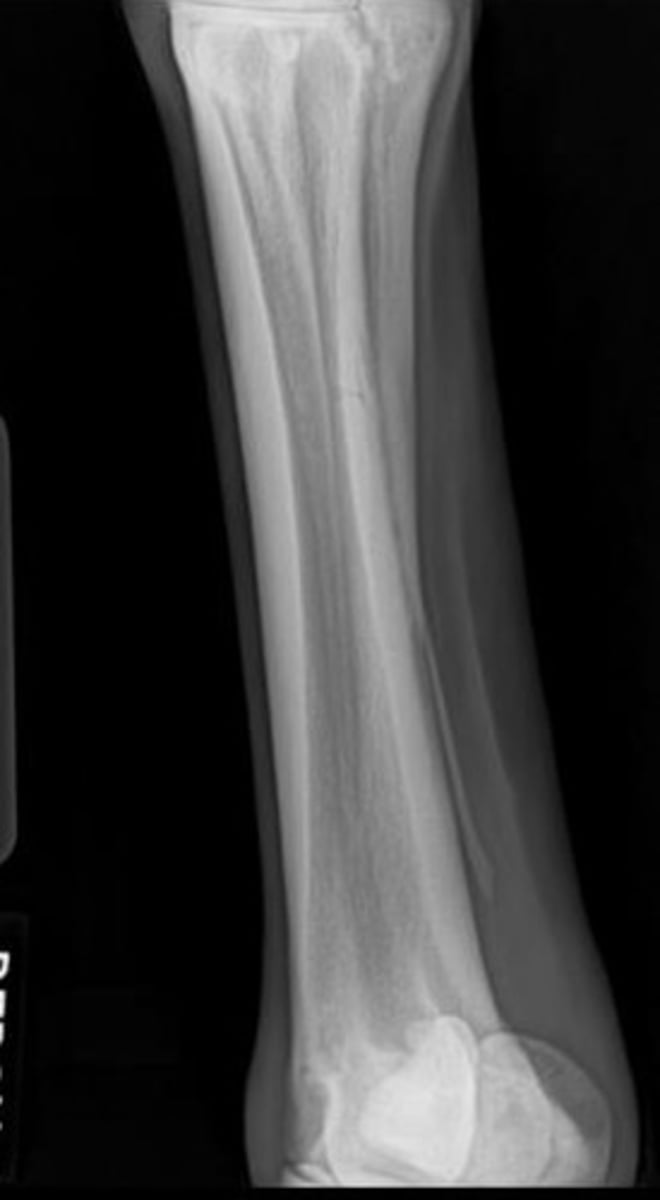

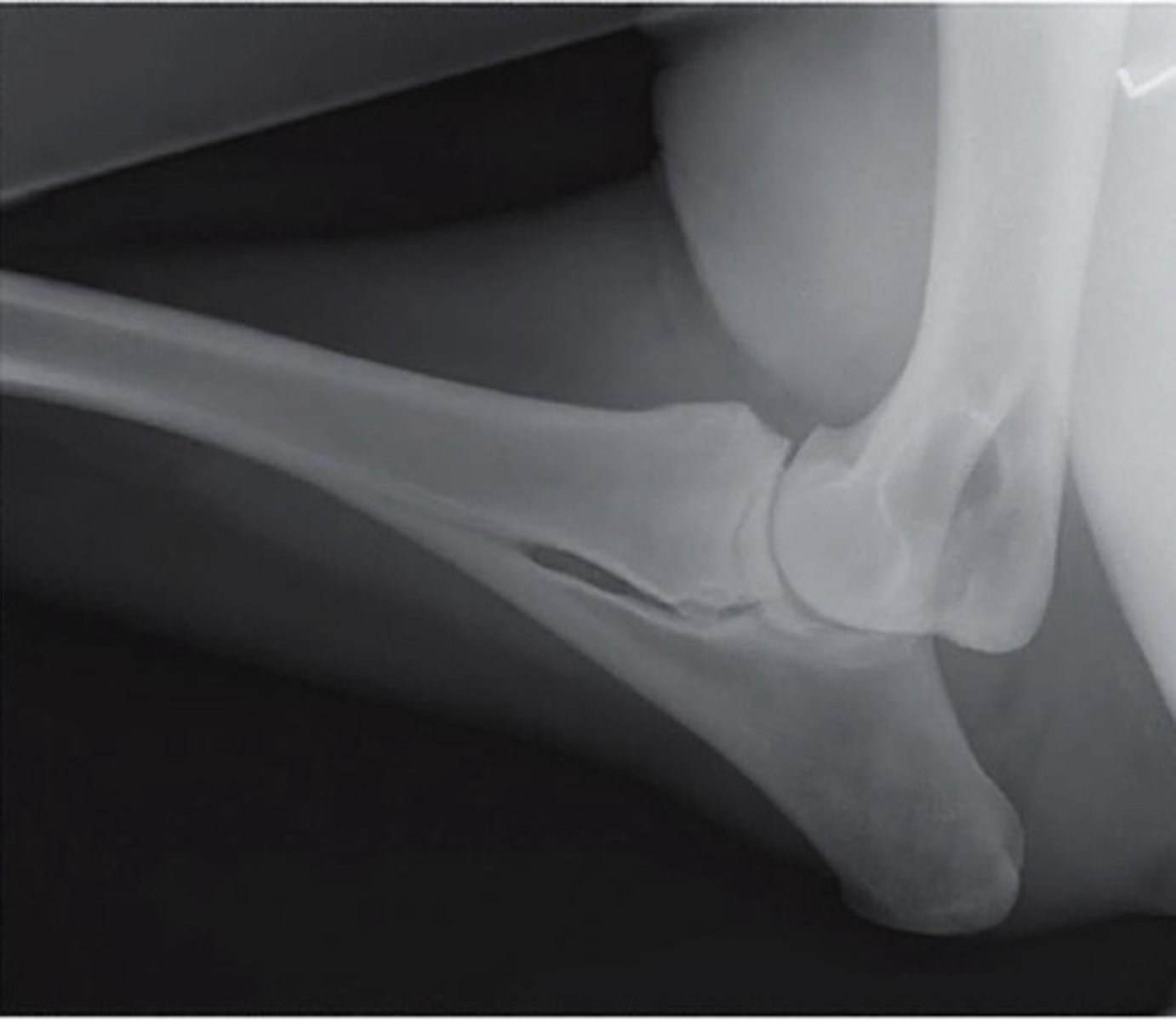

What view is this?

Medio-lateral view of elbow

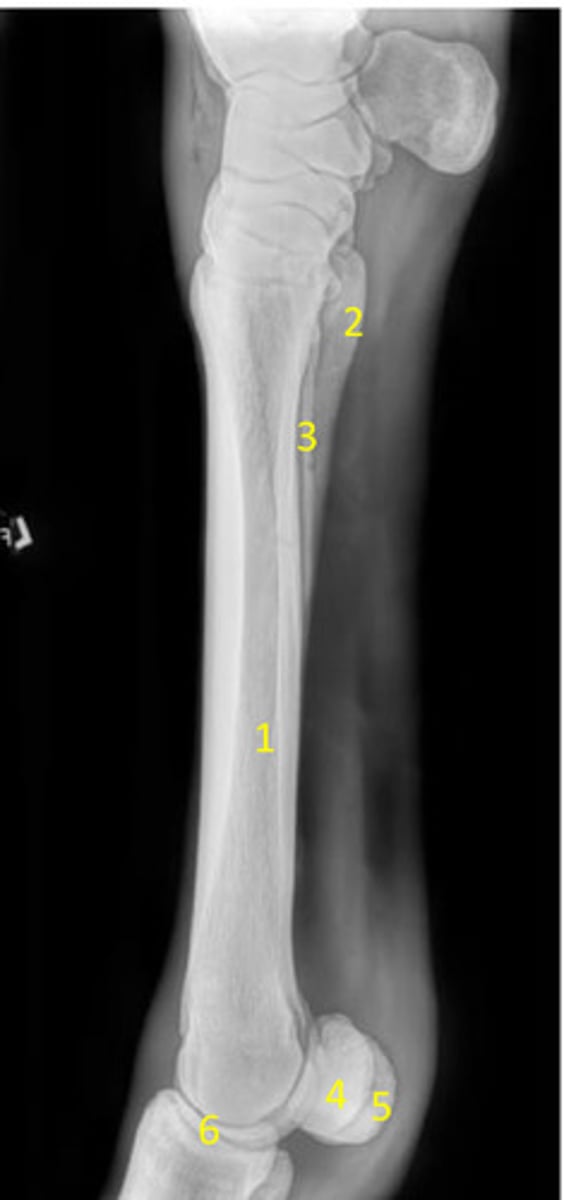

What are the views for the elbow?

Lateral and cranio-caudal view

What are the views for the shoulder

Medio-lateral view

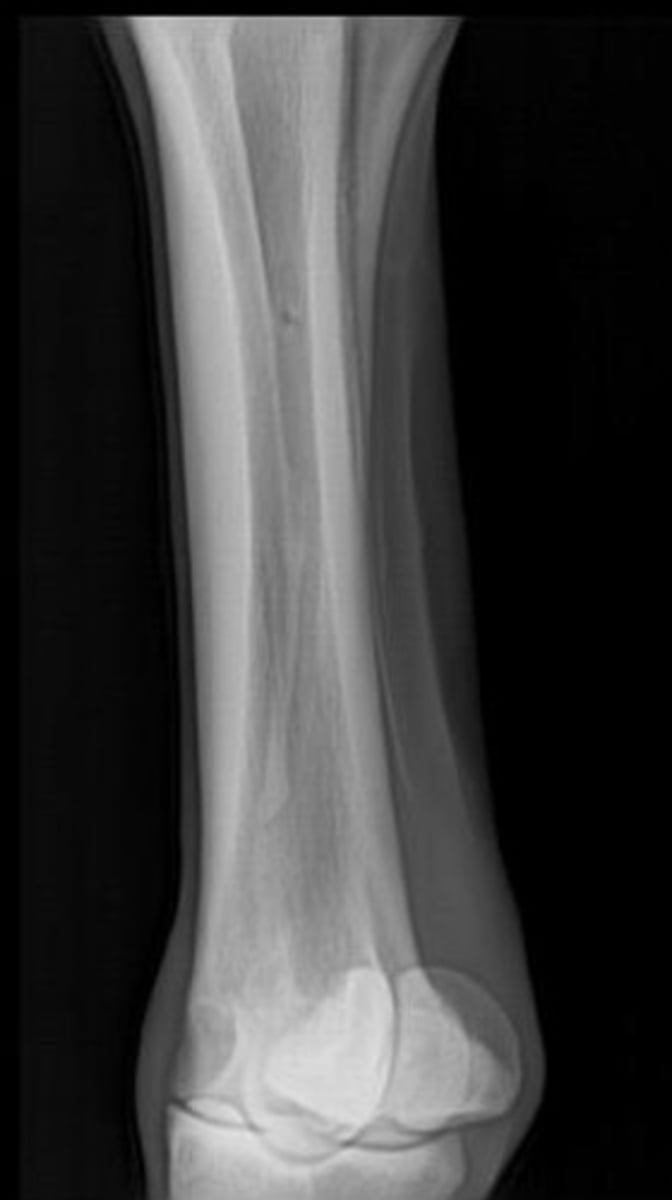

What view is this?

Cranio-caudal view of elbow

How many views are usually taken for the carpus?

Four routine views

What are the routine views for the carpus?

Latero-medial, dorso-palmer, dorsolateral-palmeromedial oblique, dorsomedial-palmarolateral oblique view

What are the additional views for the carpus?

Flexed lateral, tangential/skyline views

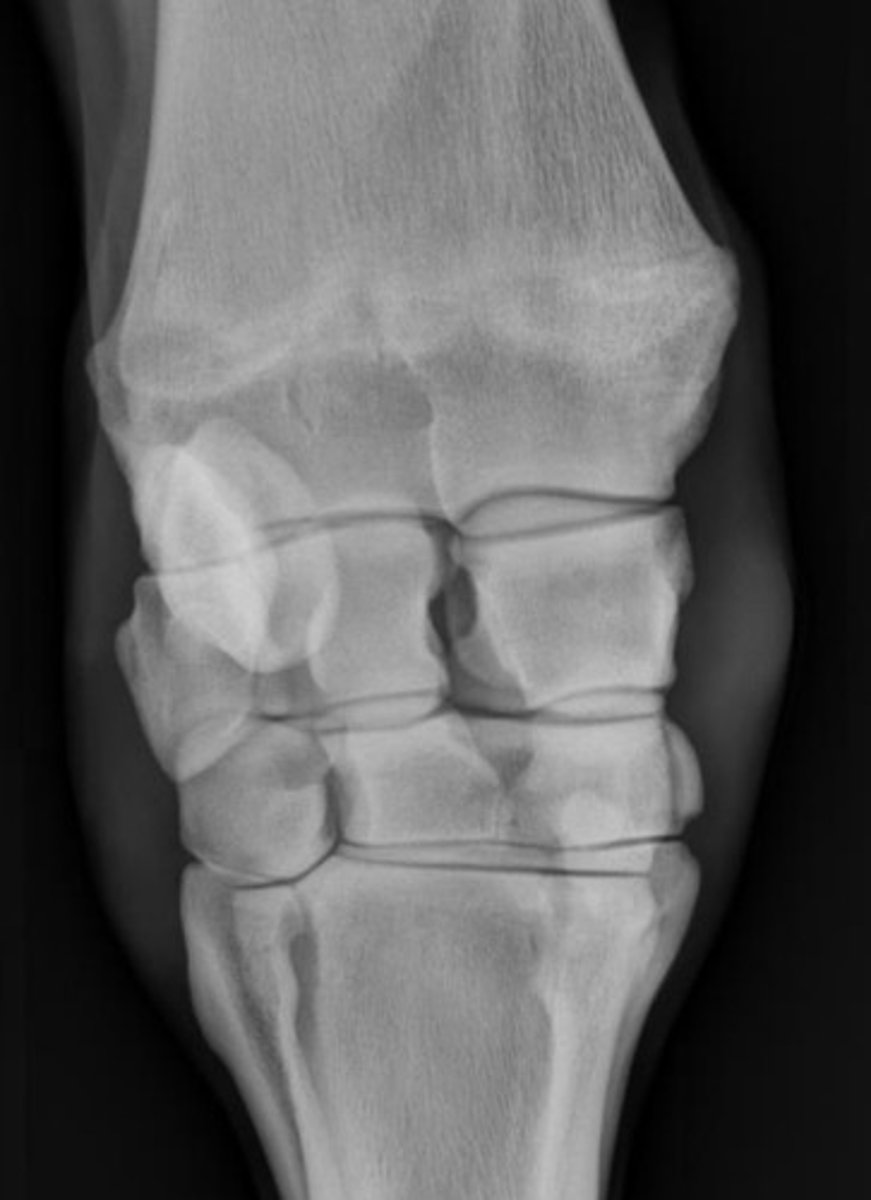

What view is this?

Dorso-palmer view of carpus

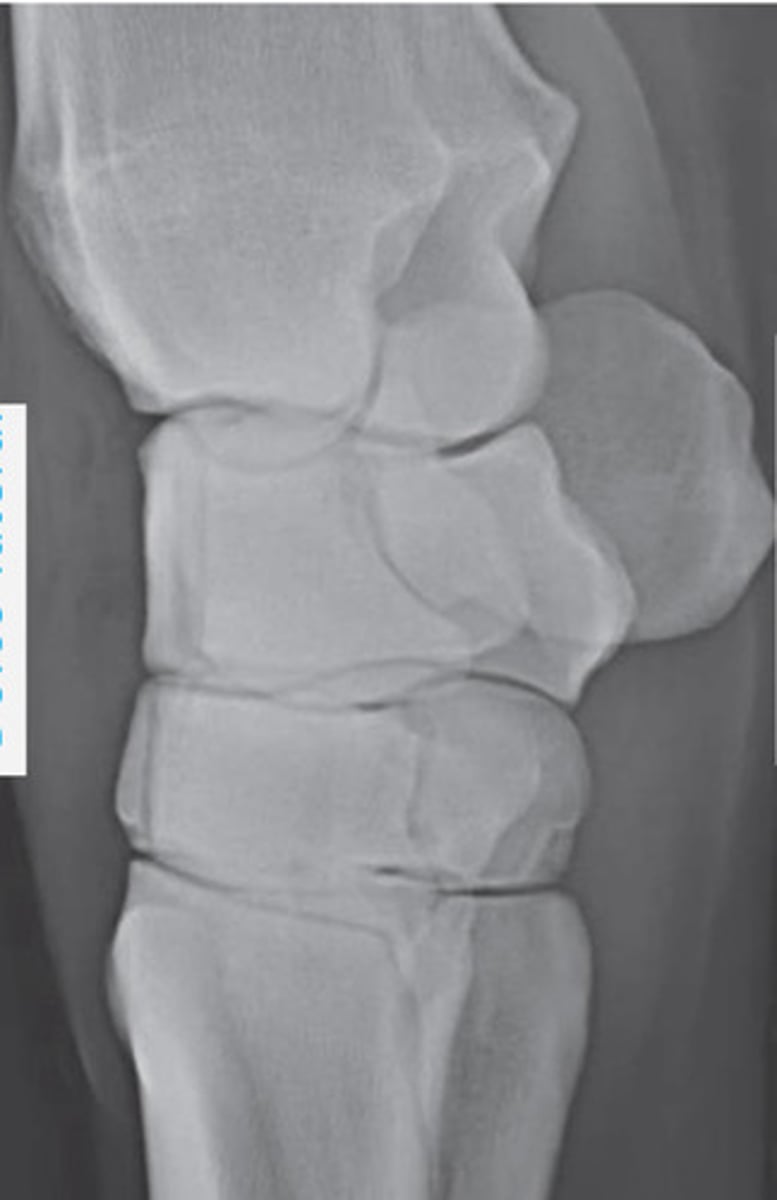

What view is this?

Latero-medial view of carpus

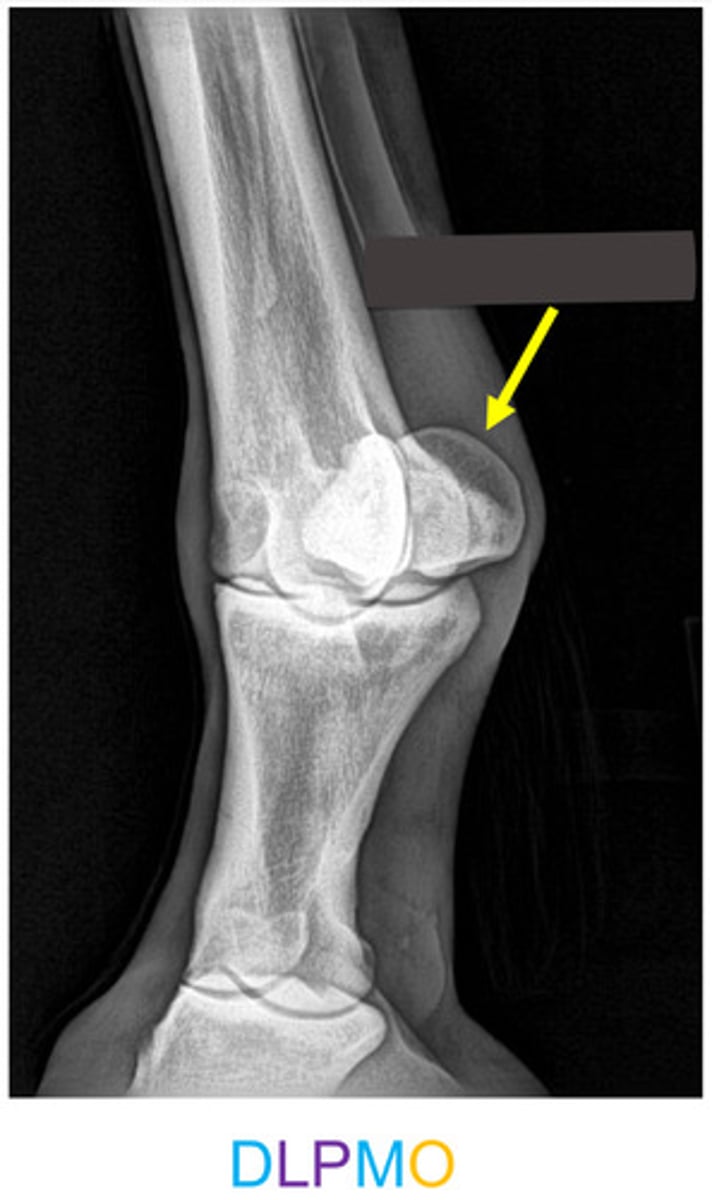

What view is this?

Dorsolateral-palmeromedial oblique view of carpus

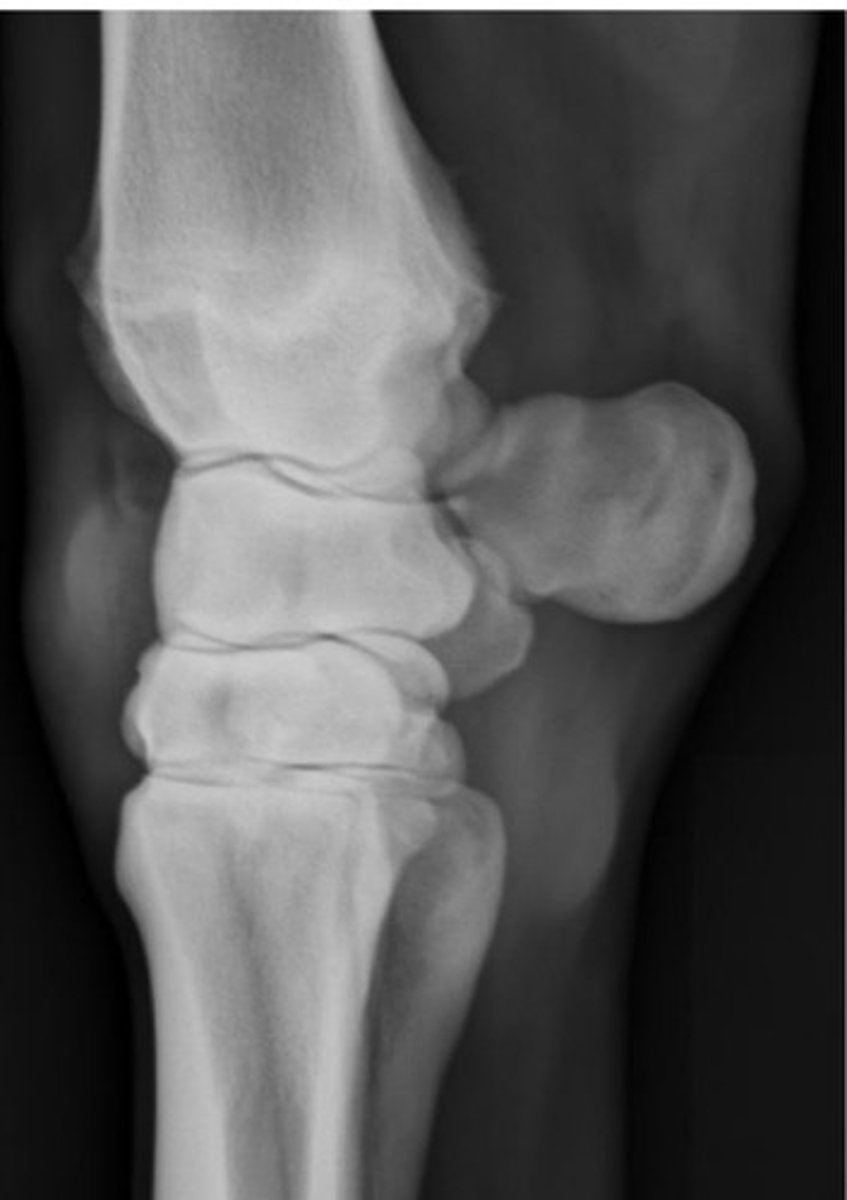

What view is this?

Dorsomedial-palmerolateral oblique view of carpus

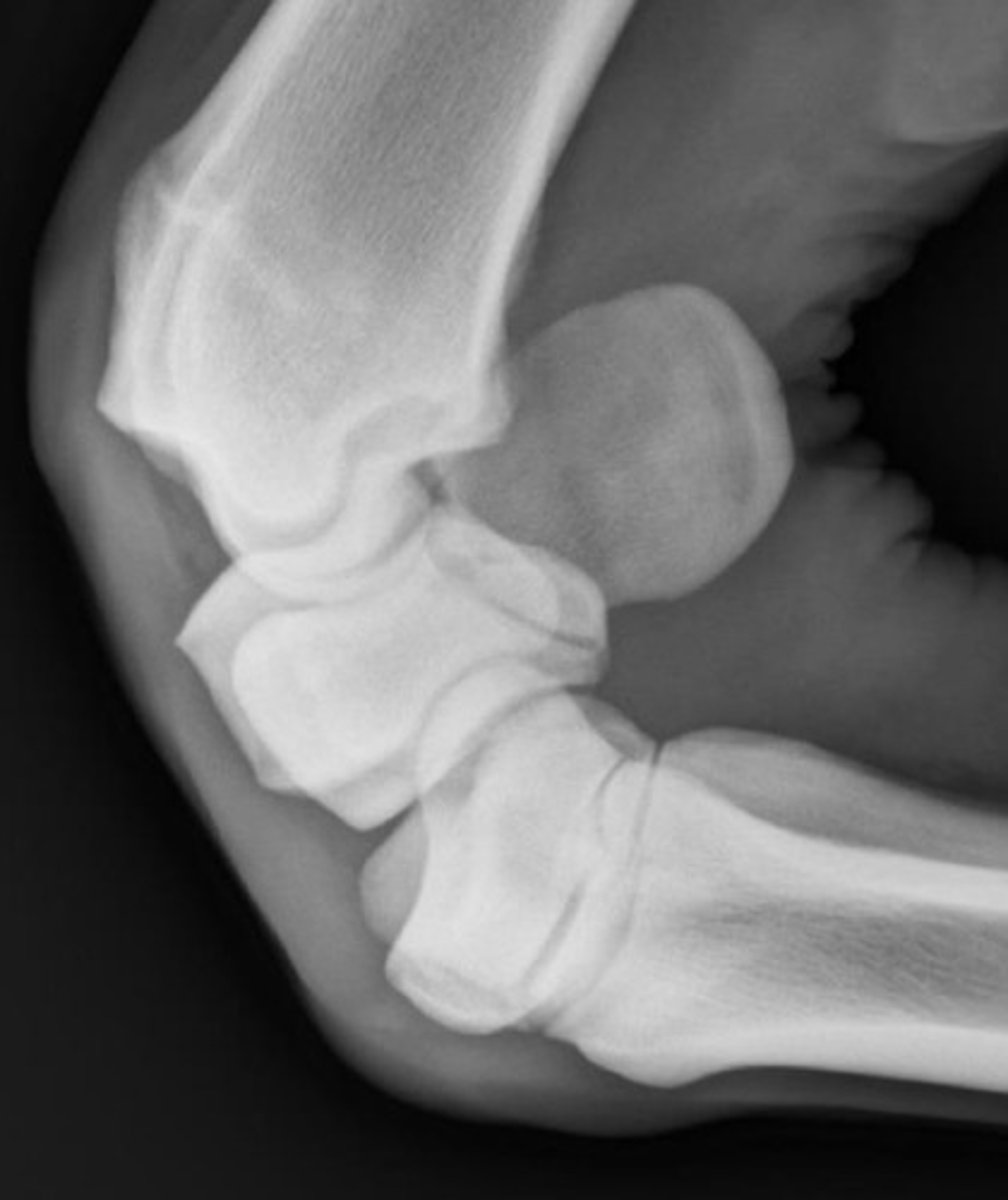

What view is this?

Flexed latero-medial view of carpus

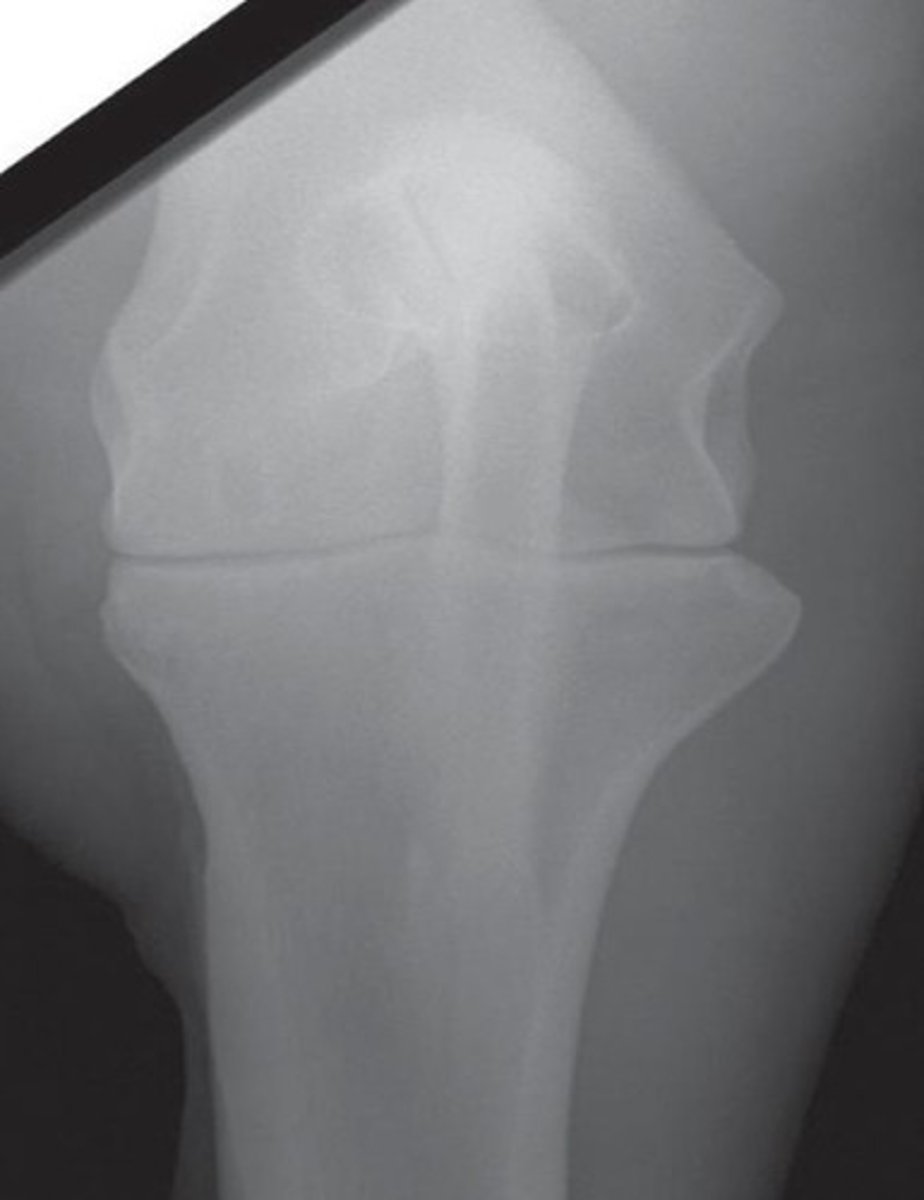

What is another term for the skyline views of the carpus?

Dorsoproximal-dorsedistal oblique views

What is the position for taking a skyline view for the distal radius?

Flex leg so radius is perpendicular with beam angled 65-85 degrees downwards

What is the position for taking a skyline view for the proximal row of carpals?

Flex leg with distal limb pushed slightly cranial and metacarpus parallel to ground with beam angled 45-55 degrees downwards

What is the position for taking a skyline view for the distal row of carpals?

Flex leg with the metacarpus pushed slightly forward cranially with beam angled 30-35 degrees downwards

What are the views for the metacarpals?

Latero-medial, dorso-plantar, dorsolateral-palmaromedial oblique, dorsomedial-palmarolateral oblique views

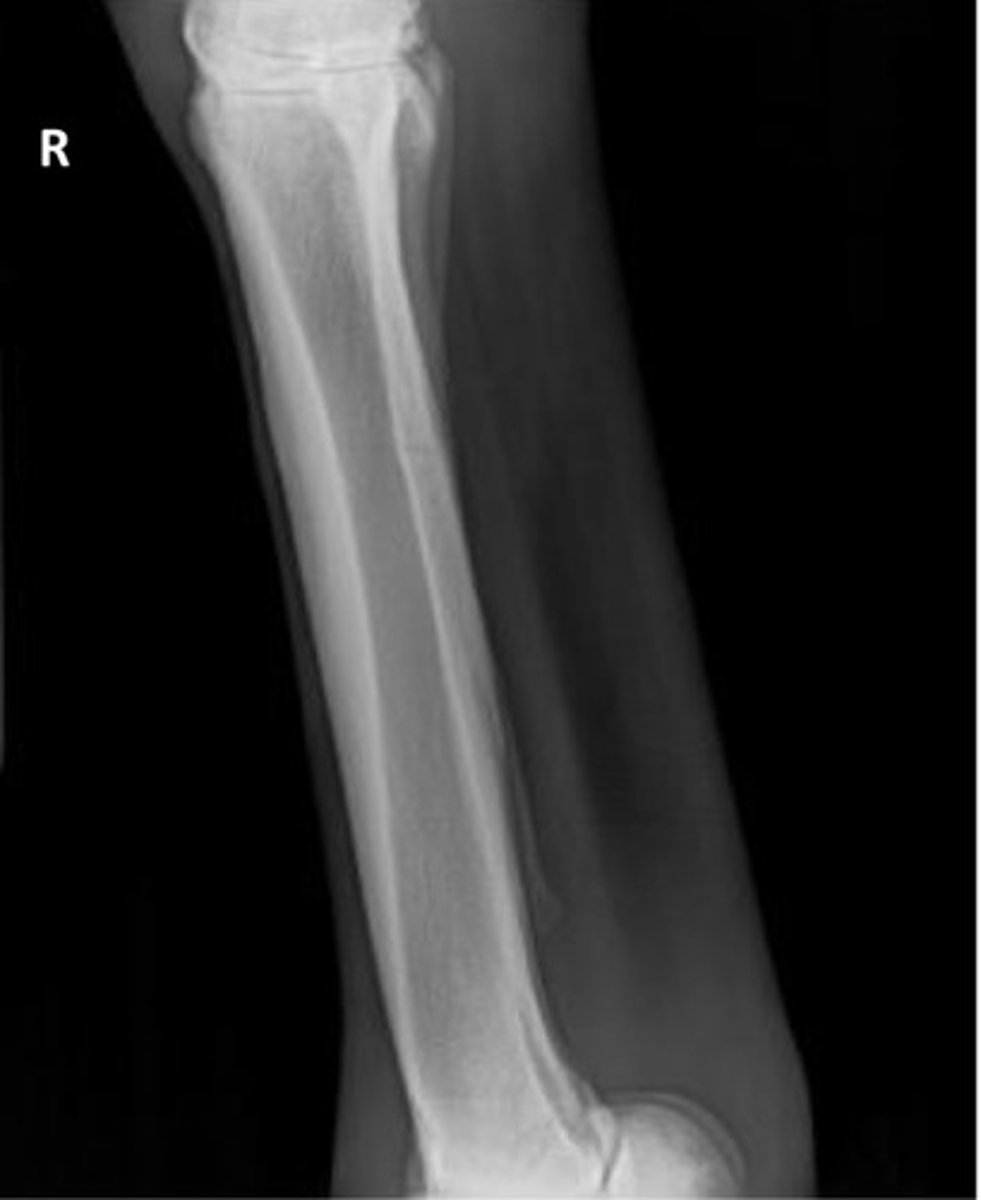

What is this view?

Latero-medial view of metacarpals

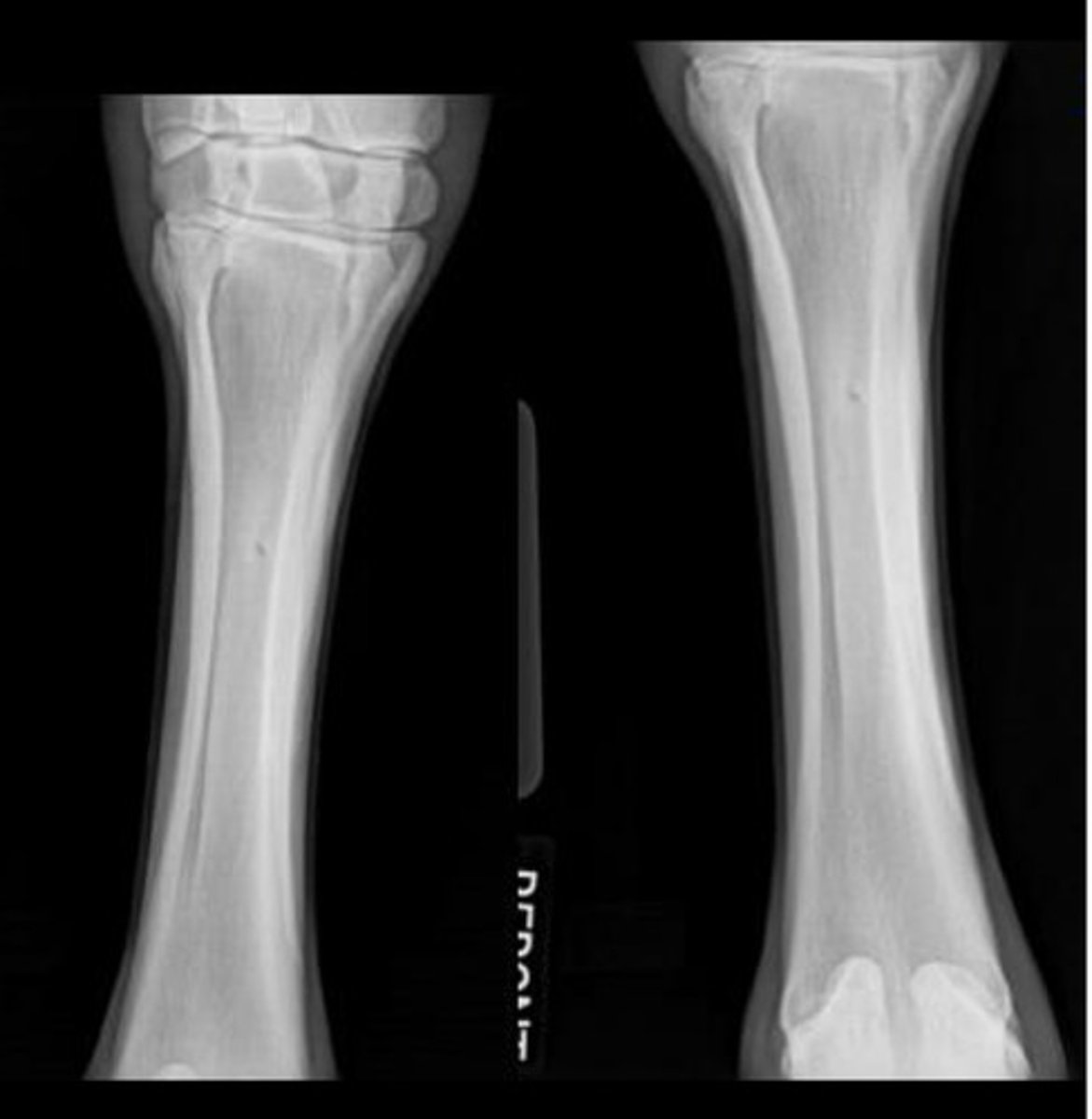

What is this view?

Dorso-palmar view of metacarpals

What view is this?

Dorsolateral-palmaromedial oblique view of metacarpals

What splint bone is visualized well in the dorsolateral-palmaromedial oblique view of metacarpals?

Metacarpal 4

What view is this?

Dorsomedial-palmarolateral oblique view of metacarpals

What splint bone is visualized well in the dorsomedial-palmarolateral oblique view?

Metacarpal 2

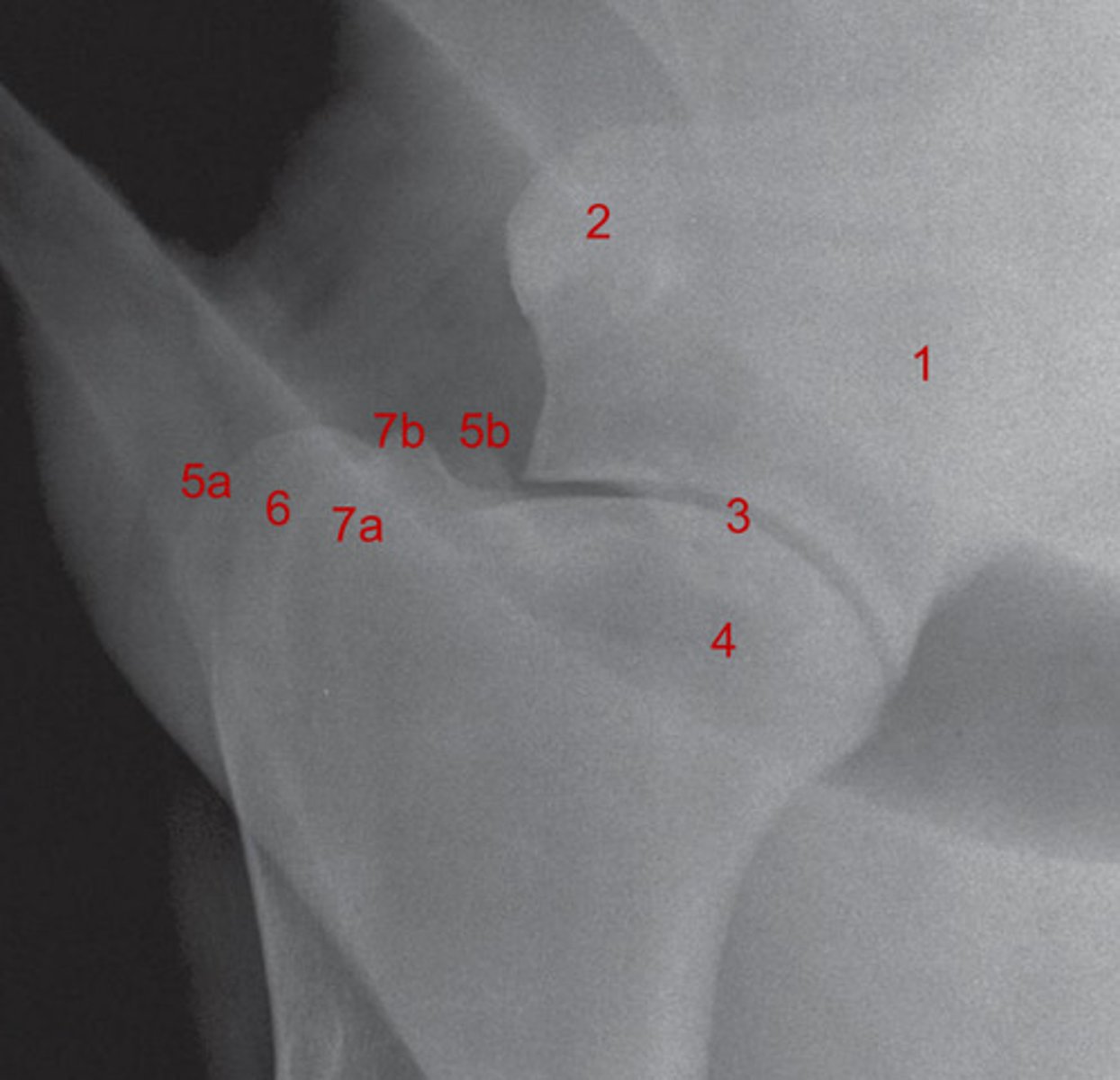

What is 1?

Scapula

What is 2?

Supraglenoid tubercle

What is 3?

Glenoid cavity

What is 4?

Head

What is 5a?

Cranial lesser tubercle

What is 5b?

Caudal lesser tubercle

What is 6?

Intermediate tubercle

What is 7a?

Cranial greater tubercle

What is 7b?

Caudal greater tubercle

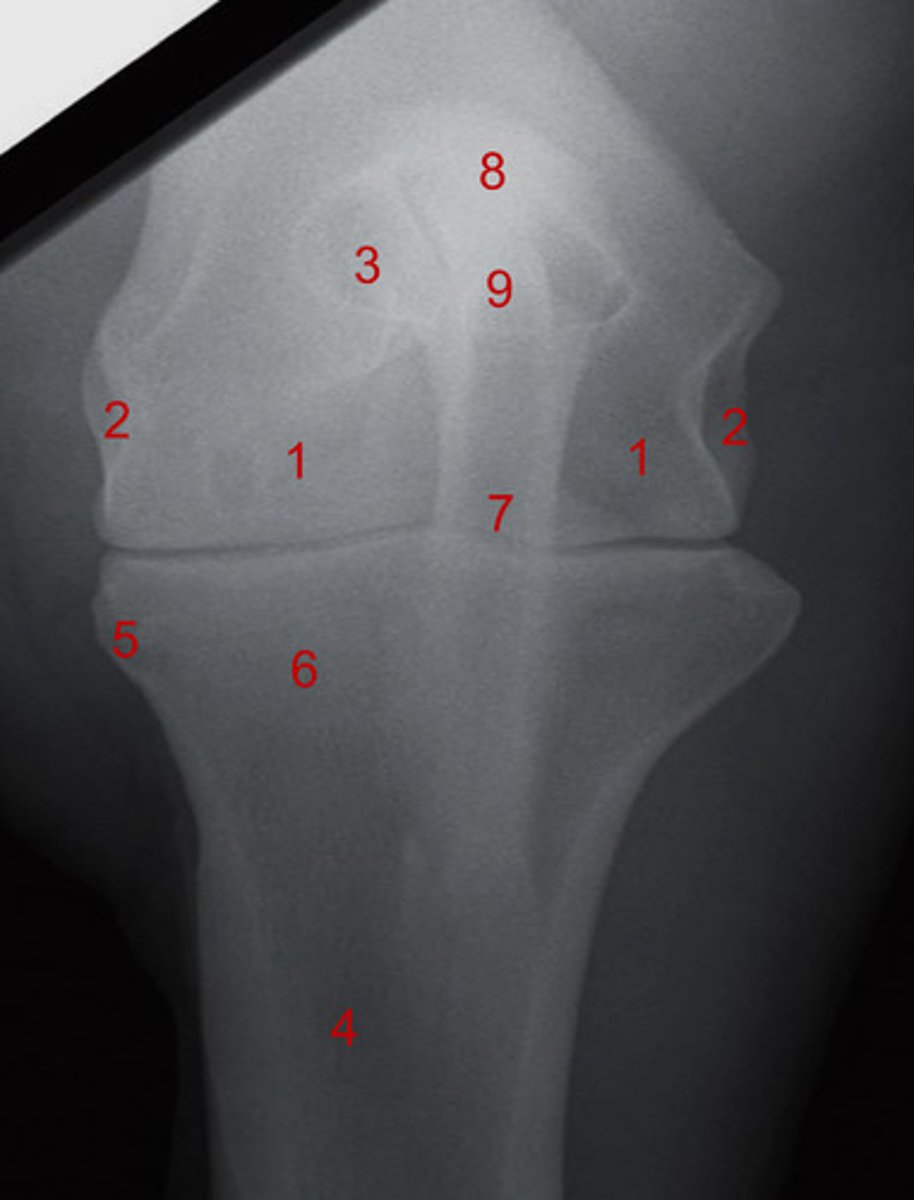

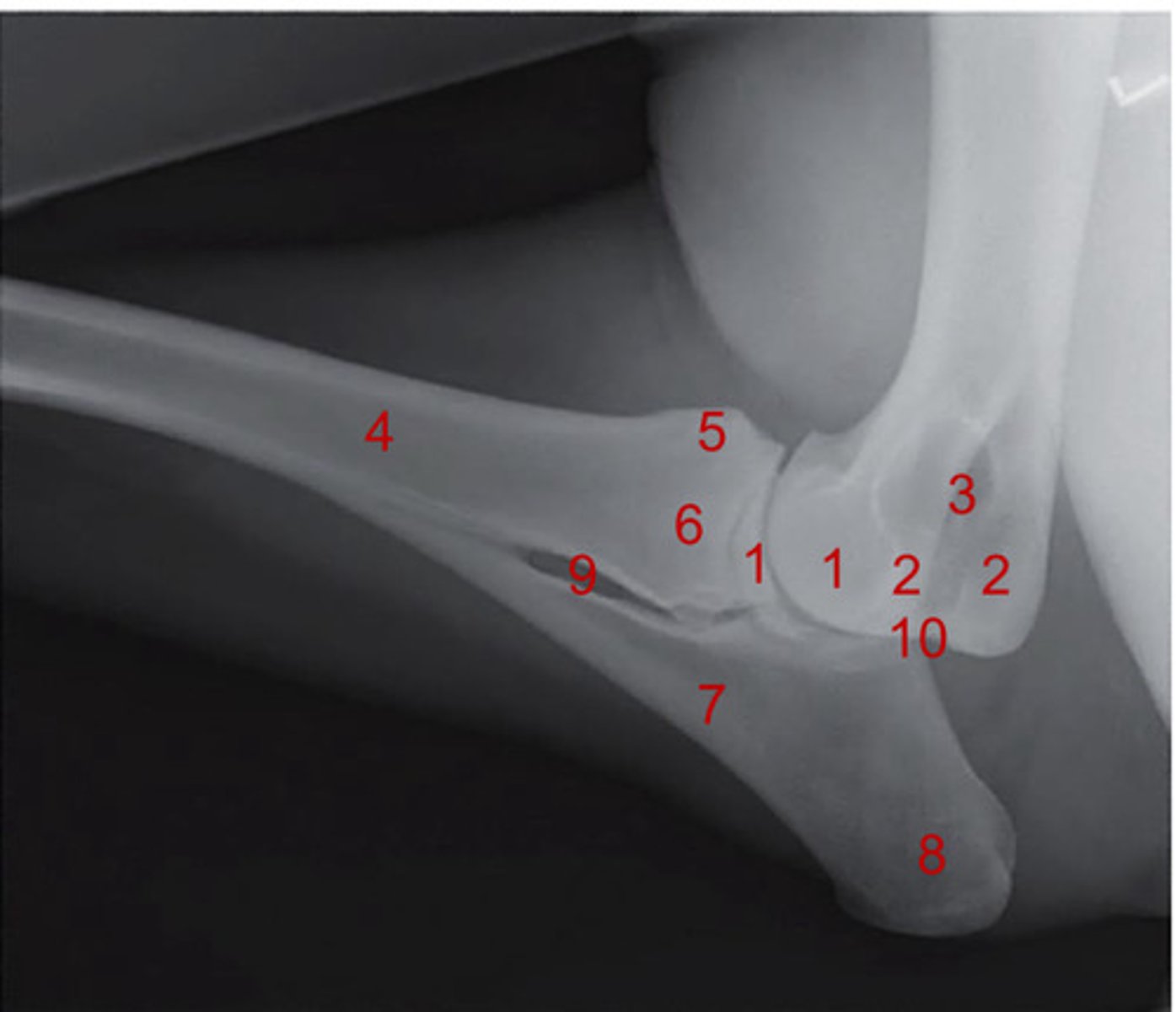

What is 1?

Condyles

What is 2?

Epicondyles

What is 3?

Olecranon fossa

What is 5?

Radial tuberosity

What is 7?

Ulna

What is 8?

Olecranon process

What is 9?

Anconeal process

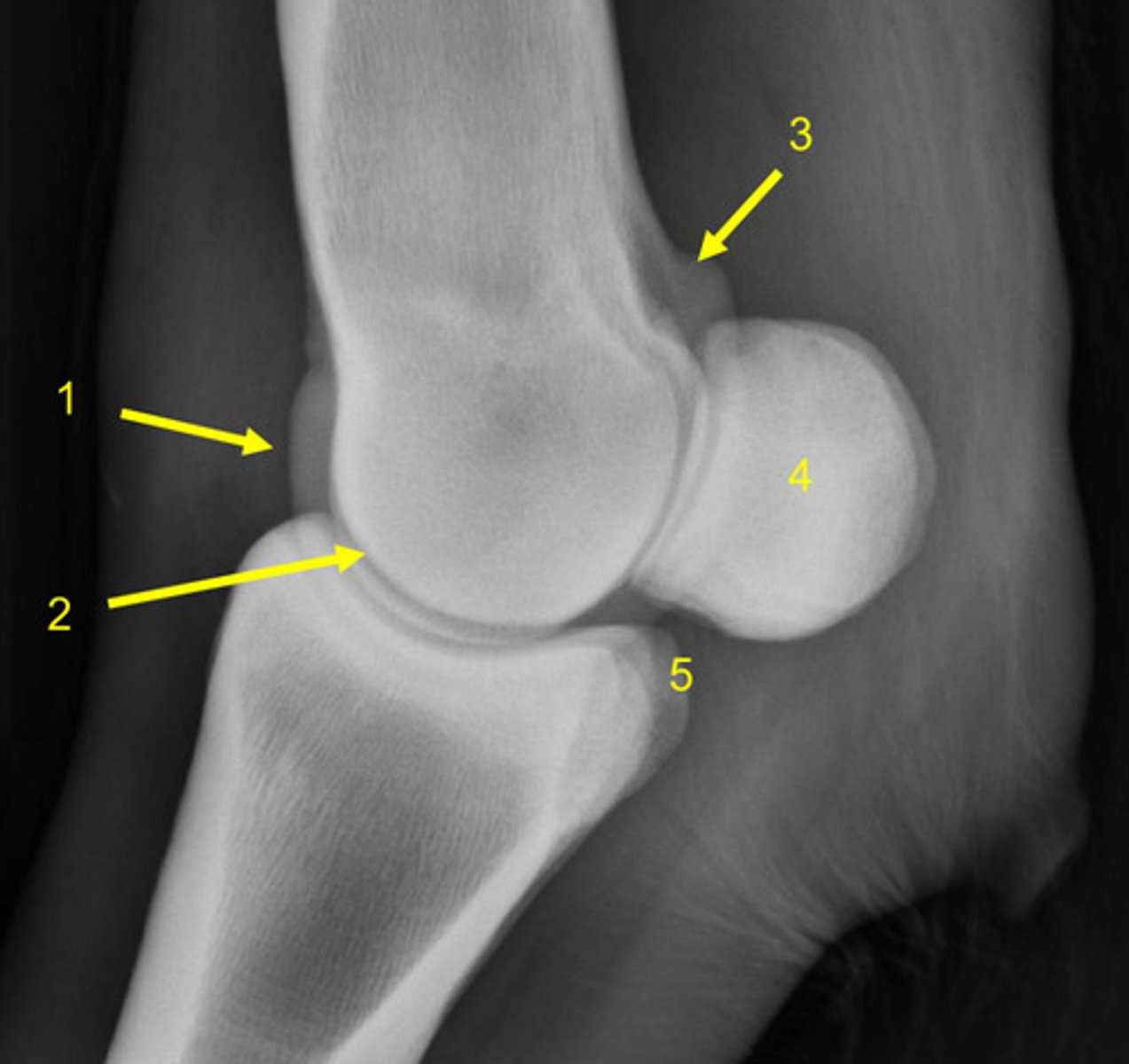

What is 1?

Condyles

What is 2?

Epicondyles

What is 5?

Radial tuberosity

What is 8?

Olecranon process

What is 9?

Interosseous space

What is 10?

Anconeal process

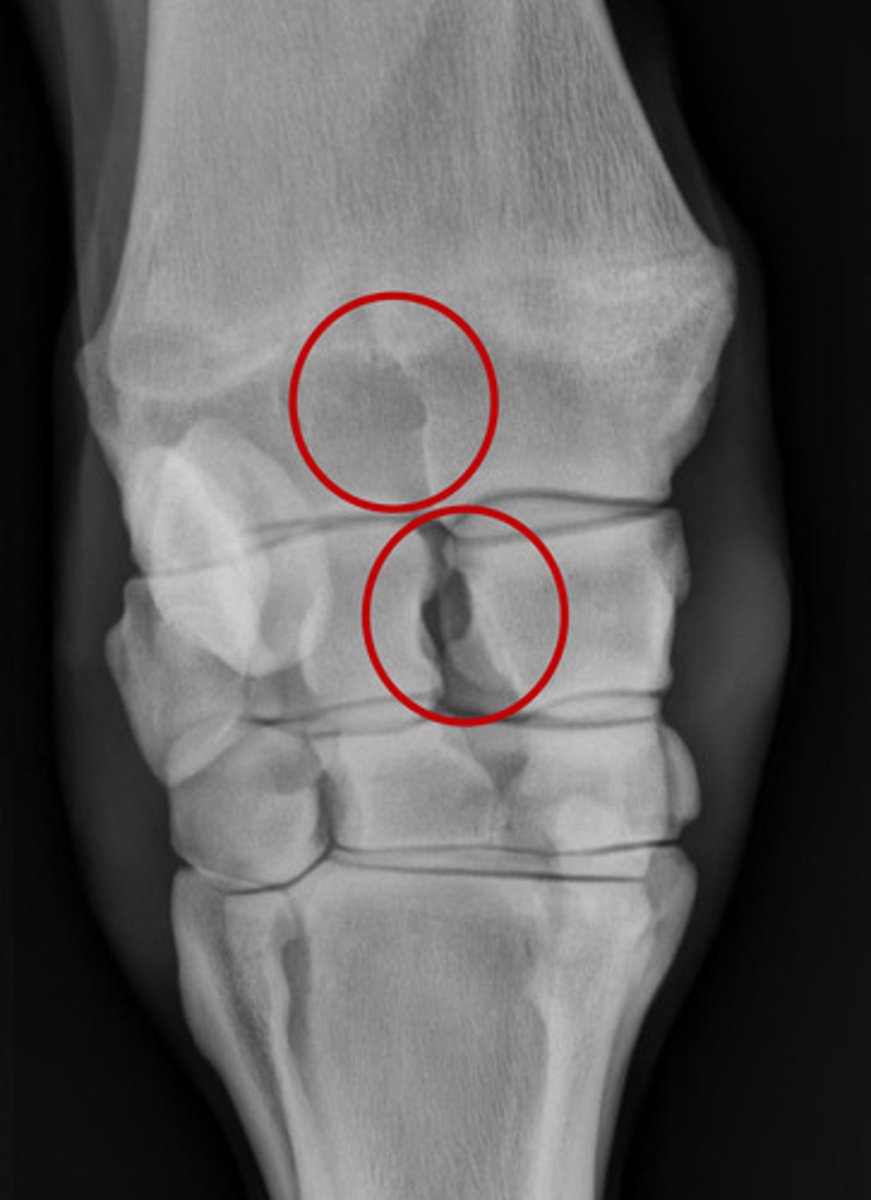

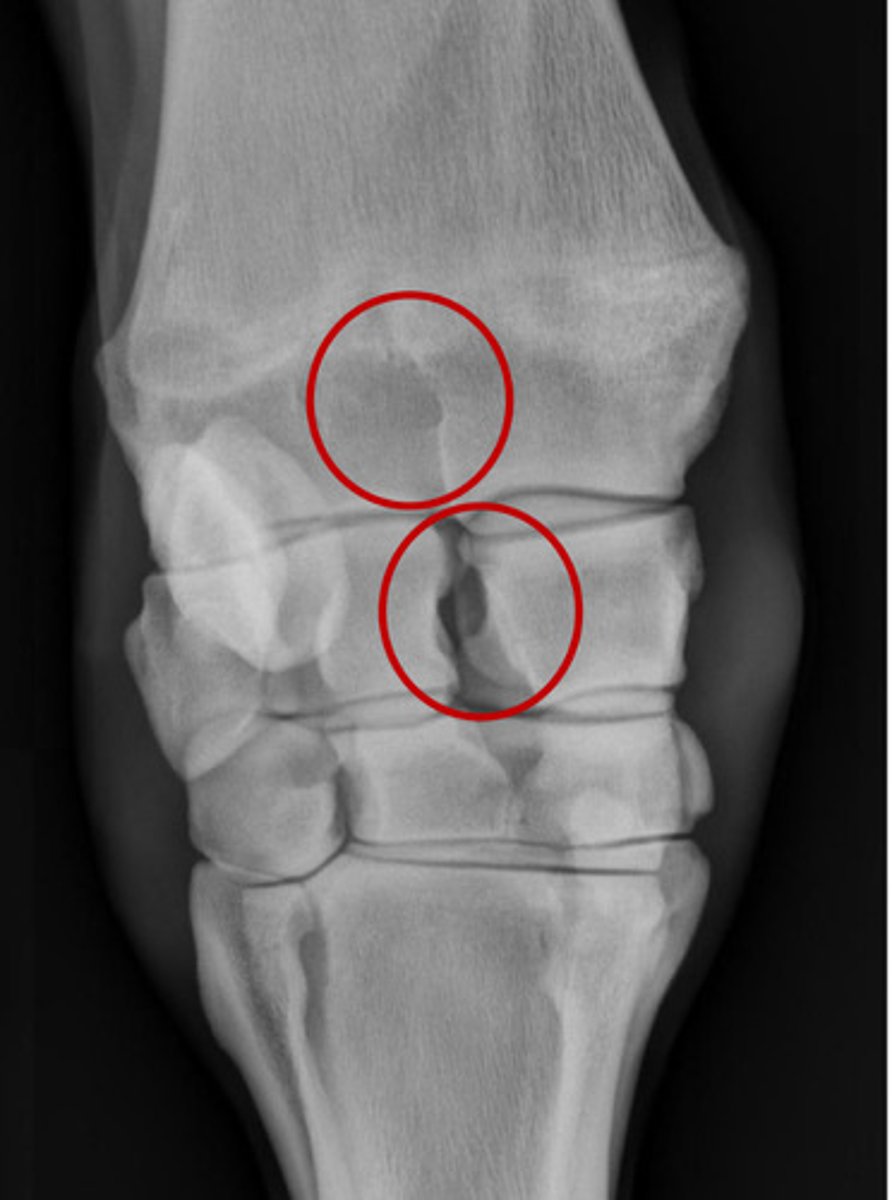

What causes the lucent zone in the upper red circle?

Depression in the caudal surface of the bone

Where is there a radiolucent canal in the carpus?

Between the radial and intermediate carpal bones

What is in the bottom circle?

Radiolucent canal

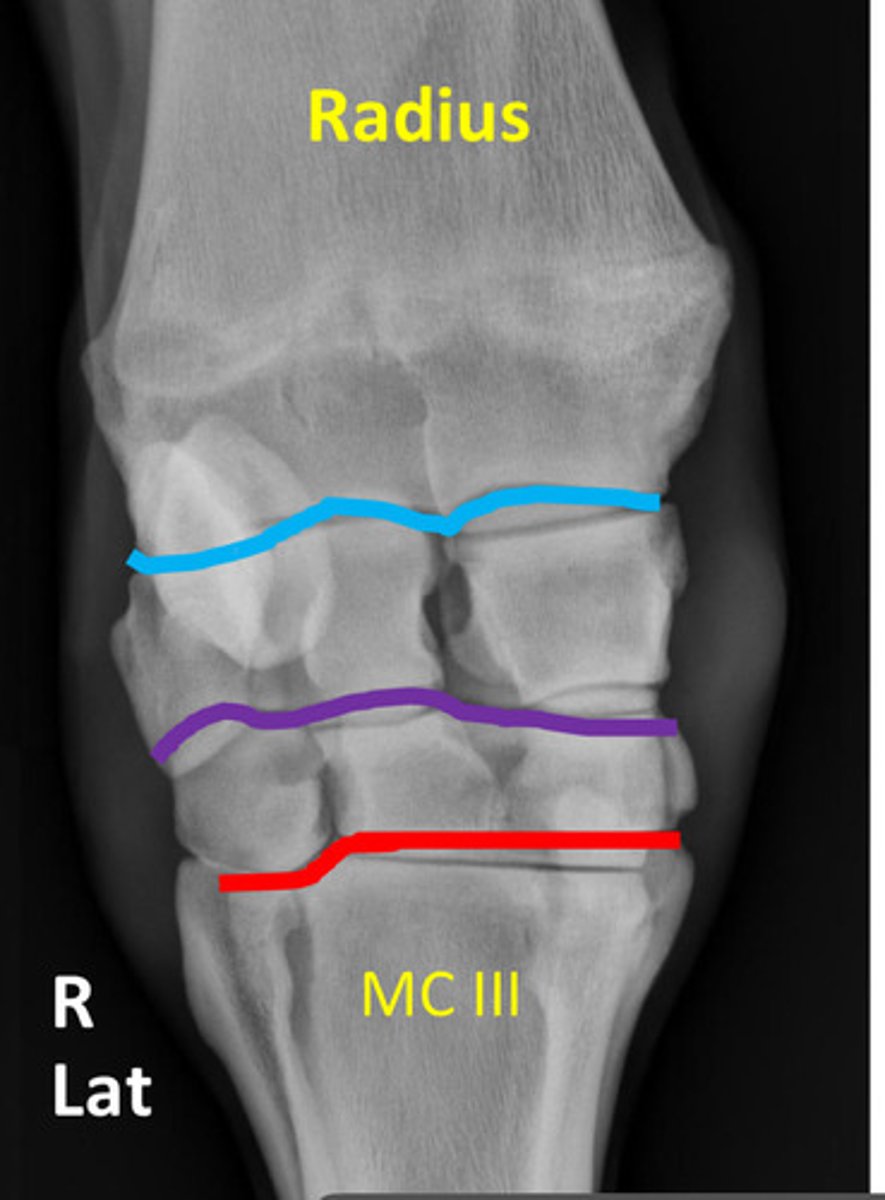

What is the blue line?

Antebrachiocarpal joint

What is the purple line?

Middle carpal joint

What is the red line?

Carpometacarpal joint

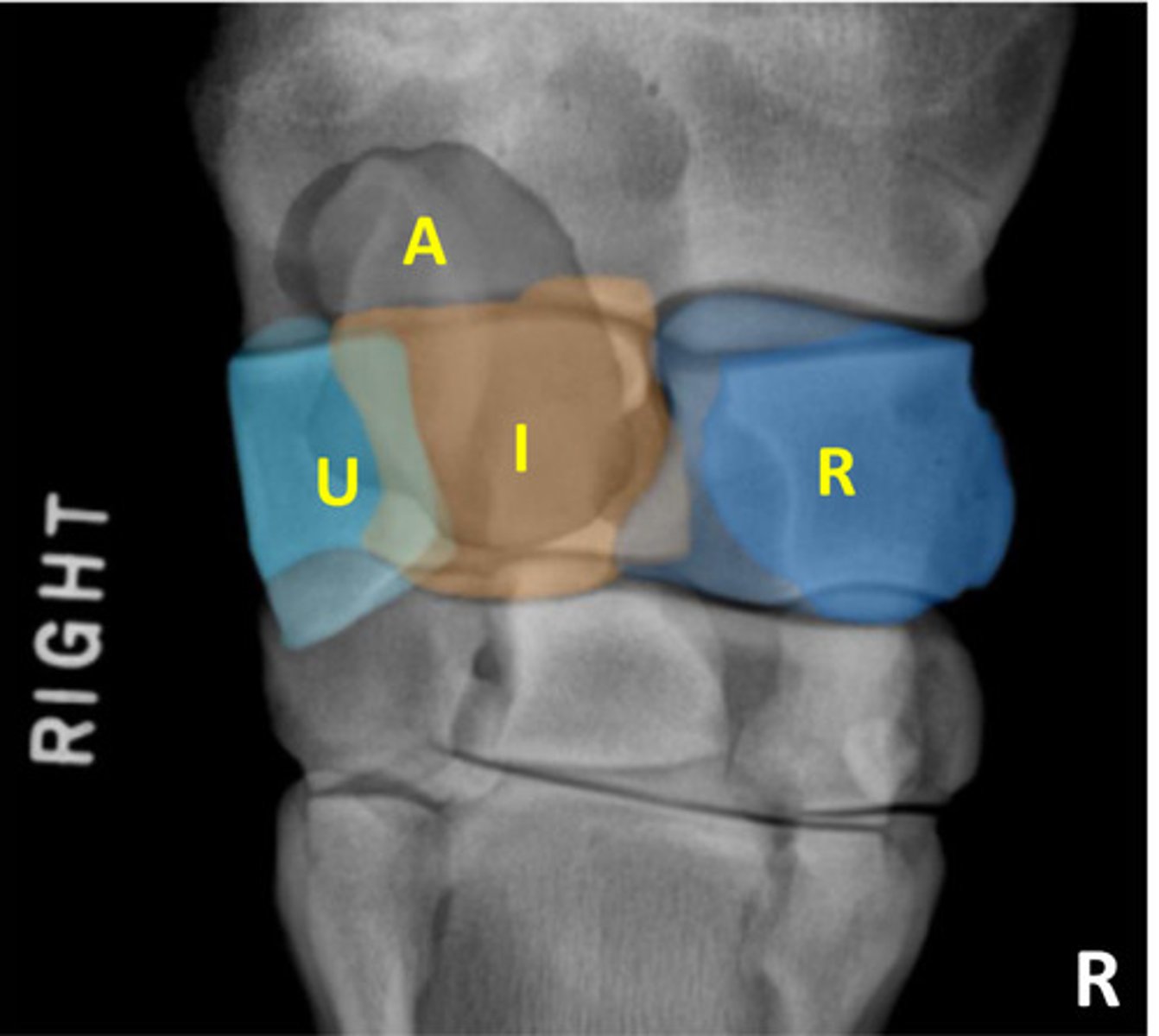

What is highlighted in dark blue?

Radial carpal bone

What is highlighted in orange?

Intermediate carpal bone

What is highlighted in light blue?

Ulnar carpal bone

What is highlighted in gray?

Accessory carpal bone

What is highlighted in green?

Second carpal bone

What is highlighted in orange/red?

Third carpal bone

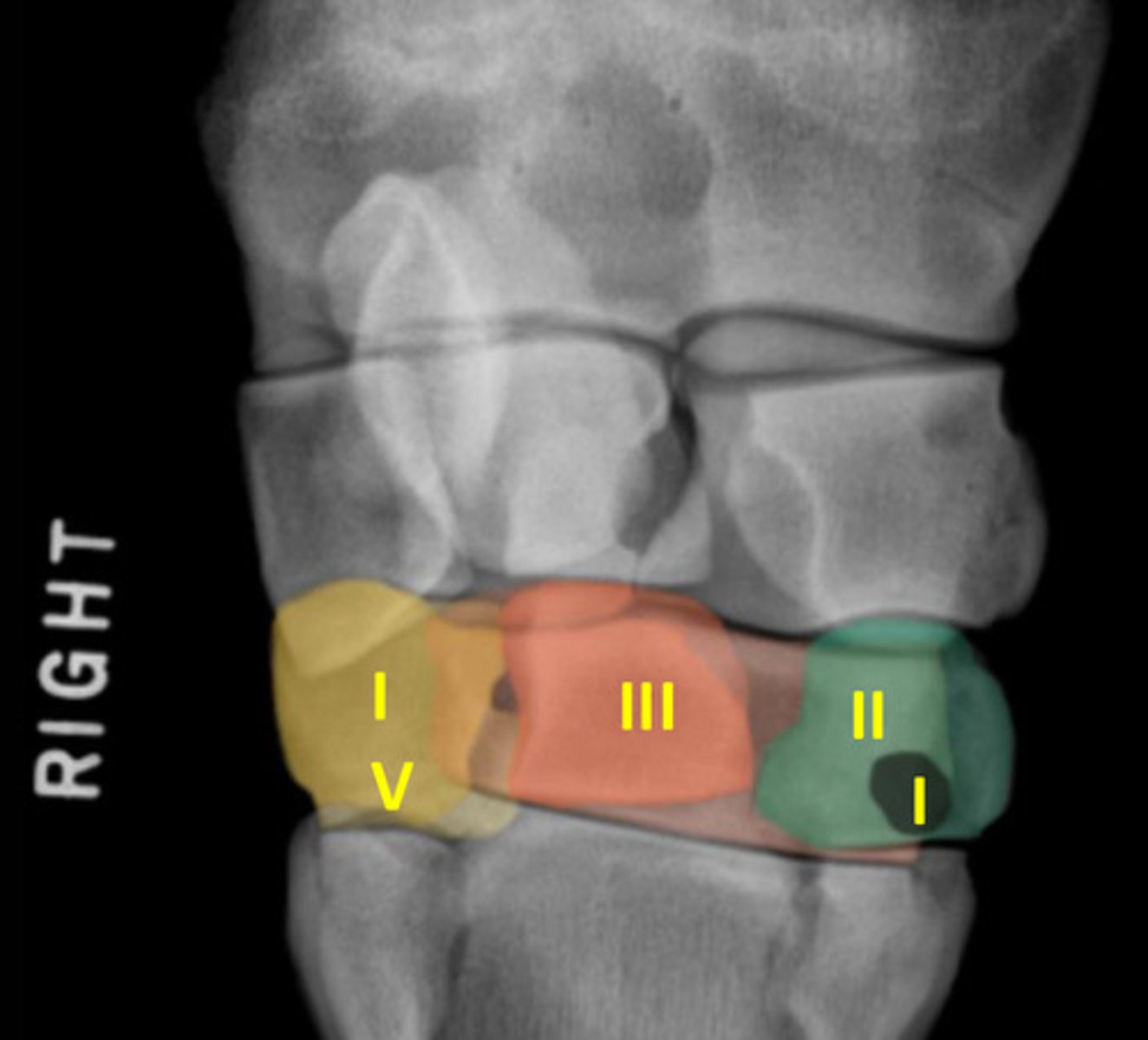

What is highlighted in yellow?

Fourth carpal bone

What is the small black circle?

First carpal bone

Where is the cranial side in lateral and oblique images?

To the left

Which metacarpal is slightly more palmar?

Metacarpal four

How does the intermediate carpal bone move during flexion?

Moves proximally

How do you tell which splint bone is being viewed on the oblique views?

Metacarpal four does not articulate fully with C4 while metacapral two fully articulates with C2

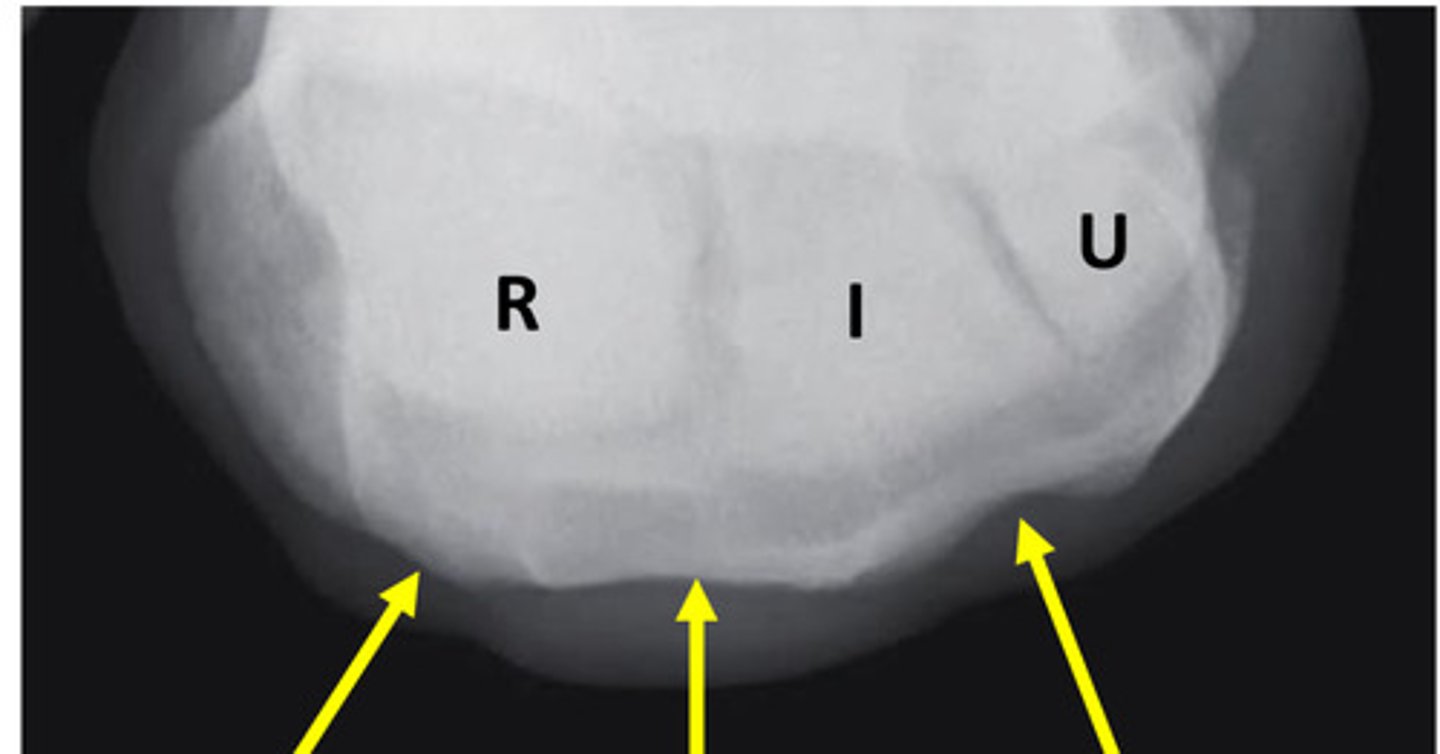

What is the middle arrow pointing to?

Medial facet of radial trochlea

What is the right arrow pointing to?

Intermediate facet of radial trochlea

What is the left arrow pointing to?

Distal radius

Which proximal carpal bone is the largest?

Radial carpal bone

Which distal carpal bone is the largest?

Third carpal bone

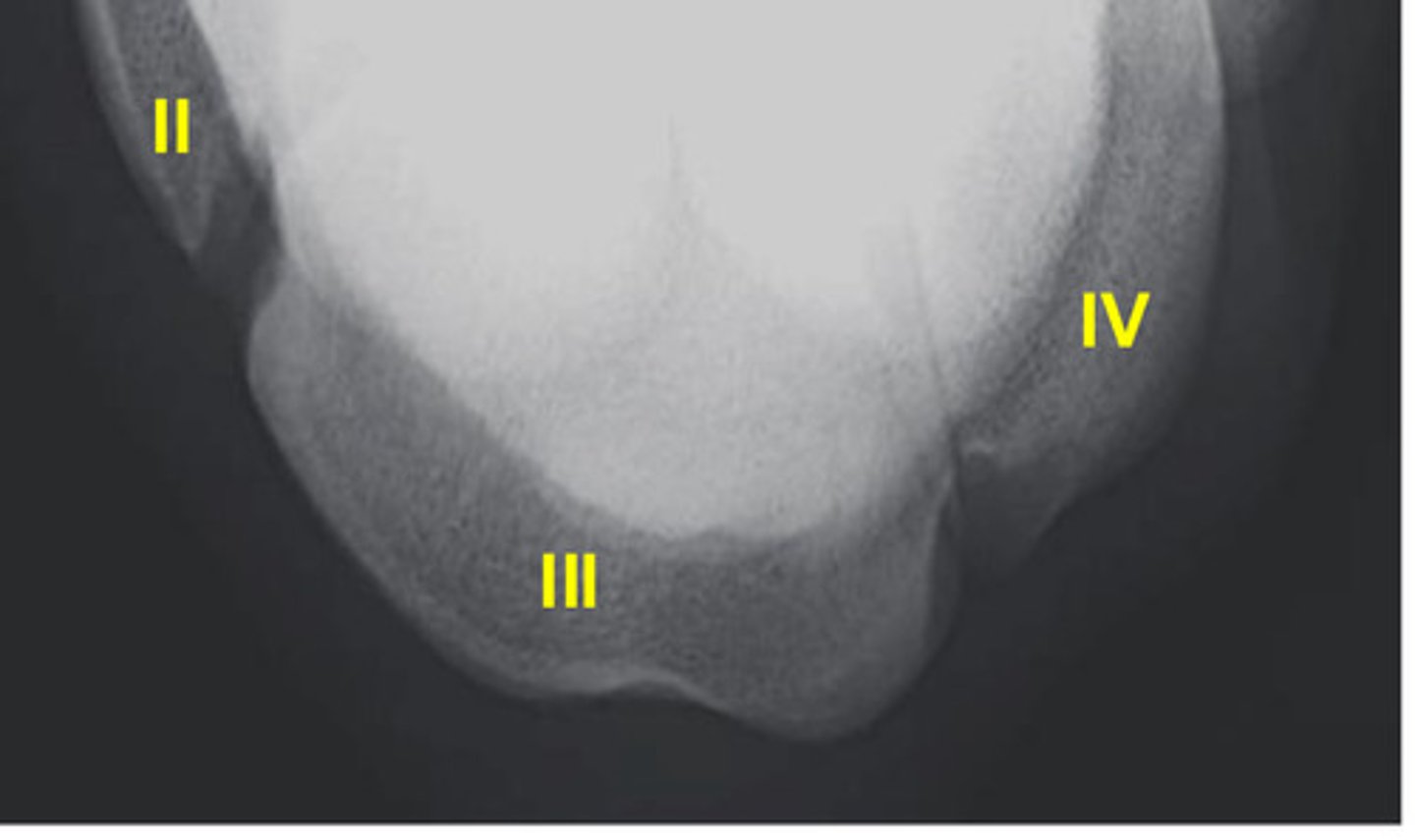

What is number II?

Second metacarpal bone

What is number III?

Third metacarpal bone

What is number IV?

Fourth metacarpal bone

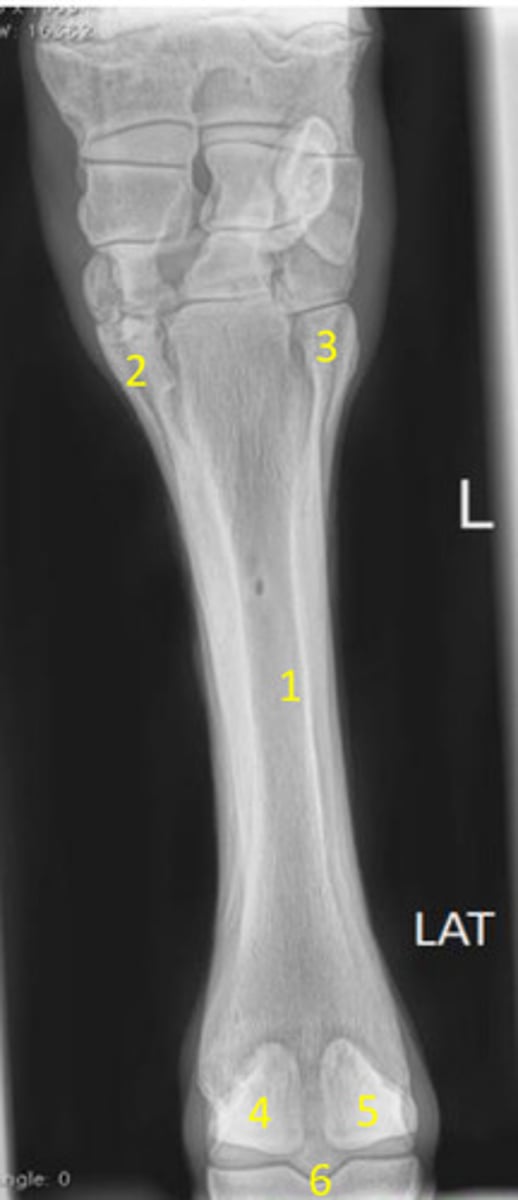

What is 1?

Metacarpal three

What is 2?

Metacarpal two

What is 3?

Metacarpal four

What is 4?

Medial Proximal sesamoid bone

What is 5?

Lateral proximal sesamoid bone

What is 6?

Fetlock joint

What is 1?

Metacarpal three

What is 2?

Metacarpal two

What is 3?

Metacarpal four

What is 4?

Medial proximal sesamoid bone

What is 5?

Lateral proximal sesamoid bone

What is 6?

Fetlock joint

What are the views for the fetlock joint?

DP, high DP, LM, flexed LM, DLPMO, DMPLO, DPrDDiO views

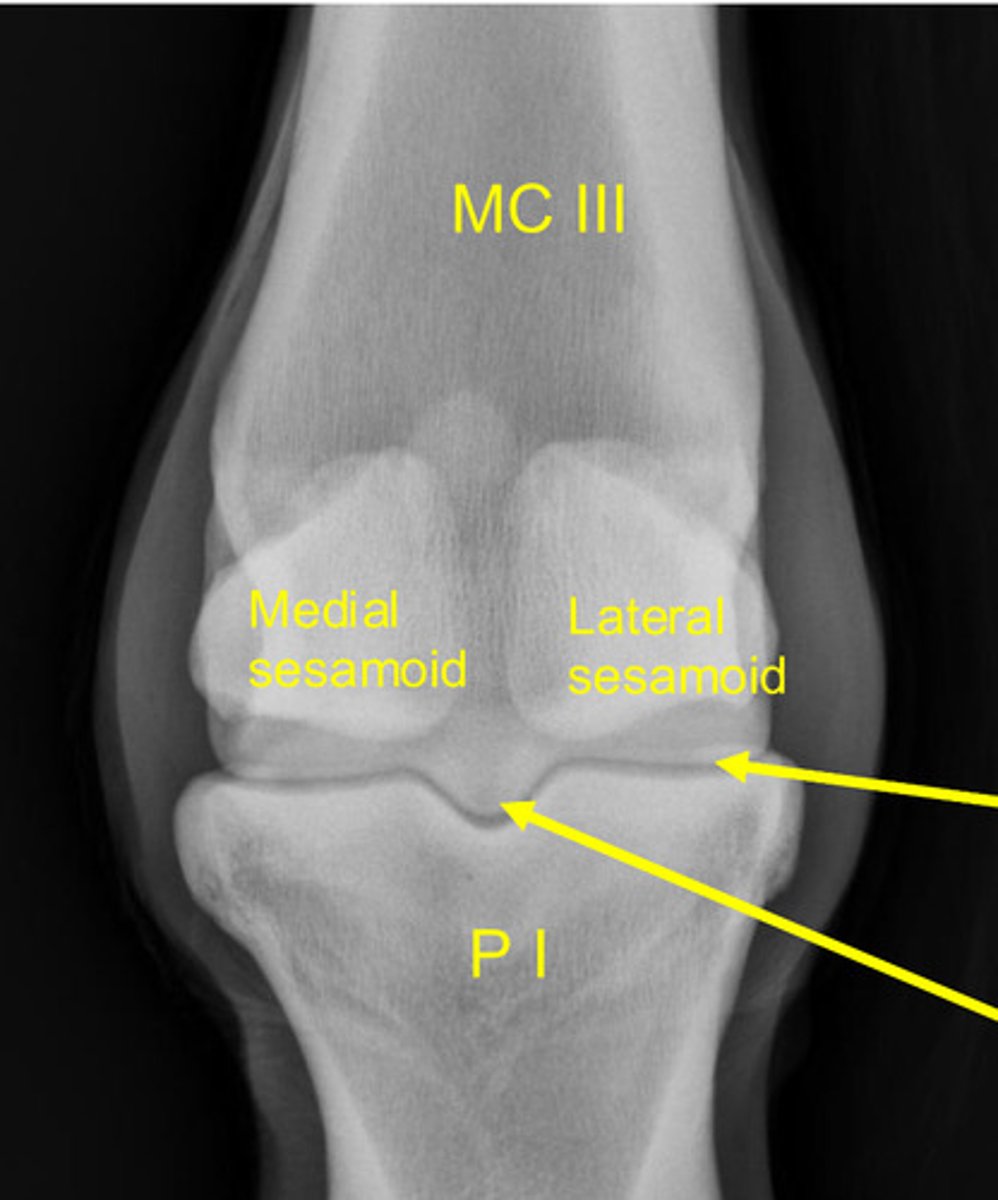

What is the bottom arrow pointing to?

Sagittal ridge

What is the position for a high DP of the fetlock joint?

Detector palmar and parallel to the pastern with beam angles distally 10-30 degrees

What is the arrow pointing to?

Lateral proximal sesamoid bone

What is the arrow pointing to?

Medial proximal sesamoid bone

What is the purpose of a dorsoproximal-dorsodistal oblique view of the fetlock?

View the sagittal ridge

What is an important part of imaging the foot?

Stand on blocks

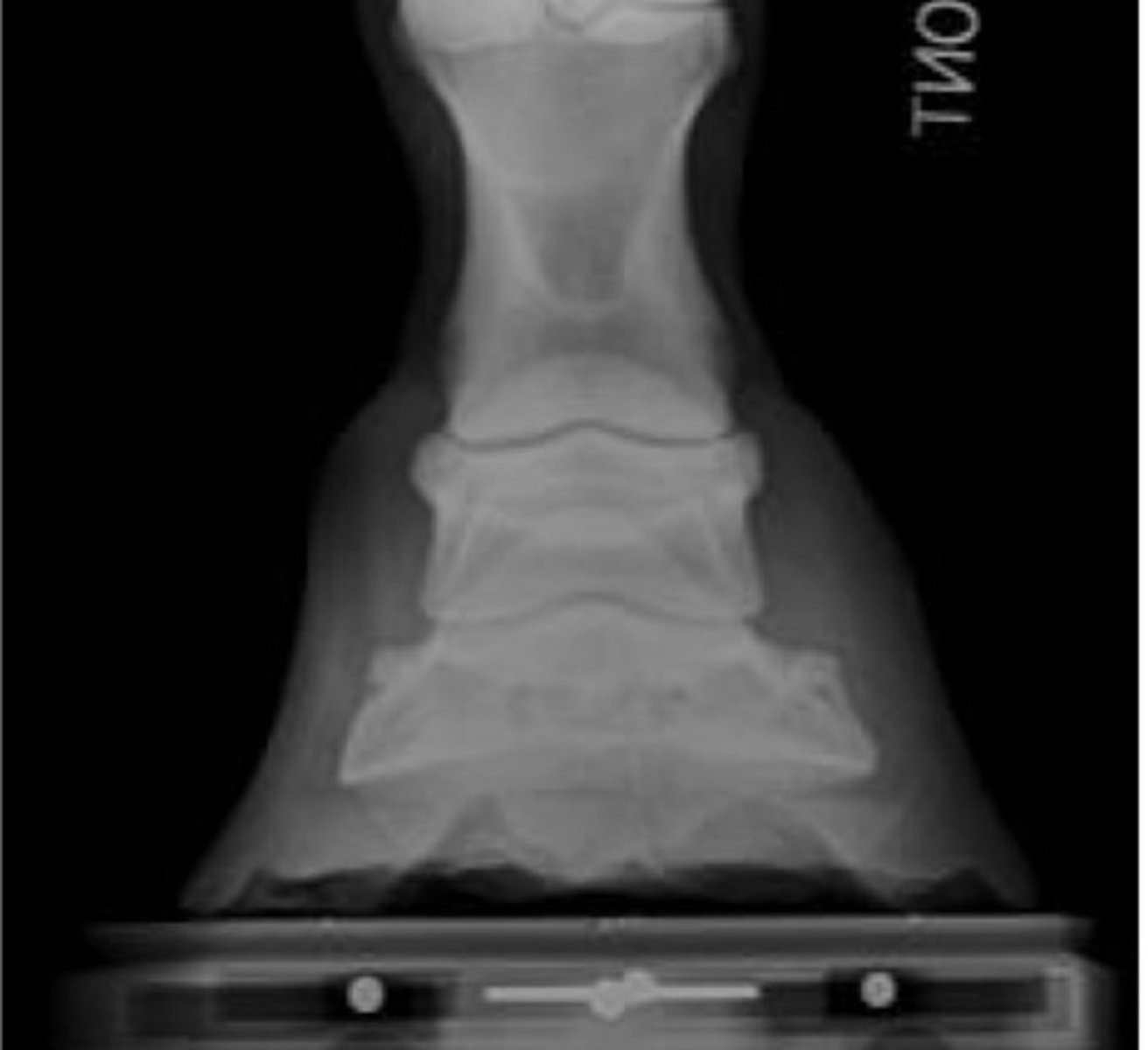

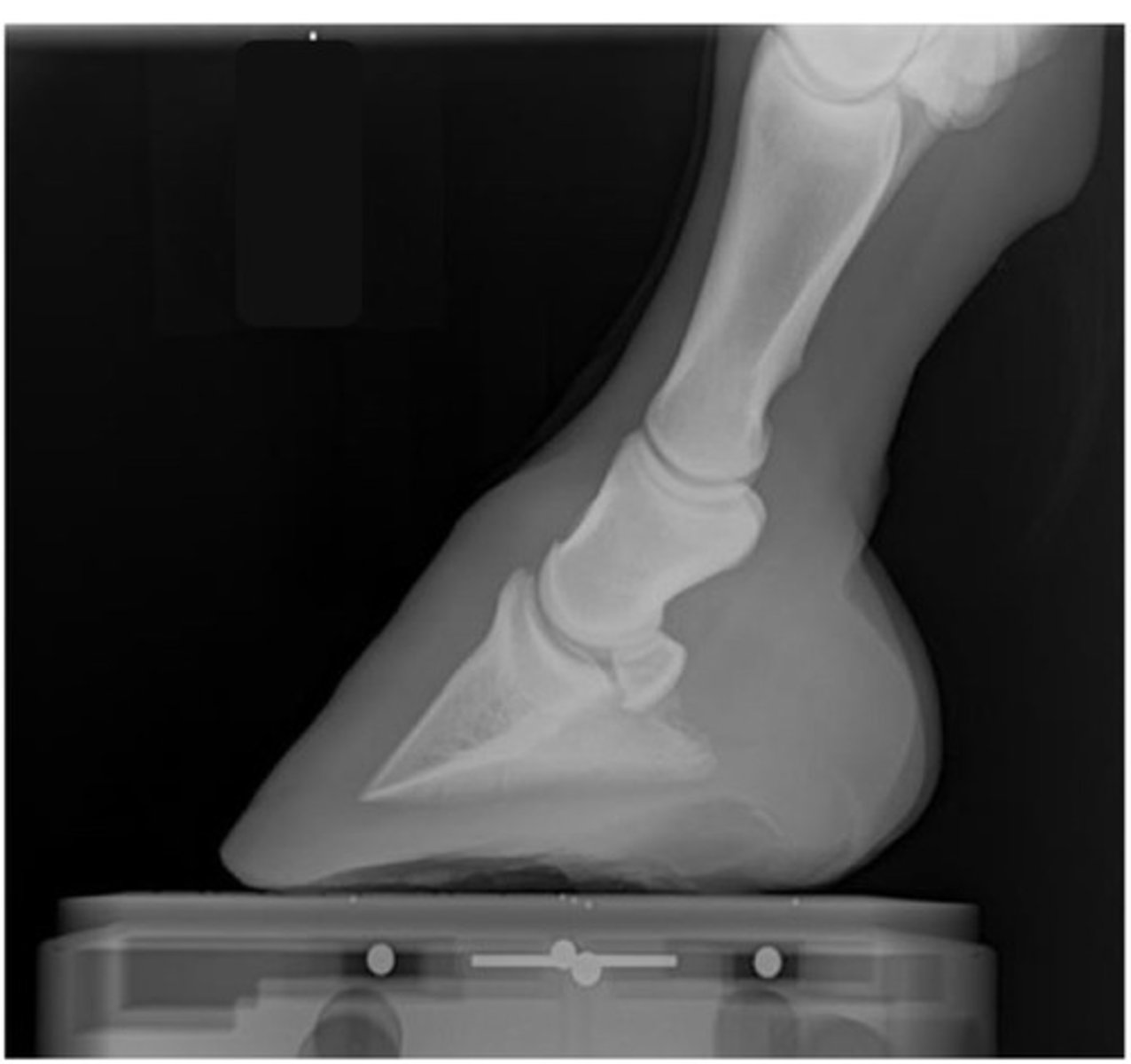

What view is this?

Latero-medial view

What view is this?

Dorso-palmar view

How is the dorsoproximal-palmarodistal oblique view obtained in the coffin joint?

Foot placed in upright foot holder

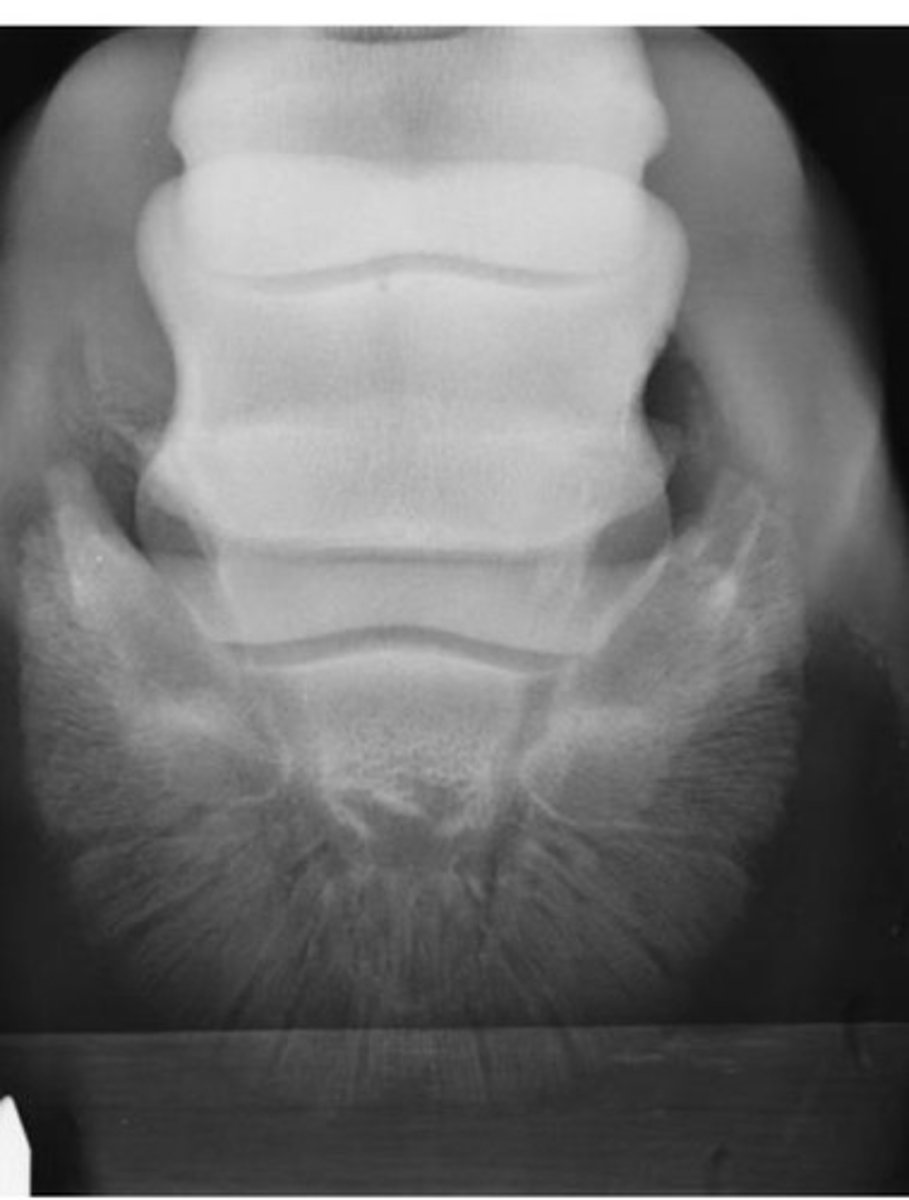

What view is this?

Dorsoproximal-palmarodistal oblique view of foot

What view of the foot results in distortion of P3?

High coronary / dorsoproximo 60 to palmarodistal oblique view

What is the function of the palmaroproximal-palmarodistal oblique view?

See navicular bone

What is 1?

Sagittal ridge

What is 2?

Condyles of metacarpal three
