20 Terms

1
New cards

Vne - KIAS, meaning

163, Never Exceed Speed. Do not exceed this speed in any operation.

2
New cards

Vno - KIAS, meaning

129, Maximum Structural Cruising Speed. Only exceed in smooth air and with caution.

3
New cards

Va - KIAS 2550/2200/1900lbs, meaning

105/98/90, Maneuvering Speed. No full or abrupt control deflections if exceeded.

4
New cards

Vfe - KIAS 10/10-FULL, meaning

110/85, Maximum Flap Extended Speed. Do not exceed with flaps extended.

5
New cards

Maximum Window Open Speed - KIAS

  1. Same as Vne.

6
New cards

MAX Ramp/Takeoff/Landing weight

2558/2550/2550lbs

7
New cards

Reference datum for CoG

Lower portion of front face of firewall

8
New cards

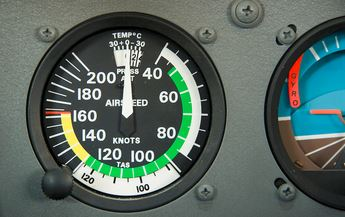

<p>Label speeds.</p>

Label speeds.

.

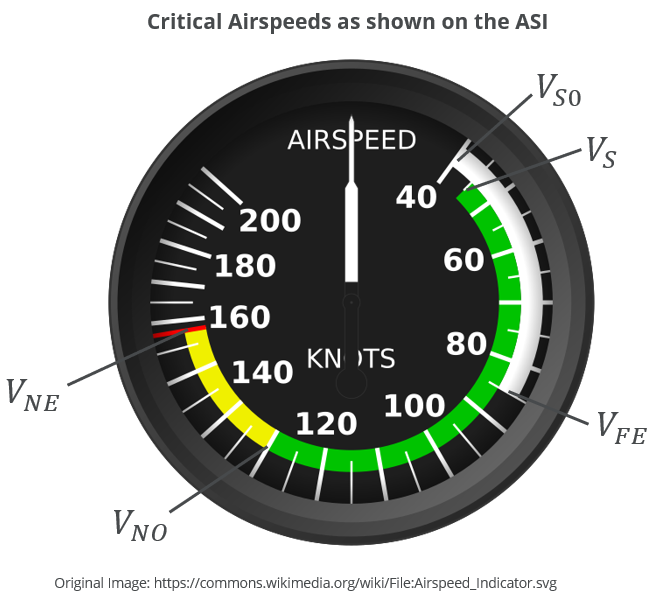

<p>.</p>
9
New cards

Engine failure during takeoff roll procedure

  1. Throttle idle

  2. Apply brakes

10
New cards

Engine failure after takeoff procedure

  1. Best glide speed

11
New cards

Restart failed engine during flight procedure

  1. 68 KIAS

  2. Fuel shutoff valve ON

  3. Fuel selector BOTH

  4. Fuel pump ON

  5. Mixture RICH (if not restarted)

12
New cards

Fire during start procedure

  1. Magnetos START

(Engine fails)

  1. Throttle FULL

  2. Mixture ICO

  3. Magnetos START

  4. Fuel shutoff OFF (OUT)

  5. Fuel pump OFF

  6. Magnetos OFF

  7. Stby batt OFF

  8. Master OFF

13
New cards

Engine fire in flight procedure

  1. Mixture ICO

  2. Fuel shutoff OFF (OUT)

  3. Fuel pump OFF

  4. Master OFF

14
New cards

Electrical fie in flight procedure

  1. Stby batt OFF

  2. Master OFF

  3. Cabin vents CLOSED

  4. Cabin ht and cabin air OFF

  5. Fire extinguisher ACTIVATE

15
New cards

Cabin fire procedure

  1. Stby batt OFF

  2. Master OFF

  3. Cabin vents CLOSED

  4. Cabin ht and cabin air OFF

  5. Fire extinguisher ACTIVATE

16
New cards

Wing fire procedure

  1. Land/taxi light OFF

  2. Nav light OFF

  3. Strobe OFF

  4. Pitot heat OFF

17
New cards

Inadvertent icing during flight procedure

  1. Pitot heat ON

  2. Turn/change altitude (to increase temp)

  3. Cabin ht ON

  4. Defroster control outlets OPEN

  5. Cabin air ADJUST (for max defrost)

18
New cards

Blocked static source procedure

  1. Alt static ON

19
New cards

Autopilot/electric trim failure procedure

  1. Hold controls

  2. Ap trim disc button HOLD

  3. Adjust trim manually

  4. Ap trim disc button release

20
New cards

Carbon monoxide annunciator procedure

  1. Cabin ht OFF

  2. Cabin air ON

  3. Cabin vents OPEN
