EOP-FR-Z.4 (2) Response to Low Containment Pressure
0.0(0)
Studied by 0 people
Call Kai
Learn
Practice Test
Spaced Repetition
Match
Flashcards
Knowt PlayCard Sorting
1/5
There's no tags or description
Looks like no tags are added yet.
Last updated 11:07 PM on 6/20/25
Name | Mastery | Learn | Test | Matching | Spaced | Call with Kai |
|---|
No analytics yet
Send a link to your students to track their progress
6 Terms
1
New cards

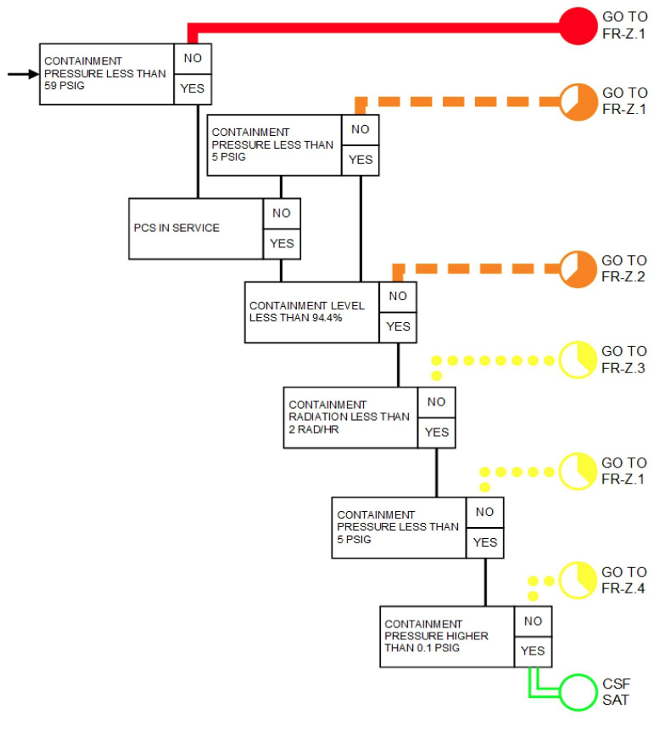

Entry Path
2
New cards

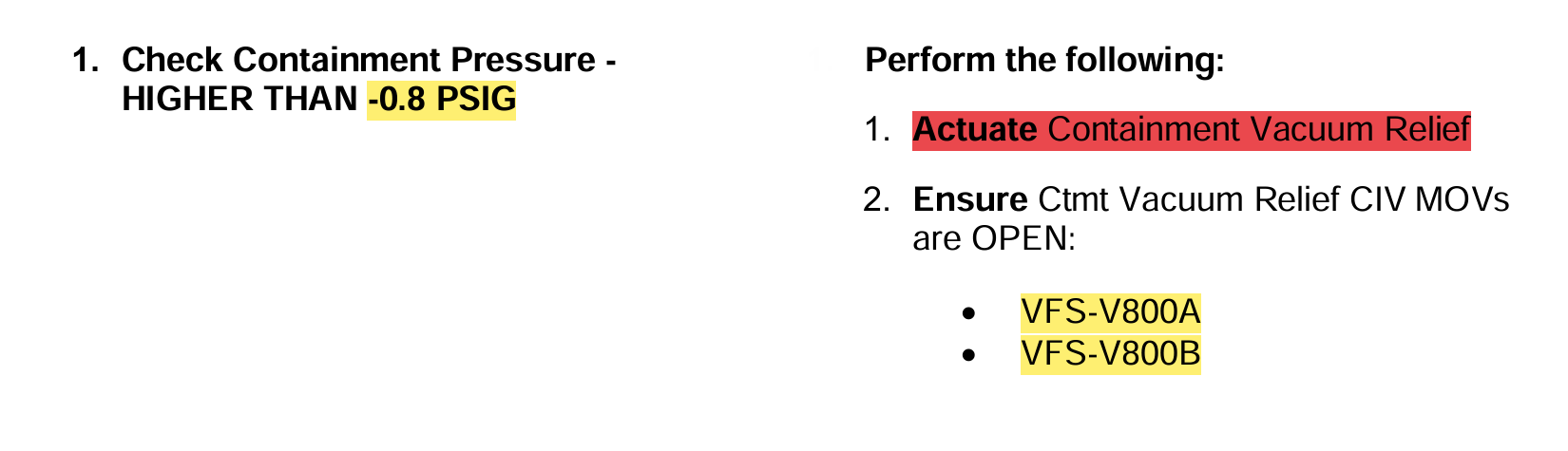

Requirement to Actuate Containment Vacuum Relief
(Step 1 and RNO)
3
New cards

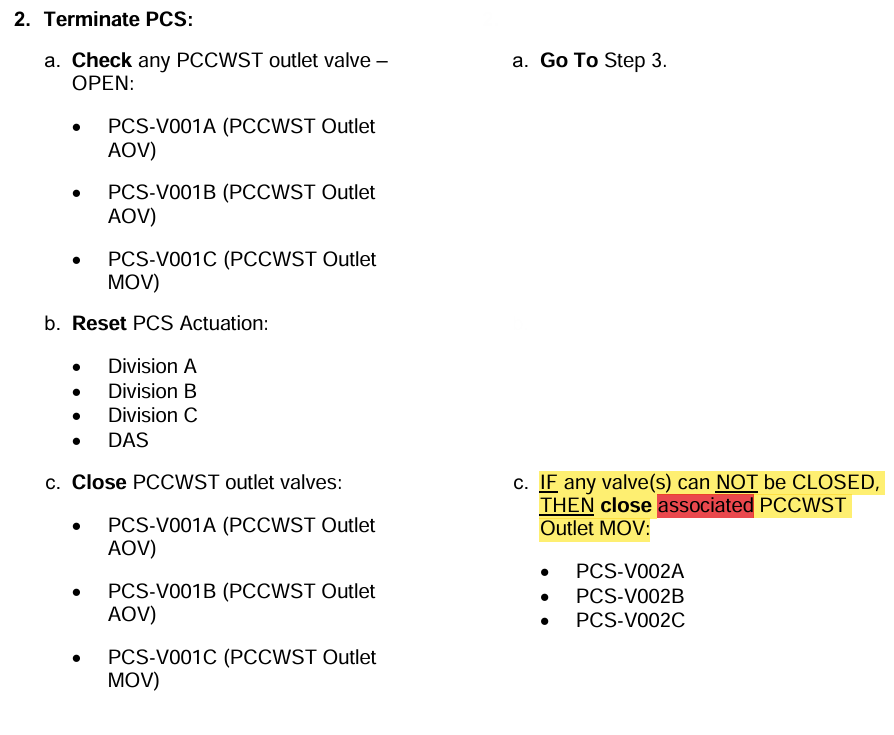

How to Terminate PCS
(Step 2 and RNO)
Notice:
The associated V002x is closed if the V001 cannot be isolated
4
New cards
Containment Restoration
(Step 3-6)
Step 3: Reset “T”
Step 4: Establish IA to CNS (A-703 in tandem if unable)
Step 5: Isolate temp source(s) to PCS bucket if applicable (P72)
Step 6: Isolate VWS Supply AOVs
5
New cards

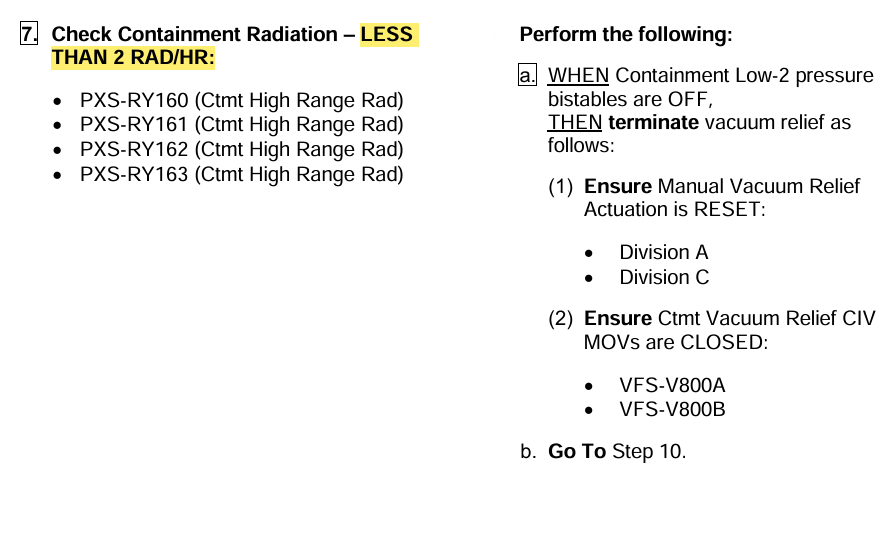

High Rad conditions
(Step 7)
6
New cards

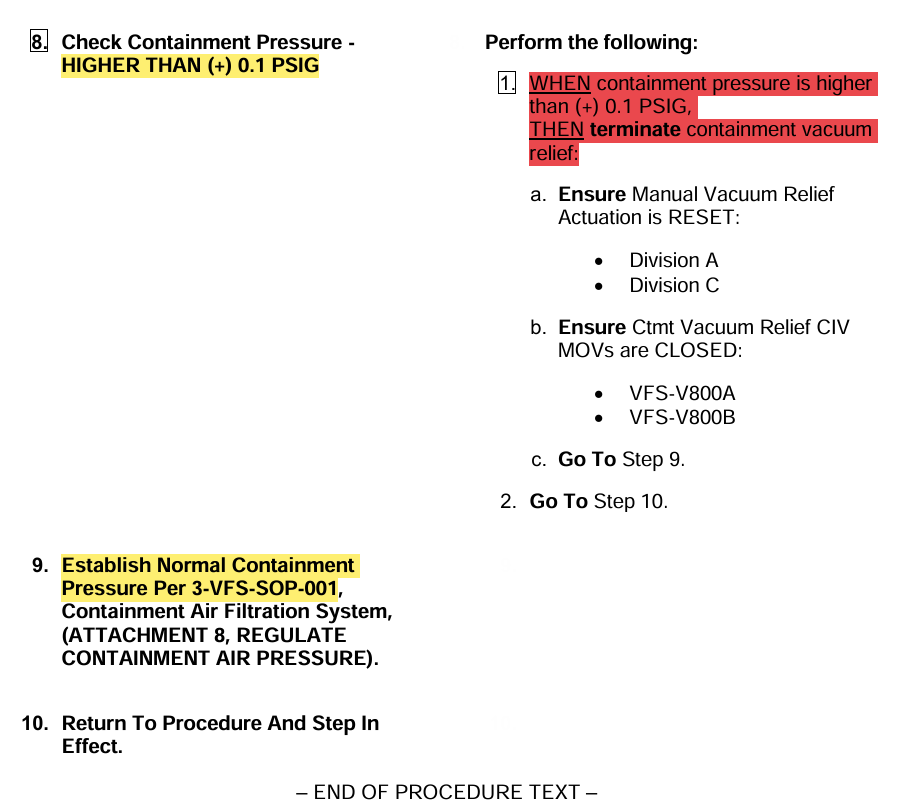

Low Pressure condition and Z.4 End/Exit
(Step 8-10)
Note
Flashcards (73)
