Anatomy of the Skull, Vertebrae, and Ribs: Key Bones and Landmarks

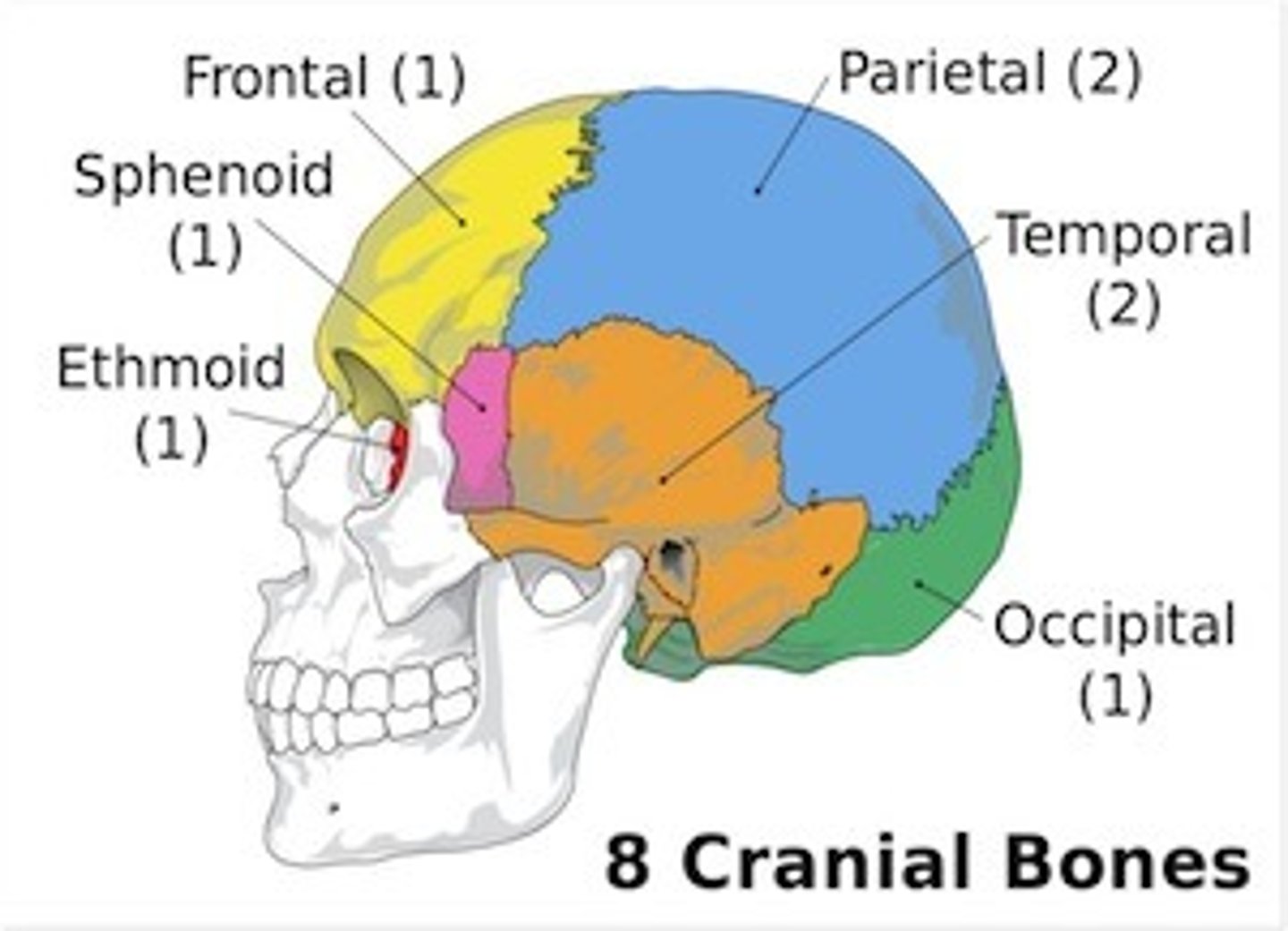

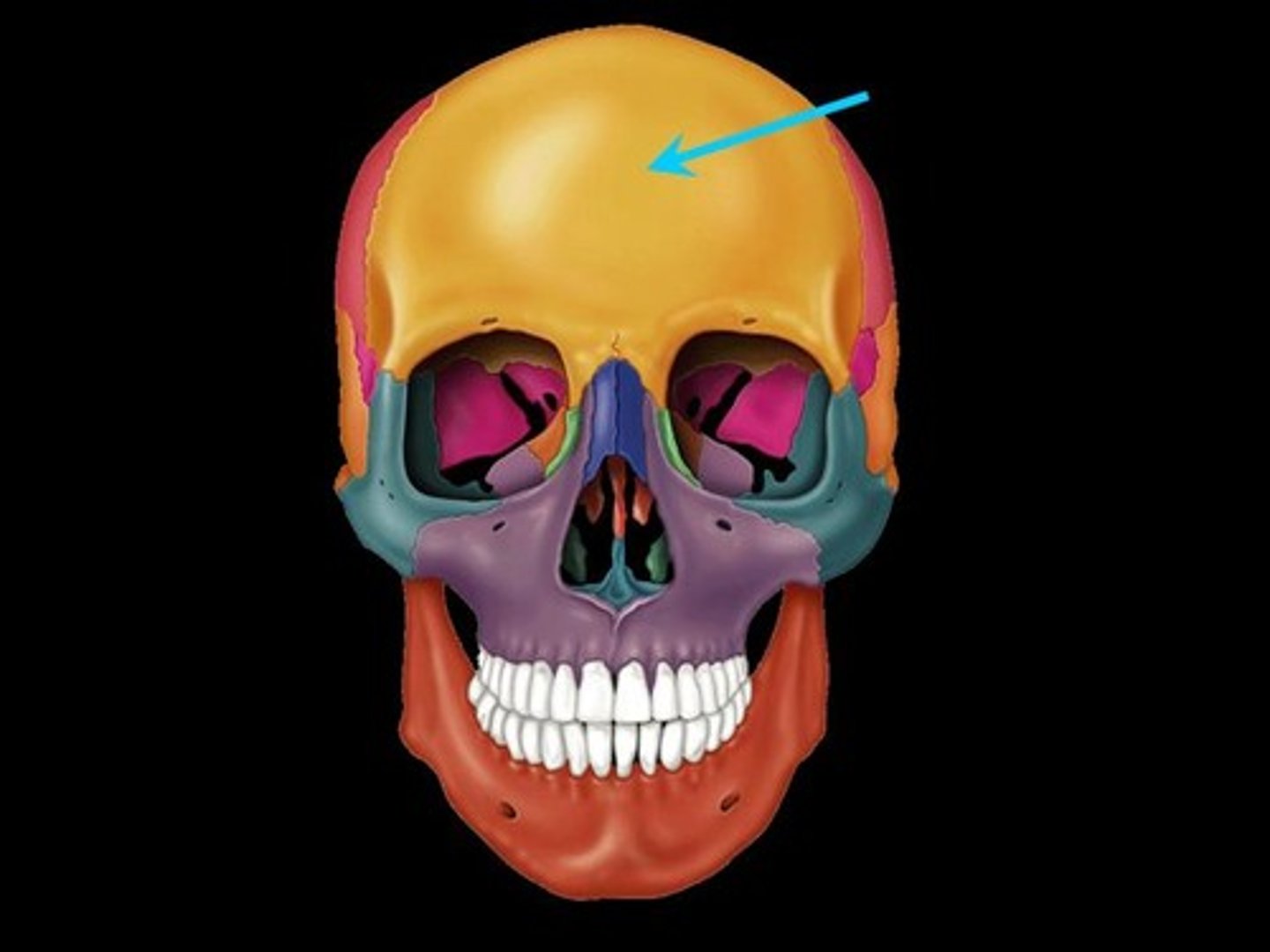

Frontal

Big Forehead plate

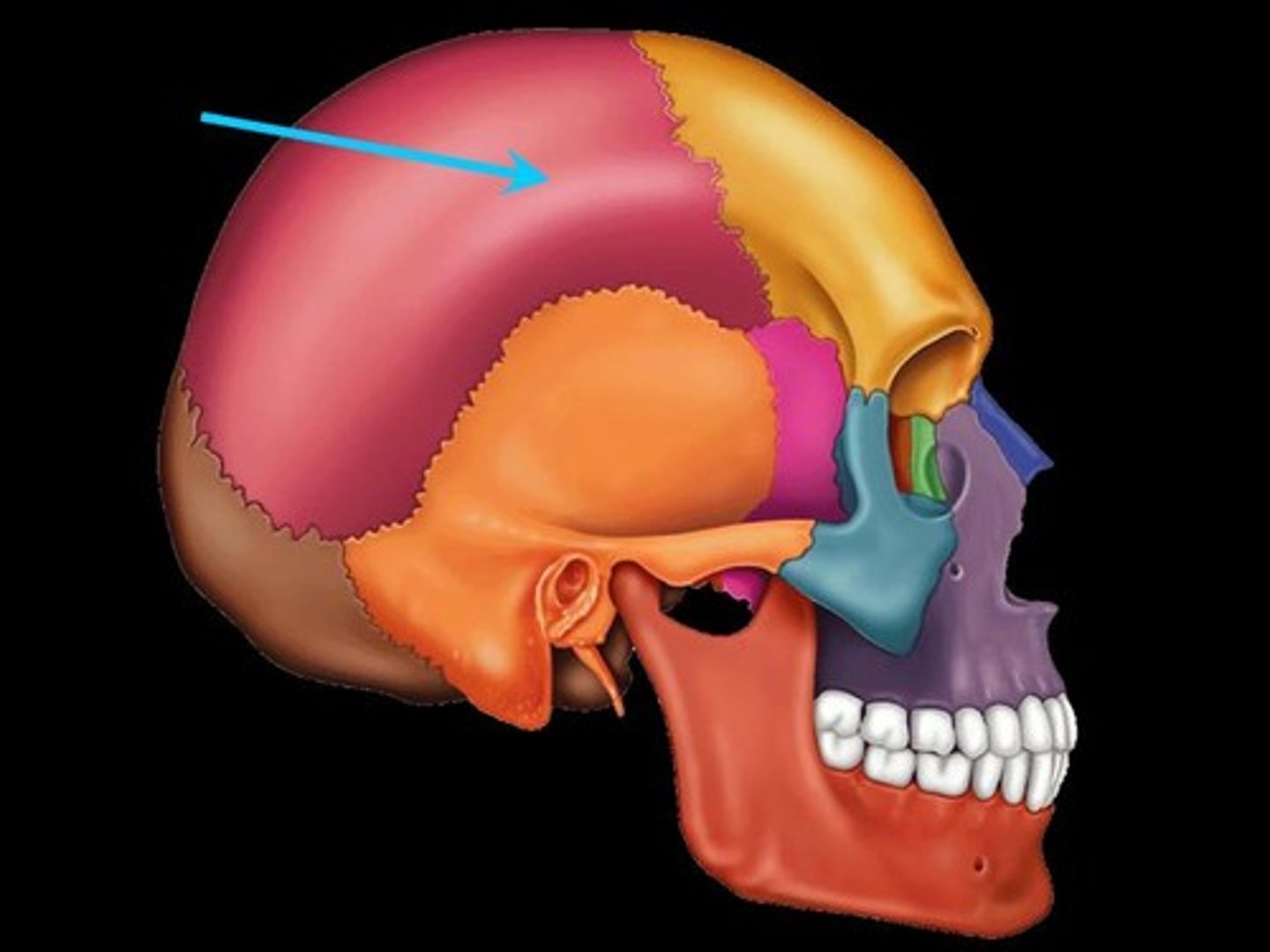

Parietal

left and right bones just behind frontal

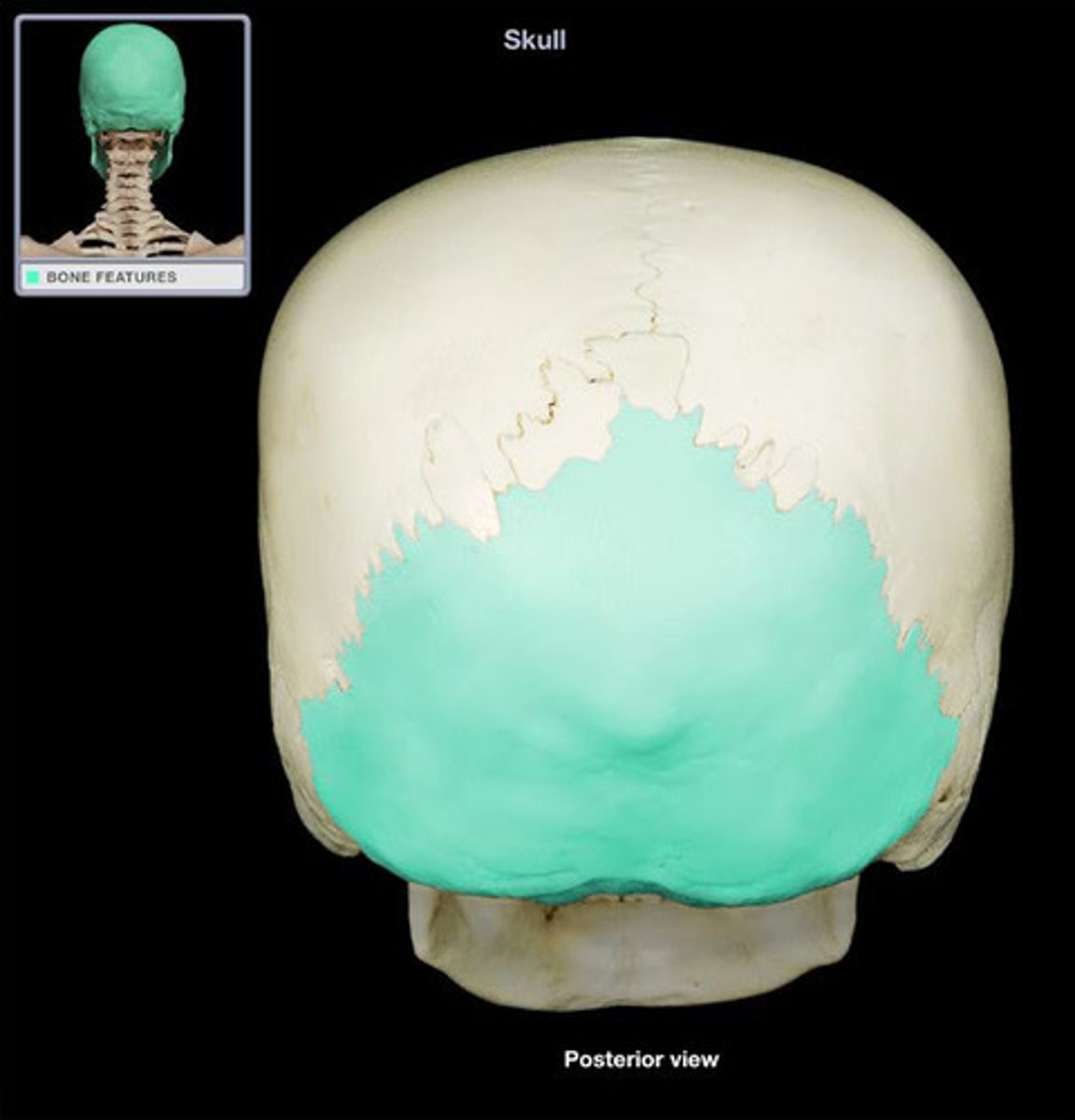

Occipital

back and bottom of the skull

Temporal

below perietal bone on either side of the skull

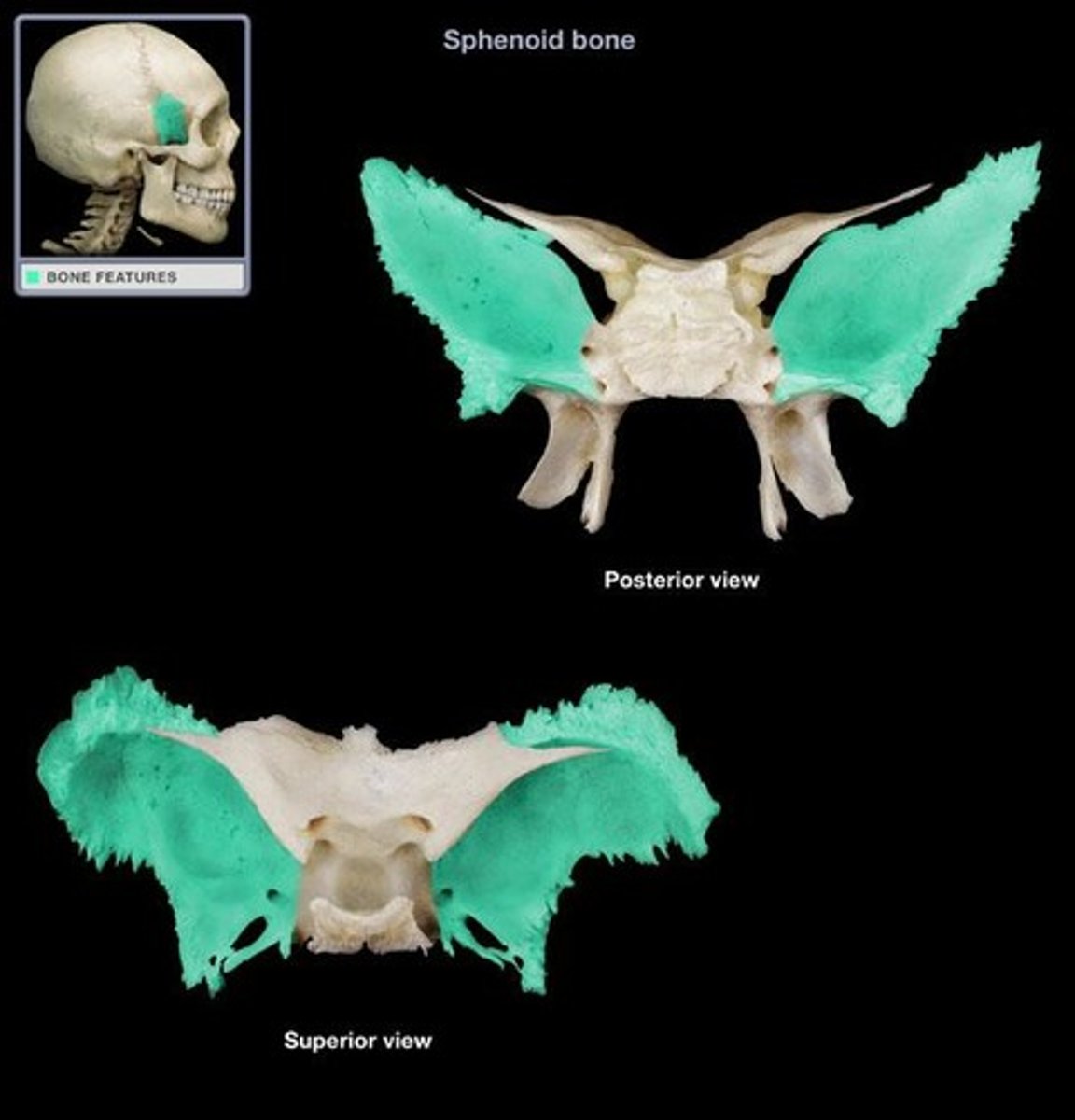

Sphenoid

Bat shaped bone separating face form brain

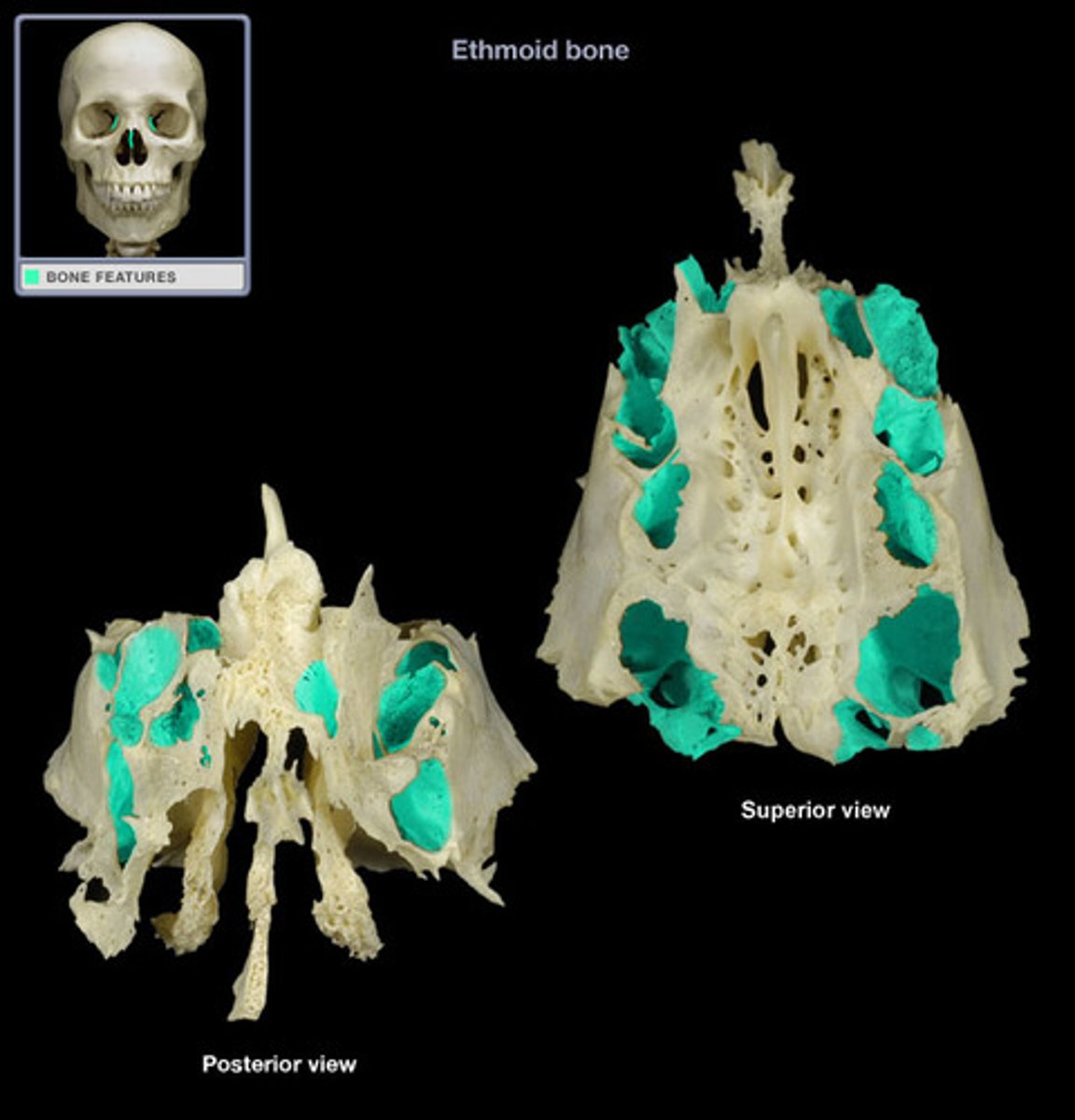

Ethmoid

Separates nasal process from brain

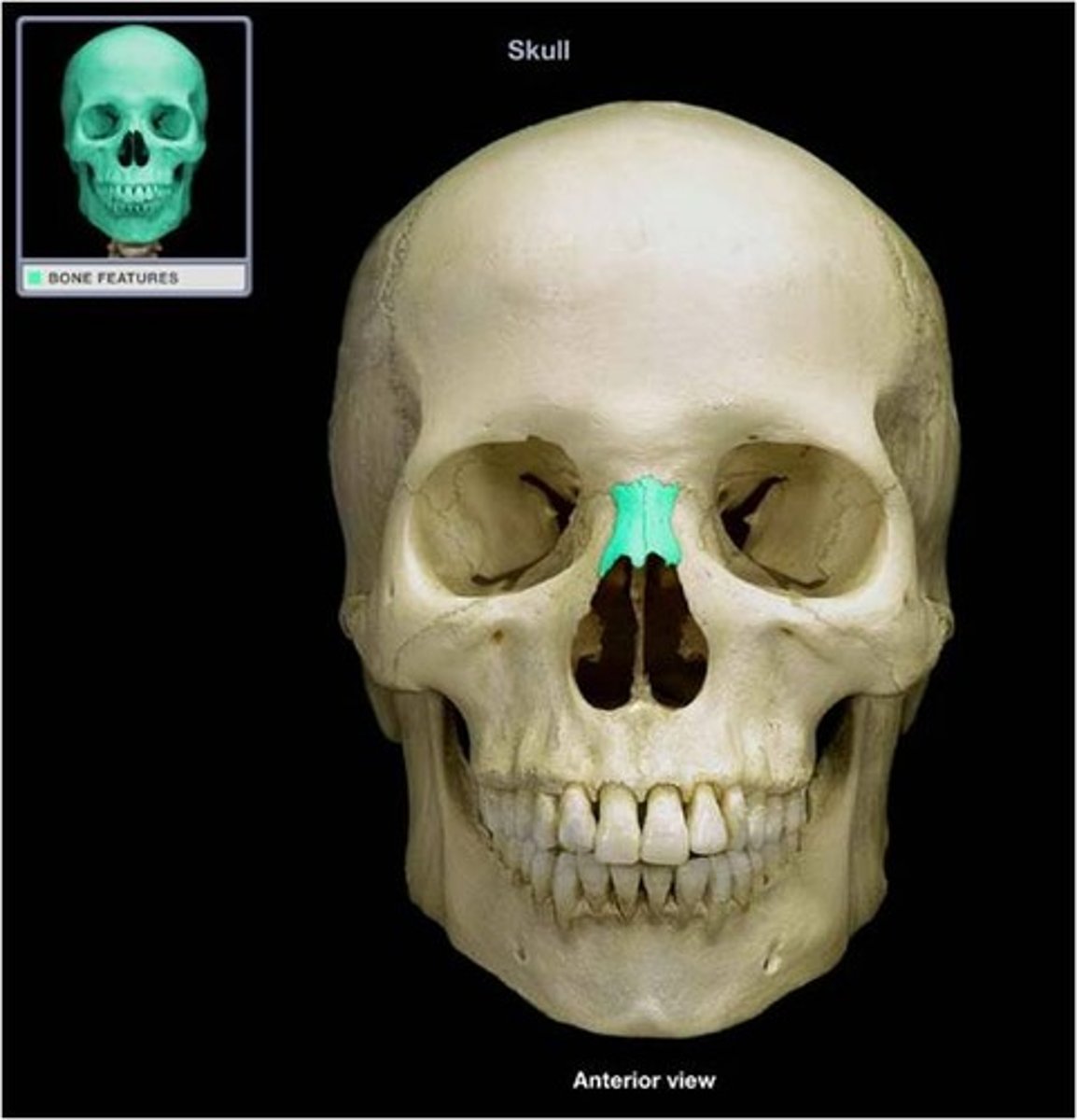

Nasal

bridge of the nose

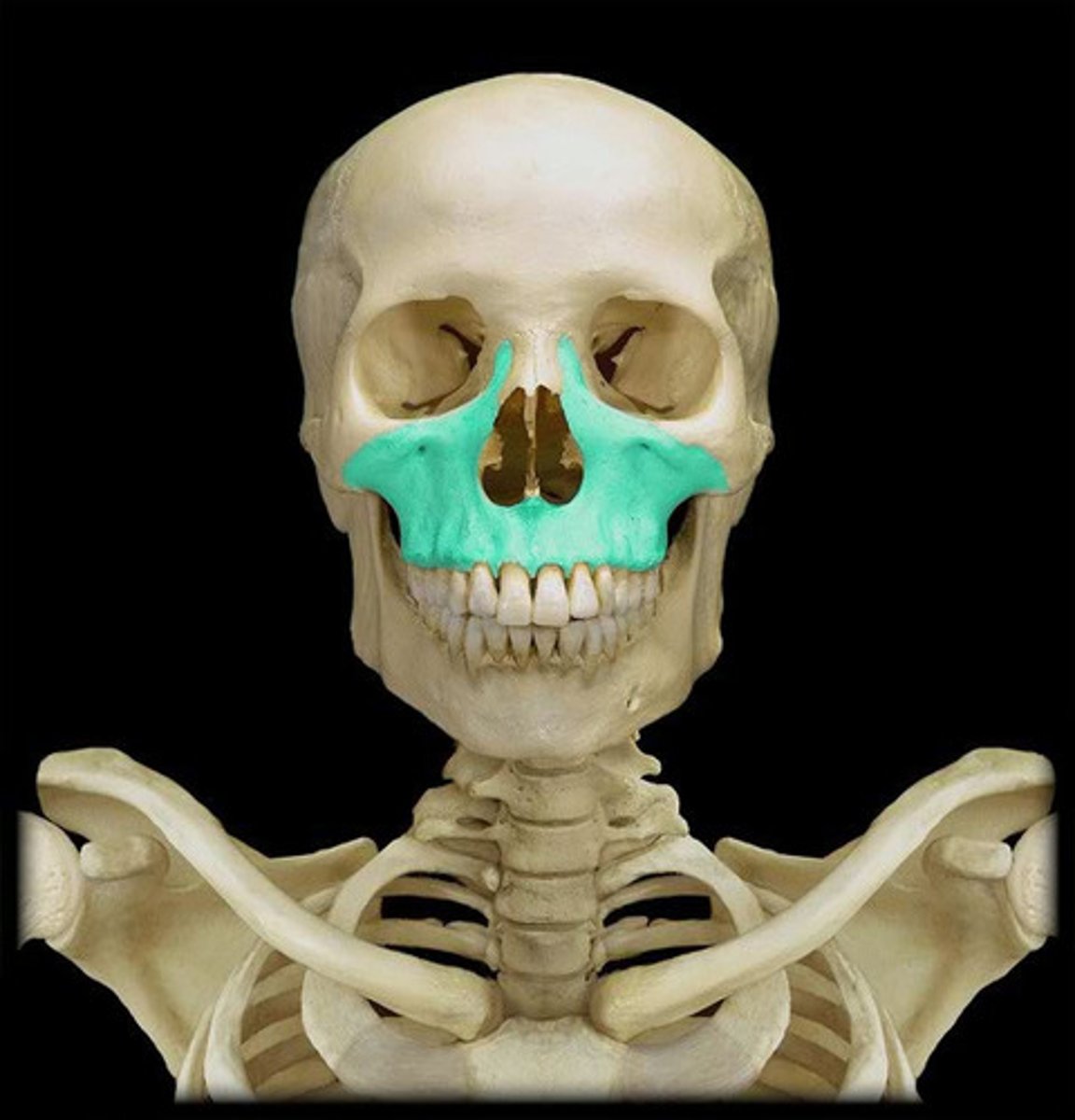

Maxilla

Makes up nasal opening, lower part of orbit, and holds the upper teath

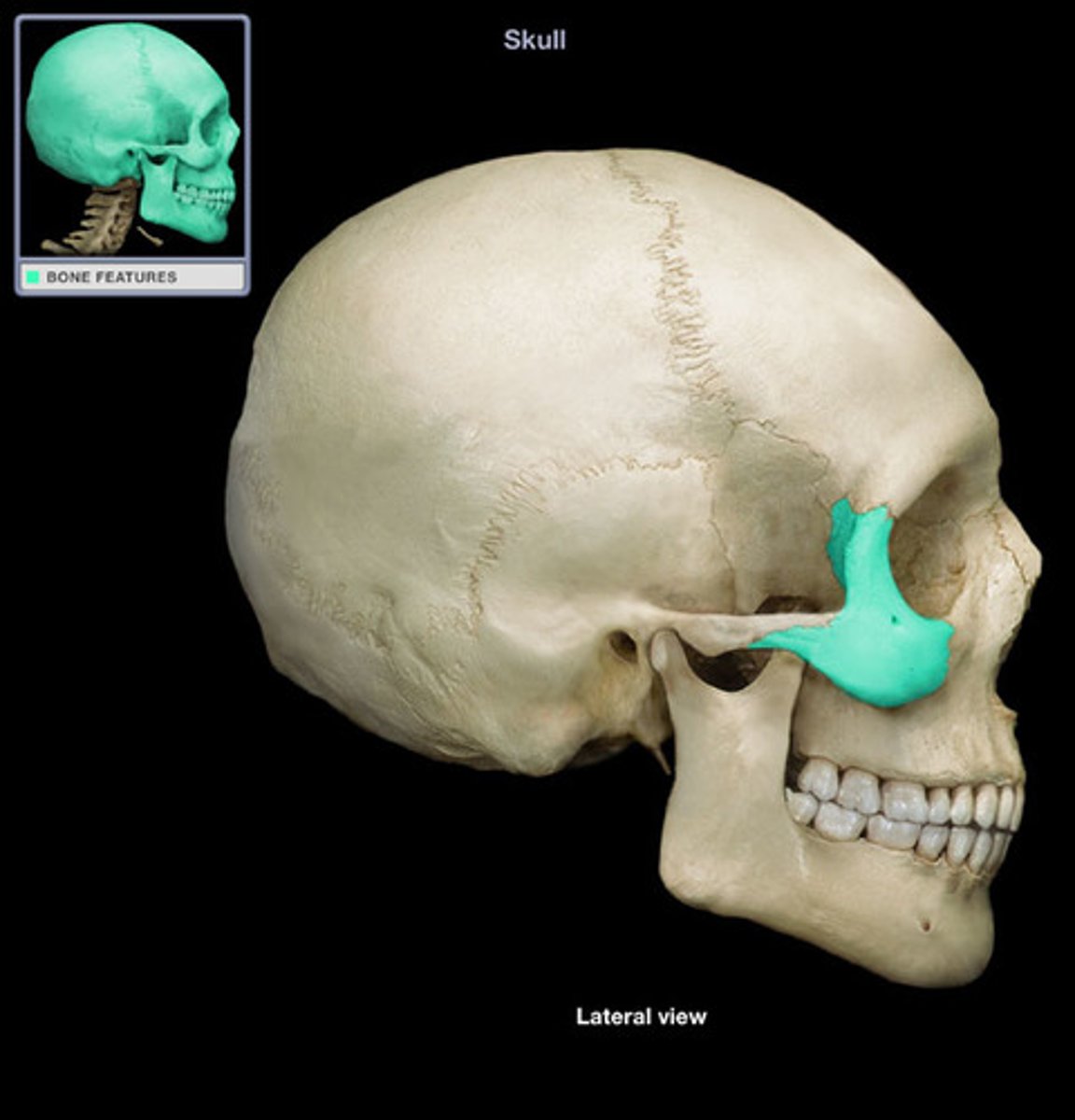

Zygomatic

Anterior bridge

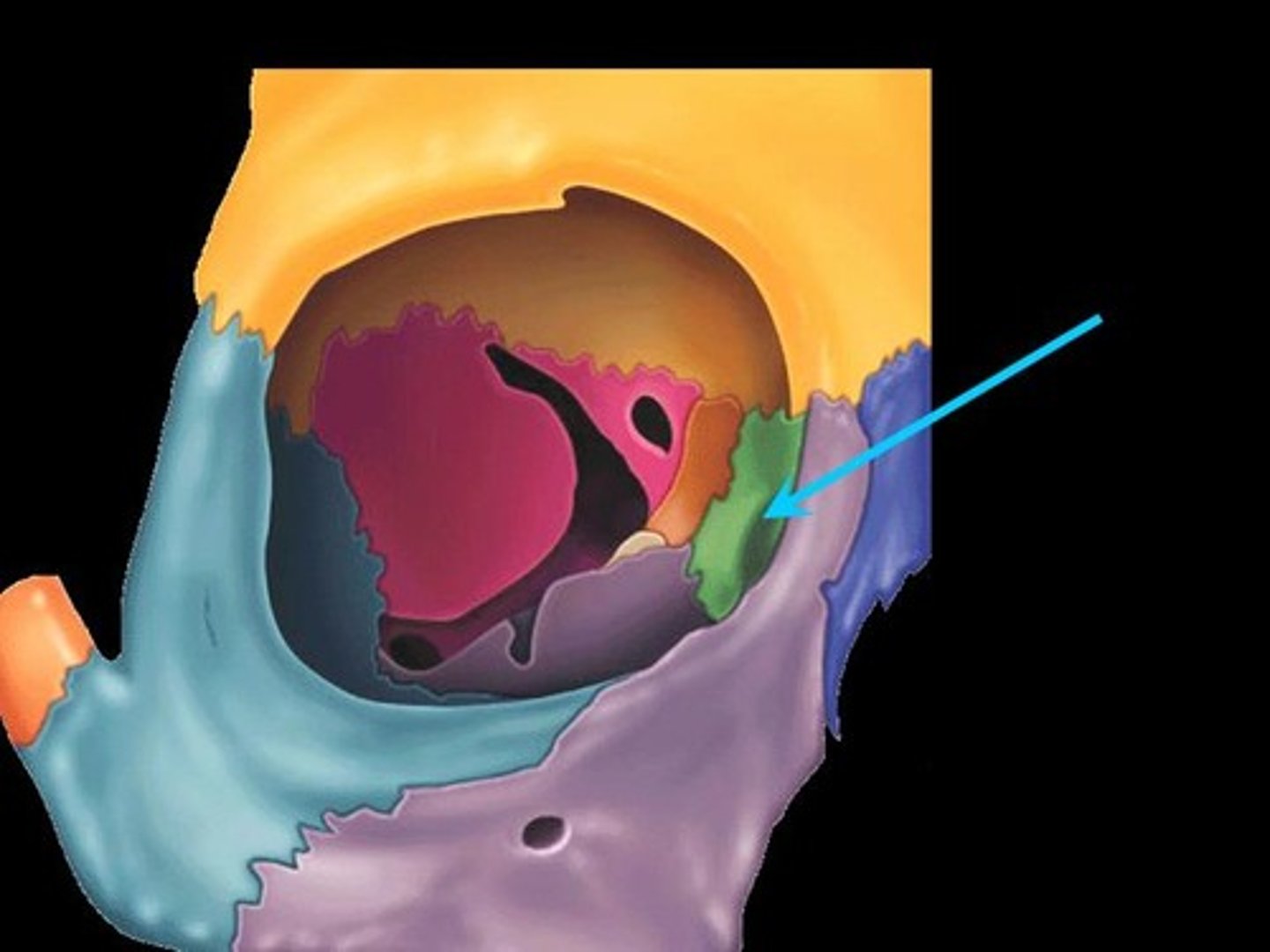

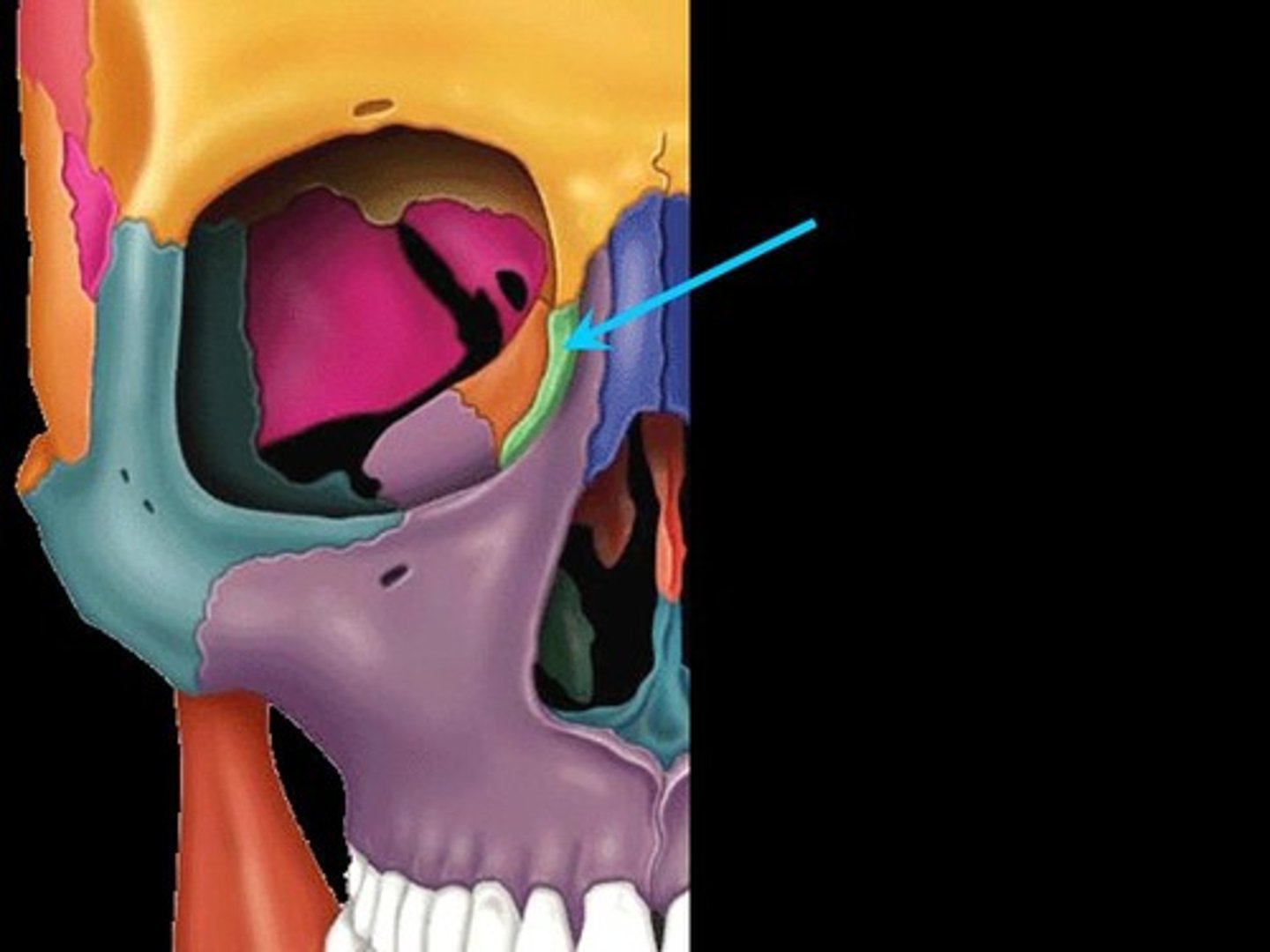

Lacrimal

Makes up most of the Lacrimal foramen (Holes where tears drain from)

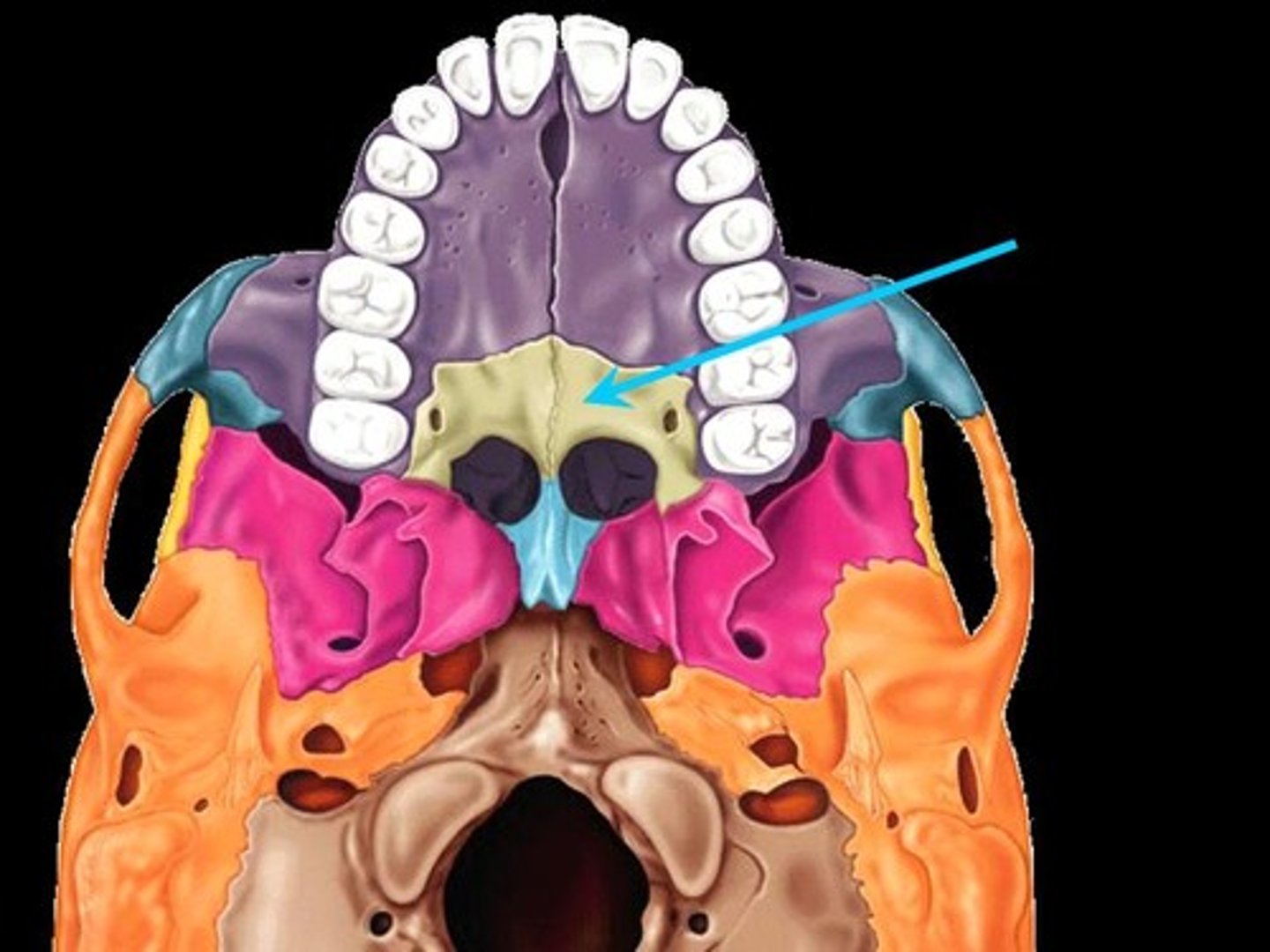

Palatine

Back quarter of hard pallet

Vomer

Flat plate of bone, main piece of nasal septum

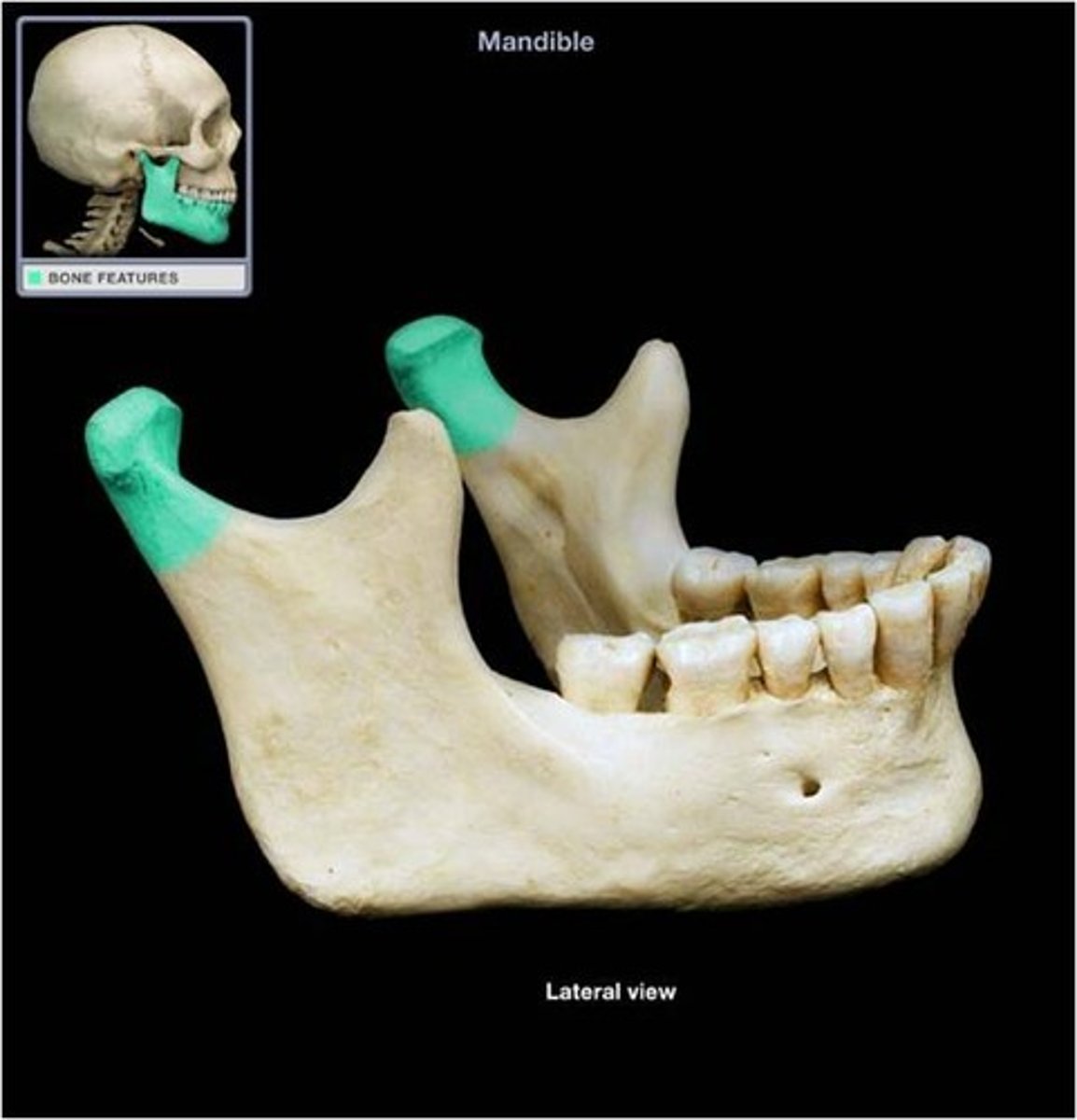

Mandible

Jaw and lower teeth

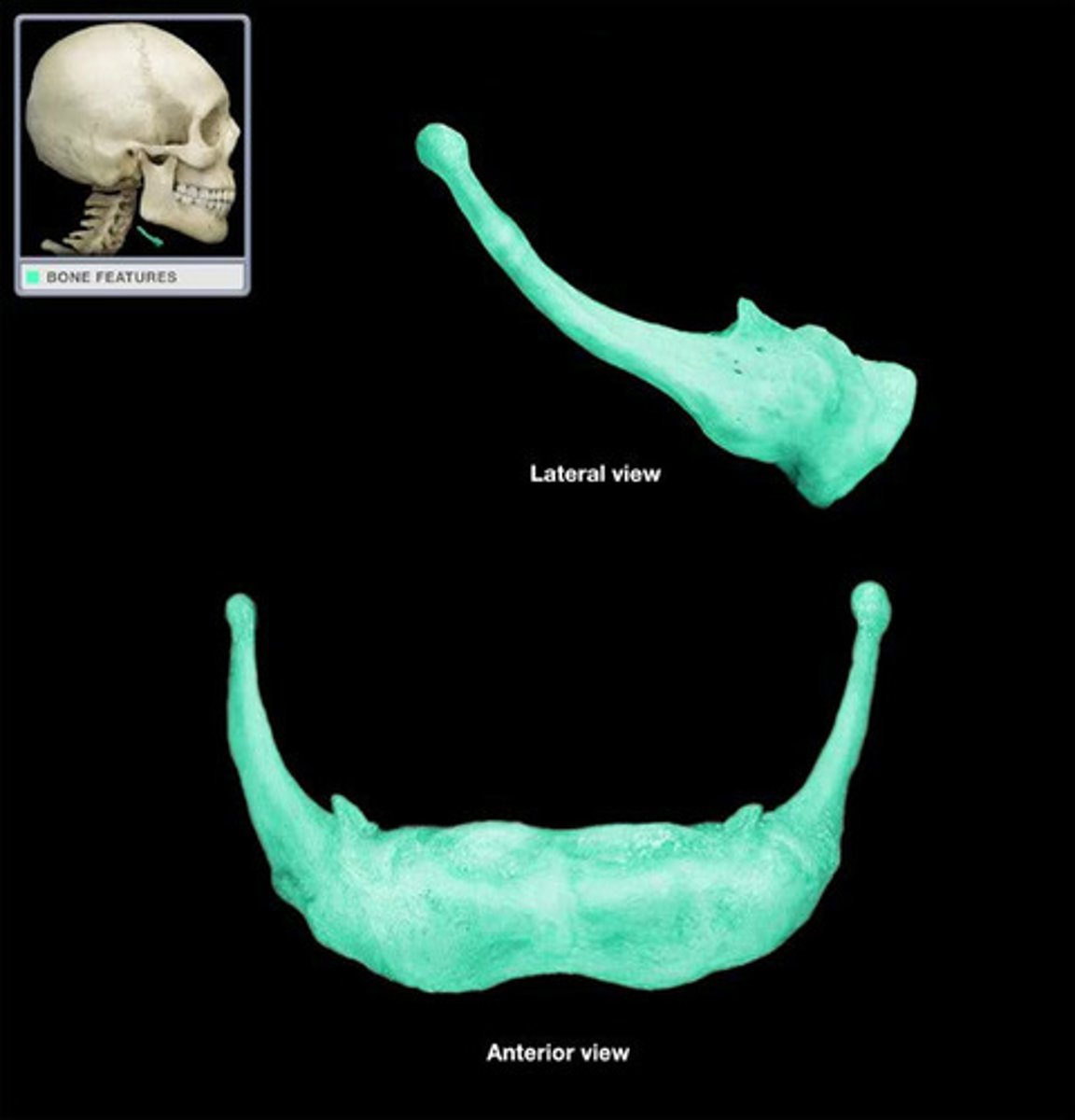

Hyoid

not attached to skeleton but floats in the muscle, helps swallow and tongue

Cervical vertebrae

C1-C7

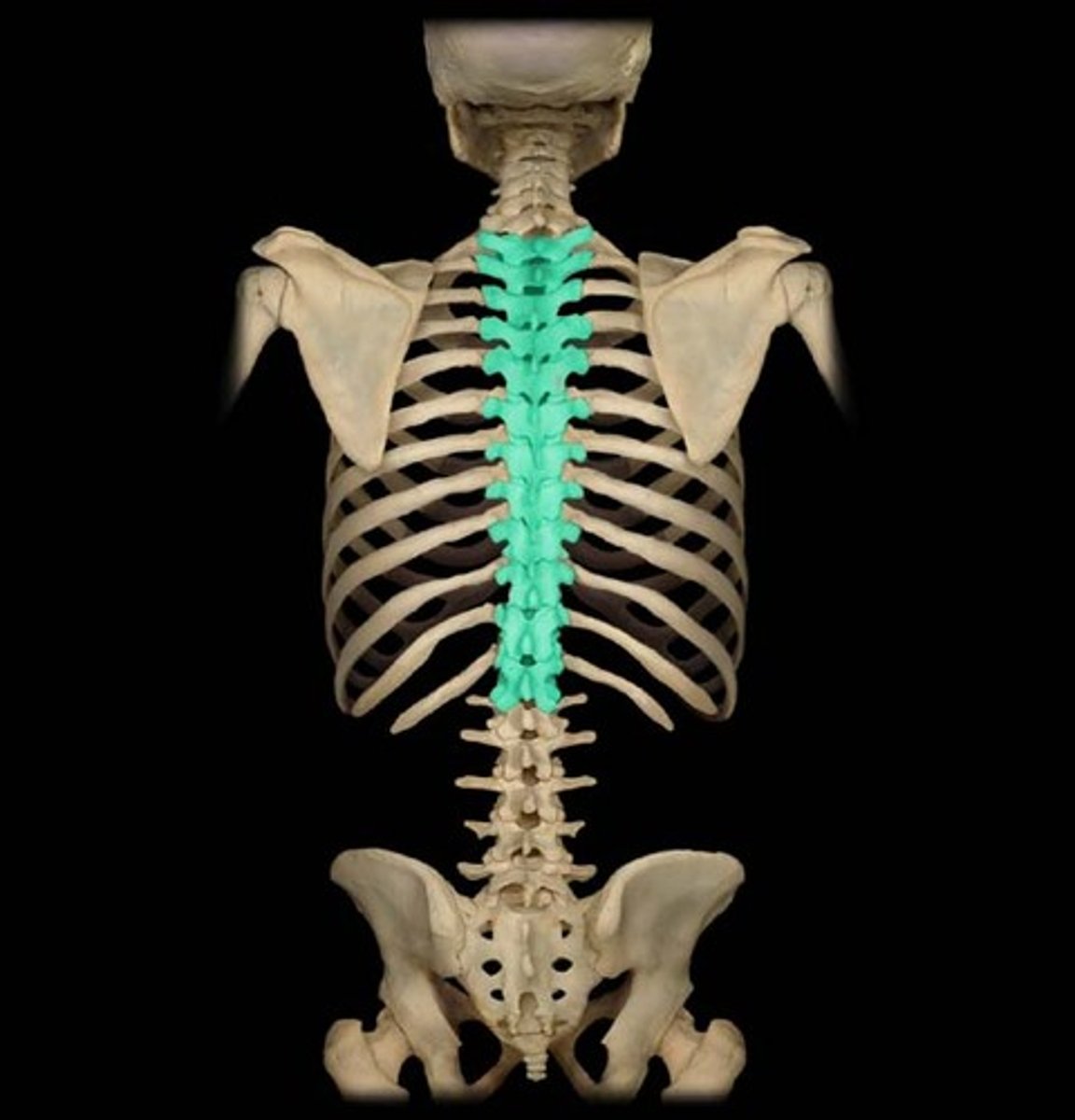

Thoracic vertebrae

T1-T12, Ribs attached

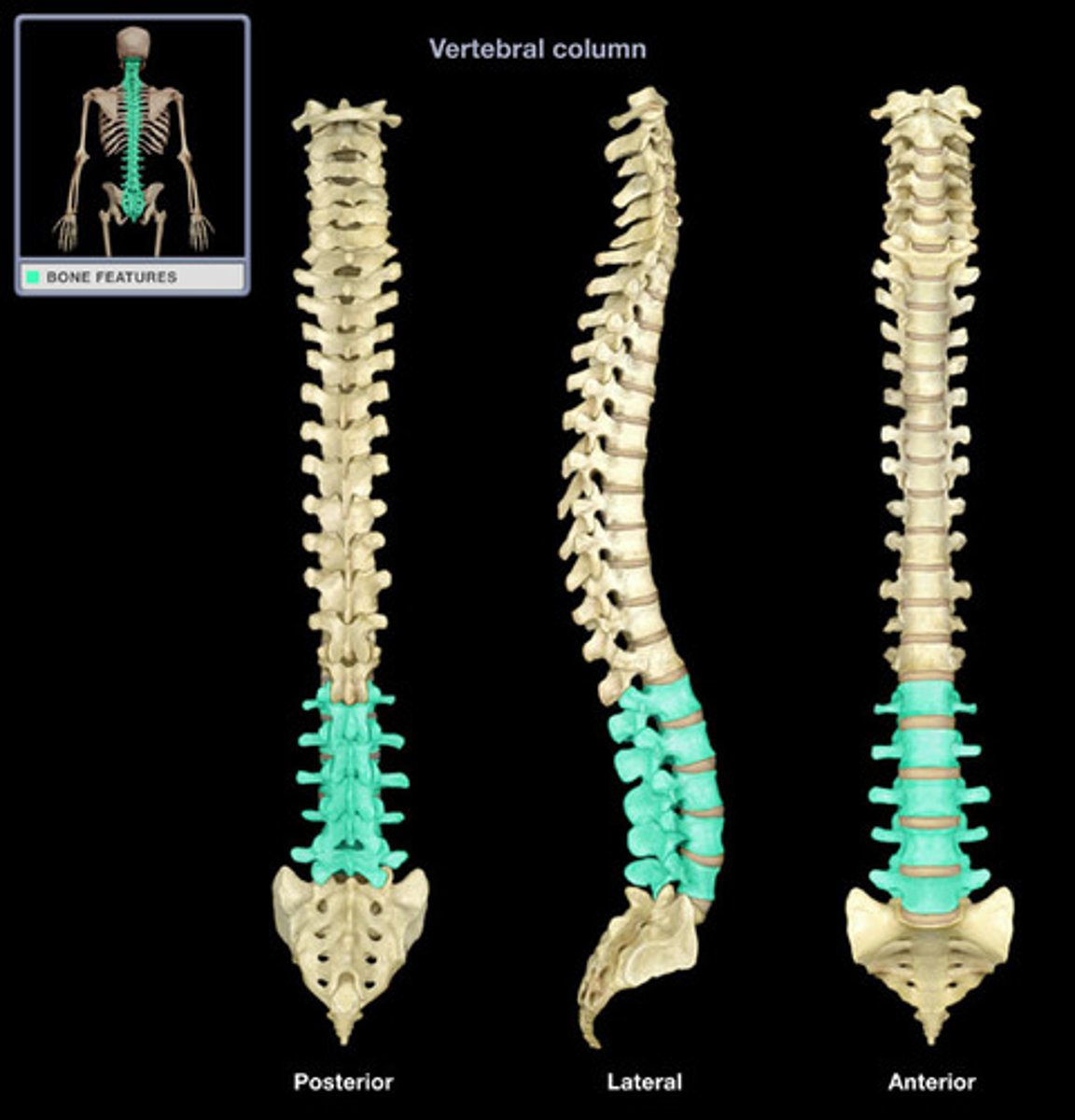

Lumbar vertebrae

L1-L5, lower back

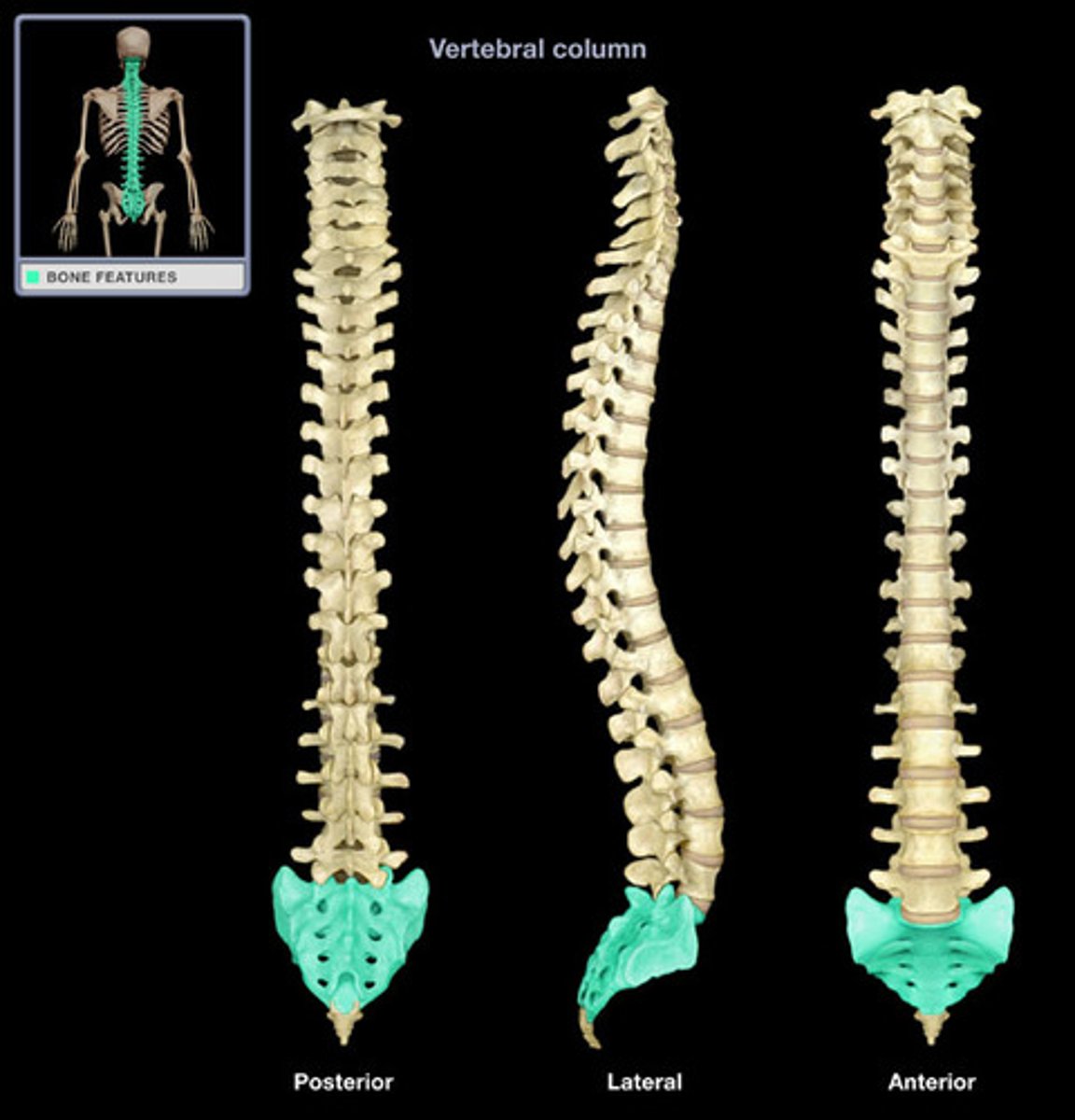

Sacrum (sacral vertebrae)

Triangular part below lumbar vertebrae

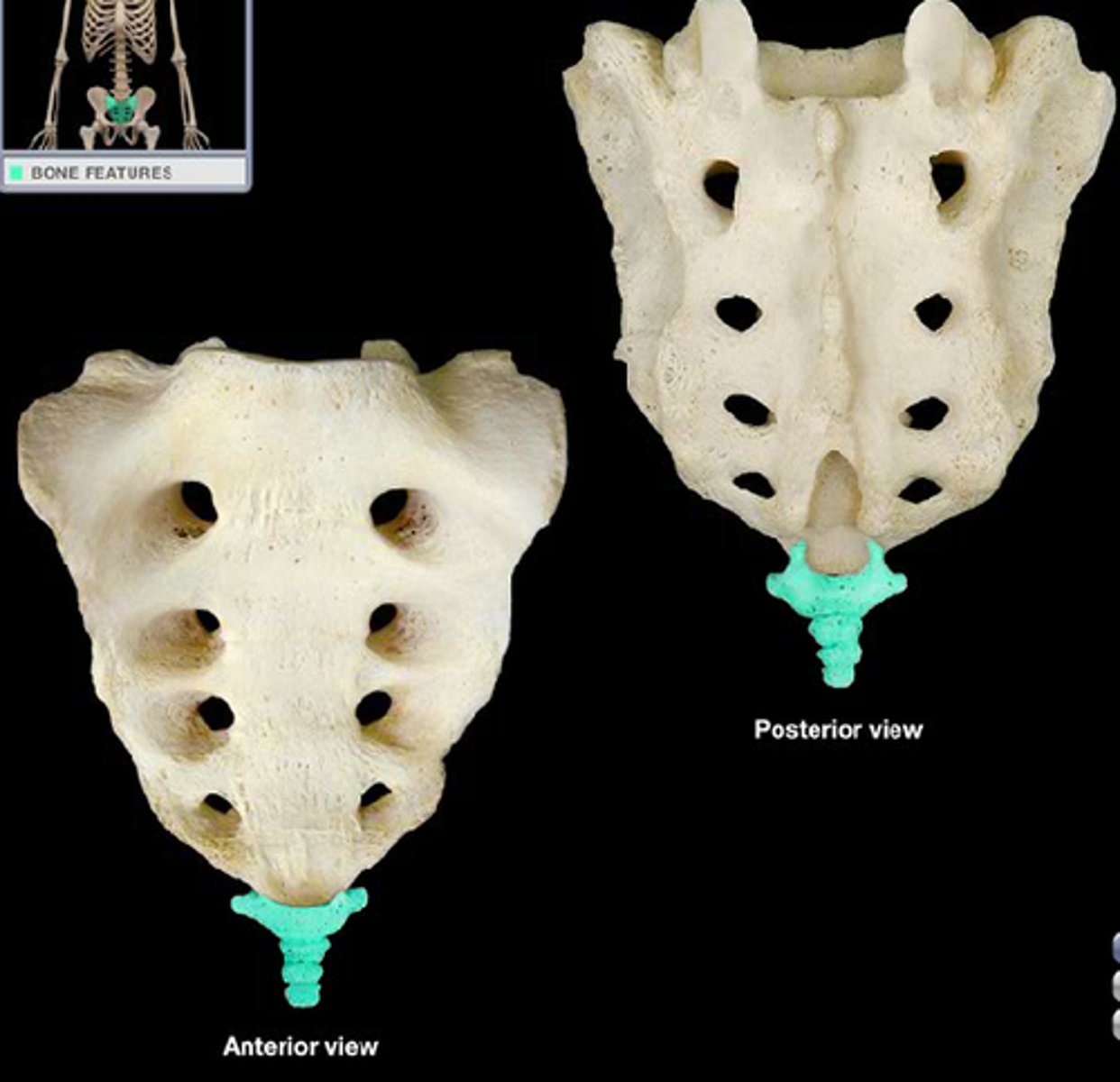

Coccygeal vertebrae

last bones of the tail, usually 3-5

True ribs

first 7 pairs of ribs; attach directly to sternum through cartilage

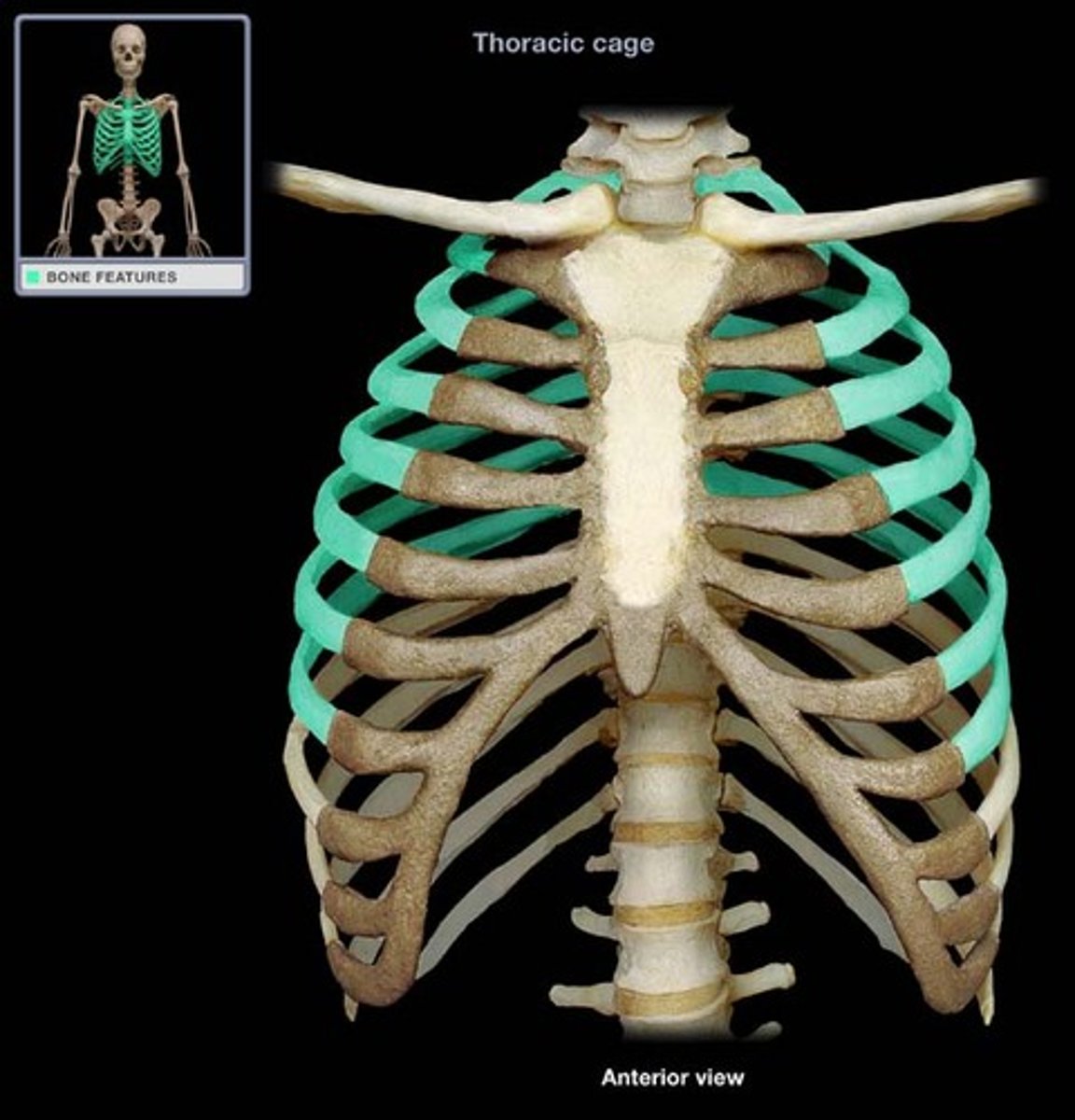

False ribs

last 5 pairs of ribs; attach indirectly to sternum

Floating ribs

last two pairs of ribs; do not attach to sternum

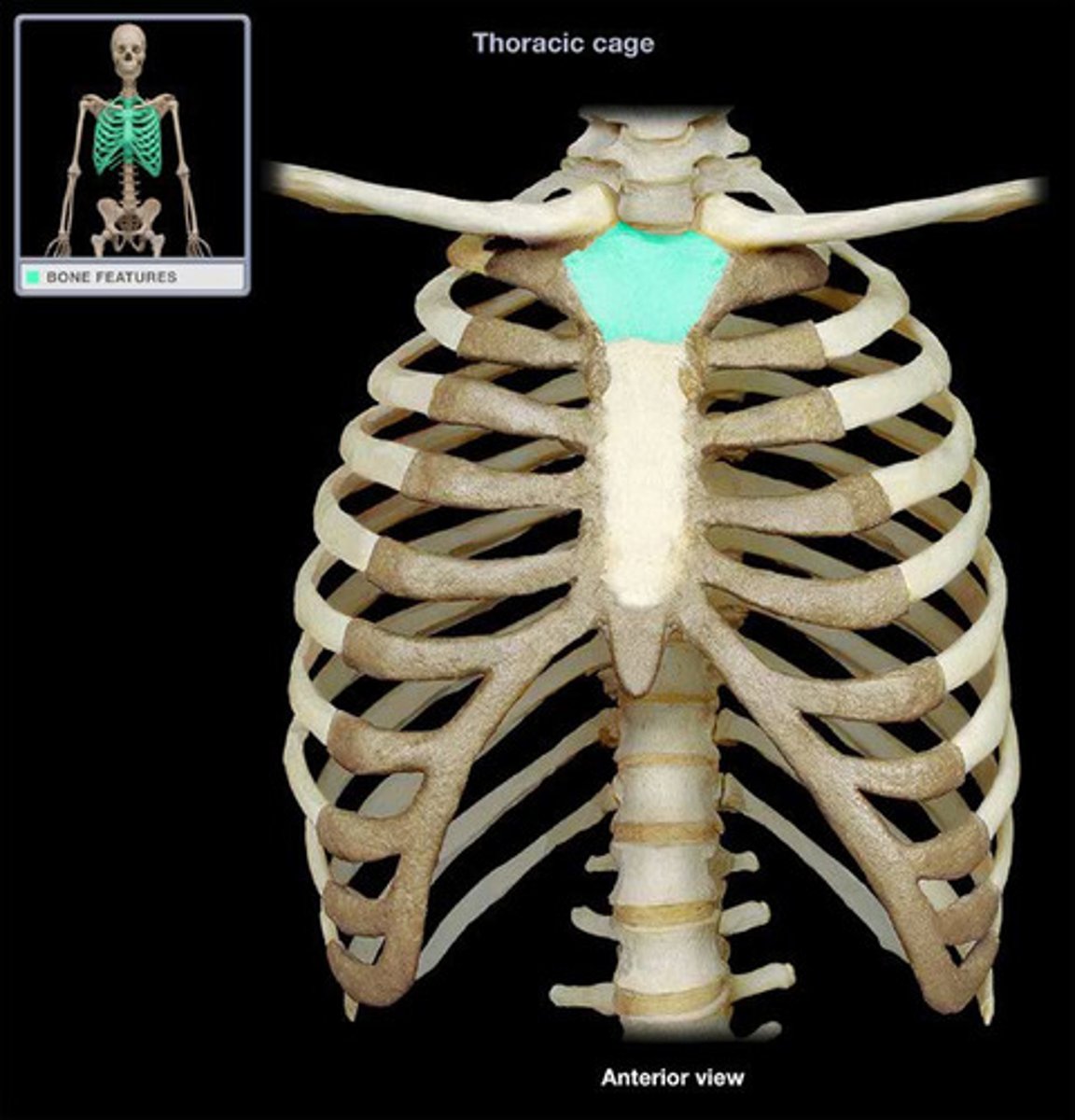

Manubrium

upper sternum, before the second rib

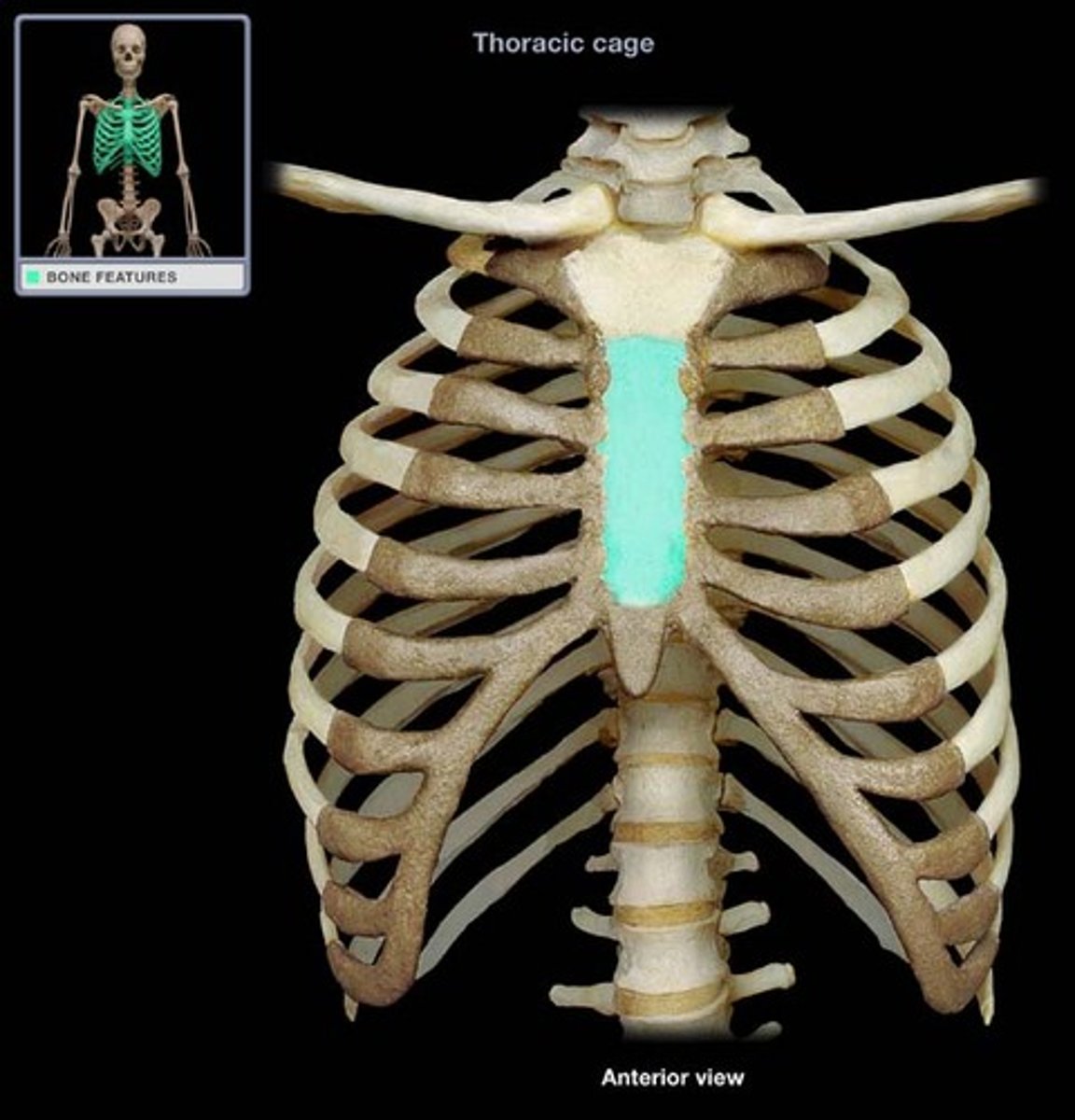

Body of sternum

Lower sternum excluding xiphoid

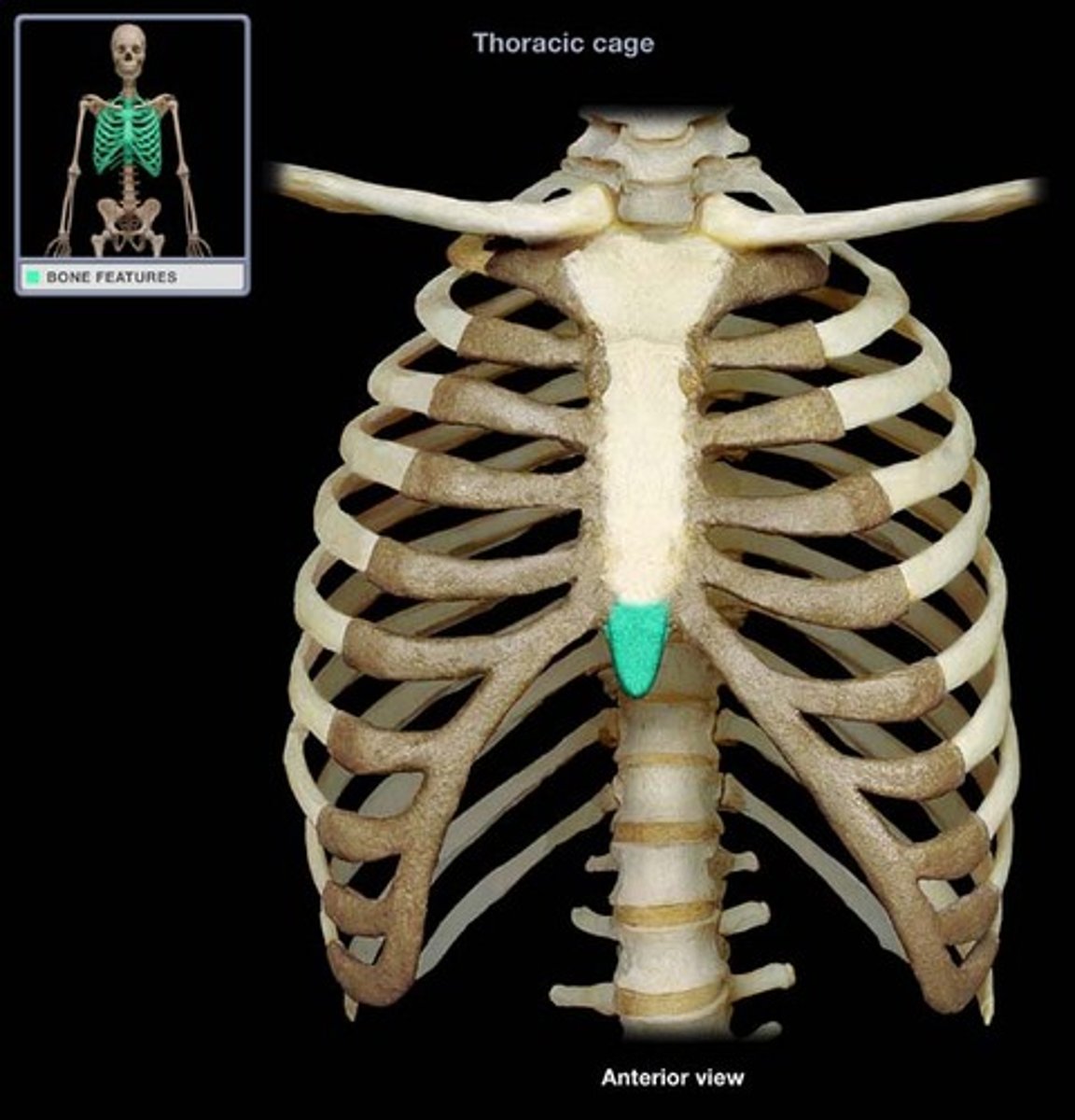

Xiphoid process

inferior portion of the sternum

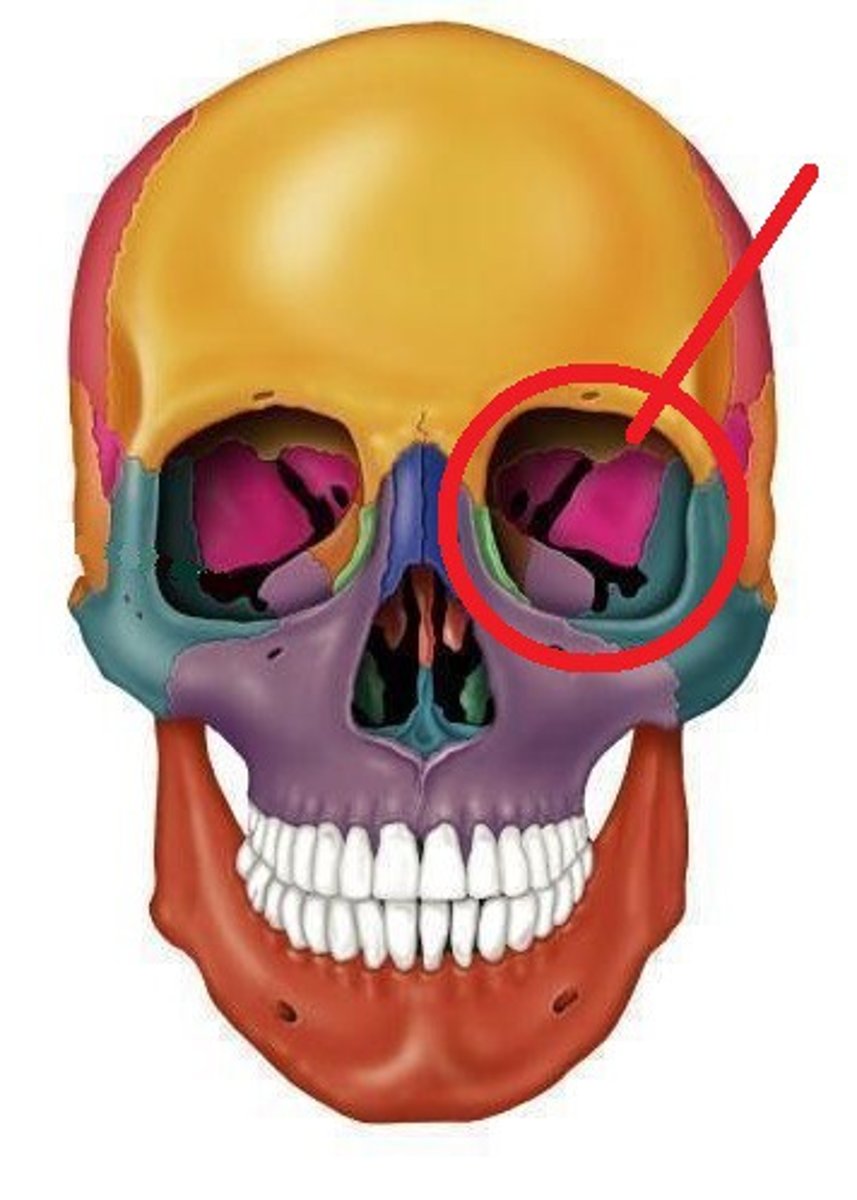

Orbit

eye sockets

Nasal opening

nose hole on skull

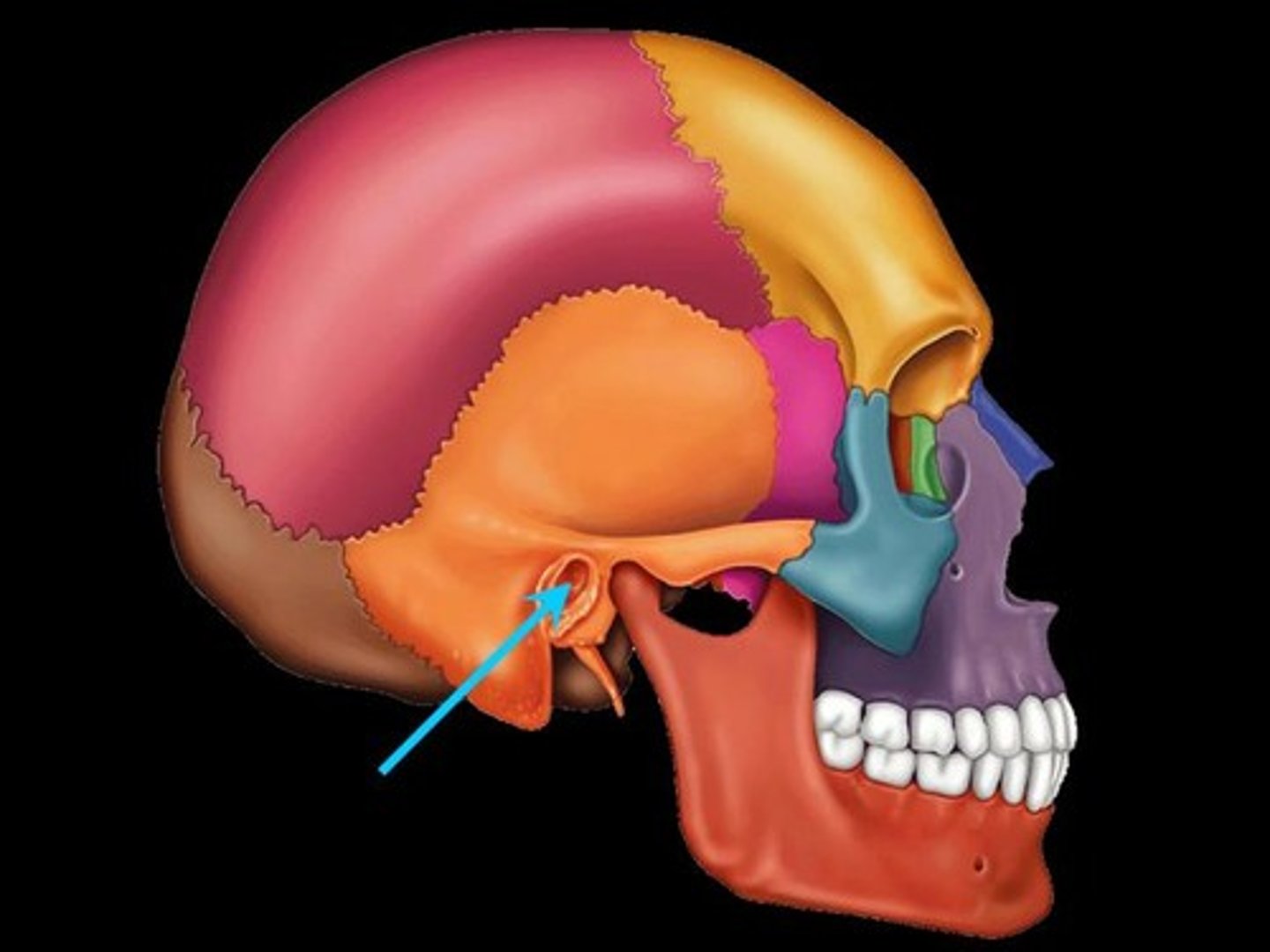

External Acoustic Meatus

Canal leading to eardrum and middle ear/

ear hole

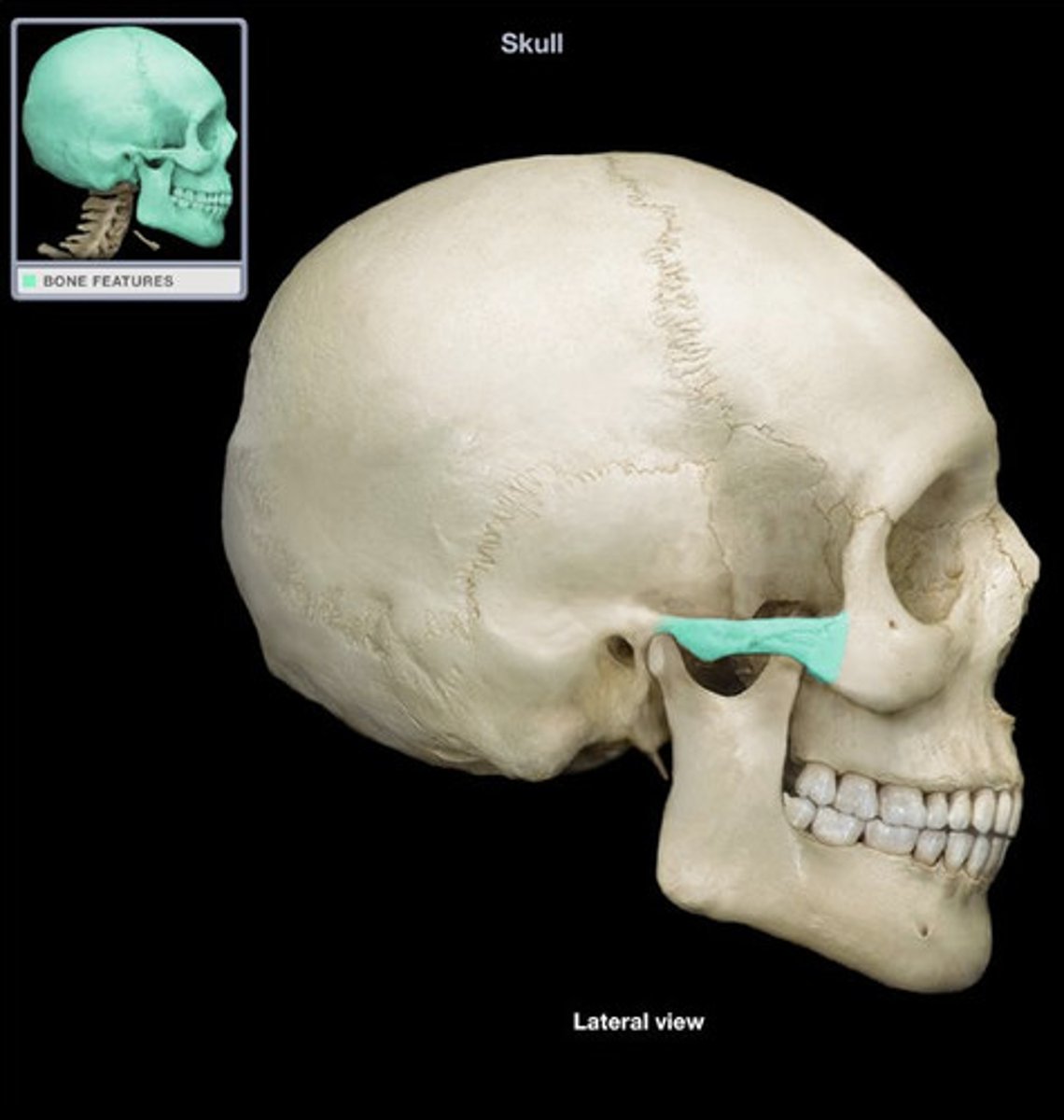

Zygomatic arch

cheek bone, half temporal, half zygomatic

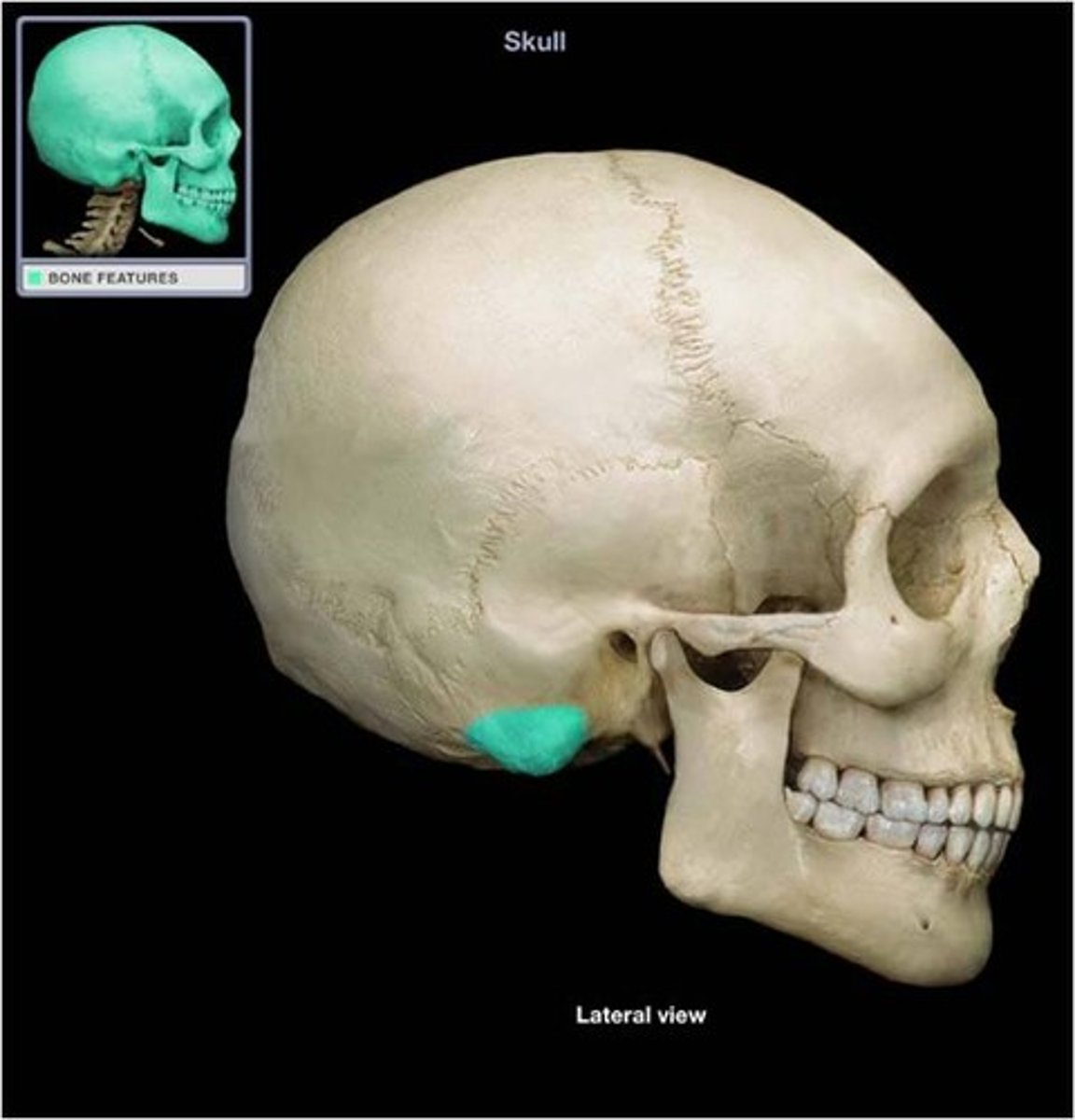

Mastoid process

bump of bone behind ear

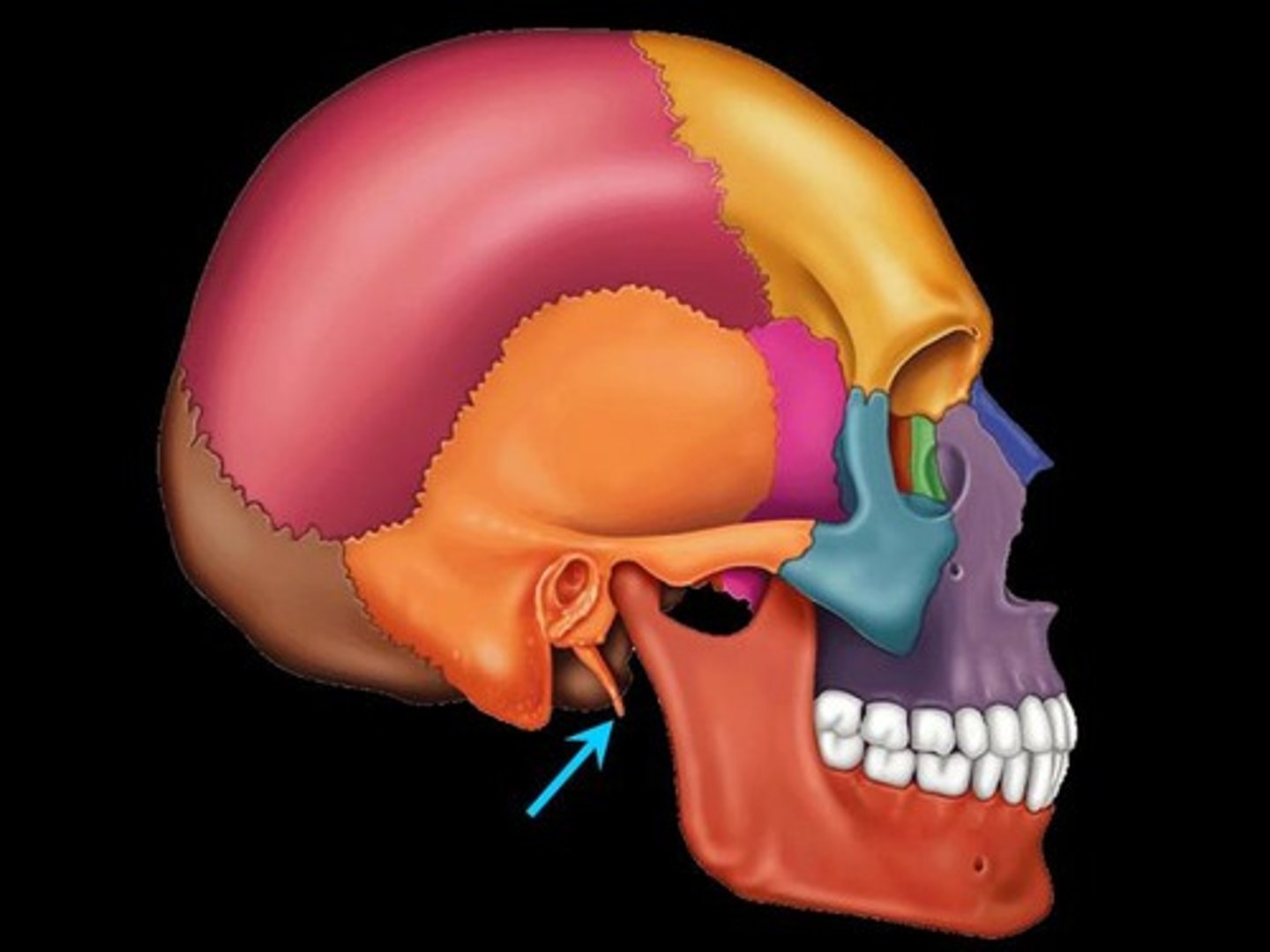

Styli's process of the temporal bone

little spike bellow ear

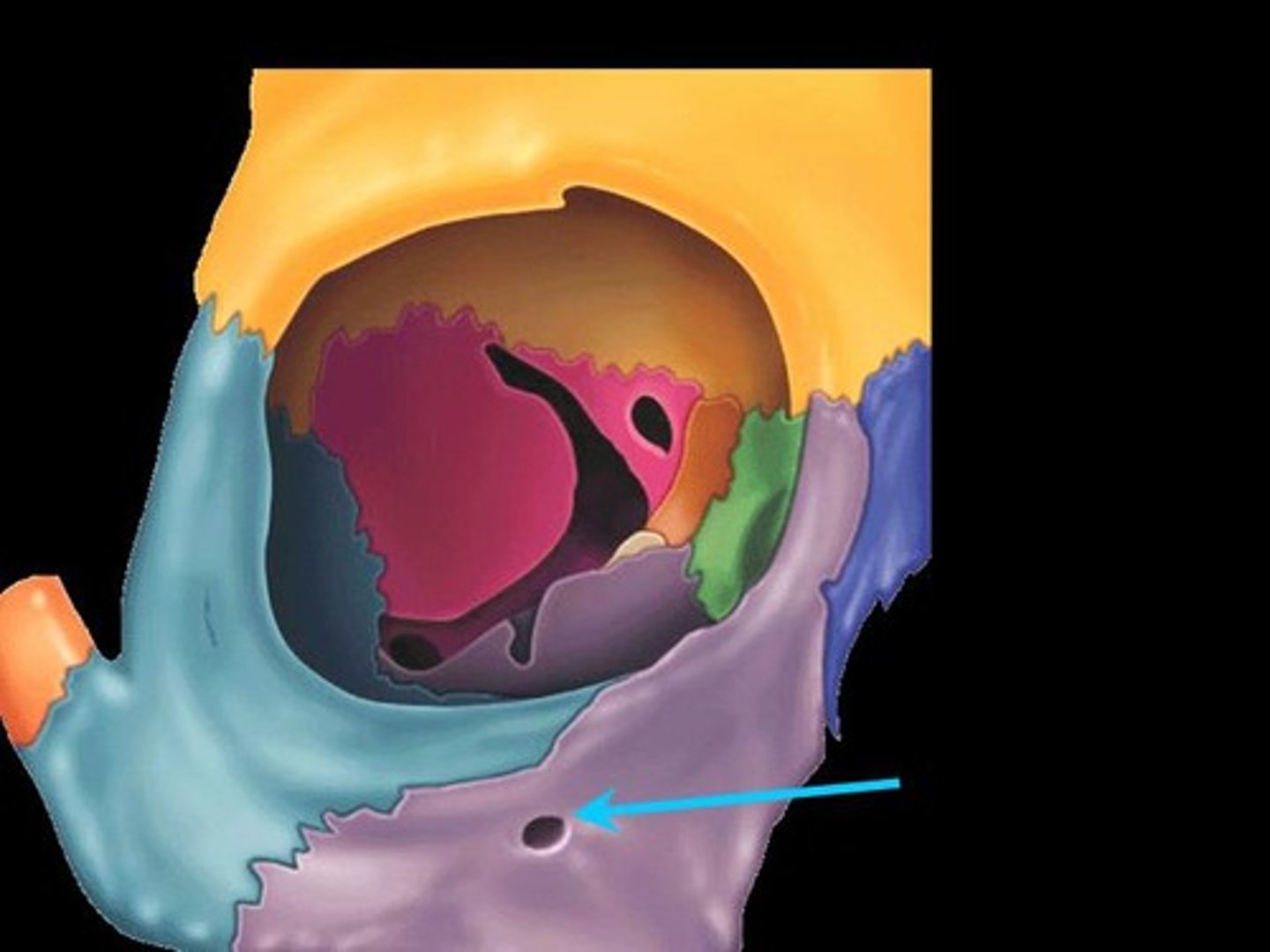

Infraorbital foramen

opening under the orbit carrying the infraorbital nerves and blood vessels the the nasal region and cheeks

Nasal Septum

splits the right and left nasal cavities

Lacriminal Foramen

holes where the tears drain from

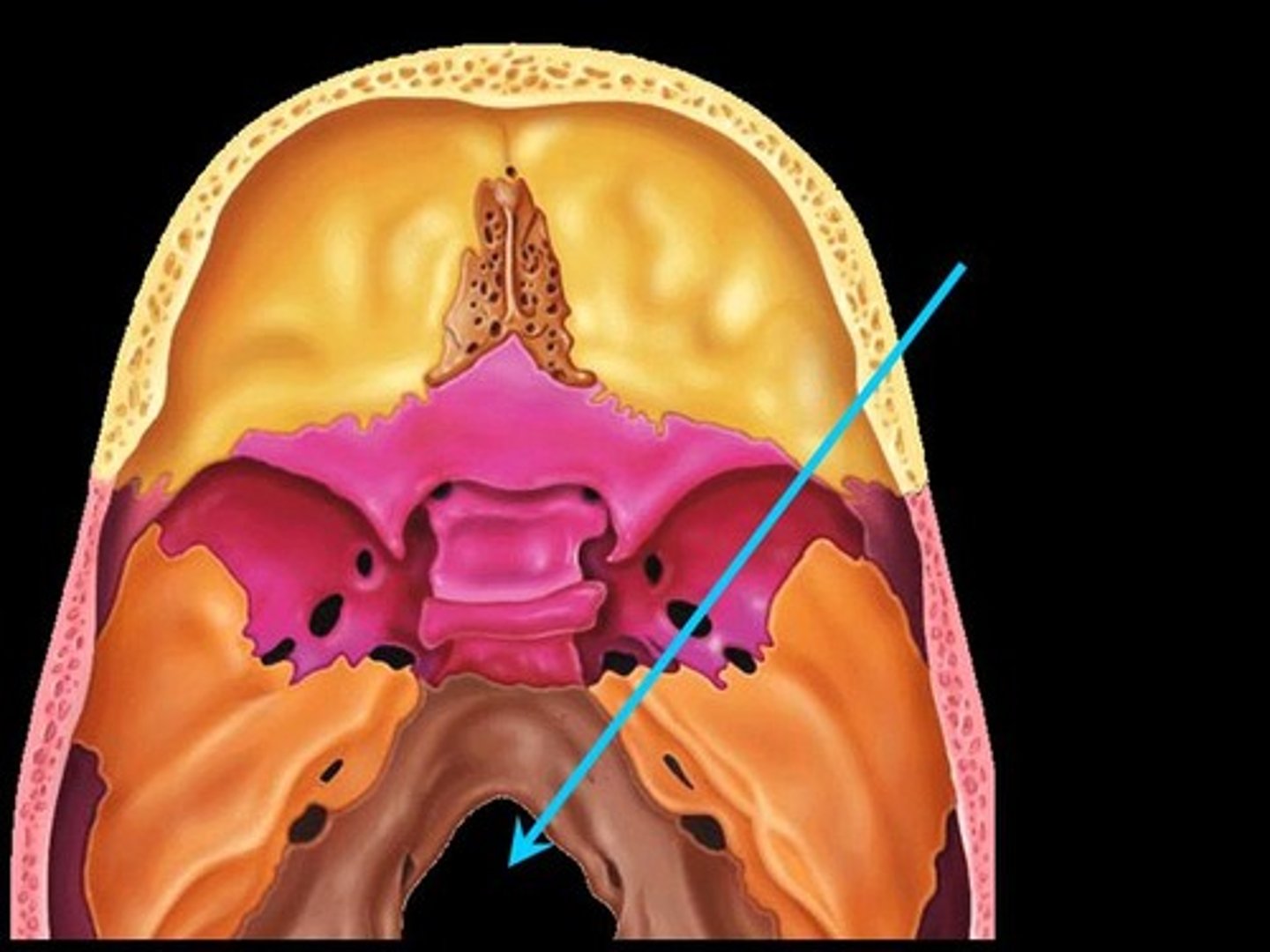

Foramen Magnum

A large opening at the base of the skull through which the brain connects to the spinal cord.

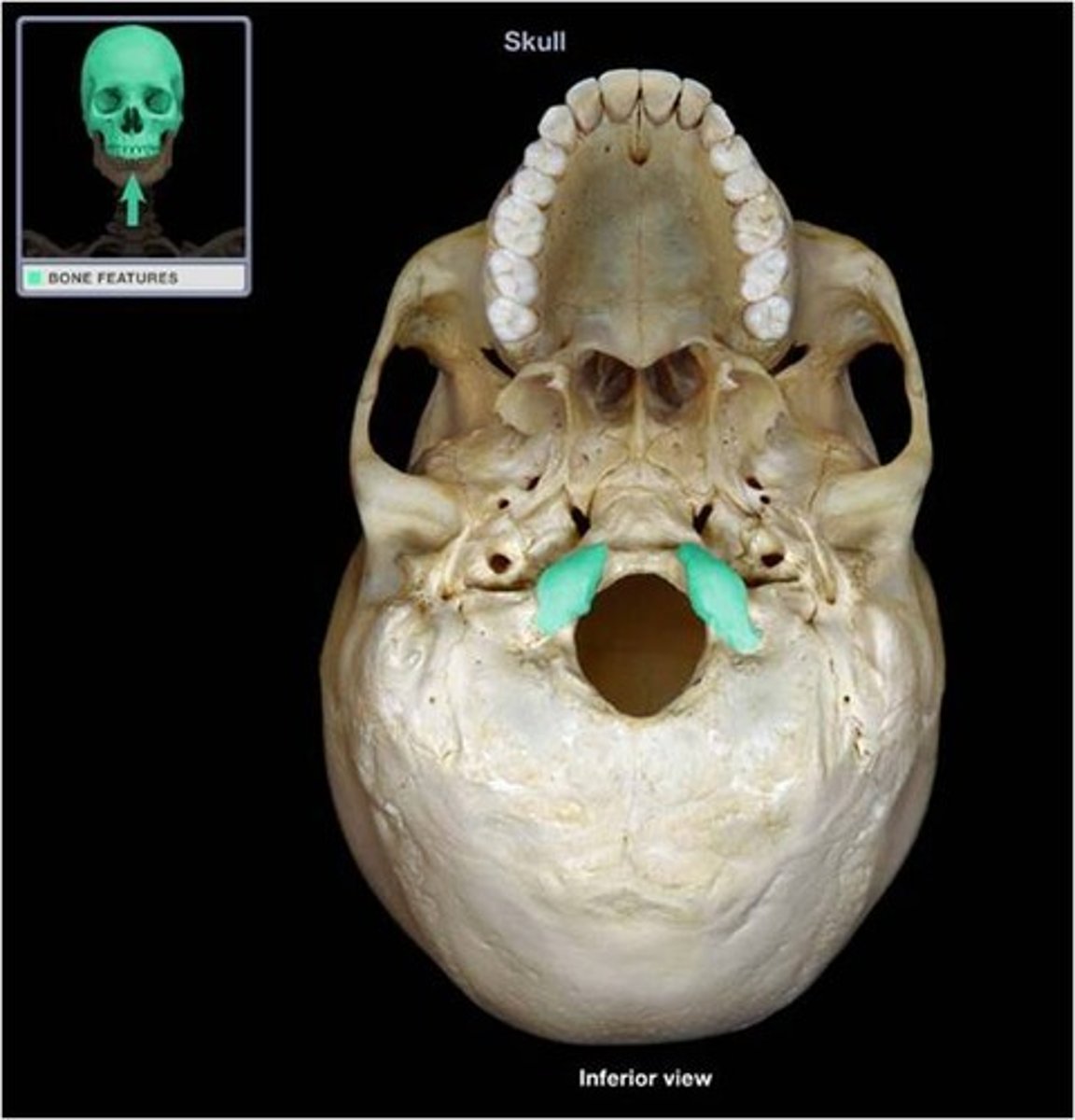

Occipital condyle

ridges on left and right of foramen magnum

Hard Palate

separates the oral and nasal cavities (breath and eat)

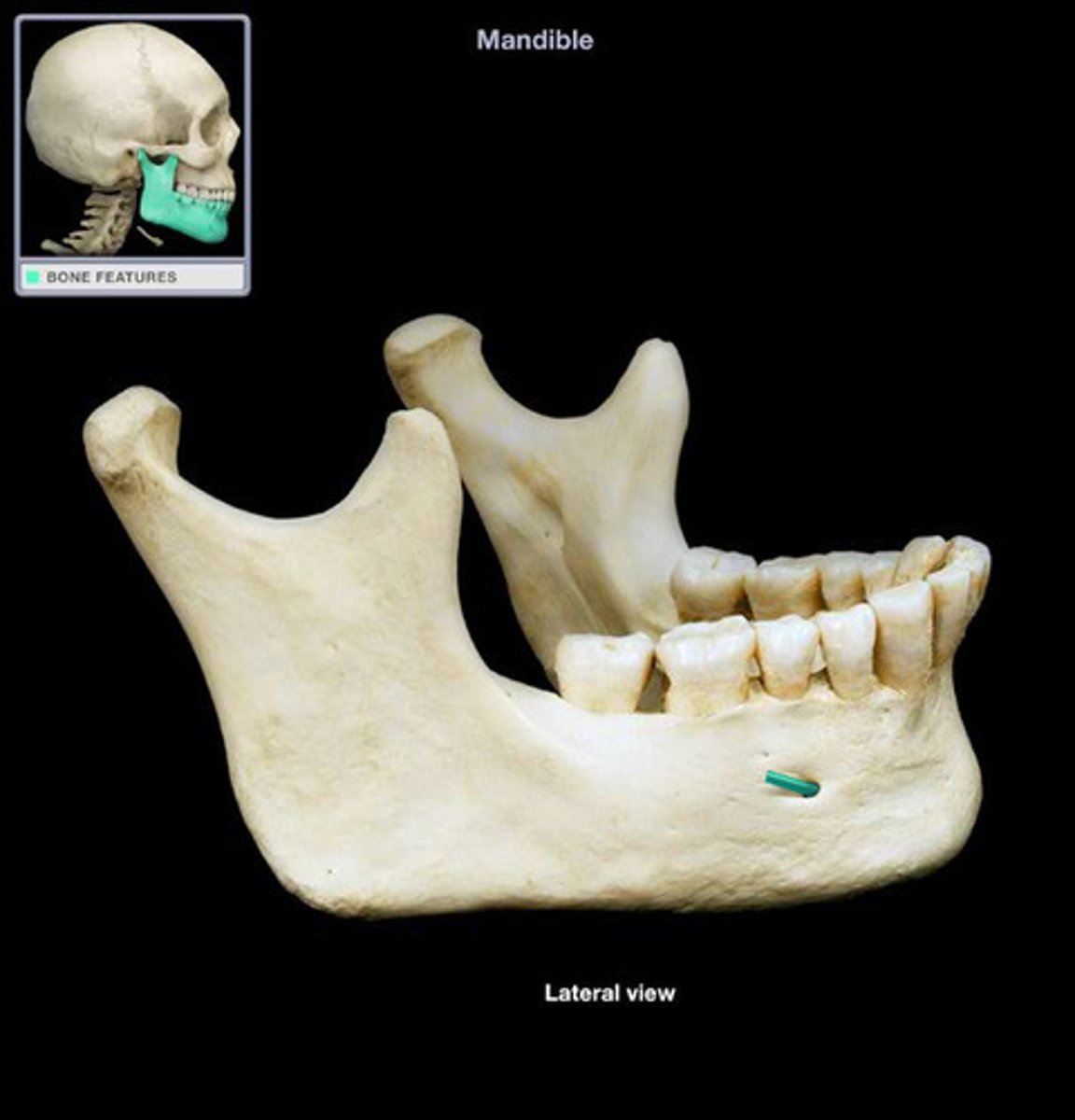

Mental foramen

Holes by the chin

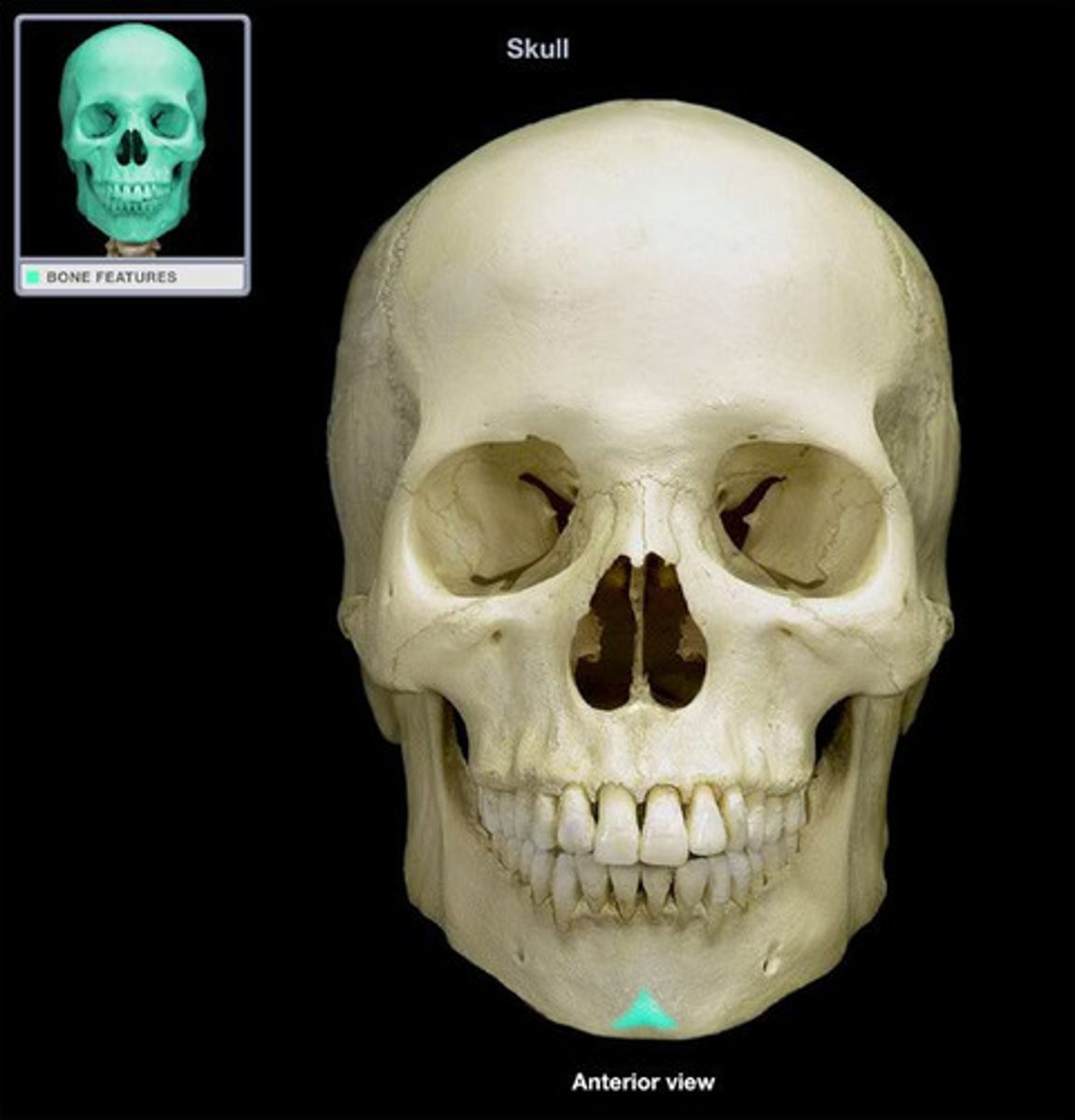

Mental protuberance

Part of the mandible that forms the chin

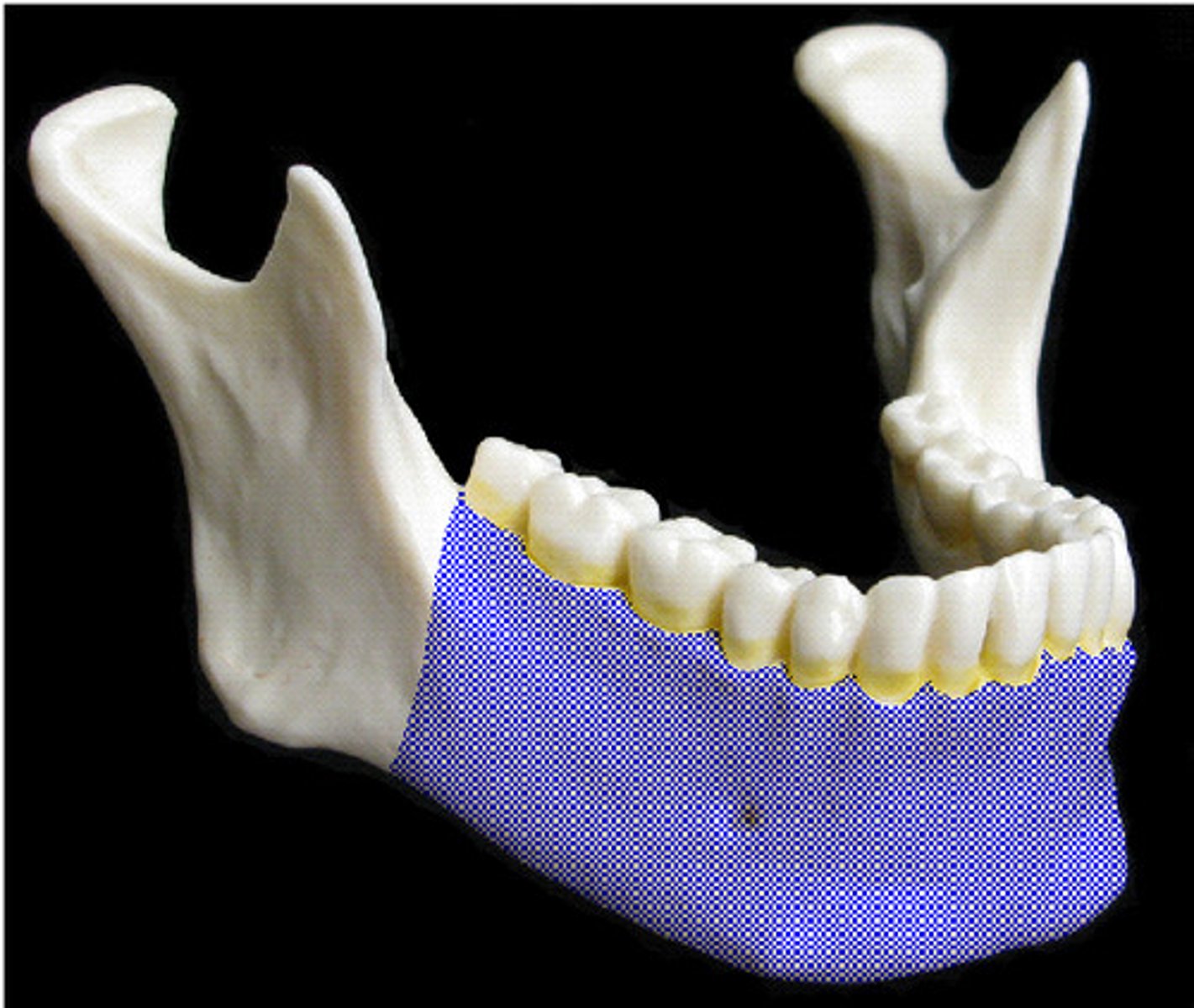

body of mandible

the horizontal portion of the lower jaw with teeth

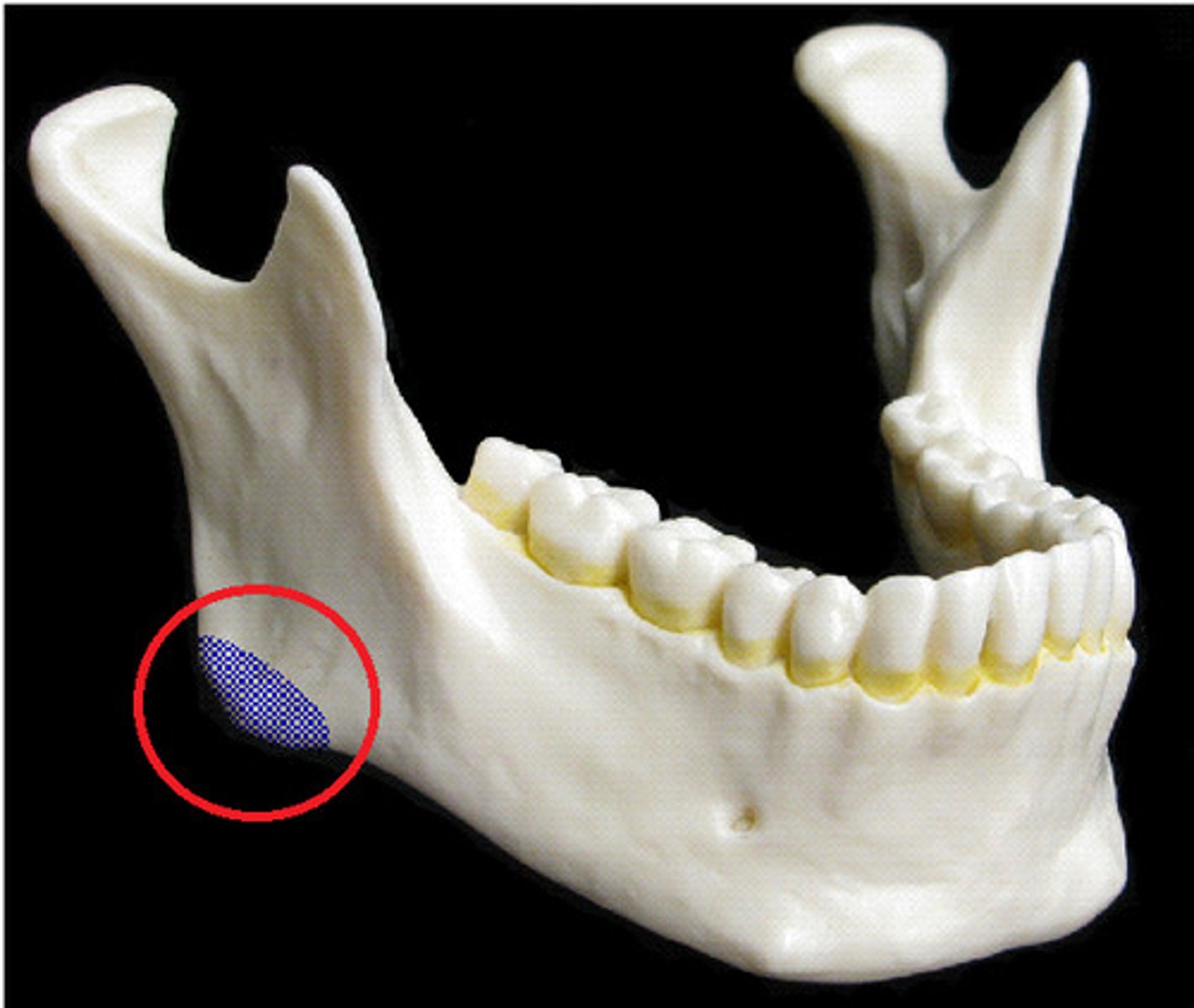

Angle of the mandible

The lower posterior of the ramus

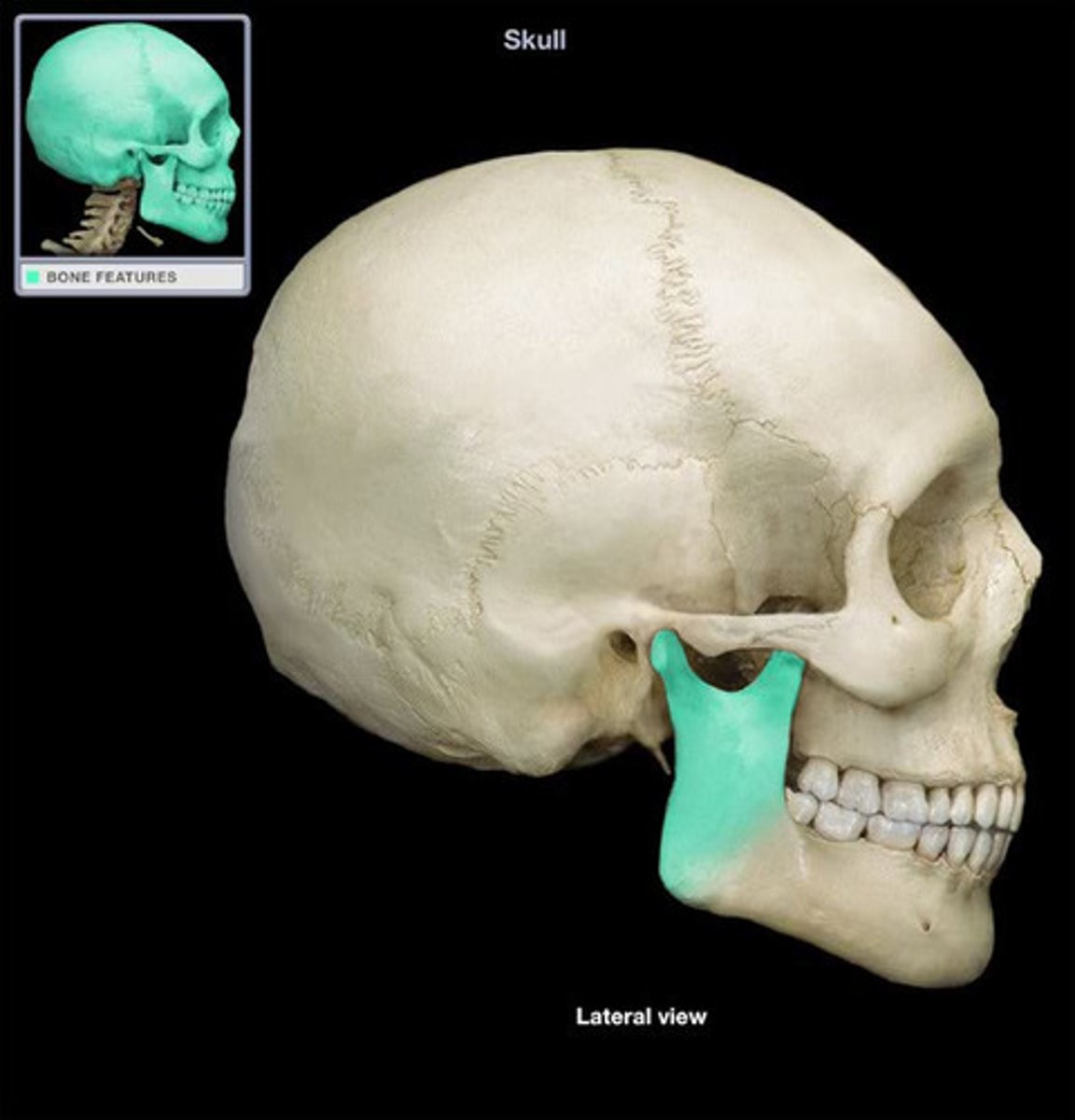

Ramus of mandible

vertical part of mandible with 2 projections

Condylar process

Posterior nob

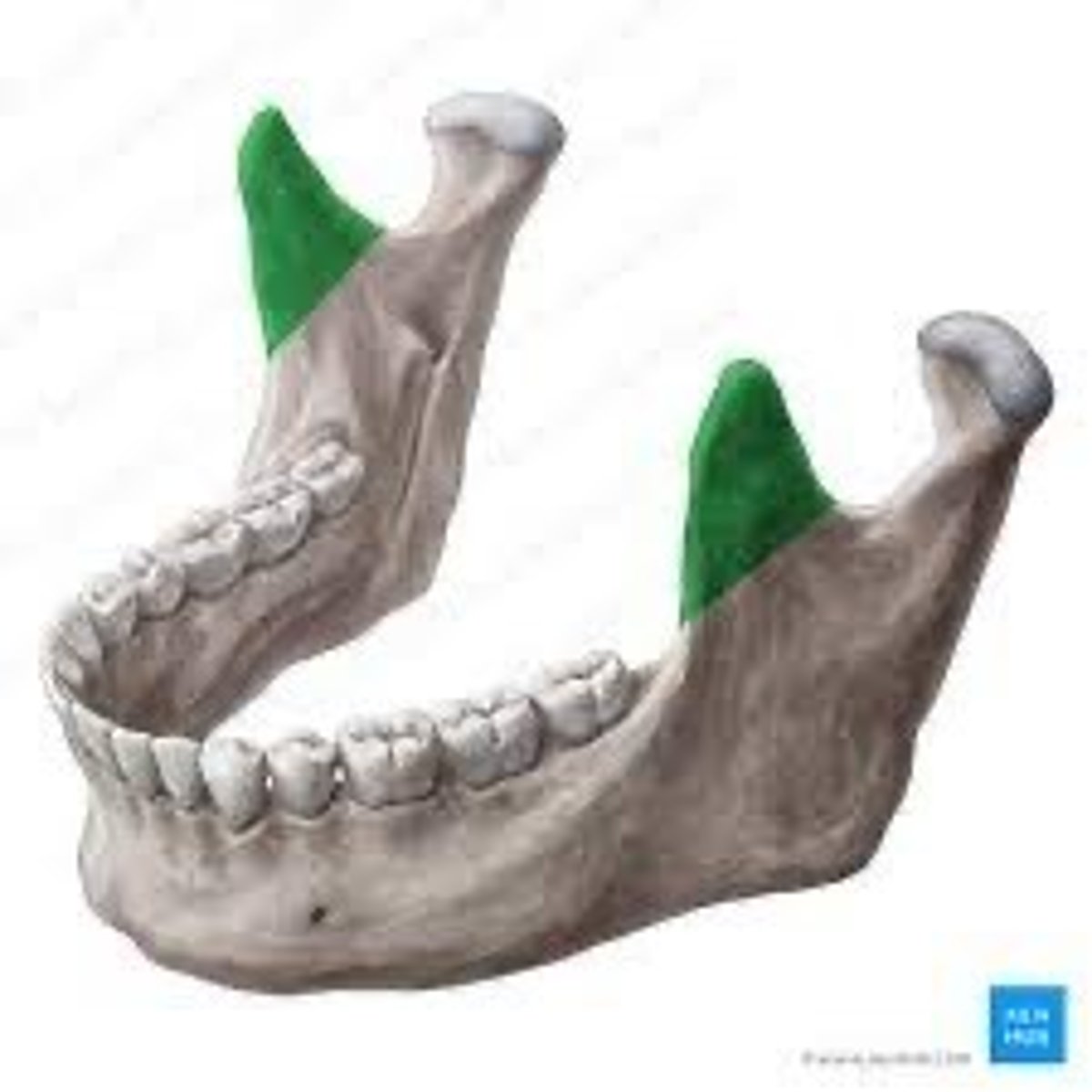

Coronado process

Anterior nob chewing

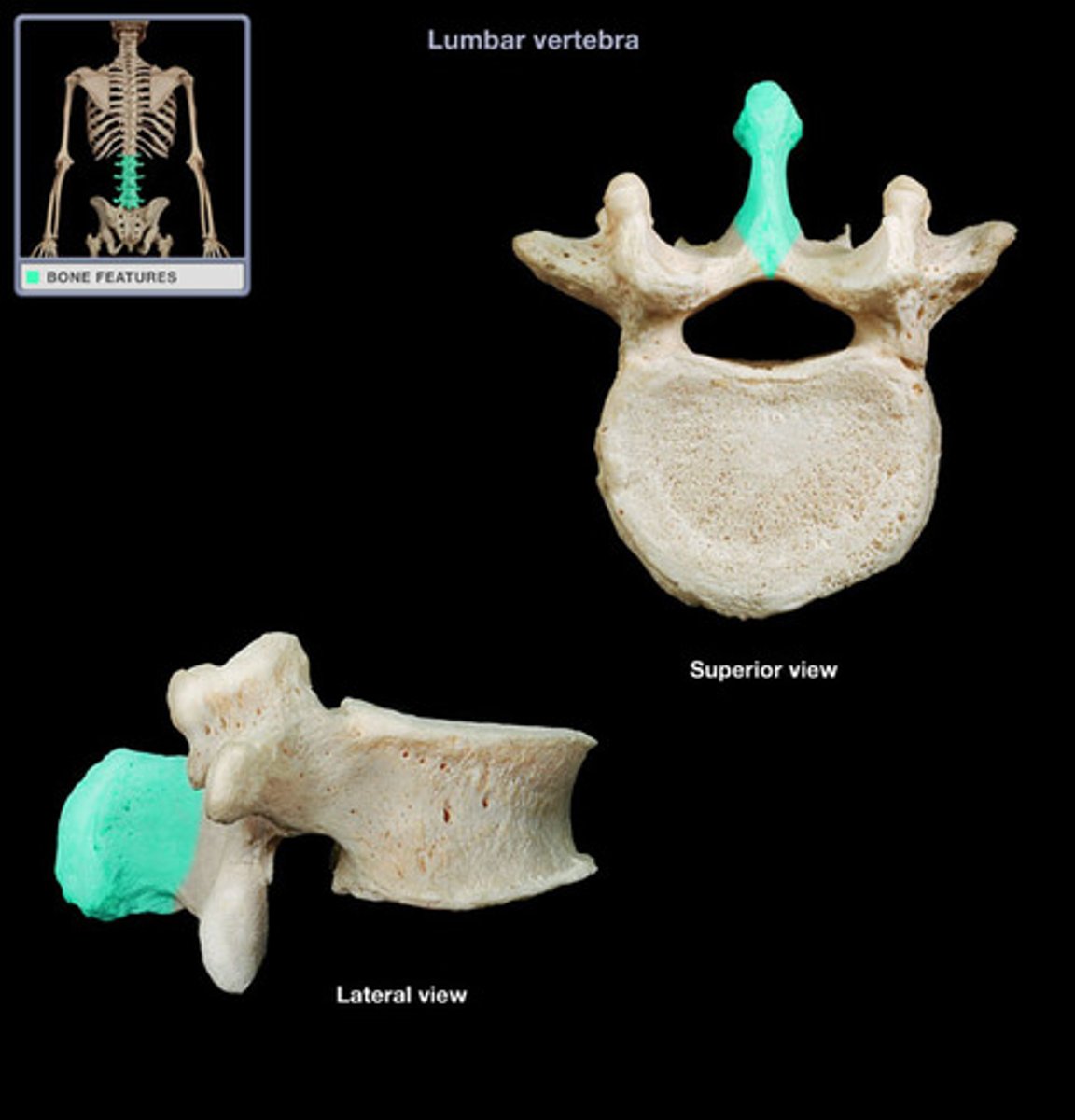

Spinous process

little bumps running down the back sticking through skin

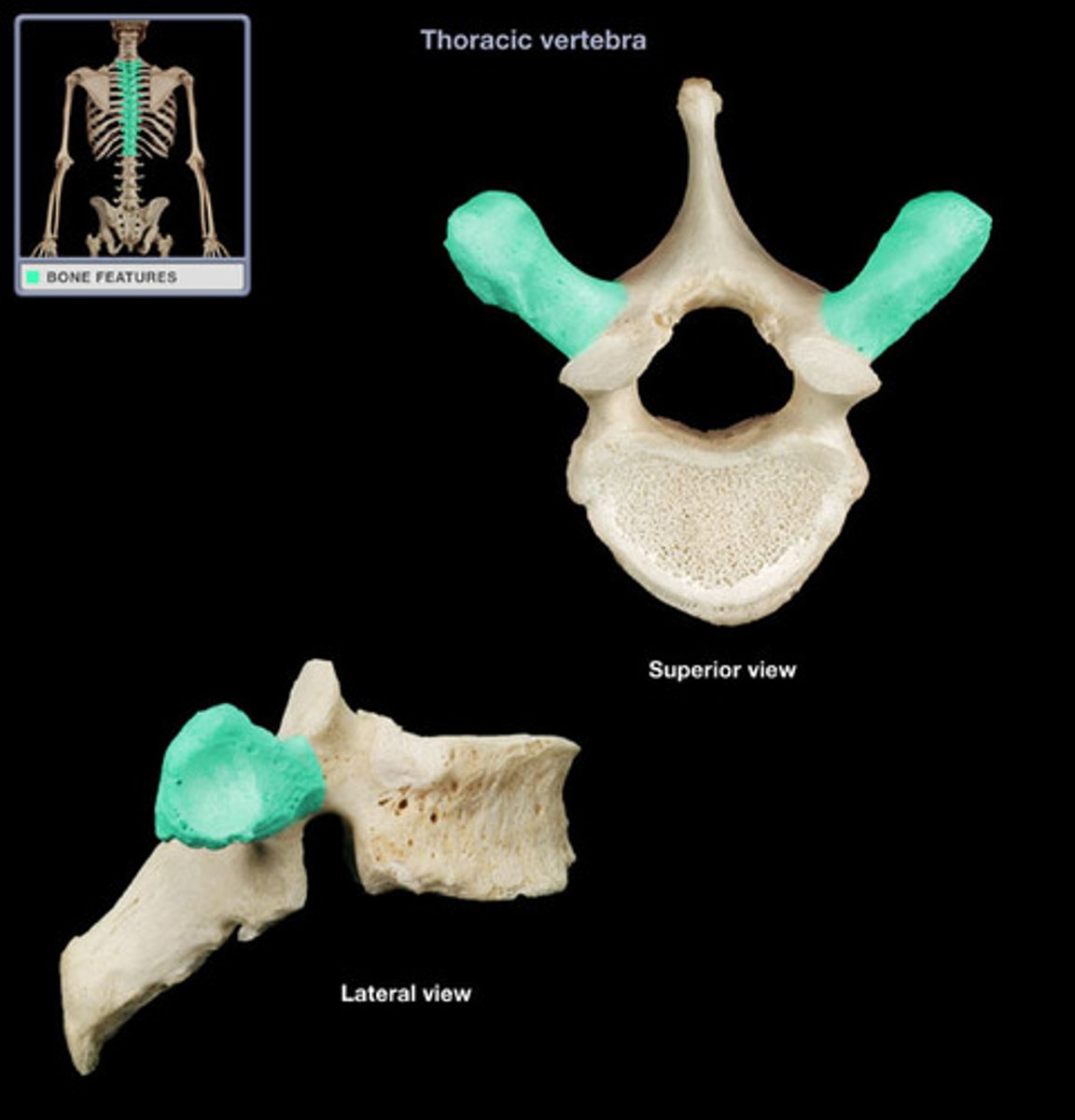

Transverse process

two lateral projections from the vertebral arch

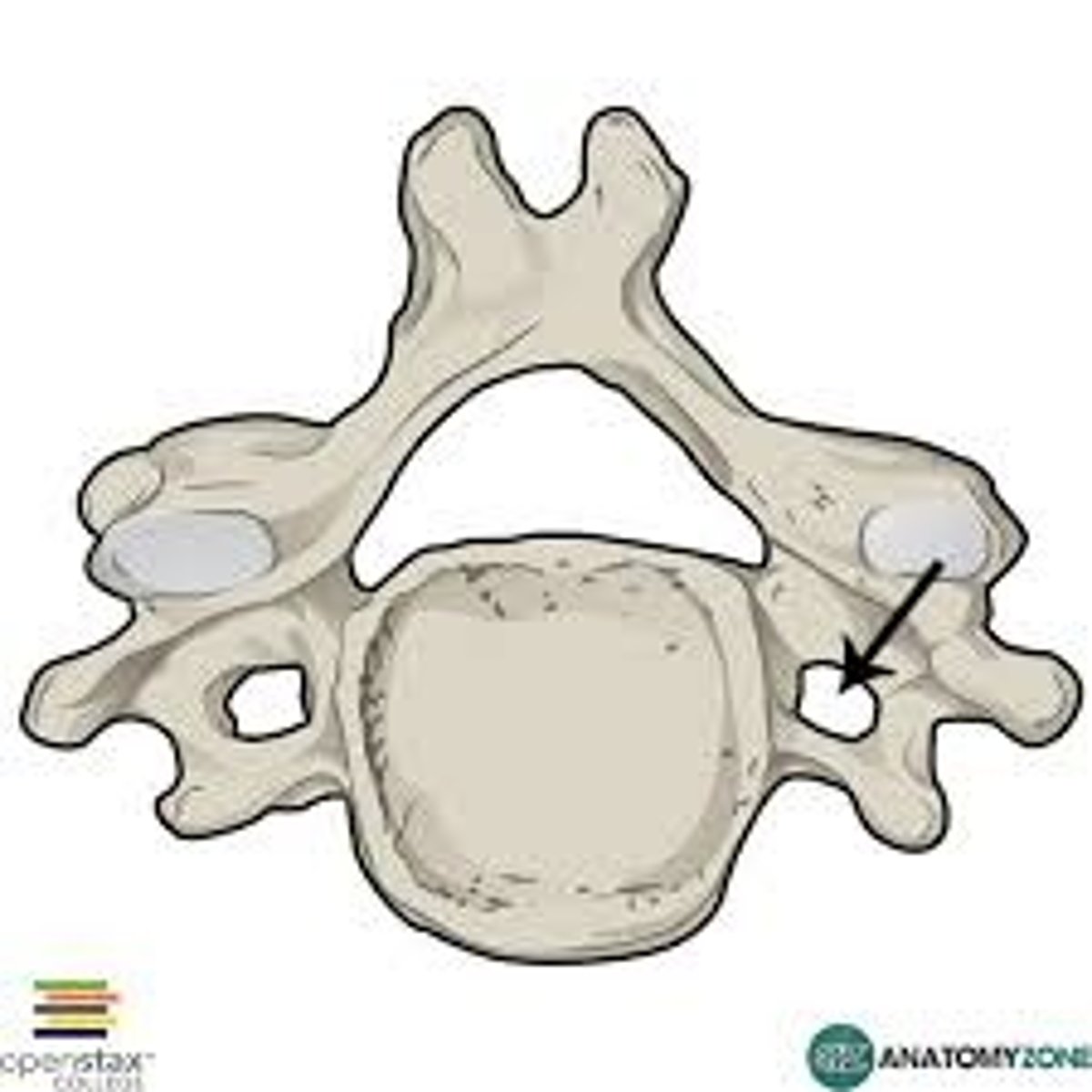

Transverse foramen (cervical only)

holes in the transverse cervical vertebrae

Sacral Foramen (sacrum only)

holes on sacrum

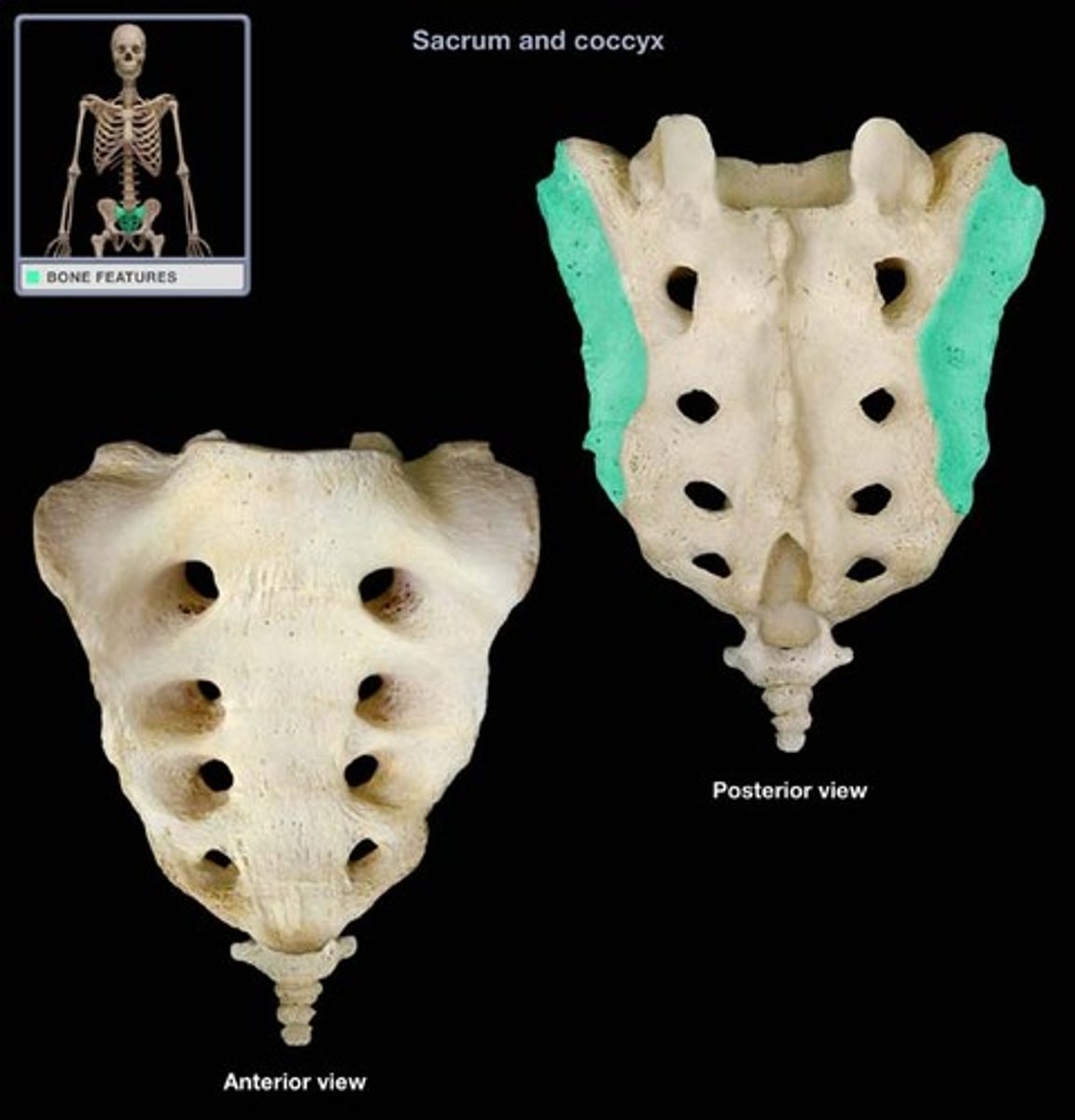

Auricular surface (sacrum only)

lines on sacrum

Foramen

Hole

Condyle

joint

Process

any bony prominence

Skull

Has mandible

cranium

no mandible

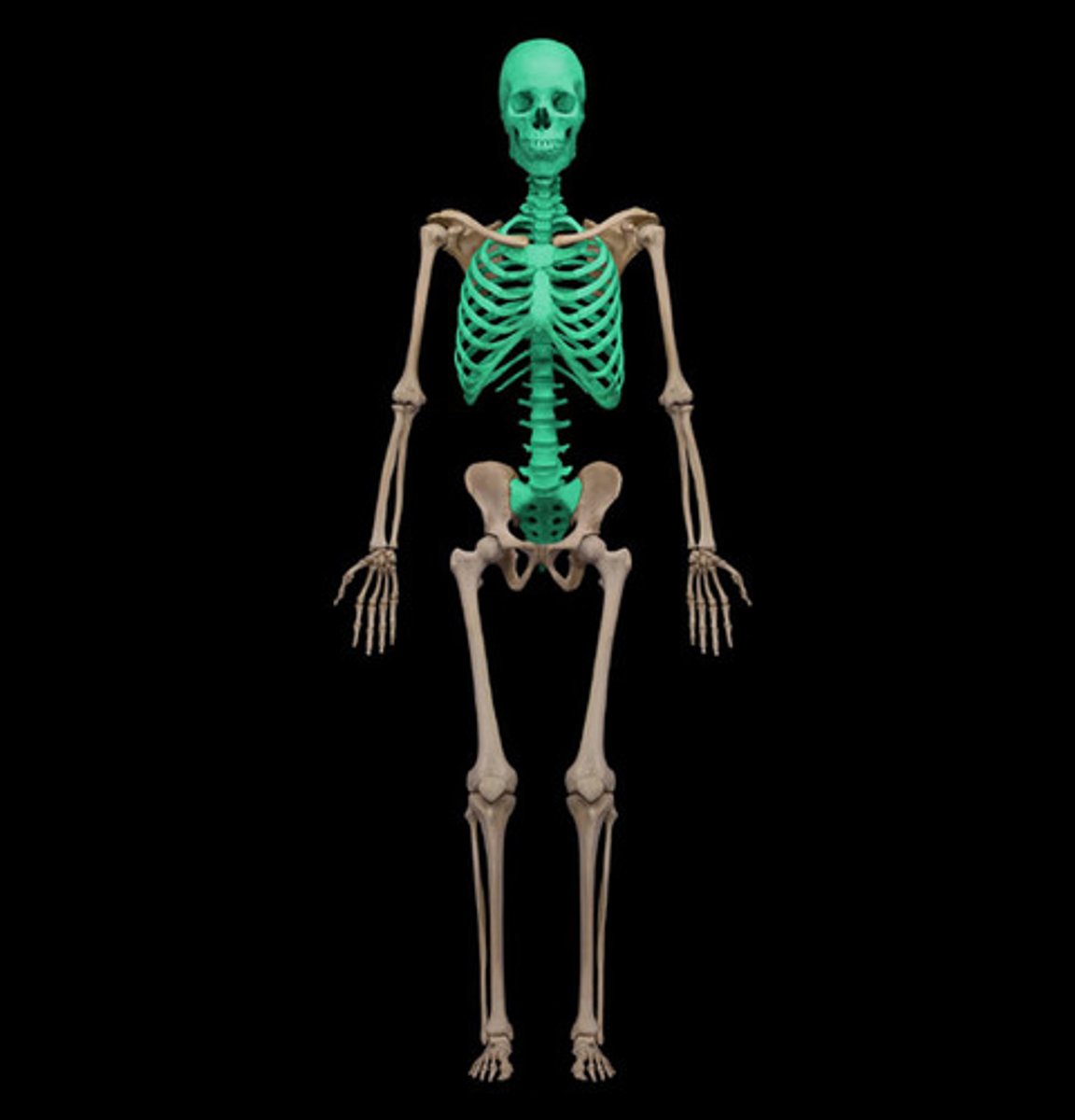

axial skeleton

skull, vertebral column, rib cage
