ROAD AND BRODGE DEFECTS DESCRIPTION

POTHOLES

CODE 1

ALLIGATOR CRACKS

CODE 2

MAJOR SCALING

CODE 3

SHOVING AND CORRUGATION

CODE 4

PUMPING AND DEPRESSION

CODE 5

NO / FADED ROAD MARKINGS

CODE 6

EDGE LINE

CODE 6-E

CENTER LINE

CODE 6-C

YELLOW LINE

CODE 6-Y

PEDESTRIAN LINE

CODE 6-P

DEFECTS ON SHOULDERS

CODE 7

LUSH VEGETATION

CODE 8

CLOGGED DRAINS

CODE 9

OPEN MANHOLE

CODE 10

NO / INADEQUATE SEALANT IN JOINTS

CODE 11

CRACKS

CODE 12

RAVELING

CODE 13

UNMAINTAINED SIGNAGES AND ROAD MARKERS

CODE 14

UNMAINTAINED BRIDGES

CODE 15

UNMAINTAINED GUARDRAILS

CODE 16

3 DAYS

CODE 1 RESPONSE TIME

3 DAYS

CODE 2 RESPONSE TIME

30 DAYS

CODE 3 RESPONSE TIME

10 DAYS

CODE 4 RESPONSE TIME

30 DAYS

CODE 5 RESPONSE TIME

15 DAYS

CODE 6 RESPONSE TIME

7 DAYS

CODE 7 RESPONSE TIME

3 DAYS

CODE 8 RESPONSE TIME

3 DAYS

CODE 9 RESPONSE TIME

10 DAYS

CODE 10 RESPONSE TIME

3 DAYS

CODE 11 RESPONSE TIME

3 DAYS

CODE 12 RESPONSE TIME

7 DAYS

CODE 13 RESPONSE TIME

10 DAYS

CODE 14 RESPONSE TIME

15 DAYS

CODE 15 RESPONSE TIME

15 DAYS

CODE 16 RESPONSE TIME

BRIDGE DECK

CODE 15-D

BRIDGE SIDE

CODE 15-S

BRIDGE PAINT

CODE 15-P

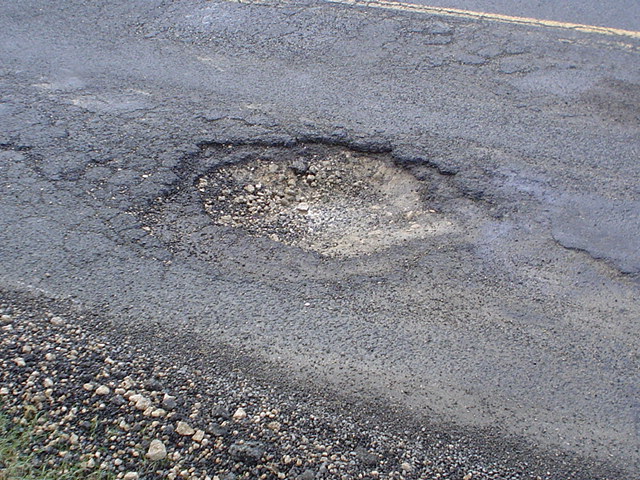

BOWL SHAPED DEPRESSION

the pavement surface resulting from the loss of wearing course

breakdown, chip, disintegration of slab surface at edges, joints, corners or cracks

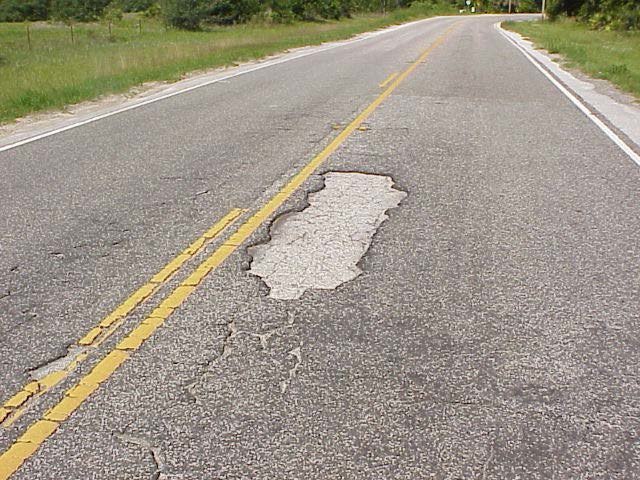

DELAMINATION

loss of a discrete area of wearing course layer, due to poor bonding between the surface and lower layer

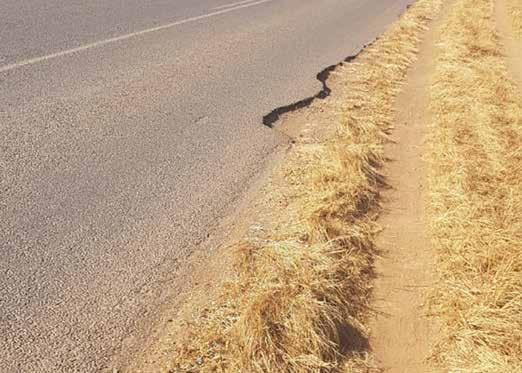

EDGE BREAK

edge of the bituminous surface is fretted, broken or irregular

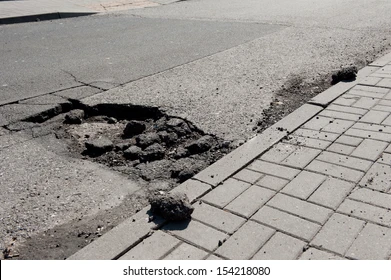

CHUCK-HOLE OR PUNCH OUT

a depressed or broken part of a slab resulting from pavement cracking and disintegration of concrete

ALLIGATOR CRACKS

interconnected or interlaced cracks forming a series of small polygons resembling an alligatir hide

MAJOR SCALING

deterioration of the upper concrete slab surface

SHOVING AND CORRUGATION
