What is Magnetic Flux?

It is the total number of Magnetic Field Lines crossing an area.

2
New cards

What is the formula for Magnetic Flux (both scalar and vector forms).

knowt flashcard image
3
New cards

What is the formula for Magnetic Flux through a coil with multiple turns?

knowt flashcard image
4
New cards

Is magnetic Flux scalar or vector?

scalar

5
New cards

What is the dimensional formula of Magnetic Flux?

knowt flashcard image
6
New cards

What is the SI Unit of Magnetic Flux?

Joule per Ampere = weber (Wb)

or Tesla-m2 (as Tesla = Wb/m2)

7
New cards

What is the CGS unit of Magnetic Flux? How is it related to Webers?

knowt flashcard image
8
New cards

What is the formula for instantaneous Induced EMF? (Lenz’s Law)

knowt flashcard image
9
New cards

What is formula for instantaneous Induced EMF when B is constant?

knowt flashcard image
10
New cards

What is formula for instantaneous Induced EMF when A is constant?

knowt flashcard image
11
New cards

What is the formula for average Induced EMF?

knowt flashcard image
12
New cards

What is the formula for total charge flow in a coil due to flux change?

knowt flashcard image
13
New cards

What is formula for motional EMF in a conductor?

where

v = velocity vector of conductor

B = external magnetic field (uniform)

l = length vector of conductor along current flow

<p>where</p><p>v = velocity vector of conductor</p><p>B = external magnetic field (uniform)</p><p>l = length vector of conductor along current flow</p>
14
New cards

Formula for motional EMF is E=vBl.

When two of those vectors are parallel, what is the formula for motional EMF?

E=0.

15
New cards

In a conductor which has motional EMF=vBl, which direction is the positive terminal end in?

v x B (not l)

16
New cards

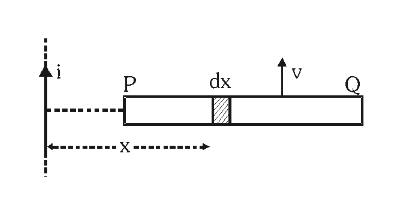

<p>What is the formula for motional EMF across this conductor?</p>

What is the formula for motional EMF across this conductor?

where L is the length of the conductor.

<p>where L is the length of the conductor.</p>
17
New cards

What is the formula for motional EMF due to the rotation of a conducting rod (about one of its ends) in an external uniform magnetic field?

knowt flashcard image
18
New cards

What is the formula for motional EMF due to the rotation of a conducting rod (about a point along its body and NOT at either end) in an external uniform magnetic field?

where a and b are the distances from the pivots to the ends of the rod

<p>where a and b are the distances from the pivots to the ends of the rod</p>
19
New cards

What is the formula for induced electric field along a conducting loop inside uniform but variable magnetic field?

What is the direction of electric field?

Induced Electric field has direction along circumference of loop in the direction of induced current (tangential to circle)

<p>Induced Electric field has direction along circumference of loop in the direction of induced current (tangential to circle)</p>
20
New cards

What is the formula for torque of rotation of non-conducting charged loop inside uniform but variable magnetic field?

knowt flashcard image
21
New cards

What is the formula for angular acceleration of rotation of non-conducting charged loop inside uniform but variable magnetic field?

knowt flashcard image
22
New cards
<p>What is the formula for induced electric field inside this cylindrical region at a point r when r&lt;R?</p>

What is the formula for induced electric field inside this cylindrical region at a point r when r<R?

knowt flashcard image
23
New cards
<p>What is the formula for induced electric field outside this cylindrical region at a point r when r&gt;R?</p>

What is the formula for induced electric field outside this cylindrical region at a point r when r>R?

knowt flashcard image
24
New cards

What is the formula for self inductance of a coil? (NOT (NBA/I))

knowt flashcard image
25
New cards

What is the SI unit of self inductance?

knowt flashcard image
26
New cards

What is the dimensional formula of self inductance?

knowt flashcard image
27
New cards

What is the formula for self inductance of a solenoid?

knowt flashcard image
28
New cards

What is the formula for potential difference across inductor?

if i is increasing, put positive sign

if i is decreasing, put negative sign

If i is constant, it’s 0

<p>if i is increasing, put positive sign</p><p>if i is decreasing, put negative sign</p><p>If i is constant, it’s 0</p>
29
New cards

What is the formula for energy stored in an Inductor?

knowt flashcard image
30
New cards

What is the Magnetic Field energy density inside an inductor?

knowt flashcard image
31
New cards

What is the formula for growth of current in an L-R circuit?

knowt flashcard image
32
New cards

What is the formula for time constant of an L-R circuit?

knowt flashcard image
33
New cards

In a growth L-R circuit, what percentage of maximum current is achieved after time t=𝜏 where 𝜏 is the time constant of the circuit

63%

34
New cards

What is the formula for the maximum current that can be achieved in an L-R circuit?

knowt flashcard image
35
New cards

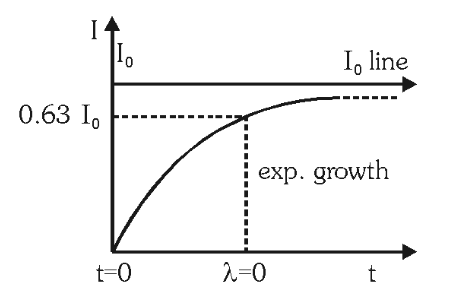

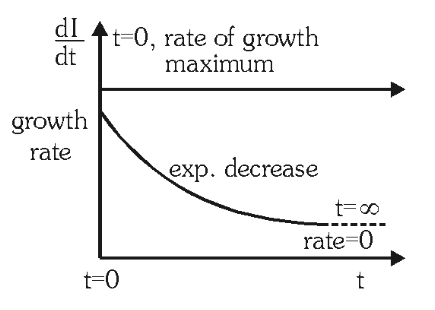

What is the graph for growth of current in an L-R circuit?

knowt flashcard image
36
New cards

What is the formula for potential difference across inductor in an L-R circuit?

knowt flashcard image
37
New cards

at t=0 in a growth L-R circuit, what is the potential difference across an inductor?

=emf

38
New cards

at t=𝜏 in a growth L-R circuit, what is the potential difference across an inductor?

37% of emf

39
New cards

at t=∞ in a growth L-R circuit, what is the potential difference across an inductor?

0

40
New cards

What is the graph for potential difference across inductor in a growth L-R circuit?

knowt flashcard image
41
New cards

What is the formula for decay of current in a decay L-R circuit?

knowt flashcard image
42
New cards

at t=𝜏 in a decay L-R circuit, what is the current in terms of current at t=0?

I = 37% of I0

43
New cards

at t=∞ in a decay L-R circuit, what is the current?

0

44
New cards

What is the formula for potential difference across inductor in a decay L-R circuit?

knowt flashcard image
45
New cards

at t=0 in a decay L-R circuit, what is the potential difference across an inductor?

I0R

46
New cards

at t=𝜏 in a decay L-R circuit, what is the potential difference across an inductor?

37% of I0R

47
New cards

at t=∞ in a decay L-R circuit, what is the potential difference across an inductor?

0

48
New cards

In a growth L-R circuit at t=0, the inductor behaves as a ______-resistance wire.

(infinite/zero)

infinite

49
New cards

In a growth L-R circuit at t=∞, the inductor behaves as a ______-resistance wire.

(infinite/zero)

zero

50
New cards

Shortcut trick for finding current and potential difference in a growth L-R circuit when there is only one inductor?

remove the battery of the circuit and calculate equivalent resistance about inductor and put 𝜏=L/Requivalent and substitute this in either current or potential difference formula.
