Dog - Bones of the Pelvic limb

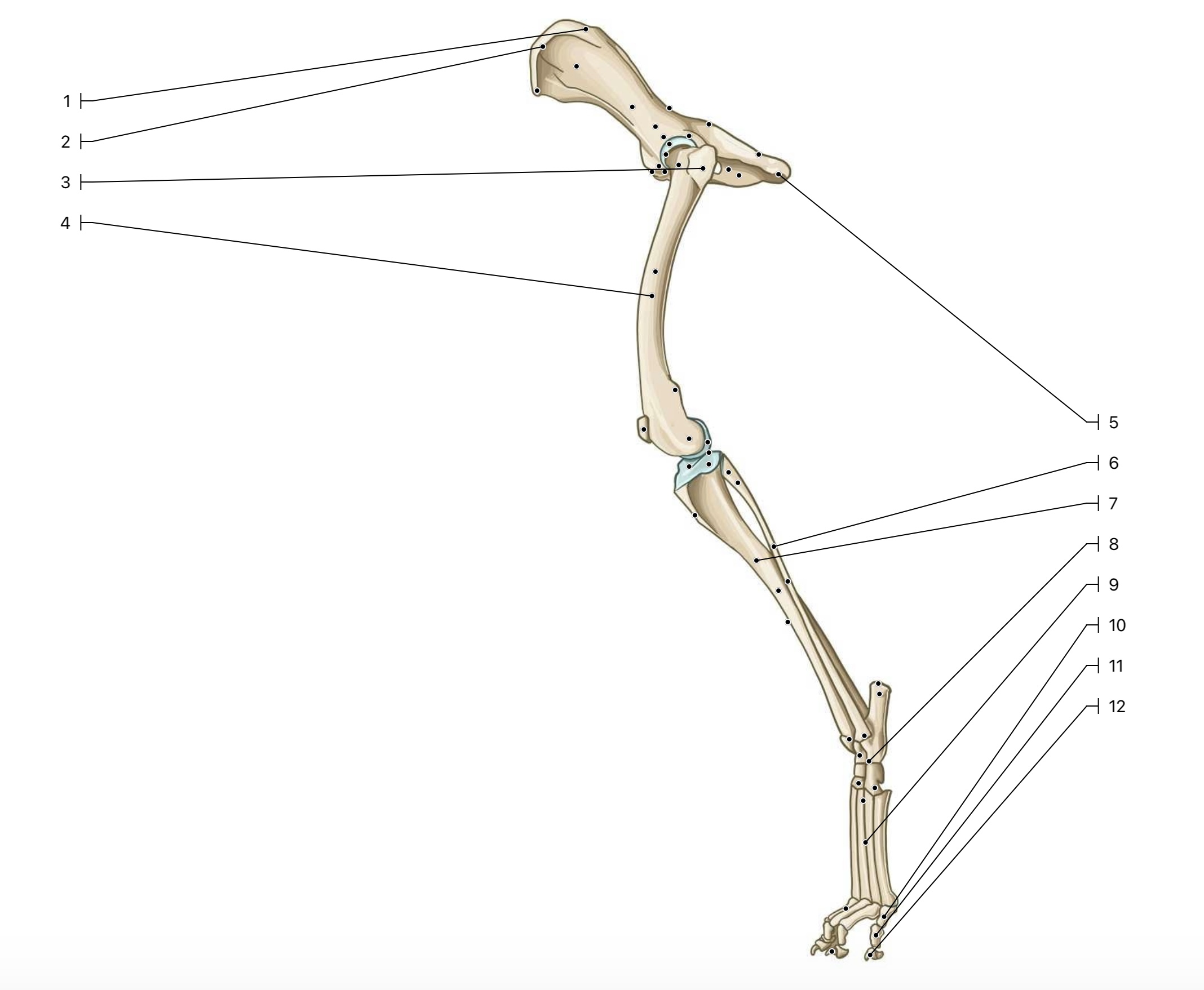

This is a lateral view of the pelvic limb. What part of the pelvis represents #1?

Sacral tuberocity/ Tuber sacrale

This is a lateral view of the pelvic limb. What part of the pelvis represents #2?

Iliac crest/ Crest of ilium

This is a lateral view of the pelvic limb. What is the bony projection that represents #3?

Greater trochanter

This is a lateral view of the pelvic limb. What bone represents #4?

Femur

This is a lateral view of the pelvic limb. What label represents the distal phalanx (P3)?

#12

This is a lateral view of the pelvic limb. What label represents the middle phalanx (P2)?

#11

This is a lateral view of the pelvic limb. What label represents the proximal phalanx (P1)?

#10

This is a lateral view of the pelvic limb. What label represents the metatarsal bones?

#9

This is a lateral view of the pelvic limb. What label represents the tarsal bones?

#8

This is a lateral view of the pelvic limb. What label represents the tibia?

#7

This is a lateral view of the pelvic limb. What label represents the fibula?

#6

This is a lateral view of the pelvic limb. What label represents the femur?

#4

This is a lateral view of the pelvic limb. What label represents the greater trochanter?

#3

This is a lateral view of the pelvic limb. What label represents the ischial tuberosity?

#5

This is a lateral view of the pelvic limb. What label represents the iliac crest?

#2

This is a lateral view of the pelvic limb. What label represents the sacral tuberosity?

#1

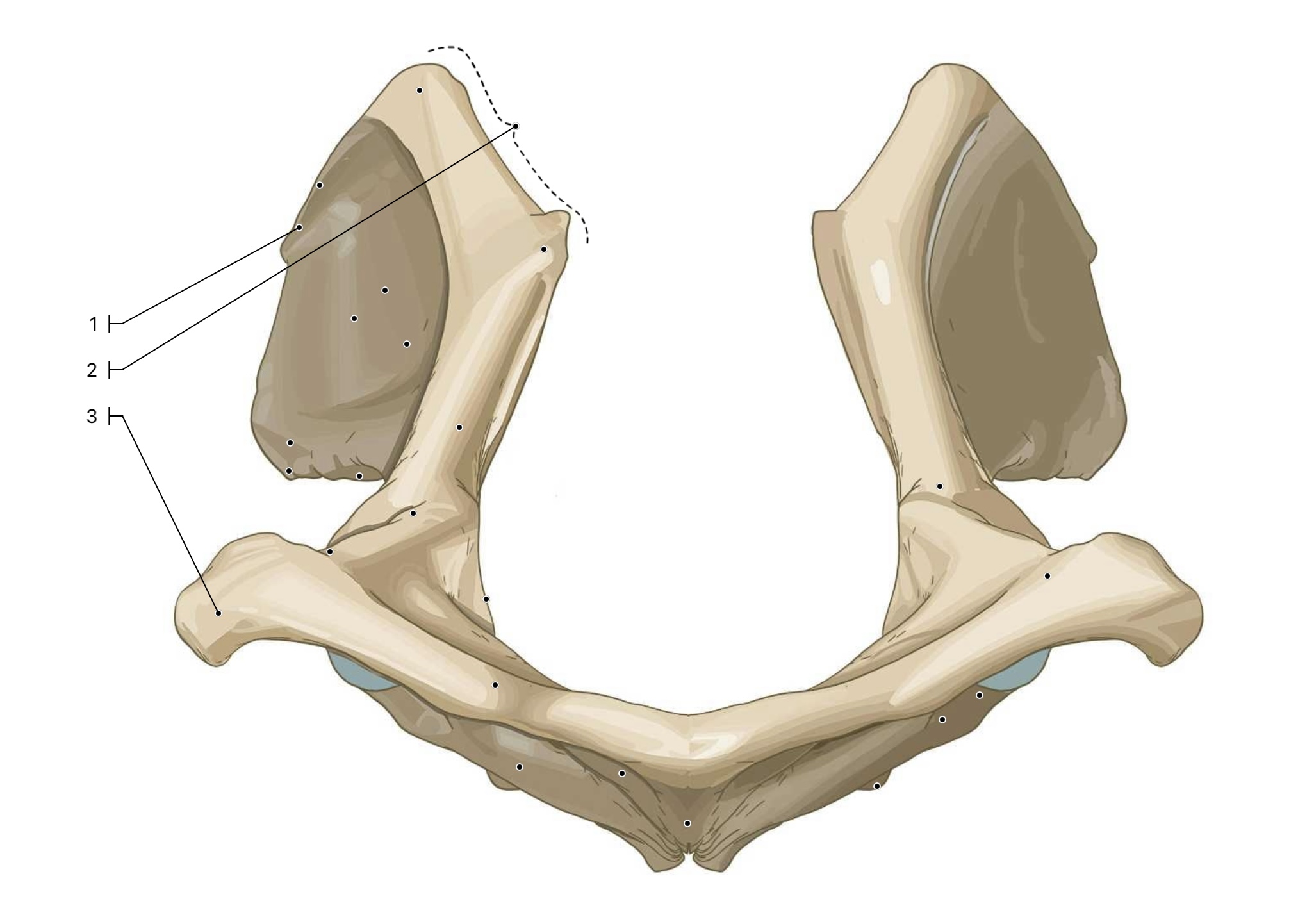

This is a cranial view of the pelvis. What are the 3 landmarks labeled?

1. Sacral tuberosity/ Tuber sacrale

2. Iliac crest/ Crest of ilium

3. Ischial tuberosity/ Tuber ischii

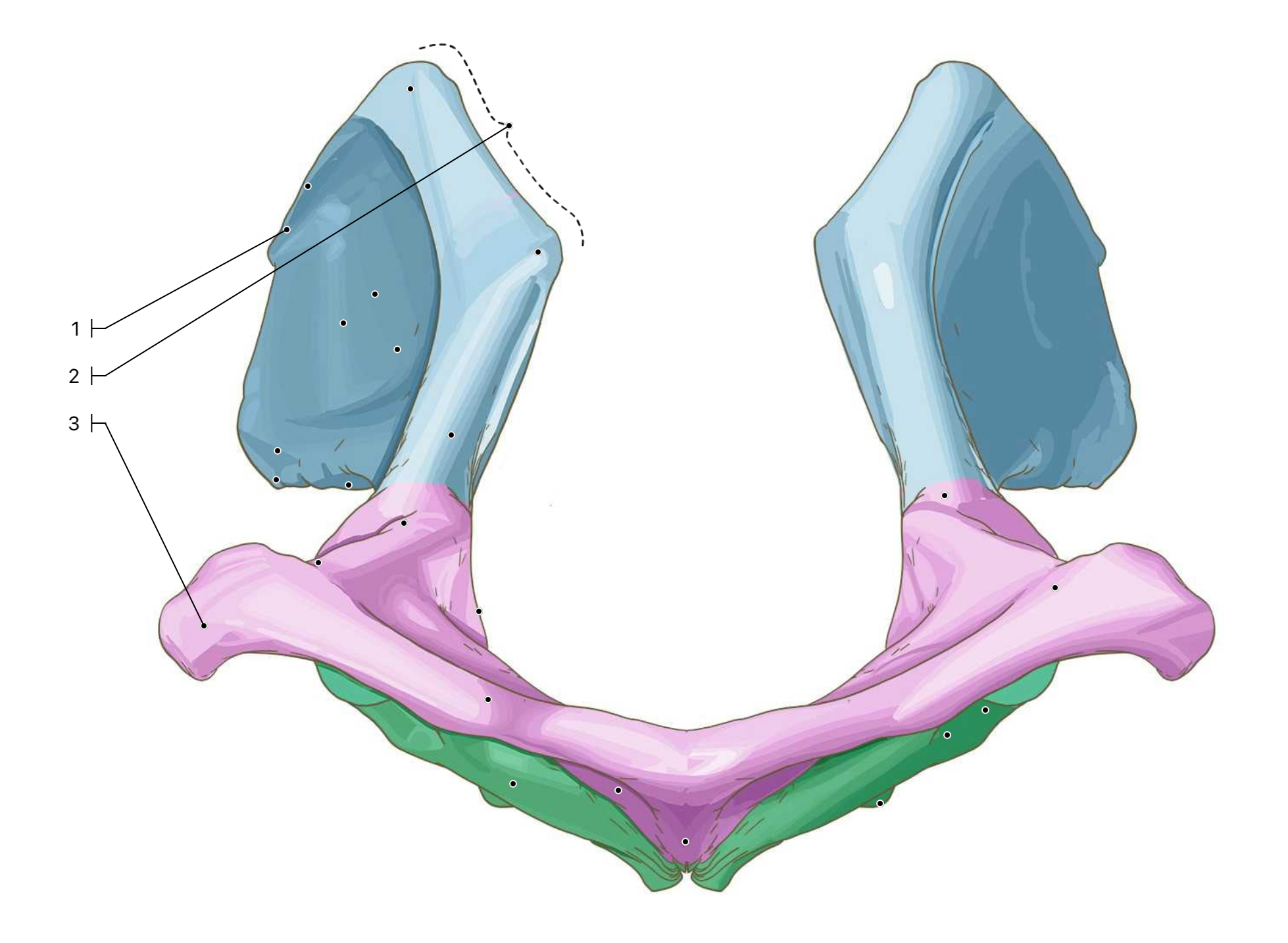

This is a cranial view of the pelvis. What label corresponds with the sacral tuberosity, iliac crest & ischial tuberosity?

Sacral tuberosity/ Tuber sacrale - #1

Iliac crest/ Crest of ilium - #2

Ischial tuberosity/ Tuber ischii - #3

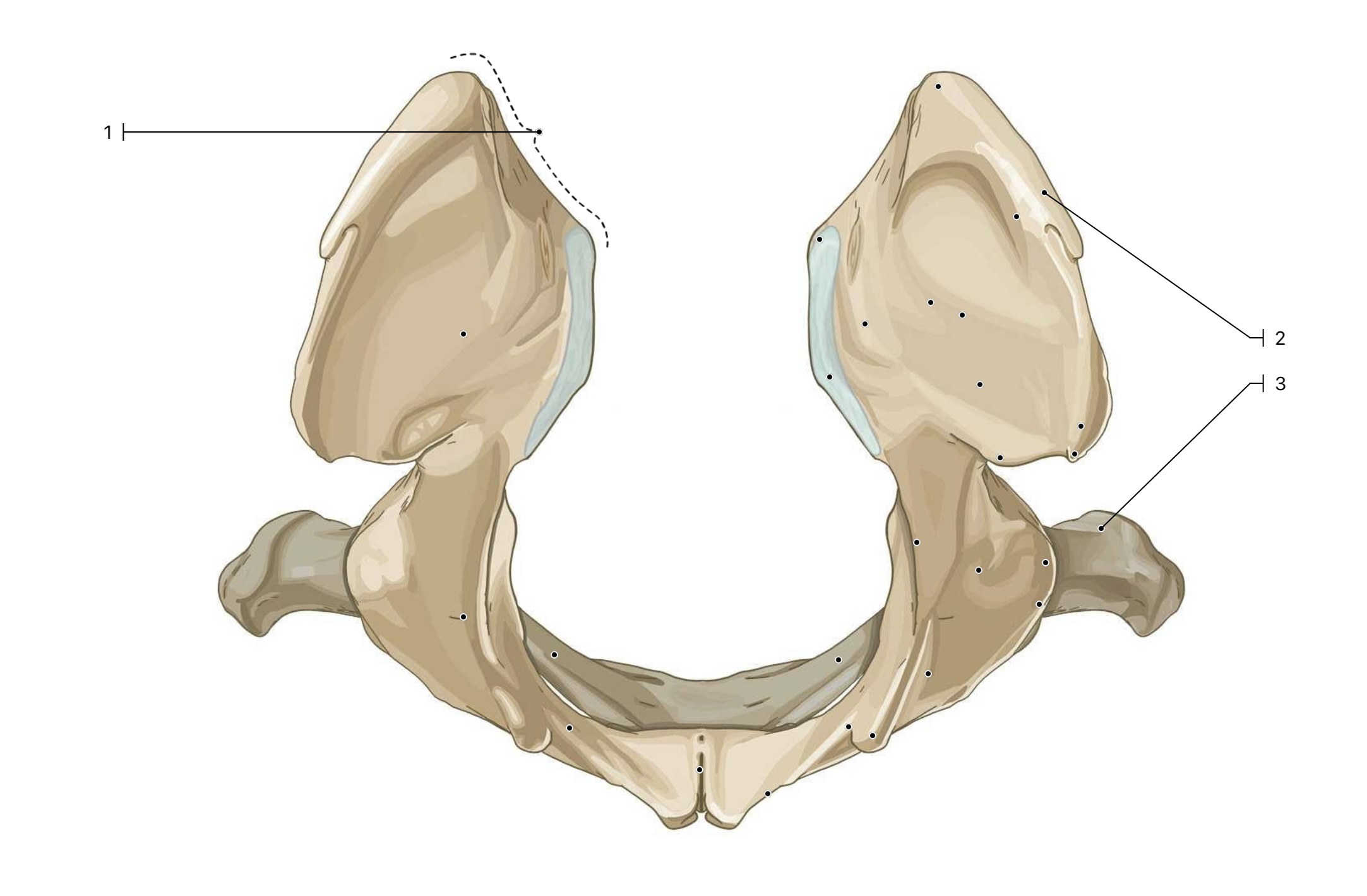

This is a caudal view of the pelvis. What are the 3 landmarks labeled?

1. Iliac crest/ Crest of ilium

2. Sacral tuberosity/ Tuber sacrale

3. Ischial tuberosity/ Tuber ischii

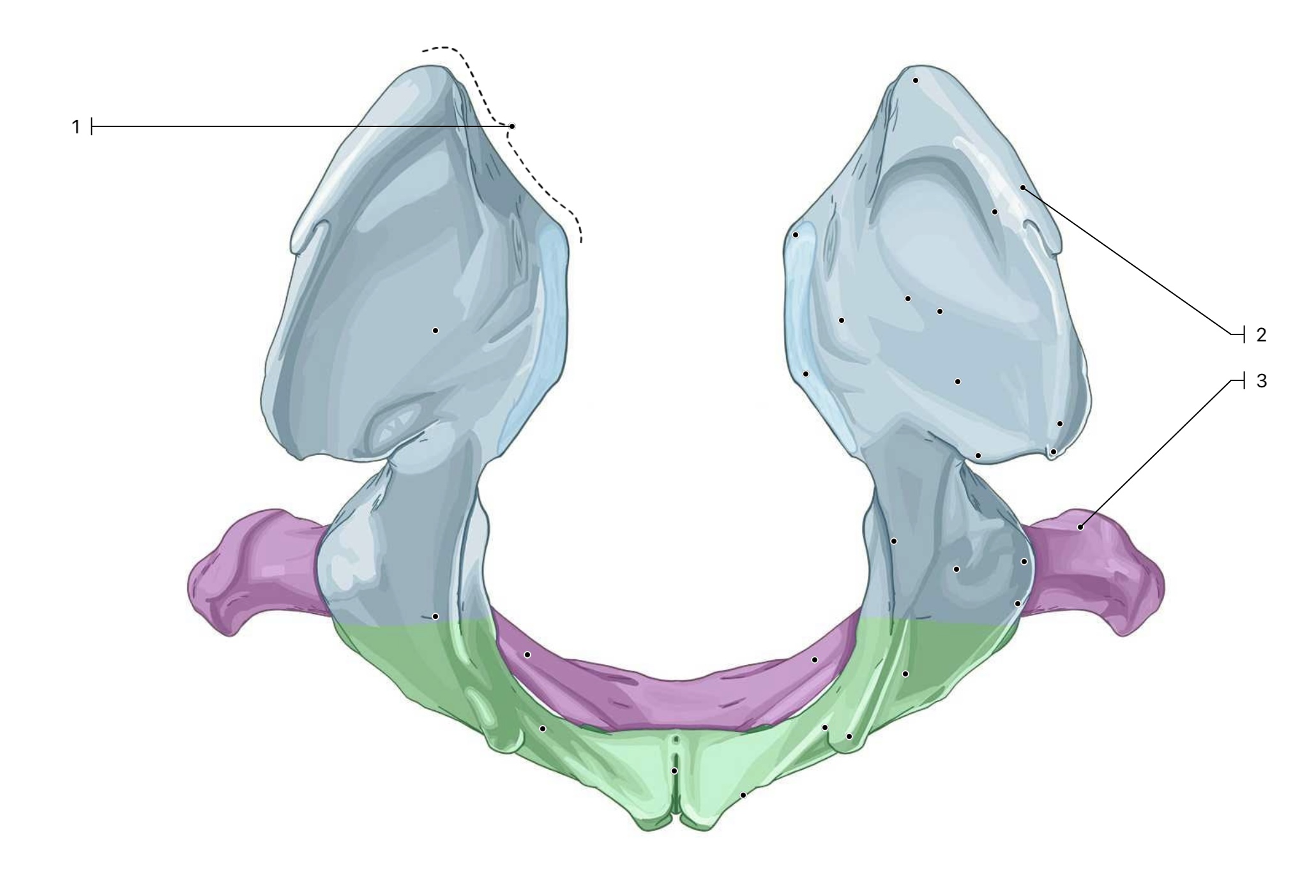

This is a caudal view of the pelvis. What label corresponds with the sacral tuberosity, iliac crest & ischial tuberosity?

Iliac crest/ Crest of ilium - #1

Sacral tuberosity/ Tuber sacrale - #2

Ischial tuberosity/ Tuber ischii - #3

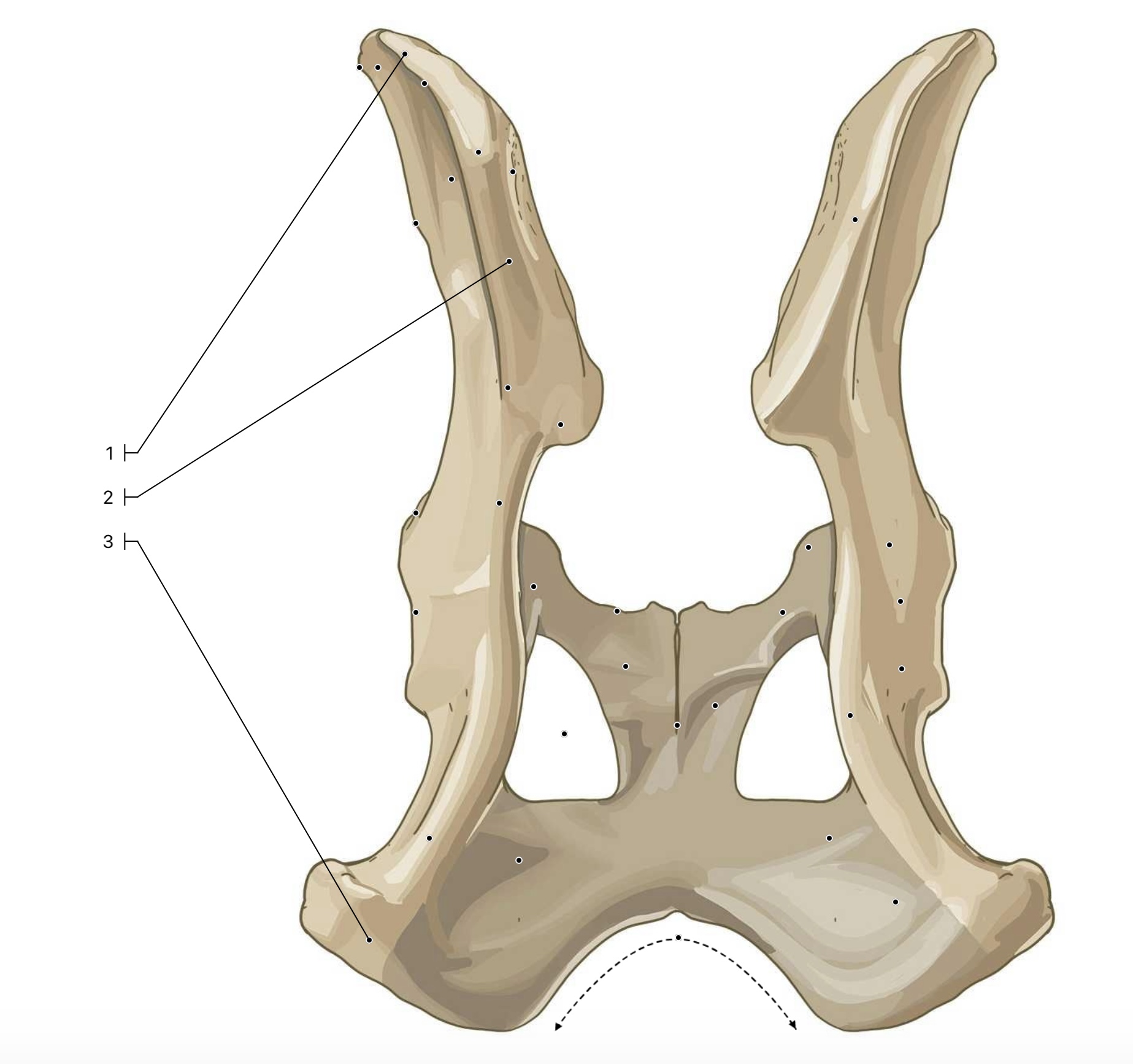

This is a dorsal view of the pelvis. What are the 3 landmarks labeled?

1. Iliac crest/ Crest of ilium

2. Sacral tuberosity/ Tuber sacrale

3. Ischial tuberosity/ Tuber ischii

This is a dorsal view of the pelvis. What label corresponds with the sacral tuberosity, iliac crest & ischial tuberosity?

Iliac crest/ Crest of ilium - #1

Sacral tuberosity/ Tuber sacrale - #2

Ischial tuberosity/ Tuber ischii - #3

What is the approximate position of the proximal end of the femur?

At the hip joint region; approximate location because the femoral head/neck are inside the acetabulum. The greater trochanter is the surface landmark you can palpate

What is the accurate position of the distal end of the femur?

At the stifle (knee) joint; accurate location because you can palpate the patella, femoral condyles, and trochlea directly
